Product type	Portable radio
Brand	Eton
Model	FR140
Power supply	Built-in rechargeable Ni-MH battery, USB port (cable not included), dynamo crank, solar panel
Reception bands	AM (medium wave), FM (ultra-short wave), SW (short wave I and II)
Short wave bands	49 m (5.8-6.2 MHz), 41 m (7.1-7.6 MHz), 31 m (9.4-10 MHz), 25 m (11.6-12.2 MHz)
Tuning	Manual via TUNING knob
Volume	POWER/VOLUME dial
Lighting	Built-in LED lamp (dedicated button on top)
Headphone jack	Yes, 3.5 mm mono output
Antenna	Telescopic for FM and SW
External battery charging	Possible via crank (10-15 min = 1 min of talk time) and dedicated output (cable and tip included)
Operating temperature	0 °C to 40 °C
Safety	Do not expose to rain or moisture; unplug if liquid is spilled; do not open the case
Cleaning	Dry cloth only, no solvents or detergents
Warranty	Limited warranty, registration recommended at www.etoncorp.com
After-sales service	Contact Eton (1-800-872-2228 USA, 1-800-637-1648 Canada, [e-mail])
Disposal	Comply with WEEE directive (2002/96/EC), do not dispose with household waste

Frequently Asked Questions - FR140 ETON

How to recharge the radio battery?

You can recharge the built-in Ni-MH battery in three ways: via the USB port (cable not included, full charge in 8 hours), by the crank (about 90 seconds of rotation), or with the solar panel (automatic charging when exposed to sunlight).

How long does a full charge take?

With the USB port, it takes about 8 hours for a full charge. The crank and solar do not guarantee a full charge but allow a top-up.

How to use the crank to charge a phone?

Set the POWER/VOLUME button to OFF, connect the phone charging cable to the dedicated output, select the appropriate tip, then turn the dynamo about 2 times per second for 10 to 15 minutes to get about 1 minute of talk time.

How to tune short wave?

Select the SW (short wave) band using the band selector, fully extend the telescopic antenna, then turn the TUNING knob to find a station. Best reception is often at night on the 49 m, 41 m, 31 m, and 25 m bands.

Can I listen to the radio without a battery?

No, the radio operates only on the built-in rechargeable battery. You must recharge it before use.

How to turn on the light?

Use the dedicated button on the top of the unit to turn the LED lamp on or off.

What to do if the radio won't turn on?

First check that the battery is charged. Try recharging via USB or crank. If the problem persists, contact Eton after-sales service (phone or email).

How to clean the device?

Use a dry, soft cloth. Never use detergents, solvents, or chemicals that could damage the finish.

What is the warranty for the Eton FR140 radio?

The warranty is limited. To benefit, keep your proof of purchase and register your product at www.etoncorp.com or mail in the warranty card.

Where can I download the full manual?

The PDF manual is available for free on notice-facile.com or on the manufacturer's website www.etoncorp.com. You can also request a translation by email.

USER MANUAL FR140 ETON

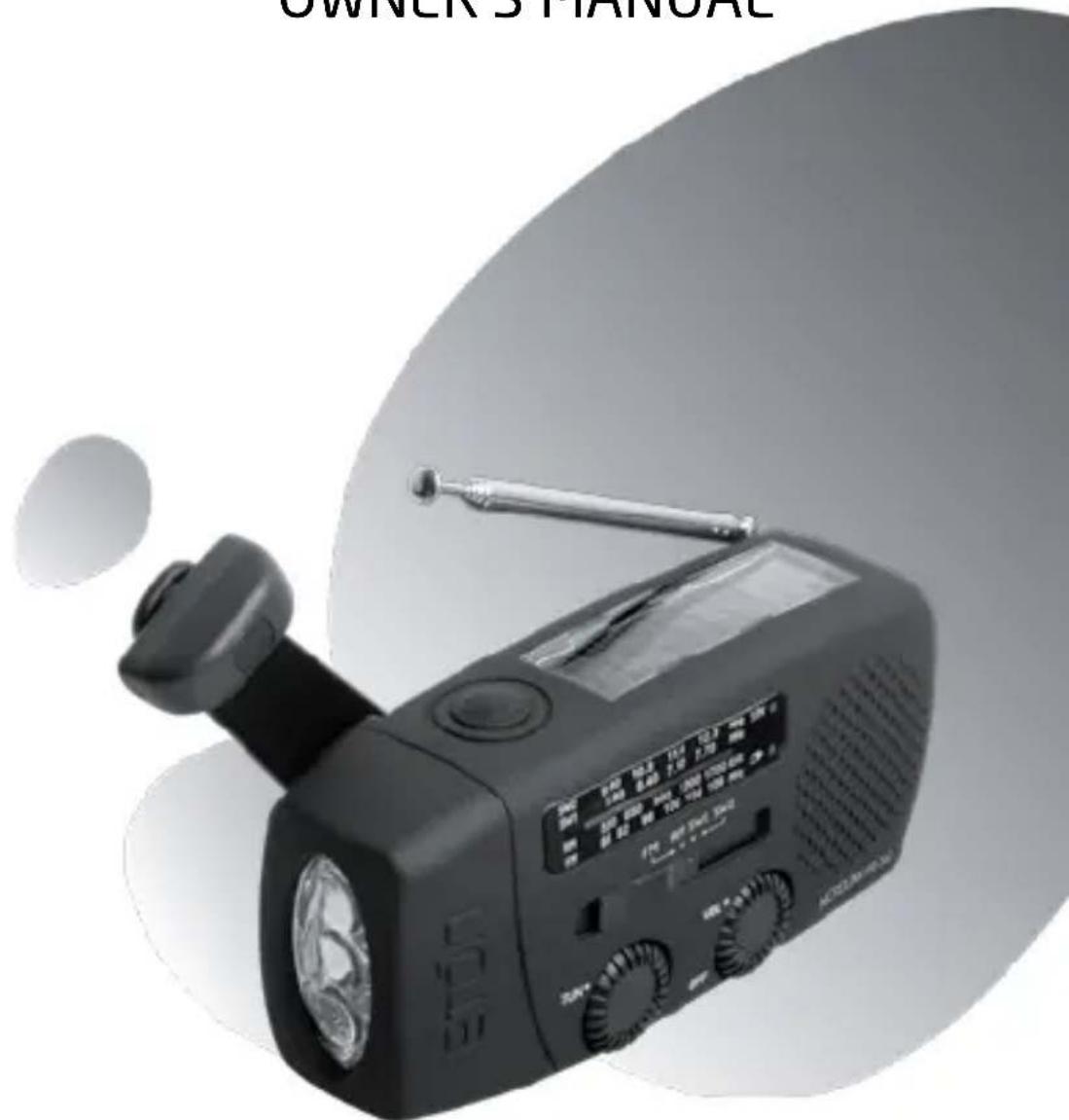

Solar-Powered, Self-Powered AM/FM/Shortwave Portable Radio with Flashlight and Cell Phone Charger

OWNER'S MANUAL

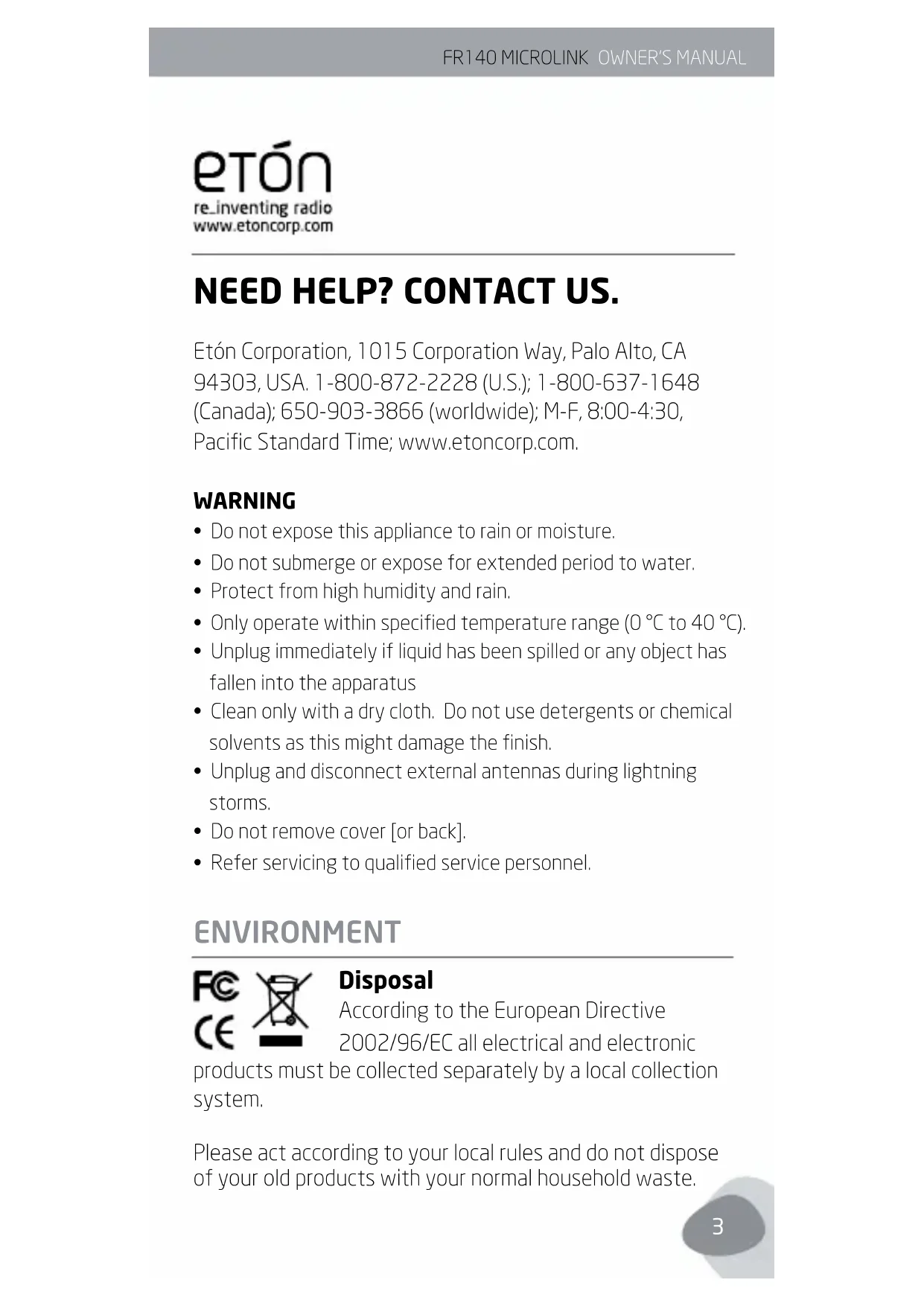

NEED HELP? CONTACT US.

Etón Corporation, 1015 Corporation Way, Palo Alto, CA 94303, USA. 1-800-872-2228 (U.S.); 1-800-637-1648 (Canada); 650-903-3866 (worldwide); M-F, 8:00-4:30, Pacific Standard Time; www.etoncorp.com.

WARNING

• Do not expose this appliance to rain or moisture.
• Do not submerge or expose for extended period to water.
• Protect from high humidity and rain.
• Only operate within specified temperature range (0 °C to 40 °C).
• Unplug immediately if liquid has been spilled or any object has fallen into the apparatus
• Clean only with a dry cloth. Do not use detergents or chemical solvents as this might damage the finish.
• Unplug and disconnect external antennas during lightning storms.
• Do not remove cover [or back].
  Refer servicing to qualified service personnel.

ENVIRONMENT

Disposal

According to the European Directive 2002/96/EC all electrical and electronic

products must be collected separately by a local collection system.

Please act according to your local rules and do not dispose of your old products with your normal household waste.

POWER SOURCES

1. Rechargeable battery pack (included).
2. USB port (USB cord not included).
3. Solar power panel.

CHARGING THE BATTERY PACK

• Plug a USB cord into the USB socket. Charging starts immediately.
• Turn the crank for about 90 seconds.
• The solar power adapter charges it automatically.

USING A USB CORD

Plug the cord into the USB socket. Once plugged in, the USB cord acts as a charger, charging the internal Ni-MH battery pack. Charge it for 8 hours to achieve a full charge

CELLPHONE CRANK CHARGING

Because cell phone batteries vary in their current ratings, we cannot specify charging rates or usage time. 10 to 15 minutes of cranking may result in 1 or more minutes of talk-time.

CELL PHONE CRANK CHARGING cont'd

1. Set POWER/VOLUME control to OFF position.
2. Plug the cell phone charging cord into the Phone Charge socket.
3. Select the correct charging tip for your phone.
4. Plug charging tip into the charging cord and into the phone's charging socket.
5. Rotate the dynamo crank about 2 turns per second.

TURNING THE RADIO ON AND OFF

Turn it on with the POWER/VOLUME control.

To turn it off, set POWER/VOLUME control to OFF.

ADJUSTING THE VOLUME

Set POWER/VOLUME control to desired level.

TUNING-IN STATIONS

1. Select AM, FM or Shortwave I or II with the band selector switch. For FM and Shortwave, fully extend the telescopic antenna.
2. Adjust the volume with the POWER/VOLUME control.
3. Tune stations with the TUNING knob.

TO GET THE BEST SHORTWAVE RECEPTION

Listen at night in the 49 meter band, 5.8-6.2 MHz; the 41 meter band, 7.1-7.6 MHz; the 31 meter band, 9.4-10 MHz; and 25 meter band, 11.6-12.2 MHz. You can also listen to the 25 meter band during the daytime in the early morning and late afternoon.

USING THE LIGHT

Turn on the light with the light switch on the top of the unit.

EARPHONE JACK

Plug in earphones (not included). Sound is heard from both sides in monaural.

WARRANTY REGISTRATION

To ensure full warranty coverage or product updates, registration of your product should be completed as soon as possible after purchase or receipt. You may use one of the following options to register your product:

WARRANTY REGISTRATION cont'd

1. By visiting our website at http://www.etoncorp.com.
2. Mail in enclosed warranty card.
3. Mail your warranty card or information to following address; include your name, full mailing address, phone number, email address, model purchased, date purchased, retail vendor name:

Etón Corporation

1015 Corporation Way

Palo Alto, CA 94303

LIMITED WARRANTY

Retain the warranty information from your warranty card with your proof of purchase or the Limited Warranty information can also be viewed at www.etoncorp.com.

SERVICE FOR YOUR PRODUCT

To obtain service for your product, we recommend first contacting an Etón service representative at 1-800-872-2228 US, 1-800-637-1648 Canada, [phone], [e-mail] or your respective country distributor in Europe (see enclosed list) for problem determination and trouble-shooting. If further

SERVICE FOR YOUR PRODUCT cont'd

service is required, the technical staff will instruct how to proceed based on whether the radio is still under warranty or needs non-warranty service.

WARRANTY - If your product is still in warranty and the Etón service representative determines warranty service is needed, a return authorization will be issued and instructions will be given. DO NOT ship your radio back without obtaining the return authorization.

NON-WARRANTY - If your product is no longer under warranty and requires service, the Etón service representative will refer you to the nearest repair facility that will best handle the repair.

For service outside North America, please refer to the distributor information included at time of purchase/ receipt.

FCC NOTE

The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.
