USER MANUAL E1100 ETON

E1100_manual_AUG06.qrk 8/10/06 4:06 PM Page 1

www.etoncorp.com

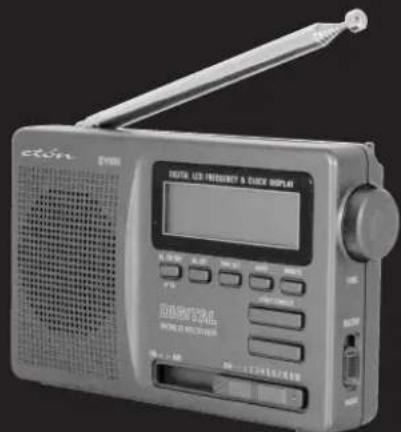

E 1 1 0 0

OPERATION MANUAL

elion ELION Digital LS Frequency & elion Display Digital Digital Display

AM/FM/SHORTWAVE RADIO

etón

etón

DO YOU NEED HELP? Contact Us.

If you need help, please contact us, Monday-Friday, 8:30 a.m.-4:00 p.m., North American Pacific Time. 1-800-872-2228 from the U.S; 1-800-637-1648 from Canada; 650-903-3866, worldwide; FAX: [phone]; web site, www.etoncorp.com; Etón Corporation, 1015 Corporation Way, Palo Alto, CA 94303, USA

WARNING

• Do not expose this appliance to rain or moisture.
• Do not submerge or expose for extended period to water.
• Protect from high humidity and rain.
• Only operate within specified temperature range (0 °C to 40 °C).
• Unplug immediately if liquid has been spilled or object have fallen into the apparatus.

- Clean only with a dry cloth. Do not use detergents or chemical solvents as this might damage the finish.

- Unplug and disconnect external antennas during lightning storms.

- Do not remove cover [or back].

• Refer servicing to qualified service personnel.

ENVIRONMENT

Disposal

According to the European Directive 2002/96/EC all electrical and electronic products must be collected separately by a local collection system.

Please act according to your local rules and do not dispose of your old products with your normal household waste.

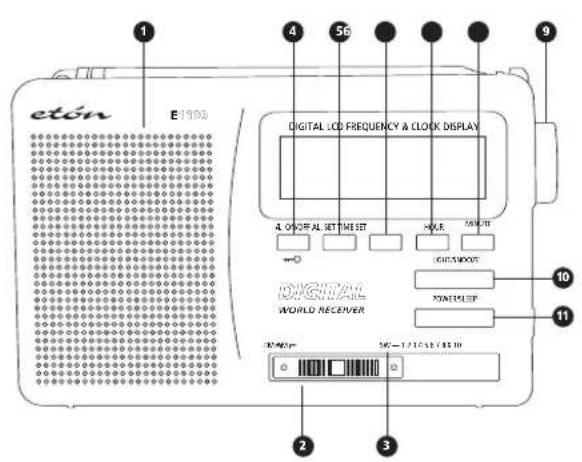

DIAGRAMS

etón E1903 DIGITAL LCD FREQUENCY & CLOCK DISPLAY A OFFALL SET TIME SET HUE TOMOT DIGITAL WORLD RECEIVER SCE—121567/1810 2 3 9 10 11

1. Speaker
2. Band Selector
3. SW Band Selector
4. Alarm ON/OFF/Lock
5. Alarm Set
6. Time Set
7. Hour Selector
8. Minute Selector
9. Tuning Control
10. Light/Snooze
11. Power/Sleep

ETON E11056 12 BANDS A WFM STEREO/SM CLOCK RECEIVER 7:48:10 - 100 MHz 23+ 1.5V 0.5V 1.5V 0.5V 0.5V 1.5V 1.5V 0.5V 1.5V 2.5V 0.5V 1.5V 3.5V 0.5V 1.5V 4.5V 0.5V 1.5V 5.5V 0.5V 1.5V 6.5V 0.5V 1.5V 7.5V 0.5V 1.5V 8.5V 0.5V 400 MHz 300 MHz 700 MHz 300 MHz CAUTION: DO NOT USE NEW AND OLD BATTERIES TOGETHER! MGA-15 V/23 ① ②

TUNE BUZZER RADIO 3 4

VOLUME EAR DC 10.5V

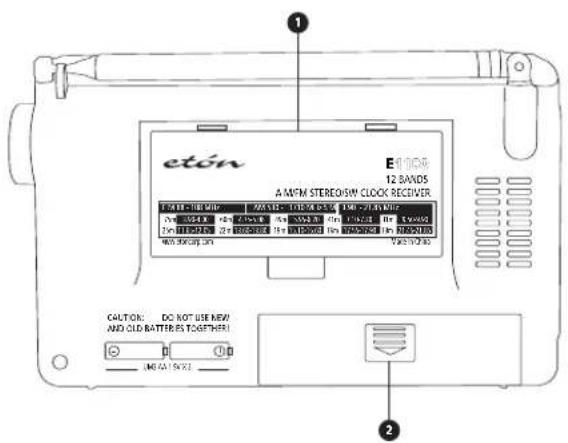

1. Kick-Stand Flap
2. Battery Compartment
3. Tuning Control
4. Buzzer/Radio
5. Volume Control
6. Earphone
7. AC Adaptor

2

3

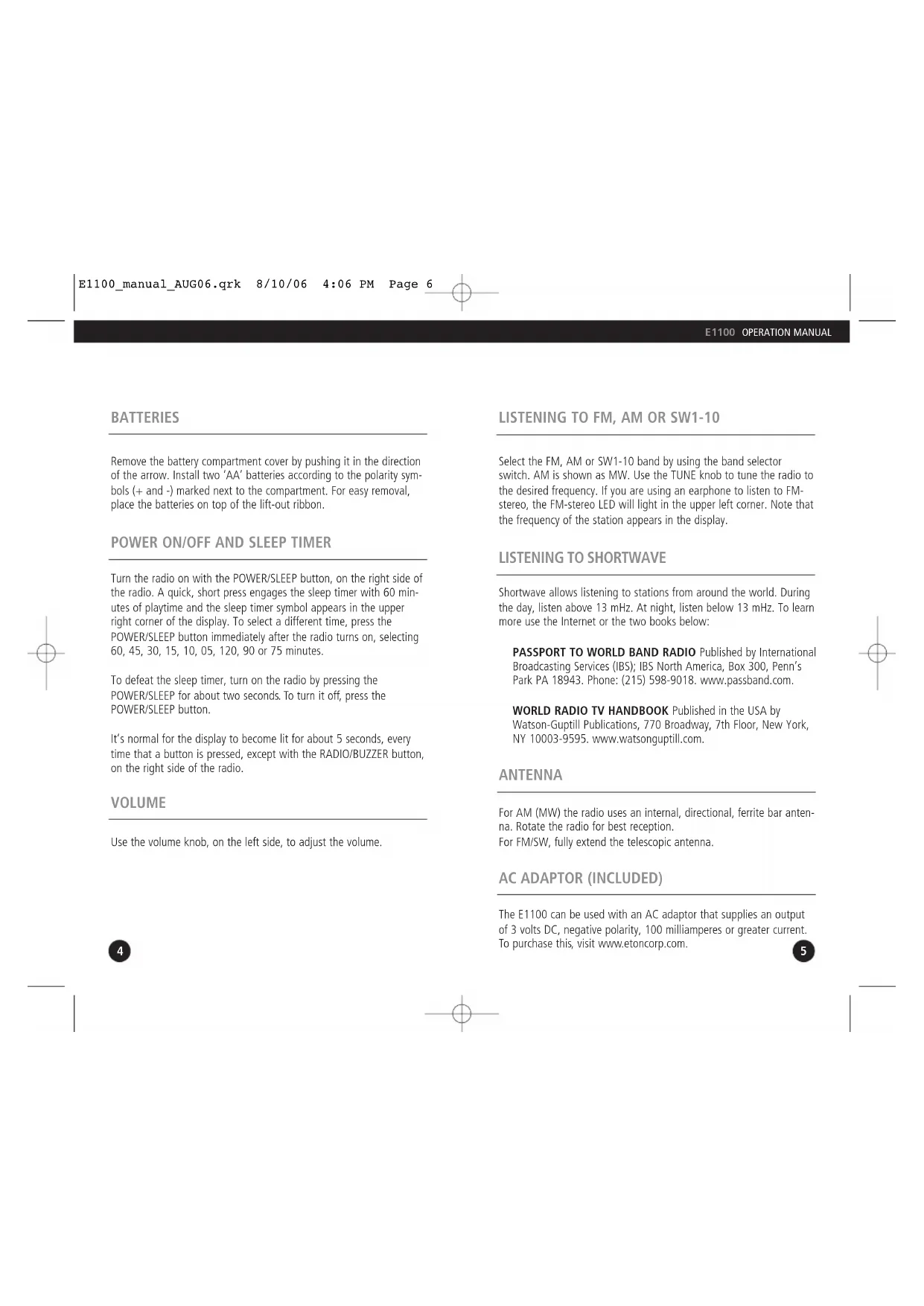

BATTERIES

Remove the battery compartment cover by pushing it in the direction of the arrow. Install two 'AA' batteries according to the polarity symbols (+ and -) marked next to the compartment. For easy removal, place the batteries on top of the lift-out ribbon.

POWER ON/OFF AND SLEEP TIMER

Turn the radio on with the POWER/SLEEP button, on the right side of the radio. A quick, short press engages the sleep timer with 60 minutes of playtime and the sleep timer symbol appears in the upper right corner of the display. To select a different time, press the POWER/SLEEP button immediately after the radio turns on, selecting 60, 45, 30, 15, 10, 05, 120, 90 or 75 minutes.

To defeat the sleep timer, turn on the radio by pressing the POWER/SLEEP for about two seconds. To turn it off, press the POWER/SLEEP button.

It's normal for the display to become lit for about 5 seconds, every time that a button is pressed, except with the RADIO/BUZZER button, on the right side of the radio.

VOLUME

Use the volume knob, on the left side, to adjust the volume.

LISTENING TO FM, AM OR SW1-10

Select the FM, AM or SW1-10 band by using the band selector switch. AM is shown as MW. Use the TUNE knob to tune the radio to the desired frequency. If you are using an earphone to listen to FM-stereo, the FM-stereo LED will light in the upper left corner. Note that the frequency of the station appears in the display.

Shortwave allows listening to stations from around the world. During the day, listen above 13 mHz. At night, listen below 13 mHz. To learn more use the Internet or the two books below:

PASSPORT TO WORLD BAND RADIO Published by International Broadcasting Services (IBS); IBS North America, Box 300, Penn's Park PA 18943. Phone: [phone]. www.passband.com.

WORLD RADIO TV HANDBOOK Published in the USA by Watson-Guptill Publications, 770 Broadway, 7th Floor, New York, NY 10003-9595. www.watsonguptill.com.

ANTENNA

For AM (MW) the radio uses an internal, directional, ferrite bar antenna. Rotate the radio for best reception. For FM/SW, fully extend the telescopic antenna.

AC ADAPTOR (INCLUDED)

The E1100 can be used with an AC adaptor that supplies an output of 3 volts DC, negative polarity, 100 milliamperes or greater current. To purchase this, visit www.etoncorp.com.

SETTING THE CLOCK

The clock displays time in 12-hour format. With the radio turned on or off, press TIME SET for two seconds. Within three seconds press the HOUR and MINUTE buttons to set the correct hour and minutes. They can be pressed with quick, short presses to advance slowly or they can be kept pressed down to advance rapidly. When finished, release the TIME SET button or wait until the digits stop flashing.

SETTING THE ALARM

Select the BUZZER or RADIO setting on the right side of the radio. With the radio turned on or off, press AL.SET for two seconds. Within three seconds press the HOUR and MINUTE buttons to set the correct hour and minutes. They can be pressed with quick, short presses to advance slowly or they can be kept pressed down to advance rapidly. When finished, release the AL.SET button or wait until the digits stop flashing.

SWITCHING THE ALARM ON/OFF

With the radio turned on or off, press the AL. ON/OFF button. The alarm activation symbol appears in the upper right corner of the LCD and looks like a loudspeaker. Turn it off by pressing the AL. ON/OFF button again and the symbol disappears.

When the activated alarm turns the buzzer or the radio on, it can be turned off by pressing the AL. ON/OFF button. This will cause the loudspeaker symbol to disappear from the display.

LIGHT/SNOOZE

A quick press of the LIGHT button causes the display to be illuminated for about 5 seconds. Use a long press to permanently light the display (note that this causes increased battery usage). Press LIGHT/SNOOZE again to turn it off.

While the alarm is on, pressing the SNOOZE button causes the alarm to pause for about 10 minutes, and then continue. This can be repeated three times.

LOCK BUTTON

With the radio turned off, press this button for two seconds to lock it; 'Hold' appears in the display. Press the button again to unlock it; 'Un-H' appears in the display.

IMPORTANT BATTERY INFORMATION

To minimize the possibility of battery acid leakage, only use high quality alkaline, lithium or rechargeable nickel-metal-hydride batteries. Never intermix old with new, or different brands or types of batteries. Damage caused by battery acid leakage is not covered by this product's warranty.

WARRANTY REGISTRATION

To ensure full warranty coverage or product updates, registration of your product should be completed as soon as possible after purchase or receipt. You may use one of the following options to register your product:

1. By visiting our website at http://www.etoncorp.com.
2. Mail in enclosed warranty card.
3. Mail your registration card or information to the following address; Include your name, full mailing address, phone number, model purchased, date purchased, retail vendor name and product serial number (typically located in or near the battery compartment):

Etón Corporation

1015 Corporation Way

Palo Alto, CA 94303 USA

LIMITED WARRANTY

Retain the warranty information from your warranty card with your proof of purchase or the Limited Warranty information can also be viewed at www.etoncorp.com.

SERVICE FOR YOUR PRODUCT

To obtain service for your product, we recommend first contacting an Etón service representative at 800-872-2228 US, 800-637-1648 Canada or [phone] for problem determination and troubleshooting. If further service is required, the technical staff will instruct how to proceed based on whether the radio is still under warranty or needs non-warranty service.

WARRANTY – If your product is still in warranty and the Etón service representative determines that warranty service is needed, a return authorization will be issued and instructions for shipment to an authorized warranty repair facility. Do Not ship your radio back without obtaining the return authorization number.

NON-WARRANTY – If your product is no longer under warranty and requires service our technical staff will refer you to the nearest repair facility that will be able to best handle the repair.

For service outside of North America, please refer to the distributor information included at time of purchase/receipt.

etón

BENÖTIGEN SIE HILFE? WENDEN SIE SICH AN UNS.

1. Speaker
2. Band Selector
3. SW Band Selector
4. Alarm ON/OFF/Lock
5. Alarm Set
6. Time Set
7. Hour Selector
8. Minute Selector
9. Tuning Control
10. Light/Snooze
11. Power/Sleep

ETON E1108 12 BANDS A MFM STEREO/5W CLOCK RECOVER F: 111 - 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 10 Hz | 2Hz 123.5V, 4Hz 72.5V, 8Hz 92.5V, 9Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6kHz 4Hz 123.5V, 4Hz 72.5V, 8Hz 92.5V, 9Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz | CAUTION: DO NOT USE NEW AND OLD BATTERIES TOGETHER! (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (○) (M/A) / S/V

TUNE BUZZER RADIO 3 4

VOLUME LAR DC In 5V

1. Kick-Stand Flap
2. Battery Compartment
3. Tuning Control
4. Buzzer/Radio
5. Volume Control
6. Earphone
7. AC Adaptor

BATTERIEN

1. Speaker
2. Band Selector
3. SW Band Selector
4. Alarm ON/OFF/Lock
5. Alarm Set
6. Time Set
7. Hour Selector
8. Minute Selector
9. Tuning Control
10. Light/Snooze
11. Power/Sleep

ETON E1108 12 BANDS A MFM STEREO/5W CLOCK RECOVER F: 111 - 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 10 Hz | 2Hz 123.5V, 4Hz 72.5V, 8Hz 92.5V, 9Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6kHz 4Hz 123.5V, 4Hz 72.5V, 8Hz 92.5V, 9Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz, 2Hz | CAUTION: DO NOT USE NEW AND OLD BATTERIES TOGETHER! (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (●) (○) (M/A) / S/V

TUNE BUZZER RADIO 3 4

VOLUME LAR DC In 5V

1. Kick-Stand Flap
2. Battery Compartment
3. Tuning Control
4. Buzzer/Radio
5. Volume Control
6. Earphone
7. AC Adaptor

BATERÍAS

ESCUCHA DE FM, AM O SW1-10

1. Speaker
2. Band Selector
3. SW Band Selector
4. Alarm ON/OFF/Lock
5. Alarm Set
6. Time Set
7. Hour Selector
8. Minute Selector
9. Tuning Control
10. Light/Snooze
11. Power/Sleep

ETON E1108 12 BANDS A MFM STEREO/5W CLOCK RECOVER F: 111 - 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 10 Hz | 2Hz 123.5V, 4Hz 72.5V, 8Hz 92.5V, 9Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6kHz 4Hz 52.5V, 3Hz 72.5V, 8Hz 92.5V, 9Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6kHz CAUTION: DO NOT USE NEW AND OLD BATTERIES TOGETHER! (●) (○) (□) (□) (□) (□) (□) (□) (□) (□) (□) (□) (□) (□) (□) (□) (□) (□) (□) (□) (□) (□) (□) (□) (□) (□) (□) (□) (□) (□) (□) (□) (□) (□)

TUNE BUZZER RADIO 3 4

VOLUME LAR DC In 5V

1. Kick-Stand Flap
2. Battery Compartment
3. Tuning Control
4. Buzzer/Radio
5. Volume Control
6. Earphone
7. AC Adaptor

BATTERIE

WORLD RADIO TV HANDBOOK Pubblicato in USA da Watson-Guptill Publications, 770 Broadway, 7th Floor, New York, NY 10003-9595. www.watsonguptill.com

ANTENNA

1. Speaker
2. Band Selector
3. SW Band Selector
4. Alarm ON/OFF/Lock
5. Alarm Set
6. Time Set
7. Hour Selector
8. Minute Selector
9. Tuning Control
10. Light/Snooze
11. Power/Sleep

ET1108 12 BANDS A MFM STEREO/5W CLOCK RECOVER F: 111 - 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 10 Hz | 2Hz 123.5V, 4Hz 72.5V, 8Hz 92.5V, 95Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6Hz 123.5V, 6kHz 4Hz 50.5V, 3Hz | 72.5V, 8Hz, 92.5V, 95Hz, 95Hz, 95Hz, 95Hz, 95Hz, 95Hz, 95Hz, 95Hz, 95Hz, 95Hz, 95Hz, 95Hz, 95Hz, 95Hz, 95Hz, 95Hz, 95Hz, 95Hz, 95Hz, 95Hz, 95MHz CAUTION: DO NOT USE NEW AND OLD BATTERIES TOGETHER! M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: M: N ① ②

TUNE BUZZER RADIO 3 4

VOLUME LAR DC In 5V

1. Kick-Stand Flap
2. Battery Compartment
3. Tuning Control
4. Buzzer/Radio
5. Volume Control
6. Earphone
7. AC Adaptor

PILES

MIS EN MARCHE/ARRÊT (ON/OFF) ET MINUTERIE SOMMEIL

ÉCOUTER LA FM, L'AM OU LA SW1-10

Corporate Headquarters

1015 Corporation Way

Palo Alto, California 94303 USA

tel [phone]

tel [phone]

fax [phone]

etónEurope/Lextronix Germany

Rosenstrasse 2

D-10178 Berlin, Germany

tel +49 [0]30 243102149

etónCanada

1 Yonge Street, Suite 1801

Toronto, Ontario M5E 1W7 Canada

tel [phone]

v. 08-10-06
