USER MANUAL OMW 330 DM OK

Nataote to START yia eIiBepaiwon.

CHMEIQCEIc

• Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
• Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

• Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the

• door (bent),

• hinges and latches (broken or loose),

• door sealing and its surfaces.

• The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

• Warning: It is forbidden to run the unit without any food inside. It is very dangerous.

INSTALLATION

1

2

3

Place the microwave on a flat, stable surface.

Leave space for sufficient airflow: 30 cm above the oven, 7.5 cm at the back, 7.5 cm at one side and one side must be open.

Do not cover or block any openings on the appliance. Do not remove feet.

4

NOTE

• Make sure that all packaging materials including tape are removed from the door, cavity, display, control panel and accessories.
• Do not place the oven where heat, moisture or high humidity are generated, or near combustible materials.
• Do not operate the oven without turntable roller on the shaft and glass tray or gourmet plate in proper positions.
• Make sure that the supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
• The mains plug must be readily accessible so that it can be easily disconnected in an emergency.

Before use, plug in the unit. After use, unplug the unit.

GROUNDING INSTRUCTIONS

• The supply cord of the oven is equipped with a plug with earth connection, which must be plugged into a properly installed and grounded wall outlet.
• It is recommended that a separate circuit serving only the oven be provided.
• High voltage is dangerous and may result in fire or other accidents, causing property damage or injuries.
• Warning: Improper use of the grounding plug can result in a risk of electric shock.

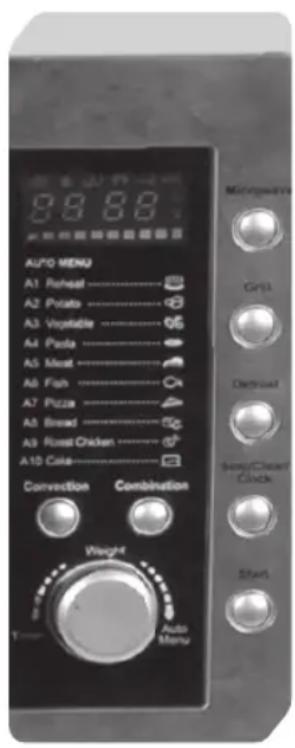

DISpLay AND CONTROL pANEL

MENU ACTION DISpLay

Cooking time, power, indicators and clock time are displayed.

MICROWAVE.

To set a microwave cooking mode.

DEFROST

To set the defrost mode. Enter the food weight or number of servings.

CONVECTION

To set the convection mode.

To select cooking duration or food weight, or to select auto microwave cooking program.

START

To start cooking, and to increase the cooking time in 30 sec. steps..

GRILL

To set the grill cooking mode.

STOp/CLEAR/CLOCK

To stop operation or to clear all previous settings.

COMBINATION

To set the combination mode.

NOTES

Once the cooking program has been set and START is not pressed within 5 minutes, the current time will be displayed. The setting will be canceled.

The buzzer sounds once by efficient press, by inefficient press there will be no response.

The buzzer will sound five times to remind you when cooking is finished.

SpECIFICATIONS

Rated voltage: 230V 50Hz / Rated power input: 1300 W (Micro) / Rated power output: 800 W / Rated power input (Grill): 1200 W / Rated power input (Convection): 1200 W / Outside dimensions: 292 mm (H) x 485 mm (W) x 205 mm (D) / Turntable Diameter: 270 mm / Oven Capacity: 23 L / Net weight: Approx. 14 kg

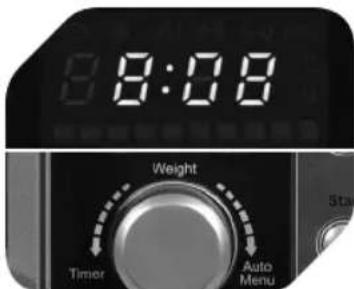

CLOCK SETTING

1

2

3

When the microwave oven is plugged in, 0:00 will appear on the display and buzzer will ring once.

Press STOP/CLEAR/ CLOCK; hour digit will flash.

Turn TIMER/WEIGHT/ AUTO MENU to set hour. Press START; then turn TIMER/WEIGHT/ AUTO MENU to set the minutes. Press START to confirm.

NOTES

• Clock must be set in order to operate the appliance.
• During clock setting, if STOP/CLEAR/ CLOCK is pressed or if there is no operation within 5 minutes, the oven will go back to the previous status automatically.

MICROWAVE COOKING

1

Display Power level

P 100 100 %

P 80 80 %

P 50 50 %

P 30 30 %

P 10 10 %

2

Turn TIMER/WEIGHT/ AUTO MENU to adjust the cooking time. Press START to start cooking.

GRILL COOKING

1

2

3

Press GRILL once until G-1 is displayed.

Turn TIMER/WEIGHT/ AUTO MENU to adjust the cooking time.

Press START to start cooking.

NOTE

After half of the time has passed, oven sounds twice for user to turn over food. Press START to continue cooking. If no action is taken, appliance will continue operation.

GRILL COMBINATION COOKING

1

2

3

Press GRILL two or three times until C-1 or C-2 is displayed.

Turn TIMER/WEIGHT/ AUTO MENU to adjust the cooking time.

Press START to start cooking.

SpEEDy COOKING

1

2

Im waiting state. press START to cook for 30 seconds at 100% microwave power. Each press will increase time by 30 seconds.

During microwave, grill, combination, convection and time defrost, press START to add 30 sec. of cooking time.

NOTE

In Auto menu and weight defrost mode, cooking time cannot be increased by pressing START.

DEFROST by WEIGHT

1

2

Press DEFROST once, the screen will display dEF1.

Turn TIMER/WEIGHT/ AUTO MENU to select the weight of food between 100-2000 g.

3

Press START to start defrosting.

NOTE

After half of the time has passed, oven sounds twice for user to turn over food. Press START to continue defrosting. If no action is taken, appliance will continue operation.

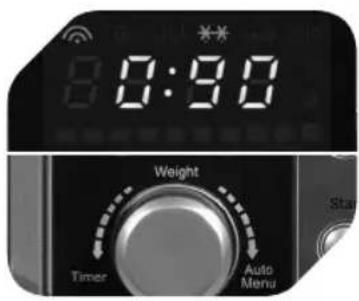

DEFROST by TIME

123

Press DEFROST twice, the screen will display dEF2.

Turn TIMER/WEIGHT/ AUTO MENU to select the defrost time.

Press START to start defrosting.

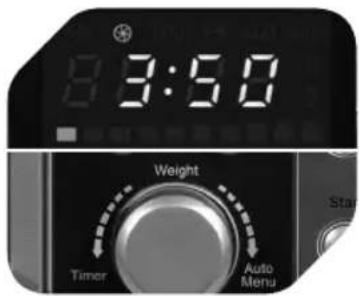

CONVECTION COOKING (WITHOUT PREHEATING)

123

Press CONVECTION repeatedly to select desired temperature.

Turn TIMER/WEIGHT/ AUTO MENU to adjust the cooking time.

Press START to start cooking.

NOTE

If CONVECTION is pressed during operation, the current temperature is displayed for 3 seconds.

CONVECTION COOKING (WITH PREHEATING)

123

Press CONVECTION repeatedly to select desired temperature and press START.

The oven sounds twice when the temperature is reached. Place food in the oven and turn TIMER/WEIGHT/AUTO MENU to adjust the cooking time.

Press START to start cooking.

NOTE

If CONVECTION is pressed during operation, the current temperature is displayed for 3 seconds.

COMBINATION COOKING (WITHOUT PREHEATING)

123

Press COMBINATION repeatedly to select desired temperature.

Turn TIMER/WEIGHT/ AUTO MENU to adjust the cooking time.

Press START to start cooking.

NOTE

If COMBINATION is pressed during operation, the current temperature is displayed for 3 seconds.

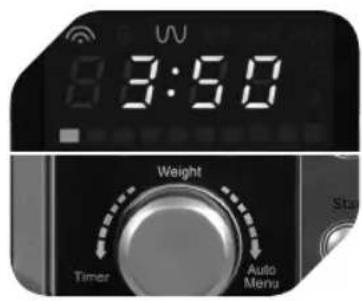

COMBINATION COOKING (WITH PREHEATING)

123

Press COMBINATION repeatedly to select desired temperature and press START.

The oven sounds twice when the temperature is reached. Place food in the oven and turn TIMER/WEIGHT/AUTO MENU to adjust the cooking time.

Press START to start cooking.

NOTE

If COMBINATION is pressed during operation, the current temperature is displayed for 3 seconds.

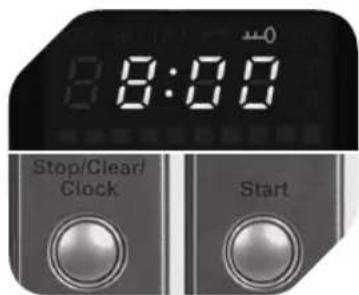

CHILD-LOCK

1

2

To set the CHILD LOCK:

In waiting state, press and hold STOP/CLEAR/CLOCK and START for 3 seconds. A long beep will indicate that the lock is set.

To disable CHILD LOCK:

In locked state, press and hold STOP/CLEAR/CLOCK and START for 3 seconds. A long beep will indicate that the lock is released.

AUTO MENU

1

2

3

In waiting state, turn TIMER/WEIGHT/AUTO MENU to choose the menu from A-1 to A-10. Press START to confirm.

Turn TIMER/WEIGHT/ AUTO MENU to choose the food weight.

Press START to start cooking.

Menu Weight(g) Display Power

	200 200
A-1REHEAT	300 300		100 %
	400 400
	500 500
A-2POTATO	230 230		100 %460 460
	690 690
A-3VEGETABLE	200 200		100 %
	300 300
	400 400
	500 500
A-4PASTA	50 50		80 %100
	150	150
A-5MEAT	200 200		100 %
	300 300
	400 400
	500 500
A-6FISH	200 200		80 %
	300 300
	400 400
	500 500
A-7PIZZA	300 300		100 %
	400 400
A-8BREAD 1)	50 50		100 % (GRILL)
	100	100
A-9ROAST CHICKEN 2)	750 750		C-2
	1000	1000
	1250	1000
A-10 CAKE 3)	475	475	preheat with 160 °C

NOTE

1) A-8 BREAD the grill rack is at 98 mm.
2) A-9 ROAST CHICKEN the grill rack is at 50 mm. During cooking, oven sounds twice for user to turn over food. Press START to continue cooking. If no action is taken, appliance will continue operation.
3) A-10 CAKE is under convection mode with 160^ preheat function. The oven will beep, once the temperature is reached. Then place the cake inside and press START.

OTHER FUNCTIONS

1. Pause function: During operation, press STOP/CLEAR/CLOCK once. Operation will stop. Press START to continue same program.

Stop function: During operation, press STOP/CLEAR/CLOCK twice to stop 2. operation and current program.

When turning TIMER/WEIGHT/AUTO MENU, oven will sound once during 3. first turn.

Operation will be interrupted when door is open. To resume operation, close 4. door and press START.

The maximum cooking time for microwave, grill, time defrost, convection 5. and combination is 95 minutes.

If the door is open, the oven can be set, but the START button will not work.6.

DISpOSAL

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Electric and electronic

equipment may contain dangerous and hazardous substances. Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

INTENDED USE

This appliance is intended for processing food. Only use according to these instructions. Improper use is dangerous and will void any warranty claim. Important safety instructions can be found in the separate document.

TROUBLESHOOTING

Symptom Possible cause and corrective action

Oven can not be started. Power cord not plugged in tightly. Unplug. Then plug again after 10 seconds.
	Test outlet with other electrical appliances.
	Fuse or reset circuit breaker have to be replaced after repaired by personnel of our company.
Oven does not heat. Close door well.
Glass turntable makes noise when microwave oven operates.	Dirty roller rest and oven bottom. Clean the dirty parts.
Microwave oven interfering with TV reception.	Radio and TV reception may be interfered when microwave oven is operating. It is similar to interference of small electrical appliances, like mixers, vacuum cleaners and electric fans. It is normal.
Dim oven light. In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents.	During cooking, steam may come out of food. Most will escape from vents. But some may accumulate on cool places like oven doors. It is normal.

EN

CLEANING AND CARE

• Cleaning the microwave oven is a significant part of the safe operation of the device and will prevent health hazards.
• The device must be cleaned periodically, food residue must be removed. If the device is not cleaned regularly, it can cause wear to the surface and severely reduce the service life. Furthermore, it could result in limited safety and functionality of the device.
• If the door sealing no longer closes reliably due to accumulated food residue, microwave radiation may leak and damage your health.
• Clean the device after use to prevent mould, vermin, as well as leaking microwave radiation.
• Prior to each cleaning, switch off the microwave oven and disconnect the mains plug.
• Do not use steam cleaners to clean the device! The steam is pressurized and can condensate on the electrical components inside the device and cause short-circuits.
• Do not use any abrasive cleaning agents or metal scrapers to clean the door since they could scratch the surface and cause the glass to shatter.
• Clean the casing with a slightly damp cloth. Please be sure that no water enters the appliance.
• Use a damp cloth to regularly and carefully clean the door sealing, cavity and any adjacent components. Use a damp cloth to wipe off any food residue or splashes.
• Make sure the display and control panel do not get wet. Clean by using a soft, damp cloth. Leave the door open when cleaning the control panel in order to prevent accidental operation.
• If steam condensates or forms drops inside the microwave or on the casing, use a soft cloth to wipe it off. Condensation can occur if moist air meets a cold surface. At very high temperatures, oil and grease can also evaporate and deposit as a grease film after cooling off.
• The glass tray can be removed for cleaning. Clean the tray in warm, soapy water or in the dishwasher.
• The turntable roller and the cavity bottom should be cleaned regularly to prevent excessive noise. Simply use a mild household cleaner to wipe the surface; allow it to dry. If the turntable roller is removed for cleaning, make sure to re-insert it properly before next use. Regularly clean the door, window and sealing with a damp cloth to remove dirt.
• Odours in the cavity can be neutralized by filling a microwave-suitable cup with water and lemon juice and boiling it in the microwave oven for 5 minutes. Wipe the cavity dry afterwards using a soft cloth.
• In the event that the light bulb inside the cavity must be replaced, please contact qualified service personnel.

MATERIALS you can use in MICROWAVE OVEN

Utensils Remarks

Aluminum foil	Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent over-cooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 2.5 cm away from oven walls.
Browning dish	The bottom of browning dish must be at least 5 mm above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper/Wax paper	Use as a cover to prevent splattering and retain moisture.
Plastic	Microwave-safe only. Should be labeled „Microwave Safe“. Some plastic containers soften, as the food inside gets hot. „Boiling bags“ and tightly closed plastic bags should be slit, pierced or vented as directed by packaged
Plastic wrap	Microwave-safe only (meat and candy thermometers).
Thermometers	Use as a cover to prevent splattering and retain moisture.

MATERIALS TO BE AVOIDED IN MICROWAVE OVEN

Utensils Remarks

Aluminum tray/ Food carton with me- tal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trim- med utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.
