USER MANUAL 403 ROTEL

ACCENSIONE MANUALE DEL FORNO II

ACCENSIONE MANUALE DEL GRILL 12

REGOLAZIONE DELLA FIAMMA DEL GRILL 12

- ACCENSIONE MANUALE DEL GRILL

WARNINGS AND SAFETY SYMBOLS

The safety symbols utilised identify possible hazards to users. Always respect all safety warnings identified with these symbols:

WARNING

DANGER

Hazard of injury or death.

CAUTION

CAUTION

To prevent possible injury and / or damage

INDEX

SAFETY WARNINGS 17

INSTALLATION 18

ADDITIONAL SAFETY WARNINGS 18

CABINET APERTURE 18

CONNECTING TO GAS SUPPLY 19

WIRING - CONNECTING TO ELECTRICITY SUPPLY 20

FIXTURE 20

USE 21

ADDITIONAL SAFETY WARNINGS 21

CONTROLS 21

BURNERS: 23

HOB: 24

SELECTING BURNER 24

ELECTRONIC IGNITION HOB 24

MANUAL IGNITION HOB 24

HOB FLAME REGULATION 25

OVEN: 25

ELECTRONIC IGNITION OVEN 25

EEC DIRECTIVE 2002/96/EC (WEEE – Waste Electrical and Electronic Equipment) 29

FIGURES AND TECHNICAL DRAWINGS 170-185

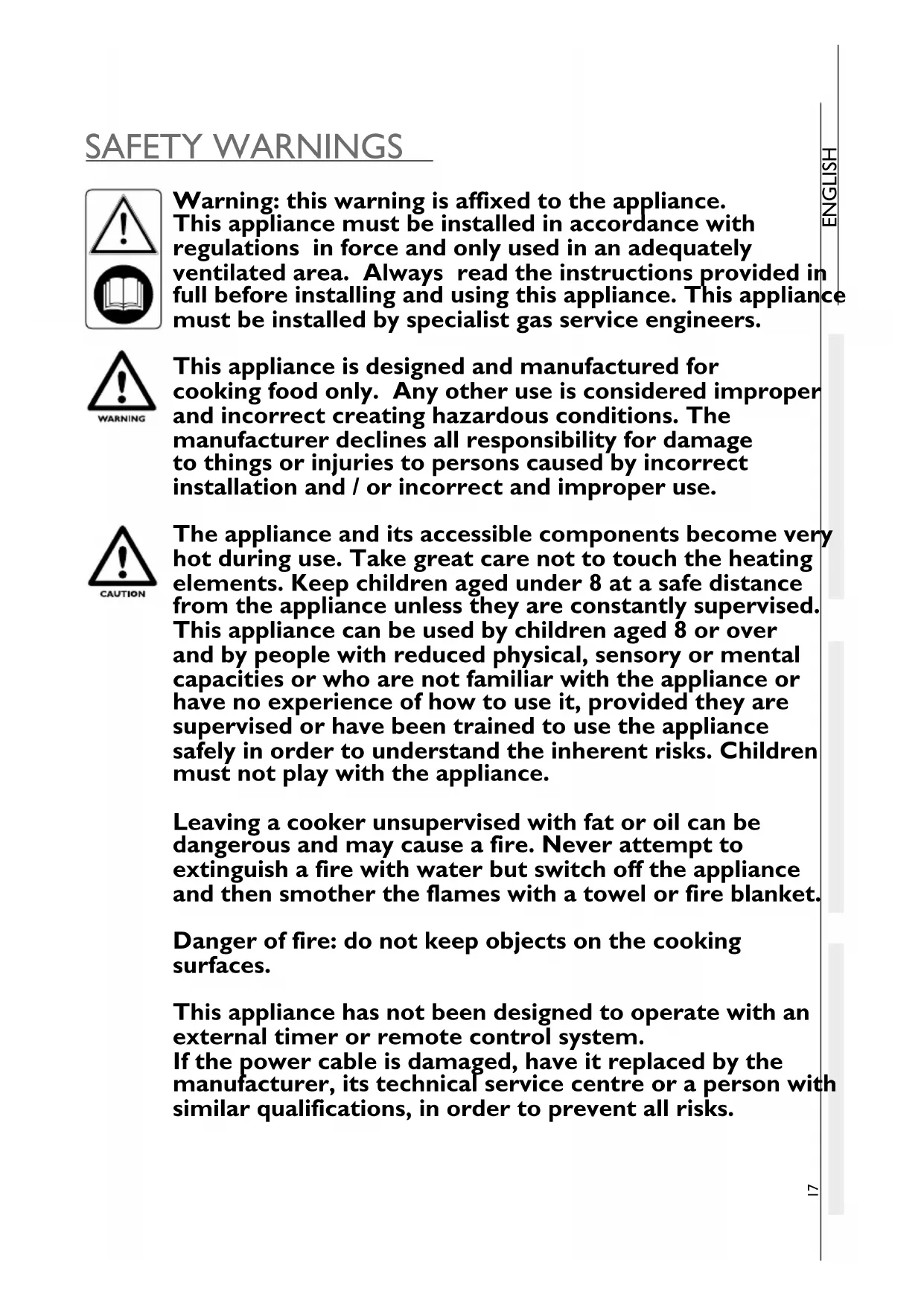

Warning: this warning is affixed to the appliance. This appliance must be installed in accordance with regulations in force and only used in an adequately ventilated area. Always read the instructions provided in full before installing and using this appliance. This appliance must be installed by specialist gas service engineers.

This appliance is designed and manufactured for cooking food only. Any other use is considered improper and incorrect creating hazardous conditions. The manufacturer declines all responsibility for damage to things or injuries to persons caused by incorrect installation and / or incorrect and improper use.

The appliance and its accessible components become very hot during use. Take great care not to touch the heating elements. Keep children aged under 8 at a safe distance from the appliance unless they are constantly supervised. This appliance can be used by children aged 8 or over and by people with reduced physical, sensory or mental capacities or who are not familiar with the appliance or have no experience of how to use it, provided they are supervised or have been trained to use the appliance safely in order to understand the inherent risks. Children must not play with the appliance.

Leaving a cooker unsupervised with fat or oil can be dangerous and may cause a fire. Never attempt to extinguish a fire with water but switch off the appliance and then smother the flames with a towel or fire blanket.

Danger of fire: do not keep objects on the cooking surfaces.

This appliance has not been designed to operate with an external timer or remote control system. If the power cable is damaged, have it replaced by the manufacturer, its technical service centre or a person with similar qualifications, in order to prevent all risks.

WARNING

This appliance must not be cleaned or serviced by children unless they are supervised.

CAUTION

Never use abrasive and / or coarse cleaning materials or metal brushes to clean the glass oven door as these materials scratch the glass surface with the risk of shattering the glass.

Never use steam cleaners to clean the appliance.

IN STALL ATION

ADDITIONAL SAFETY WARNINGS

WARNING

BEFORE INSTALLING CHECK THAT LOCAL GAS (GAS QUALITY AND PRESSURE) AND THE APPLIANCE REGULATORS ARE COMPATIBLE WITH THE APPLIANCE.

GAS REGULATING SPECIFICATIONS FOR THIS APPLIANCE ARE PROVIDED ON THE LABEL AFFIXED TO THE APPLIANCE (OR ON THE SERIAL PLATE).

THIS APPLIANCE IS NOT CONNECTED TO A FUME EXTRACTION FLUE FOR EXTRACTING PRODUCTS OF COMBUSTION. IT MUST BE INSTALLED AND CONNECTED CONFORMING TO INSTALLATION REGULATIONS IN FORCE. IT IS OF UTMOST IMPORTANCE TO RESPECT LEGISLATION REGARDING VENTILATION.

CABINET APERTURE

WARNING

THE APPLIANCE MUST FITTED AT AN APPROPRIATE AND SAFE DISTANCE FROM FLAMMABLE MATERIALS.

This appliance belongs to CLASS 3: APPLIANCE FOR BUILDING INTO A KITCHEN UNIT OR WORKTOP.

MINIMUM ALLOWABLE DISTANCES FROM WALLS (FIG.1 – PG. 170):

150 mm WALL.	FROM THE EXTERNAL EDGE OF THE BURNER HEAD NEAREST TO A SIDE AND / OR BACK
500 mm THE HOB.	BETWEEN TO TOP PART OF THE BURNERS AND CABINETS AND / OR SHELVES FITTED ABOVE
100 mm	FROM THE SIDES OF THE APPLIANCE AND VERTICAL WALLS.

SIZE OF CABINET APERTURE

Cut-out a hole in the cabinet as illustrated in FIG. 2 - PG. 171 size will depend on appliance model. The cabinet must be appropriately constructed and aligned horizontally with the worktop and with the unit. The cabinet aperture must be perfectly squared and aligned. If there are apertures for cabinet ventilation, prevent flammable materials from entering these.

CONNECTING TO GAS SUPPLY

CHECK THESE SPECIFICATIONS BEFORE CONNECTING THE APPLIANCE TO THE GAS CYLINDER /BOTTLE. THE PRESSURE REGULATORS CONNECTED BETWEEN THE GAS CYLINDER AND APPLIANCE MUST CONFORM WITH THE CATEGORIES GIVEN IN THE BELOW TABLE.

This appliance is designed for running off the following types of gas at the corresponding operating pressures. The gas category (or categories) of the appliance is given on the specifications label affixed to the appliance.

CATEGORY AND COUNTRY OF DESTINATION	GAS PRESSURE
I3B/P(30)AT BE DE DK FI GB NL NO PT SE SI	30 mbar Butane (G30)30 mbar Propane (G31)
I3+ (28-30/37)BE CH ES FR GB IE IT PT SI	28-30 mbar Butano (G30)37 mbar Propano (G31)

MODEL TOTAL RATED	THERMAL CAPACITYkW - gr/h m	REQUIRED VOLUME OF AIR FOR COMBUSTION ^3 /h
CU322 - CU322M 4,0 - 291 8,0
CU333 - CU333M 4,4 - 320 8,8
CU403PE - CU404PEMW - CU407PEMW 4,6 - 335 9,2
CU354MK 5,1 - 371 10,2
CU352M	5,3 - 386	10,6
CU325 - CU325M - CU404PE - CU405PEMW	5,8 - 422	11,6
CU335 - CU335M - CU402PE - CU414PE	6,2 - 451	12,4
403 - CU351MK - CU404MW - CU407MW	6,4 - 466	12,8
CU433 - CU433M - CU433ML	6,6 - 480	13,2
CU300 - CU300M 6,8 - 495	13,6
CU311 - CU311M 7,2 - 524	14,4
CU400BPE - CU400PE - CU401PE	7,4 - 539	14,8
404 - CU405MW	7,6 - 553	15,2
402 - 414	8,0 - 582	16,0
400 - 400B - 401	9,2 - 669	18,4

DURAWHEN INSTALLING AND CONNECTING THE APPLIANCE TO THE GAS SUPPLY, ENSURE THAT THE GAS SUPPLY HOSE IS NOT TWISTED, STRETCHED OR SUBJECTED TO ANY FORM OF STRAIN WHICH COULD CREATE A HAZARD.

The gas supply pipe connected to the appliance must be a rigid metal pipe with sealed fittings. It is possible to fit a flexible hose, however, in this case the following conditions must be respected:

a) The hose can be accessed easily for inspection;
b) The hose must be protected against coming into contact with parts which heat up (EG: parts underneath the burners);
c) The hose must be protected against being damaged (twisting, pulling, trapping,...);
d) The hose must be protected against being trapped by moving parts (e.g. drawers);
e) The hose must not have a length over 1.5 m;
f) The hose must be replaced before its expiry date;
Once the appliance has been connected to the gas supply check for gas leaks utilising a non-corrosive fluid.
Do not use a water and soap solution. NEVER USE A FLAME TO CHECK FOR GAS LEAKS.

CONNECTING TO ELECTRICITY SUPPLY

LOW VOLTAGE 12 ¥:

This chapter refers only to models with the wording 12 V... on the appliance specifications label affixed to the appliance.

THIS APPLIANCE MUST BE CONNECTED TO A 12 ¢ POWER PACK. THE CIRCUIT MUST BE FITTED WITH A SAFETY FUSE NOT HIGHER THAN 3 AMP.

WHEN WIRING THE APPLIANCE RESPECT CORRECT POLARITY!

IT IS OF UTMOST IMPORTANCE NEVER TO CONNECT THIS APPLIANCE TO MAINS VOLTAGE (230 V\~) WHICH IRREVERSIBLY DAMAGES APPLIANCE COMPONENTS AND CREATES A HAZARD TO THE USER.

To connect the appliance use a 1.5 mm ^2 double red and black wire and wire to the terminal junction box located at the rear of the appliance with the wording "+12V---". The red terminal is the positive pole and the black terminal is the negative pole.

This charter refers only to the models listed in the below table.

MODEL	RATED VOLTAGE	RATED POWER
CU400PE - CU400BPE - CU401PE - CU402PECU403PE - CU404PE - CU404PEMWCU405PEMW - CU407PEMW - CU414PE	220-240V~ 50/60Hz 800 W

WHEN CONNECTING DIRECT TO THE MAINS SUPPLY, IT IS NECESSARY TO INSTALL A CIRCUIT BREAKER WHICH ALLOWS FOR DISCONNECTING AND ISOLATING THE APPLIANCE FROM THE MAINS IN THE EVENT OF OVERVOLTAGE III CONFORMING TO INSTALLATION REGULATIONS.

THE SUPPLY CABLE MUST BE POSITIONED SO AS NOT TO REACH IN ANY POINT ALONG THE CABLE ITSELF A TEMPERATURE OF 75K.

THE PLUG MUST BE EASY TO ACCESS AFTER INSTALLATION.

ALWAYS DISCONNECT ELECTRICAL POWER BEFORE WORKING ON OR SERVICING THE APPLIANCE.

For connecting to the mains power supply use a socket.

If the power supply cable (H05RR-F 3x0,75mm²) is damaged, it must be replaced by the manufacturer or by an authorised service centre or by an electrician with a similar qualification to prevent any hazard or risk.

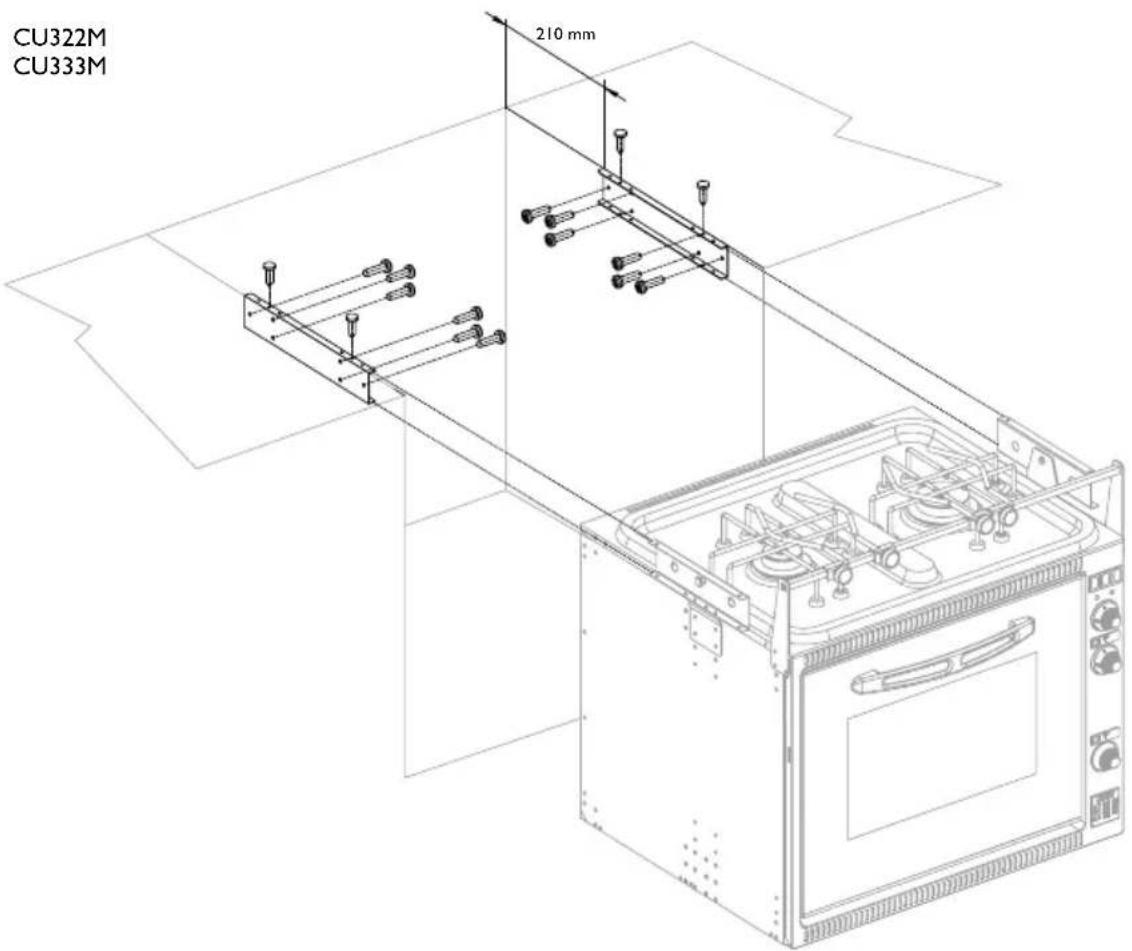

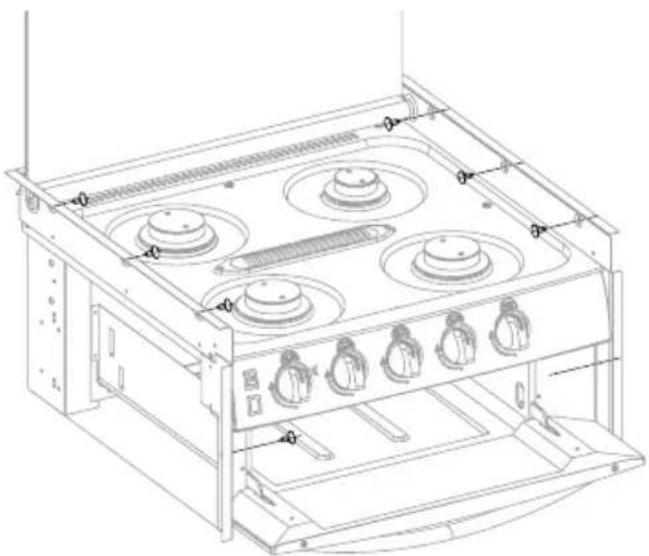

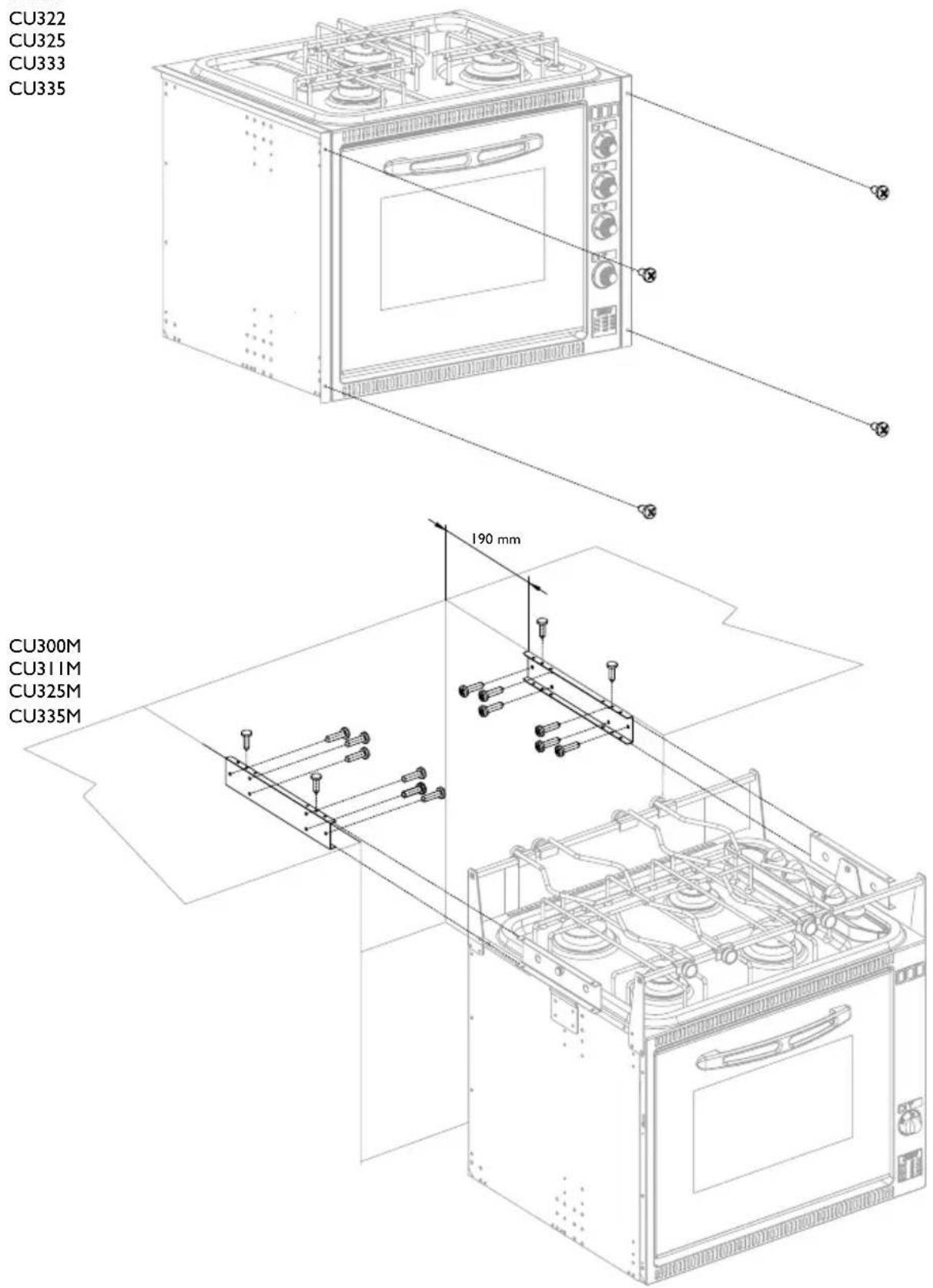

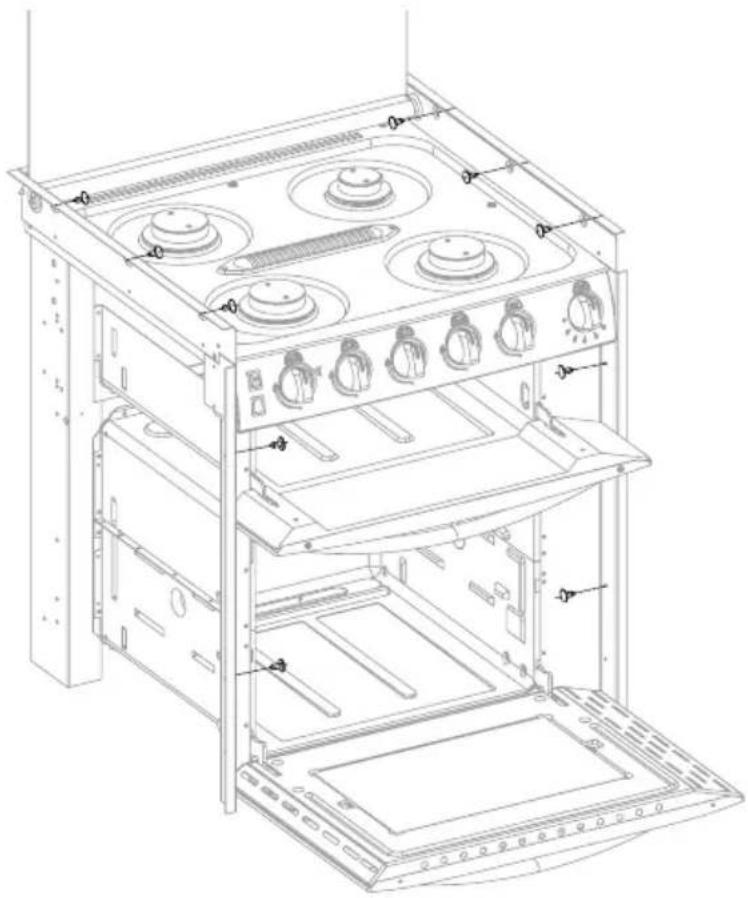

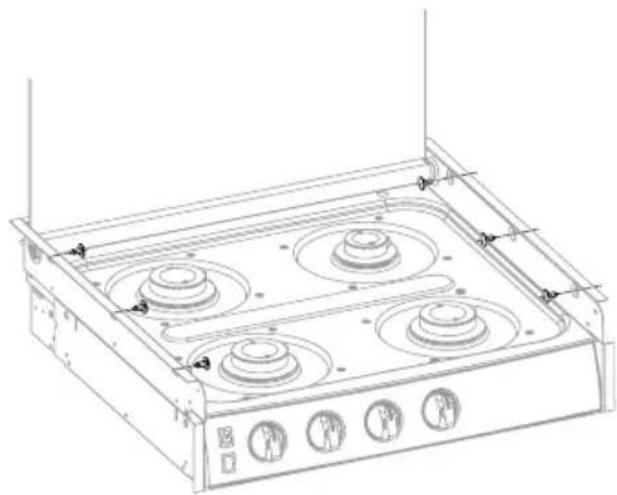

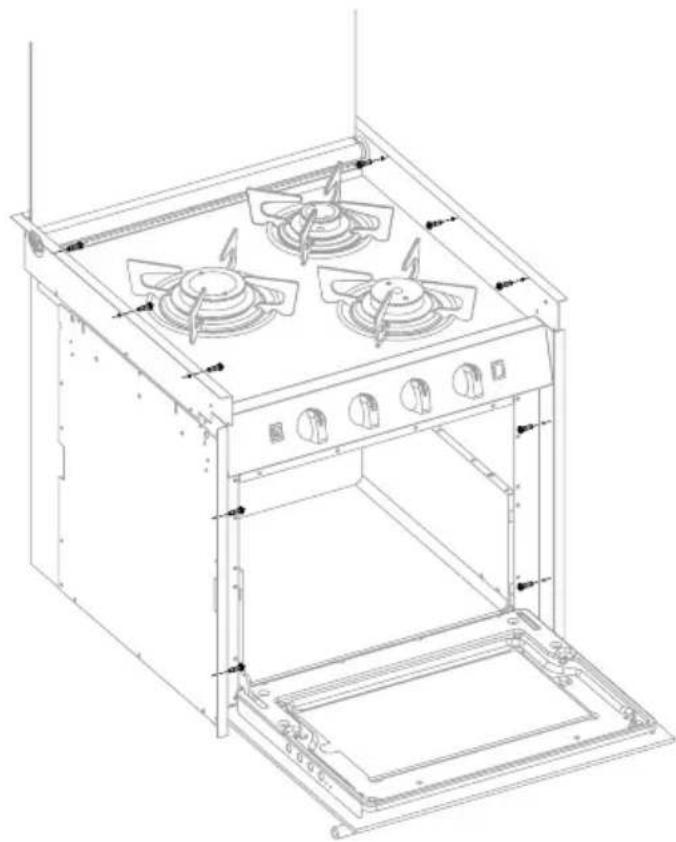

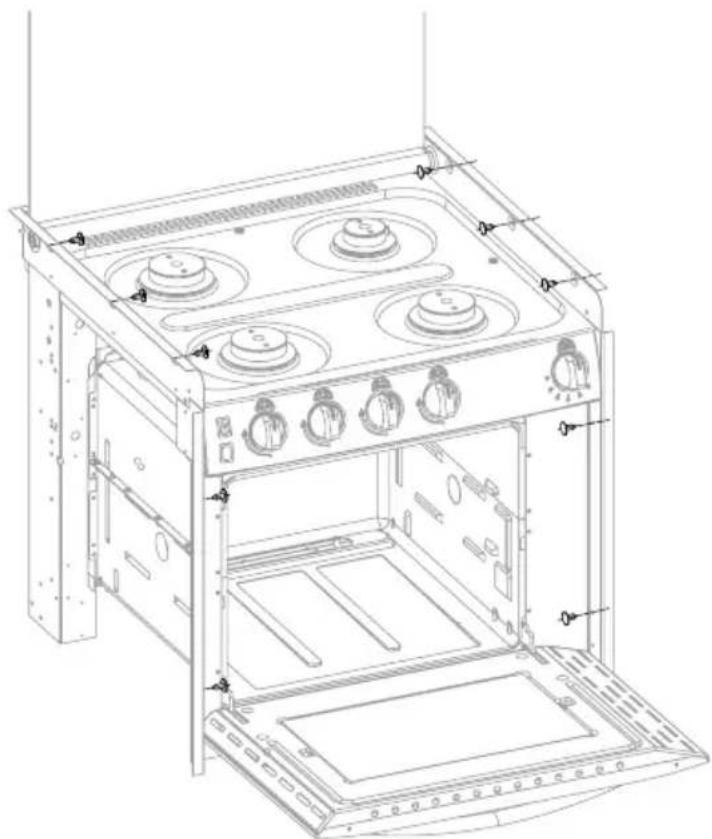

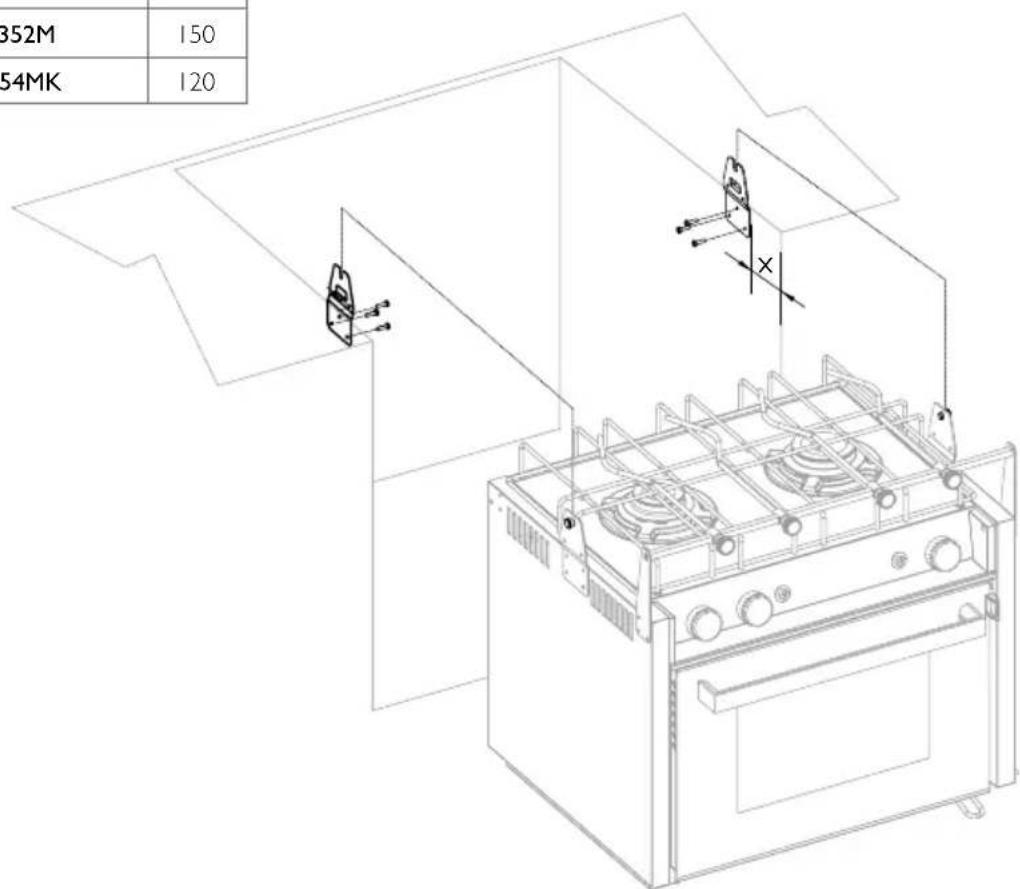

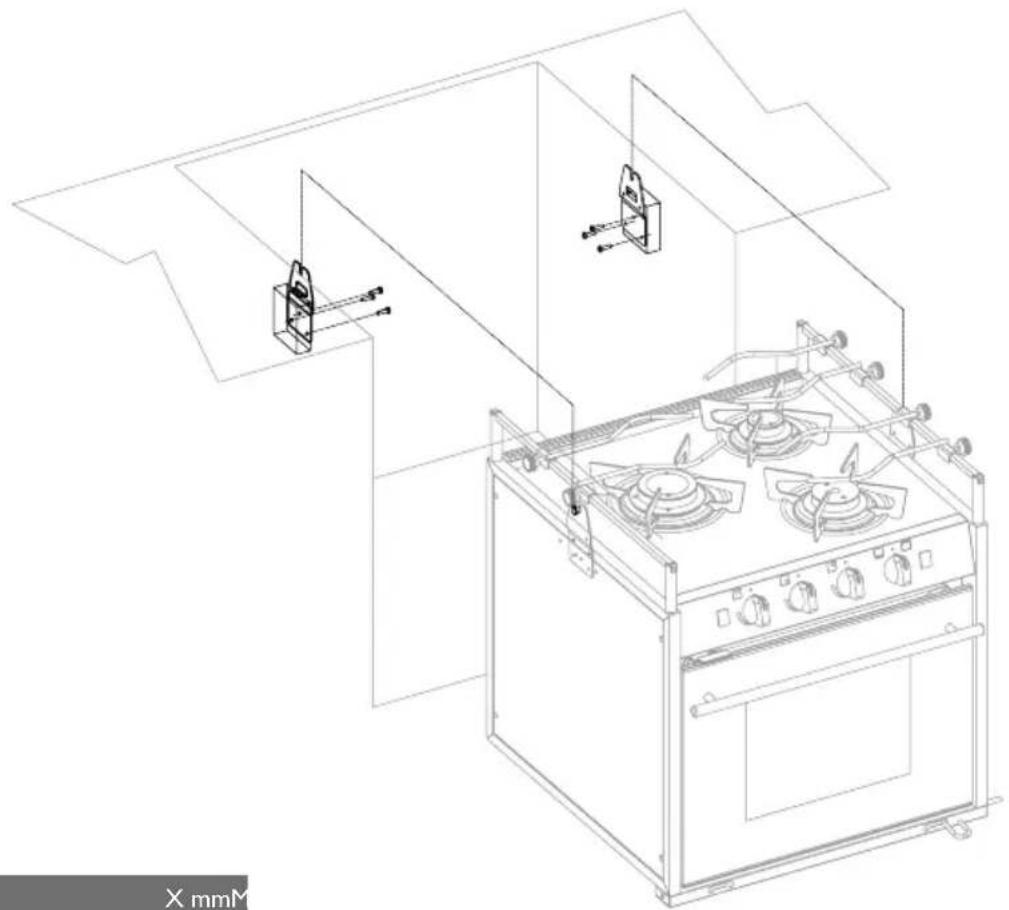

FIXTURE

THIS APPLIANCE IS TO BE FIXED AND SECURED TO THE CABINET AS DESCRIBED IN FIG. 3 - PG. 177.

USE

ADDITIONAL SAFETY WARNINGS

THIS APPLIANCE MUST ONLY BE USED BY RESPONSIBLE ADULTS. DURING USE AND IMMEDIATELY AFTER USE THE BURNER AND OTHER ACCESSIBLE PARTS MAY BE HOT; DO NOT TOUCH THESE PARTS AND ALWAYS KEEP CHILDREN AT A SAFE DISTANCE. AFTER USING THE APPLIANCE ENSURE THE KNOB/KNOBS ARE OFF. AFTER USE ALWAYS SHUT OFF THE GAS SUPPLY AT THE MAIN GAS TAP.

THIS APPLIANCE MUST NOT BE USED BY PERSONS (INCLUDING CHILDREN) WHO SUFFER FROM PSYCHICAL AND MOTORY RELATED DISORDERS OR WHO ARE NOT FAMILIAR WITH OR WHO HAVE NO EXPERIENCE WITH THE APPLIANCE UNLESS UNDER SUPERVISION OR ARE BEING INSTRUCTED ON HOW TO USE THE APPLIANCE BY THE PERSON RESPONSIBLE FOR THEIR SAFETY. CHILDREN MUST ALWAYS BE SUPERVISED TO PREVENT THEM FROM PLAYING WITH THE APPLIANCE.

THE USE OF GAS APPLIANCES GENERATES HEAT AND MOISTURE IN THE IMMEDIATE AREA. ALWAYS ENSURE A GOOD VENTILATION IN THE COOKING AREA: KEEP ALL AIR VENTS OPEN FOR NATURAL VENTILATION OR INSTALL AN EXTRACTOR FAN (COOKERHOOD).

DUE TO INTENSIVE USE OF THE APPLIANCE IT MAY BE NECESSARY TO INCREASE VENTILATION SUCH AS OPENING A WINDOW OR INCREASING COOKERHOOD (EXTRACTOR FAN) SPEED.

BEFORE COOKING WITH THE OVEN AND GRILL FOR THE FIRST TIME TURN ON THE OVEN OR GRILL AT HIGH FLAME AND LEAVE THE OVEN ON FOR AT LEAST 30 MINUTES AND THE GRILL FOR 15-20 MINUTES.

REMOVE ANY LIQUIDS OR OTHER ON THE HOB GLASS LID BEFORE OPENING IT.

WARNING: THIS WARNING IS AFFIXED IN VISIBLE LOCATION ON THE HOB GLASS LID. GLASS HOB LIDS MAY SHATTER WHEN HEATED. ALWAYS RAISE THE LID BEFORE IGNITING A BURNER/S (HOB, OVEN AND GRILL) AND TURN OFF ALL BURNERS (HOB, OVEN AND GRILL) AND LET THEM COOL DOWN BEFORE LOWERING THE HOB GLASS LID.

CONTROLS

The following symbols identify which knob corresponds to which burner. NOTE: Different models may have different knobs and different symbols.

THIS SYMBOL IS POSITIONED NEAR THE BRUNER KNOBS ON THE HOB. THE BLACK DOT INDICATES THE POSITION OF THE BURNER ON THE HOB.

THIS SYMBOL IS POSITIONED NEAR THE OVEN BURNER KNOB

THIS SYMBOL IS POSITIONED NEAR THE GRILL BURNER KNOB

The following symbols are for burner flame regulation and correspond to the position of the knob. NOTE: Different models may have different knobs and different symbols.

GAS OFF

HIGH FLAME

LOW FLAME

ELECTRIC HOTPLATE OFF

1 - 2 - 3 - 4 - 5 - 6

OVEN AND/OR ELECTRIC HOTPLATE TEMPERATURE

GRILL

OTHER SYMBOLS

PUSHBUTTON ELECTRONIC IGNITION

THIS SYMBOL IS AFFIXED IN A CLEARLY VISIBLE POSITION NEAR THE OVEN CONTROL KNOB FOR ALL MODELS FITTED WITH ELECTRONIC IGNITION WHICH IS ACTIVATED BY MAINTAINING THE CONTROL KNOB PRESSED.

PUSHBUTTON LIGHT

FOR MODELS 4XX AND CU4XX THE FOLLOWING FUNCTIONS ARE ALSO FITTED: - SWITCH FOR LIGHT AND SPIT (ROTISSERIE)

- SWITCH FOR LIGHT AND ROTATING PLATE

SPIT FUNCTION SWITCH

(FOR MODELS 4XX AND CU4XX REFER TO LIGHT SWITCH)

SWITCH FOR ROTATING PLATE

(FOR MODELS 4XX AND CU4XX REFER TO LIGHT SWITCH)

Technical specifications for burners referring to appliance model:

BURNER PAN DIAMETER
AUXILIARY∅ 47 mm	from 6 to 16 cm
SEMI-RAPID∅ 62 mm	from 16 to 22 cm
RAPID∅ 77 mm	from 16 to 22 cm

- ELECTRONIC IGNITION HOB (DEPENDING ON MODEL)

WARNING

MAKE SURE THERE ARE NO PANS OR OTHER ANY OBJECTS ON THE BURNERS WHEN IGNITING.

To ignite burner, gently push-in and turn the control knob to position HIGH FLAME and maintaining the knob pushed at the same time press the electronic ignition pushbutton. Once the burner is alight maintain the knob in this position for a few seconds to ensure the flame remains alight.

CAUTION

IF THE BRUNER DOES NOT IGNITE IMMEDIATELY REPEAT IGNITION AFTER HAVING FOLLOWED EACH STEP BELOW:

• TURN THE KNOB TO "SMALL FLAME"
• PROCEED WITH MANUAL IGNITION
- CHECK THERE IS SUFFICIENT GAS IN THE GAS BOTTLE.

IF THE APPLIANCE STILL DOES NOT IGNITE SHUT OFF THE GAS SUPPLY AT THE MAIN GAS TAP AND CONTACT YOUR LOCAL DEALER.

- MANUAL IGNITION HOB

Manual ignition when the appliance is not fitted with the electronic ignition feature or in the event of failure in the electronic ignition.

WARNING

MAKE SURE THERE ARE NO PANS OR OTHER ANY OBJECTS ON THE BURNERS WHEN IGNITING.

To ignite burner, gently push-in and turn the control knob to position HIGH FLAME and maintaining the knob pushed at the same time light the burner with a match or gas lighter. Once the burner is alight maintain the knob in this position for a few seconds to ensure the flame remains alight.

CAUTION

IF THE BURNER DOES NOT IGNITE IMMEDIATELY CHECK THERE IS SUFFICIENT GAS IN THE GAS BOTTLE.

IF THE APPLIANCE STILL DOES NOT IGNITE SHUT OFF THE GAS SUPPLY AT THE MAIN GAS TAP AND CONTACT YOUR LOCAL DEALER.

- HOB FLAME REGULATION

To regulate flame turn the knob to the desired cooking flame.

OVEN

THE OVEN BURNER MUST BE IGNITED ONLY WITH THE OVEN DOOR FULLY OPEN.

THE WIRE SHELF, DRIP TRAY AND OVEN DISH WHEN IN THE OVEN MUST BE POSITIONED SO AS TO AVOID COMING INTO CONTACT WITH THE FLAMES.

IF THE BURNER FLAME GOES OUT ACCIDENTALLY TURN OFF THE GAS KNOB AND WAIT ONE MINUTE BEFORE RE-IGNITING.

- ELECTRONIC IGNITION OVEN (DEPENDING ON MODEL)

To ignite burner, push-in and turn the control knob to a position from 1 to 6 and maintaining the knob pushed at the same time press the electronic ignition pushbutton (for models that have ★ affixed to the oven door the electronic ignition button is not visible and is activated by pressing the gas knob down). Once the burner is alight maintain the knob in this position for a few seconds to ensure the flame remains alight.

IF THE BRUNER DOES NOT IGNITE IMMEDIATELY REPEAT IGNITION AFTER HAVING FOLLOWED EACH STEP BELOW:

• PROCEED WITH MANUAL IGNITION
- CHECK THERE IS SUFFICIENT GAS IN THE GAS BOTTLE.

IF THE APPLIANCE STILL DOES NOT IGNITE SHUT OFF THE GAS SUPPLY AT THE MAIN GAS TAP AND CONTACT YOUR LOCAL DEALER.

- MANUAL IGNITION OVEN

Manual ignition when the appliance is not fitted with the electronic ignition feature or in the event of failure in the electronic ignition.

To ignite burner, gently push-in and turn the control knob to a position from 1 to 6 and maintaining the knob pushed at the same time light the burner with a match or gas lighter. Once the burner is alight maintain the knob in this position for a few seconds to ensure the flame remains alight.

IF THE BURNER DOES NOT IGNITE IMMEDIATELY CHECK THERE IS SUFFICIENT GAS IN THE GAS BOTTLE.

IF THE APPLIANCE STILL DOES NOT IGNITE SHUT OFF THE GAS SUPPLY AT THE MAIN GAS TAP AND CONTACT YOUR LOCAL DEALER.

- OVEN FLAME REGULATION WITH THERMOSTAT

POSITIONS 1 2 3	4 5 6
TEMPERATURE 13	0^ C 16	0^ C 180	^ C 200	^ C 220	^ C 240	^ C

When the oven burner is ignited the flame remains at high flame in all knob positions. When the oven reaches the set temperature the flame automatically goes down to low flame.

GRILL

THE GRILL BURNER MUST BE IGNITED ONLY WITH THE DOOR FULLY OPEN.

IF THE BURNER DOES NOT IGNITE IMMEDIATELY, RELEASE THE KNOB WAIT FOR AT LEAST 10 SECONDS AND IGNITE AGAIN.

AS ACCESSIBLE PARTS MAY BE VERY HOT WHEN USING THE GRILL KEEP CHILDREN AT A SAFE DISTANCE FROM GRILL.

WHEN USING THE GRILL THE DOOR MUST BE KEPT OPEN AND WITH THE HEAT GUARD FULLY EXTRACTED (FIG.4 - PG. 183).

NEVER USE THE GRILL FOR MORE THAN 25 MINUTES. THE GRILL CANNOT BE USED AS AN OVEN.

IF THE BURNER FLAME GOES OUT ACCIDENTALLY TURN OFF THE GAS KNOB AND WAIT ONE MINUTE BEFORE RE-IGNITING.

- ELECTRONIC IGNITION GRILL (DEPENDING ON MODEL)

To ignite burner, gently push-in and turn the control knob to position GRILL or HIGH FLAME and maintaining the knob pushed at the same time press the electronic ignition button (for models with the ★ symbol affixed to the door; the ignition button is not visible and is activated by pressing the knob down). Once the burner is alight maintain the knob in this position for a few seconds to ensure the flame remains alight.

IF THE BRUNER DOES NOT IGNITE IMMEDIATELY REPEAT IGNITION AFTER HAVING FOLLOWED EACH STEP BELOW:

• PROCEED WITH MANUAL IGNITION
- CHECK THERE IS SUFFICIENT GAS IN THE GAS BOTTLE.

IF THE APPLIANCE STILL DOES NOT IGNITE SHUT OFF THE GAS SUPPLY AT THE MAIN GAS TAP AND CONTACT YOUR LOCAL DEALER.

- MANUAL IGNITION GRILL

Manual ignition when the appliance is not fitted with the electronic ignition feature or in the event of failure in the electronic ignition.

To ignite burner, gently push-in and turn the control knob to position GRILL or HIGH FLAME and maintaining the knob pushed at the same time light the burner with a match or gas lighter. Once the burner is alight maintain the knob in this position for a few seconds to ensure the flame remains alight.

IF THE BURNER DOES NOT IGNITE IMMEDIATELY CHECK THERE IS SUFFICIENT GAS IN THE GAS BOTTLE.

IF THE APPLIANCE STILL DOES NOT IGNITE SHUT OFF THE GAS SUPPLY AT THE MAIN GAS TAP AND CONTACT YOUR LOCAL DEALER.

- FLAME REGULATION GRILL

For models 4I4 - CU3II - CU3IIM - CU333 - CU333M - CU335 - CU352M - CU335M - CU4I4PE - CU433CU433M - CU433ML:

the grill is to be used only at its rated thermal capacity.

For all other models:

to regulate flame turn the knob to the desired cooking flame.

VISUAL FLAME CONTROL

Depending on the type of gas used the flame should be:

Propane (G31): blue flame without yellow tips.

Butane (G30): flame with yellow tips when ignited which becomes more intense in colour as the burner heats.

ELECTRIC HOTPLATE (depending on model)

BEFORE TURNING ON THE ELECTRIC HOTPLATE (OR IF THE HOTPLATE HAS REMAINED UNUSED FOR A LONG TIME) IT IS NECESSARY TO ELIMINATE ANY DAMP BY TURNING ON THE HOTPLATE AND LEAVING IT ON FOR 30 MINUTES WITH THE CORRESPONDING KNOB IN POSITION I

USE PANS WITH FLAT BOTTOMS AND WITH DIAMETERS NO LESS THAN THE DIAMETER OF THE HOTPLATE.

DRY THE BOTTOM OF THE PAN BEFORE PLACING IT ON TOP OF THE HOTPLATE.

WHEN USING THE HOTPLATE DO NOT LEAVE THE APPLIANCE UNATTENDED AND MAKE SURE CHILDREN ARE NOWHERE NEAR THE APPLIANCE.

The electric hotplate is controlled by a 7-position knob: position off is 0 (zero) whereas positions 1 to 6 are for regulating the hotplate. Positions 1 to 6 correspond to an increase in temperature of the hotplate. There is a red LED positioned next to the knob which lights up when the hotplate is on.

MICROWAVE

For the installation, use and maintenance instructions, of the microwave, consult the operating manual contained inside the microwave.

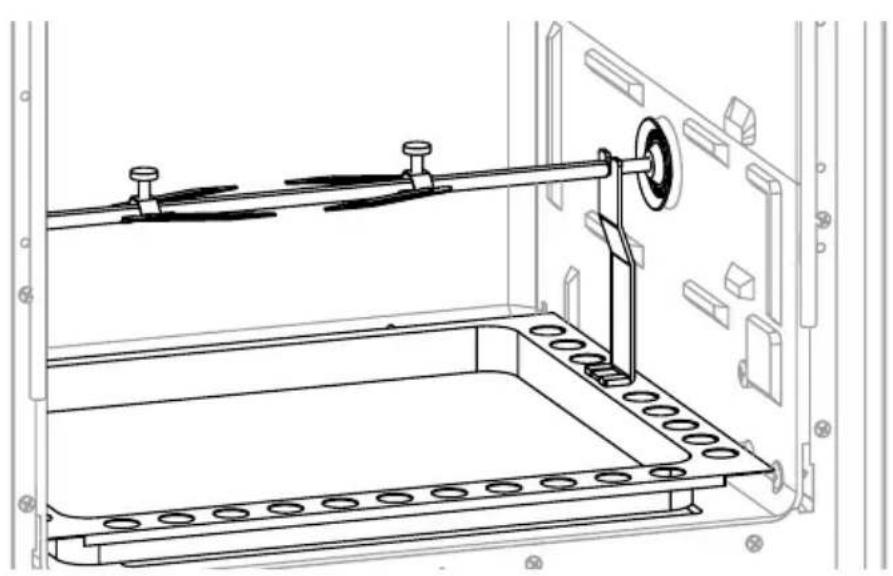

SPIT

Ignite the oven as described in the chapter OVEN. Turn the gas knob to the required position. Insert the drip tray with the spit already installed as illustrated in Fig. 5 - Pg. 183. Press the spit button to turn on the spit motor.

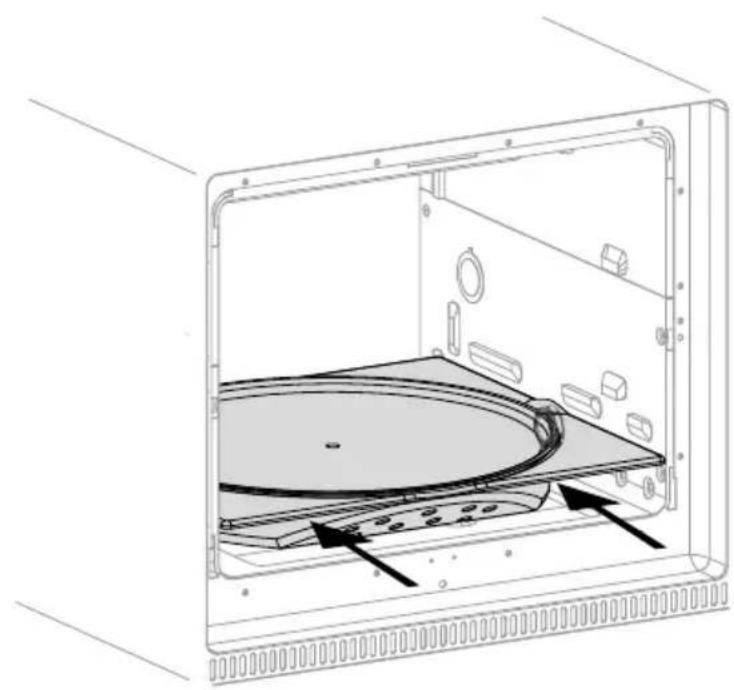

ROTATING PLATE

Position the drip tray with the rotating plate as illustrated in FIG. 6 - PG. 184. Press the purpose button to turn on rotating plate motor.

NEVER OPERATE THE APPLIANCE WITH GAS AND/OR AT GAS PRESSURES DIFFERENT FROM THOSE INDICATED BY THE MANUFACTURER AS THIS COULD CAUSE IRREGULAR AND INCORRECT OPERATION. THE MANUFACTURER DECLINES ALL LIABILITY FOR THE INCORRECT OR IMPROPER USE OF THE APPLIANCE.

The appliance runs off standard gas bottles which can be found in the country of use. The type of gas to use is clearly marked on the packaging and on the specifications label affixed to the rear of the appliance. However always respect the following instructions: gas bottles must always be located and positioned in the compartment provided for this purpose. They must always be vertical and fitted with a pressure regulator and easily accessible and not obstructed. Do not obstruct or impede access to the gas bottle to permit quick and easy access when replacing.

WARNING! When replacing the gas bottle always take the following precautions:

a) close all gas knobs;
b) make sure there are no flames or fires in proximity of the gas bottle;
c) close the gas valve on the bottle to be replaced;
d) unscrew the pressure regulator on the empty bottle and remove the bottle from the purpose compartment. This procedure is inverted for fitting a new bottle. Check for gas leaks utilising a non-corrosive fluid. Do not use a water and soap solution.
e) ignite the burners to check they function correctly. If there are problems, call in an authorised gas service engineer.

NEVER USE A FLAME TO CHECK FOR GAS LEAKS;

AFTER APPLIANCE USE ALWAYS TURN OFF THE GAS TAP ON THE BOTTLE

GAS LEAKS

We recommend the use of an electronic and homologated gas detector for checking for gas leaks. If there is a smell of gas;

a) immediately open the windows and evacuate the vehicle or caravan.
b) do not turn on or off light switches or other electronic and electric appliances, do not light matches or lighters or anything that could cause the gas to ignite;
c) put out any flames
d) shut off the valve on the gas bottle or cylinder. Do not re-open this valve unless the gas leak has been identified and eliminated.
e) contact a specialised gas service engineer.

MAI NTENANCE

CLEANING

WARNING

CAUTION

WARNING

BEFORE CLEANING THE APPLIANCE ALWAYS TURN IT OFF AND DISCONNECT FROM POWER SUPPLY AND WAIT UNTIL IT HAS COOLED DOWN.

SURFACES THAT ARE STILL HOT CAN BE DAMAGED IF THEY COME INTO CONTACT WITH COLD WATER OR A DAMP CLOTH. NEVER USE ABRASIVE, CORROSIVE OR CHLORINE BASED CLEANING PRODUCTS. NEVER USE STEEL OR PLASTIC SCOURING PADS. NEVER LEAVE DEPOSITS OF ACID OR ALKALINE SUBSTANCES (VINEGAR, SALT, LEMON JUICE ETC.) ON SURFACES OF THE APPLIANCE. STAINLESS STEEL SURFACES AND ENAMELLED PARTS: CLEAN WITH A WATER AND SOAP OR NEUTRAL DETERGENT SOLUTION, RINSE AND DRY. USE CLEAN SPONGES OR CLOTHS TO CLEAN.

NEVER USE ABRASIVE AND / OR COARSE CLEANING MATERIALS OR METAL BRUSHES TO CLEAN THE GLASS OVEN DOOR AS THESE MATERIALS SCRATCH THE GLASS SURFACE WITH THE RISK OF SHATTERING THE GLASS.

NEVER USE STEAM CLEANERS TO CLEAN THE APPLIANCE.

INJECTORS

WARNING

CLEANING OR REPLACING GAS INJECTORS MUST ONLY BE PERFORMED BY AUTHORISED AND QUALIFIED GAS SERVICE ENGINEERS. THE MANUFACTURER DECLINES ALL RESPONSIBILITY IN REGARD.

When removing and mounting the injectors the injector holder must be held in place with the aid of tool (Fig. 7 - Pg.185.)

BURNER ∅ INJECTOR (mm)		STAMPED N.
RAPID (∅ 77 mm)	0,75	75
SEMI-RAPID (∅ 62 mm)	0,67	67
	0,50 50AUXILIARY (∅ 47 mm)
GRILL	0,620,57 (CU352M) - 0,64 (CU351MK)	6257 (CU352M) - 64 (CU351MK)
OVEN	0,530,52 (CU351MK - CU354MK)	5352 (CU351MK - CU354MK)

EEC DIRECTIVE 2002/96/EC (WEEE)

INSTRUCTIONS FOR USERS

THESE INSTRUCTIONS ARE FOR WHO OWNS APPLIANCES WHICH HAVE THIS SYMBOL IN THE LABEL CONTAINING THE TECHNICAL SPECIFICATIONS AND THAT IS AFFIXED TO THE APPLIANCE (SERIAL LABEL). THIS SYMBOL INDICATES THAT THIS PRODUCT IS CLASSIFIED, ACCORDING TO LEGISLATION IN FORCE, AS ELECTRICAL OR ELECTRONIC EQUIPMENT AND CONFORMS TO THE EU DIRECTIVE 2002/96/EC (WEEE). THEREFORE THIS PRODUCT MUST NOT BE DISPOSED OF WITH YOUR OTHER HOUSEHOLD WASTE. INSTEAD IT IS TO BE DISPOSED OF BY A DESIGNATED COLLECTION POINT FOR SCRAPPING WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT OR RETURNED TO YOUR RETAILER WHEN PURCHASING A NEW REPLACEMENT APPLIANCE. THE USER IS RESPONSIBLE FOR DISPOSING OF THE APPLIANCE AT A DESIGNATED WASTE COLLECTION POINT. ILLEGAL DISPOSAL IS AN OFFENCE AND AS SUCH SUBJECT TO PENALTIES AND FINES UNDER LEGISLATION. SEPARATE WASTE COLLECTION AND RECYCLING OF WASTE EQUIPMENT AT THE TIME OF DISPOSAL WILL HELP CONSERVE NATURAL RESOURCES AND ENSURE THAT IT IS RECYCLED IN A MANNER THAT PROTECTS HUMAN HEALTH AND THE ENVIRONMENT. FOR FURTHER DETAILED INFORMATION CONCERNING WASTE COLLECTION, PLEASE CONTACT YOUR LOCAL WASTE TREATMENT CENTRE OR YOUR LOCAL RETAILER WHERE YOU PURCHASED THE APPLIANCE. PRODUCERS AND IMPORTERS ARE ALSO RESPONSIBLE FOR ENVIRONMENTALLY SUSTAINABLE RECYCLING, WASTE TREATMENT AND SCRAPPING WHETHER DIRECTLY OR AS PART OF A COLLECTIVE SYSTEM.

SYMBOLOGIE

ATTENTION ET SYMBOLES DE SECURITE

RACCORDEMENT AU GAZ 33

BRANCHEMENT ELECTRIQUE 34

FIXATION 34

USAGE 35

PRECAUTIONS SUPPLEMENTAIRES 35

TABLEAU DE COMMANDE 35

BRULEURS: 37

PLAN DE CUISSON: 38

CHOIX DU BRULEUR 38

ALLUMAGE ELECTRONIQUE DU PLAN DE CUISSON 38

ALLUMAGE MANUEL DU PLAN DE CUISSON 38

REGLAGE DE LA FLAMME DU PLAN DE CUISSON 38

FOUR: 39

ALLUMAGE ELECTRONIQUE DU FOUR 39

ALLUMAGE MANUEL DU FOUR 39

REGLAGE DE LA FLAMME DU FOUR AVEC THERMOSTAT 39

GRIL: 40

ALLUMAGE ELECTRONIQUE DU GRIL 40

ALLUMAGE MANUEL DU GRIL 40

REGLAGE DE LA FLAMME DU GRIL 40

CONTROLE VISUEL DE LA FLAMME 40

PLAQUE ELECTRIQUE 41

MICRO-ONDES 41

TOURNE BROCHE 41

PLATEAU TOURNANT 41

BOUTEILLE DE GAZ 42

ENTRETIEN 43

NETTOYAGE 43

INJECTEURS 43

DIRECTION 2002/96/EC (RAEE) 43

DIMENSIONS DU FOUR A ENCASTREMENT

- ALLUMAGE MANUEL DU FOUR

- ALLUMAGE MANUEL DU GRIL

WAARSCHUWINGEN EN VEILIGHEIDSSYMBOLEN

EXTRA WAARSCHUWINGEN 88

INBOUWOPENINGEN 88

EXTRA WAARSCHUWINGEN 91

CONTROLEPANEEL 91 BRANDERS: 93

KOOKBLAD: 94 DE BRANDER KIEZEN 94

DE KOOKPLAAT INSCHAKELEN MET DE ELEKTRONICA 94

DE KOOKPLAAT HANDMATIG INSCHAKELEN 94

DEVLAM OP DE KOOKPLAAT REGELEN 94

OVEN: 95

ELEKTRONISCHE OVENBEDIENING 95

HANDMATIGE OVENBEDIENING 95

DE OVENVLAM REGELEN MET DETHERMOSTAAT 95

GRILL: ELEKTRONISCHE GRILLBEDIENING 96 96

HANDMATIGE GRILLBEDIENING 96

EXTRA WAARSCHUWINGEN

CONTROLEER VOORDAT U HET APPARAAT INSTALLEERT OF HET APPARAAT GOED IS AFGESTELD VOOR DE CONDITIES VAN DE GASTOEVOER (GASTYPE EN-DRUK).

DE AFSTELLINGEN VOOR DIT APPARAAT STAAN OP HET ETIKET (OF OP HET SERIEPLAATJE).

DIT APPARAAT IS NIET AANGESLOTEN OP EEN APPARAAT VOOR DE AFVOER VAN VERBRANDINGSPRODUCTEN. DIT MOET WORDEN GEINSTALLEERD EN AANGESLOTEN VOLGENS ALLE GELDENDE INSTALLATIEVOORSCHRIFTEN. ER DIENT BIJZONDERE AANDACHT TE WORDEN BESTEED AAN DE TOEPASBARE VOORSCHRIFTEN INZAKE VENTILATIE VAN DE RUIMTE.

INBOUWOPENINGEN

HET APPARAAT MOET VER UIT DE BUURT VAN ONTVLAMBARE MATERIALEN WORDEN GEHOUDEN.

Dit apparaat is ingedeeld in CATEGORIE 3: APPARATEN DIE WORDEN INGEBOUWD IN EEN KEUKENMEUBEL OF EEN KEUKENWERKBLAD.

MINIMUM AFSTANDEN TUSSEN APPARAAT EN WANDEN (AFB. I - PAG. 170):

150 mm OF ACH	TUSSEN DE BUITENSTE RAND VAN DE DICHTSTBIJZIJNDE BRANDERKOP EN EEN VAN DE ZIJ-TERWANDEN:
500 mm DE KOO	TUSSEN DE BOVENKANT VAN DE BRANDERS EN DE MEUBELS OF DE HANGKASTEN BOVEN KPLAAT:
100 mm	TUSSEN DE WANDEN VAN HET APPARAAT EN DE VERTICALE WANDEN ERNAAST

AFMETINGEN VAN DE INBOUWOPENINGEN

EXTRA WAARSCHUWINGEN

HET APPARAAT MAG ALLEEN DOOR VOLWASSENEN MET ZIN VOOR VERANTWOORDELIJKHEID WORDEN GEBRUIKT. TIJDENS EN ONMIDDELLIJK NA HET GEBRUIK KUNNEN BEREIKBARE DELEN HEET WORDEN; KOM ER NIET AAN EN HOUD KINDEREN UIT DE BUURT. NA HET KOKEN, ZET U ALLE KNOPPEN WEER IN HUN GESLOTEN STAND. SLUIT NA GEBRUIK OOK DE HOOFDGASKRAAN OP DE GASLEIDING.

DEZE KOOKPLAAT MAG NIET WORDEN BEDIEND OF GEBRUIKT DOOR MENSEN (INCLUSIEF KINDEREN) MET VERMINDERDE FYSIEKE, ZINTUIGLIJKE OF MENTALE CAPACITEITEN, OF DOOR MENSEN ZONDER ENIGE ERVARING OF ZONDER DE KENNIS DIE NODIG IS OM DE KOOKPLAAT TE BEDIENEN. KINDEREN MOETEN WORDEN BEWAAKT ZODAT ZE NIET MET HET APPARAAT KUNNEN SPELEN.

EEN GASKOOKTOESTEL PRODUCEERT WARMTE EN VOCHTIGHEID IN DE RUIMTE WAARIN HET WERKT. ZORG VOOR EEN GOEDE VENTILATIE IN DE KEUKEN: LAAT ALLE NATUURLIJKE VENTILATIEOPENINGEN OPEN OF INSTALLEER EEN VENTILATIESYSTEEM (ZOALS EEN AFZUIGKAP).

EEN INTENS EN LANGDURIG GEBRUIK VAN DIT APPARAAT KAN EXTRA VENTILATIE VEREISEN. IN DAT GEVAL ZET U EEN RAAM OPEN OF ZORGT U VOOR EEN BETERE MECHANISCHE VENTILATIE DOOR HET VERMOGEN VAN DE AFZUIGKAP BIJVOORBEELD TE VERHOGEN.

VOORDAT U VOOR HET EERST DE GRILL OF DE OVEN VOOR HET EERST GEBRUIKT, DIENT U DEZE OP DE HOOGSTE STAND TE LATEN WERKEN. DE OVEN MOET MINSTENS 30 MINUTEN EN DE GRILL MINSTENS 15 TOT 20 MINUTEN BRANDEN.

HAAL EVENTUELE DRUPPELS VAN HET DEKSEL VOORDAT U HET OPENT.

OPGELET: DEZE WAARSCHUWING ZIT GOED ZICHTBAAR OP HET GLAZEN DEKSEL VAN DE KOOKPLAAT. DE GLAZEN DEKSELS KUNNEN SPRINGEN ALS ZE HEET WORDEN. OPEN ALTIJD EERST DE BEDEKKING VOORDAT U EEN BRANDER AAN ZET (KOOKBLAD, OVEN OF GRILL) EN ZET ALLE BRANDERS UIT (KOOKBLAD, OVEN EN GRILL) EN LAAT ZE AFKOELEN VOORDAT U DE BEDEKKING WEER SLUIT.

CONTROLEPANEEL

TÆNDING AF KOGEPLADEN

TÆNDING AF KOGEPLADEN

JUSTERING AF KOGEPLADENS FLAMME

OVN:

TÆNDING AF OVNEN

TÆNDING

JUSTERING AF OVNENS FLAMME MED TERMOSTAT

GRILL:

ELEKTRONISK TÆNDING AF GRILLEN

MANUEL TÆNDING AF GRILLEN

JUSTERING AF GRILLENS FLAMME

VISÜEL KONTROL AF FLAMMEN

ELEKTRISK PLADE

MIKROOVN

STEGESPYD

DREJENDE PLADE

GASFLASKE

105

107

108

108

108

108

108

109

109

109

109

110

110

110

110

110

III

III

III

III

112

VEDLIGEHOLDELSE

113

RENG∅RING

113

DYSER

113

INDBYGNINGSHULLETS MÅL

(FOR MODELLERNE 4AXX OG CU4XX, JF. AFBRYDEREN TIL LAMPEN)

BRÆNDERE

- MANUEL TÆNDING AF KOGEPLADEN

- MANUEL TÆNDING AF OVNEN

- MANUEL TÆNDING AF GRILLEN

INNEHÅLLSFÖRTECKNING

FÖRSIKTIGHETSÅTGÄRDER

INSTALLATION 129

EXTRA FÖRSIKTIGHETSÄTGÄRDER 130

ÖPPNING FÖR INBYGGNAD 130

GASANSLUTNING 131

ELEKTRISK ANSLUTNING 132

FASTSÄTTNING 132

HÄLL 133

EXTRA FÖRSIKTIGHETSÄTGÄRDER 133

KONTROLLPANEL 133

BRÄNNARE: 135

HÄLL:		136
	VAL AV BRÄNNARE	136
	ELEKTRONISK PÅSÄTTNING AV HÄLLEN	136
	MANUELL PÅSÄTTNING AV HÄLLEN	136
	JUSTERING AV HÄLLENS LÅGA	136

UGN:	137
ELEKTRONISK PÅSÄTTNING AV UGNEN	137
MANUELL PÅSÄTTNING AV UGNEN	137
REGLERING AV UGNSLÅGAN MED TERMOSTAT	137

GRILL:	138
ELEKTRONISK PÅSÄTTNING AV GRILLEN	138
MANUELL PÅSÄTTNING AV GRILLEN	138
REGLERING AV GRILLENS LÅGA	138

VISUELL KONTROLL AV LÅGAN 138

ELPLATTA 139 MIKROVÅGSUGN 139

GRILLSPETT 139 ROTERANDE TALLRIK 139

GASBEHÄLLARE 140

UNDERHÅLL 141

RENGÖRING

INJEKTORER 141

MÅTT FÖR INBYGGNADSHÅLET

MANUELL TENNING AV PLATETOPPEN

JUSTERING AV FLAMMEN PÅ PLATETOPPEN

STEKEOVN:

ELEKTRONISK TENNING AV STEKEOVNEN

MANUELL TENNING AV STEKEOVNEN

JUSTERING AV FLAMMEN I STEKEOVNEN MED TERMOSTAT

GRILL:

ELEKTRONISK TENNING AV GRILLEN

MANUELL TENNING AV GRILLEN

JUSTERING AV FLAMMEN I GRILLEN

VISÜELL KONTROLL AV FLAMMEN

ELEKTRISK KOKEPLATE

GRILLSPYD

ROTERENDE TALLERKEN

GASSFLASKE

147

149

150

150

150

150

150

|51

151

151

|5|

152

152

152

152

152

153

153

153

154

VEDLIKEHOLD

155

RENGJ∅RING

155

INJEKTORER

155

DÍREKTIVET 2002/96/EF (WEEE)

155

FIGURER OG TEKNISKE TEGNINGER

170-185

INNEBYGGINGSHULLETS MÅL

APPARATET MÅ ALLTID KOPLES FRA STR∅MMEN F∅R DET UTF∅RES INNGREP.

Bruk en stikkontakt for den elektriske koplingen til nettet.

- MANUELL TENNING AV PLATETOPPEN

- MANUELL TENNING AV STEKEOVNEN

• FORTSETT MED MANUELL TENNING.

• KONTROLLER AT DET ER GASS I FLASKEN.

HVIS APPARATET IKKE FUNGERER I DET HELE TATT, STENG GASSKRANEN, OG KONTAKT FORHANDLEREN.

- MANUELL TENNING AV GRILLEN

Technical line drawing of a multi-tiered kitchen appliance with visible door, vent, and doorways (no text or labels)

401

CU401PE

Technical line drawing of an oven with multiple fans and control knobs (no text or labels)

402

CU402PE

Technical line drawing of a portable stove with four fans and control knobs (no text or labels)

403

CU403PE

Technical line drawing of a portable stove or appliance with four circular vented fans and control buttons (no text or symbols)

404

414

CU404MW

CU404PE

CU404PEMW

CU414PE

Technical line drawing of an open oven with four gas stove covers and control knobs (no text or labels)

CU300 CU311 CU322 CU325 CU333 CU335

CU322 CU325 CU333 CU335 190 mm CU300M CU311M CU325M CU335M

CU322M CU333M 210 mm

CU433

Technical line drawing of an open oven with four fans and a door, showing internal structure without any text or symbols.

CU433M CU433ML

Line drawing of a kitchen oven with gas stove and heating unit (no text or symbols)

	X mmM
CU351MK	134
CU352M	150
CU354MK	120

352M 150 54MK 120

FIG. 4

Technical line drawing of a server rack cabinet with mounting brackets and internal compartments (no text or symbols)

FIG. 5

Technical line drawing of a mechanical assembly with mounting holes and a pulley (no text or symbols)

FIG. 6

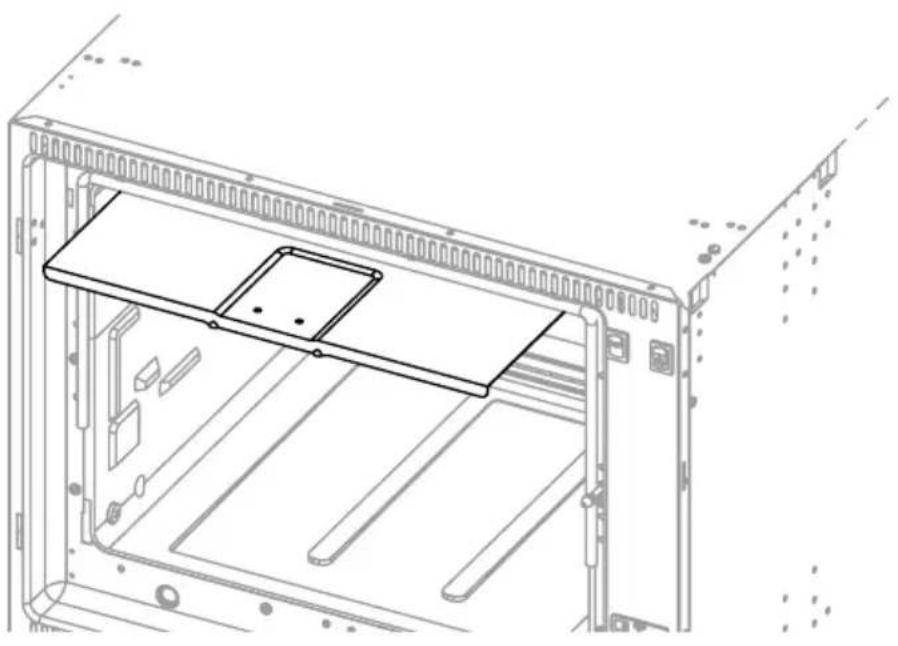

Technical line drawing of a microwave oven with internal components and mounting holes (no text or symbols)

FIG. 7

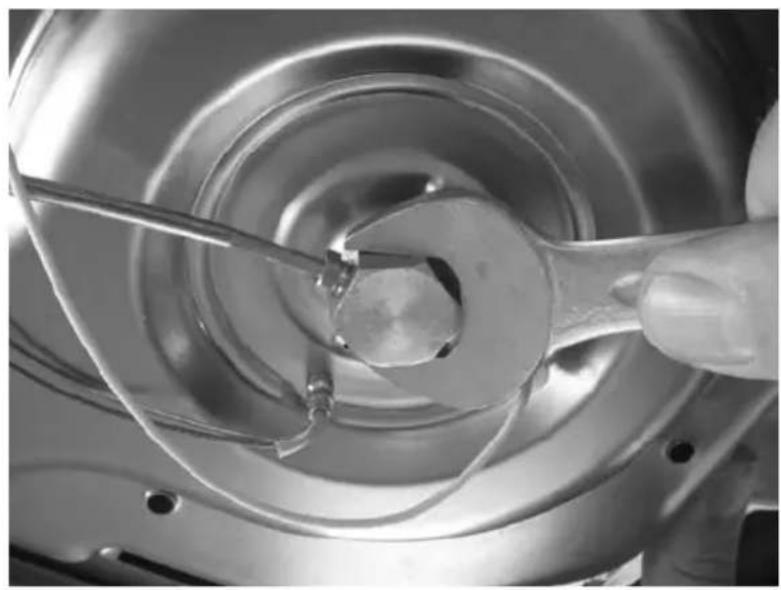

Close-up of a hand using a wrench to adjust a metal component inside a metallic cylindrical housing (no text or symbols visible)

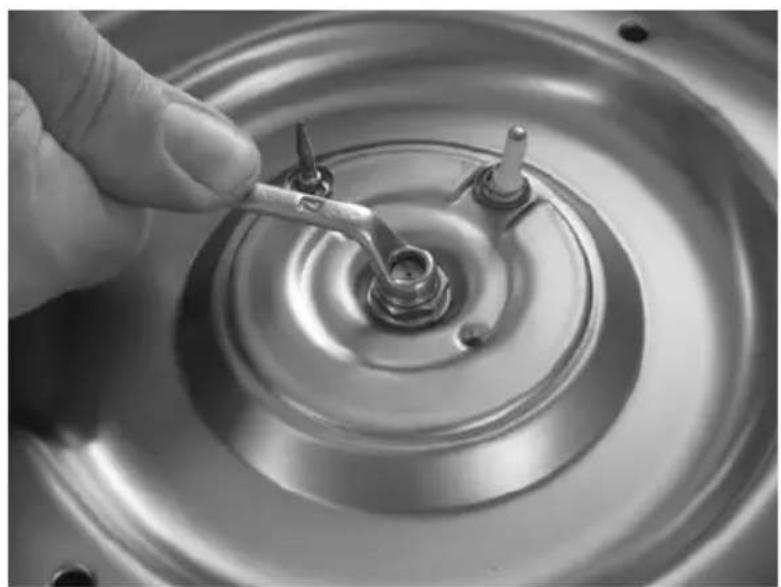

Close-up of a hand using a wrench to adjust a mechanical component on a circular metallic surface (no text or symbols visible)

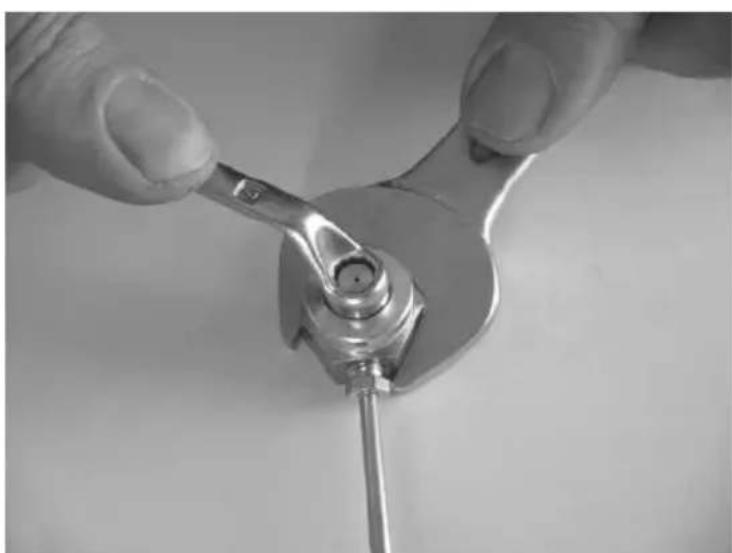

Close-up of hands using a tool to adjust a mechanical component (no visible text or symbols)

NOTE

NOTE

Dometic
