USER MANUAL PW 4913 FA CLATRONIC

Characteristicas techniques

Control element overview

Instruction Manual

Guarantee

Technical data

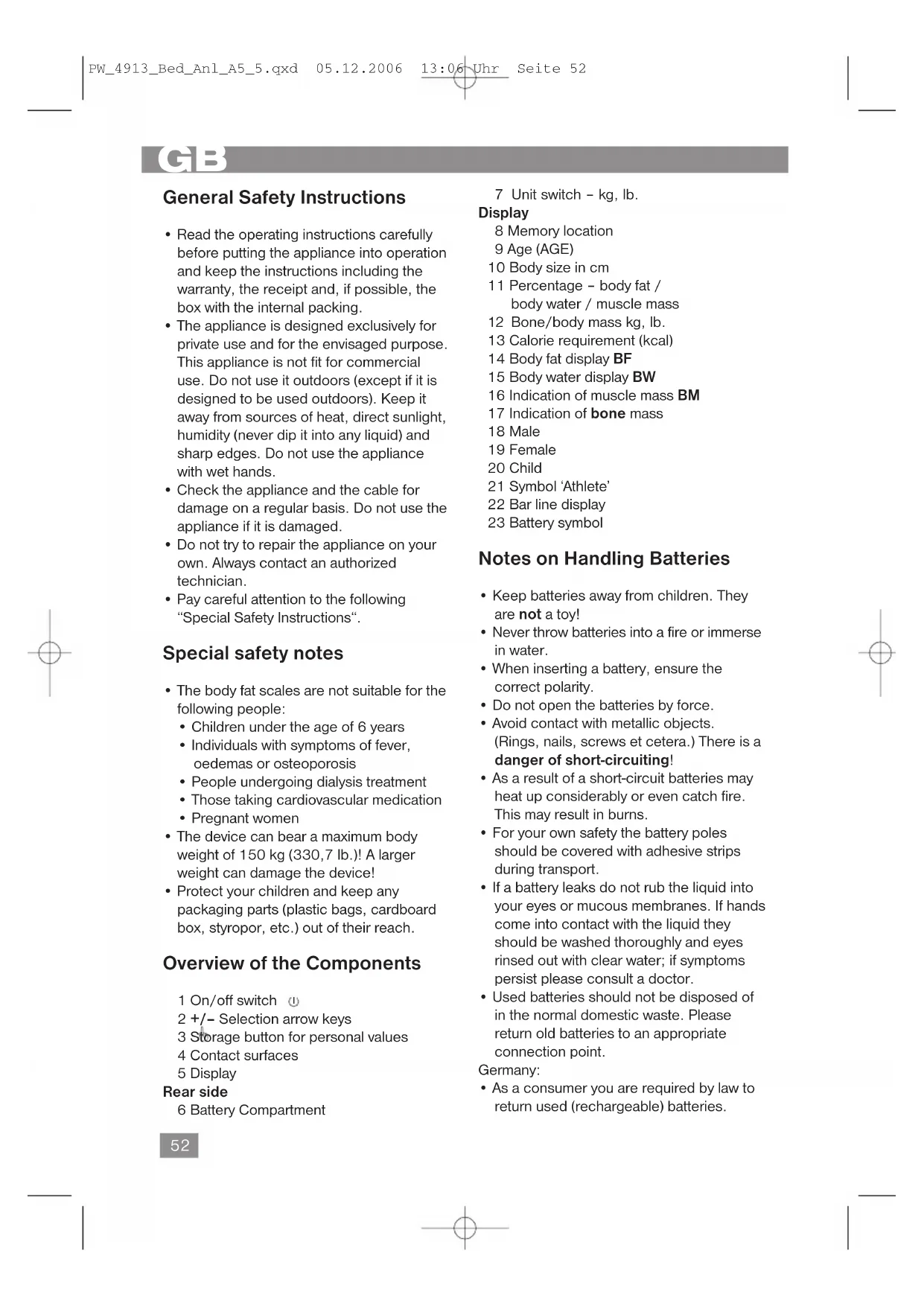

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician.
• Pay careful attention to the following "Special Safety Instructions".

Special safety notes

• The body fat scales are not suitable for the following people:

Children under the age of 6 years
- Individuals with symptoms of fever, oedemas or osteoporosis
People undergoing dialysis treatment
- Those taking cardiovascular medication
- Pregnant women

• The device can bear a maximum body weight of 150kg (330,7 lb.)! A larger weight can damage the device!
• Protect your children and keep any packaging parts (plastic bags, cardboard box, styropor, etc.) out of their reach.

Overview of the Components

1 On/off switch ①
2 + / - Selection arrow keys
3 Storage button for personal values
4 Contact surfaces
5 Display

Rear side

6 Battery Compartment

7 Unit switch - kg, lb.

Display

8 Memory location
9 Age (AGE)

10 Body size in cm

11 Percentage - body fat / body water / muscle mass
12 Bone/body mass kg, lb.
13 Calorie requirement (kcal)
14 Body fat display BF
15 Body water display BW
16 Indication of muscle mass BM
17 Indication of bone mass
18 Male
19 Female
20 Child
21 Symbol 'Athlete'
22 Bar line display
23 Battery symbol

Notes on Handling Batteries

• Keep batteries away from children. They are not a toy!
• Never throw batteries into a fire or immerse in water.
• When inserting a battery, ensure the correct polarity.
• Do not open the batteries by force.
• Avoid contact with metallic objects. (Rings, nails, screws et cetera.) There is a danger of short-circuiting!
• As a result of a short-circuit batteries may heat up considerably or even catch fire. This may result in burns.
• For your own safety the battery poles should be covered with adhesive strips during transport.
• If a battery leaks do not rub the liquid into your eyes or mucous membranes. If hands come into contact with the liquid they should be washed thoroughly and eyes rinsed out with clear water; if symptoms persist please consult a doctor.
• Used batteries should not be disposed of in the normal domestic waste. Please return old batteries to an appropriate connection point.

Germany:

• As a consumer you are required by law to return used (rechargeable) batteries.

G3

• You can return your old (rechargeable) batteries free of charge where they were bought, as well as at the local public collection points in your town.

The following symbols are to be found on (rechargeable) batteries containing harmful substances:

Pb = contains lead

Cd = contains cadmium

Hg = contains mercury

Li = contains lithium

Batteries

The batteries are two long-life lithium cells. If the letters, appear in the display this means that the batteries need replacing as follows:

• Open the cover of the battery compartment on the rear side of the scales.
• Replace the batteries with two cells of type "CR 2032". Please ensure the correct polarity (see floor of battery compartment or printed symbol on the exterior).
• Close the lid of the battery compartment.
• Do not use different battery types or used and new batteries at the same time.

Note: Do not dispose of batteries in the domestic waste. Please return used batteries to the relevant collection points or the shop where they were bought. Never throw batteries into a fire.

Battery Compartment

(on the back of the scales)

The two batteries in the battery compartment were secured in place for transport with a foil. This prolongs the life of the batteries.

Please remove this foil to prepare the scales for initial use.

Information for body fat measurement

People who use a heart pacemaker or another type of medical implant with electronic components are advised not to use these scales, as otherwise the performance of the implant may be impaired or endangered.

The device functions correctly if your feet are bare and dry and if you are in standing position.

The basic principle of these scales is measurement of the electrical impedance of the body. The scales send a weak, imperceptible electrical signal through your body in order to determine the current values. Under normal circumstances the signal is completely harmless! Nevertheless you should read our special safety instructions! The measurement is known as "biometric impedance analysis" (BIA), a factor which is associated with the body fat and body water ratio and which is subject to other biological aspects (age, sex, height).

There are heavy people with a well-balanced relation between fat and muscular mass and there are apparently slender people with substantially higher body fat values. Fat is a factor that contributes to burdening the body and, in particular, the circulatory system. The checks of both values (fat and weight) are hence a basic prerequisite for health and fitness.

Body Fat

Body fat is an important part of the body. Fat plays an important role in your body ranging from the protection of joints with its reserve of vitamins to the regulation of the body temperature. The goal is not to reduce drastically the quantity of fat in your body, but to reach and maintain a balanced relation between the muscular mass and the fat mass.

GB

The significance of water for our health

The human organism consists of approximately 55 - 60% water, with this quantity varying according to age and sex. Water has a number of tasks to fulfil in the body: It is a building block of our cells. This means that all cells in the body, whether these are skin, gland, muscle, brain or other cells, can only function if they receive enough water. It is a solvent for important substances in our organism.

It is a means of transport for nutrients, the body's own substances and metabolic products. Please see the table of guideline

values for the reference value for your fitness profi le. It shows that there is a relation between the body fat values and your age and sex. Always bear in mind that, as in the case of the water balance in your body, also the share of fat is subject to great variations. Therefore, weigh yourself always at the same hour of the day to obtain a comparable value. The results of the analysis of the body fat and body water ratio are only reference values. They are not recommended for use for medical purposes. You should always consult your doctor if you have any questions about medical treatment or a diet to achieve your normal weight.

Technical Features

Memory presets:

Memory	Sex	Height	Age (AGE)
01 Male 170 cm (5'7.0" ft. (feet)) 30

Memory locations: 16

Height setting: from 80 to 240~cm (27.5" - 710.5" ft.)

Age: from 6 to 100 years

Minimum weight: 2.0kg

Maximum weight: 150 kg (330,7lb.)

Weight measurement acc.: 100 g steps

Body fat gradation: 0.1%

Body fat measurement range: 1,0% - 60,0%

Body water measurement range: 20,0% -75,0%

Muscle mass measuring range: 10,0% - 50,0%

Guidelines - body fat percentage

Age (years)	Women				Men
	Under-weight	Normal	Slightly over-weight	Over-weight	Under-weight	Normal	Slightly over-weight	Over-weight
6-11	11-13%	14-23%	24-27%	>27%	9-11%	11-20%	21-24%	>24%
12-15	12-15%	16-24%	24-29%	>29%	7-9%	10-19%	20-23%	>23%
16-39	17-20%	21-28%	29-33%	>33%	10-12%	13-20%	21-25%	>25%
40-60	20-24%	24-32%	33-37%	>37%	13-15%	16-23%	24-29%	>29%
over 60	21-24%	25-35%	36-40%	>40%	15-17%	18-26%	27-31%	>31%

Age (years)	Women Men
	under-weight/thin	normal	over-weight/fat	under-weight/thin	normal	over-weight/fat
Athlete 16-50	< 13%	14-26%	>26%	< 3%	4-17%	>17%

Guideline for the body water, muscle and bone shares as percentages of the body mass and the calorie requirements to cover the daily requirement:

Example for the calculation of the bone percentage:

A man weighs 70kg and is 35 years old.

The determined bone mass is

12.6 kg (12.6 x 100 / 70 = 18%).

Age (years)	Women				Men
	Normal values				Normal values
	Water	Muscles	Bones	Calories (kcal)	Water	Muscles	Bones	Calories (kcal)
6-11 54	-65% 24	-34% 15	-19% 150	00-2000 56-67	% 25-36%	15-19%	1600-2	200
12-15 54	-64% 28	-38% 14	-18% 20	00-2400 58-69	% 32-44%	15-19%	2200-	2700
16-39 50	-60% 32	-38% 15	-19% 20	00 55-65% 38	44%	16-20%	2300
40-60 45	-55% 30	-36% 15	-19% 18	00 50-60%	36-42%	16-20%	2100
over 60	40-55%	29-35%	14-18%	1600 45	60%	34-4	0% 15-1	9% 1800
Athlete 16-50 52	-64% 34	-41% 15	-19% 26	00 58-70% 41	48%	16-20%	3000

Attention: Owing to great variations in the level of body fat it is difficult to obtain a reference value. On average for adult men the best time for the measurement is between 6 and 8 o'clock p.m. because the level of body fat is very constant during this period!

Putting into service

Simple Weighing Function

Position the balance on a hard, flat surface (avoid carpets). Uneven floors lead to imprecise readings.

1. With the switch next to the battery compartment you may choose between the

settings 'kg', 'lb.' (pound).

1. Switch on the scales by pressing lightly with your foot or toes on the glass surface. You may also push the ON button . "8888" appears in the display.

2. After a few seconds "0.0"kg (0.0 lb.) appears in the display (5). Now stand with both feet on the contact surfaces of the scales. Spread your weight out evenly and wait while the scales calculate your weight.

3. The indication on the display initially flashes 2x then your exact weight will be shown. When you step down from the scales, the

GB

device switches off automatically after 10 seconds or you can push the ON button

Programming your personal data

Attention: Carry out the following operations one after the other and within a few seconds or the device will automatically interrupt the programming mode!

1. To switch the scales on shortly push on the glass surface with your foot or foot tip or push the ON switch Wait until 0.0kg (0.0 lb.) appears in the display. Then, push the button to change to the programming mode. 'SET' appears in the display, then 01' (storage location) starts to flash, and the preset symbol for male' and the preset value for the height in cm (ft.) are shown.
2. Select a storage location using the - / + buttons.
3. Then push the button and the display changes to the next setting.
4. The symbol for 'male' flashes on the display. Use the - / + buttons to select a setting ('male' or 'female').
   5.Push the button again to change to the HEIGHT setting. The indication '170' (5'7.0") flashes. Use the -/+ buttons to select a value between 80 (2'7.5") and 240 cm (7'10.5").
   6.Push the button again to change to the AGE setting. The indication '30' flashes. Push one of the buttons - or + and hold it down to run up or down through the values in fast mode. Use the - / + buttons to select a value between 6 and 100 years. If the age is set to a value under 16 years, a child's face will be shown in the display next to the male/female symbol.
5. Push the button again - the set storage location, sex, age and height values shown in the display flash for some seconds. If only the number of the storage location flashes, you have the following options:

a. Push the button again to view all settings.

b. To make any changes choose the storage location with the settings to be changed (flashing indication) and push the button. Proceed as described in steps 4 to 6.
c. If you wait for more than 5 seconds without any action, the scales will switch themselves off.

Your personal data is now stored in the selected storage location.

There is an overall number of 16 storage locations. The remaining 15 storage locations can be used to store also the personal data of other members of your family or other users of these scales.

Determination of the body and bone mass, and the body fat, muscle and body water percentages

First, enter your personal data in one of the storage locations available. To switch the scales on shortly push on the glass surface with your foot or foot tip or push the ON switch The display will show 8888'. Use the - / + buttons to select the storage location where your personal data is stored.

Note: Measuring is only possible with bare feet. If required, wipe the contact surfaces clean to enhance conductivity. Put each of your bare feet on 2 of the 4 contact surfaces.

• The display initially shows the stored data including the storage location (flashing), body height, and sex, then, after some seconds, the display changes to the AGE. Then, the display shows 0.0 kg (0,0lb.).

Athlete symbol

This group includes persons who are doing sports for at least 10 hours per week and have a heart rate of about 60 beats/min or lower.

Note:

The guidelines do not cover professional sportsmen as, e.g., bodybuilders.

GB

• If the display shows 0.0kg (0,0 lb.) and your age is set to a value between 16 and 50 years, the ATHLETE symbol will light up after pushing the - button.
• Now, step on the scales.
• Wait until the measuring process is completed (the weight indication flashes 2 x).
  After a few seconds, the display will show your determined weight, your body fat percentage (symbol: 'BF %') followed by your body water percentage (symbol: 'BW %'). The scales furthermore determines the muscle mass percentage ('BM %'), the calorie requirement for the day (kcal), and the bone mass in kg/ lb. (Bone / kg (lb.).
• During the 'Body Fat (BF %)' indication, a bar is shown indication your status (LEAN - thin, LESS - slightly underweight, NORMAL - normal weight, MORE - slightly overweight, FAT - overweight).
• The determined values will be shown in the LCD display 2x in the mentioned order, then the scales switch off automatically.

Display and Error Messages

General

If an error message (Err) appears in the display please wait until the scales switch off. Then switch them on again to continue using them. For a complete reset remove the battery for a moment and then reconnect it.

Messages

• Switching on: All segments light up simultaneously. This is a check that the displays are working correctly.
• 0.0kg / lb : The weight to be measured is too low. Correct operation is not possible.
• „Err“: The calculated body fat/ water percentage ranges beyond the upper or lower measuring limit. The measurement was aborted before the measuring process was completed or it was not possible to perform

measuring.

• "0-LD": The indication '0-LD' means that the weight exceeds 150kg . Do not exceed the device's maximum load to prevent damages to the device and the sensors. - Place the scales on a flat and solid surface.
  The battery charge is too low.

Usage and care tips

• Weigh yourself without any clothes or shoes on before meals and always at the same hour of the day. The best time to weigh yourself is when you wake up in the morning.
• The balance rounds off weight to the closest 100g .
• If you weigh yourself twice and two different values are given, it means that your weight is comprised between both values.
• Do not immerse the balance in water: the electronic components can be damaged.
• Remove the batteries if the scales will not be used for a longer period of time.
• Handle the balance with care, as it is a precise measuring instrument. Do not drop it or jump on it.
• Absolutely no need for maintenance.
• Do not load the appliance with more than 150kg (330,7 lb.) to avoid damaging the device.

Cleaning

• Clean the device with a slightly moist cloth. Make sure that no humidity or waters seeps into the device!
• Do not use abrasive detergents! These can damage the casing of the device!
• Use a commercially sold detergent or soap for cleaning.
• Dry the device well after cleaning with a dry and soft cloth.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low vol

GB

tage directives, and has been constructed in accordance with the latest safety regulations. Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

Defects to consumables or parts subject to wearing as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Use the collection points provided for the disposal of electric appliances to dispose of electric appliances that you do not use any more.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment. Information concerning where the equipment can be disposed of can be obtained from your local authority.

Technical data

Model: PW 4913 FA

Power supply: 2X 3V CR 2032

Min. / max.

weight load: 2kg - 150kg

Generelle sikkerhetsanvisninger

Minimalis suly: 2,0 kg-tol

Maximalis suly:

A testsuymeres bontasa: 100 g-os lépsekben

Testzsir-beallitas:

Testzsirmeresitartomany:

Cd = coJeprKHTKaJMMn

Hg = coJeprKHT pTytb

Li = cOePKNIT NNTN

BatapeiKu

BapateKn npedctabJrOt c6oB dBa nHTneBbIX 3IeMeHtA C 60JIbUIM CpOKOM cnjkb. EcIn BO BpeM 3KcNlyatauHa HINcPNeE NOBHTC CoO6UeHne" ,TO O3HauaET 6atapeKn ocna6n, To noCTyNaTe CJeNyUOUM o6pa3OM:

• OTKpoTe KpbIuKy OTdJIeHnI nIbTaapeek Ha o6paTHoN CTOpOHe BecOB.
  3aMeHnte 6aTapeKn DByMa 3JIeMeHTaMn Tna "CR 2032". Co6NHOaTe npaBnBHyO NOJrPHoCTb (CMOTPN DO HO OTCEKa INI OH NTOHCK C HApYHKHO CTOPHObl).

3aKpoTe KpbIuKy OTeKa.
He nCNoB3yIte OJHOBpeMeHHO pa3nUHbIe TINbI 6aTapeE K NIN HOBBe 6aTapeKIN BMECTECYKENCNOJB3OBAHHbIMN.

BHHMaHHe: He Bb6paCbIaNte 6aTapeKn B DOMaHm Mycop. IoxKaIyIcTa cdaIte OTPaOtaHHBe 6aTapeKn Ha CneUHaJIbHbI NyHK TpHema HnB TOpROByIO TOky. Hn B Koem cIyuae He 6pocaiTe 6aTapeKn B OTOHb.

OTceK 6atapeek (obpaTHaCtOPOHa BecOB)
IBe 6atapeKn, HaxoJusneCBA OTeKe,
yNaKOBaHbHa Bpem TpaHCnOpTnPOBKn B
foIbry.3To ydInHaeTnx cpoK cnjxkbI.

IpeepnepBbIM BKNIOUeHHem ydaHNTe
OJbry, YTO6bl NOIROTOBHTb BEcbl K
pa6ote.

HhOpMaunK TeMe N3MepeHne MaccbI HnpoBbIX OTIOKeHH B OpraHN3Me

IiuaM，HocuIM CepdeHyb Waromep nI
dpyro MeunHckn HmnpaHTat,
perynpyemblc 3neKtpoHko, He
pekomeHdyETcnoB3OBaTbcra 3TNMI
BecamN. OHN MOryT HeratNBHO NOBnAHTb Ha
npabnlbHOe FyHKUHOHPOBAHHe
HmPnAHTaOB.Pn6Op FyHKUHOHPyET
npabnlbHO TObKO B TOM Cnyae, eCNI
npabnlbHO BCTaTB Ha KOHTaKTHyo NOJNOKKy
6OcHOM,CyxHMn HORAM! PnHUn pa6Otbl
BECOB OCHOBAH He n3MepeHH
3NeKTPnuECKORo COpOTnBLeHHa OPraHn3Ma.
Dna 3TOBO Becbl npOnyckaOT uepe3
opraHn3M cna6bl, HeycyCTBntelbHb
3NeKTPnuECKN CNrHaI, YTObI TaKIM
0bp3OM CO6paTb DaHHbE O erO aKTyaJIbHOM
coCToRHN.CrHaI,B o6Lem, a6COJIOTHO
6e3onaceH! HecmToPr Ha 3To, Co6NIOdaTe
Bce-TaKn Haan CneuaJIbHbIe yka3AHn IIO
TexHKe 6eONacHoCTn! 3TO TpoueDypa
h3BeCTHa NOD HA3BaHHeM
"Bno3NeKTPnuEcka DnarHoctKa"(BIA),
ΦakTopom,KOTOpbI 3aBNCNT OT DOJI
HXPObIX TKaHeI/BObl B OpraHn3Me,a
TaKke CB83AN B ONPeJeIeHHo IpnOpucn C
dpyrMMNoONorueckmmnapaETpamn

RUS

(Bo3pact, non, poct).

H3BecTHO,TO ECTb TOCTbIe IIOAn C
ypaBHObeHHoN pponOpuNeM MeKdy
McykynHO H KInPOBOIM MAccOn N eCTb,
KaKyuuneCSTpOHbIM,NIOHN CnJIbHO
3aBbIeHHbIM 3HaueHHeM Maccbl KInPOBbIX
OTLOKeHn. XInPOBbIE OTIOKeHnE 3TO
ΦaKTop,KOTOpbIM CNbHO O6peMeHReT
OPraHn3M YenOBeka,BOCo6eHHocThn
cepdeHNO-CocyndctUO cNCTEmy. POaTOMy,
KOHTpONb OB0nx NapaMetPOB (McykynHO IN
KInPOBOIM MacCb),RAJIeTc OCHOBHO
PpeINOCbIKoN 3DOpOBbI N DOCTNKeHnR
XopoWeero CaMOuyCTBn.

Hnpobbte TkaHN

KInpoBbIe OTIOKeHnRAJIOTc BAJHOu cactbIOOprAHN3Ma. OHH nepeHmAmOT pa3NIuHbIe, ouehBaJHbIe, fYHKUNB OprAHN3Me,OT 3aUHTbI CyCTaBOH n HaKoPJIeHnB BtAMnHOB,do peryJauu TemnepaTpybI. IooTOMy, KOHeHou CEJIbO rBIAETcH He paAnKaJIbHOe yMeHbWeHne MacCbI JInpoBbIX OTIOKeHn,A DOCTNKeHne I NOdepXaHHe UpaBHObSeHHo IpOIpzIM MeJdy MyCKyJbHOH IN JInpoBOM MaCCOH.

Ponb BOJblnHaWero 3dOpOBb

Yenobueeckn opraHm3 MoCTOnT npMepHo Ha 55 - 60% n3 BObl, 6Oone nn MeHee B

TexHHueckne xapaKTepeHCTNKN

3aBnCmOCTN OT Bo3pacta n nona. Boda BblONHReT ceIbI prd 3aDaHn B OprHaH3Me:

OHa RAJIETCA OCHOBO KaKDoI KJIeTKN. 3TO 03HauaET, YTO KaKDaI KJIeTKa OprAHN3Ma: TO JIN 3TO KJIeTKa KOJN, NOp, MyCKyI, MO3ra IIN JIO6aI Dpyra, TOLbKO TOrda Xn3HeCnOCo6Ha, eCNI COepeKHT DOCTaTOuHOE KOJIueCTBO BODbI.

Oha cnjxnt pactBopnteIem BaXHeIuX BeueCTB HauE mOpraHn3Me.

TpaHcnpnpye nntaTeNbHbIe BeuecTBA, BBeueCTBa CO3daBaemble CaMM OPraHN3MOM I npOdyKTbI O6MeHa BeuecTB. CpaBHTeNbHbIe DaHHbIe DJIa ONpeDeHENBaWero npoФnIa npVBedHbIB Ta6NIue peKomeHdymbIX 3HaueHn. OHa NOKa3bIbAet 3aBNCNMOCTb DOJIIM MacCbI JnPOOBbIX OTIOXHeH B OprAHn3Me OT Bo3pacta I NOla. He 3a6bBaIte, YTO DOJIa JnPOBOB MaCsbI B OprAHn3Me MeHReTCB T TeUeHn CYtOK, TaKke Ka K IN DOJIa BOdb IB HEM. POToMg, DJIa DOCTNXeHn CON3MEpHMbIX 3HaueHn, IPOBOJNTe N3MepeHn B ODHO IN TOKe BpeMa cyTok. Pe3yJIbTaTbI N3MepeHn DOJIIN JnPOOBbIX TKAHe/BODb IB OprAHn3Me HOcT ToIbKO INHΦOpMaTHBbI XapAKTep. He peKOMeHdYETcR npmEHTb IX B MedInuHcknx ceJax. O6paNTecb 3a KOHCytlbTaunie K COOTBeTCTByIOUeMy BpaUy, ECIN y Bac BO3HKII BONPOCbI NO JleUeHIO INI BONPOCbI IO DiNEe C CEJIbIO DOCTNXeHn HOPMaJIbHorO BEca.

Bbod daHHbXb namTb:

YueKa POn PoCt Bo3pacr (AGE) nAMrTH

01 mycko1 170 cm (5.7.0" cyT) 30

KoJInueCTBO Ryeek nAMrTH:16

PocT: 0T 80 do 240 cm (27.5" - 710.5" ft.)

Bo3pact: ot 6 do 100 net

MHHMaJIbHbI BeC:OT2,0Kr

MaKcHMaJIbHbI BEc: 150Kr (330,7 Ib)

Pazpewauoanacnoocb no Becy: waramn no 100 r

LcHa dJeHn npn nok3aHnn doJn Jnpa: 0,1%

OpneHnpoBOUHbIe BELnHbI He
pacCHHTaHbI Ha npOpeCCNOHaJIbHbIX
CNoPTcMeHOB, K pInmepy KyIbTypnCTOB.

-Ecnn Ha dnCnnee 3aropaeTcR «0.0 kg» (0,0 lb.) n BaW Bo3pact MeKdy 16 n 50 roaMn, TO NocIe HAnKaTn KHOJKN - Ha 3KpaHe 3arOpNTc CmBOJ CnOPTcMeHa.
BcTaHbTe Ha BeCbI.
-ПОДОЖДITE OKOHУАнЯ ИЗМЕРИТБНО Гпоцeccа,пOKаЗАня Веса на ДИСПЛЕМИгaelдва раз.

-Yepe3 HeckolbKO cekyHnHa dnCnnee yka3bBaetc Bau n3MepenHbB Bec, npoehTHoe coepKaHne Knpa B opraHn3Me (CNMBOL 一 B F % ， )a 3aTe m npoehTHoe coepKaHne BObl B opraHn3Me (一 B W % 。) .Kpome TOrO,BeCbI BbyNCJIOT coepKaHne MbiUeHOn MaCCbl (一 B M % 。) ,Heo6xOIMyIO notpe6HOCTb B KaIopnIX Ha DeHb (Kcal) IN BEc KOCTHOJ MaCCbl B KfYHTax (一 B o n e / k g ( I b . ) ^ )
-BoBpemnok3aHncoepKaHnJKnpaB opraHn3me (BF % )HaDncPnee NOBnEeTcR 1kana,Yka3bIbAIOUaH Ta, B KaKx npedenax HaxoJrTaBaun DaHHbe (LEAN - xyoi, LESS-Bec cIeRKa HnKe HopMbI, NORMAL-HopMaJIbHbI,MORE-Bec cIeRKa Bblue HopMbI,FAT-TOJICTbI).
- 3aTeM NOcHtAHHbI BeINHbI Dba pa3a IOBJIHOCTHa JIKIOKOpCTaJIINueCKOM INDkaTope B yKa3aHHOM NopJdKe, NocJe Yero BEcbI aBtOMaTHueCKN OTKJIHOHTC

Poka3aHnI dncnpeN COo6eHHo6 own6kax

06nne noJohneHn

EcnHa dncnnee noBntc coo6eHne 6
Own6ke (Err), ndoXdtne noka Becbl BbIKIOUATc. Nocne 3tOrO BKIOUHTe nx
ONrTb. YTO6bl nonHOCTbO c6pocntb (Reset) BEcbl INCXODHOE COCTOHNE OTKIOUHTe Ha
KOPOTKoe BpeM 6aTaapeNk, a 3aTeM
NOdkIOUHTe NX ONrTb.

Coo6eHHa

BkJIIOUeHHe:

Bce ceMeNTb 3aropaoTcra OndOBpeMeHHo.3To KOHTpOb npaBnHoro FyHKcuOHnpoBaHHa Hdkatopa.

0.0 ~kg / lb

BecbI CTOrHnpaBnIbHo
Hn HeIOCTaTOUHbI BEc
H3MepEnHe BO3MOKHO.
YcTaHOBInTe BeCbI Ha
TBepdyo,POBHyO
NoBepxHOCTb.

,Err:

BbUncJIeHnHa npoeHTHa
DOnr Knpa/BoDbI B
opraHn3Me npEbIJaet
BepxHee KpaHHee 3NaueHne
HJN JHe He DoCTnRaET

IRUS

HnKHeRo KpaHReo 3HaueHnB O6IaCTn
H3MepHn. H3MepHne
6bIIO npepBaHO, Do TOrO
kAK PPOeCC H3MepHn
6bIIN 3aKOHueH INN JKe
H3MepHnE He CMOrIO 6bITb
npOBedeHO.

-0-LD":EcnHa dnCnnee NOBJIeTcA 0 - LD ,TO Bec npebbIaet 150 Kr. He neperpykaite np6op 6Olee pa3peSeHHO, da6bl n36eKaTb NOBpeJdeHn np6opa n ceHCopa. -YCTaHOBtBe BeCb Ha TBepdYIO,pOBHyIO NOBepXHOCTb.

• BaTapeiKnOcna6n.

PekomeHdaaunno npImeHeHHIO n yxOy 3a BecamN

B3BeWbAaTeCb 6e3 OeKbI N OoByN, IpeE eOJn BcERda B OdHO N TOKe BpeMcyTOK.
- BecbI OKpyrIaHOT NOKa3AHIN B TY INN INHyO CTOpOHy C ToHOCbHO 100 r.
- Ecnn Bbl B3Becnncb Dba pa3a n noyuynpa3nHbIe NOKa3aHnR, To BaU BcN JekntMeKdy 3TmN NOKa3aHnRM.
- HenorpykaTe Becbi B Bodyo, 3To MoKet npBecTn K nopue 3JeKTPOHKn.
- Ecni BecbI DoJIroe BpeM HeNCnONb3yOTcR, BblTaUInTe 6aTapeNkY.
- O6paauTeCb C BecAMN 6epeKHO, NOTOMy UTO 3TO N3MepNTeBHBn INHCTpyMeHT. He poHnTe H He npbIraTe Ha HeM.
-ПиборНHyжДаТСВТхОБсИУЖИBAHN.
- TTo6bI H NOBpAnTb BCbl, B3BUnBaHT Ha HnX H 60J 150 Kr (330,7 Ib.).

UncTka npH6opa

-Протрип рибор сlerka влжно,ODнaco He Mokpo Tprnkoi. Cneinte 3a Tem,уTObI BO BHyTpB KOpnyca He nonana BlaXHocTb nIN BOda!
- He npimEnHnTe cnIbHbIe MoIOuIne cpeIcTba nIO6aBkn! OHI MOrY TNOBpeIITb KOpNyc npio6opa!
B KaueCTBe Do6aBKN MoXHO pIIMeHHTb ObIuHbIe MOUcIe cpeCTBa, IpeIlaRaEMbIMN TopROJIe, INI CJa6bIMMbIbHbI pactBOp!
-ПО OkOHaHnI ChTkn XOpOTo npOTpTe np60p cyXoMrkOu TpAko!

3TO n3deneHne npoJIO BCE Heo6xOaIMbIe n aKtyaJIbHbIe npOBepKn, npEaNcAHbIe dIpeKTHBOE CE, K npM. Ha 3NeKTPOMaHHTHyO COBMecTUMOCtB H COOTBeCTBnE Tpe6oBAHNrM K Hn3KOBoJbTHoH TexHnke, OHO 6blIO TaKKe CCKHCTpyHPOBaHo N NOCTpoEHO C yUeTOM NocJeDnIX Tpe6oBaHnNo TexHnke 6e3OnacHOCTn.

Mbl octabJreM 3a cO6o npaBO Ha texHnueckne n3MeHeHHI

Pocne rapaHTn

Iocne OKOHuaHc npoka rapaHTn,peMOHT 3dJIIN IPOUN3BOIDTCra 3a ONIATy COOTBETCTBYOUMM MaCTEPCKMm Hn INyHKtAMN cepBnCHOrO O6CnyKbAHn.

TapaHTnHoe 06aTeIbCTBO

TapaHTnHbI cpoK Ha TeppHTopnn PocCnCKoΦeepaun yCTaHaBnBaETcN NOHOMOuHbIMn ppeCTaBNTeJIaMn.

Kaccobbluek HbIeTcrapaHTnHbIM TaHOHom.63 Hero HeBO3MOKeH 6ecnlaTHbI peMOHTnn 3aMeHa n3deJIy.

B clyuae Bo3HKnHOBJn npHTe3n no rapaHTn, npeJbBNTe n3dene B nONHOKOMPJIeKTaun, C opRHaJIbHOyNAKOBOH IN KACCObIM YeKOM TOpROBoI TOUKe, pOdaBwe 3TO n3dene.

IekeTbI 3HaunBaembIX npHnAdneKHOCTe HIN TpyuNXcA DeTanei, a TaKKe YnctKa, Texo6CnykHBaHHe INN 3aMeHa TpyuNXcA DeTanei He NOnaDaHT NOd rapaHTNO, INO3tOMy IpoBOJATcR 3a OTdeNbHyO ONLaTy!

TapaHTa TepaETc np BCKpbITn N3deJIH NOCTOPOHMMI JIuaM.

TexHnueckne daHHbIe

MoeB:PW4913FA

3NeKtpoHtAnHe: 2X 3V CR 2032

MnH./MaKc.

Becobar Harpuzka: 2 kg-150 kg

AEG

PW 4913 FA

GARANTIE-KARTE

Garantiebewijs - Carte de garantie
Certificado di garanzia - Tarjeta de garantia
Cartao de garantia - Guarantee card
Garantikort - Karta gwarancyjna - Zaručni list
Garancia lap - TapaHTnHa KapTočka

PW4913FA

24 Monate Garantie gemäß Garantie-Erkräung 24 maanden garantie overeenkomstig schrifelijke garantie 24 mois de garantie conformément à la déclaration de garantie 24 meses de garantie seguin la déclaration de garantia 24 meses de garantia, conforme a déclaración de garantia 24 mois di garanzia a seconda della spiegazione della garantia 24 months guarantee according to guarantee declaration 24 manders garanti i henhold til garantierklæring 24 misesqa gwaranci na podstabwe karty gwarancynej 24 Zuruka 24 mésicó podie prohálseni o zurice A garanciat lsd a hasznalati utasitāsban Tapakmneue 6b3aetlcbra -cmotn pykovodctro nonzabatre

Kaufdatum, Handlstertempel. Unterschrift · Kospdatum. Stampel van da leverancier. Handtekening · Datedachat, cachet du revender, signature · Fecheade compra. Selldei verdendor. Firma · Data de compra. Carimbo do vendedor. Assinulra · Data dell'aquisto, timbo del commerciame,irma · Purchase date. Desler stamper, Signature · Kepadospot, stampel fra handforhand, underschrift · Data cupna, Piezajka silepu, Podpis · Datum koupé, Razão produçe. Podpis · A vasafáris datus, a vasafáris hely bolyegóze, alairas Daia nojocne, nevôr, tropoiau, nojocne.
