PW 2649 - Scale CLATRONIC - Free user manual and instructions

Product Type	Bathroom Scale
Brand	Clatronic
Model	PW 2649
Power Supply	9V battery (6LR61)
Maximum Capacity	120 kg
Precision	Rounded to 0.5 kg
Display	LCD screen
Activation	Foot pressure on the right side
Auto-off	Yes, when stepping off
Surface for Use	Hard, flat surface (avoid carpet)
Cleaning	Damp cloth, no corrosive products
Safety	Do not immerse, do not use on soft floor
Warranty	24 months
Batteries Included	No
Dimensions (approx.)	30 x 30 x 4 cm
Weight (approx.)	1.5 kg

Frequently Asked Questions - PW 2649 CLATRONIC

How to turn on the PW 2649 scale?

Press your foot lightly on the right side of the activation surface. The screen then shows '0.0' kg.

What does the display 'LO' mean?

'LO' indicates that the batteries are low. Replace the 9V battery (6LR61) respecting polarity.

What is the maximum supported weight?

The scale supports a maximum weight of 120 kg. Do not exceed this limit to avoid damaging the device.

Why does the displayed weight vary?

Place the scale on a hard, flat surface. Weigh yourself without clothes, always at the same time. The scale rounds to 0.5 kg.

What type of battery to use?

Use an alkaline 9V (6LR61) battery. The device is sold without a battery.

Can I use the scale on carpet?

No, the scale must be placed on a hard, flat surface. Carpet causes inaccuracies.

How to clean the scale?

Clean the exterior with a slightly damp cloth. Never use corrosive or abrasive products.

Does the scale turn off automatically?

Yes, the scale turns off automatically when you step off, which extends battery life.

What is the precision of the scale?

The scale displays weight rounded to the nearest 0.5 kg.

What to do if the scale does not turn on?

Check the battery: remove the battery compartment cover under the scale, insert a new 9V battery respecting polarity.

USER MANUAL PW 2649 CLATRONIC

White square digital balance scale with a black triangular top (no visible text or symbols)

PW 2649

CE

D

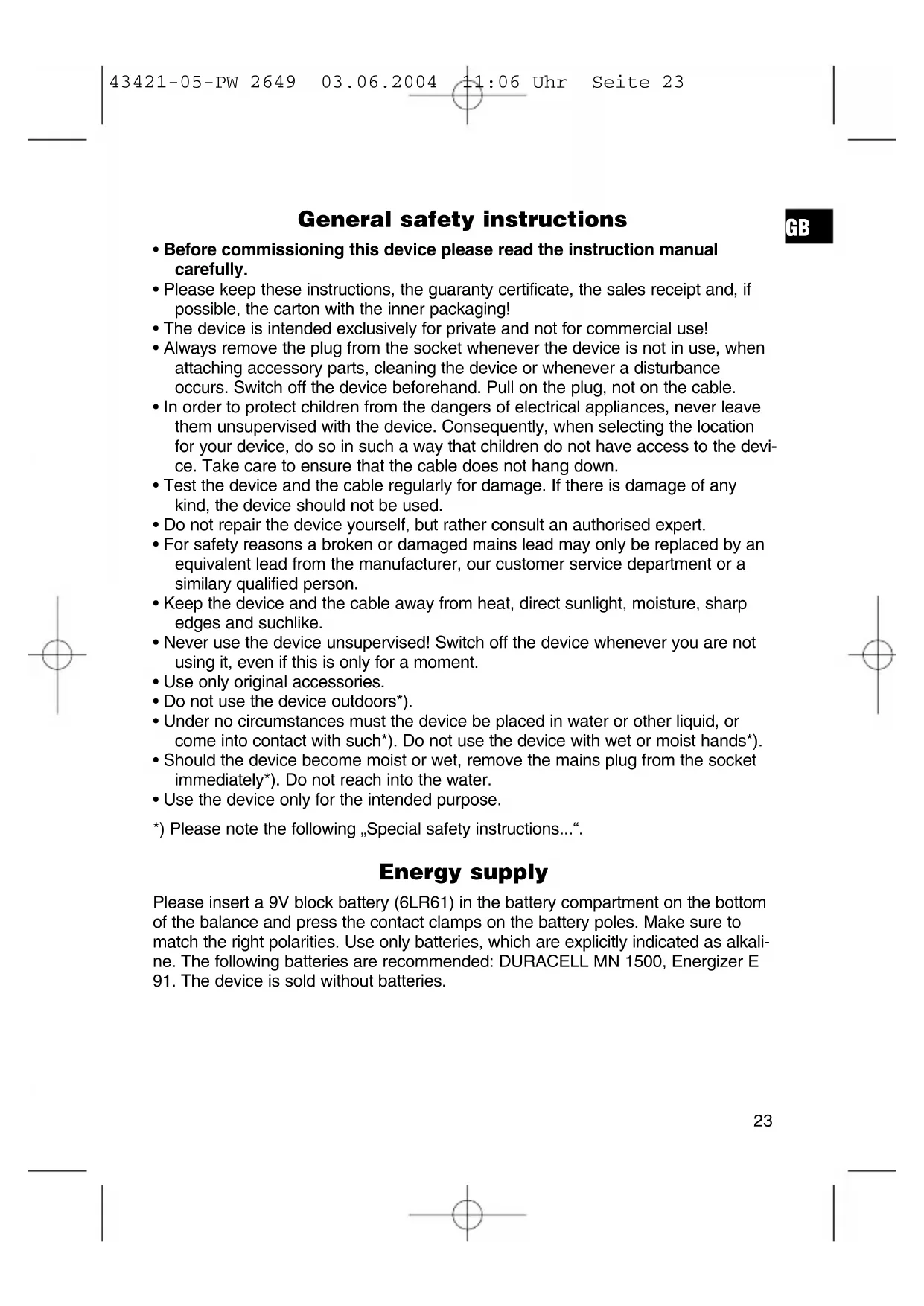

General safety instructions

GB

• Before commissioning this device please read the instruction manual carefully.
• Please keep these instructions, the guaranty certificate, the sales receipt and, if possible, the carton with the inner packaging!
• The device is intended exclusively for private and not for commercial use!
• Always remove the plug from the socket whenever the device is not in use, when attaching accessory parts, cleaning the device or whenever a disturbance occurs. Switch off the device beforehand. Pull on the plug, not on the cable.
• In order to protect children from the dangers of electrical appliances, never leave them unsupervised with the device. Consequently, when selecting the location for your device, do so in such a way that children do not have access to the device. Take care to ensure that the cable does not hang down.
• Test the device and the cable regularly for damage. If there is damage of any kind, the device should not be used.
• Do not repair the device yourself, but rather consult an authorised expert.
• For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similar qualified person.
• Keep the device and the cable away from heat, direct sunlight, moisture, sharp edges and suchlike.
• Never use the device unsupervised! Switch off the device whenever you are not using it, even if this is only for a moment.
• Use only original accessories.
• Do not use the device outdoors*).
• Under no circumstances must the device be placed in water or other liquid, or come into contact with such*). Do not use the device with wet or moist hands*).
• Should the device become moist or wet, remove the mains plug from the socket immediately ^* . Do not reach into the water.
• Use the device only for the intended purpose.
  *) Please note the following „Special safety instructions...“.

Energy supply

Please insert a 9V block battery (6LR61) in the battery compartment on the bottom of the balance and press the contact clamps on the battery poles. Make sure to match the right polarities. Use only batteries, which are explicitly indicated as alkaline. The following batteries are recommended: DURACELL MN 1500, Energizer E 91. The device is sold without batteries.

GB

Use

• The balance was designed to indicate precisely the increase in or the loss of weight.
• Position the balance on a hard, flat surface (avoid carpets). Uneven floors lead to imprecise readings.
• Switch the balance on by pressing lightly with your foot on the right side of the button.
• 3 digit lines will appear soon after on the display to indicate that it is activated. Soon „0.0“ (kg) will appear.
• Step on the balance. Distribute your weight equally on the balance and wait for the balance to calculate your weight. Your exact weight will then be displayed.
• The balance shuts off automatically thus lengthening the life of the batteries.

Usage and care tips

• Weigh yourself without any clothes or shoes on before meals and always at the same hour of the day. The best time to weigh yourself is when you wake up in the morning.
• The balance rounds off weight to the closest 0.5 kg.
• If you weigh yourself twice and two different values are given, it means that your weight is comprised between both values.
• Do not immerse the balance in water: the electronic components can be damaged.
• Never place the balance in an upright position while it is not being used, as it may lead to the rapid discharging of the batterie.
• Remove the batterie if the balance is not to be used for a long period of time.
• Handle the balance with care, as it is a precise measuring instrument. Do not drop it or jump on it.
• Absolutely no need for maintenance.
• If the display shows "LO", change the batteries.
• Do not load the appliance with more than 120 kg to avoid damaging the device.

Cleaning

• Only use a slightly damp cloth to clean the outside of the unit.
• Do not use abrasive or aggressive cleaners.
  This appliance conforms with the CE directives for radio interference suppression and low-voltage safety and has been built to meet current safety requirements.
  Subject to technical changes without prior notice!

Warranty

GB

We undertake to guarantee the appliance sold by our company for 24 months as of the date of purchase (cash receipt).

Within the guarantee period we rectify faults to the machine free of charge which result from material or manufacturing faults, either by repairing the machine or, or our discretion, by replacement. Any such repair or replacement associated with the guarantee shall not cause the guarantee period to be extended, nor be deemed to be the start of a new guarantee period!

Proof for the warranty is provided by the purchase document. The replacement and repair will not be performed free of charge without this proof of purchase.

Should the warranty be valid, please consign the complete appliance in its original packing together with the cash receipt to your local dealer.

Defects to the accessories do not entitle to the change of the appliance. These will be replaced free of charge. In this case do not send back the appliance. Just order the faulty accessory! Broken glass parts are replaced at the expense of the owner!

Neither defects to consumables and wearing parts (e.g. motor pistons, kneading hooks, drive belts, spare remote controls, spare toothbrushes, saw blades, etc.) nor the cleaning, maintenance or change of wearing parts fall under this warranty and hence are subject to payment of costs!

The warranty is terminated in case of handling on the part of Third parties.

After the warranty

Once the warranty has expired, repairs can be carried out by specialized technicians or repair services against the payment of the service.

PL

Simple line drawing of a trash bin with an X mark, no text or symbols present.

CLATRONIC®

INTERNATIONAL GMBH

D-47906 Kempen/Germany · Industriering Ost 40 Internet: http://www.clatronic.de · email: [e-mail]
