USER MANUAL Power Wave CARRERA

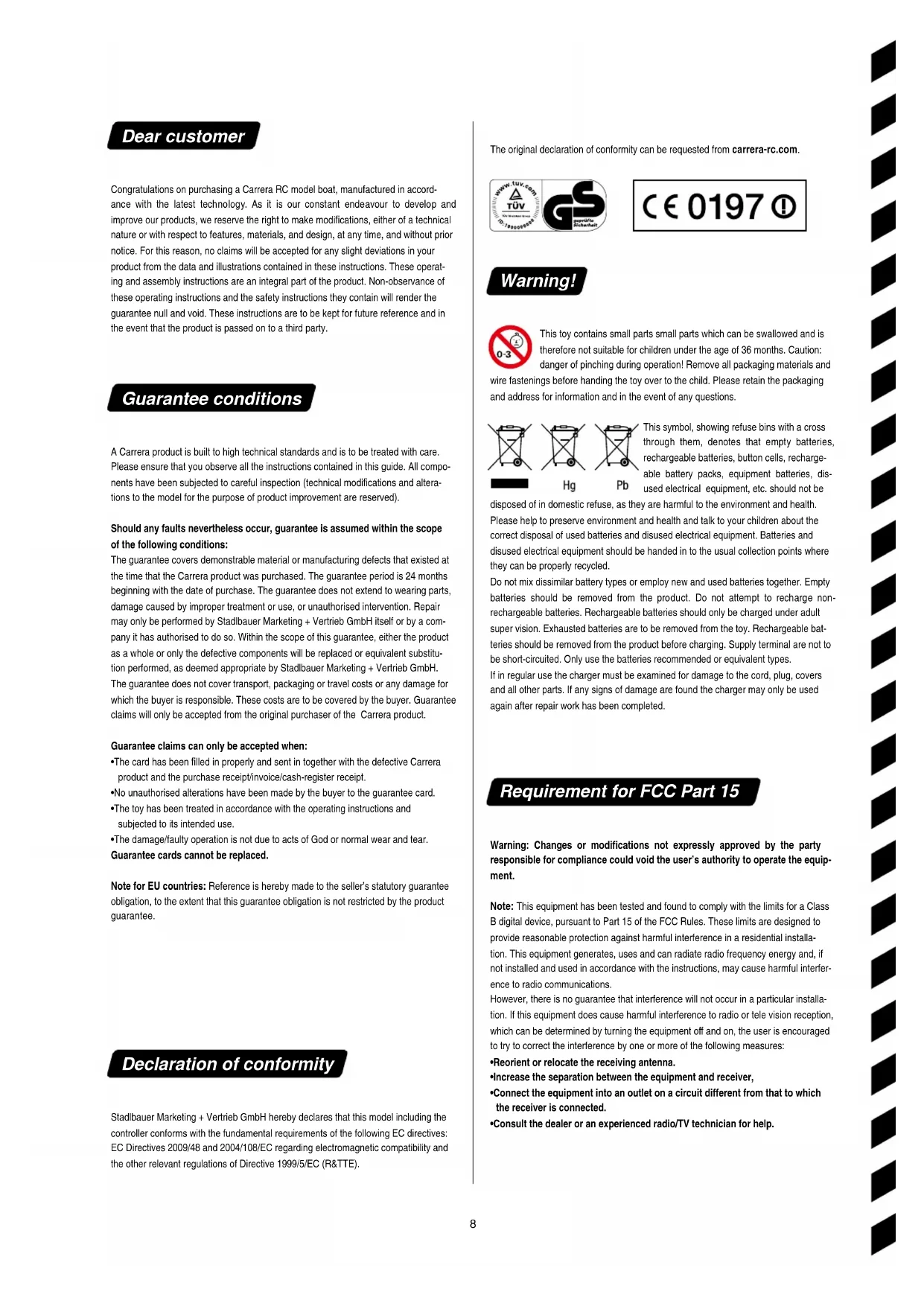

• The card has been lled in properly and sent in together with the defective Carrera product and the purchase receipt/invoice/cash-register receipt.

• No unauthorised alterations have been made by the buyer to the guarantee card.

• The toy has been treated in accordance with the operating instructions and subjected to its intended use.

• The damage/faulty operation is not due to acts of God or normal wear and tear. Guarantee cards cannot be replaced. Note for EU countries: Reference is hereby made to the seller’s statutory guarantee obligation, to the extent that this guarantee obligation is not restricted by the product guarantee. Declaration of conformity Stadlbauer Marketing + Vertrieb GmbH hereby declares that this model including the controller conforms with the fundamental requirements of the following EC directives: EC Directives 2009/48 and 2004/108/EC regarding electromagnetic compatibility and the other relevant regulations of Directive 1999/5/EC (R&TTE). The original declaration of conformity can be requested from carrerarc.com. Warning! This toy contains small parts small parts which can be swallowed and is therefore not suitable for children under the age of 36 months. Caution: danger of pinching during operation! Remove all packaging materials and wire fastenings before handing the toy over to the child. Please retain the packaging and address for information and in the event of any questions. This symbol, showing refuse bins with a cross through them, denotes that empty batteries, rechargeable batteries, button cells, recharge- able battery packs, equipment batteries, dis- used electrical equipment, etc. should not be disposed of in domestic refuse, as they are harmful to the environment and health. Please help to preserve environment and health and talk to your children about the correct disposal of used batteries and disused electrical equipment. Batteries and disused electrical equipment should be handed in to the usual collection points where they can be properly recycled. Do not mix dissimilar battery types or employ new and used batteries together. Empty batteries should be removed from the product. Do not attempt to recharge non- rechargeable batteries. Rechargeable batteries should only be charged under adult super vision. Exhausted batteries are to be removed from the toy. Rechargeable bat- teries should be removed from the product before charging. Supply terminal are not to be short-circuited. Only use the batteries recommended or equivalent types. If in regular use the charger must be examined for damage to the cord, plug, covers and all other parts. If any signs of damage are found the charger may only be used again after repair work has been completed. Requirement for FCC Part 15

Warning: Changes or modications not expressly approved by the party

responsible for compliance could void the user’s authority to operate the equip ment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfer- ence to radio communications. However, there is no guarantee that interference will not occur in a particular installa- tion. If this equipment does cause harmful interference to radio or tele vision reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver,

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.1

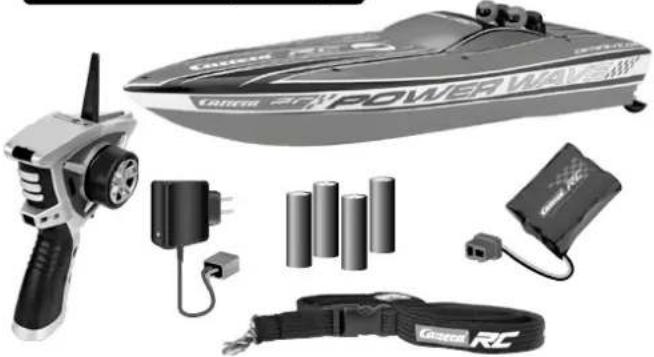

GREEN = ReadyRED = Charging 1 x Battery Charger 1 x Rechargeable Battery 1 x 4 AAA batteries (non-rechargeable) 1 x Power Wave 1 x Controller 1x Lanyard A Carrera RC boat is a remote- controlled model boat that uses special rechargeable batteries for this purpose. Only original Carrera RC Li-Ion rechargeable batteries may be used. The Carrera RC boat must be inspected before and after operation, each time it is used, to ensure that it has not become disassembled. Any screws or nuts that may have become loosened during operation must be tightened. When starting, always switch the controller on rst, then the boat. When nishing, always reverse the order of these actions! Safety propeller The propeller switches o on being taken out of the water. Please note particularly that the propel- lers have no function out of the water. The boat cannot be operated on the ground. Do not run your boat during a thunder- storm! Atmospheric interference can lead to malfunctions. The toy is to be operated in water only when fully assembled. Please ensure your remote control batte- ries have the required capacity and make sure the LI-Ion power pack is fully charged. Do not expose the Carrera RC boat to direct sunlight. To avoid the electronics in the car over- heating, when temperatures are above 35 °C regular short pauses in operation are essential. Handle the tip of the antenna with care. Danger of injury! Never use strong solvents for cleaning your model. To avoid malfunctions to the control system resulting in uncontrolled opera- tion of the Carrera RC boat, check that the controller batteries and the rechargeable batteries in the boat have sucient charge. Safety instructions Contents of package1

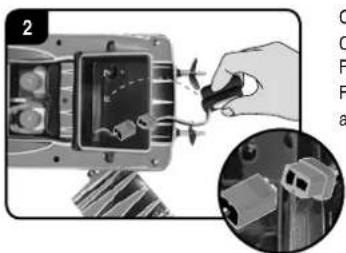

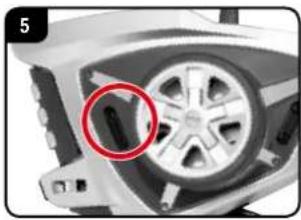

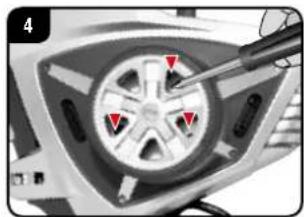

Let’s practise! GREEN = ReadyRED = Charging Charging the rechargeable battery Now you can drive the boat Installing the rechargeable battery Fitting in the batteries Using a screwdriver, remove the cover of the battery compartment in the Carrera RC boat. Connect the end of the cable from the Carrera RC boat with the charged battery. Put the battery in place. Replace the compartment cover using a screwdriver. Press the release button, then take the battery compartment out of the controller. Take care when inserting the batteries that the polarity is correct. Push the battery compartment back into the controller until it clicks into place. First connect the Carrera RC rechargeable battery to the battery charger supplied. The connection terminals between the battery and the charger are designed to prevent connection with the wrong polarity. Connect the charger to a power source. When the battery is properly connected and charging normally, the red LED is constantly lit. Once the battery is fully charged, the red LED switches to green. The battery can now be disconnected and installed in the Carrera RC boat. The boat is now ready for use. After use, the battery must be allowed to cool down for at least 20 minutes before it can be fully recharged. Failure to observe this pause may damage the battery. On rst using it, the boat must be con- nected with the controller. To do this, you rst switch on the con- troller, plug in the battery to the boat, switch the boat on and then press the small button located in the battery com- partment until the LED lamp lights up continuously. A connection can only be made when the boat is in contact with the water. Switch on the Carrera RC boat using the ON/OFF switch. Caution: this boat can reach speeds up to 30 km/h. When rst starting, be very careful when operating the gas pedal. Practice running slowly for at least two to three full charges of the battery before you start practising faster manoeuvres.

• Before launching from the bank, make sure the boat and the controller are con nected (see above)

• Avoid constant motor operation.

• Bring the boat back to the bank after about 20 minutes to change the battery

• After use, remove or disconnect the battery.

• Never run more than 2 batteries down one after the other. After running down two fullycharged batteries, a pause in running for at least 20 minutes is essen tial.

• After sailing it, clean the Carrera RC boat carefully1 5

OFF Should you need spare parts, you will nd a complete list of the available parts under carrerarc.com in the service area. Problem Cause Solution Boat does not move Either the switch on the controller or the boat is set to OFF. Switch on. There is no rechargeable battery in the boat or the battery is too weak. Insert charged battery. The overheat protection has caused the boat’s motor to cut out due to excess temperature. Switch o the receiver. Leave the RC boat to cool down for approx. 30 minutes. The battery or rechargeable battery in the transmitter or boat is too weak. Insert new battery or recharged battery. The boat is very warm. Allow the RC boat to cool down for about 30 minutes. Boat cannot be controlled Boat starts moving unintentionally. First turn on the transmitter, only then the boat
