USER MANUAL Bistro 11133 BODUM

WARRANTY SERVICE FOR USA - CANADA

For more information or questions, warranty claim and return authorization

FREE CALL - 1.800.23.BODUM/[e-mail]

WARRANTY CLAIM CAN NOT BE DONE WITHOUT PROOF OF PURCHASE.

BODUM® warrants the original purchaser from defects in materials and workmanship (parts & labor) for the period of two years from the date of original consumer purchase. To be eligible for warranty coverage the product must be purchased from an authorized BODUM® dealer and proof of purchase must be provided.

2 YEARS LIMITED WARRANTY CERTIFICATE. BISTRO ELECTRIC TABLE GRILL

CERTIFICAT DE GARANTIE LIMITEE DE 2 ANS. BISTRO

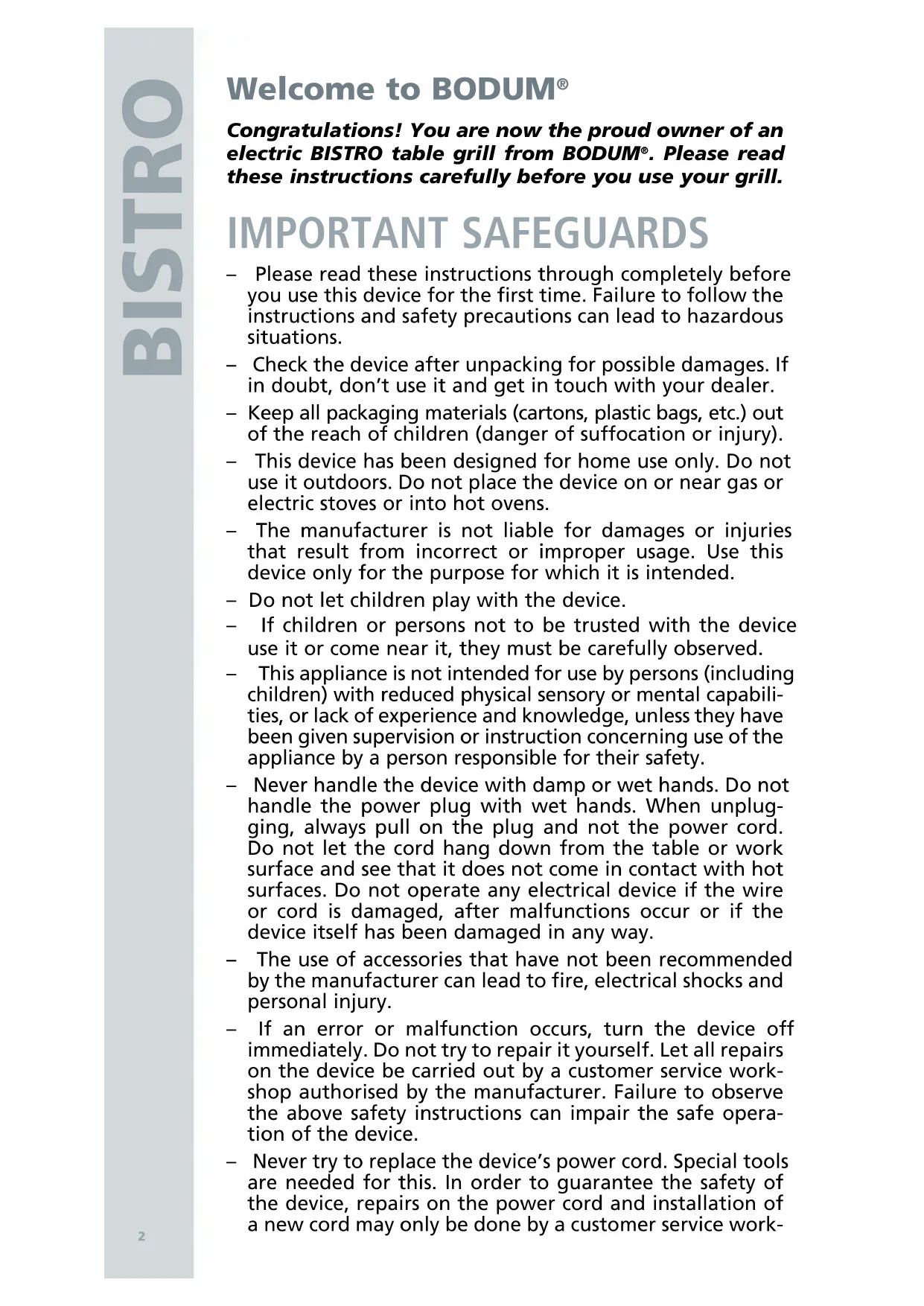

Congratulations! You are now the proud owner of an electric BISTRO table grill from BODUM®. Please read these instructions carefully before you use your grill.

IMPORTANT SAFEGUARDS

• Please read these instructions through completely before you use this device for the first time. Failure to follow the instructions and safety precautions can lead to hazardous situations.
• Check the device after unpacking for possible damages. If in doubt, don't use it and get in touch with your dealer.
• Keep all packaging materials (cartons, plastic bags, etc.) out of the reach of children (danger of suffocation or injury).
• This device has been designed for home use only. Do not use it outdoors. Do not place the device on or near gas or electric stoves or into hot ovens.
• The manufacturer is not liable for damages or injuries that result from incorrect or improper usage. Use this device only for the purpose for which it is intended.
• Do not let children play with the device.
• If children or persons not to be trusted with the device use it or come near it, they must be carefully observed.
• This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Never handle the device with damp or wet hands. Do not handle the power plug with wet hands. When unplugging, always pull on the plug and not the power cord. Do not let the cord hang down from the table or work surface and see that it does not come in contact with hot surfaces. Do not operate any electrical device if the wire or cord is damaged, after malfunctions occur or if the device itself has been damaged in any way.
• The use of accessories that have not been recommended by the manufacturer can lead to fire, electrical shocks and personal injury.
• If an error or malfunction occurs, turn the device off immediately. Do not try to repair it yourself. Let all repairs on the device be carried out by a customer service workshop authorised by the manufacturer. Failure to observe the above safety instructions can impair the safe operation of the device.
• Never try to replace the device's power cord. Special tools are needed for this. In order to guarantee the safety of the device, repairs on the power cord and installation of a new cord may only be done by a customer service work

shop authorised by the manufacturer.

• Unplug the device after use and before cleaning. Never dip the power plug into water: Always remember that this is an electrical device.
• Do not dip the electrical cord and plug into water or into any other liquid. This can result in fires, electrical shocks, or personal injury.
• The grill platter and other metallic parts will get very hot during use. Therefore, touch only the controls that are made of plastic during operation.
• Never cover the device during operation or if it is still hot.
• Never wrap the power cord around the table grill either during operation or afterwards.
• Fire can break out if the table grill is covered by or comes into contact with flammable materials such as curtains, textiles, cardboard, plastic, etc.
• Do not cover any part of the grill with foil, paper, cardboard, plastic, etc.
• Do not use any combustibles like charcoal with the grill.
• Before plugging in, make sure that the grill is at least 5 to 10 centimetres from the wall and make sure that nothing is lying on the grill.
• The appliance is not suitable for use with an external timer or separate remote control.
• The temperature controller supplied is for exclusive use with the Bistro table grill.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not leave the appliance unattended when in use.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord in the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• To use, plug cord into electrical outlet. To disconnect, grasp plug and remove from outlet.
• Do not operate in the presence of explosive and/or flammable fumes.
• This product is intended for household/domestic use only and not for commercial or industrial use.
• CAUTION: Use only DG KING WAY ENTERPRISE CO LTD., Cat No. P0-0800, Appliance Plug.
• CAUTION: Do not flip the appliance over until completed cool.
• CAUTION: To reduce the risk of fire, cook only with the drip tray in place.

poSitioningG

• Place the device on a stable, level platform that is not hot nor close to a source of heat. The platform has to be dry. Keep the device and its power cord out of the reach of children.
• Make sure that the mains voltage in your country is compatible with the voltage given on the nameplate attached to the device. Only connect the device to a properly electrical safety socket with a rating of at least 6 amps. (Use a residual current circuit-breaker (F1-switch). Your electrician can advise you.) For safety reasons, the electrical plug must be accessible while the device is in use. The manufacturer is not liable for accidents that occur as a result of incorrect or missing grounding of the device (Grounding for EU version only).
• In the event the electrical socket is not suitable for the electrical plug on your device, have the socket replaced by a qualified electrician.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
• A short power-supply cord (or detachable power-supply cord) should be used to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
• Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.

If a longer detachable power-supply cord or extension cord is used:

1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance; and
2) The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

SAVE THESE INSTRUCTIONS

the coMponent partS of the device at a Glance

1. Housing
   2a. Grill platter with ribbed surface
   2b. Grill platter with smooth surface
2. Grill platter handles
3. Connection for temperature controller
4. Temperature controller
5. Latch
6. Drip tray
   8a. Cleaning scraper for ribbed surface
   8b. Cleaning scraper for smooth surface

Before USing the taBle Grill

• Make sure that all packaging materials and stickers have been removed from the grill platter and drip tray.
• Clean the grill platter (2), drip tray (7) and housing (1) with dish detergent and water. The grill platter (2) and drip tray (7) are dishwasher-safe.

IMPORTANT: Make sure that the rinsed-off parts are thoroughly dry.

Before you start grilling, rub a little cooking oil onto the grill platter (2). Wipe off any excess oil.

NOTE: Upon first use of the table grill, a bit of smoke can occur. That is normal; the smoke disappears in the course of the first use.

this is how to Use yoUr taBle Grill

There are two possible ways to use your table grill:

Grill platter with ribbed surface (2a)

The grill platter with the ribbed surface is suited for meat such as steaks and chops. This surface leaves a typical ribbed pattern on the meat.

Grill platter with smooth surface (2b)

The grill platter with the smooth surface is used for grilling seafood, sliced vegetables and eggs.

Place the housing (1) on a smooth, heat-resistant surface. Lay the drip tray (7) into the housing (1). Place the grill platter (2) with the desired grill surface up onto the housing (1). Take care that the connection (4) for the temperature controller is on the same side as the latch (6).

Setting the teMperatUre

Insert the temperature controller (5) with the temperature scale up into the connection (4). Set the desired temperature and let the device warm up for 4 - 6 minutes. The temperature selected depends on the food to be prepared. Choose high temperatures for meat and lower temperatures for seafood and vegetables or if you simply want to keep the food warm.

tUrninG the Grill platter

In the event you wish to turn the grill platter (2), set the temperature controller to OFF and disconnect the table grill from the electric grid. Thoroughly clean the side of the platter that was used with the cleaning scraper (8).

Hold the grill platter (2) and the handles (3) firmly and turn it over. Now you can reconnect the table grill to the electric grid and continue to grill.

CAUTION: The grill platter (2) needs some time to cool; for that reason, only handle it by the plastic handles (3).

helpfUI advice

• You will achieve the best results if you use meat of even thickness and of good quality.
• The item to be barbecued should be at room temperature when you place it on the grill.
• Frozen food does not grill well and can get tough during grilling.
• Work with lower temperatures if you are cooking sensitive food like chicken, fish or vegetables. Use a higher temperature setting for grilling thicker food like red meat.
• For stronger flavour, you can marinate meat in oil or wine. To marinate fish, a mixture of oil and lemon juice works well.
• Cut the meat for placement on skewers into cubes of approximately 2.5cm size.

the folloWinG typeS of Meat lend theMSeIveS BeSt to GrillinG:

• Beef: steak fillets, rib steak, hamburger and ribs.
• Veal: schnitzels, chops
• Pork: steaks, chops
  Lamb: leg of lamb, chops
• Chicken: thighs, breasts, wings
• Sausage: Before grilling, pierce the sausage so that it will not burst.

Grilling Guide

The temperature settings below are approximate and can vary. Turn the item being grilled at least once after half of the grilling time has elapsed. Don't leave the item being grilled unattended and change the temperature when necessary.

Approximate grill time

Hamburger 10 to 15 minutes

Hot dogs 8 to 10 minutes

Sausages 12 to 15 minutes

Fish steaks (salmon, etc.) 22 to 25 minutes

Skewers (fish/shellfish) 22 to 25 minutes

Skewers (meat) 18 to 25 minutes

Spare ribs 22 to 25 minutes

Vegetables

5 to 9 minutes

Chicken until the meat is no longer pink

(Pieces for grilling (10 to 15 minutes)

or boneless breast)

care inStrUctionS

Before cleaning, always set the temperature controller (5) to OFF and disconnect it from the mains and from the device. The temperature controller (5) may not be immersed in water under any circumstance.

Always let the table grill cool down first before you clean it and put it away.

cleaning the Grill platter

Food remnants can be removed with the help of the cleaning scraper (8). The grill platter (2) can be cleaned underwater with sponge and detergent. Never use abrasives or scouring pads.

The grill platter is dishwasher-safe.

cleaning the hoUSinG

Wipe the grill housing (1) with a damp sponge with detergent.

Wipe it clean with a wet sponge and dry it thoroughly.

Never use abrasives or scouring pads.

cleaning the drip tray.

The drip tray (7) can be cleaned by hand or in the washing machine.

Any other servicing should be performed by an authorized servicing representative.

polarity

Only for customers in the USA

This device is equipped with a plug protected against polarity reversal. (One connector is wider than the other.)

In order to avoid electrical shock, this plug fits only one way into a socket protected against polarity reversal. If the plug does not fit into the socket, turn it around. If it still does not fit, contact a qualified electrician. Do not try to modify the plug in any fashion.

technical data

Nominal voltage in the E.U. 220 to 240V 50 / 60Hz

Nominal voltage in the U.S.A. 120 V~60 Hz

Nominal voltage in Canada 120 V~60Hz

Rated output in the E.U. 1500 - 1800 Watt

Rated output in the U.S.A. 1800 Watt

Rated output in Canada 1500 Watt

Length of cord ca. 80 cm

Approvals in the E.U. and U.S.A. GS, CE, UL, CUL

Correct disposal for this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. (WEEE explanation)

terMS of Service and GUarantee

All BODUM® products are made of high-quality, durable materials. If, nevertheless, parts have to be replaced, the following locations will gladly provide information: Your BODUM® dealer – The BODUM® SHOP – The BODUM® representative in your country or our homepage at: www.bodum.com.

Guarantee: BODUM® provides a 2-year guarantee on the electric «Bistro» table grill, beginning on the date of purchase, for material defects and malfunctions that can be traced to production or design errors.

The repair of the device is cost-free, as long as all conditions of the service guarantee are fulfilled.

Condition to be met for service under the guarantee: The guarantee card must be completely filled out by the selling location at the time of purchase.

Warranty service may only be carried out by BODUM®-authorised locations.

BODUM affords no guarantee for damage that is caused by wrongful use, improper handling, customary wear, inadequate or improper care and maintenance, improper operation or operation by unauthorised persons.

Hotdogs 8 - 10 minute

Pölser 12 - 15 minutes

Fiskekoteletter (laks osv.) 22 - 25 minute

Grillspyd 22 - 25 minute (Fisk/skaldyr)

Kabellengthe ca. 80 cm

Vergunningen in de EU en USA GS, CE, UL, CUL

Service & GarantieBepalinGen

BAxHO: y6eIITecb B TOM, yTO BblMbItbIe DeTaJIr rpnJIy NOJIHOCTbIO BbICOXJN.

OpneHTnpoBOuHoe BpeMa npuroTOBJeHn

Tam6yprepb1 10-15 mNHyT

XOT-DOI 8-10 MmHyT

CocnKn K0JI6aCKn 12-15 MmHyT

PbIbHbIe cTeiKn (IOOCb n np.) 22 - 25 MInHyT

Pb6aHaUpaKkax 22-25 MnHyT (Pb6a/MoJIIOCKn)

NOKa MRCO He NOTepReT

pO3OBbI uBET

(10 - 15 MmHyT)

YKA3AHNIO YXOy 3A TPNJEM

Ipeed ouncKoI rpnIy yCTaHOBnTe peYJrTOp TemnepaTpybI (5)Ha OFF/BblIKJIIOUcEHNEu BblIaHnTe wTeKeP rpnIaN3 ceTeBOrO wTeKePHorO pa3bEma. 3anpeuaetc nprykaTb peYJrTOp TempepaTpybI (5)B BODY.

Pa3peeHnIy npOaJN B EC n CLUa GS, CE, UL, CUL

CEPBNC & TAPAHNTNHBIE YCJIOBNA

Bc npodykuny fnpMbI "BODUM" n3roTOBHeHa n3 BbICOKoKaueCTBeHHbIX,doJIROBeUHbIX MaTePnaJIOB. Pn Heo6xOIMocTn B 3aMeHe DeTaJe Bbl MoKeTe noLyuHT bNΦOpMaUIO B CLeNyUoXn ToqKax: BaW -npOdaBeu npodykUn "BODUM"- Mara3nH "BODUM" - PpeIcTabIeNbCTBO "BODUM" B BaWei cTpaHe nII Na Hau Be6-caIT: www.bodum.com.

TapaHTn: "BODUM" npedocTabJeT rapaHTno Ha 3JIeKtpnueckn HacToIbHbI rpiNb Bistro" B TeueHne 2 let c daTbI NOKyPkN, Ha HeIOCTaTK MATEpHaJIOB I yHKUHOHaJbHbIe HEnOJaDKN BCJeIDCTBHe HeIOCTaTKOB KOHCTpyKcUN.

Ipn co6JIHOeHn Bcex rapaHTnHbIX ycIOBn peMOHT yCTpoiCTBa OcyuieCTBJareTc8 beCnlaTHO.
