Fyrkat 10630 - Barbecue BODUM - Free user manual and instructions

Product type	Portable gas barbecue
Brand	Bodum
Model	Fyrkat 10630
Nominal power	2.9 kW (210 g/h)
Gas type	Butane/Propane (disposable cylinders EN417, 430-460 g)
Dimensions (approx.)	40 x 30 x 25 cm (overall)
Weight (approx.)	4 kg
Materials	Painted steel, chrome-plated steel cooking grate
Gas supply	Disposable gas cylinder, integrated regulator
Ignition	Manual (Bodum Bistro gas lighter recommended)
Main functions	Grilling with lid, heat retention, quick cooking
Safety	Outdoor use only, gas leak check, open lid before lighting, do not move when hot
Assembly	Legs, drip tray, flame diffuser, regulator: screwed
Maintenance and cleaning	Grate brushed after use, full annual cleaning
Spare parts	Cooking grate, flame diffuser, drip tray, regulator
Repairability	Accessible parts, standard screws
Warranty	Manufacturer's warranty (see terms)
General information	Gas picnic barbecue, Bodum design, user-friendly

Frequently Asked Questions - Fyrkat 10630 BODUM

How to assemble the Fyrkat 10630 barbecue?

Place the cooking chamber upside down on a flat surface. Screw the three support legs with the M6 screws. Attach the drip tray to the center of the legs with the fasteners. Place the flame diffuser on the supports and secure it with the M4 screws. Mount the regulator onto the burner. Finally, place the cooking grate.

How to light the gas barbecue?

Always open the lid before lighting. Check that the regulator is in the OFF position. Use a Bodum Bistro gas lighter by placing the flame into one of the ignition holes under the burner. Then turn the regulator to ON. Do not lean over the barbecue.

How to check for a gas leak?

Prepare a soapy solution (water + soap). Apply it to the connections between the burner and the regulator, and between the cylinder and the regulator. Open the gas. If bubbles form, there is a leak. Close the gas, tighten the connections, and test again. If the leak persists, do not use the barbecue.

Can I use charcoal or briquettes?

No, never use charcoal, briquettes, or lava stones. This barbecue is designed exclusively for butane/propane gas.

How to clean the cooking grate?

After use, remove food residues with a brass wire brush or crumpled aluminum foil. Wipe with paper towels. A full annual cleaning is recommended: disassemble the diffuser and wash the chamber with a mild detergent.

Where to store the barbecue when not in use?

Store it in a dry, well-ventilated place, outdoors if possible. Always disconnect the gas cylinder and store it separately. Before each use, check for burner obstructions and leaks.

Can I use the barbecue in strong wind?

No, do not use the barbecue when it is windy. Wind can disturb the flame and cause burn or fire hazards.

Is it safe to use the barbecue indoors?

No, the barbecue must be used outdoors only. Indoor use can produce toxic gases (carbon monoxide) and be life-threatening.

How to transport the barbecue when hot?

Never transport the barbecue when it is hot. Wait for it to cool completely, close the lid with the locking clips, set the regulator to OFF, and carry it by the handle.

What type of gas cylinder to use?

Use disposable butane/propane cylinders weighing 430 to 460 g, with a threaded valve conforming to standard EN417. Hand-tighten only to avoid damaging the regulator.

USER MANUAL Fyrkat 10630 BODUM

A very warm welcome outside!

What do we associate more with spring and summer than eating outside? And what is more perfect than the pleasure of a really first-class barbecue? Whatever you like best – a hearty steak, a juicy sausage or grilled veggies – with the BODUM® Picnic Gas BBQ «FYRKAT» you have made the right choice for a sociable summer. A barbecue is probably the only culinary event at which the proverb «Too many cooks spoil the broth» does not apply: When barbecuing, many cooks are at work. If you are not too easily seduced by rich sauces, barbecued food is not only extremely tasty but also healthy and light, especially if you use lean meat, fish and vegetables.

All we would like to do now is to ask you to read these instructions carefully as they contain important safety and hazard warnings as well as useful barbecuing tips, and – of course – to wish you a wonderful summer.

With best wishes from the BODUM® Design Team

ASSEMBLY INSTRUCTIONS

GRILL SET UP

1 Handle
2 Lid
3 Grilling grate
4 M4 screw (3 units)
5 Flame tamer
6 Grilling bowl
7 Locking clip
8 Regulator
9 Burner
10 Support leg (3 units)
11 Grease tray fastening (3 units)
12 Grease tray
13 Air opening
14 Connection between burner & regulator
15 Connection between gas canister & regulator

FIGURE A

Place the grilling bowl (6) carefully upside down on a level surface and attach each of the three support legs (10) to the grilling bowl (6). Use a pre-fitted M6 screw for each support leg and screw in the support leg (10) until securely fastened. Tighten all of the grill screws, so that all parts are secure.

FIGURE B

Place the grease tray (12) upside down in the centre of the three support legs (10). Fit the three grease tray fastenings (11) onto the support legs (10). The grease tray fastenings (11) can be slid over the support legs (10) with ease by pressing the two eyelets together. The grease tray (12) is now clamped in place by the support leg (10) and the grease tray fastening (11). Ensure that the grease tray (12) is positioned at a distance of approx. 6 cm from the grilling bowl (6).

FIGURE C

After attaching the support legs (10) & grease tray (12) to your BODUM® Picnic Gas BBQ, position the BBQ grill on a firm, level surface. Place the flame tamer (5) on the three support plates intended for this purpose, and mount these on the stays using the M4 screws (4) provided. Tighten all of the grill screws sufficiently, so that the flame tamer (5) is secure.

Mount the regulator (8) on the burner (9) with the M6 nut. Tighten the nut of the regulator (8) sufficiently, so that the regulator (8) is secure on the burner (9).

Once assembly is complete, place the grilling grate (4) on the grilling bowl (6).

In order to transport your BODUM® Picnic Gas BBQ, place the lid (3) on the grilling bowl (6) and clamp it firmly in place using the three locking clips (7). Carry the BBQ by the handle (1). The BBQ must never be transported whilst hot. Always leave it to cool off completely. Always switch the regulator (8) to OFF prior to transportation.

HAZARDS & SAFETY INFORMATION

Failure to observe these safety instructions and precautions can result in serious damage and injury or even death.

- N Do not use the grill indoors! The BODUMPicnic Gas BBQ is designed for outdoor use only. Toxic gases can form if used inside.

- Place your BODUM® Picnic Gas BBQ on a secure base before using it. The gas grill must never be positioned on an incline or tilted!

- Warning! Never use spirit, petrol or similar liquids to light or relight! Only use firelighters complying with EN1860-3!

• Children and pets are not allowed to stay unattended near a hot grill.

- Grill and flammable materials should be kept at least 1.5 m away from each other.

- Do not place the grill on a flammable surface or on glass.

- Never store any spare or open gas canisters underneath or in close proximity to the grill.

- Incorrect assembly can result in danger. Always keep the assembly instructions provided in these instructions close at hand.

- After the picnic gas BBQ has been in storage or out of use for an extended period always check for gas leaks and blockages of the burner (9) prior to use. You can find the instructions for this under "Checking for a gas leak"

- Do not wear clothes with long, wide sleeves when you are grilling.

- If the flame at the burner (9) should extinguish during use, switch the regulator (8) to OFF and open the lid.

- Never use charcoal, briquettes or lava stones in your picnic gas BBQ.

- If fat starts to burn, switch the regulator (8) to OFF and wait until the fire has extinguished.

- To move the grill, lift it by the handle (1) and position it at the desired location. Never try to move the grill when it is hot! Wait until the grill has cooled down before moving or lifting it.

- The BODUM® Picnic Gas BBQ must not be used as a heater.

- The BODUM® Picnic Gas BBQ is not intended for installation or use in caravans, campers or on boats.

- When cleaning the regulator (8) or the burner (9) ensure that the nozzles and connections are not damaged.

- Butane/propane are not crude gas. Any modification of the grill for use with crude gas and any attempt to use this butane/propane grill with crude gas is dangerous and will result in the warranty being voided.

- A dented or rusty gas canister can be hazardous and should be checked by your gas supplier. Never use gas canisters with a damaged valve.

- Gas may still be present inside gas canisters that appear completely empty. Gas canisters are to be transported and stored with this in mind.

- Never, under any circumstances, attempt to detach the regulator (8) or any other parts of the gas line when using the grill.

- When grilling always remove the lid to the side - never lift up and off - otherwise suction may be generated.

- Only use the regulator (8) supplied together with the picnic gas BBQ.

- Do not grill when it is windy.

- Outdoor use only.

- CAUTION: The gas canister must never be used above head height.

- Use disposable butane/propane canisters with a minimum full weight of 430 g and a maximum full weight of 460 g. The canisters must be fitted with a valve with thread complying with EN417.

- Never search for a gas leak with the aid of a naked flame. Prior to hunting for a leak, ensure that no sparks or naked flames are close by. Sparks and flames may trigger an explosion, which could cause severe or even fatal injuries and lead to material damage.

- Only tighten the canister connection by hand. The use of excessive force could damage the regulator connection and the canister valve.

This may in turn lead to a leak or prevent gas from flowing.

- Remove the lid when lighting and keep the grill uncovered as it starts to burn.

- Never touch the grill or grate to determine whether it is hot.

• Always wear barbecuing mitts or use an oven cloth when grilling in order to protect your hands.

- Use grill utensils with long, heat-resistant handles.

- Please keep electric cables away from hot surfaces.

- Do not line your grill with aluminum foil as this can hinder the flow of air.

- Do not use sharp objects and abrasive cleaners to clean the grilling grate and grill as these may damage the surface.

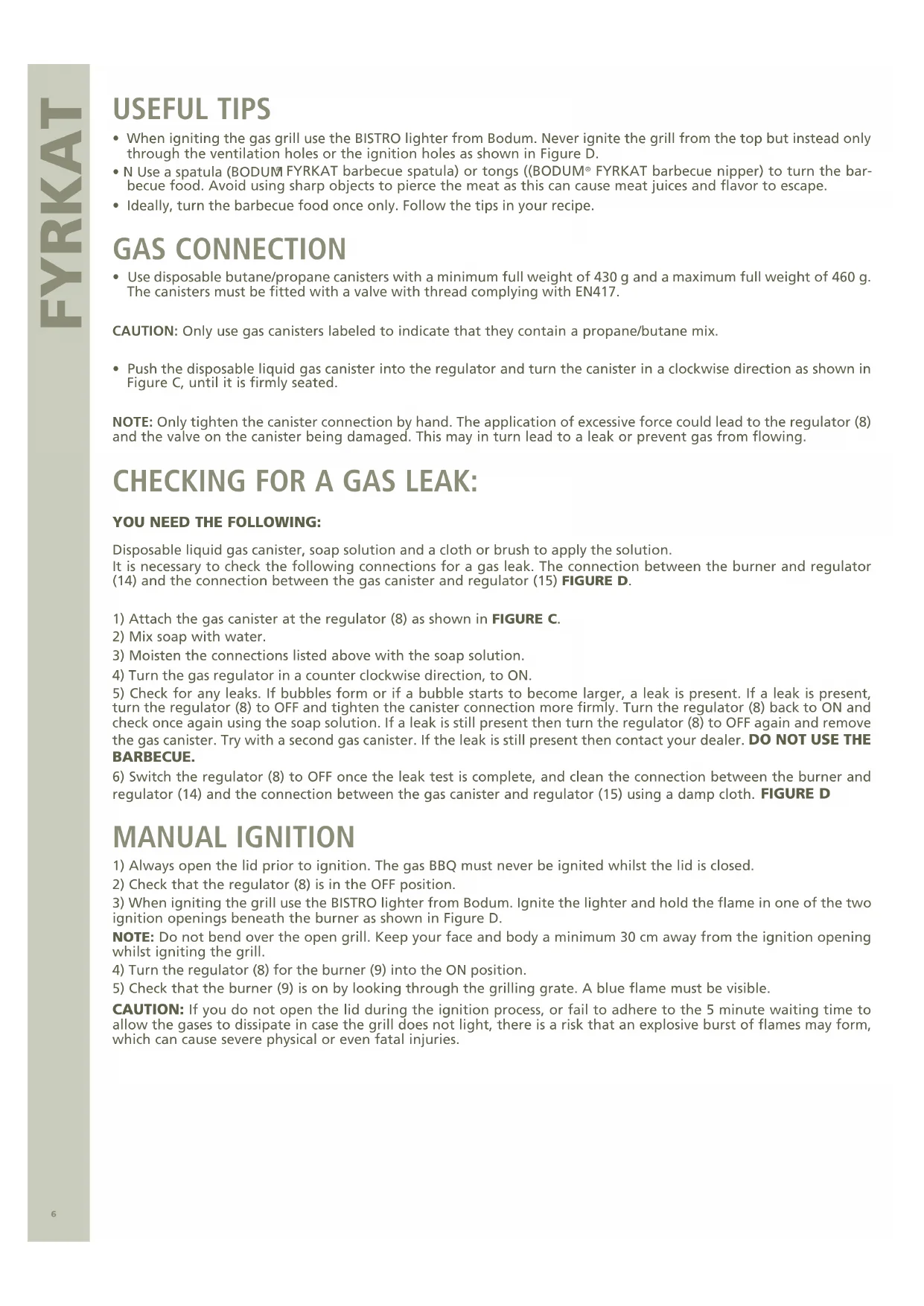

USEFUL TIPS

• When igniting the gas grill use the BISTRO lighter from Bodum. Never ignite the grill from the top but instead only through the ventilation holes or the ignition holes as shown in Figure D.
• N Use a spatula (BODUM FYRKAT barbecue spatula) or tongs ((BODUM® FYRKAT barbecue nipper) to turn the barbecue food. Avoid using sharp objects to pierce the meat as this can cause meat juices and flavor to escape.
• Ideally, turn the barbecue food once only. Follow the tips in your recipe.

GAS CONNECTION

- Use disposable butane/propane canisters with a minimum full weight of 430 g and a maximum full weight of 460 g. The canisters must be fitted with a valve with thread complying with EN417.

CAUTION: Only use gas canisters labeled to indicate that they contain a propane/butane mix.

- Push the disposable liquid gas canister into the regulator and turn the canister in a clockwise direction as shown in Figure C, until it is firmly seated.

NOTE: Only tighten the canister connection by hand. The application of excessive force could lead to the regulator (8) and the valve on the canister being damaged. This may in turn lead to a leak or prevent gas from flowing.

CHECKING FOR A GAS LEAK:

YOU NEED THE FOLLOWING:

Disposable liquid gas canister, soap solution and a cloth or brush to apply the solution.

It is necessary to check the following connections for a gas leak. The connection between the burner and regulator (14) and the connection between the gas canister and regulator (15) FIGURE D.

1) Attach the gas canister at the regulator (8) as shown in FIGURE C.

2) Mix soap with water.

3) Moisten the connections listed above with the soap solution.

4) Turn the gas regulator in a counter clockwise direction, to ON.

5) Check for any leaks. If bubbles form or if a bubble starts to become larger, a leak is present. If a leak is present, turn the regulator (8) to OFF and tighten the canister connection more firmly. Turn the regulator (8) back to ON and check once again using the soap solution. If a leak is still present then turn the regulator (8) to OFF again and remove the gas canister. Try with a second gas canister. If the leak is still present then contact your dealer. DO NOT USE THE BARBECUE.

6) Switch the regulator (8) to OFF once the leak test is complete, and clean the connection between the burner and regulator (14) and the connection between the gas canister and regulator (15) using a damp cloth. FIGURE D

MANUAL IGNITION

1) Always open the lid prior to ignition. The gas BBQ must never be ignited whilst the lid is closed.
2) Check that the regulator (8) is in the OFF position.
3) When igniting the grill use the BISTRO lighter from Bodum. Ignite the lighter and hold the flame in one of the two ignition openings beneath the burner as shown in Figure D.
NOTE: Do not bend over the open grill. Keep your face and body a minimum 30 cm away from the ignition opening whilst igniting the grill.
4) Turn the regulator (8) for the burner (9) into the ON position.
5) Check that the burner (9) is on by looking through the grilling grate. A blue flame must be visible.

CAUTION: If you do not open the lid during the ignition process, or fail to adhere to the 5 minute waiting time to allow the gases to dissipate in case the grill does not light, there is a risk that an explosive burst of flames may form, which can cause severe physical or even fatal injuries.

CLEANING

1) The reductor must be switched to the OFF position and the picnic gas grill must be cold.
2) Open the lid (2).
3) Remove the grilling grate (3).
4) Unscrew the three M4 screws (4) on the flame reflector (5). Remove the M4 screws (4) and the flame reflector (5).
5) Remove any remaining food from the grilling bowl (6) and clean the grilling bowl (6) and the flame reflector (5) using a mild detergent and water.
6) The grilling grate does not need to be cleaned after each use. Just loosen any left-over food with a brass wire brush or crumpled up aluminum foil and then wipe clean with kitchen paper.
7) Attach the flame reflector (5) after cleaning in accordance with the «ASSEMBLY INSTRUCTIONS»

STORAGE

• If the picnic gas BBQ is not in use it is essential that the gas canister be stored in a well-ventilated place, outdoors.
• The gas grill must be checked for gas leaks and blockages of the burner (9) prior to use.
• Check the air openings (13) for damage. FIGURE D

GRILLING TIPS

Please read all instructions carefully before you start to grill. The lid is an important part of the BODUM® Picnic Gas BBQ and should be kept closed at all times when barbecuing foods. You save up to one third of cooking time compared with a conventional oven, because hot air is constantly flowing around the food during grilling. The barbecue food must be turned once, halfway through grilling.

HERE ARE THE REASONS FOR GRILLING WITH A CLOSED LID:

• No flames flaring: When the lid is closed flames cannot flare up.
• Fast barbecuing: The BODUM® Picnic Gas BBQ is optimally designed for heat retention. The heat is reflected by all surfaces (above all by the lid) back onto the barbecue food, so that the grilling time is considerably reduced.

YOU CAN EXTEND THE USEFUL LIFE OF YOUR BODUM® PICNIC GAS BBQ BY SEVERAL YEARS IF YOU CLEAN IT THOROUGHLY ONCE EACH YEAR. JUST FOLLOW THESE SIMPLE STEPS:

• Ensure that the grill has cooled down.
• Ensure that the regulator (8) is switched to OFF.
• Remove the grilling grate.
• Wipe out the grilling bowl (6) with a cloth. All BBQ remnants can be wiped into the grease tray (12).
• Remove the BBQ remnants and grease from the grease tray.
• Wipe the outside of the grill using a damp cloth.
• The grilling grate does not need to be cleaned every time it is used. Just loosen any left-over food with a brass wire brush or with crumpled up aluminum foil and then wipe clean with kitchen paper.

TECHNICAL DATA

Rated output N2.9 kW (210 g/h)

Gastype NButane/Propane

Approval marks CE
