USER MANUAL Fyrkat 11344 BODUM

Yellow portable grill with metal frame and red handle, mounted on a tripod stand (no text or symbols visible)

CONE CHARCOAL GRILL

KEGEL-HOLZKOHLEGRILL

GRIL CÔNE À CHARBON DE BOIS

KEGLEGRILL

BARBACOA CÓNICA DE CARBÓN VEGETAL

GRILL CONICO A CARBONELLA

BARBECUEKEGEL-HOUTSKOOLGRILL

KONGRILL

GRELHADOR DE CARVÃO VEGETAL EM CONE

Instruction for use

ENGLISH

Gebrauchsanweisung

DEUTSCH

Mode d'emploi

FRANÇAIS

Brugsanvisning

DANSK

Black conical hopper with red handles and metal stand, no visible text or symbols

11344-01 11344-106

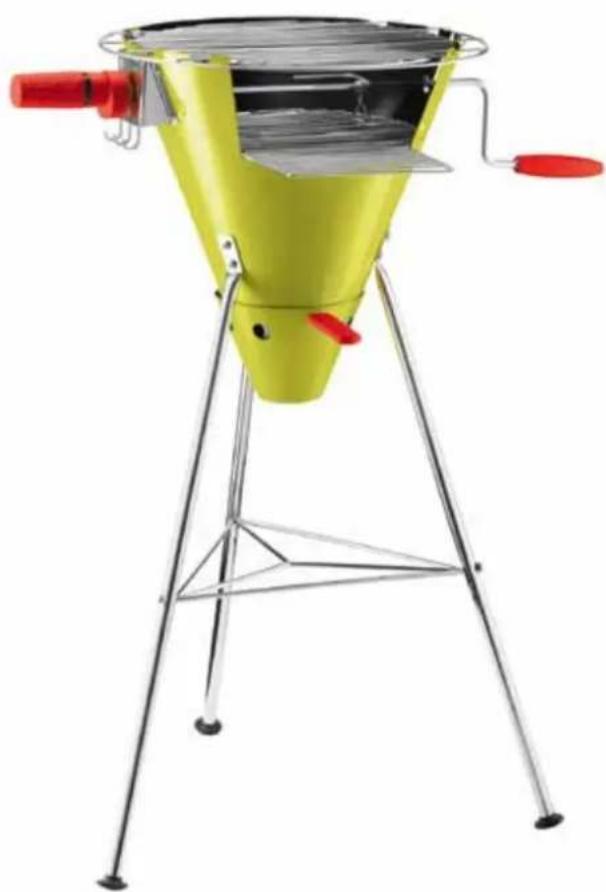

Yellow funnel-shaped industrial machine with metal frame and red handle, mounted on a tripod (no text or symbols visible)

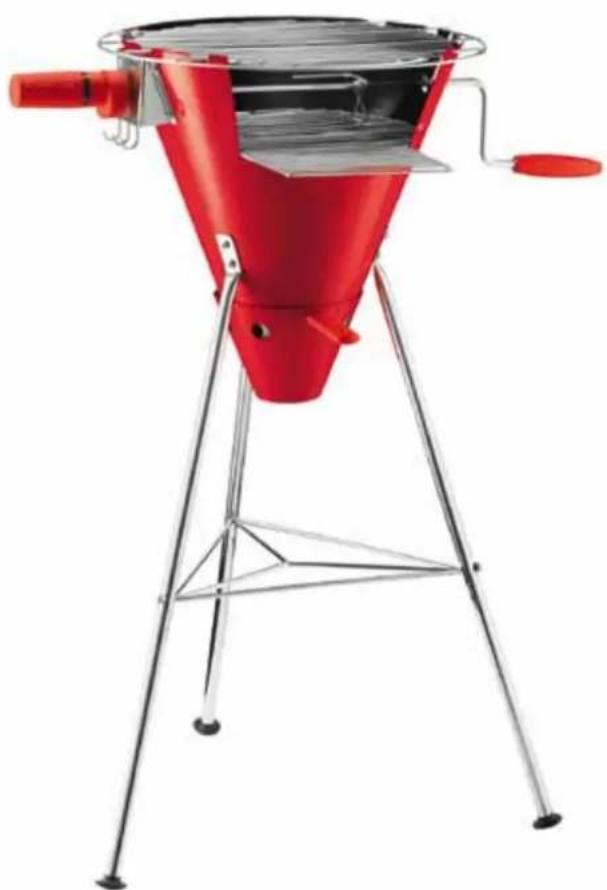

Red conical hopper with metal stand and handle, no visible text or symbols

11344-294 11344-565

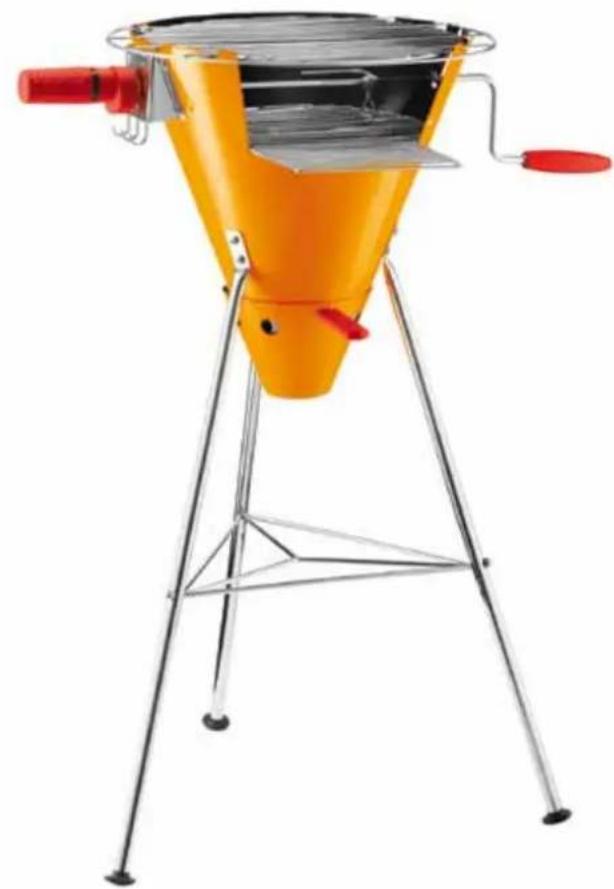

Yellow and black conical hopper with metal stand, no visible text or symbols

(8x)

(6x)

(8x)

(6x)

(3x)

(16x)

(9x)

(6x)

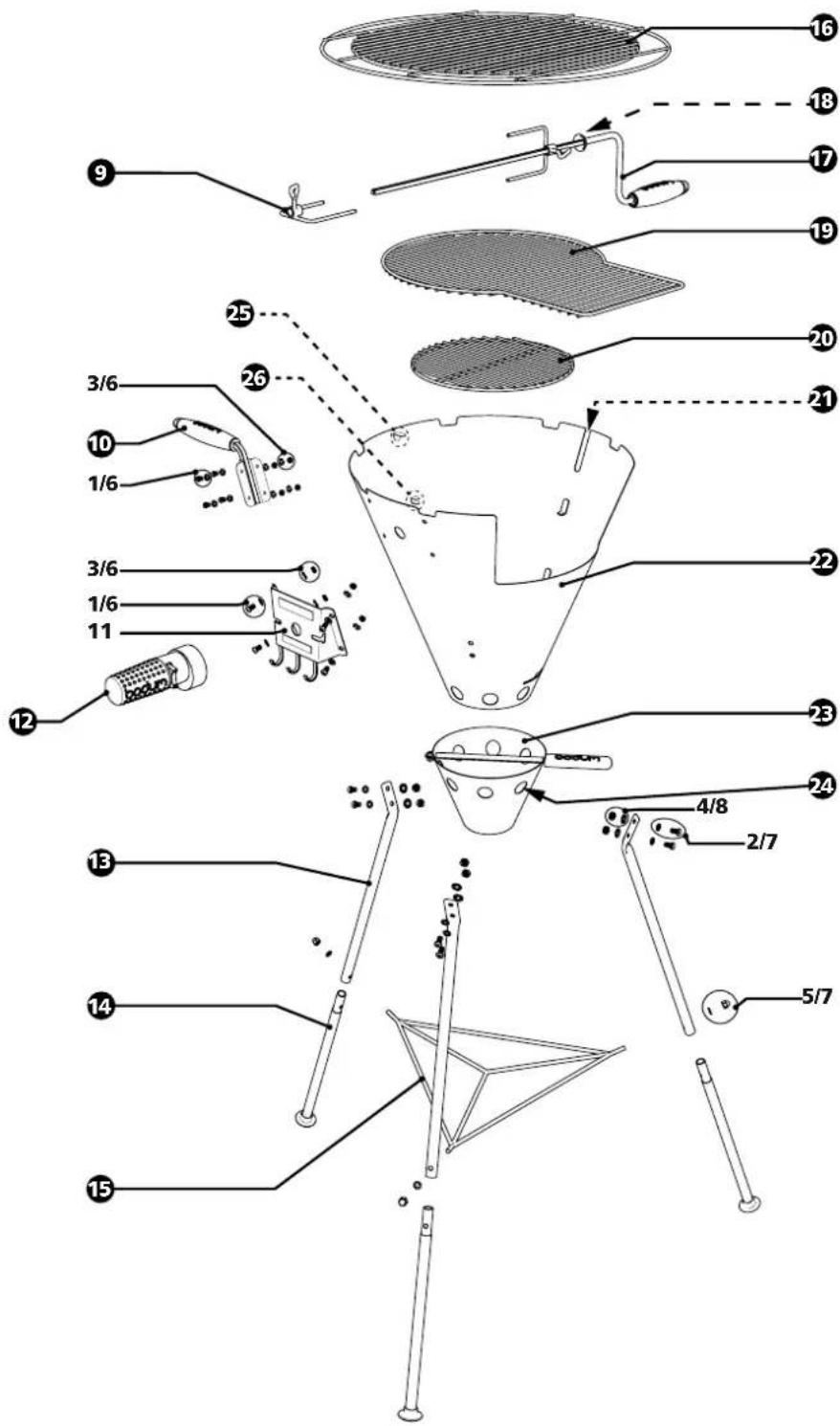

Exploded diagram of a mechanical device with numbered parts and Chinese labels

A

Technical diagram of a mechanical assembly with numbered components and exploded view, likely for assembly or maintenance instructions.

B

Technical diagram of a portable device with numbered components and red dashed lines indicating assembly or inspection points.

A VERY wARm wELCOmE OUTSIDE!

What do we associate more with spring and summer than eating outside? And what is more perfect than the pleasure of a really first-class barbecue? Whatever you like best – a hearty steak, a crispy sausage or grilled vegetables – with the BODUM ^® “FYRKAT” Cone Grill you have made the right choice for a sociable summer. A barbecue is probably the only culinary event at which the proverb “Too many cooks spoil the broth” does not apply: When barbecuing, many cooks are at work. If you are not too easily seduced by rich sauces, grilled food is not only extremely tasty but also healthy and light, especially if you use lean meat, fish and vegetables.

Bon appetit!

All we would like to do now is to ask you to read these instructions carefully as they contain important safety and hazard warnings as well as useful barbecuing tips, and – of course – to wish you a wonderful summer.

With best wishes from the BODUM® Design Team

ASSEMBLY INSTRUCTIONS:

BARBECUE ASSEMBLY

1. M5 screws (8x)
2. M6 screws (6x)
3. M5 nuts (8x)
4. M6 nuts (6x)
5. M6 cap nuts (3x)
6. Washers ∅ 5 mm (16x)
7. Washers ∅ 6 mm (9x)
8. Lock washers ∅ 6 mm (6x)

9. Positioning hooks (2x)

10. Handle

11. Motor retaining plate with grill utensil hooks

12. Barbecue motor (battery powered 1 x LR20/1.5 V / D, not supplied)
13. Support legs with bracket (3x)
14. Support legs with foot (3x)
15. Stabilizer
16. Grill grate-large
17. Rotary spit
18. Guide washer
19. Grill grate-small
20. Charcoal grate
21. Slit for rotary spit
22. Grilling bowl
23. Ash collector
24. Ventilation openings
25. Holding hooks-large
26. Holding hooks-small

ASSEMBLY INSTRUCTIONS

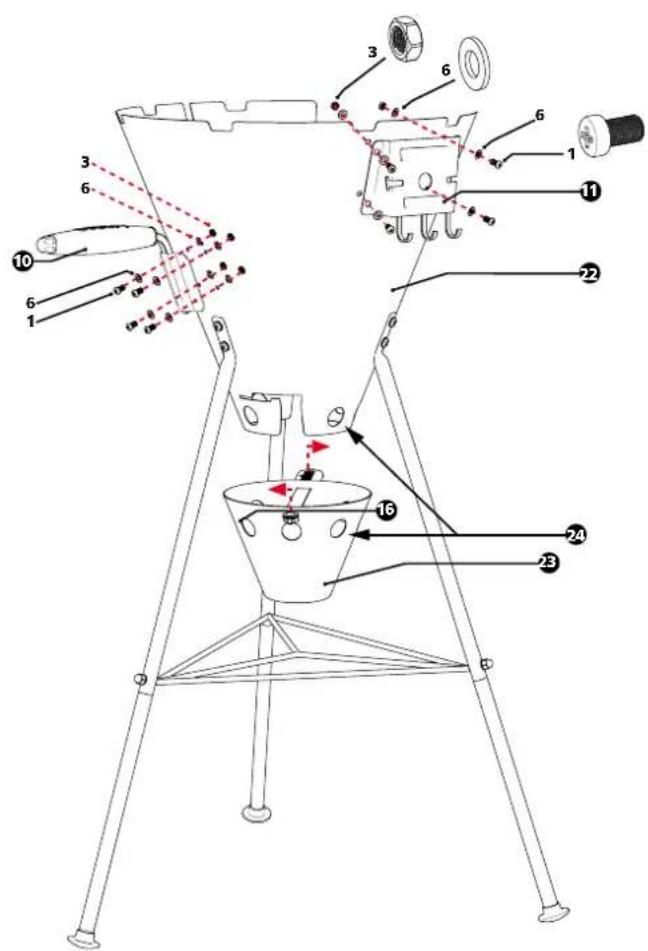

Figure A

Warning! Do not tighten the bolts and nuts too firmly in the following assembly step.

Place the grilling bowl (22) carefully on a level surface and attach each of the three support legs with brackets (13) to the grilling bowl(22). Use two M6 screws (2), two ∅ 6 mm washers (7), two ∅ 6 mm lock washers (8) and two M6 nuts (4) for each support leg. Then insert one support leg with foot (14) into each support leg with bracket (13) and fix the support legs using the stabilizer (15), washers (7) and cap nuts (5) as shown in figure A. Now tighten all screws and nuts on the barbecue sufficiently to ensure that they are sitting firmly.

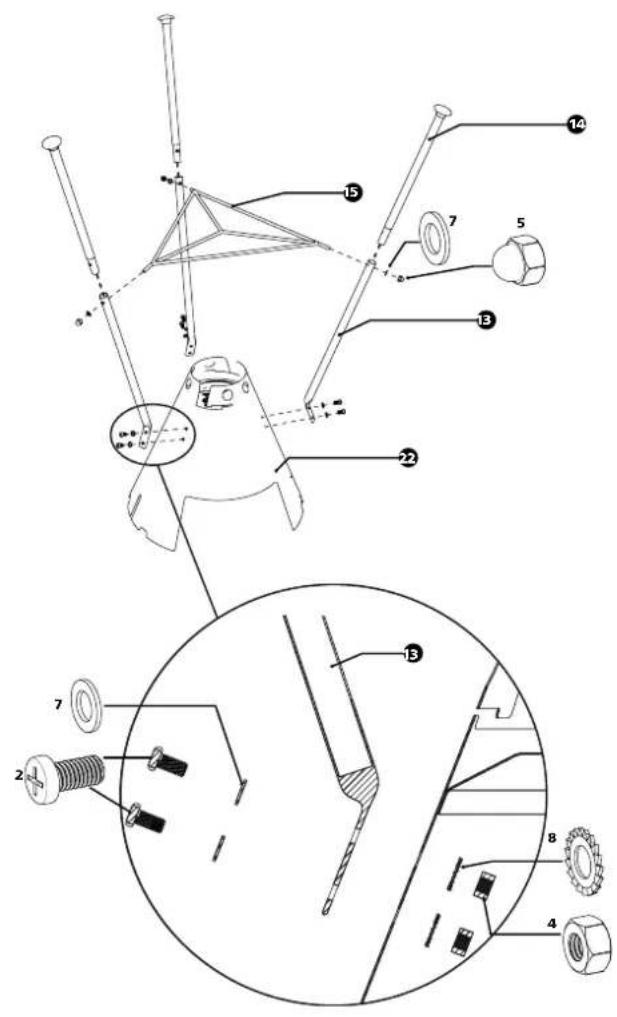

Figure B

Place the barbecue on its support legs on a secure and level surface and attach the ash collector (23) to the grilling bowl (22). The ventilation openings (24) on the ash collector (23) can be opened and closed by turning the ash collector. The ventilation openings (24) on the ash collector should wherever possible remain open to ensure that air can circulate sufficiently.

Now attach the handle (10) and the motor retaining plate with grill utensil hooks (11) to the grilling bowl (22) using M5 screws (1), ∅ 5 washers (6) and M5 nuts (3).

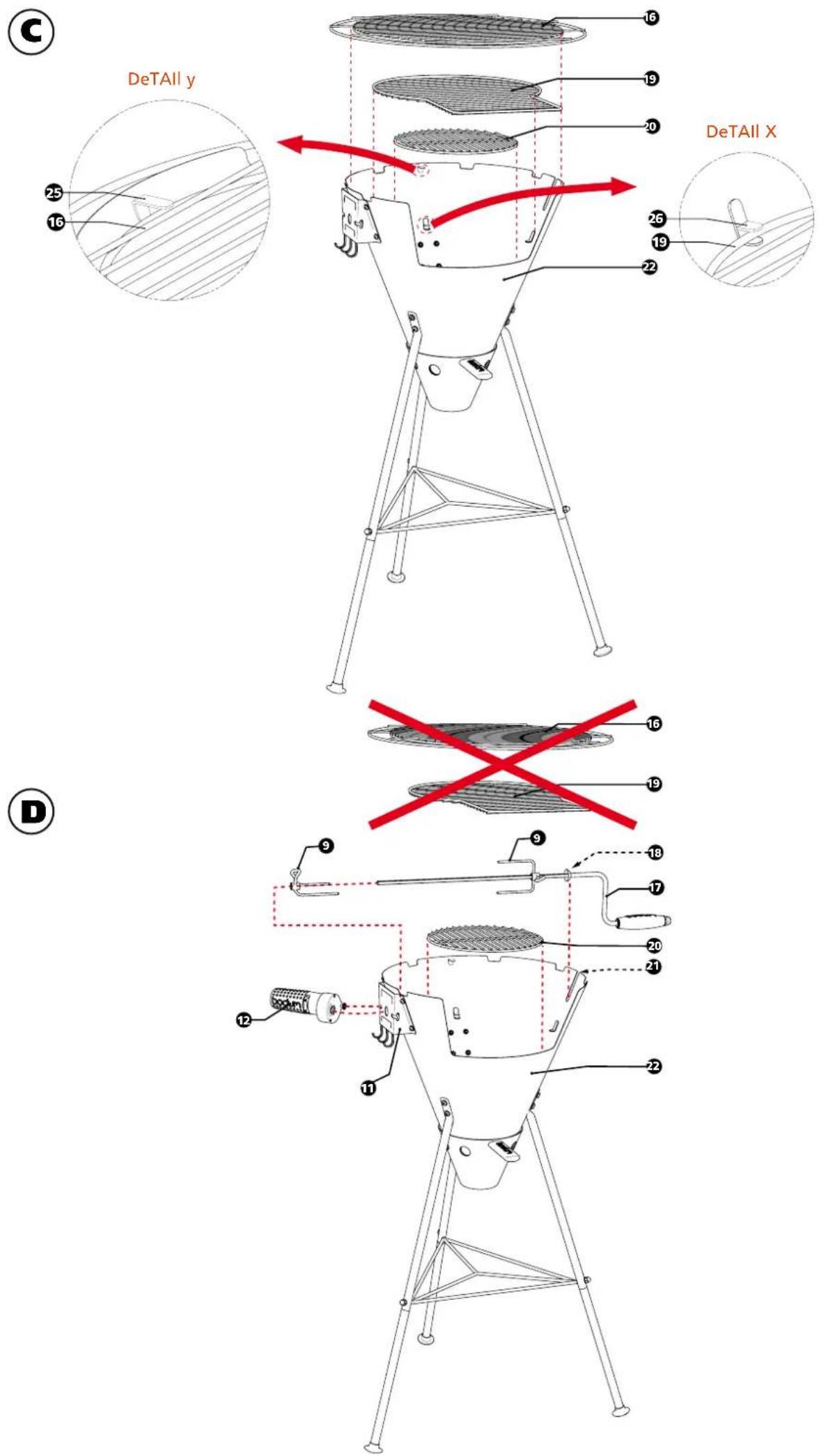

Figures C and D

The BODUM® "FYRKAT" Cone Grill can be used in either of two ways: as a barbecue with grill grates (16 / 19) or as a barbecue with rotary spit (17). Please refer to figures C and D for the appropriate assembly instructions.

Barbecue with grill grates (figure C)

If you wish to use the BODUM® Cone Grill with the grill grates, you must first insert the charcoal grate (20) into the grilling bowl (22). Then place the small grill grate (19) with the grate bars pointing down into the grilling bowl (22). Please ensure that the grate bar at the rear is placed exactly into the small holding hook (26) (see fig. C. / detail X) in order to secure the small grill grate (19) in its position.

Next, place the large grill grate (16) with the grate bars pointing up onto the upper edge of the grilling bowl (22) and insert into the slots provided there. Please also ensure that the large grill grate (16) is inserted into the retaining hook (25) (see fig. C / detail Y)

Barbecue with rotary spit (17)

If you wish to use the BODUM® Cone Grill with the rotary spit and barbecue motor, first insert the charcoal grate (20) into the grilling bowl (22). Place the two positioning hooks (9) onto the rotary spit (17) and screw these tight at the desired position. The positioning hooks (9) serve to ensure that food being grilled on the spit (17) rotates evenly. Now insert a battery (LR20, 1.5 V / D, not supplied) into the barbecue motor (12) and insert the barbecue motor into the motor retaining plate (11) from the side. Feed the rotary spit (17) through the hole on the grilling bowl (22) and the motor retaining plate (11) and insert into the square hole of the barbecue motor (12); position the other end of the rotary spit in the slit (21) on the opposite side of the grilling bowl. Please ensure that the guide washer (18) on the rotary spit (17) is located within the grilling bowl (22). This prevents the rotary spit from falling out when barbecuing.

Note: When barbecuing using the rotary spit, the small grill grate (19) and the large grill grate (16) must not be inserted.

Please always use suitable grill utensils (e.g. BODUM ^® FYRKAT grill utensils) and barbecuing mitts when you wish to insert or remove the charcoal grate (20), the small grill grate (19) or the large grill grate (16).

Before you use the BODUM ^® Cone Grill for the first time, we recommend that you allow the charcoal to glow for 30 minutes.

Maximum charcoal filling level: 6 cm above the charcoal grate.

HAZARD WARNINGS

Failure to observe these safety instructions and precautions can result in serious injury or damage. In addition, incorrect assembly of the BODUM ^® grill can pose great dangers. Follow the assembly instructions in this manual.

• Only use the grill when all parts have been properly assembled and secured.
• Make sure before every use that the ash collector has been properly attached. The grill must not be used without the ash collector (23).
• Do not use the grill indoors! The BODUM® Cone Grill is designed for outdoor use only. Toxic fumes can form if used inside. Never use the grill under flammable roofs or shelters or in a garage or suchlike.
• Never pour lighting fluid or charcoal soaked in lighting fluid onto hot or warm charcoal. Please close the lighting fluid container after use and store it at a safe distance from the grill.
• CAUTION! Never use spirit, petrol or similar liquids to light or relight! Only use firelighters complying with EN1860-3!
• WARNING! When using lighting fluids, make sure that no liquid has accumulated in the ash collector (23) or grilling bowl (22).
• WARNING! Children and pets are not allowed to stay unattended near a hot grill.
• WARNING! The BODUM® Cone Grill gets very hot and must not be moved while in use. Never leave the grill unattended while it is in use.
• The grill and flammable materials should be kept at least 1.5 m away from each other.
• Do not place the grill on a flammable surface.
• Do not wear clothes with long, wide sleeves when you are grilling.
• Only remove the ash when the charcoal briquettes have ceased glowing and the ash has cooled.
• Never dispose of hot ash or charcoal briquettes or briquette remains that are still glowing. Fire hazard!
• To move the grill, take hold of the handle (10), lift the grill slightly and position it at the desired location. Never try to move the grill when it is hot! Wait until the grill and charcoal have cooled down before moving or lifting the grill.
• Never hang heavy or flammable objects or objects sensitive to heat on the motor retaining plate with grill utensil hooks (11). The grill utensil hooks are designed for use with BODUM® grill utensils only.
• Use only the barbecue motor (12) supplied and protect it from heat, cold and moisture.
• Remove the battery from the barbecue motor (12) if you do not intend using it for any length of time in order to prevent the battery from leaking.
• Do not grill when it is windy.
• The BODUM® Cone Grill is not intended for installation or use in caravans, campers or on boats.
• The BODUM® Cone Grill must not be used as a heater.

SAFETY GUIDELINES

Place your BODUM ^® Cone Grill grill on a secure surface before use. Never tip or tilt it!

• Check before every use that the ash collector (23) is attached and that the ventilation openings (24) are open.
• If you use a grill starter (e.g. BODUM® FYRKAT Chimney Starter) to light the charcoal, make sure that the ventilation openings (24) on the ash collector (23) are closed when transferring the embers. Re-open the ventilation openings on the ash collector once you have transferred all the charcoal to the BODUM® Cone Grill.
• Always place the charcoal on the charcoal grate (20) and not directly on the base of the grilling bowl (22) or in the ash collector (23).
• Never touch the grill or grate to determine whether they are hot.
• Always wear barbecuing mitts or use an oven cloth when grilling or adjusting the ventilation openings (24) in order to protect your hands.
• Use grill utensils (e.g. BODUM ^® FYRKAT grill utensils) with long handles.
• If you wish to extinguish the charcoal, close the ventilation openings (24) on the ash collector (23) and wait until the charcoal and all parts of the grill have completely cooled down. Never use water to extinguish the charcoal as this may damage the enamel surface.
• Never use water to extinguish burning fat. Instead, move your food to another place on the grilling grates (16 / 19) and wait a few seconds until the fat has burned off.
  • Take care when using hot electric lighters and keep them in a safe place. Please observe the relevant instructions.
• Please keep electric cables away from hot surfaces.

USEFUL TIPS

• Once you have lit the charcoal, wait approx. 25 to 30 minutes until the charcoal is covered with a thin grey coating before you start to grill.
• The ventilation openings (24) on the ash collector (23) should remain open while you are barbecuing. Always wear barbecuing mitts when adjusting the ventilation openings.
• Only use good-quality charcoal or coconut briquettes and store them in a dry place as they easily absorb moisture and burn badly in this state. If you want to store briquettes outside, we recommend using a weather-proof container with an air-tight lid.
• If you use lighting fluid, please allow it to soak into the charcoal for a few minutes before lighting it. WARNING! Make sure no lighting fluid accumulates in the grilling bowl (22) or ash collector (23).
• This grill is suitable for barbecuing with a grilling grate or barbecuing with a rotary spit. Follow the appropriate grilling method according to your recipe. You will find tips for these two methods under the heading “Tips for ‘Barbecuing on Grilling Grates’ and ‘Barbecuing on a Rotary Spit’”.
• Use a spatula (BODUM ^ FYRKAT barbecue spatula) or tongs (BODUM ^ FYRKAT barbecue nipper) to turn the barbecue food. Avoid using sharp objects to pierce the meat as this can cause meat juices and flavor to escape.
• Ideally, turn the barbecue food once only. Follow the tips of your recipe.
• Never grease the grilling grates (16 / 9) directly with oil. To achieve a more uniform brown surface and prevent the barbecue food from sticking to the grilling grate, it may help if you brush your food lightly with oil.
• Do not line your grill with aluminium foil as this can hinder the flow of air.

TIPS FOR "BARBECUING ON GRILLING GRATES" AND "BARBECUING ON A ROTARY SPIT"

Please read all instructions and tips carefully before you start to grill. The BODUM ^® Cone Grill is suitable for grilling in two different ways: Barbecuing on grilling grates and barbecuing on a rotary spit.

BARBECUING ON GRILLING GRATES

Positioned one above the other, the two grilling grates (16 / 9) allow food to be cooked at different intensities of heat. The lower, small grilling grate (19) is ideally suited for barbecuing food that needs to be cooked quickly at a high temperature (e.g. steaks, kebabs, chops etc.).

The upper, large grilling grate (16) is excellent for grilling food that requires lower temperatures and longer cooking times (e.g. vegetables, sausages, chicken or fish fillets etc.).

BARBECUING ON A ROTARY SPIT WITH A BARBECUE MOTOR

The BODUM ^® Cone Grill can easily be converted into a barbecue with rotary spit (17). Thanks to the barbecue motor (12) that is included, food is cooked on the rotary spit evenly on all sides.

Make sure the food you wish to grill is positioned centrally on the rotary spit (17) and clamp it onto the spit using the the positioning hooks (9). Try to place the food as near to the centre of the grill as possible to ensure even weight distribution.

Exact cooking times can vary according to the type and size of the food you are grilling. For this reason you should follow the instructions in your recipe.

Caution! Fat from barbecue food dripping onto hot charcoal can cause a sudden burst of flames. Do not extinguish these flames with water. Instead, arrange the charcoal on the charcoal grate (20) in such a way that no fat can drip onto glowing charcoal.

Maximum weight of food for barbecuing on the rotary spit: 2 kg.

CARE

You can extend the useful life of your BODUM® Cone Grill by several years if you clean it thoroughly once each year. Do not use sharp objects and abrasive cleaners to clean the grilling grate, rotary spit and grill as these may damage the surface.

Follow these simple steps to clean your grill:

• Make sure that the grill has cooled down completely and that all charcoal has burned out.
• Remove the ash.
• Remove the grilling grate or rotary spit and charcoal grate and detach the barbecue motor.
• Wash the grill with a mild detergent and water Rinse it thoroughly with clear water and dry it with a cloth.
• The grilling grates do not need to be cleaned every time they are used. Just loosen any left-over food with a brass wire brush or with crumpled up aluminium foil and then wipe them clean with kitchen paper.
• Clean the barbecue motor with a moist cloth. Never immerse the barbecue motor in water.
