Brand	CDA
Model	3Q9SS
Product type	Kitchen hood
Operating mode	Extraction (external evacuation) or recirculation
Minimum distance from cooking surface	65 cm
Number of speeds	3 speeds + intensive speed
Lighting	Yes, controlled by button A
Grease filter	Dishwasher safe, every 2 months
Activated carbon filter	Not washable, replace every 4 months (optional)
Power supply	220-240 V ~ 50 Hz (estimated)
Electrical class	Class II
Timer function	Yes, 15 minutes
Clean Air function	Yes, hourly cycle of 10 minutes at speed 1
Filter saturation indicator	Yes, flashing F or A display
Options	Decorative flues optional
Exterior maintenance	Cloth soaked in denatured alcohol or neutral detergent
Safety	Safety distance, no flambé, monitor frying
Spare parts	Grease filters, carbon filters, lamps (type not specified)
Repairability	Power cable replaceable by manufacturer or after-sales service

Frequently Asked Questions - 3Q9SS CDA

How to install the hood in external extraction mode?

To install the hood in extraction mode, remove the grille E and cap M. Pass the power cord through the slot in the cap, place the cable gland H, then connect the hood to the flexible hose L (not supplied) connected to the evacuation hole. Fix the cap M onto the studs G.

How to install the hood in recirculation mode?

For recirculation mode, remove the grille E and cap M. Pass the power cord through the slot with the cable gland H. Fix the cap M onto the studs G. Install the activated carbon filters in the suction group inside the hood (fig. 3B).

How often should the grease filters be cleaned?

Grease filters must be washed at least every 2 months, in the dishwasher or by hand. Regular cleaning prevents fire risks.

How often should the activated carbon filters be replaced?

Activated carbon filters are neither washable nor regenerable. They must be replaced at least every 4 months, more often with heavy use.

How to reset the filter saturation indicator?

After cleaning or replacing the filters, reset the electronic memory by pressing button A for 5 seconds until F (grease filter) or A (charcoal) stops flashing on the display.

What is the minimum distance between the hood and the cooktop?

The minimum distance between the cooking vessel support surface and the lowest part of the hood must be at least 65 cm.

How to activate the Clean Air function?

When the appliance is off, press button E for 2 seconds. The function will start the motor for 10 minutes every hour at the first speed. The display will show a rotating movement, then a steady 'C'. To deactivate, press E again.

How to use the Timer function?

Press button E to activate the timer. It times the functions for 15 minutes, after which they turn off. Press E again to deactivate. The decimal point flashes on the display when the timer is active.

What to do if the hood does not turn on?

First check that the hood is plugged in and the fuse is not blown (3A). If the power cord is damaged, it must be replaced by a special cord ordered from the manufacturer or after-sales service. If the problem persists, contact a qualified electrician.

Can I use the hood with a gas cooktop?

Yes, but if the hood is in extraction mode and you use gas burners or a chimney, the room must be sufficiently ventilated to avoid a depression greater than 4 Pa. Respect the safety distance of 65 cm and never flambé under the hood.

USER MANUAL 3Q9SS CDA

$$ M A R R O N E = L \text {l i n e a} $$

$$ \mathrm {B L U} = \mathrm {N} \text {n e u t r o} $$

flexible L (Fig.10).

$$ M A R R O N = L \text {l i n g e} $$

$$ \mathrm {B L E U} = \mathbf {N} \text {n e u t r e} $$

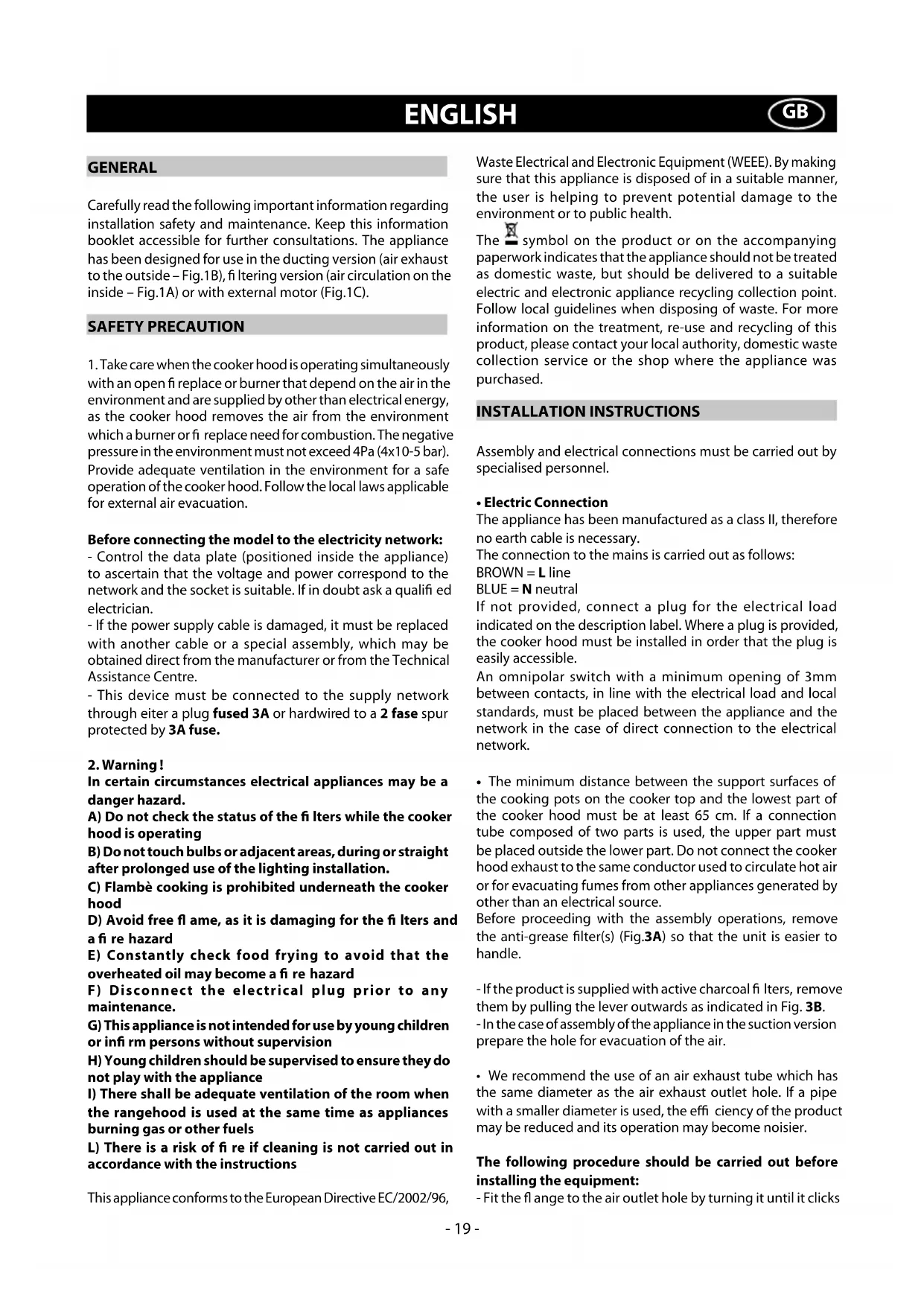

Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations. The appliance has been designed for use in the ducting version (air exhaust to the outside - Fig.1B), filtering version (air circulation on the inside - Fig.1A) or with external motor (Fig.1C).

SAFETY PRECAUTION

1. Take care when the cooker hood is operating simultaneously with an open fi replace or burner that depend on the air in the environment and are supplied by other than electrical energy, as the cooker hood removes the air from the environment which a burner or fi replace need for combustion. The negative pressure in the environment must not exceed 4Pa (4x10-5 bar). Provide adequate ventilation in the environment for a safe operation of the cooker hood. Follow the local laws applicable for external air evacuation.

Before connecting the model to the electricity network:

• Control the data plate (positioned inside the appliance) to ascertain that the voltage and power correspond to the network and the socket is suitable. If in doubt ask a qualified electrician.
• If the power supply cable is damaged, it must be replaced with another cable or a special assembly, which may be obtained direct from the manufacturer or from the Technical Assistance Centre.
• This device must be connected to the supply network through eiter a plug fused 3A or hardwired to a 2 fase spur protected by 3A fuse.

2. Warning!

In certain circumstances electrical appliances may be a danger hazard.

A) Do not check the status of the filters while the cooker hood is operating
B) Do not touch bulbs or adjacent areas, during or straight after prolonged use of the lighting installation.
C) Flambé cooking is prohibited underneath the cooker hood
D) Avoid free flame, as it is damaging for the fi Iters and a fire hazard
E) Constantly check food frying to avoid that the overheated oil may become a fire hazard
F) Disconnect the electrical plug prior to any maintenance.
G) This appliance is not intended for use by young children or infirm persons without supervision
H) Young children should be supervised to ensure they do not play with the appliance
I) There shall be adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels
L) There is a risk of fire if cleaning is not carried out in accordance with the instructions

This appliance conforms to the European Directive EC/2002/96,

Waste Electrical and Electronic Equipment (WEEE). By making sure that this appliance is disposed of in a suitable manner, the user is helping to prevent potential damage to the environment or to public health.

The symbol on the product or on the accompanying paperwork indicates that the appliance should not be treated as domestic waste, but should be delivered to a suitable electric and electronic appliance recycling collection point. Follow local guidelines when disposing of waste. For more information on the treatment, re-use and recycling of this product, please contact your local authority, domestic waste collection service or the shop where the appliance was purchased.

INSTALLATION INSTRUCTIONS

Assembly and electrical connections must be carried out by specialised personnel.

Electric Connection

The appliance has been manufactured as a class II, therefore no earth cable is necessary.

The connection to the mains is carried out as follows:

BROWN = L line

BLUE = N neutral

If not provided, connect a plug for the electrical load indicated on the description label. Where a plug is provided, the cooker hood must be installed in order that the plug is easily accessible.

An omnipolar switch with a minimum opening of 3mm between contacts, in line with the electrical load and local standards, must be placed between the appliance and the network in the case of direct connection to the electrical network.

• The minimum distance between the support surfaces of the cooking pots on the cooker top and the lowest part of the cooker hood must be at least 65~cm . If a connection tube composed of two parts is used, the upper part must be placed outside the lower part. Do not connect the cooker hood exhaust to the same conductor used to circulate hot air or for evacuating fumes from other appliances generated by other than an electrical source.

Before proceeding with the assembly operations, remove the anti-grease filter(s) (Fig.3A) so that the unit is easier to handle.

• If the product is supplied with active charcoal fi Iters, remove them by pulling the lever outwards as indicated in Fig. 3B.

-In the case of assembly of the appliance in the suction version prepare the hole for evacuation of the air.

• We recommend the use of an air exhaust tube which has the same diameter as the air exhaust outlet hole. If a pipe with a smaller diameter is used, the efficiency of the product may be reduced and its operation may become noisier.

The following procedure should be carried out before installing the equipment:

• Fit the flange to the air outlet hole by turning it until it clicks

into place, then secure it using a screw (Fig. 2).

- Wall fixing

Mark the position of the lower side of the hood on the wall Fig.4A (taking into account the minimum distance required from the hob).

• Position the fixing template on the wall, making sure that the line coincides with the line previously made on the wall, as described in the preceding section.
• Mark and drill fixing holes (Fig. 4B).
• Secure the 4 screws C and the screw anchors (Fig. 4B), without tightening them completely.
• Position the appliance on the wall and secure it in place using the 4 screws C and the central screw D (Fig. 5).
• When carrying out the fixing operations, use only screws and screw anchors suited to the type of wall (e.g. reinforced concrete, plasterboard etc.).
• If the screws and screw anchors are supplied with the appliance, make sure that they are suited to the type of wall to which the hood must be fixed.

- Installation of models without decorative - Ducts extractor hood

• Remove the grille E (Fig. 6).
• Take the fairing M and pass the power cable through the slot shown in Figure 8A.
• Taking the grommet H , position it between the power cable and the slot.
• Connect the hood to the flexible hose L (not supplied) and the hose to the air exhaust hole that was previously prepared (Fig. 8B).
• Secure the fairing M, taking care to ensure that it is correctly hooked on the securing pins G (Fig. 8B)

Filter hood

• Remove the grille E (Fig. 6).
• Take the fairing M and pass the power cable through the slot shown in Figure 8A.
• Taking the grommet H , position it between the power cable and the slot.
• Secure the fairing M, taking care to ensure that it is correctly hooked on the securing pins G (Fig. 8B)
• Take the active charcoal fi tters and fit them to the extraction assembly located inside the cooker hood (Fig. 3B).

- Optional accessories

This model may have decorative ducts as optional accessories
- ask your retailer for information.
The fairing M should be removed before installing decorative ducts.

- Installation of models with decorative ducts - extractor hood

Make sure the electrical power supply is within the measurements of the decorative connector.

Adjust the width of the support bracket of the top connector (Fig. 9). Then fix it to the ceiling so that it is on the same axis as the hood using screws A and observing the distance from the ceiling shown in (Fig. 9). Connect flange F to the air exhaust hole using flexible hose L (Fig.10).

Slide the top connector inside the lower duct and place this on the body (Fig. 11).

Pull out the top duct as far as the bracket and secure it using screws B (Fig. 9).

To transform the hood from a ducting version into a fi Itering version, ask your dealer for the charcoal fi iters and follow the installation instructions.

Filter hood

Install the hood and the two flues as described in the paragraph for installation of the hood in ducting version. To assemble the filtering flue refer to the instructions contained in the kit. If the kit is not provided, order it from your dealer as accessory. The charcoal filters must be fitted in the ducting unit located inside the hood (Fig.3B).

USE AND MAINTENANCE

• We recommend that the cooker hood is switched on before any food is cooked. We also recommend that the appliance is left running for 15 minutes after the food is cooked, in order to thoroughly eliminate all contaminated air.

The effective performance of the cooker hood depends on constant maintenance; the anti-grease fi iter and the active carbon fi iter both require special attention.

• The anti-grease filter is used to trap any grease particles suspended in the air, therefore is subject to saturation (the time it takes for the fi liter to become saturated depends on the way in which the appliance is used).
• To prevent potential fire hazards, the anti-grease filters should be washed a minimum of every 2 months (it is possible to use the dishwasher for this task).
• After a few washes, the colour of the fi liters may change. This does not mean they have to be replaced.
  If the replacement and washing instructions are not followed, the anti-grease filters may present a fire hazard.
• The active carbon filters are used to purify the air which is released back into the room. The fi liters are not washable or re-usable and must be replaced at least once every four months. The active carbon filter saturation level depends on the frequency with which the appliance is used, the type of cooking performed and the regularity with which the anti-grease fi liters are cleaned.
• Clean the cooker hood frequently, both inside and outside, using a cloth which has been dampened with denatured alcohol or neutral, non-abrasive liquid detergents.
• The light on the cooker hood is designed for use during cooking and not for general room illumination. Extended use of the light reduces the average duration of the bulb.

Commands: (Fig.12)

Push-button A = on/off lights switch

Push-button B = on/off cooker hood switch. The appliance switches on at speed level 1, If the cooker hood is on depress the push-button for 2 sec. to switch off the cooker hood. If the cooker hood is at speed level 1 it will not be necessary to depress the push-button to switch the cooker hood off. Decreases the motor speed.

Display C = indicates the motor speed level selected and activates the timer.

Push-button D = switches on the cooker hood. Increases the motor speed. Touching the key at 3rd speed, the intensive function runs for 10' , then the appliance goes back to work at the original speed. During this function the display blinks.

Key E = The Timer times the functions on activation for 15 minutes, after which they are switched off. The Timer is deactivated by re-pressing Key E. When the Timer is activated the decimal point must flash on the display. The Timer cannot

be activated if the intensive speed is functioning.

The "clean air" function is activated by pressing key E for 2 seconds when the appliance is switched off. This switches the motor on for 10 minutes every hour at the first speed. During functioning a rotary movement of the peripheral segments must be visualised on the display. When this time has passed the motor switches off and the fixed letter "C" must be visualised on the display until the motor re-starts after 50 minutes for another 10 minutes and so on. Press any key apart from the light keys to return to normal functioning. Press key E to deactivate the function.

Active carbon/grease fi tter saturation:

• When display item C flashes, at a speed where it alternates with the letter F (e.g. 1 and F), the grease fi liters must be washed.
• When display item C flashes, at a speed where it alternates with the letter A (e.g. 1 and A), the carbon filters must be replaced.

After the clean filter has been positioned correctly, the electronic memory must be reset by pressing button A for approximately 5 seconds, until the indication F or t shown on the display C stops fl ashing.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR EVENTUAL DAMAGES CAUSED BY BREACHING THE ABOVE WARNINGS.
