Product type	Extractor/Filter hood
Brand	CDA
Model	3Z9WH
Use	Extracting mode (external evacuation) or filtering mode (recirculation) with optional external motor
Power supply	220-240 V ~ 50 Hz
Recommended fuse	3 A
Electrical class	II (double insulation, no earth)
Number of motor speeds	3 speeds + intensive function (10 min)
Lighting	Yes, dedicated switch (button A)
Timer	15 minutes with automatic stop
Clean Air function	Automatic operation 10 min/h at speed 1
Type of filters	Washable metal grease filter + activated charcoal filter (optional)
Grease filter maintenance	Wash every 2 months (dishwasher safe)
Charcoal filter maintenance	Replace every 4 months (not washable)
Minimum safety distance	65 cm between hob and hood
Material	Stainless steel (not specified, estimate)
Width	60 cm or 90 cm (not specified, estimate)
Weight	Approximately 15 kg (not specified, estimate)
Noise level	Up to 65 dB (not specified, estimate)
Included accessories	Air outlet flange, drilling template, screws and wall plugs
Options	Decorative flues, recirculation kit with charcoal filters
Warranty	2 years (standard, to be verified)

Frequently Asked Questions - 3Z9WH CDA

How to install the hood in extraction mode?

For external evacuation, connect the outlet flange to a flexible hose (not supplied) connected to an external opening. Ensure the hose diameter matches the outlet diameter for optimal performance.

How to change the activated charcoal filters?

Pull the lever outward as shown (fig. 3B) to remove the used filters. Insert the new filters by clipping them in. Charcoal filters are neither washable nor regenerable and must be replaced every 4 months.

What is the minimum safety distance above the hob?

The minimum distance between the support surface of the vessels and the lowest part of the hood is 65 cm. For gas cooktops, follow the manufacturer's recommendations.

How to clean the grease filters?

Grease filters must be washed at least every 2 months. They are dishwasher safe or can be hand washed with a mild detergent. A color change after several washes is normal.

What to do if the display flashes alternating speed and letter F?

The F indicator means the grease filters are saturated. Clean them, then reset the electronic memory by pressing button A for 5 seconds until the flashing stops.

How to activate the Clean Air function?

With the appliance off, press button E for 2 seconds. The motor will run for 10 minutes every hour at speed 1. The display shows a rotating movement then a steady C. To exit, press any button except lighting.

What is the timer of the hood for?

Button E activates a 15-minute timer. After this time, the hood and lighting turn off automatically. The decimal point flashes on the display during countdown. Does not work in intensive mode.

How to reset the filter saturation indicator?

After cleaning or replacing the filters, press button A (lighting) for 5 seconds. The F or A indicator stops flashing, confirming the reset.

Can I use the hood without charcoal filter in recirculation mode?

No, in recirculation mode (air returned to the room), activated charcoal filters are essential to absorb odors. In extraction mode, they are not necessary.

What does the flashing display with the letter A mean?

The flashing letter A indicates that the activated charcoal filters need to be replaced. Replace them and reset the memory by pressing button A for 5 seconds.

USER MANUAL 3Z9WH CDA

Technical diagram showing assembly steps of a mechanical device with labeled components C and D, including directional arrows and screw placements.

Fig.5

Diagram illustrating a mechanical process with labeled component E, showing tool application and assembly steps.

Technical diagram illustrating a mechanical assembly with labeled components and motion indicators

Fig.6 Fig.7

Technical diagram illustrating a mechanical assembly process with labeled components and parts A and B

Fig.8

Technical diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating motion or assembly steps.

Fig.9

Technical diagram showing two mechanical assembly states with labeled components L and F, including a directional arrow indicating motion or force.

Fig.10

Fig.11

Fig.12

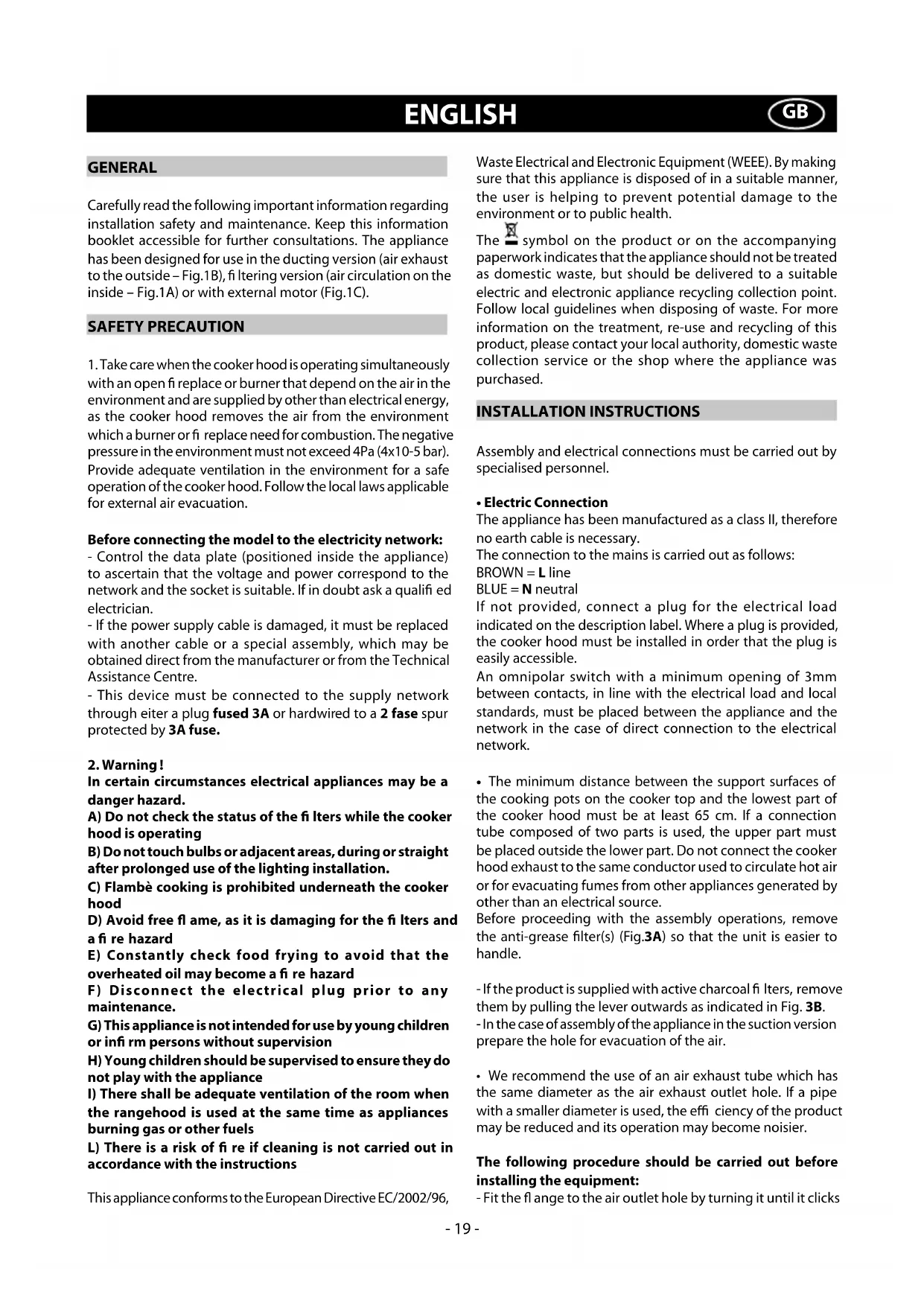

GENERALITA'

fl exible L (Fig.10).

Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations. The appliance has been designed for use in the ducting version (air exhaust to the outside – Fig.1B), filtering version (air circulation on the inside – Fig.1A) or with external motor (Fig.1C).

SAFETY PRECAUTION

1. Take care when the cooker hood is operating simultaneously with an open fi replace or burner that depend on the air in the environment and are supplied by other than electrical energy, as the cooker hood removes the air from the environment which a burner or fi replace need for combustion. The negative pressure in the environment must not exceed 4Pa (4x10-5 bar). Provide adequate ventilation in the environment for a safe operation of the cooker hood. Follow the local laws applicable for external air evacuation.

Before connecting the model to the electricity network:

• Control the data plate (positioned inside the appliance) to ascertain that the voltage and power correspond to the network and the socket is suitable. If in doubt ask a qualified electrician.
• If the power supply cable is damaged, it must be replaced with another cable or a special assembly, which may be obtained direct from the manufacturer or from the Technical Assistance Centre.
• This device must be connected to the supply network through either a plug fused 3A or hardwired to a 2 fase spur protected by 3A fuse.

2. Warning!

In certain circumstances electrical appliances may be a danger hazard.

A) Do not check the status of the filters while the cooker hood is operating
B) Do not touch bulbs or adjacent areas, during or straight after prolonged use of the lighting installation.
C) Flambè cooking is prohibited underneath the cooker hood
D) Avoid free flame, as it is damaging for the flters and a fi re hazard
E) Constantly check food frying to avoid that the overheated oil may become a fire hazard
F) Disconnect the electrical plug prior to any maintenance.
G) This appliance is not intended for use by young children or infi rm persons without supervision
H) Young children should be supervised to ensure they do not play with the appliance
I) There shall be adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels
L) There is a risk of fire if cleaning is not carried out in accordance with the instructions

This appliance conforms to the European Directive EC/2002/96,

Waste Electrical and Electronic Equipment (WEEE). By making sure that this appliance is disposed of in a suitable manner, the user is helping to prevent potential damage to the environment or to public health.

The symbol on the product or on the accompanying paperwork indicates that the appliance should not be treated as domestic waste, but should be delivered to a suitable electric and electronic appliance recycling collection point. Follow local guidelines when disposing of waste. For more information on the treatment, re-use and recycling of this product, please contact your local authority, domestic waste collection service or the shop where the appliance was purchased.

INSTALLATION INSTRUCTIONS

Assembly and electrical connections must be carried out by specialised personnel.

• Electric Connection

The appliance has been manufactured as a class II, therefore no earth cable is necessary.

The connection to the mains is carried out as follows:

BROWN = L line

BLUE = N neutral

If not provided, connect a plug for the electrical load indicated on the description label. Where a plug is provided, the cooker hood must be installed in order that the plug is easily accessible.

An omnipolar switch with a minimum opening of 3mm between contacts, in line with the electrical load and local standards, must be placed between the appliance and the network in the case of direct connection to the electrical network.

- The minimum distance between the support surfaces of the cooking pots on the cooker top and the lowest part of the cooker hood must be at least 65 cm. If a connection tube composed of two parts is used, the upper part must be placed outside the lower part. Do not connect the cooker hood exhaust to the same conductor used to circulate hot air or for evacuating fumes from other appliances generated by other than an electrical source.

Before proceeding with the assembly operations, remove the anti-grease filter(s) (Fig.3A) so that the unit is easier to handle.

• If the product is supplied with active charcoal filters, remove them by pulling the lever outwards as indicated in Fig. 3B.
• In the case of assembly of the appliance in the suction version prepare the hole for evacuation of the air.

- We recommend the use of an air exhaust tube which has the same diameter as the air exhaust outlet hole. If a pipe with a smaller diameter is used, the efficiency of the product may be reduced and its operation may become noisier.

The following procedure should be carried out before installing the equipment:

- Fit the fl ange to the air outlet hole by turning it until it clicks

into place, then secure it using a screw (Fig. 2).

- Wall fi xing

Mark the position of the lower side of the hood on the wall Fig. 4A (taking into account the minimum distance required from the hob).

• Position the fixing template on the wall, making sure that the line coincides with the line previously made on the wall, as described in the preceding section.
• Mark and drill fixing holes (Fig. 4B).
• Secure the 4 screws C and the screw anchors (Fig. 4B), without tightening them completely.
• Position the appliance on the wall and secure it in place using the 4 screws C and the central screw D (Fig. 5).
• When carrying out the fixing operations, use only screws and screw anchors suited to the type of wall (e.g. reinforced concrete, plasterboard etc.).
• If the screws and screw anchors are supplied with the appliance, make sure that they are suited to the type of wall to which the hood must be fixed.

- Installation of models without decorative - Ducts extractor hood

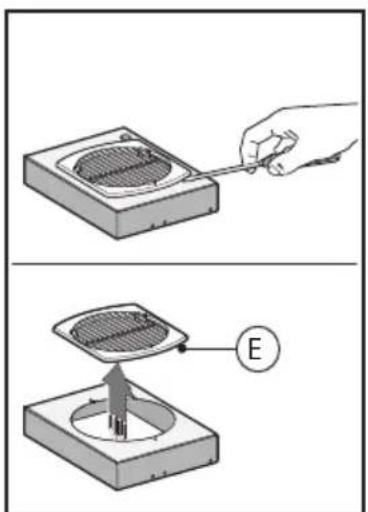

• Remove the grille E (Fig. 6).

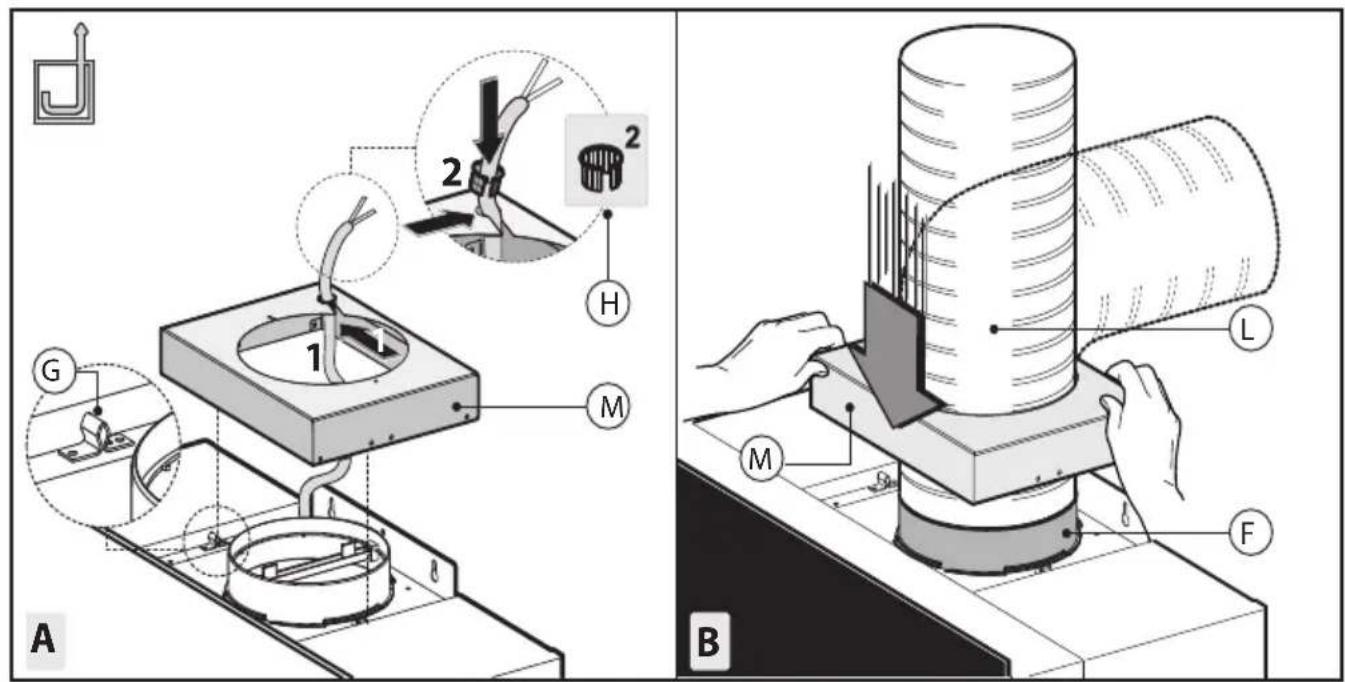

• Take the fairing M and pass the power cable through the slot shown in Figure 8A.
• Taking the grommet H, position it between the power cable and the slot.
• Connect the hood to the flexible hose L (not supplied) and the hose to the air exhaust hole that was previously prepared (Fig. 8B).
• Secure the fairing M, taking care to ensure that it is correctly hooked on the securing pins G (Fig. 8B)

Filter hood

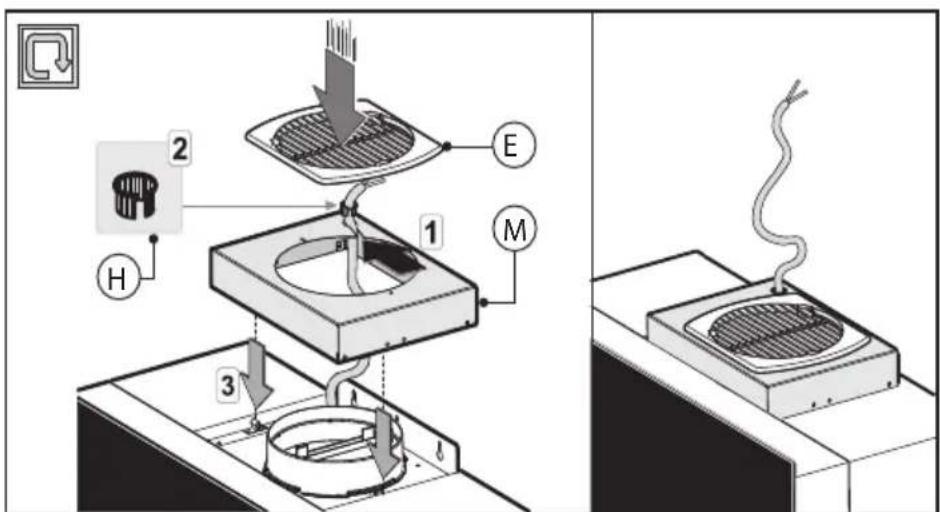

• Remove the grille E (Fig. 6).
• Take the fairing M and pass the power cable through the slot shown in Figure 8A.
• Taking the grommet H, position it between the power cable and the slot.
• Secure the fairing M, taking care to ensure that it is correctly hooked on the securing pins G (Fig. 8B)
• Take the active charcoal filters and fit them to the extraction assembly located inside the cooker hood (Fig. 3B).

- Optional accessories

This model may have decorative ducts as optional accessories

- ask your retailer for information.

The fairing M should be removed before installing decorative ducts.

- Installation of models with decorative ducts - extractor hood

Make sure the electrical power supply is within the measurements of the decorative connector.

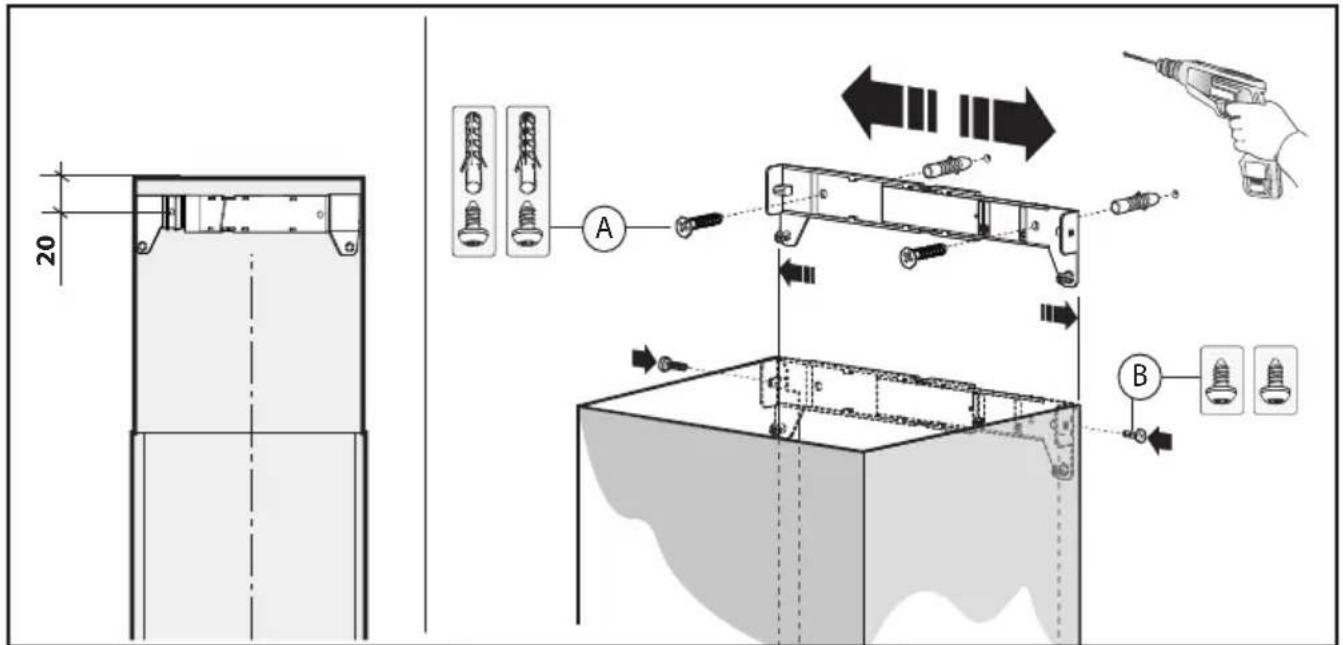

Adjust the width of the support bracket of the top connector (Fig. 9). Then fix it to the ceiling so that it is on the same axis as the hood using screws A and observing the distance from the ceiling shown in (Fig. 9). Connect flange F to the air exhaust hole using flexible hose L (Fig.10).

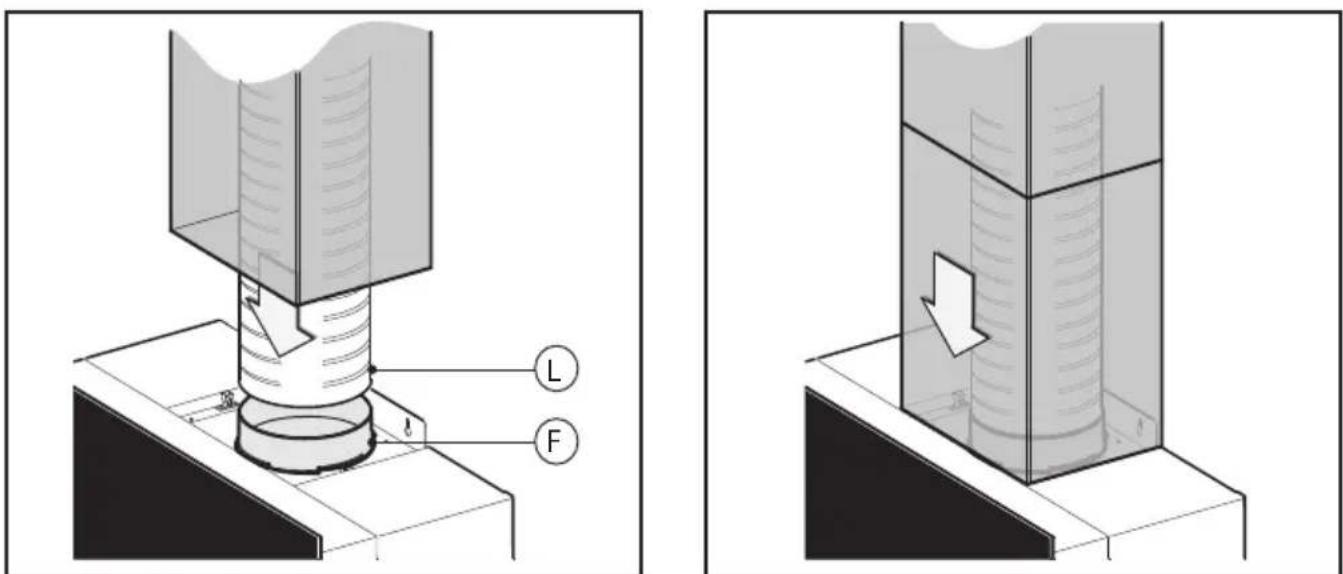

Slide the top connector inside the lower duct and place this on the body (Fig. 11).

Pull out the top duct as far as the bracket and secure it using screws B (Fig. 9).

To transform the hood from a ducting version into a fi ltering version, ask your dealer for the charcoal fi lters and follow the installation instructions.

Filter hood

Install the hood and the two flues as described in the paragraph for installation of the hood in ducting version. To assemble the filtering flue refer to the instructions contained in the kit. If the kit is not provided, order it from your dealer as accessory. The charcoal filters must be fitted in the ducting unit located inside the hood (Fig.3B).

USE AND MAINTENANCE

- We recommend that the cooker hood is switched on before any food is cooked. We also recommend that the appliance is left running for 15 minutes after the food is cooked, in order to thoroughly eliminate all contaminated air.

The effective performance of the cooker hood depends on constant maintenance; the anti-grease filter and the active carbon filter both require special attention.

• The anti-grease filter is used to trap any grease particles suspended in the air, therefore is subject to saturation (the time it takes for the filter to become saturated depends on the way in which the appliance is used).
• To prevent potential fire hazards, the anti-grease filters should be washed a minimum of every 2 months (it is possible to use the dishwasher for this task).
• After a few washes, the colour of the filters may change. This does not mean they have to be replaced.
  If the replacement and washing instructions are not followed, the anti-grease filters may present a fire hazard.
• The active carbon filters are used to purify the air which is released back into the room. The fi Iters are not washable or re-usable and must be replaced at least once every four months. The active carbon fi Iter saturation level depends on the frequency with which the appliance is used, the type of cooking performed and the regularity with which the anti-grease fi Iters are cleaned.
• Clean the cooker hood frequently, both inside and outside, using a cloth which has been dampened with denatured alcohol or neutral, non-abrasive liquid detergents.
• The light on the cooker hood is designed for use during cooking and not for general room illumination. Extended use of the light reduces the average duration of the bulb.

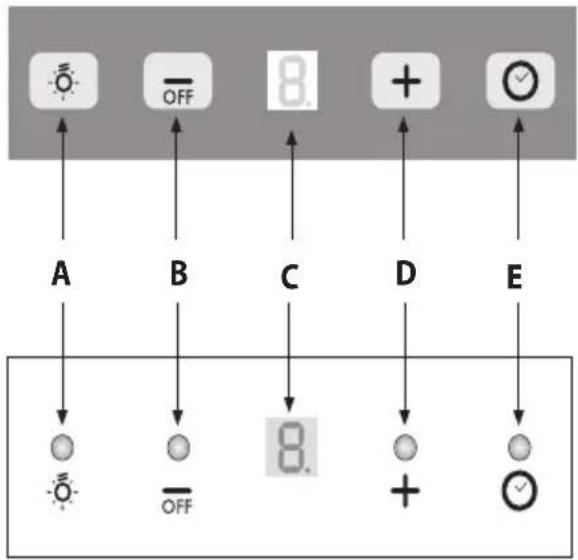

Commands: (Fig.12)

Push-button A = on/off lights switch

Push-button B = on/off cooker hood switch. The appliance switches on at speed level 1, If the cooker hood is on depress the push-button for 2 sec. to switch off the cooker hood. If the cooker hood is at speed level 1 it will not be necessary to depress the push-button to switch the cooker hood off. Decreases the motor speed.

Display C = indicates the motor speed level selected and activates the timer.

Push-button D = switches on the cooker hood. Increases the motor speed. Touching the key at 3rd speed, the intensive function runs for 10', then the appliance go back to work at the original speed. During this function the display blinks.

Key E = The Timer times the functions on activation for 15 minutes, after which they are switched off. The Timer is deactivated by re-pressing Key E. When the Timer is activated the decimal point must flash on the display. The Timer cannot

be activated if the intensive speed is functioning.

The "clean air" function is activated by pressing key E for 2 seconds when the appliance is switched off. This switches the motor on for 10 minutes every hour at the first speed. During functioning a rotary movement of the peripheral segments must be visualised on the display. When this time has passed the motor switches off and the fixed letter "C" must be visualised on the display until the motor re-starts after 50 minutes for another 10 minutes and so on. Press any key apart from the light keys to return to normal functioning. Press key E to deactivate the function.

• Active carbon/grease fi Iter saturation:

• When display item C flashes, at a speed where it alternates with the letter F (e.g. 1 and F), the grease filters must be washed.
• When display item C flashes, at a speed where it alternates with the letter A (e.g. 1 and A), the carbon filters must be replaced.

After the clean filter has been positioned correctly, the electronic memory must be reset by pressing button A for approximately 5 seconds, until the indication F or t shown on the display C stops fl ashing.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR EVENTUAL DAMAGES CAUSED BY BREACHING THE ABOVE WARNINGS.

ALGEMEEN

INSTALLATIE INSTRUCTIES

Tecla A = acende/apaga as luzes
