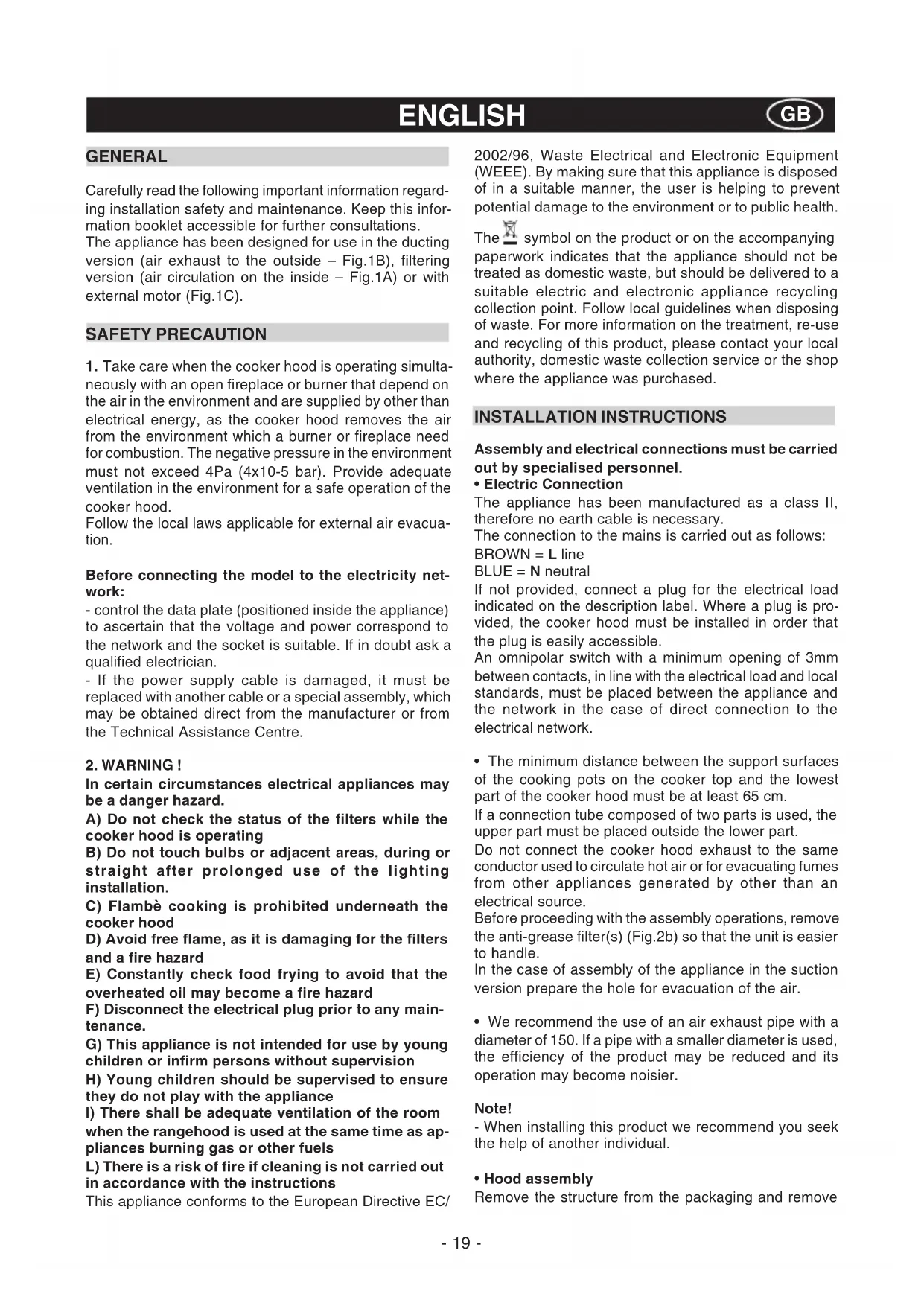

GENERAL Carefully read the following important information regard- ing installation safety and maintenance. Keep this infor- mation booklet accessible for further consultations. The appliance has been designed for use in the ducting version (air exhaust to the outside – Fig.1B), filtering version (air circulation on the inside – Fig.1A) or with external motor (Fig.1C). SAFETY PRECAUTION

1. Take care when the cooker hood is operating simulta-

neously with an open fireplace or burner that depend on the air in the environment and are supplied by other than electrical energy, as the cooker hood removes the air from the environment which a burner or fireplace need for combustion. The negative pressure in the environment must not exceed 4Pa (4x10-5 bar). Provide adequate ventilation in the environment for a safe operation of the cooker hood. Follow the local laws applicable for external air evacua- tion. Before connecting the model to the electricity net- work: - control the data plate (positioned inside the appliance) to ascertain that the voltage and power correspond to the network and the socket is suitable. If in doubt ask a qualified electrician. - If the power supply cable is damaged, it must be replaced with another cable or a special assembly, which may be obtained direct from the manufacturer or from the Technical Assistance Centre.

In certain circumstances electrical appliances may be a danger hazard. A) Do not check the status of the filters while the cooker hood is operating B) Do not touch bulbs or adjacent areas, during or straight after prolonged use of the lighting installation. C) Flambè cooking is prohibited underneath the cooker hood D) Avoid free flame, as it is damaging for the filters and a fire hazard E) Constantly check food frying to avoid that the overheated oil may become a fire hazard F) Disconnect the electrical plug prior to any main- tenance. G) This appliance is not intended for use by young children or infirm persons without supervision H) Young children should be supervised to ensure they do not play with the appliance

I) There shall be adequate ventilation of the room

when the rangehood is used at the same time as ap- pliances burning gas or other fuels L) There is a risk of fire if cleaning is not carried out in accordance with the instructions This appliance conforms to the European Directive EC/ 2002/96, Waste Electrical and Electronic Equipment (WEEE). By making sure that this appliance is disposed of in a suitable manner, the user is helping to prevent potential damage to the environment or to public health. The symbol on the product or on the accompanying paperwork indicates that the appliance should not be treated as domestic waste, but should be delivered to a suitable electric and electronic appliance recycling collection point. Follow local guidelines when disposing of waste. For more information on the treatment, re-use and recycling of this product, please contact your local authority, domestic waste collection service or the shop where the appliance was purchased. INSTALLATION INSTRUCTIONS Assembly and electrical connections must be carried out by specialised personnel.

• Electric Connection The appliance has been manufactured as a class II, therefore no earth cable is necessary. The connection to the mains is carried out as follows: BROWN = L line BLUE = N neutral If not provided, connect a plug for the electrical load indicated on the description label. Where a plug is pro- vided, the cooker hood must be installed in order that the plug is easily accessible. An omnipolar switch with a minimum opening of 3mm between contacts, in line with the electrical load and local standards, must be placed between the appliance and the network in the case of direct connection to the electrical network.

• The minimum distance between the support surfaces of the cooking pots on the cooker top and the lowest part of the cooker hood must be at least 65 cm. If a connection tube composed of two parts is used, the upper part must be placed outside the lower part. Do not connect the cooker hood exhaust to the same conductor used to circulate hot air or for evacuating fumes from other appliances generated by other than an electrical source. Before proceeding with the assembly operations, remove the anti-grease filter(s) (Fig.2b) so that the unit is easier to handle. In the case of assembly of the appliance in the suction version prepare the hole for evacuation of the air.

• We recommend the use of an air exhaust pipe with a diameter of 150. If a pipe with a smaller diameter is used, the efficiency of the product may be reduced and its operation may become noisier. Note! - When installing this product we recommend you seek the help of another individual.

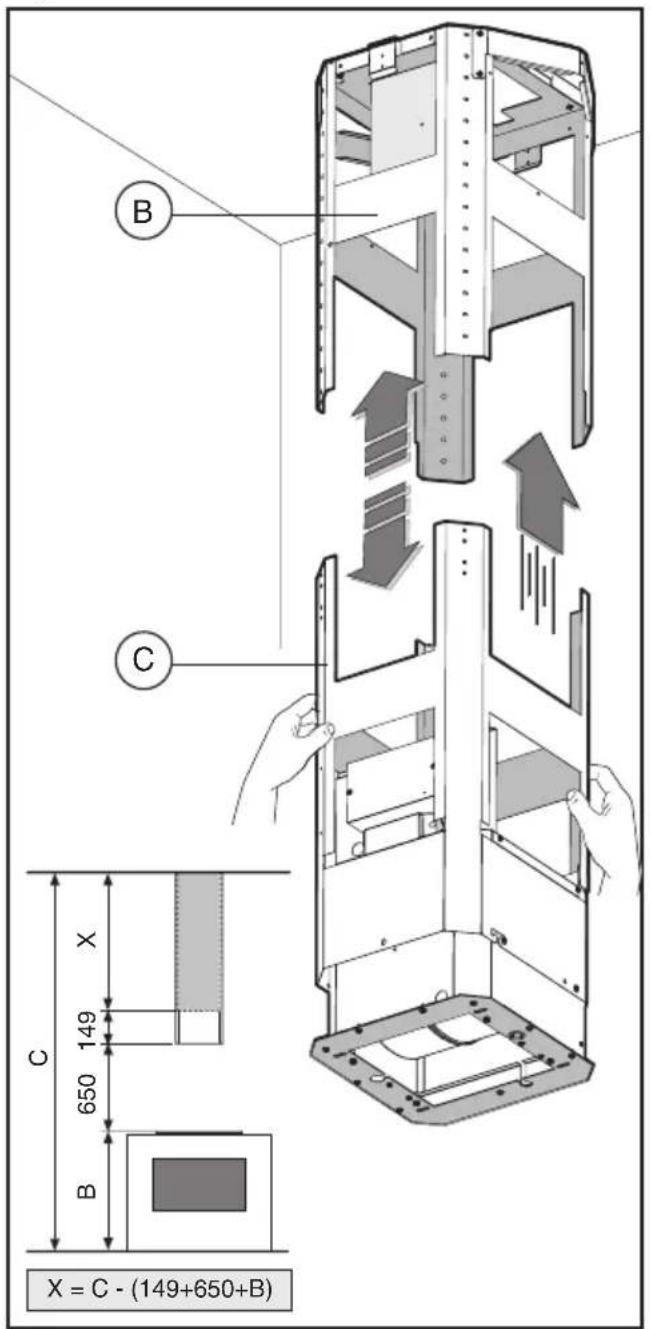

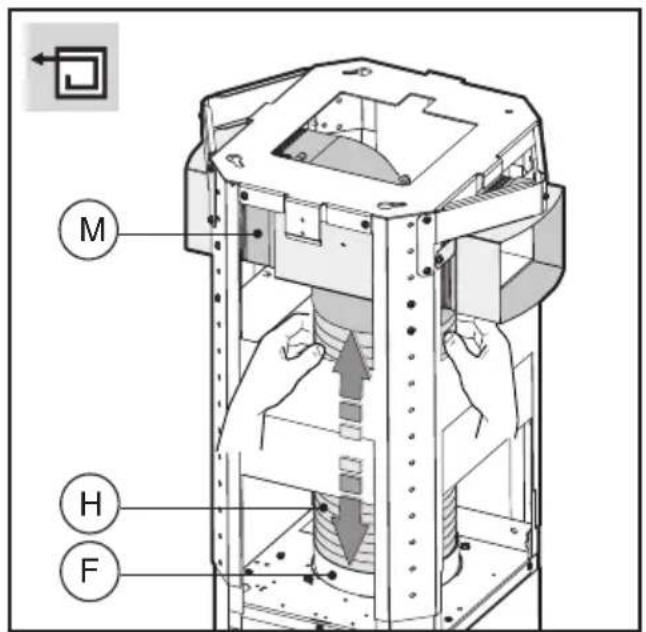

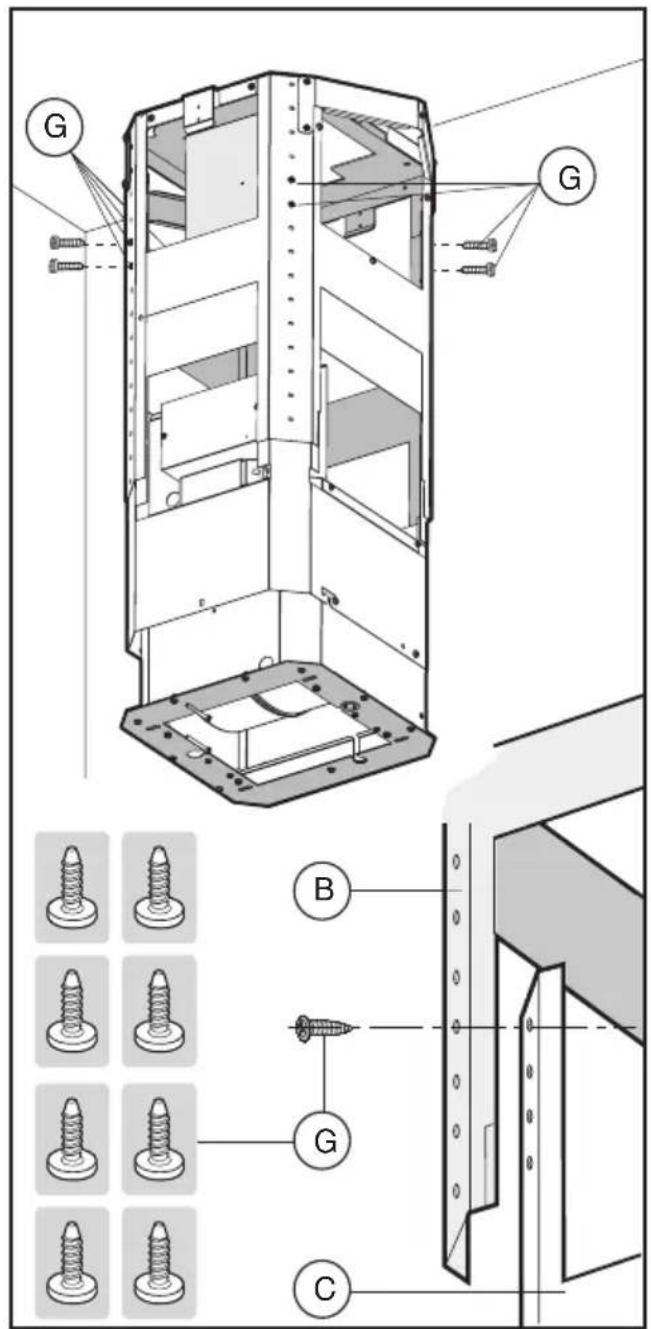

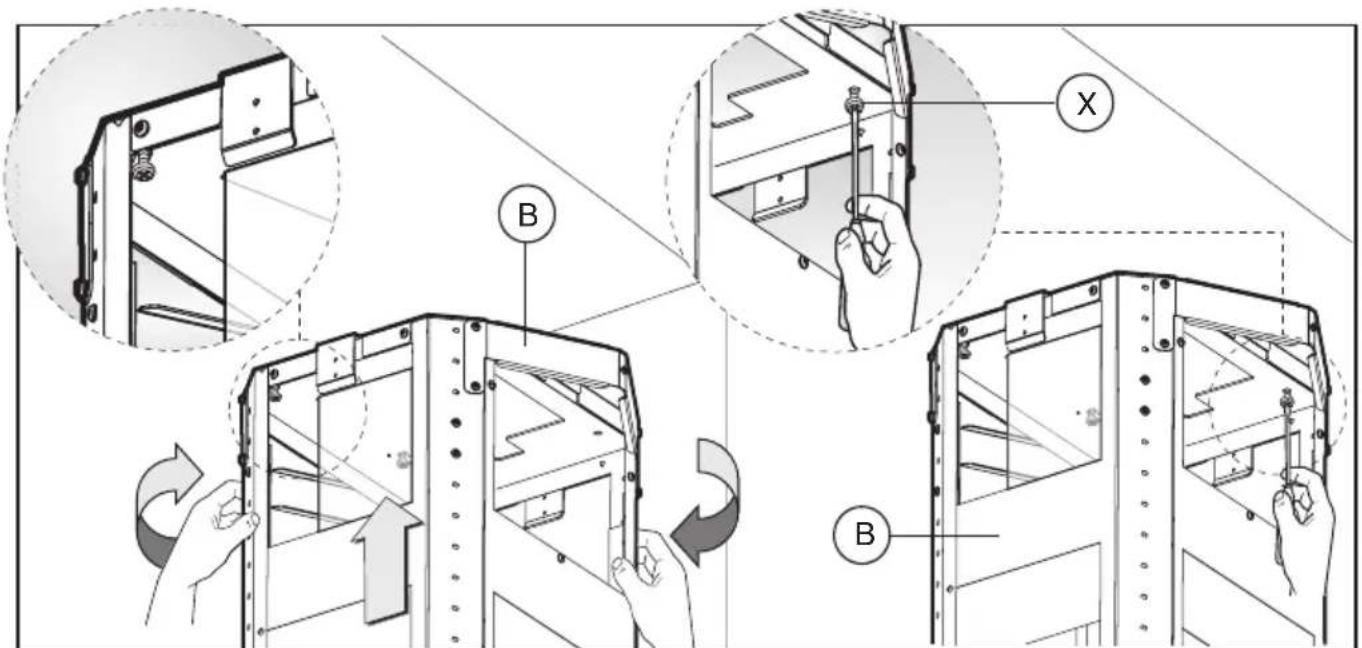

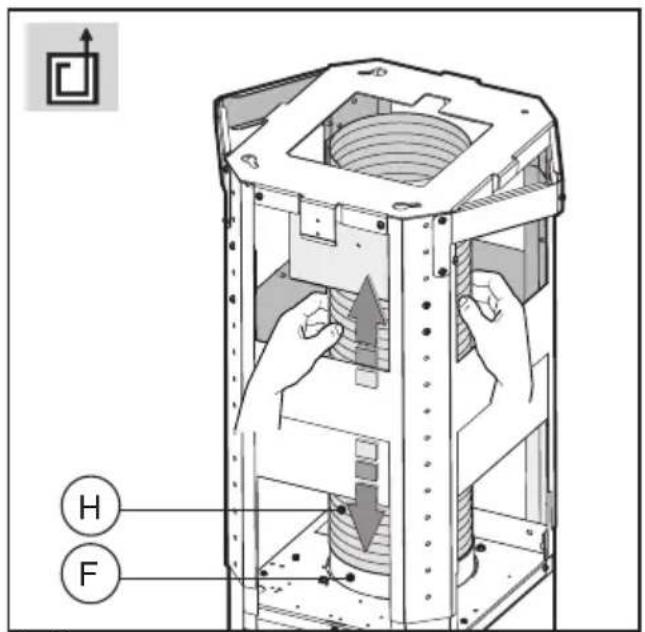

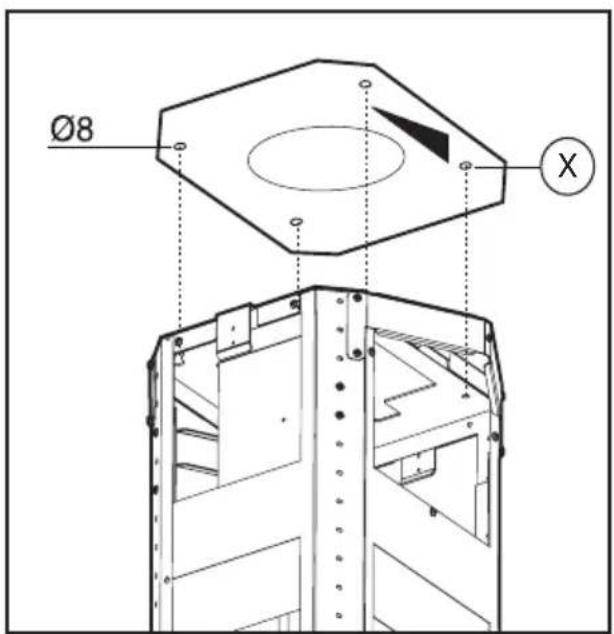

• Hood assembly Remove the structure from the packaging and remove ENGLISH GB- 20 - the 2 screws A to separate the upper part from the lower part (fig.3). - Position the drilling template on the ceiling, making sure that the arrow is on the right-hand side in relation to the appliance controls, as indicated in Figure 4. Make 4, Ø8 holes in the ceiling and drive in 3 screws without completely tightening them. Pay attention not to insert the screw into the hole marked with an X on the hole template (the screws and expansion plugs must be suitable for the type of wall). - Take the upper part of the structure B (fig.5) and insert the 3 slots onto the 3 screws that are not completely tightened. Rotate slightly to fit (fig.5) . Drive in the fourth screw X and tighten the remaining 3 to allow definitive blocking of the upper part of structure B. - Take the lower part of the telescopic structure C and insert it into the upper structure B (fig.6). Please note: To avoid scratching the upper duct, first adjust its height as desired, using the measurements given in (Fig. 6) as a reference, and then fix it in place using the 8 screws provided G (Fig. 7). - Extractor hood: connect the flexible hose H (not supplied) to the air exhaust hole made previously and fix the hose to the connector flange F (Fig. 8). - Filter hood: connect the flexible hose H (not supplied) to the deflector M (Fig. 9). - Fix the flexible hose H over the connector flange F (Fig. 9). - The active charcoal filters must be fitted to the extraction assembly located inside the cooker hood (Fig. 2c).

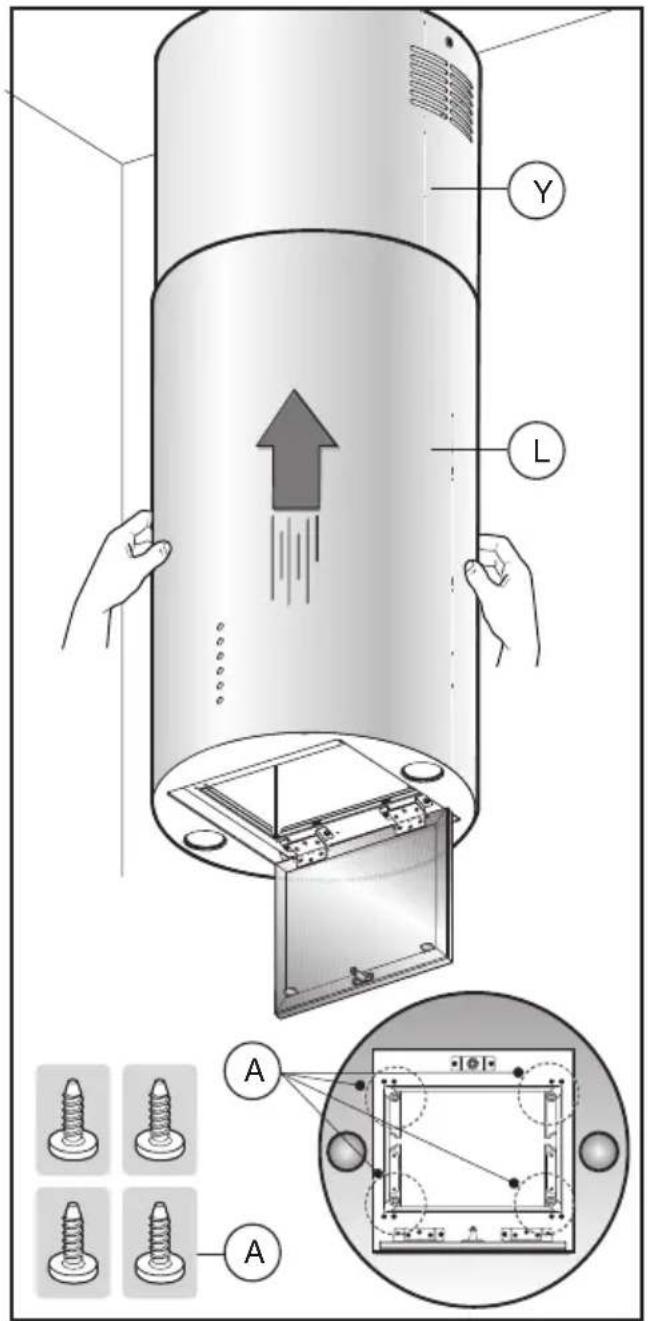

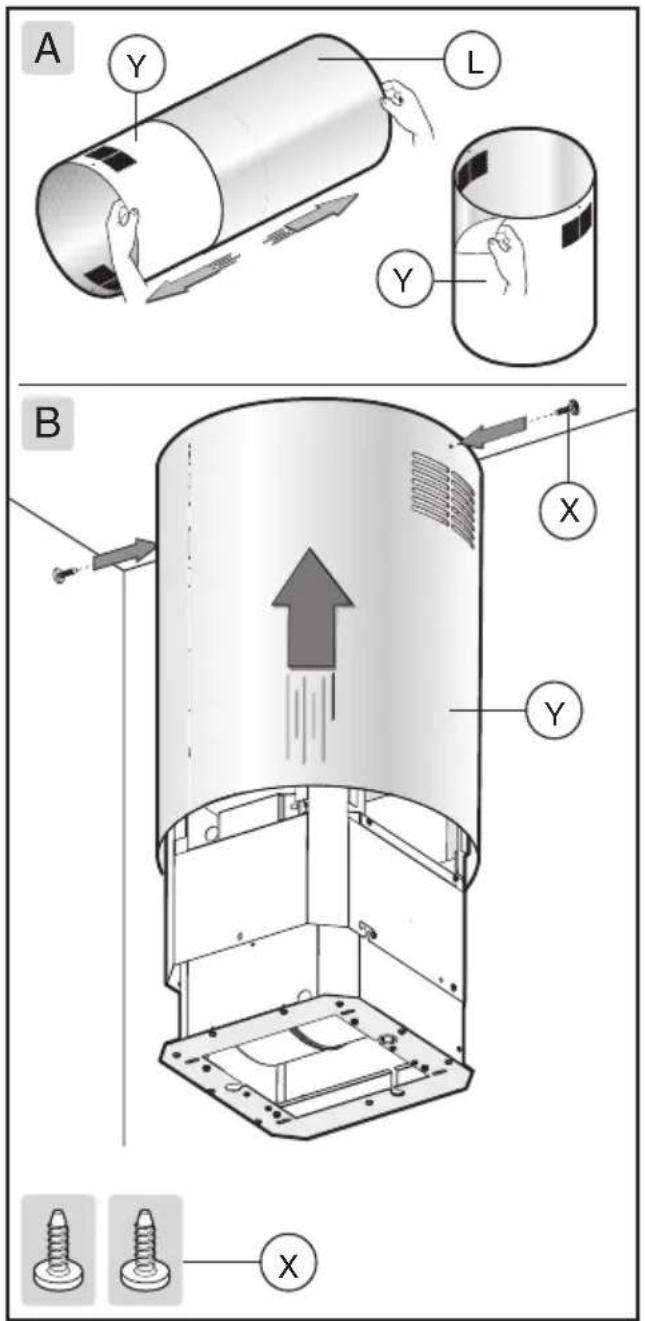

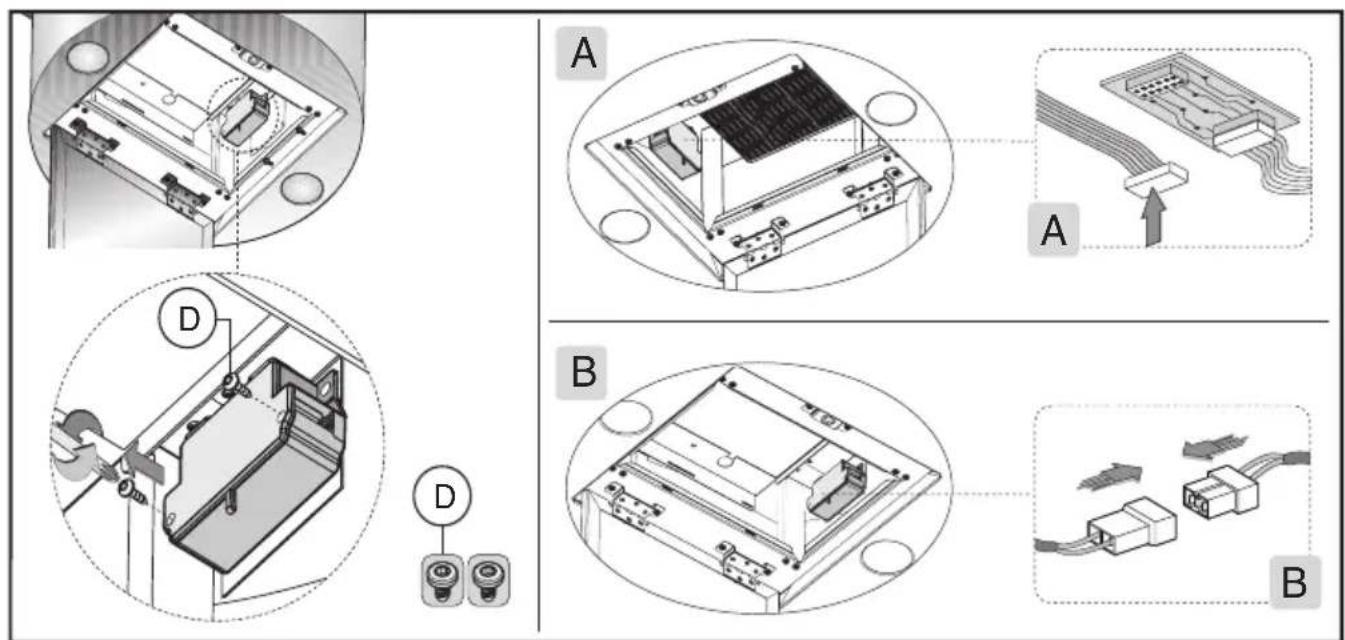

• Before proceeding with the installation process, open the panel by pressing on the point indicated in Fig. 2a; this will make the cooker hood easier to handle. Remove the aluminium panel by pulling the handle as indicated in Fig. 2b. If the product is supplied with active charcoal filters, remove them by pulling the lever outwards as indicated in Fig. 2c. Take the ducts out of the packaging (Fig. 10A) and sepa- rate the upper duct Y from the lower duct L. Remove the protective materials from the upper duct Y, as indicated in figure 10A. - Take the upper duct Y and fix it to the structure using the 2 screws X (Fig. 10B). Join the lower part of the cooker hood L to the upper duct Y until it clicks into place, then secure it in this position on the lower part of the cooker hood using the 4 screws A as indicated in figure 11. - Electrical connection Before performing this connection, loosen the 4 screws D on the two boxes and open the cover panels (Fig. 12). - Perform the necessary electrical connections between the cooker hood body and the motor assembly (Fig. 12 A and B).

• We recommend that the cooker hood is switched on before any food is cooked. We also recommend that the appliance is left running for 15 minutes after the food is cooked, in order to thoroughly eliminate all contaminated air. The effective performance of the cooker hood depends on constant maintenance; the anti-grease filter and the active carbon filter both require special attention.

• The anti-grease filter is used to trap any grease particles suspended in the air, therefore is subject to saturation (the time it takes for the filter to become saturated depends on the way in which the appliance is used). The acrylic filter, which is found resting on the grille, should be replaced when the text, visible through the grille, changes colour and the ink spreads; the new filter should be fitted in such a way that the text can be seen through the grille from outside the cooker hood. If the filters do not have any text on them, or if metal filters or aluminium panel filters are used, they should be washed every 2 months in order to prevent the risk of fire. To wash the filters, proceed as follows: - Remove the filter from the grille and wash it using a solution of water and neutral liquid detergent, leaving the dirt to soften. - Rinse thoroughly with warm water and leave to dry. The metal filters and/or aluminium panel are also dishwasher safe. If the filters are made using aluminium, or if an aluminium panel is used, after a few washes the colour may change. This does not mean they have to be replaced. If the replacement and washing instructions are not followed, the anti-grease filters may present a fire hazard.

• The active carbon filters are used to purify the air which is released back into the room. The filters are not washable or re-usable and must be replaced at least once every four months. The active carbon filter saturation level depends on the frequency with which the appliance is used, the type of cooking performed and the regularity with which the anti-grease filters are cleaned.

• Remove build-up from the fan and other surfaces of the cooker hood regularly using a cloth moistened with denatured alcohol or non-abrasive neutral liquid detergent.

• The light on the cooker hood is designed for use during cooking and not for general room illumination. Extended use of the light reduces the average duration of the bulb.

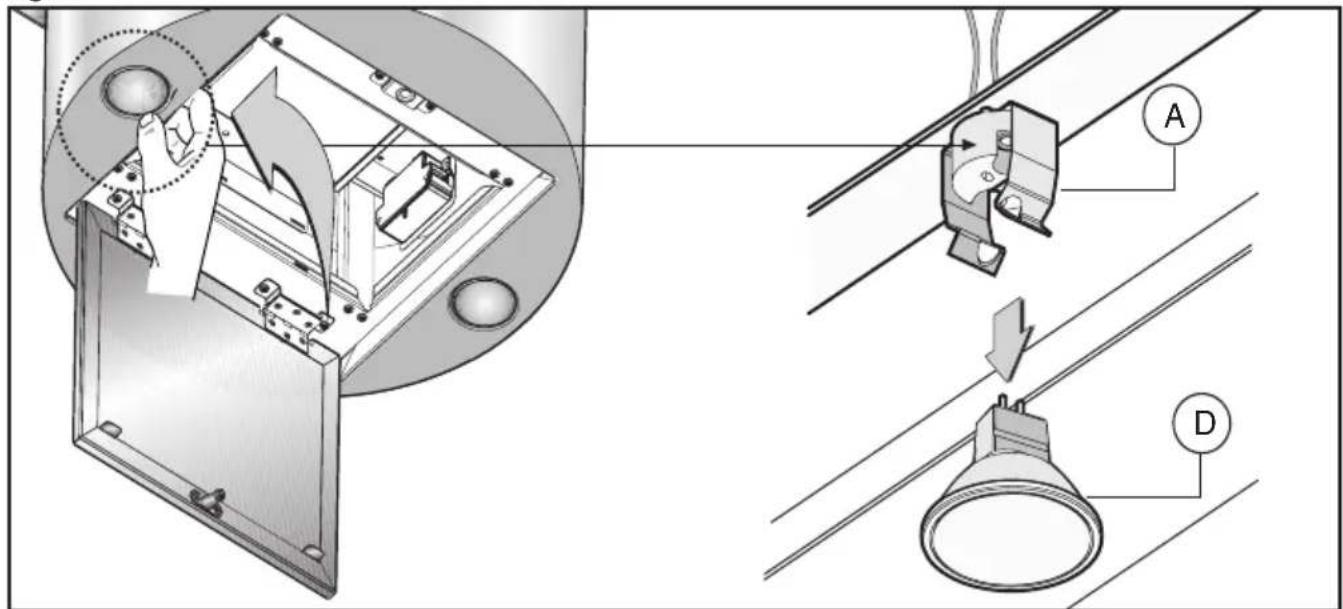

• Replacing halogen light bulbs (Fig. 13). To replace the halogen lamps B, from the inside of the cooker hood press downwards with two fingers as shown in Fig. 15. Replace the bulbs with new ones of the same type.

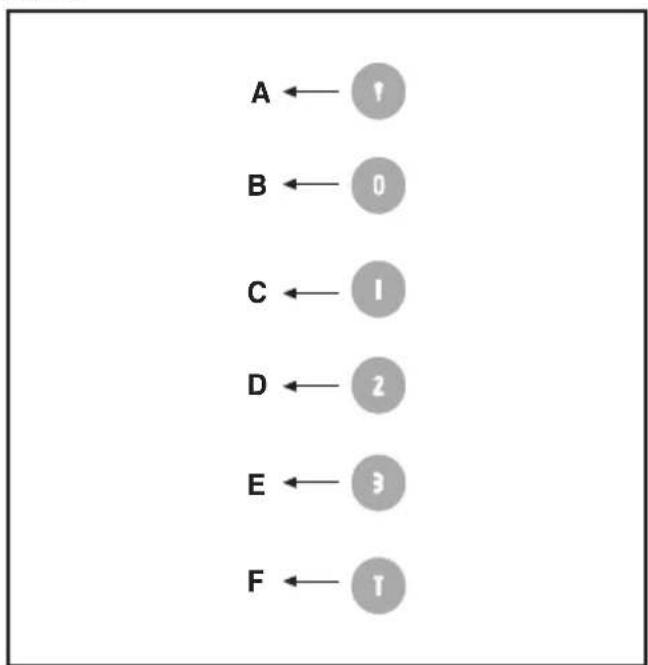

• COMMANDS: (Fig.14) LUMINOUS the key symbols are explained below: A = LIGHT B = OFF

• If your appliance does not have the INTENSIVE speed function, press key E for two seconds and it will be activated for 10 minutes after which it will return to the previously set speed. When the function is active the LED flashes. To interrupt it before the 10 minutes have expired press key E again.

• By pressing key F for two seconds (with the hood- 21 - switched off) the “clean air” function is activated. This function switches the appliance on for ten minutes every hour at the first speed. As soon as this function is acti- vated the motor starts up at the first speed for ten minutes, During this time key F and key C must flash at the same time. After ten minutes the motor switches off and the LED of key F remains switched on with a fixed light until the motor starts up again at the first speed after fifty min- utes and keys F and C start to flash again for ten min- utes and so on. By pressing any key for the exclusion of the hood light the hood will return immediately to its normal functioning (e.g. if key D is pressed the “clean air” function is deac- tivated and the motor moves to the 2nd speed straight away. By pressing key B the function is deactivated). (*) The “automatic stop timer” delays stopping of the hood, which will continue functioning for 15 minutes at the operating speed set at the time this function is activated.

• Active carbon/grease filter saturation: - When button A flashes at a frequency of 2 seconds, the grease filters must be cleaned. - When button A flashes at a frequency of 0.5 seconds, the carbon filters must be replaced. After the clean filter has been replaced, the electronic memory must be reset by pressing button A for approximately 5 seconds, until the light on the button stops flashing.
