Brand	Philips
Model	Daily Collection HD6105
Type	Electric deep fryer
Tank capacity	Approximately 1.5 L (according to MIN and MAX marks)
Power supply	220-240 V, 50-60 Hz
Temperature range	160°C to 190°C adjustable (thermostat)
Digital timer	Yes, adjustable up to 99 minutes, with audible signal
PreClean function	Yes, for easier cleaning of the tank
Temperature indicator	Indicator light (turns off when required temperature is reached)
Basket	With fold-down handle for automatic immersion
Lid	Removable, with unlock button and viewing window
Basket cleaning	Dishwasher safe
Lid cleaning	Dishwasher safe
Cord storage	Integrated compartment under the appliance
Safety	Overheat protection, lid lock
Timer battery	Button cell type, replaceable (remove with screwdriver)
Warranty	2 years (according to manufacturer's conditions)
After-sales service	Philips Authorized Service Centers

Frequently Asked Questions - Daily Collection HD6105 PHILIPS

Why are my fries not golden or crispy?

The selected temperature is probably too low or the cooking time insufficient. Check the instructions on the package or the cooking chart. Also make sure not to overfill the basket (do not exceed the indicated maximum quantity).

A strong unpleasant smell is coming from the fryer, what should I do?

This may be due to a saturated anti-grease filter or used oil. Clean the lid and its filter with warm soapy water or in the dishwasher. Change the oil if it is dirty. Use a good quality oil and do not mix different types.

Steam is escaping from somewhere other than the filter, is this normal?

No, this means the lid is not properly closed or the filter is saturated. Check the lid closure and clean the filter if necessary.

Oil overflows during cooking, how to avoid this?

Make sure the oil level does not exceed the MAX mark. Dry the food well before frying and do not fill the basket beyond its maximum capacity.

The oil foams heavily during frying, why?

The food is probably too moist. Dry it thoroughly before frying. Also check that the oil used is suitable for frying and that the tank has been well cleaned.

The deep fryer does not turn on, what should I do?

The overheat safety device may have been activated. Contact a Philips Authorized Service Center to have the internal fuse replaced.

How to use the digital timer?

Turn the timer knob to set the cooking time in minutes. The countdown starts automatically. At the end, an audible signal sounds. Press the button to stop it. To reset, hold down for 2 seconds.

How to clean the deep fryer with the PreClean function?

After draining the oil, fill the tank three-quarters full with cold water and a little dish soap. Plug in, turn on, and set the thermostat to PreClean. The water heats for 30 minutes. Turn off, drain, then clean normally.

When and how to change the oil in the deep fryer?

Change the oil every 10 to 12 uses, or sooner if it foams, smells rancid, or becomes dark. To replace it, let the oil cool, drain it via the drain device, then clean the tank before adding new oil.

How to get crispy homemade fries?

Use firm potatoes, cut into sticks, rinse in cold water and dry well. Cook in two stages: 4-6 min at 160°C, let cool, then 5-8 min at 175°C. Shake the fries in a dish after cooking.

USER MANUAL Daily Collection HD6105 PHILIPS

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

General description (Fig. 1)

A Frying basket
B Lid
C 'MIN' and 'MAX' indications
D Cord storage compartment
E Cord
F Integrated handles
G Separate digital timer
H On/off switch
Temperature control
PreClean function
K Temperature light
L Lid release button
M Inner bowl
N Pour-out facility
Oil container

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

• Never immerse the housing, which contains electrical components and the heating element, in water nor rinse it under the tap.

Warning

• Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
• Do not use the appliance if the plug, the mains cord or the appliance itself is damaged.
• If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep the mains cord out of the reach of children. Do not let the mains cord hang over the edge of the table or worktop on which the appliance stands.
• Only connect the appliance to an earthed wall socket.
• During frying, hot steam is released through the filter. Keep your hands and face at a safe distance from the steam. Also be careful of the hot steam when you open the lid.
• This appliance is not intended to be operated by means of an external timer or a separate remote control system.

Caution

• Always return the appliance to a service centre authorised by Philips for examination or repair. Do not attempt to repair the appliance yourself, otherwise the guarantee becomes invalid.
• Place the appliance on a horizontal, even and stable surface.

• Do not touch the viewing window, as it becomes hot during frying.

• This appliance is intended for household use only. If the appliance is used improperly or for professional or semi-professional purposes or if it is not used according to the instructions in the user manual, the guarantee becomes invalid and Philips refuses any liability for damage caused.

• Fry food golden-yellow instead of dark or brown and remove burnt remnants. Do not fry starchy foods, especially potato and cereal products, at a temperature above 175^ (to minimise the production of acrylamide).
• Prevent water and/or ice from coming into contact with oil or fat, as this causes heavy spattering or violent bubbling of the oil of fat. To achieve this, remove all excess ice from frozen ingredients before you fry them and dry ingredients thoroughly before you fry them. Do not overfill the basket. After cleaning, dry all parts thoroughly before you put oil or fat in the fryer.
• Do not fry Asian rice cakes (or similar types of food) in this appliance. This might cause heavy spattering or violent bubbling of the oil or fat.

• Make sure the fryer is always filled with oil or fat to a level between the 'MIN' and 'MAX' indications on the inside of the inner bowl to prevent either overflowing or overheating.

• Do not switch on the appliance before you have filled it with oil or fat, as this can damage the appliance.

Electromagnetic fields (EMF)

This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

Preparing for use

Clean the appliance before you use it for the first time (see chapter 'Cleaning').

Make sure that all parts are dry before you fill the fryer with oil or fat.

Press the lid release button to open the lid (Fig. 2).
3 Consult the oil/fat table to determine how much oil or fat you have to put in the fryer (Fig. 3).
4 Fill the fryer with oil, liquid frying fat or melted solid fat to a level between the 'MIN' and 'MAX' indications and close the lid (Fig. 4).

Do not switch on the appliance before you have filled it with oil or fat.

Oil and fat

Never mix different types of oil or fat and never add fresh oil or fat to used oil or fat.

• We advise you to use frying oil or liquid frying fat. Preferably use vegetable oil or fat that is rich in unsaturated fats (e.g. linoleic acid), such as soy oil, peanut oil, maize oil or sunflower oil.
• Because oil and fat lose their favourable properties rather quickly, you have to change the oil or fat regularly (after 10-12 times).
• Always change the oil or fat if it starts foaming when it is heated, if it has a strong smell or taste or if it turns dark and/or syrupy.

Solid fat

You can also use solid frying fat. In that case, extra precautions are necessary to prevent the fat from spattering and the heating element from overheating or becoming damaged.

If you want to use new blocks of fat, melt them slowly over a low heat in a normal pan.
Pour the melted fat carefully into the fryer.
Store the fryer with the resolidified fat still in it at room temperature.

ENGLISH10

4 If the fat gets very cold, it may start spattering when it melts. Punch some holes into the resolidified fat with a fork to prevent this (Fig. 5).

Be careful not to damage the inner bowl with the fork.

Using the appliance

1 Take the entire cord from the cord storage compartment and put the plug in the wall socket (Fig. 6).
2 Switch on the fryer (Fig. 7).

The temperature light goes on (Fig. 8).

3 Set the temperature control to the required temperature (see the package of the food to be fried or the food table at the end of this booklet).
4 Wait until the temperature light goes out (this takes 10 to 15 minutes).
5 Fold out the handle of the frying basket (Fig. 9).
6 Open the lid (Fig. 2).
7 Remove the basket from the fryer and put the food to be fried in the basket (Fig. 10).

Do not fry very large quantities at one time. Do not exceed the quantities mentioned in the food table at the end of this booklet ( 岛 indicates the recommended quantity).

Put the basket on the bracket, but do not lower it into the oil or fat yet (Fig. 11).
9 Close the lid.
10 Press the button on the basket handle and fold the handle against the fryer. The basket is automatically lowered into the oil or fat. (Fig. 12)

During frying, the temperature light comes on and goes out from time to time to indicate that the heating element is switched on and off to maintain the correct temperature.

Timer

Note: You can also use the timer for other purposes, e.g. as a regular cooking timer.

Setting the timer

1 Press the timer button to set the frying time in minutes. (Fig. 13)
A few seconds after you have set the frying time, the timer starts to count down.
While the timer is counting down, the remaining frying time flashes on the display. The last minute is displayed in seconds.
- When the preset time has elapsed you hear an audible signal. After 10 seconds the audible signal is repeated. Press the timer button to stop the audible signal.

Note: You can erase the timer setting by pressing the timer button for 2 seconds (at the moment the timer flashes) until '00' appears.

After frying

1 Fold out the handle of the basket (Fig. 9).
2 Open the lid (Fig. 2).

Beware of the hot steam.

3 Remove the basket from the fryer and shake off excess oil or fat.
Put the fried food in a bowl or colander lined with grease-absorbing paper, e.g. kitchen paper.

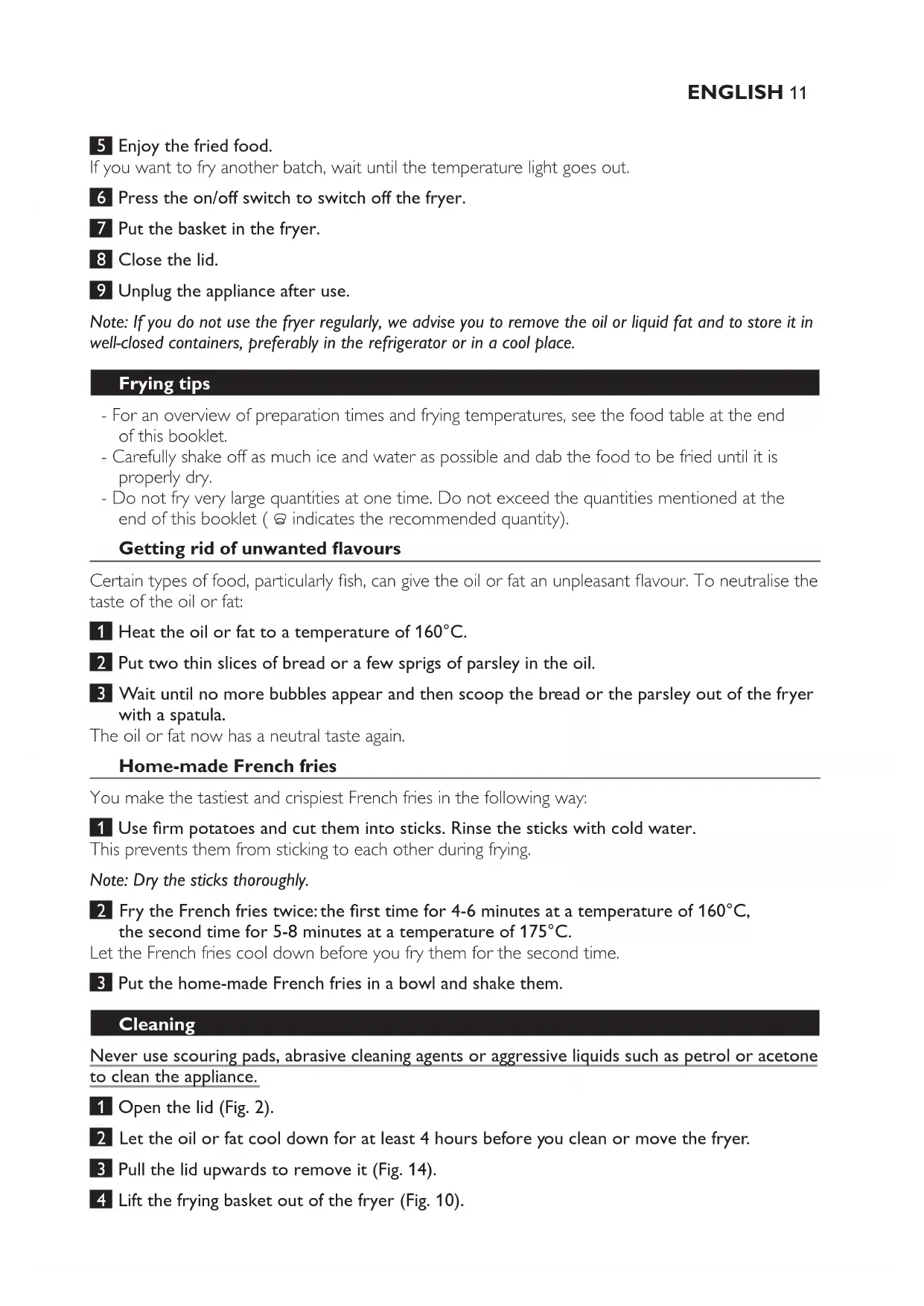

5 Enjoy the fried food.
If you want to fry another batch, wait until the temperature light goes out.
6 Press the on/off switch to switch off the fryer.
Put the basket in the fryer.
8 Close the lid.
9 Unplug the appliance after use.

Note: If you do not use the fryer regularly, we advise you to remove the oil or liquid fat and to store it in well-closed containers, preferably in the refrigerator or in a cool place.

Frying tips

• For an overview of preparation times and frying temperatures, see the food table at the end of this booklet.
• Carefully shake off as much ice and water as possible and dab the food to be fried until it is properly dry.
• Do not fry very large quantities at one time. Do not exceed the quantities mentioned at the end of this booklet ( indicates the recommended quantity).

Getting rid of unwanted flavours

Certain types of food, particularly fish, can give the oil or fat an unpleasant flavour. To neutralise the taste of the oil or fat:

Heat the oil or fat to a temperature of 160^
Put two thin slices of bread or a few sprigs of parsley in the oil.
3 Wait until no more bubbles appear and then scoop the bread or the parsley out of the fryer with a spatula.

The oil or fat now has a neutral taste again.

Home-made French fries

You make the tastiest and crispiest French fries in the following way:
1 Use firm potatoes and cut them into sticks. Rinse the sticks with cold water.

This prevents them from sticking to each other during frying.

Note: Dry the sticks thoroughly.
2 Fry the French fries twice: the first time for 4-6 minutes at a temperature of 160^ , the second time for 5-8 minutes at a temperature of 175^ .
Let the French fries cool down before you fry them for the second time.
3 Put the home-made French fries in a bowl and shake them.

Cleaning

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

1 Open the lid (Fig. 2).
2 Let the oil or fat cool down for at least 4 hours before you clean or move the fryer.
3 Pull the lid upwards to remove it (Fig. 14).
4 Lift the frying basket out of the fryer (Fig. 10).

ENGLISH12

Pour out the oil or fat (Fig. 15).

PreClean function

This appliance is equipped with a PreClean function, which allows you to soak the inner bowl with hot water and washing-up liquid to make cleaning easier.

Make sure you have removed the oil or fat from the inner bowl before you use this function.

1 Fill the inner bowl with cold water up to three quarters of its capacity and add some washing-up liquid. (Fig. 16)
Put the plug in the wall socket.
3 Switch on the appliance (Fig. 7).
4 Set the temperature control to the PreClean function. (Fig. 8)

The water is heated to a temperature just below boiling point.

5 After 30 minutes, switch off the appliance and unplug it.
Pour the water out of the inner bowl and clean the bowl as described below.

Cleaning the appliance

1 Clean the bowl, the lid and the frying basket with hot water and some washing-up liquid. Rinse them with fresh water and dry them thoroughly.
The lid and the frying basket can also be cleaned in the dishwasher.
2 Clean the housing of the fryer with a moist cloth (with some washing-up liquid) and/or kitchen paper.

You can clean the timer with a moist cloth.

Never immerse the fryer housing or the timer in water.

Make sure that all parts are dry before you fill the fryer with oil or fat.

Storage

1 Let the oil or fat cool down for at least 4 hours before you store the fryer.
2 Put all parts back into/onto the fryer and close the lid.
3 Push the cord into the cord storage compartment. (Fig. 6)
4 Lift the fryer by its handles and store it (Fig. 17).

Environment

• Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment (Fig. 18).
• Batteries contain substances that may pollute the environment. Do not throw away batteries with the normal household waste, but dispose of them at an official collection point for batteries. Always remove the timer battery before you discard and hand in the timer at an official collection point.

Removing the timer battery

Use a small flat-blade screwdriver to remove the front of the timer (Fig. 19).
2 Remove the battery.

Guarantee & service

If you need service or information or if you have a problem, please visit the Philips website at www. philips.com or contact the Philips Consumer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Centre in your country, go to your local Philips dealer.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, contact the Consumer Care Centre in your country.

Problem Possible cause Solution

The fried food does not have a golden brown colour and/or is not crispy.	The selected temperature is too low and/or the food has not been fried long enough.	Check on the package of the food or in the food table at the end of this booklet whether the temperature and/or preparation time you have selected is/are correct. Set the temperature control to the correct temperature.
	There is too much food in the basket.	Never fry more food at one time than the quantity mentioned in the food table at the end of this booklet.
The fryer does not work.	The thermal safety cut-out has been activated.	Go to your Philips dealer or a service centre authorised by Philips to have the fuse replaced.
The fryer gives off a strong unpleasant smell.	The permanent anti-grease filter is saturated.	Remove the lid and clean the lid and filter in hot water with some washing-up liquid or in the dishwasher.
	The oil or fat is no longer fresh.	Change the oil or fat. Regularly sieve the oil or fat to keep it fresh longer.
	The type of oil or fat used is not suitable for deep-frying food.	Use frying oil or liquid frying fat of good quality. Never mix different types of oil or fat.
Steam escapes from other places than the filter.	The lid is not closed properly.	Close the lid properly.
	The permanent anti-grease filter is saturated.	Remove the lid and clean the lid and filter in hot water with some washing-up liquid or in the dishwasher.
Oil or fat spills over the edge of the fryer during frying.	There is too much oil or fat in the fryer.	Make sure the oil or fat in the fryer does not exceed the 'MAX' indication.
	The food contains too much moisture.	Dry the food thoroughly before you start frying it and fry the food according to the instructions in this user manual.

Problem Possible cause Solution

Food table (Fig. 20)

	There is too much food in the frying basket.	Do not fry more food at one time than the quantity mentioned in the food table at the end of this booklet.
The oil or fat foams strongly during frying.	The food contains too much moisture.	Dry the food thoroughly before you fry it.
	The type of oil or fat you use is unsuitable for deep-frying food.	Use frying oil or liquid frying fat of good quality. Never mix different types of oil or fat.
	You have not cleaned the inner bowl properly.	Clean the inner bowl (see chapter ‘Cleaning').

Introduktion

JiIy Ie dks hks jabi k 4s yjg jiaabe gela ly jz jz jz jz jz

#

1

1

（）

(1VJ) 15

j

（A）S 10

4j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

1jaiy j 0

1

jai jil j5 j

(19 J) ais oaiin yli jyj g k j

1

#

ww.philips.com Philips

Philips 000000000000000000000000000000000000000

44

jiaell a jaaaall aalal

ailllll lalb

ailll plll pssu wubbll gloi iaii gaii gaii gaii gaii gaii gaii gaii

i 1

juaa jauai

gA 10 12 13 14 15 16 17 18 19 20

2g 2003

ailll aell lll lll lll lll

gagagag jjiall g yaaalall wolabll

W

aalaa aaiy jay yjaiy

J 1

3y

A

1

J 1

S ACD = S COD + S_ CDA

J 10000000000000000000000000000000000000000000000000000000000000000000000000000000

(“الإستعمال”) ملاويات بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيaga بعبيaga بعبيaga بعبيaga بعبيaga بعبيaga (у лکاء) ملاويات بعبيا بعبيا بعبيا بعبيا بعبيaga بعبيaga بعبيaga بعبيaga (у лaska) ملاويات بعبيا بعبيaga بعبيaga بعبيaga (у лزب) ملاويات بعبيaga بعبيaga (у лورمي) ملاويات بعبيaga (у پورمي) ملاويات بعبيaga (у پورمي) ملاويات بعبيaga (у پورمي) ملاويات بعبيaga (у پورمي) ملا inflammations (у پورمي) ملا inflammations (у پورمي) ملا inflammations (у پورمي) ملا inflammations (у پورمي) ملا inflammations (у پورمي) ملا inflammations (у پورمي) ملا inflammations (у پورمي) ملا inflammations (у پورمي) ملا inflammations (у обعبيعة) ملا inflammations (у обعبيعة) ملا inflammations (у обعبيعة) ملا inflammations (у обعبيعة) ملا inflammations (у обعبيعة) ملا inflammations (у обعبيعة) ملا inflammations (у обعبيعة) ملا inflammations (у обعبيعة) ملا inflammations (у обعبيعة) ملاflammation (у обعبيعة) ملاflammation (у обعبيعة) ملاflammation (у обعبيعة) ملاflammation (у обعبيعة) ملاflammation (у обعبيعة) ملاflammation (у обعبيعة) ملاflammation (у обعبيعة) ملاflammation (у обعبيعة) ملاflammation (у(obعبيعة) ملا inflammations (у obengعع) ملا inflammations (у obengعع) ملا inflammations (у obengعع) ملا inflammations (у obengعع) ملا inflammations (у obengعع) ملا inflammations (у obengعع) ملا inflammations (у obengعع) ملا inflammations (у obengعع) ملا inflammations (у obengعع) ملاflammation (у obengعع) ملا inflammations (у obengعع) ملاflammation (у obengعع) ملا inflammations (у obengعع) ملاflammation (у obengعع) ملا inflammations (у obengعع) ملاflammation (у obengعع) ملا inflammations (у obengعع) ملاflammation (уObengعع) ملا inflammations (уObengعع) ملاflammation (уObengعع) ملاflammation (уObengعع) ملاflammation (уObengعع) ملاflammation (уObengعع) ملاflammation (уObengعع) ملاflammation (уObengعع) ملاflammation (уObengعع) ملاflammation (уObengعع) ملاflammation (уOBengg) ملاflammation (уObengg) ملاflammation (уObengg) ملاflammation (уObengg) ملاflammation (уObengg) ملاflammation (уObengg) ملاflammation (уObengg) ملاflammation (уObengg) ملاflammation (уObengg) ملاflammation (уObengg) ملاflammation (уObegg) ملاflammation (уObegg) ملاflammation (уObegg) ملاflammation (уObegg) ملاflammation (уObegg) ملاflammation (уObegg) ملاflammation (уObegg) ملاflammation (уObegg) ملاflammation (уObegg) ملاflammation (уObegb) ملاflammation (уObegb) ملاflammation (уObegb) ملاflammation (уObegb) ملاflammation (уObegb) ملاflammation (уObegb) ملاflammation (уObegb) ملاflammation (уObegb) ملاflammation (уObegb) ملاflammation (уObegb）mلاflammation (уObegb) mلاflammation (уObegb) mلاflammation (уObegb) mلاflammation (уObegb) mلاflammation (уObegb) mلاflammation (уObegb) mلاflammation (уObegb) mلاflammation (уObegb) mلاflammation (уObegb) mلاflammation (уObegb) mLeod (уObegb) mLeod (уObegb) mLeod (уObegb) mLeod (уObegb) mLeod (уObegb) mLeod (уObegb) mLeod (уObegb) mLeod (уObegb) mLeod (уObegb) mLeod (уObegb) mLeod (уObegb) mLeod
