HCS 5577 - Hair Straightener AEG - Free user manual and instructions

USER MANUAL HCS 5577 AEG

GB Curling iron/Curling tongs

Overview of the Components

D-47906 Kempen/Germany

6 Deutsch

Entsorgung

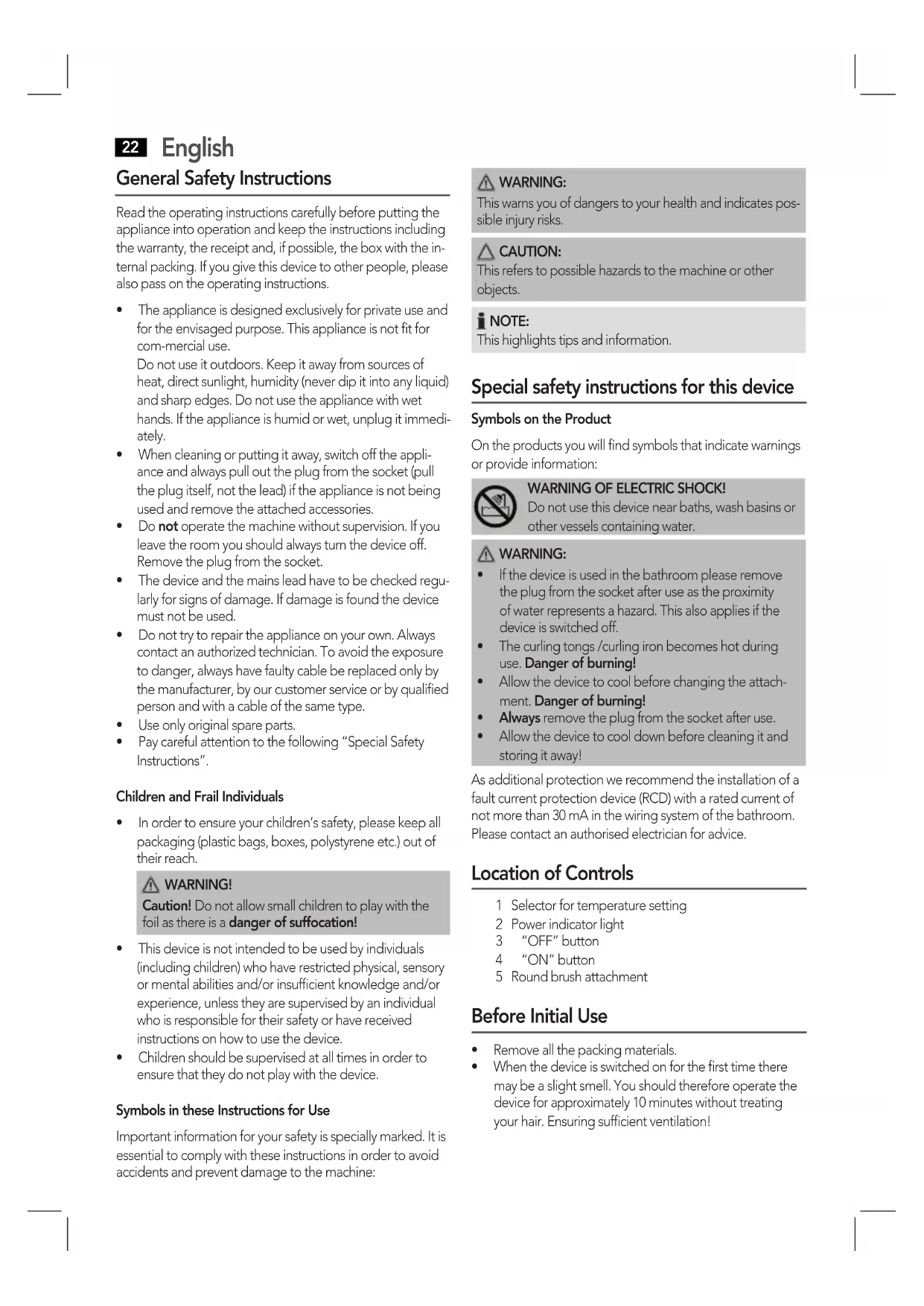

22 English General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
- When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
- Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
- Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.
Use only original spare parts.
- Pay careful attention to the following "Special Safety Instructions".

Children and Frail Individuals

• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• This device is not intended to be used by individuals (including children) who have restricted physical, sensory or mental abilities and/or insufficient knowledge and/or experience, unless they are supervised by an individual who is responsible for their safety or have received instructions on how to use the device.
  Children should be supervised at all times in order to ensure that they do not play with the device.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE:

This highlights tips and information.

Special safety instructions for this device

Symbols on the Product

On the products you will find symbols that indicate warnings or provide information:

WARNING OF ELECTRIC SHOCK!

Do not use this device near baths, wash basins or other vessels containing water.

WARNING:

If the device is used in the bathroom please remove the plug from the socket after use as the proximity of water represents a hazard. This also applies if the device is switched off.
The curling tongs/curling iron becomes hot during use. Danger of burning!
- Allow the device to cool before changing the attachment. Danger of burning!
Always remove the plug from the socket after use.
- Allow the device to cool down before cleaning it and storing it away!

As additional protection we recommend the installation of a fault current protection device (RCD) with a rated current of not more than 30mA in the wiring system of the bathroom. Please contact an authorised electrician for advice.

Location of Controls

1 Selector for temperature setting
2 Power indicator light
3 "OFF" button
4 "ON" button
5 Round brush attachment

Before Initial Use

• Remove all the packing materials.
• When the device is switched on for the first time there may be a slight smell. You should therefore operate the device for approximately 10 minutes without treating your hair. Ensuring sufficient ventilation!

Commissioning

Fully unwind the mains cable.
- When required, slide the round brush attachment (5) over the closed curling tongs. Ensure that the attachment clicks into place. To detach the attachment, please push the release button up.
- Insert the plug in a duly installed 230V 50Hz socket.
- Press the "ON" button (4) to switch the device on.

i NOTE:

The curling tongs now heat up. The power indicator (2) flashes.
- When the selected temperature is reached, the power indicator light (2) is continuously lit.
- Use the selector (1) to set the temperature. Turn clockwise to increase the temperature. Turn anti-clockwise to reduce the temperature.

General Use

Curling tongs

Only use the curling tongs on dry hair.
Take a strand of hair and pull it carefully downwards until it is taut.
- Clamp the curl tongs to the end of the strand and turn the curl upwards.
- Release the curling tongs again after approximately 5 seconds and continue with the next strand of hair.

Curling iron

Only use the curling iron on dry or towel-dried hair.
Take a strand of hair and wind it around the round brush.
After around 10 seconds, carefully unwind the wound strand and continue with the next strand.

Switch-off

• Press the "OFF" button (3) to switch the device off.
• Disconnect from the mains.
• Leave the device to cool before putting it away! To do so, place the device on the wire bracket or hang it on the loop.

Safety shut-off

This device is equipped with a safety shut-off. If you forget to switch off the device after use, it will automatically switch off after around 60 minutes.

Cleaning and care

WARNING:

Before cleaning remove the mains lead from the socket.
- Do not immerse the device in water! Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.

• Do not use any acidic or abrasive detergents.

• Clean the casing with a soft, dry cloth – without any additional cleaning agents.

• To detach the round brush attachment (5), please push the release button up. You can clean the attachment with a suitable accessory (comb or brush). If required you can use a standard dishwashing liquid.
  Clean the curling tongs with a slightly damp cloth.
  After cleaning, always dry the attachment and/or the device well.

Technical Data

Model: HCS 5577
Power supply: 220-240 V~, 50 Hz
Power consumption: 52 W
Protection class:
Net weight: 0.4kg

Subject to technical changes without prior notice!

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

PIONEPEJXEHN PNO EJEKTPNUHNYDAP!

3abopohctbca BnKOpNCTOByBaTn cei npuaad no6blny BiD BaHH, paKOBuH Ta iHux EMHOCTe, LIO MICTATb BDOy.

TONEPEJXEHHA

RkUo npnlaBn 3actocobyete y BaHHi KIMHaTI,TO 3aBXKn BnTAYte BNky i3 po3ETK NiCnA 3akHcEH Hnpa, TOMy 6bn3bKiCTb BOINpoBnB npnaI He6e3neHm. Lc cToCyTeBCra TAKOX CNTyaui, KOIN npnaI BnKJIIOueHm.
Пд уас рботи плйка духе harpiBaetbca. Ichye He-6e3neka onikib!
- Ipeep BCTaHOBIIeHHMaH HacaIKn IpiJIAm MaE BHXOHOHTN. He6e3neka onikib!
IicJra 3aKiHHeHH npaui 3aBXn BnTaryTe BuNKy 3 pO3eTKn.
JaBaIte npnlaO oxoHOTn nepeT TUM, kOuNcUyBaTn Ioro i KnaCTn Ha Micne dna 36epiraHHa!

BякotiДоадTKOBoiМирзaxNCTy BiДуdApEeKTPocTpymOMpeKOMeHdyETbC O6IaHnTNeEeKTPuHny npOboKy BaHHOI KIMHaTI pIcTpoE MдЯ TOKOBOrO 3axNCTy (RCD),Upearye Na BITIK CTpyM BiIbH HIX 30mA.3UIM NITaHHAM 3BepHITbC,БydI naCKa,do eNeKTPnky,UO MaE BiINOBiHm Do3Bil.

32 YkpaIHcbka

Po3TaUyBaHHOprAHIBKepyBaHH

1 Nepemikau HanaHTyBaHHr TemnepaTpy
2 IIndkaTOp XINBHeHH
3 Khoŋka "OFF"
4 Khonka"ON"
5 Kpyrla uJITka-HacdaKa

Ipeed nepuMM 3acTocyBaHHaM

Itope6nemar moHocb: 52BaTT

Klacc 3aunTbI:

Bec HeTTo: 0,41 Kr

Mbl octabnem 3a co6o npabo Ha TexHueckne n3MeHeHHI!

3To n3deneHne npoJIO BCE Heo6xoDmMbIe I aKTuaBHbIe npOBepKn, npEiNcAHHbIe dIpeKtBOI CE, K npM. Ha

3JIeKTPo-MaHHTHYIO COBMeCTUMOCTb N COOTBeTCTBME Tpe60BaHNM K Hn3KOBOJbTHOH TEXHKe, OHO 6blIO TaKxe CKOHCTpyINPOBaHO IN NOCTpoEHO C yHeTOM NocJeHNx Tpe60BaHNI NO TEXHKe 6e3ONaCHOCTN.

GARANTIE-KARTE
