USER MANUAL Smart Air Purifier 4 Lite Xiaomi

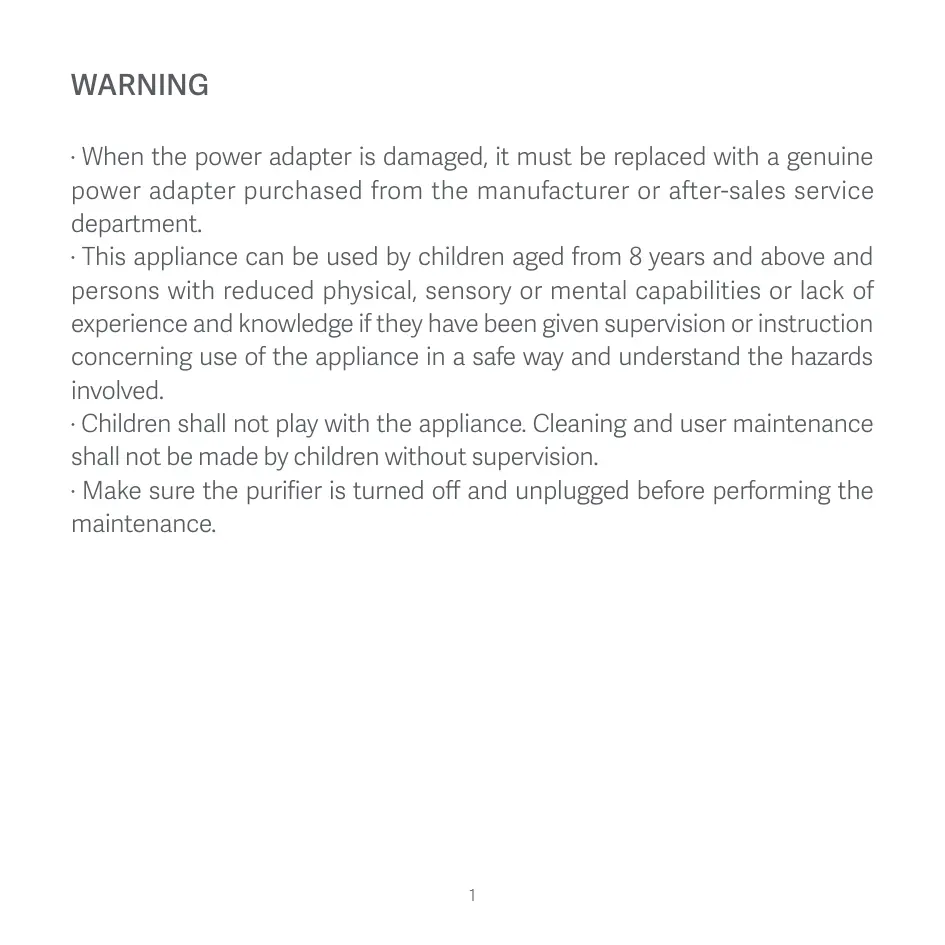

WARNING - When the power adapter is damaged, it must be replaced with a genuine power adapter purchased from the manufacturer or after-sales service department. - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. - Make sure the purifier is turned off and unplugged before performing the maintenance.

Precautions Turn of and unglug the pu er before moungit The purifier cannot turn on when the fan gril and the fiter compartment cover are not installed proper. Maintain a distance of at least 20 cm between the air inlets and walls or other objects. The purifier must be placed on fm and fa floor “Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains, Frequently remove dust, hair, and other particles from the auter mesh screen ofthe filter, so as to reduce the chance of bacteria growth. Remove dust, hair, and particles from the purifier air inlets to prevent a reduction of air intake. Cover the air out to prevent dus, hair and other articles from faling in when the purifier et unused or a long time To avaidfire electric shocks, or other damage, use the pouer adapter and electrical outlet as instructed below: Do not excessively pull twist or bend the power adapter, as this may expose or break the cord's core. The power adapter must be plugged into a suitable electrical outlet. Use the power adapter that is provided with the purifier, do not use any third party power adapters. Always unplug the purifier before carrying out maintenance to or moving the air purifier. immediately stop using the purifier when it makes unusual sounds, gives off bad odors, overheats, or its fan rotates irregulariy. Do not stick your fingers or foreign objects into the protective parts, movable parts, air lets, or air outlets. Keep objects such as hairs or fabrics away from the purifier to avoid blocking the air inlets or air outlets. Do not sit an, lean on or tlt the purifier. When using in conjunction with gas-fueled appliances (such as gas stoves, gas heaters), please ventilate sufficiently to avoid carbon monoxide poisoning. Do not pour liquids, nor throw powders or other small substances into the purifier air outlet. Make sure no inflammable objects get into the pur. Do not use the purifier inthe following circumstances, as they may result in electric shock fre, or ather damage: Near open flames, such as candles, incense burners, stoves, fireplaces, cigarettes, frecrackers, lighters, multipurpose torches, candle lighters, or fire pans. Near appliances that generate high temperatures, such as electric heaters, fan heaters, electric foot warmers, electric stoves, or electric irons. In unstable locations where the purifier can easily fall over. In environments that are extremely hot, humid, or damp, such as bathrooms.

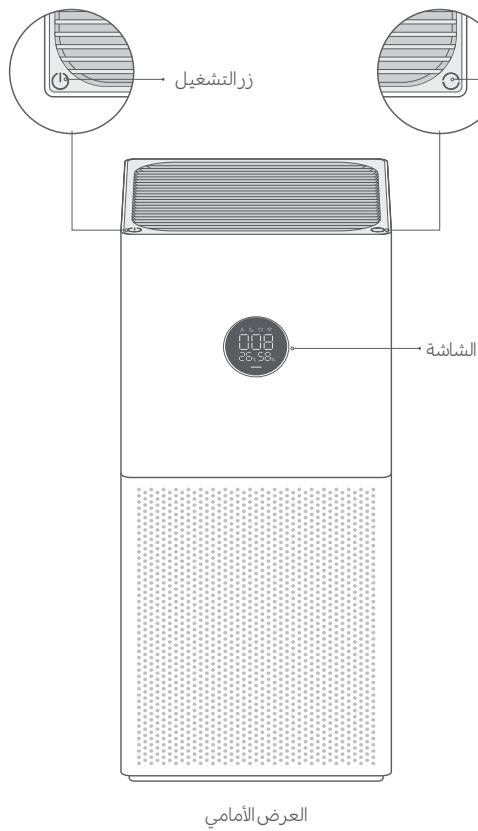

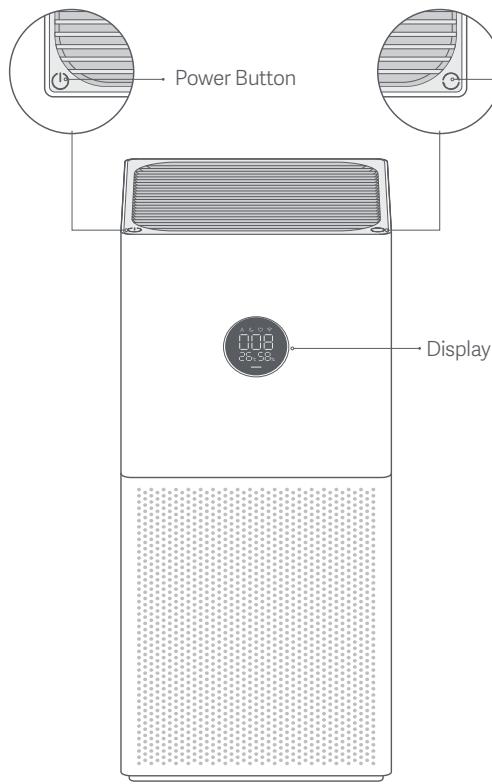

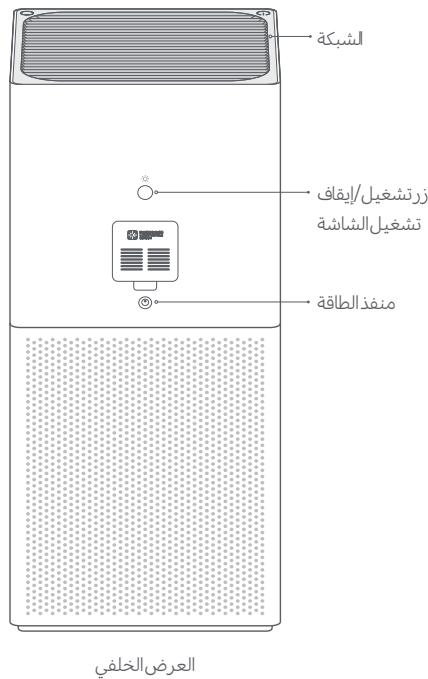

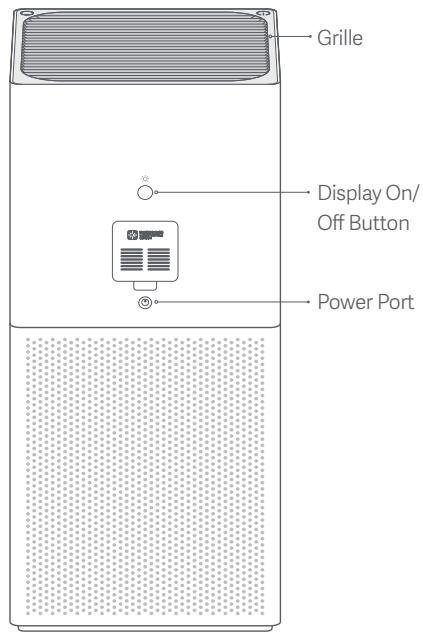

Product Overview Read this manual carefully before use, and retain it for future reference. Note: Ilustrations ofthe product, accessories, and userinterface in this user manual are for reference purposes only The actual product and functions may vary due to product enhancements. Power Button @ Display Mode Switch Button Front View Rear View —— Display On/ Off Button T— Power Port

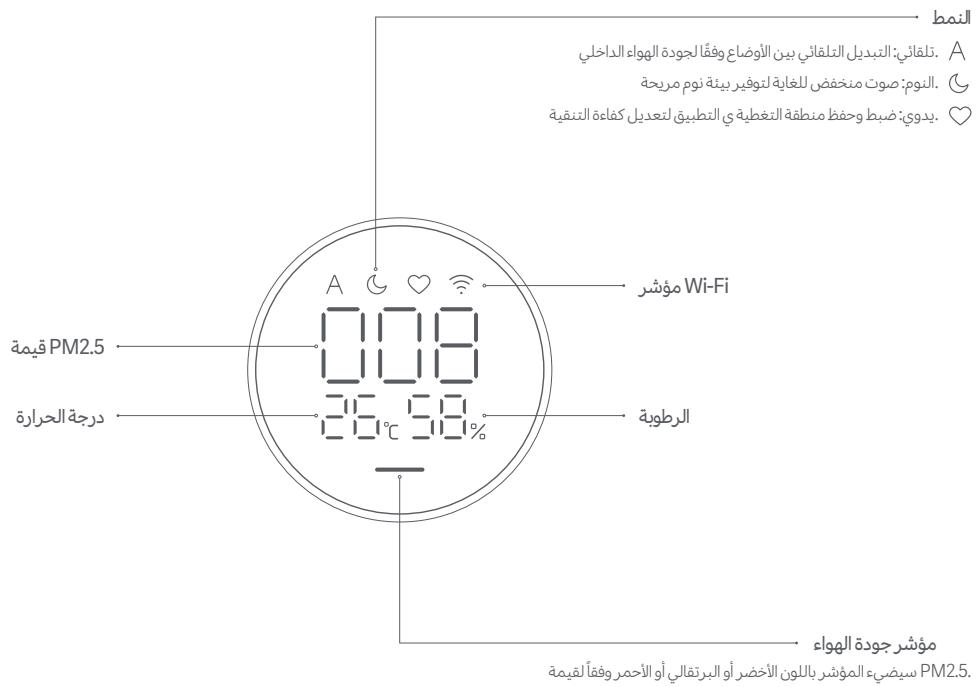

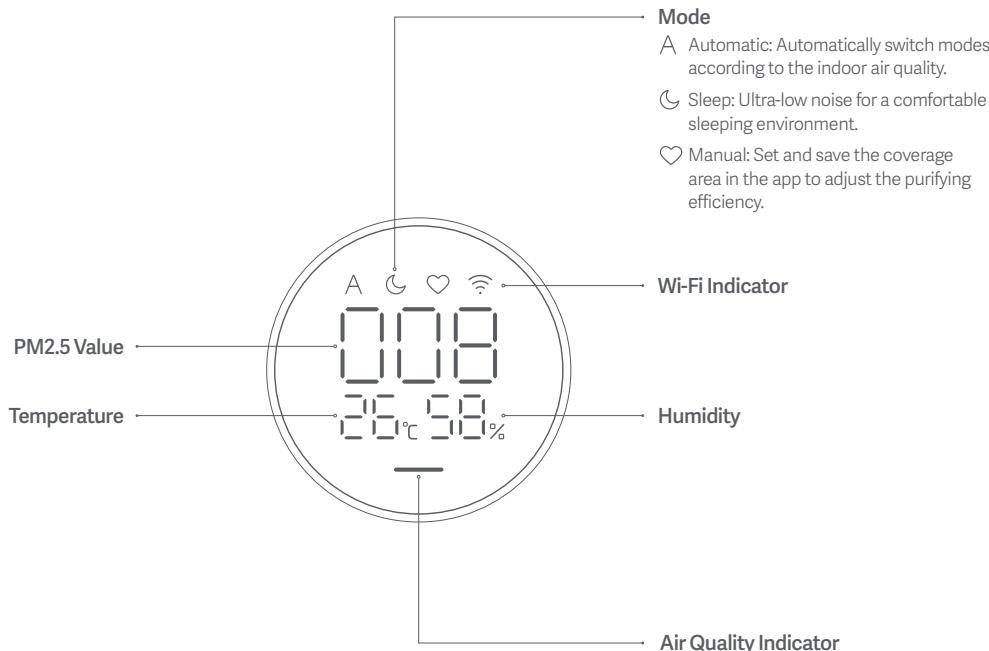

Display Instructions PM2.5 Value Temperature Mode À Automatic: Automatically switch modes accordingto the indoor air quality & Sleep: Uitra-ow noise for a comfartable sleeping environment. © Manual Set and save the coverage area inthe app to adjust the purifying efficiency. Wi-Fiindicator Humidity Air Quality Indicator The indicator will display green, orange or red according tothe PM25 value. Green 1-20 pg/m° Yellow 21-35 pg/mS Orange 36-55 g/m* Red 255 gt

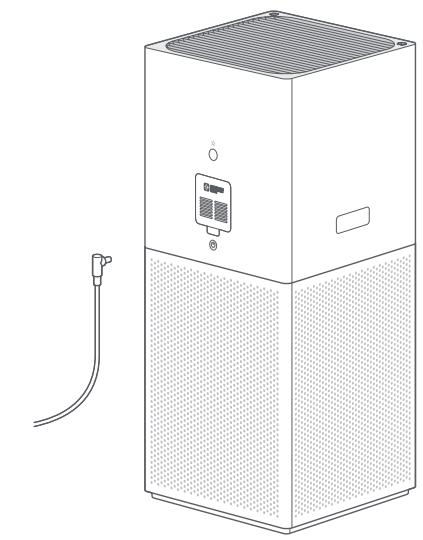

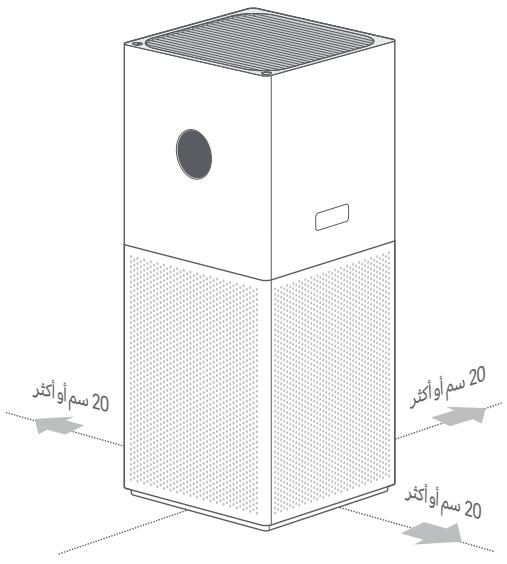

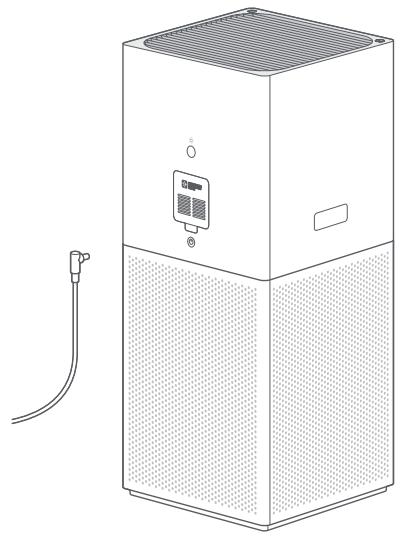

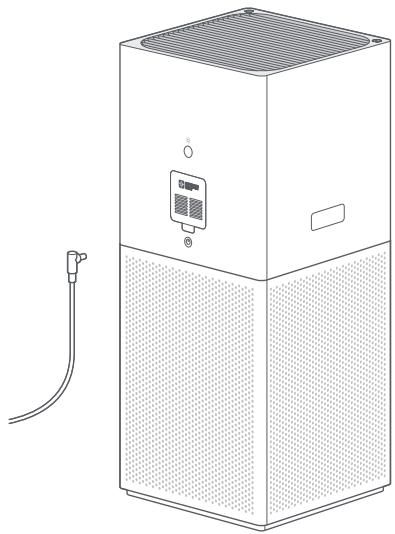

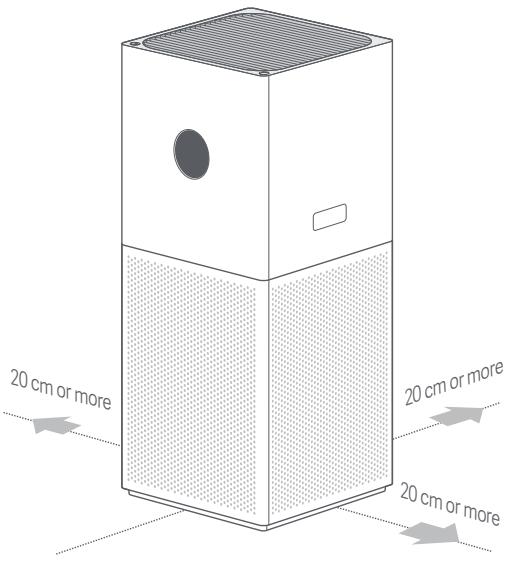

Installation Connectingto an electrical outlet Connect the power adapter to the power port at the middle part ofthe purifier and then plug it into an electrical outlet. Placingthe purifier For optimal performance, make sure the distances between puriiers air inlets and other objects such as walls meet the requirements as suggested below. [) ô es) ù el Note: is recommended to keep doors and windows closed for a better purifing effect when using the purifier

How to Use Turning on/off Press the power button to turn on/off the purifier. Switching mode While the purifier is on, press the mode switch button to cycle through modes. Adjustingthe display's brightness Press the display on/off button on the back of the purifier to cycle through its brightness levels: on, dim, and off. Enabling/disabling the child lock function The child lock function can only be enabled via the app. Once enabled, the screen wil flash and display as shown in Figure À. To disable the child lock function, press and hold the mode switch button for seven secands until you hear a notification sound. Then the screen will display as shown in Figure B, Figure À Figure B

Resetting Wi-Fi When connectingthe purifier ta the app for the first time or unable to connect to it press and hold the display on/off button on the back ofthe purifier for 7 seconds. The purifier will make a notification sound once the Wi-Fiis successfully reset Enabling/Disabling Wi-Fi Simultaneously press and hold the mode switch button andthe display onfof button on the back of the purifier for 7 seconds. The Wi-Fi function is enabled when the Wi-Fi indicator is on and is disabled when the indicator is off. Connecting with Mi Home/Xiaomi Home app This product works with Mi Home/Xiaomi Home app. Control your device with Mi Home/ Xiaomi Home app. Scan the QR code to download and install the app. You will be directed to the connection setup page the apps installed already, Or search "Mi Home/Xiaomi Home” inthe app store to download and install it. Open Mi Home/Xiaomi Home app, tap "+" on the upper right, and then follow prompts to add your device. “The app is referred to as Xiaomi Home app in Europe (except for Russia). The name ofthe app displayed on your device should be taken as the default.

Note: The version ofthe app might have been updated, please follow the instructions based on the current app version. Filter status notification The air quality indicator will blink red for 30 seconds when the filer is exhausted, please replace the filter in a timely manner.

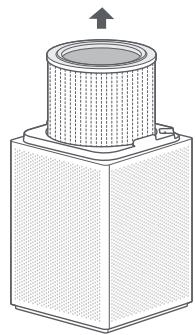

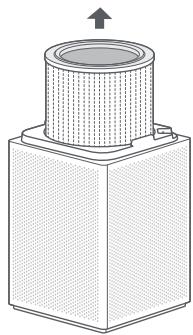

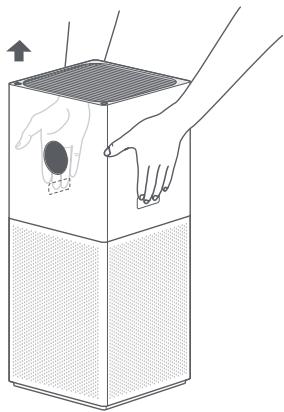

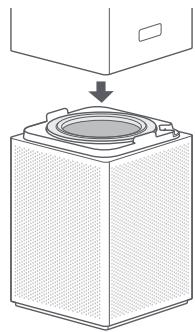

Replacing the Filter À Warning Make sure the purifier is tumed off and the power adapter is unplugged before replacing the filter. Note: To avoid injuries, do not put your fingers between the upper and lower compartments when replacing the filter Openingthe filter compartment Removing the old filter Installingthe new filter Press and hold the release buttons Remove the old filter upwards. Install the filter into the filter with both of your hands, and lift up the compartment, and then place backthe upper compartment of the purifier. upper compartment ofthe purifier. @ rescttingthe filter While the purifier is on standby, simultaneously press and hold the power button and the display on/off button on the back ofthe purifier for 7 seconds. Once the filter is successfully reset, the purifier will make two beeps and the air quality indicator will blink green three times. Notes: -When the air quality indicator blinks red for 30 seconds, it is a reminder that the fiter is exhausted. -Itis recommended to replace the filter every 6 to 12 months. - Please purchase genuine and compatible filters from official channels.

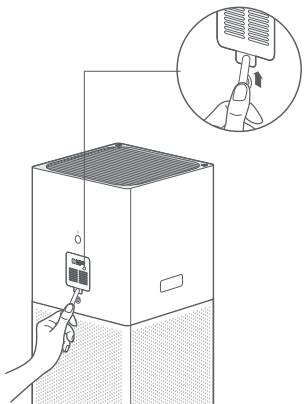

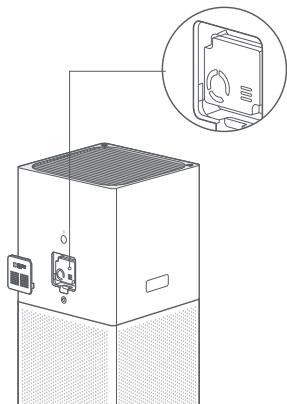

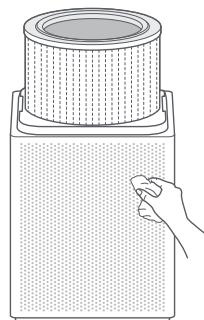

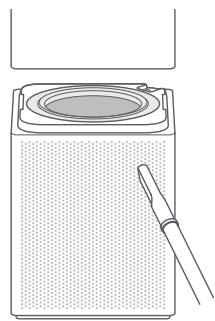

Daily Care & Maintenance À Waming Make sure the purifier is turned off and the power adapter is unplugged before performing the following operations. Cleaningthe filter compartment To ensure optimal ventilation and purification, use a vacuum cleaner to remove any dust from the air inlets and the filter compartment, or wipe these areas gently with a soft cloth. Note: To avoid damaging the purifier, do not rinse or spray the purifier directiy with water or wipe it with a soaking wet cloth Cleaningthe laser particle sensor Use a non-sharp tool to open the cover of the laser particle sensor, and then use an air blow gun or hair dryer to clean the filter onthe cover and the sensor as illustrated inthe figure. Note: Do not use hot air.

Specifications Name: Xiaomi Smart Air Purifier 4 Lite Particle Purification Efficiency: High Model AC-MT7-SC Formaldehyde Purification Eficiencyr High Item Dimensions: 240 » 240 « 533.5 mm Particle‘ Clean Air Delivery Rate (CADR Particle}: 360 m°/h Net Weight: Approx. 48 kg Formaldehyde's Clean Air Delivery Rate (CADR Formaldehyde): 120 m°/h Effective Coverage: 25-43 mé * Wireless Connectivity: Wi-Fi IEEE 80211 big/n 24 GHz Rated Voltage: 24 V= Storage Temperature:-10'C to 40°C Power Adapter Rated Input: 100-240 V-, 50/60 Hz, 1.2 À Storage Humidity: 5%-20% Rated Power 33W Production Date: See packaging Noise Level: 61 dB{A) For details ofthe importer, please refer to the box. Network Standby Power Consumption: < 20 W Caleulated according to standard GB/T 18801-2015 RF Specification: Wi-Fi 24 G (2400-2483.5 MHz), Max. RF Output Power: <20 dBm Under normal use of condition, this equipment should be kept a separation distance of at least 20cm between the antenna and the body of the user Regulatory Compliance Information Europe — EU declaration of conformity Hereby, Beïing Smartmi Electronic Technology Co, Lid.declares that the radio equipment - Xiaomi Smart Ai Purifler 4 Lie, type AC-M17-SC is in compliance with Directive 2014/53/EU. The ful text of the EU declaration of conformity is available at the following internet address: http:/ vawmicom/global/service/supportideclaration.htrl Disposal and recycling information Al products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed X with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling ofwaste electrical and electronic equipment, appointed by the government or local authortis. Correct disposal and recycling wa help prevent potential negative consequences to the environment and human health, Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

LLIMITED PRODUCT WARRANTY

XIAOMI warrants that the Products are free from defects in materials and workmanship under normal use and use in accordance with the respective Product user manual, during the Warranty Period. The duration and conditions related to the legal warranties are provided by respective local laws. For more information about the consumer warranty benefits, please refer to Xiaomis official website https:/Awwwmicom/en/service warranty! Xiaomi warrants to the original purchaser that its Xiaomi Product will be free from defects in materials and workmanship under normal use in the period mentioned above. Xiaomi does not guarantee that the operation of the Product will be uninterrupted or error free. Xiaomiis not liable for damages arising from non-compliance with the instructions related to the use of the Product. 2REMEDIES If a hardware defect is found and a valid claim is received by Xiaomi within the Warranty Period, Xiaomi wil either (1) repair the product at no charge, (2) replace the product or (3) refund the Product, excluding potential shipping costs.

3HOWTO OBTAIN WARRANTY SERVICE

To obtain warranty service, you must deliver the Product, in its original packaging or similar packaging providing an equal degree of Product protection, to the address specified by Xiaomi. Except to the extent prohibited by applicable law, Xiaomi may require you to present proofs or proof of purchase and / or comply with registration requirements before receiving warranty service.

AEXCLUSIONS AND LIMITATIONS

Unless otherwise stipulated by Xiaomi, this Limited Warranty applies only to the Product manufactured by or for Xiaomi and identifiable by the trademarks, trade name or"Xiaomi" or "Mi" logo. The Limited Warranty does not apply to any (a) Damage due to acts of nature or God, for example, lightning strikes, tornadoes, flood, fire, earthquake or other external causes: (b) Negligence; (c) Commercial use; (d) Alterations or modifications to any part of the Product; (e) Damage caused by use with non-Xiaomi products; () Damage caused by accident, abuse or misuse: (e) Damage caused by operating the Product outside the permitted or intended uses described by Xiaomi or with improper voltage or power supply or (h) Damage caused by service (including upgrades and expansions) performed by anyone who is not a representative of Xiaoi It is your responsibility to backup any data, software, or other materials you may have stored or preserved on the product. ti likely that the data, software or other materials in the equipment will be lost or reformatted during the service process, Xiaomi is not responsible for such damage or loss. No Xiaomi reseller, agent, or employee is authorized to make any modification, extension, or addition to this Limited Warranty. I any termis held to be illegal or unenforceable, the legality or enforceability of the remaining terms shall not be affected or impaired.

Except as prohibited by laws or otherwise promised by Xiaomi the after-sales services shall be limited to the country or region of the original purchase. Products which were not duly imported and/or were not duly manufactured by Xiaomi and/or were not duly acquired from Xiaomi or a Xiaomis official seller are not covered by the present warranties. As per applicable law you may benefit from warranties from the non-offcial retailer who sold the product. Therefare, Xiaomi invites you to contact the retailer from whom you purchased the product. The present warranties do not apply in Hong Kong and Taïwan. SIMPLIED WARRANTIES Except to the extent prohibited by applicable law, all implied warranties (including warranties of merchantability and fitness for a particular purpose) will have a limited duration up to a maximum duration of this limited warranty. Some jurisdictions do not allow limitations on the duration of an implied warranty, so the above limitation will not be applied in these cases. 6.DAMAGE LIMITATION Except to the extent prohibited by applicable law, Xiaomi shall not be liable for any damages caused by accidents, indirect, special or consequential damages, including but not limited to loss of profits, revenue or data, damages resulting from any breach of express or implied warranty or condition, or under any other legal theory, even if Xiaomi has been informed of the possibiity of such damages. Some jurisdictions do not allow the exclusion or limitation of special, indirect, or consequential damages, so the above limitation or exclusion may not apply to you. XIAOMI CONTACTS For customers, please visit the website: https:/mwwmicom/en/servicehwarranty/ The contact person for the after-sale service may be any person in Xiaomi's authorized service network, Xiaomi's authorized distributors or the final vendor who sold the products to you. Fin doubt please contact the relevant person as Xiaomi may identify.
