USER MANUAL WG330E - WG330E.X WORX

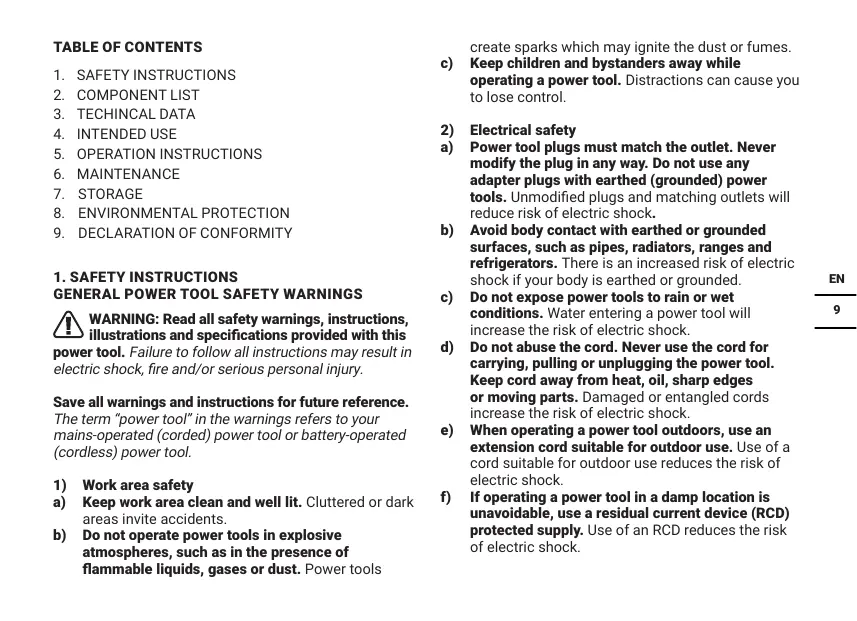

WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions may result in electric shock, fire and/or serious personal injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools

create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust

collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power

tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid

contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer

where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Keep battery pack clean and dry.
g) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
h) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
i) Do not maintain battery pack on charge when not in use.
j) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
k) Recharge only with the charger specified by Worx. Do not use any charger other than that specifically provided for use with the equipment.
I) Do not use any battery pack which is not designed

for use with the equipment.

m) Keep battery pack out of the reach of children.
n) Retain the original product literature for future reference.
o) Remove the battery from the equipment when not in use.
p) Dispose of properly.
q) Do not use battery packs of different manufacture, size or type.
r) Keep the battery away from microwaves and high pressure.

SYMBOLS

To reduce the risk of injury, user must read instruction manual

Wear ear protection

Wear eye protection

Wear dust mask

	Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as assorted municipal waste.
	Do not burn
	Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.
Li-Ion	Li-Ion battery. This product has been marked with a symbol relating to 'separate collection' for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.
	Wear protective gloves.

!

Warning

2. COMPONENT LIST

1.	FIXED BLADE
2.	CUTTING BLADE
3.	BLADE LOCK BOLT
4.	ON/OFF TRIGGER
5.	SAFETY LOCK TRIGGER
6.	HANDLE
7.	20V BATTERY PACK*
8.	LED LIGHT INDICATOR

• Not all the accessories illustrated or described are included in standard delivery.

3. TECHNICAL DATA

Type WG330E WG330E.X (330- designation of machinery, representative of Cordless Pruning Shears)

WG330E WG330E.X**
Voltage	20V Max.***
Blade opening size	15mm, 25mm
Max cutting Capacity	25mm
Machine Weight (bare tool)	0.7kg

** X=1-999, A-Z, M1-M9 there are only used for different customers, there are no safe relevant changes between these models.
*** Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.

SUGGESTED BATTERIES AND CHARGERS

Category	Type	Capacity
20V Battery	WA3551	2.0Ah
20V Charger	WA3880	2.0 A

We recommend that you purchase your accessories from the same store that sold you the tool. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

NOISE DATA

A weighted sound pressure	LpA= 59.95 dB(A)
KpA	3.0 dB (A)
A weighted sound power	LwA= 72 dB(A)
KwA	3.0 dB (A)
Wear ear protection

VIBRATION INFORMATION

Vibration total values (triax vector sum) determined according to EN 62841:

Typical weighted vibration	ah< 2.5 m/s2
Uncertainty	K = 1.5 m/s2

The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another.

The declared vibration total value and the declared noise emission valuemay also be used in a preliminary assessment of exposure.

WARNING: The vibration and noise emissions during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used especially what kind of workpiece is processed

dependant on the following examples and other variations on how the tool is used:

How the tool is used and the materials being cut or drilled. The tool being in good condition and well maintained.

The use of the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration and noise accessories are used.

And the tool is being used as intended by its design and these instructions

This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use

should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Helping to minimise your vibration and noise exposure risk. Always use sharp chisels, drills and blades.

Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).

If the tool is to be used regularly then invest in anti vibration and noise accessories.

Plan your work schedule to spread any high vibration tool use across a number of days.

4. INTENDED USE

This product is intended to remove smaller, weak branches to raise the canopy of the tree, while allowing the larger limbs to grow and get stronger, which makes the tree mass look taller and lets more sun onto the ground to promote grass growth, inhibit the growth of smaller plants/trees/bushes, and allow for clearance of walkways. In addition, the product could be used to cut fresh and dried tree branches for delimbing and downcutting.

5.OPERATING INSTRUCTIONS

NOTE: Read instruction handbook before operation this machine.

ASSEMBLY AND OPERATION

ACTION	FIGURE
BEFORE OPERATION
Charging the battery pack	SeeFig. A
Installing/Removing the battery pack WARNING: Please make sure to close the blades firstly, then pull the battery pack out.	See Fig. B.C
ACTIVATING THE PRODUCT
Depress Safety Lock Trigger,0.5seconds later, the LED Light Indicator turns on and the product is ready to work after a beep. WARNING: Wear protective gloves and eye protection while working with the pruner	SeeFig. D
If no action in 10 seconds, then the LED Light Indicator will go out and the product will turn off after hearing a beep.	See Fig. E
If you release the Safety Lock Trigger directly, then LED Light Indicator and the product will turn off.	See Fig.F
UNLOCKING THE PRODUCT
Once activated, hold down Safety Trigger, while simultaneously depressing the ON/OFF Trigger to engage the blades. A.If the blades are in the MAX cut opening, the product will beep once and blades keep the MAX cut opening; B.If the blades are not in the MAX cut opening, the product will beep once and blades will reach the MAX cut opening.	See Fig. G.H
PROGRESSIVE CUTTING

The blades will naturally return to the open position when the ON/OFF Trigger is released, while the blades will get closed once push the ON/OFF Trigger. The degree of blade's closure will be controlled by the degree of ON/OFF Trigger's closure. NOTE: When the scissors can't cut cause the material is too hard or too stiff, the product will beep once, then the scissors return to the open state and stop working.	See Fig. 1
EXCHANGE THE CUTTING SIZE
This product could be adjusted to different opening width. While product is active, depress the Safety Trigger while simultaneously depressing the ON/OFF Trigger. 2 seconds later, please release the ON/OFF Trigger after hearing a beep. Then the blades could exchange cutting size between MAX cut opening and small cut opening in order. WARNING! When the product is in the open position, even if release both triggers, the product will stay active for about one minute. Need to re-run the product- Within one minute, firstly push the Safety Lock trigger and later depress the ON/OFF Trigger, then the product will get re-activated to work. Even if you release the ON/OFF Trigger while depressing the Safety Lock trigger, the product will be able to cut once press the ON/OFF Trigger within 20 seconds. Or else, the LED Light Indicator will go out and the product will turn off if you do not press the ON/OFF Trigger within 20 seconds. No need to re-run the product- The product will be powered down if no action within 1 minute.	See Fig. J
STORAGE MODE & SWITCH OFF

While product is active, depress the Safety Trigger while simultaneously depressing the ON/OFF Trigger. The blades will close and beep once. Continue to hold until product beeps twice. LED Light Indicator will turn off, blades will stay closed, and product is now inactive. Remove battery for storage. WARNING: Please remove battery for storage after the blades have been closed and the product has turned off.

See Fig. K

The cutting blade is coated with Titanium, which improves the lifespan of the durable and effective high carbon steel SK5 blade by 3 times or more. Its non-stick characteristics also makes cleaning and maintenance a breeze WARNING: Do not touch the blades with your hands.

See Fig.L.M

PRUNING TIPS

The cordless pruner shears are ideal for cutting and trimming shrub and tree branches to promote healthy growth, and to control the shape.

1. Please make sure the cut is always above 8mm from the bud cause this will allow wound to heal properly and angle that the branch should be cut at 45^ . (See Fig N)

2. When cutting, please do clean cuts that slope away from the bud, which will let rain run away easily and encourage new growth.(See Fig 0)

3. When pruning the entire stem, please cut the stem from the point where it branched.(See Fig P)

6. MAINTENANCE

WARNING: When you need to start inspection, maintenance and cleaning work, please make sure product has been switched off, it has cooled down and battery pack has been removed.

1. Never use solvents to clean the product and never immerse the product in any liquid. Only use a dry cloth to clean the product.
2. Never directly operate the product if some broken or worn parts are found. Please inspect the product before each usage.

BLADE MAINTENANCE

1. When need to sharpen the blades, please open the blades to the max cut opening, turn the product off and remove the battery. Then use a strip of grindstone to sharpen the blades in a careful way.
2. Always keep blades free of leaves or debris.

WARNING: Wear protective gloves while clean and sharpen the blades.

7. STORAGE

WARNING: When not in use, please press the on/off switch for a long time to close the blades as a tion instruction shown.

1. Keep the product in a dry place and never let it immerse into any liquid.

2. keep the product from away from children.

3. Before use the product after long-time storage, please fully recharger the product.

8. ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste. Please recycle where facilities

exist. Check with your local authorities or retailer for recycling advice.

FOR BATTERY TOOLS

The ambient temperature range for tool and battery use and storage is 0^ - 45^

The recommended ambient temperature range for the charging system during charging is 0^ - 40^ .

9. DECLARATION OF CONFORMITY

We,

Positec Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

On behalf of Positec declare that the product Description Cordless Pruning Shears

Type WG330E WG330E.X (330- designation of machinery, representative of Cordless Pruning Shears) Function Pruning

Complies with the following Directives,

2006/42/EC, 2011/65/EU&(EU)2015/863, 2014/30/EU

Standards conform to,

EN 62841-1+EN ISO 12100, EN 55014-1, EN 55014-2

The person authorized to compile the technical file,

Name: Marcel Filz

Address Positec Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

CE

2022/1/7

Allen Ding

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INHALTSVERZEICHNIS

INFORMATIONS RELATIVES AU BRUIT

INFORMATIONS RELATIVES AUX VIBRATIONS

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

TABLA DE CONTENIDOS

1. LAS INSTRUCCIONES DE SEGURIDAD
2. LISTA DE COMPONENTES
3. CHARACTERISTICAS TECNICAS
4. UTILIZACION REGLAMENTARIA
5. INSTRUCCIONES DE FUNCIONAMENTO
6. MANTENIMIENTO
7. ALMACENAMIENTO
8. PROTECCION AMBIENTAL
9. DECLARACION DE CONFORMIDAD

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INDICE

MANUTENÇA O DAS LÁMINAS

Cumpre as següntes Directivas:

2006/42/EC, 2011/65/EU&(EU)2015/863, 2014/30/EU

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INHOUDSOPGAVE

1. VEILIGHEIDSINSTRUCTIES
2. ONDERDELENLIJST
3. TECHNISCHE GEGEVENS
4. GEBRUK VOLGENS BESTEMMING
5. BEDIENINGSINSTRUCTIES
6. ONDERHOUD
7. OPSLAG
8. BESCHERMING VAN HET MILIEU
9. CONFORMITEITVERKLARING

1.PRODUCTVEILIGHEID ALGEMENE VEILIGHEIDSWAARSCHUWINGEN VOOR VERMOGENSMACHINE

WAARSCHUWING: Lees alle

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INDHOLDSFORTEGNESELL

1. SIKKERHEDSINISTRUKTIONER
2. AGGREGATELEMENTER
3. TEKNISK DATA
4. Mulig anvendelse
5. BRUGSANVISNING
6. PROBLEM
7. VEDLIGEHOLDELS
8. MILJØBESKYTTYTALSE
9. KONFORMITETSERKLÄERING

1.PRODUKTSIKKERHED

GENERELLE SIKKERHEDSINSTRUKSER FOR ELVÄERKTØJ

2022/1/7
Allen Ding
Vicechef, Ingeniør, Test & Certificering
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China

INNHOILDSFORTEGNELSE

1. SIKKERHETSINSTRUKSJONER
2. APPARATEELEMENTER
3. TEKNISKE DATA
4. MULIG BRUK
5. BRUKSANVISNING
6. VEDLIKEHOLD
7. OPPBEVARING
8. MILJÖVERNTILTAK
9. SAMSVARSERKLÄERING

1.PRODUKTSIKKERHET GENERELLE ADVARSLER FOR ELEKTROVERKTØY

1) SIKKERHET PÅ ARBEIDSPLASSEN

The person authorized to compile the technical file,

Navn Marcel Filz

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

NOR

107

INNEHÄLLSFORTECKNING

1. SÄKERHETS INSTRUKTIONER
2. LADDARENS KOMPONENTER
3. TEKNISKA DATA
4. BRUKSANVISNING
   5.ÄNDAMÄLSENLIG ANVÄNDNING
5. UNDERHÄLL
6. FÖRVARING
7. MILJÖSKYDD
8. DEKLARATION OM ÖVERENSSTÄMMELSE

1.PRODUKTSÄKERHET GENERELLA SÄKERHETSVARNINGAR FÖR ELVERKTYG

18, Dongwang Road, Suzhou Industrial S

Park, Jiangsu 215123, P. R. China

SPIS TRESCI

1. INSTRUKCJE BEZPIECZENSTWA
2. LISTAKOMPONENTOw
3. DANE TECHNICZNE
4. UZYCIE ZGODNE Z PRZEZNACZENIEM
5. INSTRUKCJE OBSLUGI
6. KONSERWACJA
7. SKŁADOWANIE
8. OCHRONA SRODOMWISKA
9. DEKLARACJA ZGODNOSCI

1.BEZPIECZENSTWO PRODUKTU OGOLNE OSTRZEZENIA DOTYCZACE BEZPIECZENSTWA PODCZAS PRACY Z ELEKTRONARZEDZIAMI

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

TARTALOMJEGYZEK

1. BIZTONSÁGUTASITÁSOK
2. SZIMBOLUMOK
3. MUSZAKI ADATOK
4. RENDELTETÉS
5. HASZNÁLATI UTASITÁSK
6. KARBANTARTÁS
7. TÁROLÁS
8. KÖRNYEZETVEDELEM
9. MEGFELELOSEGINYILATKOZAT

1. TERMÉKBIZTONSÁG

ELEKTROMOS KEZISZERSZÁMOK BIZTONSÁGOS HASNZALATÁVAL KAPCSOLATOS ALTALANOS FIGYELMEZTETSEK

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

CUPRINS

1. SECURITATEA PRODUSULUI
2. LISTÄ DE COMPONENTE
3. DATE TEHNICE
4. DESTINATION DE UTILIZARE
5. INSTRUCTION DE UTILIZARE
6. INTREINERE
7. DEPOZITAREA
8. PROTECPIA MEDIULUI
9. C

1.SECURITATEA PRODUSULUI AVERTISMENTE GENERALE DE SIGURANTÀ PENTRU UNELTE ELECTRICE

ATENTIONARE: CitiToe atoe atentionarile de siguranta siparcurgeti toate instrcui nile,

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

OBSAH

1. BEZPECNOST VYROBKU
2. SEZNAM KOMPONENT
3. TECHNICKÉ UDAJE
4. URÇENE POUZİTI
5. POKNY PRO OBSLUHU
6. UDRZBA
7. SKLADOVÁNÍ
8. OCHRANA ZIVOTNIHO PROSTREDI
9. PROHLÁŠENÍ O SHODE

1.BEZPECNOST VYROBKA OBECNA BEZPECNOSTNI UPOZORNENI PRO ELEKTRICKÉ NASTROJE

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

KAZALO

1. VARNOSTNA NAVODILA
2. SESTAVNI DELI
3. TEHNICNI PODATKI
4. NAMEN UPORABE
5. NAVODILA ZA UPORABO
6. VZDRZEVANJE
7. SHRANJEVANJE
8. VAROVANJE OKOLJA
9. IZJAVA O SKLADNOSTI

1.VARNOST IZDELKA SPLOŠNA VARNOSTNA OPOZORILA

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

OTJABJIEHNE

1. B630PACHOCTb IPOJyKTA
2. ΝEPEUHb KOMNoHETOB
3. TEXHnueCKNE DAHHbIE
4. ПЕДУСМОТPEHHOE ИСПОЛБОВАНЕ
5. INHCTPYKUNIPO 3KCNJYATALUN
6. TEXHINUCKOE OBCJYKINBAHNE
7. XPAHEHNE

8. OXPAHA OKPYKAIOUEN CPEbl
   9.ДЕКЛAPAUЯ COOTBETCTBNA

9. INHCTPYKUINI NO 5E30NACHOCTN 5E30NACHOCTb N3DEJINIA OBJNE IPEIOCTEPEXEHNI TO TEXHNKE 5E30NACHOCTN IPN PA5OTE C 3JIEKTPONHCTPYMEHTOM

I PNEIOCTEPEXKEHNE BHNMaTeNbHO O3HaKOMbTecb Co BCeMn IpeDyIpeXJdHnMn IO TexNHke 6e3OanachocTH, HNCtpyKuJnMM, PNcYHKaMn IN CneUΦHKaUHM, IprNJaraeMbIM K 3TOMY 3NeKTponHCTpyMeHTy. HeBbIOnJIHeHne BCEX HIXeepnBeDeHHbIX INHCTpyKUIN N peKoMeHJaCNI MOKeT pINBeCTN K IopaxJEHNO 3JeKTPnueckmT TOKOM, NOkApy n/InI cpeBe3HbIM TpaBMam.

COXPAHNTBE BCEMHCTPYKLIINI IN PEPDOCTEPEXEHNIAJDAJIbHEIUEERO NCIPOJ3OBAHNI.

TepMN "3eKtpOnHcTpymENT" B npdeynpeXdEny

OTHOCTNCAKBAWEMY3NEKTPOHCTPymeHTY C nTahHeMOTcETN (HUnp) INI K3NEKTPOHCTPymeHTY C 6bataHbIMnTahHeM(6ecnpoBdoHoi).

1) B630NACHOCTb PA60YEN 30HbI
a) Dépçnte pa60cYIO 3OHy YnCToI N xopoio OceBSeHNo. 3aPpOMOxJDeHNbIe IIN 3aTeMHeHbIe 3ObIh IpeJaPaCnOlaRaHT K HeCuaCTHbIM CJIyAAM.
b) He nCnObl3yIte 3eKtpOnHcTpymEHTbl BO B3pyBIOONaCHbIX cpeAdx, HanpIMep, B pNcYtCTbN IerKBOOCIIaMeHIOUHXcJ XIKDCKTei, rA3OB uIN bNtB.

3IeKTKPOINHCTPymEHTb CO3aHOT NcKpbI, KOtOpBIE MOrYT BOCJIaMeHHTb PbIb IIN PaBbI.

c)Дерхитete DeTeH n npoxoxnB CToPoHe BO BpEma paObIc 3NeKtpOnHCTpyMeHTOM.OTBnkeAIOuIne faKTopb MOrT npBecTu K nTope KoHTpOJaHn HNCTpyMeHTOM.
2) 3JEKTP0E3OINACHOCTb
a) BvnKc c 3JnKtpOnHCTpymeHToM doJIKNbI COOTBETCTBOBAt po3eTke. HmKOrJa He NMHeMaIte UTeNceB KaKM-Imo 6Opa30M. 3aPeUaTcR hOpNoB3ObaTb IIOb6e IpePexOHaHNKc 3a3EMeHHbIMN 3JnKtpOnHCTpymeHTAMn. He MOdInuPiOBaHbIbe BNIKu N COOTBeCTByoUe IpO3eTKn yMeHbShaOH pNCK nopaXeHnI 3JnKTPuCeKIM TOKOM.
b) M36eRaiTe KOHTaKaTc Tena C 3a3eMJIHeHbIMNI NOBepXHOCTaMH, TAKHM KAc Tpy6bl, paHaTOpbl, NnIbblN XoLODJIbHLHKN.CyUcEcbTyET

NobIIeHbI pNCK nopaxHeNIAJIeKTPnuecknM TOKOM,ecINBaIe TEIO 3a3EmJeHO.

c) He NoIeBepraTe 3JKeTPOHnCTPymENT BO3dEChTBIO DOxDy INI BIAxHOCTn. BoDa, IOnpaAHOsaB 3JKeTPOHnCTPymENT, NOBbICNT PNCK NopAKeHHeN 3JKeTPOUeCKIM TOKOM.
d) 3aIpeaetc npImeHnTb Hnyp He nO hHa3aHEnIO. HnKOrJa He nCnObn3yJTe WhHyp dIy NpeHocKn, BbITraRbAHNn HnO tOcoEINHeHNe 3NeKTponHCTpyMeHTa. DepXkTe Wnyp BdAnOn OT Tepla, MaCla, OcTpbIX KpaBn Hn DBNxyUxxC qacTei. IIObpexKeHNbE nIi 3anTyahHbIe HnUpbl IOBbIaHOt pNCK nopAkeHnna 3neKtpueceKM TOKOM.
e) Пи рабоTe c элкtpoHnCtpymeHTOM Ha OTKpbIbTOM BO3Дуxe ИСпОьБ3УITE yДИнHTeB, IпEDHA3HaueHHbI dЯ NСПОЛБ3OBAHnHa OТКpbIbTOM BO3Дуxe.ИСпОьБ3OBAHnE 甲Hypa,poДхОДЯшero ДЯ NСПОьБ3OBAHnHa OTKpbIbTOM BO3Дуxe,CHINKaet pNCK nOPaЖeHnE 3ЛЕКТРИчecKIM TOKOM.
f) EcIpa6oTa 3JIeKTPOnHCTPymHTo BO BLaXHOM MecTe HeN36ExHA, HcNoB3yte YcTPOHCTBO 3aUHTHO OTKIOUeHn. IcNoIb3ObaHne Y30 CHHXKaT PCK NopAxeHn 3JIeKTPnHeCKHM TOKOM.

3)JIiHuHAR B3OtnAChOCTb

a) BybTe BHNMaTeNbHbI, CNeIeTHe 3a TeM, YTO Bbl DeaeTe, NIOJIb3yIYTeBc 3dPabBIM CmblCNlOM pPi pa6oTe c 3neKtponHCTpyMeHTom. He nCnOJIb3yIte 3neKtponHCTpyMeHT BO BpEm yCTaONCTn INI NOB BO3DeIcCTBnEM HApKOTIKOB, AKNKORJIA

MIMMeDNKAMeHTOB. HEBNIMATEJIbHOCTb PnIP paOBeTe 3NeKtPOINHCTPymEHTa MOKeT pNpBcETn K cepBe3OH TpABMe.

b) McnoIb3yIte cpeCTBa HnHbNHyaJIbHoJ 3aunTbI. Bcerda naDeBaIte 3auNTbIe ouKn. 3aunTHoe o6OpyIOBaHne, taKoe KaK PbIe3aunTHaMa Macka, HECKoJIb3aJsaJ 3auNTHaJ O6ByB, KACKn IIN 3aunTa Cnyxa, IcNoJIb3yeMbIe IJr COOTBETCTBYUxN yCLOBnY,ymeHbSaT pNCK BO3HNKHOBEHn TpaBMJI.
c)Ппсдовьразецни Ненихимерногу залуckа. Ппсдовьразецни Ненихимерногу петань n / nii 6aapedenMy6NoKy 6eDnTecb,То поеклочаTeB haxOДТСВ bIOnOxHem "BbIKLIOUeHO". Ппсенoc ЗLEKTOPHNCTPymeHTOB c NaJIbIeMuHa BbIKLIOUaTeJe nIII 3apRJaK BKNLOUeHHbIX aLEKTOPOHNTCPymeHTOB pINBOIDNT K HeCuaCThblm CnyaJam.
d) Ipepe BkIIOueHHeM 3JIeKTPoHNCTPymEHTa y6epTe IIO6bIe NOCTOPOHNHe raeChIe KIIIOu. KInou, pInpKepeIeHbI K BpaIauIoSeIc8 YacTn 3JIeKTPoHNCTPymEHTa, MOKeT CTaTb PnUHHo TpABMbI.
e) He NaKIOHAnTeB. NocToHNO CoXpaHnIte paHOBecne. To IOsOBoJrT LyuWe KOHTPOINPOBaTb 3NeKToPOnHCTpyMert B HeoXnJaHHbIX CNTyuaIHX.
f) OdeBaIteCb DOnKhbIM o6pa3OM. He HadeBaIte Cbo6oAnHyO OeJxU yN kpyaSeHn. JepXitre BOIocbl, OeJxU n nepyatKn BdAnl OT DBHXuXcHc Yactei. Cbo6oHaJ OeJxJa, IOBEnIPhIe N3JeINr INI dInHbIe BOIocbl MOryt

6bITb 3aUeJIeHbI DBNKUcIMNCaCTMn.

g) Ecyn yctpoiCTBa 6obpyOBOAHbI COeINHEmEM dnydAeHnna TnIOKIIIOUChEHN KONJIeKTOPOB, y6eINTcB, YTO TAKOE o6obpyOBOAHne IOKnIOUHeo H nCNOb3yeTcD ONXHHbIM Opa30M. NcNtboAHOe NblNeYnabINBaTeNe MoKeT yMeHbWHTb ONaCHOCTb, CB7aHHyO C nbJIbHO.
h) He No3BOLJrTe OnblTy, NOnyUeHHOMy PnH qactOM HcNoIb3OBaHHM NHCtPyMeHTOB, paccNa6HbCn mHrHOpHPOBaTb PnHmNbIb 6e3oNaChO pa60Tb I nHCTpyMeTAMn. HeocToPoxHoe DeiCTBne MOKeT npIBecTI K cepBe3HO TpABMe B TeeHHe DoJIH CEkyHdbI.
4) MСПОЛБ3ОВАМЕ ЗЛЕКТРОИНСТРУМЕHTA U YXОД 3A ИМ
a) 3anpeaaetcna3bItoOHO 3arpykaTb 3neKTPoHnCTpymENT. IcnoIb3yIte npdxOJaun 3neKTPoHnCTpymENT dla Baue pa60tbl. PpaBnIbHO nOdo6paHbI 3neKTPoHnCTpymENT cdeJaeT pa60Ty, dJI KOTOpO h 6bIIN pa3pa60TaH, lyUHe N 6e3oNaChee.
b) He nCnOlb3yIe 3NeKTPoHnCTpymeHT, ecN BbIKNoUaTeIbe pa6OtaeT. JIO6oB 3NeKTPoHnCTpymeHT, KOtOpbl He MOKeT ynpaBIAJrBa C NOMOuBo IpeKJIouaTeIa, ONaCeH NdoJKeH 6bITb OTpeMOHTIpOBAH.
c)Пелед Вьлолоннем Млббх ретулновok, 3амений пинадлесхостеи Илихра themselves 3л ekтponнсчрменто сotingeнштseкер о nctOчнka ппанаян u/niiakkymnytropolsh 6аразен oл ekтponнсчрмentsa.Takme

PnepdynpeDnteNbHie Mepbl 6e3oNaCHoCTN yEmhBaHOT PNCK CnyaHOrO 3aNyCka 3NeKTPOHNCTyMeNTA.

d) XpaHInTe 3IeKTPoHNHCTpyMeHTbI B HeIOCTyINHOM dJIaDeTeIMeCTe HneIOBOLIaTHe3HaKOMbIM C 3IeKTPoHNHCTpyMeHTom HnC 3ToH INCTpyKUme, pa6OtaTb C Hm. INCTpyMeHTb OpanChbIBy pykax Heo6uyehNbIX NoNb3OBatenei.
e) 06cIyXnBaTe 3JIeKTPoHCTPymEtbl. IpOBepeBtE HecoocHOctb DBNKUxNcY CaTcTe, NOLOMky DeTaneH nIIO6bIe dpyrue coCToTHNN, KOtOpbie MOryt NOBINrTa Ha pa6OBy 3JIeKTPoHCTPymEtA. B clyuae NobpeKdEHH OtpemOnTHpyute 3JIeKTPoHCTPymET Nepei NcNoB3ObaHNEM. MHOrne HecyacThbIe cIyuaa CNBzAHy b CnloXmO6cIyKuBAHNEM 3JIeKTPoHCTPymEtOB.
f)ПОДЕРЖИВАТеЗATOЧУИСТOTу ржУшь ИСТРУМЕТов.ПЯВИЛБНОБССПУЖИВаЕМБИЕ ржУши ИСТРУМЕТыСОСТPBIMпжУшIMКROMКAMИЯЧЕKOHTPОЛINPOВАТ，ИСHЖAEТСВЕРОТTHOCTBIXDEФОМAUIM.
g) NcnoIb3yIte 3eKtponHCTpyMeHT, npHnAJIeXHXOCTN I T. D. B COOTBEcTCTBnC C 3TNMI HcTpyKUHNM, C yETOM YCNOBn BBIOINHOEMo PA60tI. NcnoIb3OBAHne 3eKtponHCTpyMeHTa IOnepaIuN, OTNIuaHOUsXcR O TnpEHa3HaueHHORO INCNOJ3OBAHnI, MOKeT pInpBeCTN K ONaCHOI CNTuayuI.
h) CneIeTHe, YTO6bI pyKn I 3aXbTHbIe NOBepxHocTn 6blIM cyXMIM, NCTbIMN H CBO6ObHbIMN OT cM3AOHOro MaMa I KOHNCTEHTHOc cM3KN. CkOJIb3Ke IaDOHn I 3aXbTAHbTHIO NOBepxHocTn

He NO3B0JAT 6eO3nACHO 6paaatbC nHCTpyMeHTOM N KOHTpOJInpoBaTb eR O HENPEDbENHbIX CITTuayxN.

5) INCIOJIb3OBAHNE IN OBCJIYKINBAHNE AKKYMЛrTOpHBIX INHCTPYMEHTOB
a)ДлзардкнИснольчteToIbko3apdHoe yctpoiCTBO，yka3aHHOuN3rOToBHTeJIeM. 3apdHoeYcTOpIcTBo,KOTOpOENoIXoDIT ⅡдОнгOTnApAkkymJlTOpOB,MOket IpeIcTAbJIbToAnCHeOTBoZrTOpaHnIpy INcNOJIb3OBAHmCdpyTmTINOMaKKymJlTOpOB.
b) NcNoIb3yIte 3JIeKTPoHnCTpyMeHTbI TOLbKO COneUHaNBO NpeDHa3NaueHHbIMN aKKMyJrTOpAMn. NcNoIb3ObaHne IIO6oR o DpyroTO TINa AKKMyJrToPob MoKet CTaTb PnUHOr TpaBM IN IOkapa.
c) Korda akkyumyIaTOP He nCnOlb3yeTcY, xpaHInTe ero noJaIbIe OrDpyNt MeTaJIuYeCKNX npMeTob, HapnMep, Ckpenok, MOhet, KNoUeH, rBo3dEi, BnHTOB NmDpyRnHe6ObluX MeTaJIuYeCKNX npMeTob, KOToPbIe MoryT npBeCTN K 3aMbIkaHIO KLEM. 3AmbIkaHne KLEM mAKyMylTopa MoKet CTaTb pNpHiHoH OOKOFB ININ POKapa.
d) B He6laorponpnaTHbIX ycNoBnX n3 akKymyIaTopa moXkET BBITEKaTb XnIDKOCTb; n36eRaIte KOHTAKTa C 3Toi XnIDKOCTb. EcnN KOtAKT BCE Xe npOn3oWe, IpomOte NoctpaDaBWee MecTO BoDIO. EcnN XnIDKOCTb Nona B rJa3a, HEmEJHeHO 6oPaNTecb 3a MeMnHnCKoN NOMoUbIO. XnIDKOCTb, BBITEKwAa I3

aKKyMJIrTopa,MOxET BbI3BaTb pa3dpaXeHne IJI OKOJr.

e) He nCnoB3yIte aKKymJrTOp IIN INHCTpyMeHT B CnYae IH NOpeXdEHHN IIN NImMeHeHH. IOBpeXdEHHbIe IIN NImeMeHHbIe aKKymJrTOp bMOrT BeCTn Ce6I He npEpdCKa3yeMo, YTO MOKeT CTaTb PnpuHNO NoKaja, B3pblA IIN ONaCHOCTN NOLyuEHN TpaBMcI.
f) He noBBepraiTe aKKyMylAToP HnHmHCTpyMeHT B03DeIeTBnO OrHn HnH36bITouHoH TeMnepaTpybl.Bo3JeCTBnE OTHn Hn TEmnepaTpybl BbIe 130°C MoXeT cTaTb npuHnHO B3pblBa.
g) BbIopJIHnIe BCE HNCTpyKuIM No 3apJKe I He 3apJXaIe T aKKyMnyTOp IIN NCHtpymENT BHe IpeJIOB dAnAzoHa TcMeNbpAty, Yka3AHbIX B INCHTpKUxIe. HenpaBInbHa8 3apJKa IIN 3apJka Ipn TEmpepaTypax, KOtOpbIe BbIXoJr 3a npEJIbI Yka3aHHOrO dAna3aOHa, MOxET IOBpeiNb aKKyMUYIaTOp I yBeIiNuHTb ONaCHocTb IOkapa.

6) OBCJLYJKMBAHNE
a) 06cIyKbAte CBo IHCTpymeTToIbKO c NOMOJIbIO KBAIMHINPOBaHOHorO CneIaHnCTa NO peMOHTY,NCIOJIb3y ToIbKO HeHTNCHBIE 3aIapHe bactN. 3TO o6cIeNeuIT IOdepxHaue 6e3OnaCHOCTN JKeKTPOINHCTpymeHTa.
b) HnKorTa He 06cnyXHBaTe NobpeXdEHbIe aKKyMnTOpB.ObcNyXbAHne AkkymJyTopoB OJANXHO BblIOHJIbTCbToTko N3rOToBITeMe IIN ABTOP3OBAHbIMC cepBNCbIMN pnoBaJepAM.

ПРABИАТЕХИКИБ3ОПАСHOCТДА ANKUMYJIТOPHOВБATAPEN

a) He donyckaaTcpa36bpatb, bCKpb1BaTb, H3MeIb4aTb 3IeMeHtbl NTHaHH aKKMyJrTOphyIO 6aTaapeio.
b) He donyckaeta 1aKopoTko 3aMbIkaTb 3aMeHbI pTTaHnA nn AKKMyIaTOp. He donyckaeta 6bCtopnOdoX npAHbI 3JeMeHbI nITAHnI nn AKKMyIaTOp B KOp6Ke nn IuNKe, rDe OH N MOrTy 3aMKHyBdpyr Dpyra H N MOrTy 6bItb 3aMKHyBdpyrMM METaJIuNcckMMN npEdMeTaAM. Ecln aKKMyJIAToTHapHa 8aTapeR He N CIOJIb3yeTc, DePjNte ee NpOJaBWe OT MeTAJIuNcHexKIX X PnEDMeTob,TAKNX KAK 3aXmMbI, MOHeTbI, TBO3Dn, BNHTbI IN PpOChE MetaJIuNcckne npEdMeTbI He6oNbUoro pa3Mepa, KOtOpblc MOrTy COeDiHNb KLEMMbI dpyr C dpYROM.KopoTKoe 3aMbKaHne KLEMM bTaapeN MoKET cTaTb npUHNO OKOROB NN NOKapa.
c) He donnyckaetca noBbepraTb akkymyIaTOPHyO 6aTapeIO BO3dEiCTBNI BbICOKIX TempeATyp HIN IPiameHn. N36eaiTe xpaHeHHa AKKMyIaTOPHO 6aTaepuB MeCTax, NOBBePKeHHbIX BO3dEiCTBNI npMOrO COInHeCHORo CBeta.
d) He donyckaetcnoDbepraTb akkymyIaTOpHyo 6aTaapeIO mexAHuecknM yapam.
e) B cnyuae npoteuKn aKKyMnyTOpHoi 6aTapeH, He donyckaIte KOHTaKa 3NeKToPiMa T c KoxKe IIN rna3AMn. B cnyuae takoro KOHTaKa Heo6xOdmo npombITb NOPaKeHHbI yAcTOK 06nJIbHbIM KOHNCTBOM BObI N 6paTtbcra 3a MednHCKo nOMOcbIO.

f) AkkymyIaTophyio 6aTaapeIO Heo6xOIMo coepKaTaB B ICTOTE H cyXOCTM.
g）BcIyue3aRpIeHnEHOKToAKeTob AKKMyJrAToPtoHoi 6aTapeHnx Heo6xOdmo npoTepeTb ChTOy cYcoN TkaHbIO.
h) AkkymyraTophyo 6atapeo Heo6xOIMO 3apjXaTb neped nCnoIb30BaHnEM. Bcerda cneuYte daHHoi HnctpyKmN nCnoIb3yIe npabnlbHbI nporJok 3apjKn.
i) He donyckaetc0ctabTb aKKymIaTOp Ha 3apnHOM yCtpoCTBe,ecn OH He nCnObn3yeTc.
j) Iocne npoJOnKHTeJIbHOrO xpaHeHHa MoKeT noTpe6ObaTbcr HeckOblko p33 ZapRdntb n pa3prnTb akKyMylTOpHyIO 6aTaapeIO dIa DOCTXKeHHa MaKcMmaIbHoN 3ΦΦeKTHBHOCTN ee pa60TbI.
k) IVcnoIb3yIte ToIbko 3apAHyIe ycTpoiCTBa, yka3aHbIe WorX. He doNyckaetcra IcNoIb3oBaTb KaKHe-NI6o 3apAHyIe ycTpoiCTBa, 3a NCKIOueHem CneuHaJIbHO npEHa3HaueHbIX dAHHoro o6OpdyObaHn.
I) He donnyckaTcR hCnOJIb3OBaTb KaKHe- JIb6o aKKMyJITOpHbIe 6BaTapeH, He npEJaHaNchAeHHBe IaN CnOJIb3OBAHnC DaHbHM o6OpjDobAHmE.
m) XpaHnTe aKKymyTApHyo 6aTaapeo B Mectax, HeNoCTynhIx IraI DeTei.
n) CneJeT coXpaHHTb oprHnHaIbHyO DOkUMeHTaUHO Ha n3dJIeNe IJRA 6yduJero HCNOJIb3OBAHNJ.
o) To Bo3MOxHocTH n3BNeKaiTe aKKyMnyTOpHyo 6aTaapeIO n3 N3dEInn, ecm OHa He HcNoIb3yEtC.
p) YTHIN3HpyIte aKKyMnyTOpHyIO 6aTapeIO

DOnKhbIM 06pa3OM.

q）HeNcNoB3yIteCycTPOHCTBOM3JIeMeHTbI pa3HOrO pOn3BOdCTBa,EMKocTH,pa3Mepa HIN THnTa.
r）XpaHnTeaKKymyTOpbI BdaHN OT BO3dEChTBn MHKPOBOLHOBOrO H3JyuEHn N BBICOKOro DaBHeHn.

CNMBOJIbI

3. TEXHNUECKNE DAHNHbIe

Tun WG330E WG330E.X (330- hAmMeHOBaHne obopyoBaHNJI TnHOBO 6ecnpoBODHO ceKATOPA 06pe3kn BeToK)

3HaueHHe 7yMa 6bIIN N3MepeHb I B COOTBeTCTBn CO CTaHdaTbIM MeTODOM NcblTaHn I MOryt NCNoJIb3OaTbCBA TdIe CpaBHeHn OJHOrN HCHTpymEHTa C dPyTNM.

3aBneHHOB oOee 3aHueene Bn6paunu 3aBneHHO 3aHaeHHe yOBWbUyMa TaKxte MOrTy NcOpIb3oBaTbC8 dI npEbaPntbHOb OeEHKn BO3eCTbN.

PNEOCTEPEXHEN! 3NaueHne Bn6paun npn
ΦaKTNUeCKOM NcNoIb3OBAHIN

3NeKtPOnHCTpyMeHTa MOKeT OTJNUATbCOT 3aBJIeHHoTO 3HaHeNHy B 3aBNCUMOCTn TO CIOCOOB NcNOJb3OBAHN HhCTpyMeHTa:

BapnAHTOB erO npImeHEnI N ope3aEmbIX IINI ⅢInΦyEmbIX MaTePnaIob.

IcnpaBHOCTn INHCTpyMeHTa n er O npaBnIbHOro TEXHNueCKOrO 6cbnyKmbaHn.

IcnoIb3ObaHnIe COOTBETCTBHyOuXn AkCECCyApOB IN cOCToHnIb BceX peKyuXn IOBepxHOctTe N OCTpoTbI IN KpOMOK.

ПлOTHOCt n3axbataHa pyKoTkaxи NcNoJIb3OBAHnKaKnx-Либо aHTNbIb6paUOnHHbIX aKCECCyapOB.

IcnoJb30BaHnI INCTpyMeHTa B COOTBeTcBm C erO npedHa3NaueHnEM I 3TNMI INCHCTpyKUyMn.

3TOT INCTPymeHT MOKET BbI3BaT bpMeOp PYK, eCIN erO HcNoJIb3OBaHHe He 6yTeT peYIInpoBaTbcI OJNKhbIM 06pa3OM.

PPEOCTEPEXEHNE!ДЯобсесеняMaKcIMaJIbHOToHOCTHn pIOn OUeHKe yPOBn

B03dEiCTBnB BpeaIbHbIX yCIOBmX IcNOJIb3OBAHnA

DOLXHbI TaKke yUHTbIBaTbCBA BCE acNEKtbl pa6OeRTO KUNLA, TAKHe KaK nepIOBd I BPEMeHN, KOrDa INCHTpymENT BbIKLOUeH, a TAKKe pa6OtaET Ha XOLOCTOM XoYn H E BbIOnHReT PaKTNueCKyO PA6OTy. 3To MoXeT 3HaUHTeNbHO CHIN3NTb YpOBeHb BO3DeiCTBnHa ONEpATOpa 3a BeCb pa6OuN I nepIOD, IO3BOJnRA MInHMn3IPoBaTb ONaCHOCTB BO3DeiCTBn Bn6paunn N UyMa.

Bcerda nCpOJIb3yIe 3aToUeHNbIe Ie3BnI, CBePJIa npe3uI.

06cnykBaIte 3OT INCTpyMeHT B COOTBETCTBUN C daHbIMN INCTpyKcIyMn I XOPOSO CMa3bIbAte (PnH Heo6XIOIMOCtN).

Ecln INHCTpymEnT nCNOB3yETcpeRyIaRPhO, npno6pnte aHTNBn6paUIOHNbIe akCEccyaPbI. IlanHpyte CBoI rgaNk paObTI, YTObI pa36nTb nCNOJIb3OBAHMe INHCTpyMeTHOB C BbICOKOI BN6paUneHa HeCKoJIbKO dHei.

4.ПЕДУСМOTPEHOE ИСПОЛБ3OBAHWE

3To yCTpoCTBO ppeHa3HaueHo dIy ydaIeHnIa He6bIbIxN, cIa6bIX BETBeY, cT0bIi POINHTb KPOHy DEpeBa, PO3BOJLA KpyIhBIM BETBM PACTu I yKpeJIbTaC8, YTO DeJaet KPOHy UyKe I PO3BOJAE T BoJIbSeMMy KOJIueCTBy COJIneHcYbIX LyCyE Na4aTb Ha 3emIIIO, cNoOc6CTByR poCTy TpaBbI, IppeIcTCTByR poCTy 6oJIe MeKNX paTeHNI/DepeBbeB/KyctapHnKO, a TaKkeO bc6ceNeUBAra PaCUnCTky DOpoxek. KpOme TORO, yCTpoCTBO MOKHO INcIOLb3OBaTB dIy o6pe3Kn MoIobTxI cyNX BeTOK DepeBbeB dIy ydaIeHnCybeB n CTBOJOL.

5. INHCTPYKUIMI NO 3KCNYATAUIM

TIN WG330EWG330E.X(330-HaHMeHOBaHne

606pyoBAnHnIgTmNOboro 6ecnpOBoHoro ceKaTopa 6pe3Kn BeToK)

CokpaueHne yHKn

COOTBETCTByeT NOLOXHeHnM InpKeKTHB,

2006/42/EC, 2011/65/EU&(EU)2015/863, 2014/30/EU

IcTaNdapTaM

EN 62841-1+EN ISO 12100, EN 55014-1, EN 55014-2

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

CtpaHa npOn3BovcTbA: KHP

I3roTOBnteIb: I03ntEck TexHOIoJxN (KHP) Ko. JtI.

Adesc:OnrBaHr Poyd,18,CyXcoY NHaactpnaI PapK, L3aHcy,KHP

Cpok cnjxkbn3dennr: 6 let

Cpok rapaHTn: 2 roda

Copyright © 2022, Positec. All Rights Reserved.

V0-18L-WG330E WG330E.X-M-20220223
