ND8001 - Shaver SILKN - Free user manual and instructions

USER MANUAL ND8001 SILKN

Package contents/ device parts. 5

General information. 5

Reading and storing the instructions for use. 5

Explanation of symbols 5

Safety. 6

Proper use 6

Safety instructions 7

First use. 10

Checking the shaver and package contents 10

Operation 10

Inserting batteries 10

Using the shaver 11

Cleaning and maintenance 12

Cleaning the shaver head. 12

Cleaning the shaver 13

Storage. 13

Technical data 13

Declaration of conformity 14

Disposal 14

Disposing of the packaging. 14

Disposing of the shaver 14

Warranty. 15

Customer service. 15

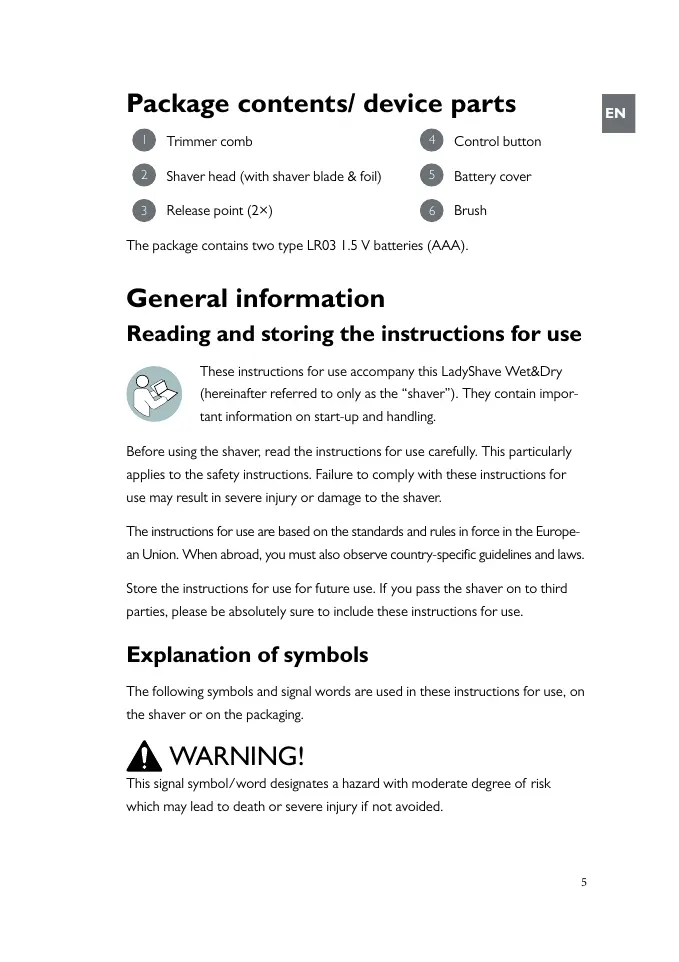

Package contents/ device parts

Trimmer comb

4 Control button

2 Shaver head (with shaver blade & foil)

5 Battery cover

3 Release point (2×)

6 Brush

The package contains two type LR03 I.5 V batteries (AAA).

General information Reading and storing the instructions for use

These instructions for use accompany this LadyShave Wet&Dry (hereinafter referred to only as the "shaver"). They contain important information on start-up and handling.

Before using the shaver, read the instructions for use carefully. This particularly applies to the safety instructions. Failure to comply with these instructions for use may result in severe injury or damage to the shaver.

The instructions for use are based on the standards and rules in force in the European Union. When abroad, you must also observe country-specific guidelines and laws.

Store the instructions for use for future use. If you pass the shaver on to third parties, please be absolutely sure to include these instructions for use.

Explanation of symbols

The following symbols and signal words are used in these instructions for use, on the shaver or on the packaging.

WARNING!

This signal symbol/word designates a hazard with moderate degree of risk which may lead to death or severe injury if not avoided.

This signal symbol/word designates a hazard with low risk that, if not avoided, may result in minor or moderate injury.

NOTICE!

This signal word warns against potential damages to property.

This symbol provides you with useful supplementary information on assembly or operation.

Declaration of conformity (see chapter "Declaration of conformity"): Products marked with this symbol meet all applicable Community regulations for the European Economic Area.

IPX7

Protected against water immersion for up to 30 minutes at a depth of 1m .

Safety

Proper use

The shaver is only designed for shaving body hair on arms, legs, armpits and in the bikini area. It can be used on both wet and dry skin. The shaver has been tested for water ingress two the extent covered by IPX7. This means your device is waterproof and suitable for use in the shower or while taking a bath, but do not leave it submerged in water for more than 20 minutes. It is only intended for private use and is not suitable for commercial use.

Only use the shaver as described in these instructions for use. Any other use is deemed improper and may result in damage to property or even personal injury. The shaver is not a children's toy.

The manufacturer or vendor accepts no liability for damage caused by improper or incorrect use.

Safety instructions

WARNING! DANGER OF EXPLOSION!

Improperly handling the batteries may cause an explosion.

• Only replace the batteries in the shaver with batteries of the same type or batteries of an equivalent type.
• Never short circuit the batteries.
• Never dismantle the batteries.
• Never throw the batteries in fire.
• Never expose batteries to excessive heat or direct sunlight.
• Do not charge any non-rechargeable batteries.

WARNING! RISK OF CHEMICALS!

Leaking battery acid may lead to chemical burns.

• Do not allow battery acid to come into contact with skin, eyes or mucous membranes.
• In the event of contact with battery acid, immediately flush the applicable areas with plenty of clean water and consult a physician.

WARNING! DANGER FOR CHILDREN AND PERSONS WITH IMPAIRED PHYSICAL, SENSORY OR MENTAL CAPACITIES (E.G. PARTIALLY DISABLED PERSONS, OLDER PERSONS WITH REDUCED PHYSICAL AND MENTAL CAPACITIES) OR LACK OF EXPERIENCE AND KNOWLEDGE (E.G. OLDER CHILDREN).

• This shaver may be used by children ages eight and over as well as persons with impaired physical, sensory or mental capacities or those lacking experience and knowledge if they are supervised or have been instructed in how to safely use the shaver and have understood the risks associated with operating it. Children must not play with the shaver. Cleaning and user maintenance must not be performed by unsupervised children.

• Keep children under eight years of age away from the shaver.

• Do not leave the shaver unsupervised.

• Do not allow children to play with the small parts. Children could swallow small parts and choke.

CAUTION! RISK OF INJURY!

Improper handling of the shaver may result in injury.

• Do not share the shaver with other persons.
• Only use the shaver after having consulted a physician if you suffer from eczema, open wounds, allergic skin reactions, varicose veins or a large number of moles.

NOTICE! RISK OF DAMAGE!

Improper handling of the shaver may result in damage to the shaver.

• Never use or store the shaver on or near hot surfaces (e.g. hotplates).
• Never expose the shaver to high temperatures (heaters etc.).
• Never fill the shaver with liquid.

• Do not in any case place the shaver in the dishwasher. This will destroy it.

• Stop using the shaver if the plastic parts of the shaver exhibit cracks or breaks or are deformed. Only replace damaged parts with corresponding original spare parts.

First use

Checking the shaver and package contents

NOTICE! RISK OF DAMAGE!

If you are not cautious when opening the packaging with a sharp knife or other pointed objects, you may quickly damage the shaver.

• Be very careful when opening the packaging.

• Carefully take the shaver and the accessories out of the packaging.

• Check to make sure that the delivery is complete (see Fig. A).
• Check whether the shaver or the individual parts exhibit damage. If this is the case, do not use the shaver. Please contact the Silk'n service centre in your area (see chapter "Customer Service").

Operation

Inserting batteries

CAUTION! RISK OF INJURY!

Improper handling of the shaver may result in injury.

• Ensure that the shaver is switched off and the protective cover is mounted before you insert the batteries.

I. Pull the battery cover 5 up and off (see Fig. B).
2. Insert two I.5 V LR03 (AAA) batteries in the battery holder.
3. Put the battery cover back on the shaver. The battery cover must lock into place with a "click".

Using the shaver

Trimming

I. Attach the trimmer comb 1 to the shaver head 2
2. Position the shaver at a 90^ angle on your skin.
3. Press the control button 4 for three seconds to turn the machine on on the low speed mode (red light). To enter the high speed mode (blue light), press the control button 4 for a second time.
4. Slowly run the shaver opposite the direction of hair growth on the part of your body you are trimming.
5. To switch the device off, press the control button two times if you are in the low speed mode and one time if you are in the high speed mode.

Shaving

I. Pull the trimmer comb 1 off of the shaver head 2
2. Use warm water and soap to wash off the part of your body you intend to shave.
3. Pull the skin on the part of your body you intend to shave taut.
4. Press the control button 4 for three seconds to turn the machine on on the low speed mode (red light). To enter the high speed mode (blue light),

press the control button for a second time.

1. Position the shaver at a 90^ angle on your skin.
2. Slowly run the shaver opposite the direction of hair growth on the part of your body you are shaving.
3. To switch the device off, press the control button two times if you are in the low speed mode and one time if you are in the high speed mode.

After shaving, apply body lotion or baby powder to the applicable parts of your skin.

Cleaning and maintenance

NOTICE! RISK OF DAMAGE!

Improper handling of the shaver may result in damage.

• Do not in any case place the shaver in the dishwasher. The shaver would be destroyed as a result.
• Take the batteries out of the battery compartment before you clean the shaver.
• Do not hold the shaver submerged in water (max. 1 m) or under running water for more than 20 minutes.

Cleaning the shaver head

I. Push the two release points 3 at the same time and pull the shaving foil

and then the shaver blade off.

1. Use the brush 6 to remove small hairs.
2. Rinse the shaver head and the parts under clean water.
3. Dry the shaver head and the parts completely.
4. Put the shaver blade and foil back on the shaver head 2

Cleaning the shaver

1. Check that the battery cover 5 is securely locked.
2. Wipe the shaver off with a damp cloth or briefly hold it under running lukewarm water.
3. Let all parts dry completely afterwards.

Storage

All parts must be completely dry before being stored.

Always store the shaver in a dry area.
- Use the original packaging or a similar box for storage.
- Remove the batteries if you do not intend to use the shaver for a prolonged period.
- Attach the trimmer comb 1 to the shaver.
- Store the shaver so that it is securely locked away preventing access by children.

Technical data

Model: ND8001

Power supply: 2 × 1.5V , LR03 (AAA)

Weight, g: 110

Dimensions (W× H× D) ,cm: 16.9× 2.85× 5.1

IP code: IPX7

Operating time: low speed: 75 min / high speed: 60 min

Output: 3 V

Material, housing: ABS, PC

Declaration of conformity

The EU declaration of conformity can be requested from the address specified on the back.

Disposal

Disposing of the packaging

• Dispose of the packaging separated into single type materials.
• Dispose of cardboard and carton as waste paper and film via the recyclable material collection service.

Disposing of the shaver

(Applicable in the European Union and other European states with systems for the separate collection of reusable waste materials)

Old devices must not be disposed of with household waste!

If the shaver is no longer operational, every consumer is required by law to dispose of used devices separately from household waste, e.g. at a collection point run by the communal authority or borough. This ensures that old devices are recycled in a professional manner and also rules out negative consequences for the environment. For this reason, electrical equipment is marked with the symbol shown here.

Batteries and rechargeable batteries do not belong in the household waste!

As the end user you are required by law to bring all batteries and rechargeable batteries, regardless whether they contain harmful substances* or not, to a collection point run by the communal authority or borough or to a retailer, so that they can be disposed of in an environmentally friendly manner.

*labelled with: Cd = cadmium, Hg = mercury, Pb = lead

Warranty

This product is covered by a 2-year warranty according to European regulations and law. The extent of the warranty on this product is limited to technical defects caused by faulty production processes. In the event you want to claim warranty please be sure to contact our customer service for instructions. They may be able to solve your problem without needing to return the product to the store or our service center. Our customer service is always pleased to help you!

Customer service

For more information about the products of Silk'n visit your regional Silk'n website: www.silkn.eu. If the device is damaged, defective, in need of repair or you need our assistance, please contact your nearest Silk'n service center. This manual is also available as a PDF download from: www.silkn.eu.

Service number: 0906-2130009 / 0031(0)180-330550

Email: [e-mail] / [e-mail]
