USER MANUAL 55BJ2E SHARP

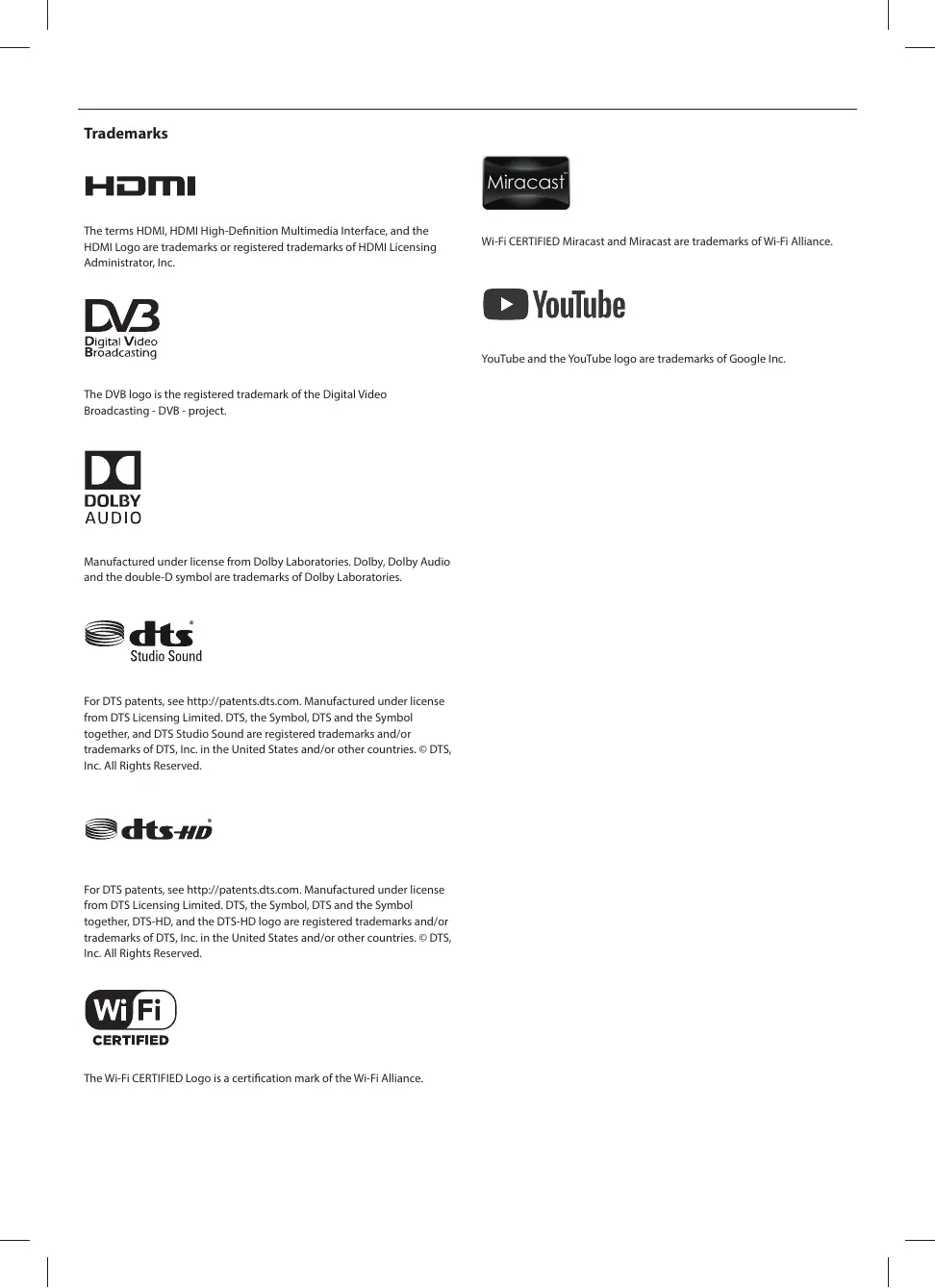

Digital Video Broadcasting The DVB logo is the registered trademark ofthe Digital Video Broadcasting - DVB - project.

DOLBY AUDIO Manufactured under license from Dlby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Studio Sound For DTS patents, see http-/patents dts. com, Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, and DTS Studio Sound are registered trademarks and/or trademarks of DTS, Inc. in the United States and/or other countries, © DTS, Inc. All Rights Reserved. Sdtso For DTS patents, see http-//patents dts. com, Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, DTS-HD, and the DTS-HD logo are registered trademarks and/or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved. CERTIFIED The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance. Wi-Fi CERTIFIED Miracast and Miracast are trademarks of Wi-Fi Alliance, © Youtube YouTube and the YouTube logo are trademarks of Google Inc.

Please, read these safety instructions and respect the following warnings before the appliance is operated: In order to prevent fire always keep candles and other open flames away from this product. 2 Television sets with 43'size screens or more must be lifted and carried by At least turo people. 2 This TV does not contain any parts which could be repaired by the user. In case of a fault, contact the manufacturer or the authorised service agent. Contact with certain parts inside the TV might endanger your if. The guarantee does not extend to faults caused by repairs carried out by unauthorized third parties. + Do not remove the rear part of the appliance. + This appliance is designed for the receiving and reproduction of video and sound signals. Any other use is strictly forbidden. + Do not expose the TV to dripping or splashing liquid. : To disconnect the TV from mains please unplug the mains plug from the mains socket :_Ifthe supply cord is damaged, it must be replaced by the manufacturer, a service agent or similar qualified persons in order to avoid a hazard. + The suggested distance to watch HDTV is approximately three times longer than the screen diagonal size. Reflections on the screen from other light sources can make the quality ofthe picture worse. + Ensure the TV has suficient ventilation and is not close to other appli- ances and other pieces of furiture. + Install the product at least 5 cm from the wall for ventilation. + Ensure that the ventilation openings are clear of items such as newspa- pers table-cloths, curtains, et. + The TV setis designed to be used in a moderate climate. + The TV setis designed exclusively for operation in a dry place. When using the TV outside, please, make sure ris protected against moisture {rain, splashing water. Never expose to moisture. + Do not place any objects, containers flled with liquids, such as vases, etc. on the TV. These containers might get pushed over, which would ‘endanger electric safety. Place the TV exclusively on flat and stable surfaces. Do not place any objects such as newspaper or blankets, etc. on or underthe TV. + Make sure the appliance does not stand on any power cables as they might get damaged. Mobile phones and other devices such as WLAN adapters, monitoring cameras with wireless signal transmission, etc. might cause electromagnetic interference and they should not be placed near the appliance. + Do not place the appliance near heating elements or in à place with direct sunlight as it has a negative effect on cooling ofthe appliance. Heat storage is dangerous and it can serious}y reduce the lifetime of the appliance. In order to ensure the safety, ask 2 qualified person to remove the dirt from the appliance. Try to prevent damage to the mains cable or mains adapter. The appli- ance can only be connected with the supplied mains cable/ adapter. 2 Storms are dangerous for all electric appliances. IFthe mains or aerial wiring is struck by lightening the appliance might get damaged, even if itis turned off. You should disconnect all the cables and connectors of the appliance before a storm. To clean the screen of the appliance use only a damp and soft cloth. Use only clean water, never detergents and in no case use solvents. Position the TV close to the wall to avoid the possibiity ofit falling when pushed. + WARNING - Never place a television set in an unstable location. À televi- ion set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: + Use cabinets or stands recommended by the manufacture of the television set. + Only use furniture that can safely support the television set. + Ensure the television set is not overhanging the edge ofthe supporting furniture, Not place the television set on tal furniture (for example, cupboards or bookcases) without anchoring both the fumiture and the television set 0 a suitable support. Not place the television set on clath or other materials that may be located between the television set and supporting furniture. Educate children about the dangers of cimbing on furiture to reach the television set or is controls. + Ensure that children do not climb or hang onto the TV. + IFyour existing television set is being retained and relocated, the same considerations as above should be applied. + The instructions shown below are a safer way to set up the TV, by fxingit to thewall and will avoid the possibiliy ofitfalling forwards and causing injury and damage. For this type ofinstallation you will need a fastening cord A) Using one/both of the top wall-mounting hales and screws (the screws are already supplied in the wall mounting holes) fasten one end ofthe fastening chord/s to the TV.

8) Secure the other end of the fastening chord/s to your wall.

+_ The software on your TV and the O$D layout can be changed without notice. + Note: In case of electrostatic discharge (ESD) the apparatus may show incorrect function. In such case, switch the TV off and back on. The TV wél work normal.

2 Do not use TV set direct after unpacking Wait until TV arms up to the room temperature before using 2 Never connect any external devices t a ve applance, Siitch ff not only the TV but als the devices which are being connected! Plug the TV plug into the wal socket alter connecting any external devices and the aenall Aays make sure there free access to the TV mains plug The appliance is not designed for a ein a workplaceftted th montors The systematicuse of headphones at high volume might lead to ever ibl hearing damage. + Ensure environmental disposal ofthis appliance and any components including batteres.\hen in doubt please, contact your local authority for detal ofrecyclng + Will instaling the applance, do not forget that furniture surfaces are Arested with various vanishes, pastis et, or they might be paished The chemical contained in these products might ave a reaction with the TV stand.This could result in bits of the material sticking to the furni- ture surface which are dificult to remove, Inotimpossble. The screen ofyour TV has been produced under top qualty conditions and was checked in detall for fauty pixels several times. Due to the tech- nological properties ofthe manufacturing process is not possible to eliminate the exstence of small number of faulty points on the screen {even with maximun care while in production). These auly pins are not considered fault in terms of guarantee conditions, their extent is not grester than the boundares defined by DIN norm. 2 The manufacture cannot be held responsible, or be able for customer sevice-rlted issues related to the third party content or services. Any questions, comments or servce-elated inquies relating to he third part content or service should be made directyto the applicable content or service provider There area variety ofressons you may be unable to acces content or services from the device unrelated to the device sel, including, but not

limited to, power failure, the Internet connection, or failure to configure your device correctiy. UMC Poland, its directors officers, employees, agents, contractors and afliates shall not be liable to you or any third party with respect to such failures or maintenance outages, regardless of cause or whether or not it could have been avoided. Allthird party content or services accessible via this device is provided to you on an"as-is and'as available” basis and UMC Poland and ts affliates make no warranty or representation of any kind to you, elther express or implied, including, without limitation, any warranties of merchantabilty, non-infringement fitness for a particular purpose or any warranties of suitability, availabilty, accuracy, completeness, security, title, usefuiness, lack of negligence or error-free or uninterrupted operation or use ofthe content or services provided to you or that the content or services wall meet your requirements or expectations. + lUMC Poland is not an agent of and assumes no responsibility for the cts or omissions of third party content or service provides nor any aspect ofthe content or service related to such third party providers. In no event will UMC Poland'and/or ts affliates be liable to you or any third party for any direct indirect, special incidental, punitive, conse- ‘quential or other damages, whether the theory ofliabiity is based on contract, tort negligence, breach of warranty, strict iability or otherwise and whether or not UMC Poland and/or its affliates have been advised ofthe possibilty ofsuch damages. + This product contains technology subject to certain intellectual property rights of ion of this technolo- gy outside of this product is prohibited without the appropriate icense(s) from Microsoft. icrosoft PlayReady" content access tech- nology to protect their intellectual property, including copyrigh- ted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. Ithe device fails to properly enforce restrictions on content usag content owners may requi o consume PlayReady- affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. f you decline an upgrade, you will not be able to access content that requires the upgrade. Important information regarding use of video games, computers, captions and other fixed image displays. + The extended use offixed image program material can cause a perma- nent'shadowimage” on the LCD screen (this is sometimes incorrect referred to as“bumout to the screen’) This shadow image is then perma- nentiy visible on the screen in the background, is ireverible damage. You can avoid such a damage by following instructions below: Reduce the brightness/contrast setting to a minimum vieing level. Do not display the fned image for long period oftime. Avoid display ingo » Teletexttime and charts » TV/OVD menu, eg. DVD contents, > InthePause’ mode (hold): Do notuse this mode for long time, eg. wilewatching à DVD or video > Tum offthe appliance you are not using it Batteries + Observe the correct polarity when inserting the batteries. + Do not expose batteries to high temperatures and do not place them on locations where the tempera- ture might increase quickly, e.g. near the fire or on the direct sunshine. Do not expose batteries to excessive radiant heat, cd do notthrowthem into the fire, do not disassemble them and do not try to recharge un-rechargeable batteries. They could Ieak or explode. » Never use different batteries together or mix new and old ones. » Dispose of batteries in an environmentall fendly way. » Most ofthe EU countries regulate the disposal of batteries by law. CAUTION: 2 CLASS 1 LASER PRODUCT (Applies to models with built in DVD player) This caution labels located on the rear panel ofthe unit 2 THIS UNITIS A CLASS 1 LASER PRODUCT. THIS UNIT USES A VISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPO- SURE IF DIRECTED. 8€ SURE TO OPERATE THE PLAVER CORRECTLY AS INSTRUCTED. WHENTHIS UNIT IS PLUGGED INTO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENINGS TO LOOK INTO THE INSIDE OF THIS UN. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCE- DURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARD-

OUS RADIATION EXPOSURE

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVIC- INGTO QUALIFIED PERSONNEL. Disposal 2 Do not dispose ofthis TV as unsorted municipal waste. Return to a designated collection point for the recycling of EE. 8y doing so you will help to conserve resources and protect the environment. Contact your retail or local authors for more information

CE Statement: + Hereby, UMC Poland Sp. 0.0. declares that this LED TVis in compliance with the essential requirements and other relevant provisions of RED Di- rective 2014/53/EU. wwwsharpconsumereu/documents-of-conformity/ The fulltext ofthe EU declaration of conformiy is available by following the link wwwsharpconsumereu/documents-of-conformity/ This equipment may be operated in all EU countries. Wi-Fi max transmitter power: 100 mW at 2,412 GHz - 2,472 GHz

What is included in the box Supply of this TV includes following part IV + x IVstandinstaltion packet = DéRemote control Quick Start Quide 2 2 AAAbatteries 7 HeWal mount set (M6G5 screw and 4x plastic spacen)® + Available on for 50° models Attaching the Stand Please follow the instructions in Technical leaflet, located in the accessories bag. Wall mounting the TV

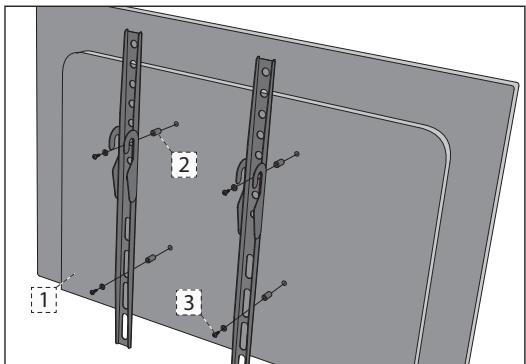

1. Remove the four screws that are supplied in the wall mounting holes.

2. The wall mount can now be easily attached to the mounting holes on

3. Installthe well mounting bracket to the television as advised by the

bracket manufacturer. When attaching wall mount brackets on 50° model, instead of screwes provided in TV wall mounting holes, we recommend the use of longer screws and spacers included in the accessory pack. Please put spacers into TV wall mounting holes, located on the back ofthe TV, then put wall brackets onto them. Attach brackets and spacers to TV using longer screws 25 shown below:

NOTE: TV and'the wall bracket type shown in the diagram is far illustration purposes only. Connections Connecting external devices see last pag CT Getting started - initial set up 1: Using the RF cable, connectthe TV to the TV Aerial al socket. For connecting to the Internet with a wired connection connect a Cat 5/Ethemet cable (not included) from the TV to your broadband modem/router. Insert the batteries supplied into the Remote control Connect the power cable to the Electrical outlet. ‘Then press Standby button to power on TV. After tuming the TV on, you will be welcomed by the First Time Installation menu, Hit does not appear, on the remote control please press [MENU] then 8-8-8-8 andthe menu will appear. Iyou wish to make changes to any ofthe default settings, use the scroll A/W//» buttons, To exit this menu at anytime, press [EXIT) button.

red settings in FIRST TIME INSTALLATION screen. TV buttons* Vol+ Volume up and menu right Vol- Volume down and menu left CH+ Programme/Channel up and menu up CH- Programme/Channel down and menu down MENU Displays Menu/OSD SOURCE Displays the input source menu STANDBY Standby Power On/Of for TV with buttons TV Control Stick* TV control stick is located on the lower left comer of back side of the TV. You can use itinstead of remote control to contral most of the functions ofyourTv. While TV is in standby mode: + short press of control stick - Powrer On While watching T + RIGHT/LEFT - volume up/volume down + UP/DOWN - changes channel up/down + shortpress - Displays Menu + long press - Standby Power Off While in menu: + RIGHT/LEFT/UP/DOWN - navigation of cursor in on-screen menus + short press - OK/Confirm selected item + long press - Back to previous menu *_-for TV with control stick Choosing Mode Input/Source To switch between the different input/connections, a) Usingthe buttons on the remote control:

1. Press [SOURCE/-]-The source menu will appear.

2. Press [4] or [D] to select the input you require.

b1) Using the buttons* on the Televisi

2. Scroll up/doumn using VOL+ /VOL- buttons to the input/source you

3. Press [SOURCE] to change input/source to the one selected.

b2) Using the TV control stick":

1. Shortiy press control stick to enter menu

2. Press control stick down and navigate cursor to SOURCES menu.

3. Shortiy press control stick to enter SOURCES menu.

4. With control stick choose the input/source you require.

5. 8y short press of control stick, you wil change input/source to the

oneselected. *-optional TV Menu navigation To access this menu, press [MENU] button on the remate control. To enter a menu press [OK]. If you wish to make changes to any ofthe default settings, use the scroll (A /W/4/2 ) buttons, To confirm any settings press OK] button. To exit this menu at anÿtime, press [EXIT] button. ‘To launch the Online Manual, press the [MENU] button and then select Settings>About TV>Help Information> View Online Manual. Remote control See in On Screen Manu:

b1) Paina television painikkeita®:

1. Spauskite [SOURCE]
