Product type	Exercise bike
Brand	CARE FITNESS
Model	Med-528-3
Dimensions (L × W × H)	95 × 60 × 141 cm
Weight	31,1 kg
Maximum user weight	120 kg
Floor space	0,57 m²
Screen	LCD with backlight
Training programs	Manual, preset (12), user (4), heart rate control (5), watt control (1), fat (1)
Resistance levels	25 levels (adjustable during exercise)
Heart rate sensors	Metal handles (integrated)
Displayed functions	Time, distance, RPM, speed, calories, heart rate, watt, age
USB port	Yes (stores exercise data in CSV format)
Power supply	Battery (not specified) or mains adapter (not included) – estimation
Brake	Speed-independent
Warranty	Frame 5 years, wear parts 2 years
Maintenance	Check fasteners, lubricate moving parts, clean with a damp sponge
Safety	Household use only, free space of at least 0.5 m on each side, do not use in a humid environment
Standard	EN-957 class HC (domestic)
Wear parts	Handle grip foam, end caps
Recycling	Do not dispose of with household waste; take to an approved collection point

Frequently Asked Questions - Med-528-3 CARE FITNESS

How many training programs are available on the Med-528-3?

The bike offers 24 programs: 1 manual, 12 presets (step, hill, fat burn, etc.), 4 programmable user, 5 heart rate control, 1 watt control, and 1 body fat measurement.

How to adjust the resistance during exercise?

Turn the central knob clockwise to increase resistance and counterclockwise to decrease it. The change is immediate and visible on the screen.

My heart rate is not displaying correctly, what should I do?

Make sure your hands are properly placed on the metal sensors on the handles. Heart rate control systems can be inaccurate; do not rely solely on them. Consult the manual for troubleshooting.

Can I use a USB flash drive with this bike?

Yes. Insert a USB flash drive into the designated port. During exercise, press the button for 2 seconds to save data. The device creates one CSV file per month (e.g. 2023-10.CSV).

What do error codes E1, E2, E3 mean?

E1: no motor signal for more than 4 seconds. E2: internal memory problem. E3: motor does not return to zero at startup. Turn the device off and on again. If the error persists, contact customer service.

How to maintain my exercise bike?

Regularly check the tightness of screws and nuts. Lubricate moving parts. Clean the device after each use with a damp sponge. Avoid corrosive products. Sweat is corrosive, wipe off immediately.

What is the maximum user weight?

The maximum authorized weight is 120 kg. Do not exceed this limit to ensure safety and durability of the device.

Do I need a protective mat under the bike?

Yes, it is recommended to use a mat to protect your floor. Also make sure the surface is flat and stable, with at least 0.5 m of free space around the device.

How to measure my body fat percentage?

Use program 24 (FAT). Enter your height, weight, gender, and age. Place your hands on the pulse sensors and press START/STOP. The screen will display your fat %, BMI, and BMR.

What to do if the screen remains black?

The screen goes to sleep after 4 minutes of inactivity. Touch any key or pedal to reactivate it. If nothing happens, check the power supply (battery or adapter).

USER MANUAL Med-528-3 CARE FITNESS

Important: Read these instructions before using the equipment!

Safety

• Read this user manual and keep it in a safe place. Use this product exclusively in the manner indicated.
• This equipment must be assembled and used by adults.
• The equipment complies with the EN-957 standard, classification HC for use in the home. It must not be used in a sports center or any other public, associative or rented space.
• Ensure the installation base is levelled and stable. Please make sure there is 0.6m free space around the machine (see picture below-solid circle indicates the radius of training area) and at least 0.5m of free space on each side of the machine (see picture below-dashed line indicates an additional free space.

• WARNING! Rhythm control systems heart rate may be inaccurate. Overtraining can lead to serious injury or death. If you feel unwell, stop training immediately.
• For totally safe use, a stable, level surface is required. Protect your floor covering with a mat. Do not use the equipment in damp areas (swimming pool, sauna, etc.).
• Do not allow children to play with this equipment. CARE declines all responsibility for any injuries they may incur. Do not allow children close to this equipment when you are training.
• CARE declines all responsibility if technical modifications are made to any of its products by the user.
  Maximum weight of user: 120kg
  Before you start training, it is essential that you consult your doctor to determine the intensity level of the program you use.
• CAUTION: The control systems of the
• heart rate may be incorrect. Excessive exercise can cause serious injury
• or cause death. If you feel any discomfort, stop the exercises immediately.
• Excessive or badly programmed training can damage your health.
• Keep your back straight when exercising.
• It is strongly recommended that your wear suitable clothing and footwear.

Maintenance

• Regularly check that elements fastened with nuts and bolts are correctly tightened.

• To maintain the level of safety, the equipment must be regularly checked. It is vital that any faulty parts are replaced and that it is not used until completely repaired. Remember regularly to grease moving parts.

• As sweat is very corrosive, do not allow it to come into contact with the enameled or chromed parts of the equipment, particularly the computer. Immediately wipe the equipment after training. The enameled parts can be cleaned using a damp sponge. All aggressive or corrosive products should be avoided.
• Poids unitaire : 31.1kg
• Dimensions : 95x60x141cm (0.57m²)
• The braking system is independent of speed
• This class C crank training device is not suitable for high precision exercises

Guarantee: the chassis is guaranteed for 5 years. Moving parts are guaranteed for 2 years. The guarantee applies to normal use by a private individual in his home. Validate your product warranty on line www.carefitness.com

Recycling : The « crossed out dustbin » sign means that this product and its batteries cannot be thrown out whit domestic waste. They should be treated apart. When you have finished with them, drop them at an authorised collection point so they can be recycled. This gesture will go towards protecting the environment and your health.

*the parts most subject to wear is the grip foam and end cap.

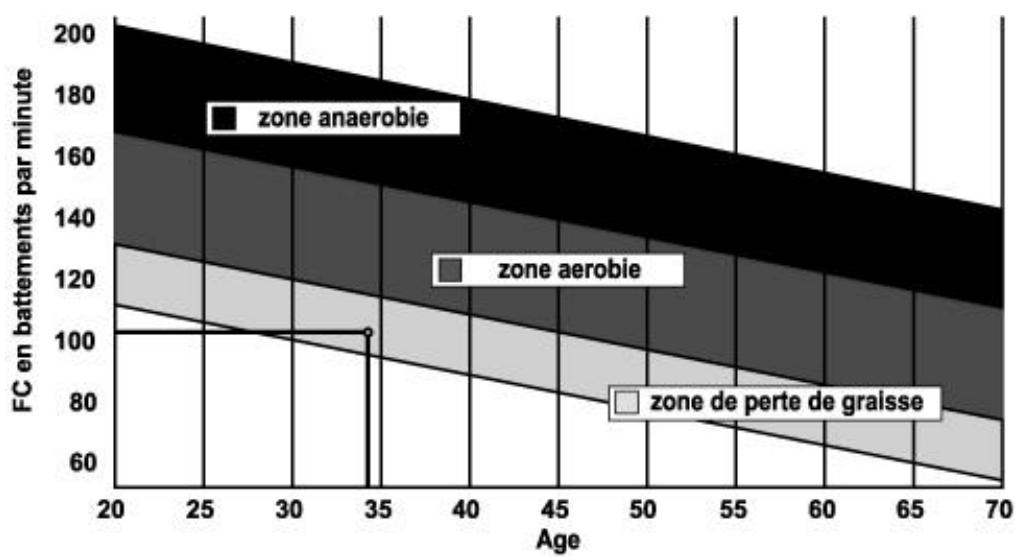

Programme Contrôle de fréquence cardiaque : 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Target (cible) H.R.C.

Programme 18 : 55% Max H.R.C. - - Target H.R. = (220 - AGE) x 55%

Programme 19 : 65% Max H.R.C. - - Target H.R. = (220 - AGE) x 65%

Programme 20 : 75% Max H.R.C. - - Target H.R. = (220 - AGE) x 75%

Programme 21 : 85% Max H.R.C. - - Target H.R. = (220 - AGE) x 85%

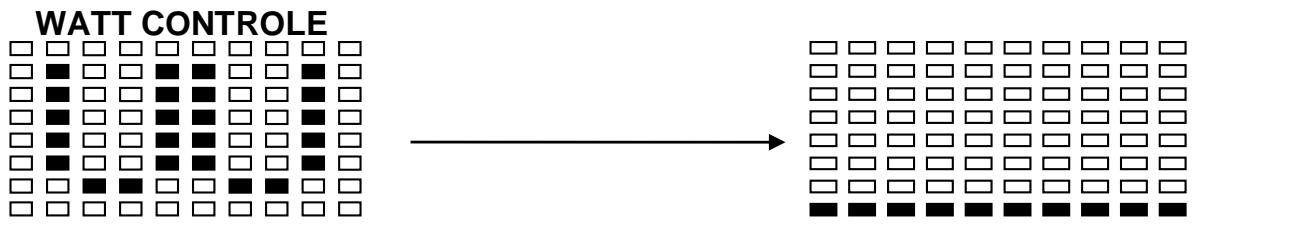

PROGRAMME CONTROLE WATT

PROGRAMME 23

CONTROLE WATT

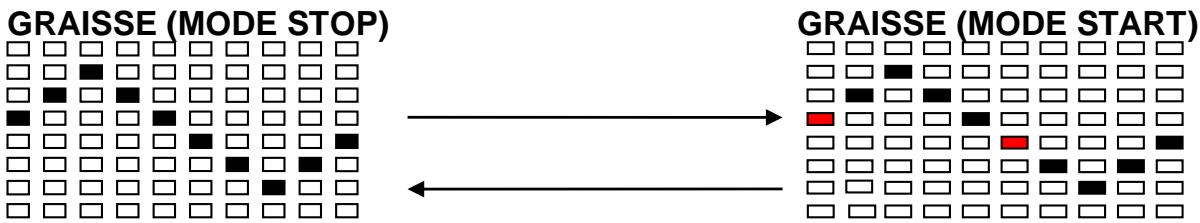

PROGRAMMES TEST GRAISSE :

PROGRAMME 24

http://www.carefitness.com/sav

3

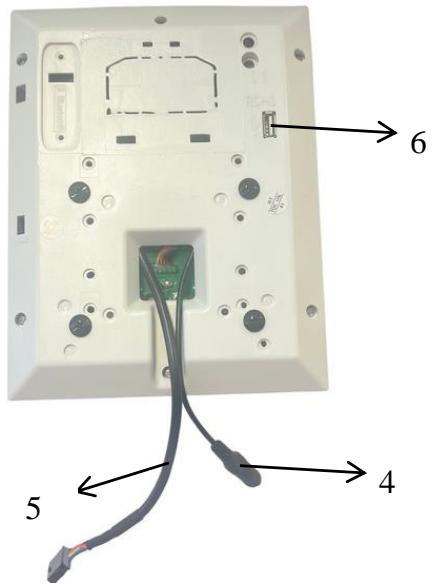

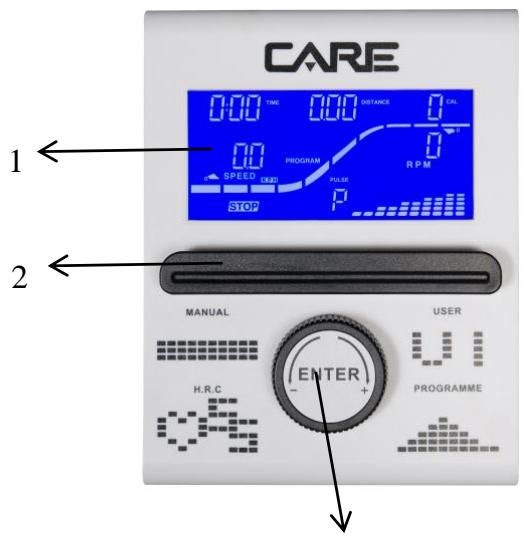

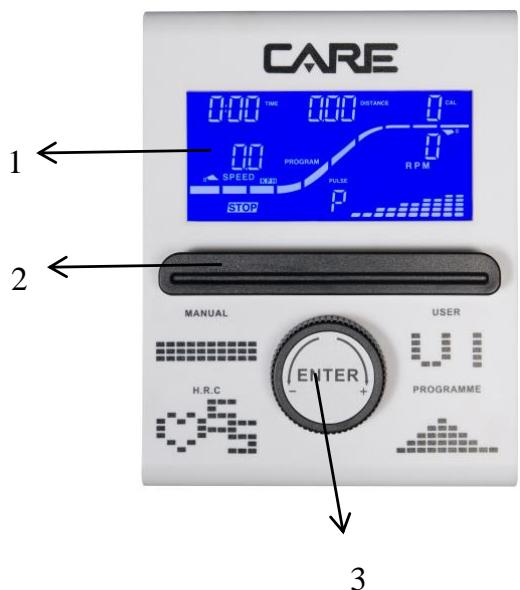

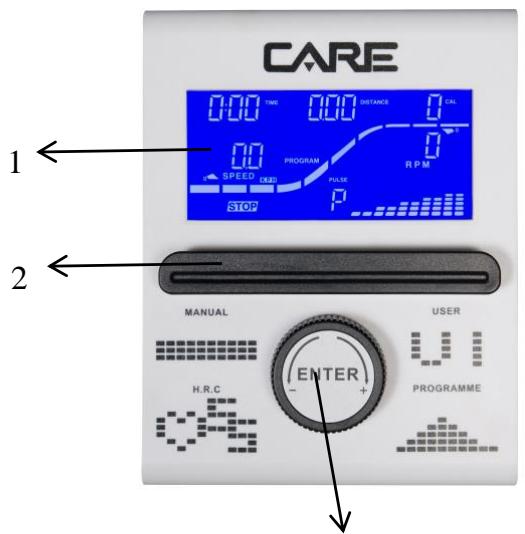

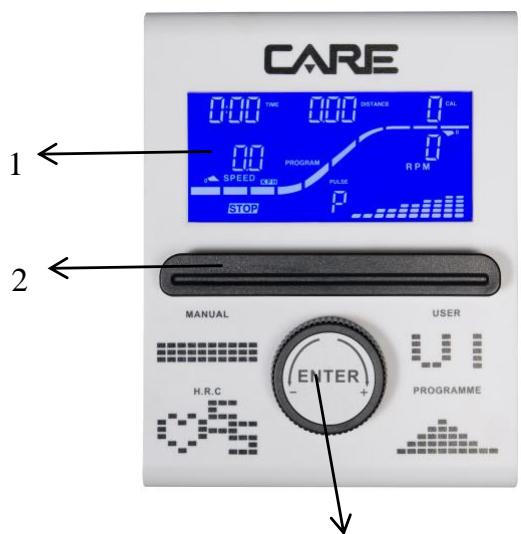

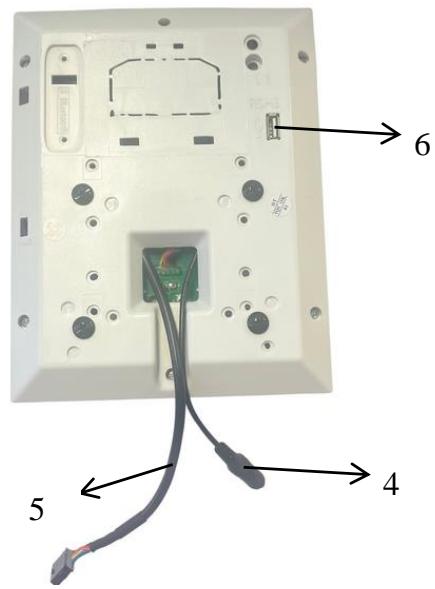

1. LCD
2. TABLET HOLDER
3. ROTATION BUTTON -ENTER
4. SENSOR CABLE
5. PULSE CABLE
6. USB PORT

SETTING THE DATE AND CLOCK

1. Press the button 6 seconds to enter the setup mode.
2. Turn the button to increase or decrease the value and then press the button to confirm. It will go the next setup value. Monitor will follow the sequence Hour-Minute- Month-day- Year-to setup the correct value.

The things you should know before exercise

A. Auto start and stop function

Pedaling exercise equipment, the monitor will start immediately. Stop pedaling after 4 seconds will go to stop mode. You can select program and set up the exercise target only in the stop mode.

B. UP & DOWN function

1. During the program setting mode, turn the button to increase ( clockwork side) or decrease (reverse clock side) value.
2. During the exercise mode, turn the button to increase or decrease the resistance level.

C. Enter function

Press the button to confirm your program choosing or confirm your target value to do exercise. You can set up the exercise time, Distance and calorie but only can choose one of them to be your exercise target every time.

D. Reset monitor function

Press and hold button 3 seconds can reset the monitor.

E.Pulse Recovery function

Once reach your exercise target, the monitor will have Bi sound 5 seconds. Please move your hand to the heart rate sensor. After one minute you can get your result.

time starts counting from 01:00 - 00:59 - - to 00:00. As soon as 00:00 is reached, the computer will show your heart rate recovery status with the grade F1.0 to F6.0.

1.0 means OUTSTANDING

1.0 < F < 2.0 means EXCELLENT

2.0 ≤ F ≤ 2.9 means GOOD

3.0 ≤ F ≤ 3.9 means FAIR

4.0 ≤ F ≤ 5.9 means BELOW AVERAGE

6.0 means POOR

Normal test picture

No heart rate input picture

F. Target heart rate

You can set up your target heart rate value. Once reach your target, monitor will produce bi sound to remind you.

A. Program select and setting value

1. Turn the button to select program mode and then press ENTER to confirm your exercise mode.
2. At the Manual mode, turn the button to set up your exercise TIME, DISTANCE, CALORIES, PULSE. Press the button to confirm your target value.
3. pedaling the machine to start exercise.
4. When you reach the target, the computer will produce beep sounds and go to pulse recovery function.

B Wake-Up Function

The monitor will entry SLEEP mode (LCD off) when there is no signal input and no key be pressed after 4 minutes. Press the screen to start the monitor.

Functions and Features:

1. TIME: Shows your elapsed workout time in minutes and seconds. Your computer will automatically count up from 0:00 to 99:59 in one second intervals. You can also program your computer to count down from a set value by using the UP and DOWN keys. If you continue exercising once the time has reached 0:00, the computer will begin beeping, and reset itself to the original time set, letting you know your workout is done.
2. DISTANCE: Displays the accumulative distance traveled during each workout up to a maximum of 99.9KM/MILE.
3. RPM: Your pedal cadence.
4. WATT: The amount of mechanical power the computer is receiving from your exercise.
5. SPEED: Displays your workout speed value in KM/MILE per hour.
6. CALORIES: Your computer will estimate the cumulative calories burned at any given time during your workout.
7. PULSE: Your computer displays your pulse rate in beats per minute during your workout.
8. AGE: Your computer is age-programmable from 10 to 99 years. If you do not set an age, this function will always default to age 35.
9. TARGET HEART RATE (TARGET PULSE): The heart rate you should maintain is called your Target Hear Rate in beats per minute.
10. DISTANCE BAR: Every bar indicates 100 meter or 0.1 mile.

Program Introduction & Operation:

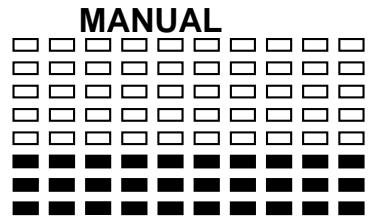

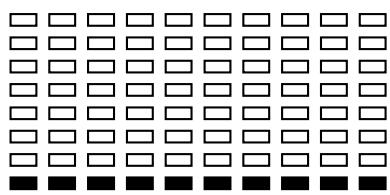

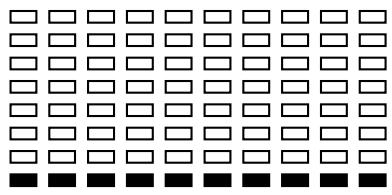

Manual Program: Manual

P1 is a manual program. User can start exercise by pressing START/STOP key. The default resistance level is 5. Users may exercise in any desirous of resistance level (Adjusting by UP/DOWN keys during the workout) with a period of time or a number of calories or a certain distance.

Operations:

1. Use UP/DOWN keys to select the MANUAL (P1) program.
2. Press the ENTER key to enter MANUAL program.
3. The TIME will flash and you can press UP or DOWN keys to set your exercise TIME. Press ENTER key to confirm your desired TIME.
4. The DISTANCE will flash and you can press UP or DOWN keys to set your target DISTANCE. Press ENTER key to confirm your desired DISTANCE.
5. The CALORIES will flash and you can press UP or DOWN keys to set your exercise CALORIES. Press ENTER key to confirm your desired CALORIES.
6. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press ENTER key to confirm your desired Pulse.
7. Pedaling the machine to begin exercise

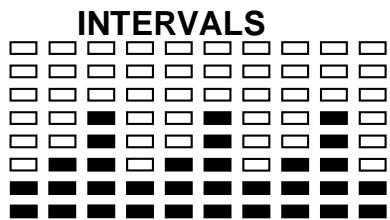

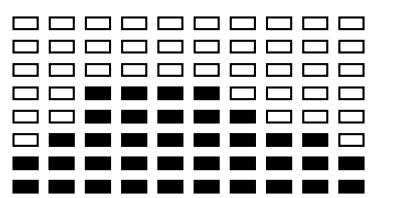

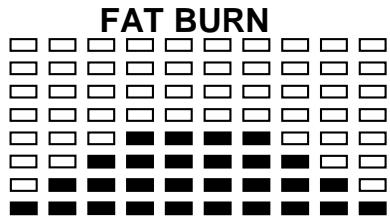

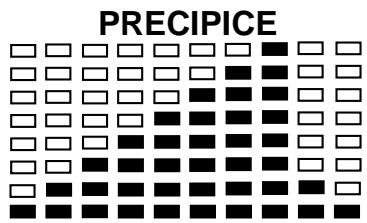

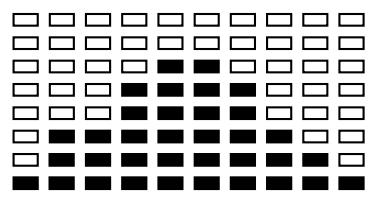

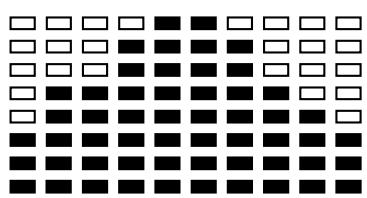

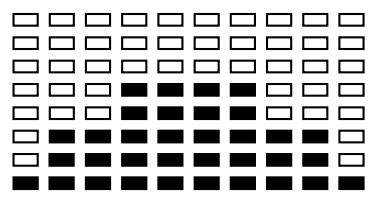

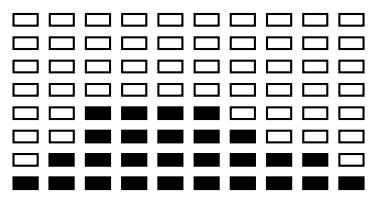

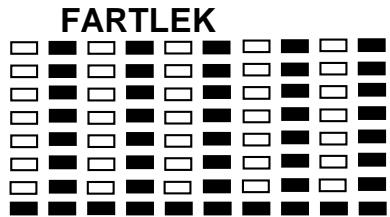

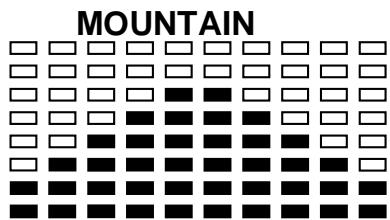

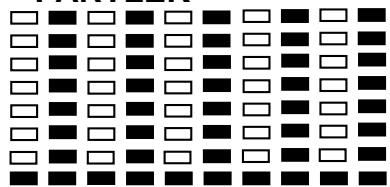

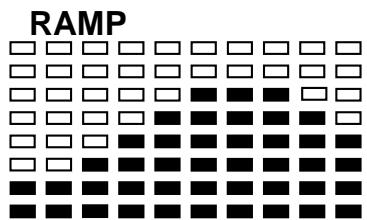

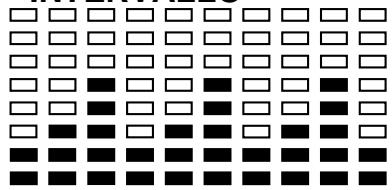

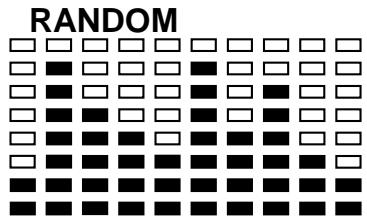

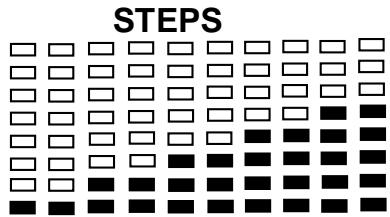

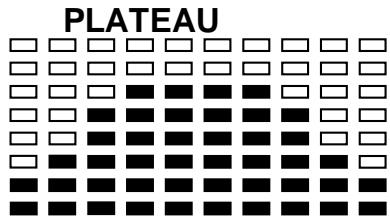

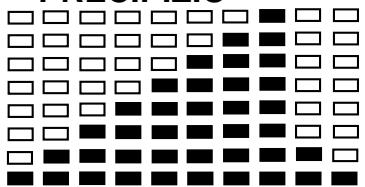

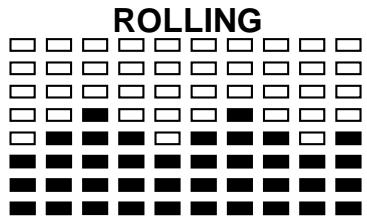

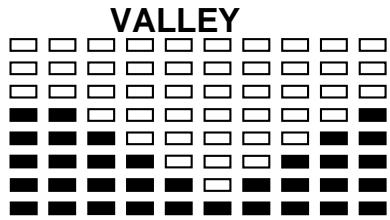

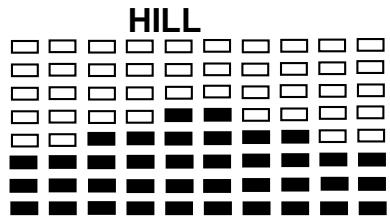

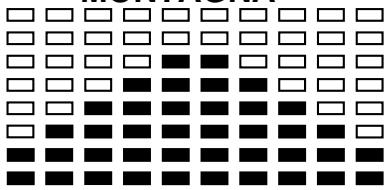

Preset Program: Steps, Hill, Rolling, Valley, Fat Burn, Ramp, Mountain, Intervals,

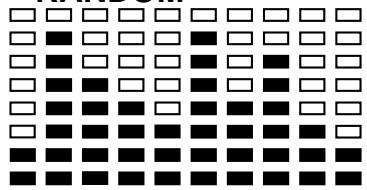

Random, Plateau, Fartlek, Precipice Program

PROGRAM 2 to PROGRAM 13 is the preset programs. Users can exercise with different level of loading in different intervals as the profiles show. Users may exercise in any desirous of resistance level (Adjusting by UP/DOWN keys during the workout) with a period of time or a number of calories or a certain distance.

Operations:

1. Use UP/DOWN keys to select one of the above programs from P2 to P13.
2. Press the ENTER key to enter your workout program.
3. The TIME will flash and you can press UP or DOWN keys to setting your exercise TIME. Press ENTER key to confirm your desired TIME.
4. The DISTANCE will flash and you can press UP or DOWN keys to setting your target DISTANCE. Press ENTER key to confirm your desired DISTANCE.
5. The CALORIES will flash and you can press UP or DOWN keys to setting your exercise CALORIES. Press ENTER key to confirm your desired CALORIES.
6. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press ENTER key to confirm your desired Pulse.
7. Pedaling the machine to begin exercise

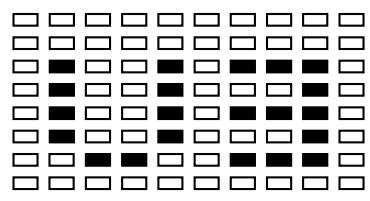

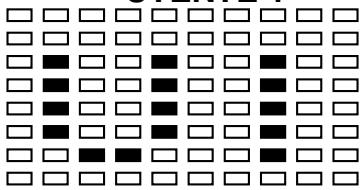

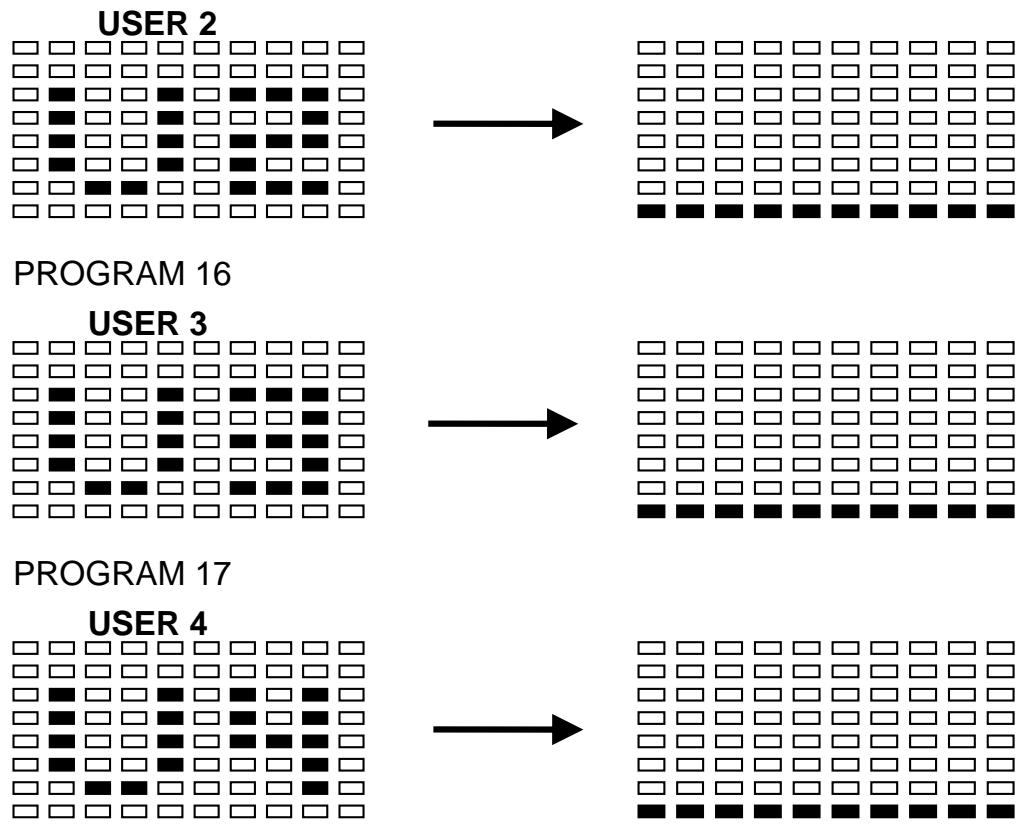

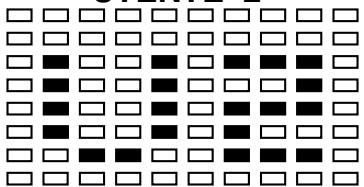

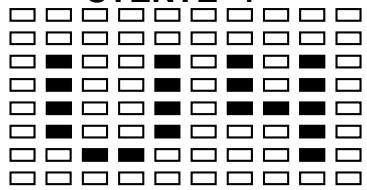

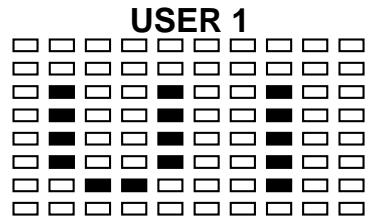

User Setting Program: User 1, User 2, User 3 and User 4

Program 14 to 17 is the user setting program. Users are free to create the values in the order of TIME, DISTANCE, CALORIES and the resistance level in 10 columns. The values and profiles will be stored in the memory after setup. Users may also change the ongoing loading in each column by UP/DOWN keys, and they will not change the resistance level stored in the memory.

Operations:

1. Use UP/DOWN keys to select the USER program from P14 to P17.
2. Press the ENTER key to enter your workout program.

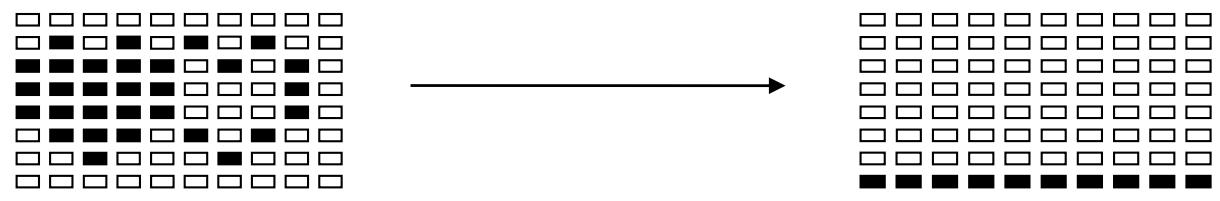

3. The column 1 will flash, and then use the UP/DOWN keys to create your personal exercise profile. Press ENTER to confirm your first column of exercise profile. The default level is load 1.
4. The column 2 will flash, and then use the UP/DOWN keys to create your personal exercise profile. Press ENTER to confirm your second column of exercise profile.
5. Follow the above description 5 and 6 to finish your personal exercise profiles. Press ENTER to confirm your desired exercise profile.
6. The TIME will flash and you can press UP or DOWN keys to setting your exercise TIME. Press ENTER key to confirm your desired TIME.
7. The DISTANCE will flash and you can press UP or DOWN keys to setting your target DISTANCE. Press ENTER key to confirm your desired DISTANCE.
8. The CALORIES will flash and you can press UP or DOWN keys to setting your

exercise CALORIES. Press ENTER key to confirm your desired CALORIES.

1. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press ENTER key to confirm your desired Pulse.

2. Pedaling the machine to begin exercise

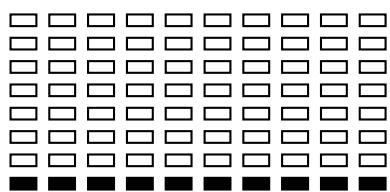

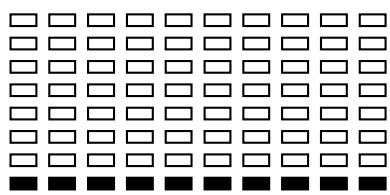

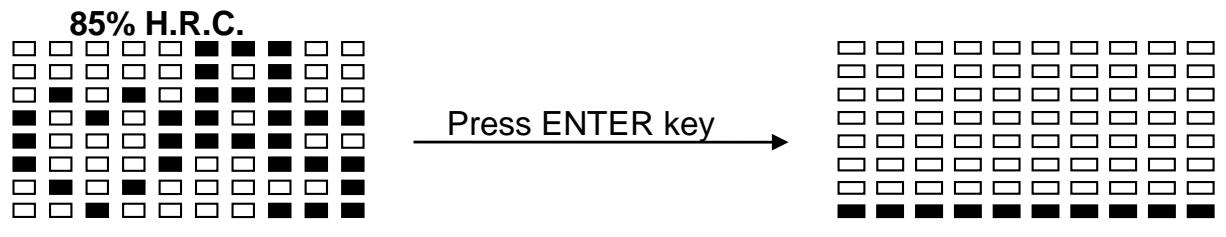

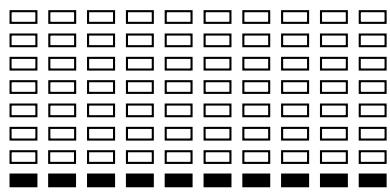

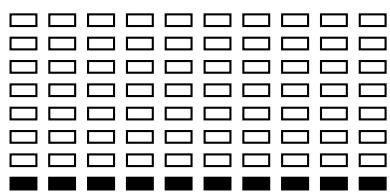

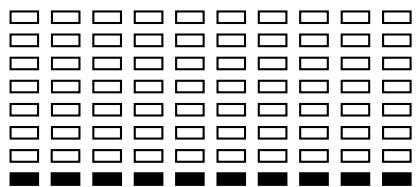

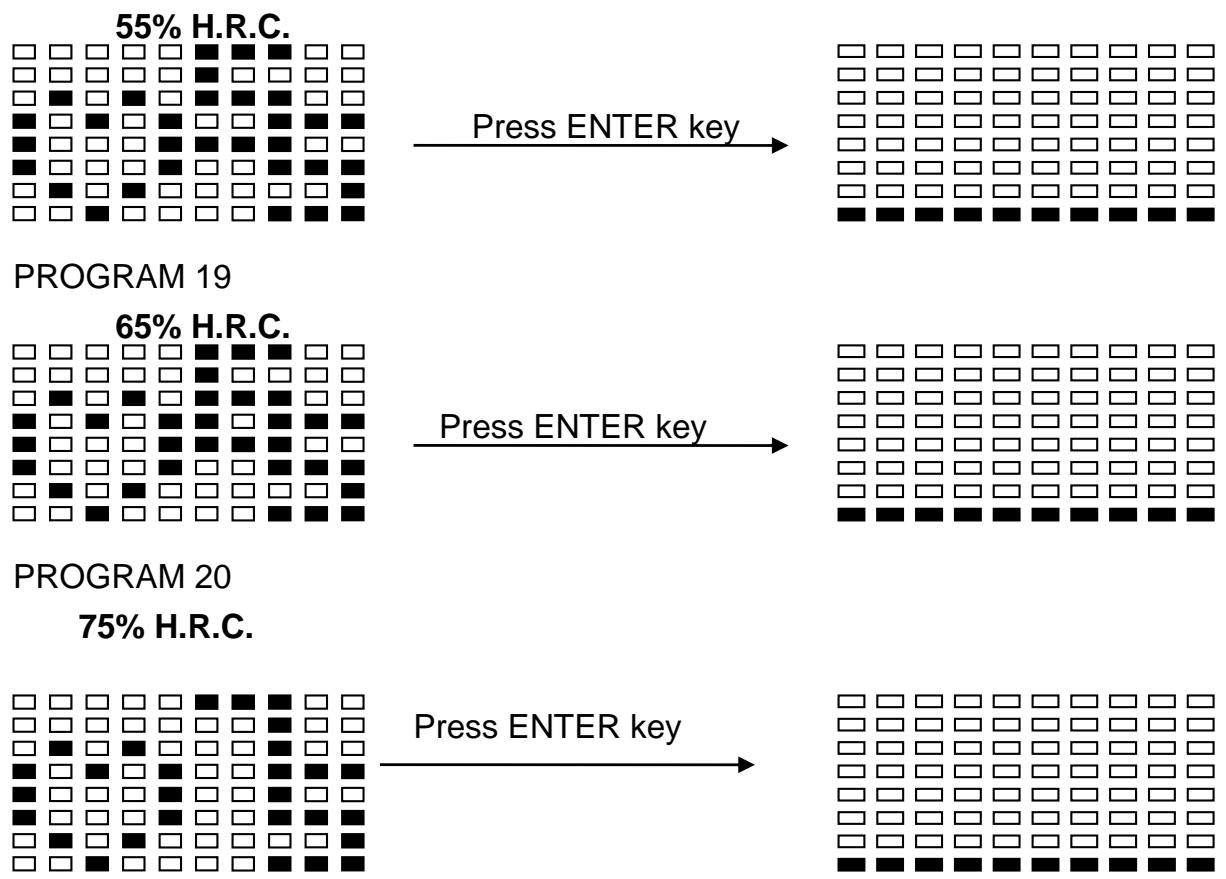

Heart Rate Control Program: 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Target H.R.C.

Program 18 to Program 22 is the Heart Rate Control Programs and Program 22 is the Target Heart Rate Control program.

Program 18 is the 55% Max H.R.C. - - Target H.R. = (220 - AGE) x 55%

Program 19 is the 65% Max H.R.C. - - Target H.R. = (220 - AGE) x 65%

Program 20 is the 75% Max H.R.C. - - Target H.R. = (220 - AGE) x 75%

Program 21 is the 85% Max H.R.C. - - Target H.R. = (220 - AGE) x 85%

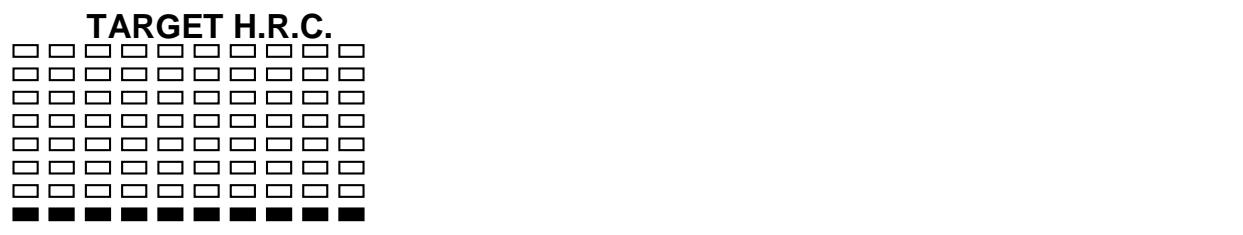

Program 22 is the Target H.R.C. - - Workout by your target heart rate value.

Users can exercise according to your desired Heart Rate program by setting your AGE, TIME, DISTANCE, CALORIES or TARGET PULSE. In these programs, the computer will adjust the resistance level according to the heart rate detected. For example, the resistance level may increase every 20 seconds while the heart rate detected is lower than the TARGET H.R and then the computer will show "SLOW DOWN" on the message window. Also the resistance level may decrease every 20 seconds while the heart rate detected is higher than the TARGET H.R and then the computer will show "HURRY UP" on the message window. As a result, the user's heart rate will be adjusted to close the TARGET H.R. between the range of TARGET H.R. +5 and TARGET H.R. -5 and then the computer will show "KEEP GOING" on the message window.

Operations:

1. Use UP/DOWN keys to select one of the heart rate control program from P18 to P22.
2. Press the ENTER key to enter your workout program
3. The AGE will flash at P18 to P21 programs and you can press UP or DOWN keys to set your AGE. The default age is 35.
4. At program 22, the TARGET PULSE will flash and you can press UP or DOWN keys to set your TARGET PULSE between 80 to 180. The default TARGET PULSE is 120.
5. The TIME will flash and you can press UP or DOWN keys to set your exercise TIME. Press ENTER key to confirm your desired TIME.
6. The DISTANCE will flash and you can press UP or DOWN keys to set your target DISTANCE. Press ENTER key to confirm your desired DISTANCE.
7. The CALORIES will flash and you can press UP or DOWN keys to set your exercise CALORIES. Press ENTER key to confirm your desired CALORIES. You only can set up the target one of them and the monitor will go to the target heart rate setting
8. Pedaling the machine to begin exercise

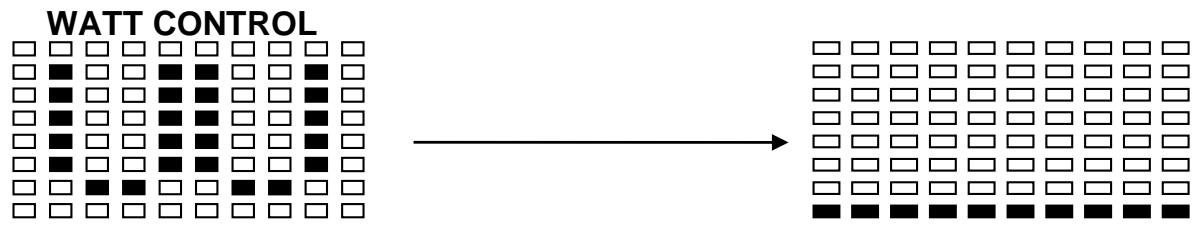

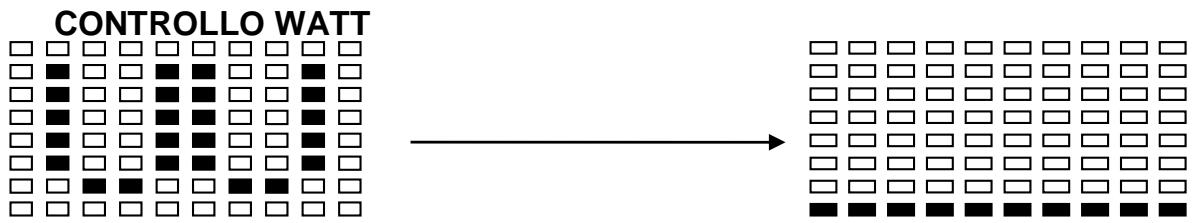

Watt Control Program: Watt Control

Program 23 is a Speed Independent Program. Press ENTER key to set up the values of TARGET WATT, TIME, DISTANCE and CALORIES. During the exercise mode, the level of resistance is not adjustable. For example, the level of resistance may increase while the speed is too slow. Also the level of resistance may decrease while the speed is too fast. As a result, the calculated value of WATT will close to the value of TARGET WATT setup by users.

Operations:

1. Use UP or DOWN key to select the WATT CONTROL (P23) program.
2. Press ENTER key to enter your workout program.
3. The TIME will flash and you can press UP or DOWN key to set your exercise TIME. Press ENTER key to confirm your desired TIME.
4. The DISTANCE will flash and you can press UP or DOWN key to set your target DISTANCE. Press ENTER key to confirm your desired DISTANCE.
5. The WATT will flash and you can press UP or DOWN key to set your target WATT value. Press ENTER key to confirm your target WATT. The default WATT value is 100.
6. The CALORIES will flash and you can press UP or DOWN key to set your exercise CALORIES. Press ENTER key to confirm your desired CALORIES.
7. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press ENTER key to confirm your desired Pulse.
8. Pedaling the machine to begin exercise

NOTE:

1. WATT = TORQUE (KGM) * RPM * 1.03
2. In this program, the WATT value will keep constant value. It means that if you peddle quickly, the resistance level will decrease and if you peddle slowly, the resistance level will increase. Always try to keep you in the same watt value.

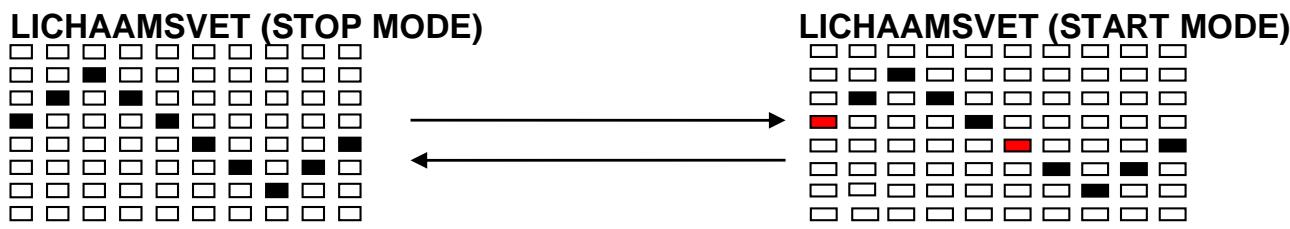

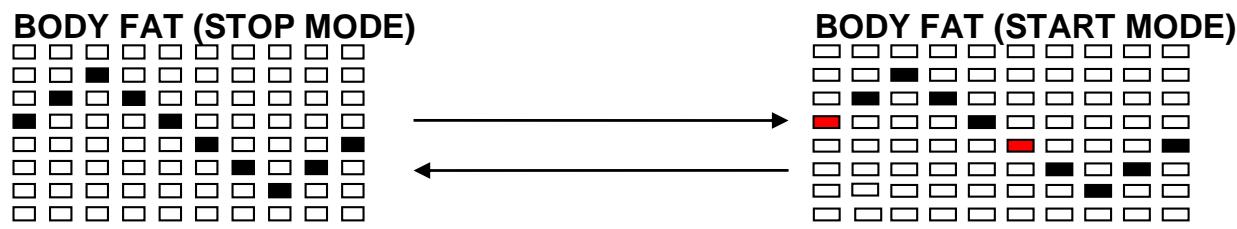

Body Fat Program: Body Fat

Program 24 is a special program design to calculate users' body fat ratio and to offer a specific loading profile for users. There are 3 body types divided according to the FAT% calculated.

Type1: BODY FAT% > 27

Type2: 27 ≥ BODY FAT% ≥ 20

Type3: BODY FAT % < 20

The computer will show the test results of FAT PERCENT, BMI and BMR.

Operations:

1. Use UP/DOWN keys to select the BODY FAT (P24) program.
2. Press the ENTER key to enter your workout program.
3. The HEIGHT will flash and you can press UP or DOWN keys to set your HEIGHT.

Press ENTER key to confirm your HEIGHT. The default HEIGHT is 170cm or 5'07" (5feet 7 inches).

1. The WEIGHT will flash and you can press UP or DOWN keys to set your WEIGHT. Press ENTER key to confirm your WEIGHT. The default WEIGHT is 70kgs or 155lbs.
2. The GENDER will flash and you can press UP or DOWN keys to select your sex. Number 1 means man and number 0 means female. Press ENTER key to confirm your Gender. The default sex is 1 (MAN).
3. The AGE will flash and you can press UP or DOWN keys to set your AGE. Press ENTER key to confirm your AGE. The default AGE is 35.
4. Press the START/STOP key to begin body fat measurement. If the window show E on the window, please make sure your hands are attached well on the grips or the chest belt is touch well on your body. Then press the START/STOP key again to begin body fat measurement.
5. After finished your measurement, the computer will show the values of BMR, BMI and FAT PERCENT on the LCD display. Furthermore, the computer will show your own exercise profile for your body type.
6. Pedaling the machine to begin exercise

Operation guide:

1. Sleep Mode: The computer will enter the sleep mode when there is no signal input and no keys be pressed after 4 minutes. You can press any key to wake up the computer.

Error Message:

E1 (ERROR 1):

Normal state: During workout, when the monitor did not get the count signal from the gear motor more than 4 seconds and check under successive 3 times then the LCD will show E1.

Power on state: The gear motor will return to zero automatically, when the signal of motor cannot be detected for more than 4 seconds then the gear motor's driver will be cut off immediately and show the E1 on the LCD display. All the other digital and function mark are blank, and the output signals are cut off also.

E2 (ERROR 2): When the monitor read the memory data, if the I.D. code is not correct or the memory IC damages then the monitor will show E2 immediately at power on.
E3 (ERROR 3): After 4 seconds by start mode, the computer detects the faulty motor did not leave the zero point then the LCD bar displays "E3".

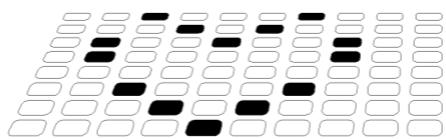

LCD Workflow Graphics

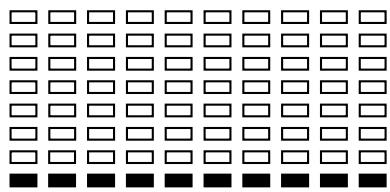

PRESET PROGRAM PROFILES:

PROGRAM 1

PROGRAM 4

PROGRAM 7

PROGRAM 10

PROGRAM 13
USER SETTING PROGRAM

PROGRAM 14

PROGRAM 2

PROGRAM 5

PROGRAM 8

PROGRAM 11

PROGRAM 3

PROGRAM 6

PROGRAM 9

PROGRAM 12

PROGRAM 15
HEART RATE PROGRAM PROFILES:

PROGRAM 18

PROGRAM 21

PROGRAM 22

WATT CONTROL PROGRAM
PROGRAM 23
BODY FAT TEST PROGRAMS:

PROGRAM 24
One of the Following Six Profiles Will Display Automatically after Measuring Your BODY FAT:

Workout Time: 40 minutes

Workout Time: 40 minutes

Workout time: 20 minutes

Exercise 10: 40 minutes

Exercise 10: 40 minutes

Exercise time: 20 minutes

USB Function

Storage the exercise data

1. Press the button 2 seconds, it will reset the data and storage the exercise data to USB flash disk.

If you do not exercise more than 3 minutes, the monitor only reset data but will not

storage data to USB flash disk.

1. Stop exercise 1 minute and the monitor will storage data to USB flash disk automatically.

File of the document

All of your exercise data during same month will storage in one file.

For example:

2023-10 CSV ALL OF YOUR EXERCISE DURING OCTOBER 2023 WILL STORAGE IN

THIS FILE. Go to the next month November will create a new file 2023-11.CSV.

START TIME	STOP TIME	EXERCISE TIME (mn)	AVERAGE SPEED(KM/H)	DIST(KM)	PULSE<100	100<PULSE<130	PULSE>130	WATT<100	100<WATT<150	150<WATT<200	WATT>200
2023-05-04-10-2	2023-05-04-10-45	20	15.15	5.05	3	12	5	3	5	8	4

Cardio - Training:

Before programming your training, it is essential to take account of your age, particularly for people of more than 35 years of age, as well as your physical condition. If you have a sedentary lifestyle without regular physical activity, it is vital that you consult your doctor to determine the level of intensity of your training. Once determined, do not attempt to achieve your maximum during the first training sessions. Be patient; your performance will quickly improve.

Cardio - Training:

This enables you to develop your cardiovascular system (fitness of the heart / blood vessels). During Cardio-Training, the muscles need a supply of oxygen and nutritive substances. They also need to eliminate waste. Our heart increases its rhythm and sends a larger amount of oxygen to the body by means of the cardiovascular system. The more often you exercise regularly and repetitively, the more your heart will develop, just like any other muscle. In daily life, this translates into the ability to bear greater physical effort and improve your intellectual faculties.

Definition of your work Zone:

The Maximum Heart Rate (MHR) = 220 - age (180 - age for sedentary people).

The Warming Up Zone and Cooling Down Zone are equal to 55% of your MHR.

The Fat Loss Zone is between 55 / 65% of your MHR.

The Aerobic Zone is between 65 / 85% of your MHR.

The Anaerobic Zone is between 85% of your MHR and your MHR.

Make a diagram of the target zones

The progressive training stages:

1) A warming up phase:

Start each training session by warming up progressively (10-20 min, more if you are over 50) which will put your muscles on standby and gently increase your heart rate. Gently increase your pulse to 55% of your MHR (Maximum Heart Rate).

Keep your Heart Rate at this level for the duration of the warming up time. If you begin your training too quickly, you are in danger of increasing the risk of tendon or muscle injury.

2) A work phase:

This is the main part of the training session. Depending on your specific goals and your initial physical condition, weight loss, improvement of cardiovascular resistance (aerobic work), development of stamina (anaerobic work), it is possible to choose the appropriate target zone.

The Fat Loss Zone, 55 - 65%

The heart rate must be low and the duration of the exercise quite long. This zone is advised for people resuming physical activity after a long period of idleness, who are trying to eliminate excess weight or are susceptible to cardiac problems. Do not forget that for this type of training the duration of the exercise must be at least 30 minutes and the Heart Rate (HR) between 55 and 65% of the MHR.

Gradually increase from 30 to 60 minutes per session.
Exercise 3 or 4 times a week.

The Aerobic Zone, 65 - 85%

This zone is recommended for those who are in good physical condition who train regularly. By training in this zone, you will improve your physical condition but avoid overworking.

Duration: 20 to 30 minutes per session.
- Frequency: At least 3 or 4 times a week.

The Anaerobic Zone, 85% - MHR

This zone is exclusively for experienced athletes and is never recommended without medical approval and supervision. This zone is designed only for very fit people. It is used for interval training (or for short sprints) to help you to improve or measure your level of stamina. The time spent in this zone must be brief to avoid the risk of accident.

3) A cooling down phase:

This entails a reduction of exertion (10 to 20 min). It enables you to return your cardiovascular system to normal (55% of your MHR) and prevent or reduce muscular pain such as cramp and stiffness. You must follow the training with a session of stretching exercises while your joints are still warm. This relaxes the muscles and

helps to prevent stiffness. Stretch slowly and gently. You must never stretch until you reach the pain threshold. Hold each stretch for 30 to 60 seconds while breathing out.

Check your progress

As it improves, your cardiovascular system will have an HR which will be lower when at rest. You will take longer to reach your target zone and it will be easier for you to maintain it. Sessions will seem easier and easier and you will have more stamina in your daily life.

If, on the other hand, your HR is higher than usual when at rest, you will have to rest or reduce the intensity of your training.

Do not be discouraged by the initial sessions. Motivate yourself by scheduling specific training times. Work hard!

All defective materials or parts can only be exchanged once we have received them. Shipping is at the sender's expense. No returns of goods will be accepted without our prior approval.

To order spare parts

To guarantee an efficient service, make sure you have the following items before you contact our After Sales Service:

The name or reference of the product.

The manufacturing number shown on the main chassis and on the packing box.

The number of the missing or faulty part shown on the exploded view of the product described in this manual.

WARNING! Rhythm control systems

heart rate may be inaccurate. Overtraining can lead to

serious injury or death. If you feel unwell, stop training immediately.

After Sales Service

Email: [e-mail]

3

1. LCD
2. TABLETT-HALTER
3. DREHSCHALTER - ENTER
4. SENSORKABEL
5. PULSKABEL
6. USB-PORT

F. Zielherzfrequency

E mail : [e-mail]

3

1. LCD
2. SOPORTE DE TABLETA
3. BOTON GIRATORIO ENTER
4. CABLE DEL SENSOR
5. CABLE DEL PULSO
6. PUERTO USB

AJUSTE DE LA FECHA Y EL RELOJ

Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75%

H.R.C., 85% H.R.C., Objetivo H.R.C.

Programma 18: 55% Max H.R.C. -- Target H.R. = (220 - ETA') x 55%

Programma 19: 65% Max H.R.C. -- Target H.R. = (220 - ETA') x 65%

Programma 20: 75 % Max H.R.C. - - Target H.R. = (220 – ETA') x 75%

Programma 21: 85 % Max H.R.C. - - Target H.R. = (220 – ETA’) x 85%

MONTAGNA
PROGRAMMA 11

INTERVALLO
PROGRAMMA 12

RANDOM
PROGRAMMA 13

ALTOPIANO

FARTLEK

PRECIPIZIO
PROGRAMMA DA IMPOSTARE DALL'UTENTE

PROGRAMMA 14
UTENTE 1

PROGRAMMA 15
UTENTE 2

PROGRAMMA 16
UTENTE 3

PROGRAMMA 17
UTENTE 4

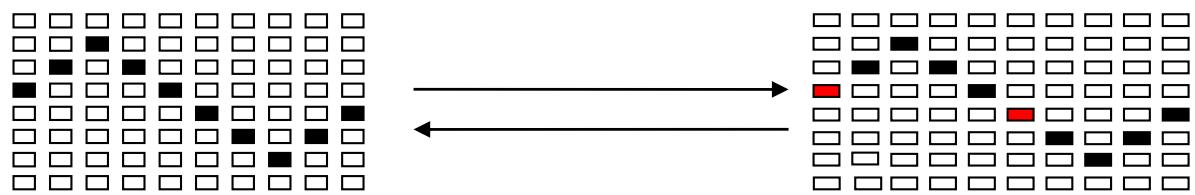

PROFILI DELLA FREQUENZA CARDIACA (H.C.R)

PROGRAMMA 18
55% H.R.C.

PROGRAMMA 19
65% H.R.C.

PROGRAMMA 20
75% H.R.C.

PROGRAMMA 21
85% H.R.C.

PROGRAMMA 22
TARGET H.R.C.

PROGRAMMA PER IL CONTROLLO DEI WATT
PROGRAMMA 23
PROGRAMMI PER IL TEST DEL GRASSO CORPOREO
PROGRAMMA 24

GRASSO CORPOREO (MODALITA’ STOP) GRASSO CORPOREO
(MODALITA' START)

E mail: [e-mail]

1. LCD
2. TABLETHOUDER
3. DRAAIKNOP - ENTER
4. SENSORKABEL
5. HARTSLAGKABEL
6. USB-POORT

Hartslagcontrole Programma: 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Target H.R.C.

(Doelstelling Hartslagcontrole)

Programma 18: 55% Max H.R.C. -- Target H.R. = (220 - LEEFTIJD) x 55%

Programma 19: 65% Max H.R.C. - - Target H.R. = (220 - LEEFTIJD) x 65%

Programma 20: 75% Max H.R.C. - - Target H.R. = (220 - LEEFTIJD) x 75%

Programma 21: 85% Max H.R.C. - - Target H.R. = (220 - LEEFTIJD) x 85%

WATT CONTROLE PROGRAMMA

PROGRAMMA 23

LICHAMSVET TEST PROGRAMMA'S:

PROGRAMMA 24

De harttraining (cardiotraining):

2 tot 3 trainingen per week = circa 30 minutes per keer.

1 tot 2 trainingen per week = circa 50 minutes per keer.

WAARSCHUWING! Ritmecontrolesystemen
