USER MANUAL Med-518-2 CARE FITNESS

Line drawing of a stationary exercise bike with adjustable arm and head (no text or symbols)

FR

Important: Read these instructions before using the equipment!

Safety

• Read this user manual and keep it in a safe place. Use this product exclusively in the manner indicated.
• This equipment must be assembled and used by adults.
• The equipment complies with the EN-957 standard, classification HC for use in the home. It must not be used in a sports center or any other public, associative or rented space.
• Ensure the installation base is levelled and stable. Please make sure there is 0.6 m free space around the machine (see picture below-solid circle indicates the radius of training area) and at least 0.5 m of free space on each side of the machine (see picture below-dashed line indicates an additional free space.

• WARNING ! Rhythm control systems heart rate may be inaccurate. Overtraining can lead to serious injury or death. If you feel unwell, stop training immediately.
• For totally safe use, a stable, level surface is required. Protect your floor covering with a mat. Do not use the equipment in damp areas (swimming pool, sauna, etc.).
• Do not allow children to play with this equipment. CARE declines all responsibility for any injuries they may incur. Do not allow children close to this equipment when you are training.
• CARE declines all responsibility if technical modifications are made to any of its products by the user.
• Maximum weight of user: 120 kg.
• Before you start training, it is essential that you consult your doctor to determine the intensity level of the program you use.
• CAUTION: The control systems of the
• heart rate may be incorrect. Excessive exercise can cause serious injury
• or cause death. If you feel any discomfort, stop the exercises immediately.
• Excessive or badly programmed training can damage your health.
• Keep your back straight when exercising.
• It is strongly recommended that your wear suitable clothing and footwear.

Maintenance

• Regularly check that elements fastened with nuts and bolts are correctly tightened.
• To maintain the level of safety, the equipment must be regularly checked. It is vital that any faulty parts are replaced and that it is not used until completely repaired. Remember regularly to grease moving parts.
• As sweat is very corrosive, do not allow it to come into contact with the enameled or chromed parts of the equipment, particularly the computer. Immediately wipe the equipment after training. The enameled parts can be cleaned using a damp sponge. All aggressive or corrosive products should be avoided.
• Poids unitaire : 31.1kg
• Dimensions : 95×60×141cm (0.57m²)
• The braking system is independent of speed
• This class C crank training device is not suitable for high precision exercises

Guarantee: the chassis is guaranteed for 5 years. Moving parts are guaranteed for 2 years. The guarantee applies to normal use by a private individual in his home. Validate your product warranty on line www.carefitness.com

Recycling : The « crossed out dustbin » sign means that this product and its batteries cannot be thrown out whit domestic waste. They should be treated apart. When you have finished with them, drop them at an authorised collection point so they can be recycled. This gesture will go towards protecting the environment and your health.

*the parts most subject to wear is the grip foam and end cap.

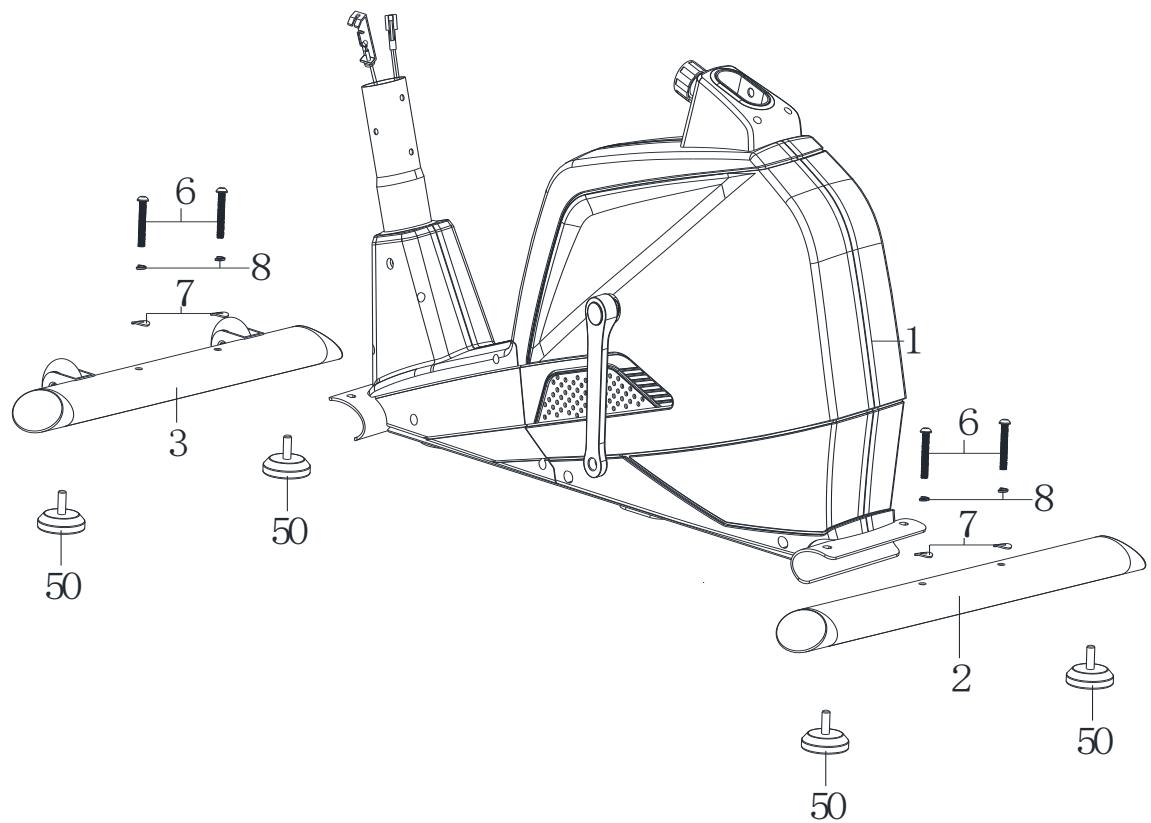

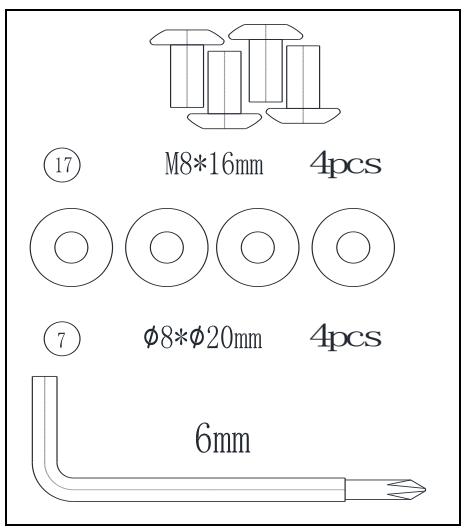

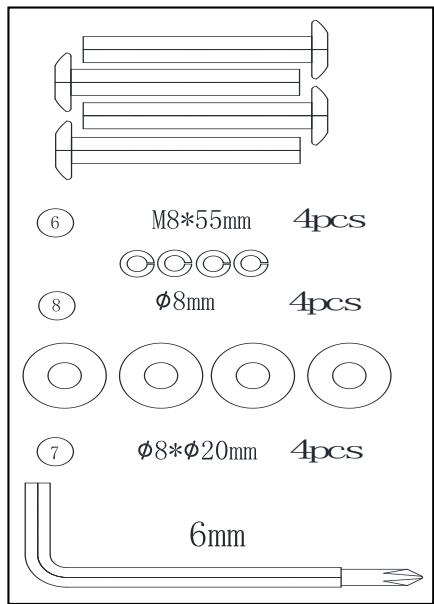

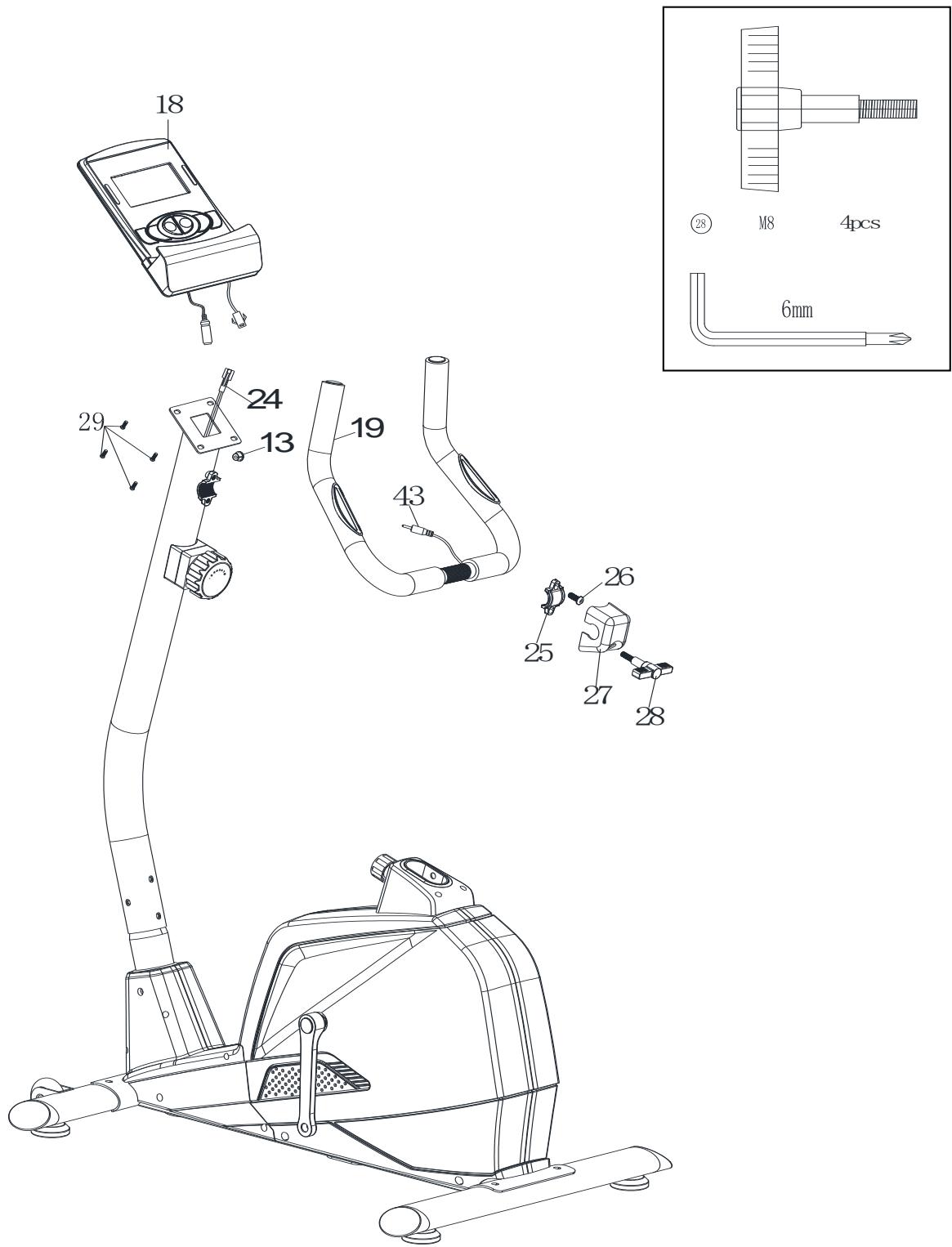

Part No.	DESCRIPTION	DRAWING		Q'TY
6	Allen bolt M8*55			4
7	Curved washer Φ8*20			8
17	Hex head bolt M8*16			4
8	Spring washer Φ8			4
28	T type knob			1
27	Cover for clamp			1
	Allen key L6			1
	Box Wrench			1

1

2

CARE

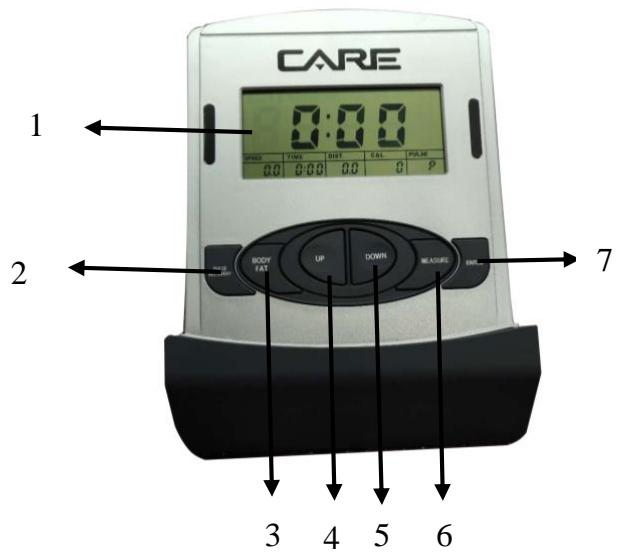

FONCTIONS:

1. LCD
2. Bouton Recovery
3. Bouton Body fat
4. Bouton Up
5. Bouton down
6. Bouton Measure
7. Bouton Enter
   8.Connection du Handle Pulse
8. Cable qui se connecte a l'ordinateur

https://www.carefitness.com/sav

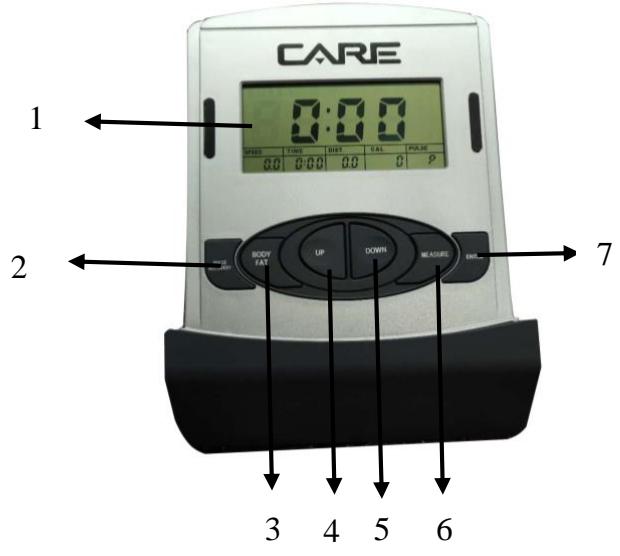

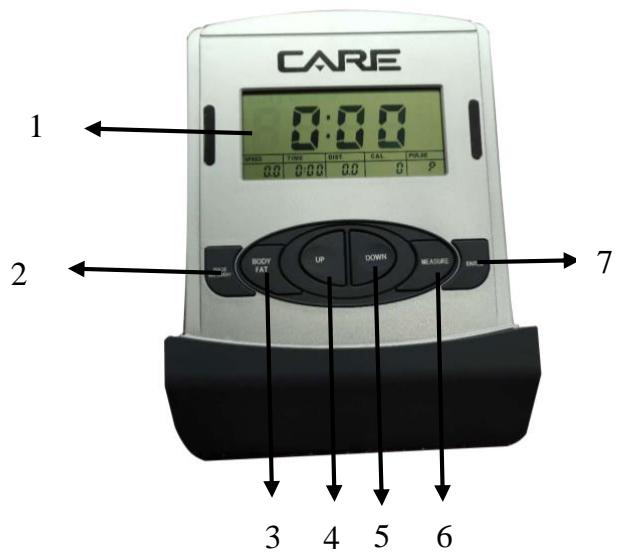

Functions

1. LCD
2. Recovery button
3. Body fat button
4. Up Button
5. Down Button
6. Measure button
7. Enter button

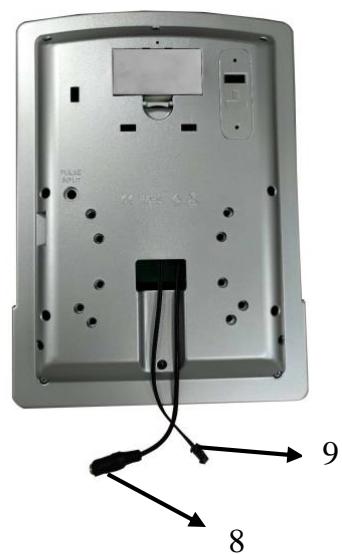

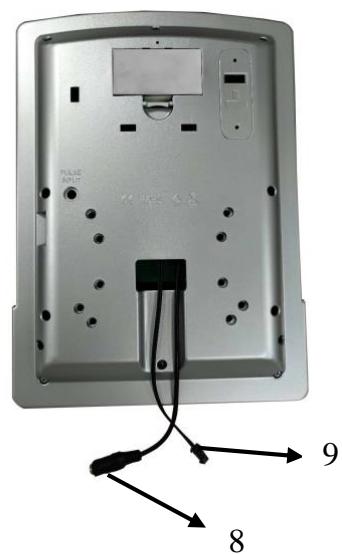

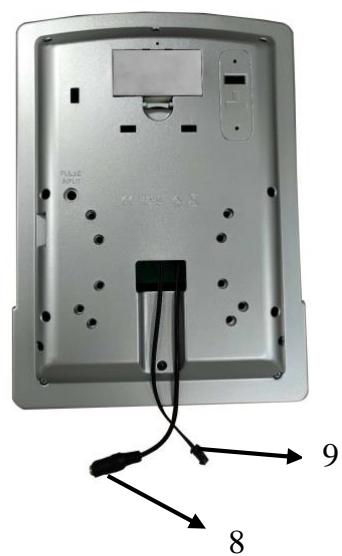

   8.Connection of Pulse handle
8. Cable which connects to the computer

The things you should know before exercise

A. User Data:

You should input your personal data before workout. Press BODY FAT key to enter your personal data of sex, age, height and weight then the computer can save the data unless take out the batteries.

B. Clock Mode:

a. The computer will enter the clock mode when there is no signal input or no keys be pressed after 4 minutes. You can press ENTER key to switch the clock and temperature at the clock mode or press other keys to quit the clock mode.
b. You can setup the CLOCK by holding UP+ENTER keys; and ALARM by holding DOWN+ENTER keys for over 2 seconds, then you can quit by ENTER key.
c. By holding the ENTER and UP keys together for over two seconds, you can check the current clock at "NO SPEED" mode.

Functions and Features:

1. CLOCK: Display the current clock in hour and minute and second.
2. ALARM: You can set up your morning call or setting time by this computer and it will beep alarm 1 minute when your setting time is reached.

3. TEMPERATURE: Display the current temperature.

4. SCAN: During the exercise stage, the computer will automatically scan the function of TIME, SPEED, DISTANCE, CALORIES, PULSE and RPM per each for 6 seconds unless press the ENTER key to exit the auto-scan function. When the computer exits the manual-scan then the message window will show "SCAN" for 2 seconds then switch to auto-scan function.

5. TIME: Shows your elapsed workout time in minutes and seconds. Your computer will automatically count up from 0:00 to 99:59 in one second intervals. You many also program your computer to count down from a set value by using the UP and DOWN keys. If you continue exercising once the time has reached 0:00, the computer will begin beeping, and reset itself to the original time set, letting you know your workout is done.

6. SPEED: Displays your workout speed value in KM/MILE per hour. If no speed signal input then the computer will display "NO SPEED" on the window.

7. DISTANCE: Displays the accumulative distance traveled during each workout up to a maximum of 99.9KM/MILE.

8. CALORIES: Your computer will estimate the cumulative calories burned at any given time during your workout.

9. PULSE: Your computer displays your pulse rate in beats per minute during your workout. If no pulse signal input then the computer will display "NO pulse" on the window.

10. RPM: Your pedal cadence.

11. AGE: Your computer is age-programmable from 10 to 99 years. If you do not set an age, this function will always default to age 35.

12. PULSE RECOVERY: During the START stage, leave your hands holding on grips or leave the chest transmitter attached and then press "PULSE RECOVERY" key, time starts counting from 01:00 - 00:59 - - to 00:00. As soon as 00:00 is reached, the computer will show your heart rate recovery status with the grade F1.0 to F6.0 and message window will show your workout situation. The details as follows,

1.0 means OUSTANDING

1.0<F<2.0 means EXCELLENT

2.0≤F≤2.9 means GOOD

3.0≤F≤3.9 means FAIR

4.0≤F≤5.9 means BELOW AVERAGE

6.0 means POOR

1. Voice Functions:

a. On pressing UP and DOWN keys both for 2 seconds, the monitor can automatically speak "WELCOME" in 30-second interval. Meanwhile, LCD will show 8888 for 3 seconds and then shows the clock mode.
b. You can start or stop the voice function by pressing UP + DOWN+ENTER keys both for 2 seconds. The voice instruction "ON" means "welcome to use"; "OFF" means "DONE".

Key function:

There are 6 button keys and the function description as follows:

1. UP key: During the setting mode, press the key to increase the value of Time, Distance, Calories, Age, Weight, Height etc. and to select sex. During the CLOCK mode, you can set up clock and alarm by this key.

2. DOWN key: During the setting mode, press the key to decrease the value of Time, Distance, Calories, Age, Weight, Height etc. and to select sex. During the CLOCK mode, you can set up clock and alarm by this key.
   Note: During the setting mode, you can hold UP and DOWN keys together for over two seconds then the setting value will reset to Zero or default value.

3. ENTER/RESET key: a. Press the key to accept the current data entry. b. During the "NO SPEED" mode, by holding this key for over two seconds then the computer will re-power-on.

4. BODY FAT key: Press the key to enter your personal data before measure your body fat ratio.

5. MEASURE key: Press the key to get your body fat ratio and BMI and BMR.

a. FAT %: Indicate your body fat percentage after measurement.
b. BMI (Body Mass Index): BMI is a measure of body fat based on height and weight that applies to both adult men and women.
c. BMR (Basal Metabolic Rate): Your Basal Metabolic Rate (BMR) shows the number of calories your body needs to operate. This doesn't account for any activity, it's simply the energy needed to sustain a heartbeat, breathing and normal body temperature. It measures the body at rest, not sleep, at room temperature.

1. PULSE RECOVERY key: Press the key to activate heart rate recovery function.

Error Message:

E: The speed over than 99.9 MPH/KPH then the computer will display "E".

Err: When measure the body fat function or pulse recovery function, if there is no pulse signal input within 20 seconds then the computer will display "Err". You can repress any keys to quit the Err message.

Cardio – Training:

Before programming your training, it is essential to take account of your age, particularly for people of more than 35 years of age, as well as your physical condition. If you have a sedentary lifestyle without regular

physical activity, it is vital that you consult your doctor to determine the level of intensity of your training. Once determined, do not attempt to achieve your maximum during the first training sessions. Be patient; your performance will quickly improve.

Cardio – Training:

This enables you to develop your cardiovascular system (fitness of the heart / blood vessels). During Cardio-Training, the muscles need a supply of oxygen and nutritive substances. They also need to eliminate waste. Our heart increases its rhythm and sends a larger amount of oxygen to the body by means of the cardiovascular system. The more often you exercise regularly and repetitively, the more your heart will develop, just like any other muscle. In daily life, this translates into the ability to bear greater physical effort and improve your intellectual faculties.

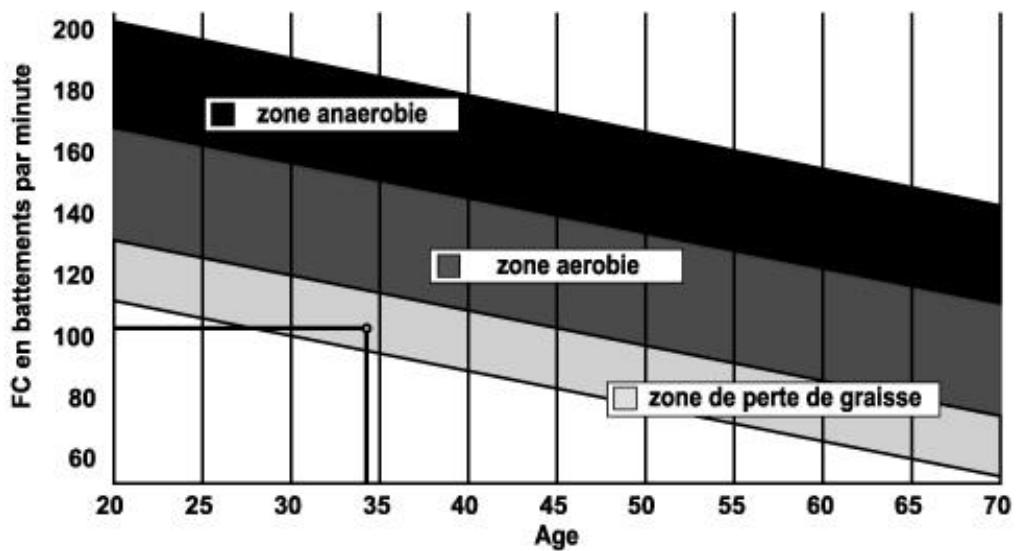

Definition of your work Zone:

The Maximum Heart Rate (MHR) = 220 - age (180 - age for sedentary people).

The Warming Up Zone and Cooling Down Zone are equal to 55% of your MHR.

The Fat Loss Zone is between 55 / 65% of your MHR.

The Aerobic Zone is between 65 / 85% of your MHR.

The Anaerobic Zone is between 85% of your MHR and your MHR.

Make a diagram of the target zones

The progressive training stages:

1) A warming up phase:

Start each training session by warming up progressively (10-20 min, more if you are over 50) which will put your muscles on standby and gently increase your heart rate. Gently increase your pulse to 55% of your MHR (Maximum Heart Rate).

Keep your Heart Rate at this level for the duration of the warming up time. If you begin your training too quickly, you are in danger of increasing the risk of tendon or muscle injury.

2) A work phase:

This is the main part of the training session. Depending on your specific goals and your initial physical condition, weight loss, improvement of cardiovascular resistance (aerobic work), development of stamina (anaerobic work), it is possible to choose the appropriate target zone.

The Fat Loss Zone, 55 – 65%

The heart rate must be low and the duration of the exercise quite long. This zone is advised for people resuming physical activity after a long period of idleness, who are trying to eliminate excess weight or are susceptible to cardiac problems. Do not forget that for this type of training the duration of the exercise must be at least 30 minutes and the Heart Rate (HR) between 55 and 65% of the MHR.

- Gradually increase from 30 to 60 minutes per session.

- Exercise 3 or 4 times a week.

The Aerobic Zone, 65-85%

This zone is recommended for those who are in good physical condition who train regularly. By training in this zone, you will improve your physical condition but avoid overworking.

• Duration: 20 to 30 minutes per session.
• Frequency: At least 3 or 4 times a week.

The Anaerobic Zone, 85% - MHR

This zone is exclusively for experienced athletes and is never recommended without medical approval and supervision. This zone is designed only for very fit people. It is used for interval training (or for short sprints) to help you to improve or measure your level of stamina. The time spent in this zone must be brief to avoid the risk of accident.

3) A cooling down phase:

This entails a reduction of exertion (10 to 20 min). It enables you to return your cardiovascular system to normal (55% of your MHR) and prevent or reduce muscular pain such as cramp and stiffness. You must follow the training with a session of stretching exercises while your joints are still warm. This relaxes the muscles and helps to prevent stiffness. Stretch slowly and gently. You must never stretch until you reach the pain threshold. Hold each stretch for 30 to 60 seconds while breathing out.

Check your progress

As it improves, your cardiovascular system will have an HR which will be lower when at rest. You will take longer to reach your target zone and it will be easier for you to maintain it. Sessions will seem easier and easier and you will have more stamina in your daily life.

If, on the other hand, your HR is higher than usual when at rest, you will have to rest or reduce the intensity of your training.

Do not be discouraged by the initial sessions. Motivate yourself by scheduling specific training times. Work hard!

All defective materials or parts can only be exchanged once we have received them. Shipping is at the sender's expense. No returns of goods will be accepted without our prior approval.

To order spare parts

To guarantee an efficient service, make sure you have the following items before you contact our After Sales Service:

The name or reference of the product.

The manufacturing number shown on the main chassis and on the packing box.

The number of the missing or faulty part shown on the exploded view of the product described in this manual.

WARNING ! Rhythm control systems

heart rate may be inaccurate. Overtraining can lead to

serious injury or death. If you feel unwell, stop training immediately.

After Sales Service

Email: [e-mail]

TASTENFUNKTIONEN:

E mail : [e-mail]

FUNCIONES:

3.0 ≤ F ≤ 3.9 significa ACCEPTABLE

4.0 ≤ F ≤ 5.9 significa DEBAJO DE LA MEDIA

6.0 significa MALO

1. Funciones de voz:

E mail : [e-mail]

FUNCTIES:

De harttraining (cardiotraining):

2 tot 3 trainingen per week = circa 30 minuten per keer.

1 tot 2 trainingen per week = circa 50 minuten per keer.

WAARSCHUWING! Ritmecontrolesystemen

E-mail: [e-mail]
