USER MANUAL YY5172 MOULINEX

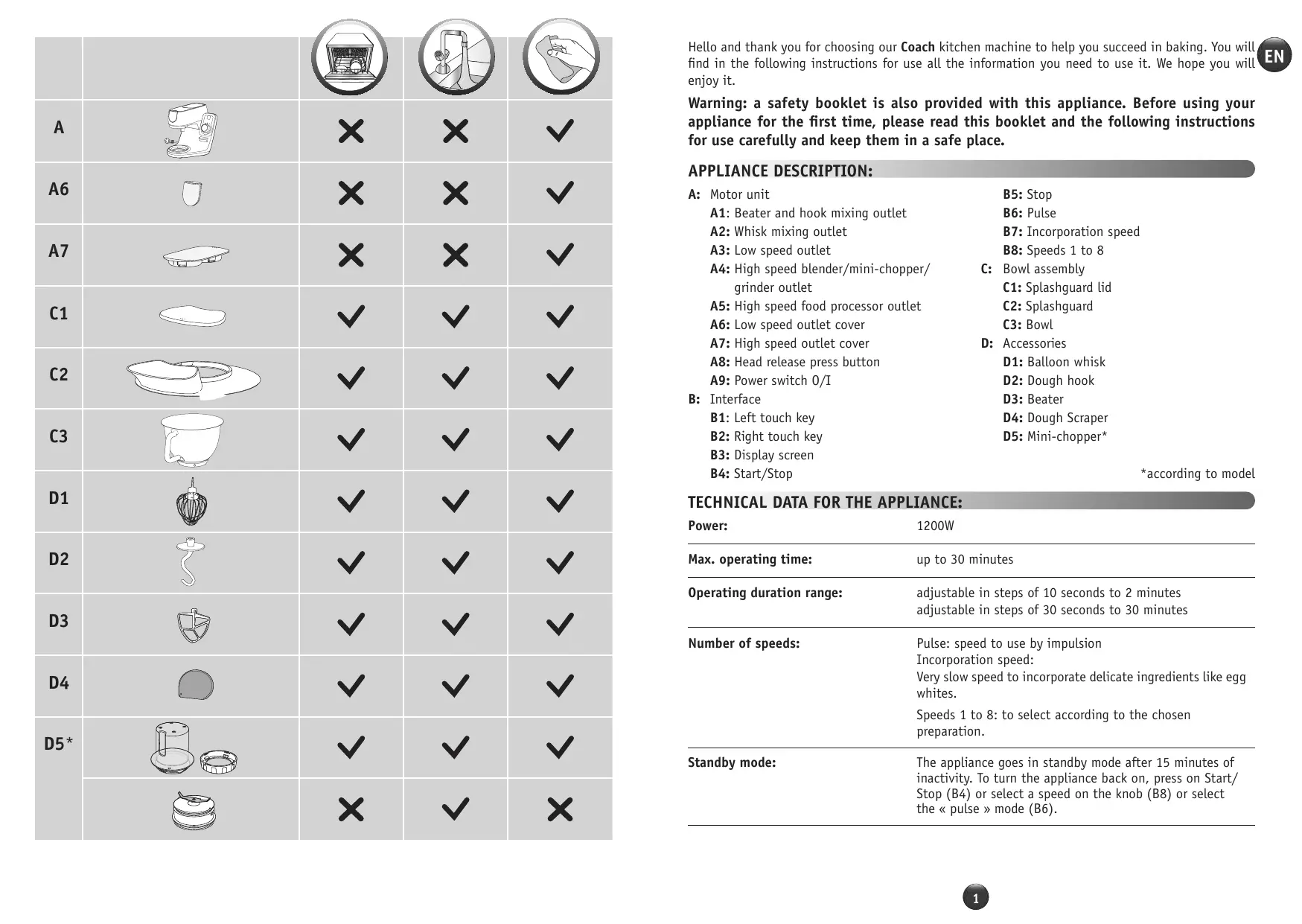

Hello and thank you for choosing our Coach kitchen machine to help you succeed in baking. You will find in the following instructions for use all the information you need to use it. We hope you will enjoy it.

Warning: a safety booklet is also provided with this appliance. Before using your appliance for the first time, please read this booklet and the following instructions for use carefully and keep them in a safe place.

APPLIANCE DESCRIPTION:

A:Motor unit

B5: Stop

A1: Beater and hook mixing outlet

B6: Pulse

A2: Whisk mixing outlet

B7: Incorporation speed

A3: Low speed outlet

B8: Speeds 1 to 8

A4: High speed blender/mini-chopper/grinder outlet

C: Bowl assembly

A5: High speed food processor outlet

C1: Splashguard lid

A6: Low speed outlet cover

C2: Splashguard

A7: High speed outlet cover

C3:Bowl

A8: Head release press button

D1: Balloon whisk

A9: Power switch O/I

D2: Dough hook

B: Interface

D3:Beater

B1: Left touch key

D4: Dough Scaper

B2: Right touch key

D5: Mini-chopper*

B3: Display screen

*according to model

B4: Start/Stop

TECHNICAL DATA FOR THE APPLIANCE:

Power:	1200W
Max. operating time:	up to 30 minutes
Operating duration range:	adjustable in steps of 10 seconds to 2 minutes adjustable in steps of 30 seconds to 30 minutes
Number of speeds:	Pulse: speed to use by impulse Incorporation speed: Very slow speed to incorporate delicate ingredients like egg whites. Speeds 1 to 8: to select according to the chosen preparation.
Standby mode:	The appliance goes in standby mode after 15 minutes of inactivity. To turn the appliance back on, press on Start/Stop (B4) or select a speed on the knob (B8) or select the « pulse » mode (B6).

Before using the appliance for the first time, wash all parts of the unit with soapy water except for the motor unit (see «Cleaning» section). We recommend washing all the accessories (D1), (D2) and (D3) in dishwasher at least once. Rinse and dry.

Place the appliance on a flat, clean and dry surface, make sure that the speed selector is in position "Stop" (B5) and then plug in your appliance. Select the 0/I power switch (A9) to start the unit.

Never move the appliance by carrying it by an accessory fixed on the top (for example mini-chopper).

ASSEMBLY:

Follow diagrams 1.1 to 1.9

• USAGE:

To start the appliance, turn the speed selector (B8) to the chosen speed and press the center of the selector on «Start/Stop» (B4).

Important: The appliance will only start if the high speed outlet cover (A7) and the head are locked. If you unlock the cover (A7) and/or the head during operation, the appliance will stop immediately. Place the cover (A7) and/or lock down the head, press «start» (B4) or choose the control knob (B8) to restart the machine.

The appliance goes in standby mode after 15 minutes of inactivity. To turn the appliance back on, press on "Start/Stop" (B4) or select a speed on the knob (B8) or select the pulse mode (B6).

Food can be added through the lid funnel (C2) during a preparation.

To stop the appliance, press the center of the speed selector "Start/Stop" (B4) and return the selector to "Stop" (B5)

• DISASSEMBLY

Wait for the appliance to come to a complete stop, then perform the assembly steps in reverse: diagrams 1.9 to 1.1.

CLEANING THE APPLIANCE

Unplug the appliance.

Do not immerse the appliance (A) in water or put it under running water. Wipe it with a dry or slightly damp cloth.

Disassemble completely and rinse the accessories soon after use.

Wash, rinse and dry the accessories. They are all dishwasher-safe.

Refer to the cleaning table.

Handle all blades with care to prevent injury (diagram 2.4).

TIPS & ADVICE

All models include the whisk, beater and dough hook attachments. Depending on the model the Mini Chopper may also be included. Below you will find recipe ideas, recommended speeds and times of use.

WHISK (D1)	To whisk eggs, whip creams and emulsify preparations. Please find detailed recipes below. Never use the balloon whisk to knead dough or heavy batters.
		max
	Egg whites	Max 10	V8	1 min 45
	Mayonnaise	Max 1l	V7	4 min
	Crêpe batter	Max 2l	V1-V3 V5 V6 V4	5 sec 30 sec 1 min 2 min
	Whipped cream	Max 800ml	V5 V6 V7	2 min 30 75 sec 10 - 40 sec
Egg whites Whipped cream	5 egg whites 10g sugar	For best results, use room temperature eggs. Add the egg whites to the bowl with the lid. Start the appliance on speed 7. After 40 seconds, add sugar. Switch the appliance to speed 8 for 50 seconds.
	250g Liquid whole cream (minimum 30% fat and cold) 20g icing sugar	Place the bowl and whisk attachment in the refrigerator for 5 minutes before preparing the whipped cream. Add the cream and powdered sugar to the bowl with the lid on and start the appliance to speed 5 for 2 minutes 30, then speed 6 for 75 seconds and speed 7 for 10 to 40 seconds. Check consistency of the cream preparation, 30 seconds from the end, because it could quickly change.
Mayonnaise	2 egg yolks 20g mustard 1 pinch of salt 250ml oil	Add the egg yolks, mustard and salt to the bowl with the lid on and start the appliance at speed 7. Add the oil very gradually through the opening in the lid for 3 minutes. After 3 minutes, remove the bowl from the appliance and scrape down the sides with a spatula, smoothing the mayonnaise for 3 to 4 turns.
Crêpe batter	300g T45 flour 3 eggs 30g sugar 30 ml oil 600 ml milk	Add the flour, eggs, sugar, oil and 200 ml of milk to the bowl with the lid and run the appliance at speed 1 for 5 seconds, then at speed 3 for 5 seconds, at speed 5 for 30 seconds and finally at speed 6 for 1 minute. Scrape down the sides of the bowl, then start the appliance again at speed 4. Add the remaining 400 ml of milk gradually by the opening in the lid for 2 minutes. Remove the bowl from the appliance and pass the preparation through a fine sieve. Leave to rest for 1 hour before making your pancakes. Brush a pan with a little oil, heat over medium heat and add a ladleful of batter. Cook for 1 minute on one side and 30 seconds on the other.

DOUGH HOOK (D2) To prepare yeast doughs: bread, pizza and brioche doughs and fresh pasta.

Recipe	max
White bread dough	Max 1,8kg (1kg flour)	V1	1 min
		V2	10 min
Brioche dough	Max 2.5kg (750g flour)	V5	20 min
Pasta dough	Max 1kg (600g flour)	V2	5 min

White bread dough

500 g flour
340 g water
20 g fresh yeast
10 g salt

In a separate bowl, let the yeast dissolve in the water for 5 minutes. Add the flour and salt to the bowl with the lid on and start the appliance at speed 1. Add the water and yeast gradually for 1 min. Switch to speed 2 for 10 minutes. Let the dough rise for 45 minutes at 30^ . Shape the bread and let it rise again for 90 minutes at 30^ . Preheat your oven to 230^ . Brush the surface of the bread with water and make slashes with a knife. Bake at 230^ for 25 minutes.

BEATER (D3)

For mixing cake and cookie batters, shortcrust and shortbread doughs.

Never use the beater to knead heavy (yeast) doughs.

Recipe	max
Cake batter	Max 2,7kg	V1	30 sec
		V8	2 min 30
		Pulse	15 sec
Shortcrust pastry	Max 700g	V5	5 min

Cake batter

180 g flour
3 g baking powder
3 eggs
150 g soft butter
150 g sugar

Take out the butter 1 hour before preparing your dough or put it in the microwave for 15 seconds to soften it without melting it. Preheat your oven to 180^ . Add the flour, baking powder, eggs, soft butter and sugar in the bowl with the lid. Start the appliance at speed 1 for 30 seconds, then at speed 8 for 2 minutes and 30 seconds, then scrape the wall of the bowl, and finally launch the device in Pulse mode for 15 seconds, or until no more pieces of butter are visible. Butter and line a cake pan. Pour in the mixture and bake at 180^ for 1 hour. Let cool for 10 minutes before unmolding.

MINI-CHOPPER (D5) To chop herbs, onions or small preparations.

Recipe

Figs

60g

Pulse

3 sec

COACH: TO SUCEED IN BAKING

The following control keys will light up when they are available for use:

You should press on "Start/Stop" (B4) to start or stop mixing at any speed

1. FIRST TIME USE

Coach is a smart appliance that helps you bake and succeed in all your preparations. It offers you 8 basic preparations with the right combination of time and speed, all available in just a few taps.

With its easy-to-use digital display and capacitive touch keys, you will be able to prepare anything you like: guaranteed results and success!

Turn on your Coach using the power switch 0/I (A9) and use the manual mode (for more info, go on next page) or try an automatic program.

Coach takes care of preparing and mixing your ingredients, and you can access even more services via the mobile application. In the app, discover hundreds of recipes, that you can follow step-by-step, 21 basic preparations with result verification, tips and tricks, and more! Follow the steps—it couldn't be easier!

Download the Coach app. Downloadable for free from the App Store (iPhone/iPad) and Google Play (Android).

Available on the

App Store

ANDROID APP ON

Google Play

2. PRODUCT FEATURES

8 PROGRAMS

For each program, simply add your ingredients to the bowl, select the program with the arrow touch keys (B1 / B2). Once you have chosen the program, press "Start/Stop" (B4) and the program will start automatically. A timer will show in real time how long it will take. When the program is done, the machine stops automatically and rings.

If this animated logo appears on the display when the appliance rings, you will need to add ingredients with star (*) progressively, according the recipe, and press "Start/Stop" (B4) again to finish the program. For more info, see here under or check your Quick Start Guide.

For egg whites :

1 to 6- eggs

For egg whites :

6 to 10- eggs

For whipped cream: 200ml to 800ml of cream with 30% of fat mini.

Waffles, Pancakes & Crêpes

Optimized for 50 cl to 2L of batter

20 Pancakes	12 crêpes	12 waffles
250 g	300 g	300 g
11 g	/	11 g
30 g	30 g	75 g
2	3	2
2 cl	3 cl	5 cl
15 cl	20 cl	20 cl
18 cl	40 cl	38 cl
1 minute on one side, flip, 30 seconds on the other side		Bake in a waffle maker

*Milk

BAKE

1 minute on one side, flip, 30 seconds on the other side

Bake in a waffle maker

Optimized for 600g to 2.7kg of batter

Sweet cake		Savory cake
6 people	8 people	6 people	8 people
180 g	220 g	185 g	245 g
3 g	5 g	6 g	11 g
3	4	3	4
150 g	200 g	/	/
150 g	200 g	/	/
/	/	9 cl	12,5 cl
/	/	9 cl	12,5 cl
/	/	1 pinch	1 pinch
50 minutes 180°C	1 hour 180°C	45 minutes 180°C	55 minutes 180°C

Optimized for 200g to 700g of dough

Shortcrust pastry

For a 27 cm diameter pie or biscuit dish

Flour

220g

Soft butter

100 g

*Egg yolk

*Water

Leave to rest for 30 minutes before using in a pie, for biscuits or any other recipe.

Optimized for 500g to 1,8kg of dough

Whitebread

For 870g bread dough

Flour

500 g

Baking powder

10 g

Salt

20g

Water

34cl

Leave to rest for 45 minutes, then form the bread, leave to rest for another 90 minutes before baking 25 minutes at 250^

Optimized for 250g to 1,2kg of dough

Pizza dough

For a 28 cm diameter pizza dough

Flour

150 g

Salt

1 pinch

Fresh yeast

6g

Olive oil

1,5d

Water

9 cl

Leave to rest for 2 hours before rolling out and garnishing with you own toppings

You can select the speed of your choice thanks to the speed selector (B8) and click the « Start » button at the center of the selector (B4). A timer will start on the display screen (B3).

You can also set a timer before clicking « Start » (B4): select the right arrow touch key (B2) to increase the time, up to 30 minutes. Select the left arrow (B1) to decrease the time. Once you are satisfied, press the start button (B4) and at the end of the timer, the appliance will stop automatically and ring.

WHAT TO DO IF YOUR APPLIANCE DOES NOT WORK

	PROBLEM	CAUSE	SOLUTION
1	The engine is on overheat	The amount of preparation is beyond appliance capacity	Let the engine cool down 30 min Decrease the quantity of preparation
2	The engine is on overload	The appliance is severely overloaded	Decrease the quantity of preparation. Push « start/stop » or turn the rotary knob to exit. Let the engine cool down 30 min
3	The appliance has been running 30 min	Automatic stop	Push « start/stop » or turn the rotary knob to exit
ERR35	Electronic powerboard is out of order	Electronic failure	Unplug your appliance. Contact a repair center.
ERR37	Electronic control of the engine is out of order	Electronic failure	Unplug your appliance. Contact a repair center.
ERR24	The engine is locked	Motor failure	Unplug your appliance. Contact a repair center.

RECYCLING

- DISPOSING OF THE PACKAGING AND THE APPLIANCE

The packaging is made up of environmentally-safe materials and can therefore be disposed of in accordance with the recycling measures in force in your area. To dispose of the appliance, check with the appropriate service in your area.

ENVIRONMENT PROTECTION FIRST!

① Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.
