USER MANUAL P5 3800 BELLISSIMACERAMIC

Dear customer, thank you for choosing our product. We feel certain you will appreciate its quality and reliability as it EN was designed and manufactured with customer satisfaction in mind. These instructions for use are compliant with the European Standard EN 82079.

WARNING! Instructions and warnings for safe use.

Before using this appliance, carefully read the instructions for use and in particular the safety notes and warnings, which must be complied with. Keep this manual together with its illustrative guide for future consultation. Should you transfer the appliance to another user, make sure you hand over this documentation as well.

NOTE: should any part of this manual be difficult to understand or any doubt arise, contact the company at the address indicated on the last page before using the appliance.
① NOTE: persons with impaired vision may consult these instructions for use in digital format at the website www.tenactagroup.com

INDEX

Introduction 9
Safety notes 10
Symbols 12
Description of the appliance and its accessories .12
Accessories 12
Use 13
Maintenance and cleaning. 14
Storage 14
Disposal 15
Assistance and warranty 15
Illustrative guide
Technical data

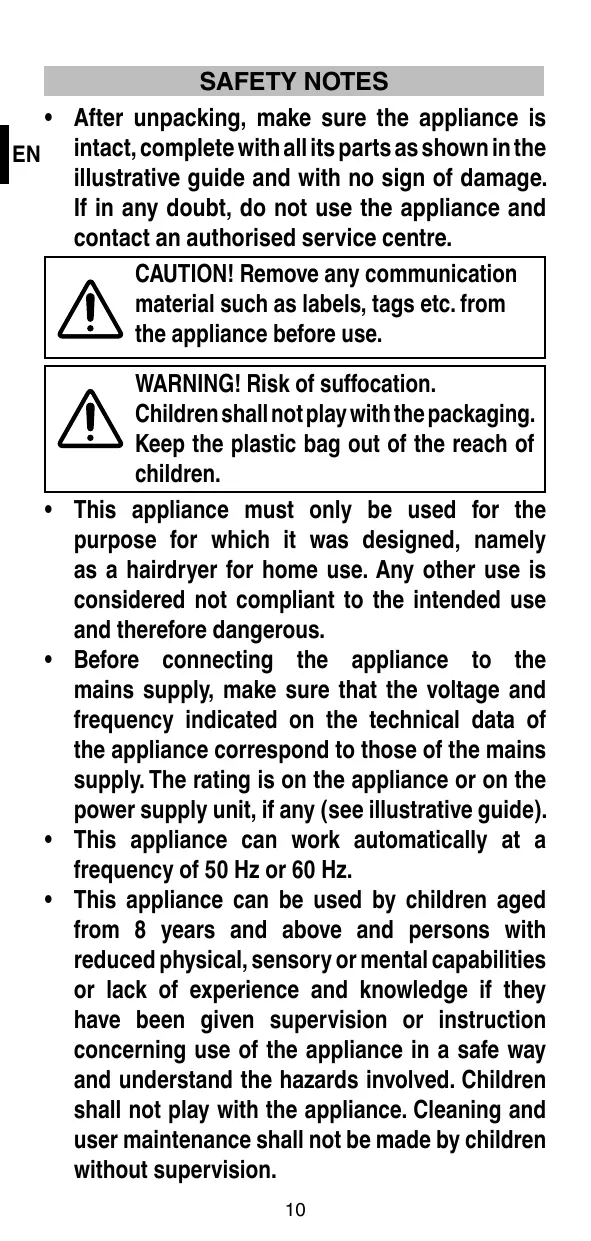

SAFETY NOTES

• After unpacking, make sure the appliance is intact, complete with all its parts as shown in the illustrative guide and with no sign of damage. If in any doubt, do not use the appliance and contact an authorised service centre.

CAUTION! Remove any communication material such as labels, tags etc. from the appliance before use.

WARNING! Risk of suffocation. Children shall not play with the packaging. Keep the plastic bag out of the reach of children.

• This appliance must only be used for the purpose for which it was designed, namely as a hairdryer for home use. Any other use is considered not compliant to the intended use and therefore dangerous.
• Before connecting the appliance to the mains supply, make sure that the voltage and frequency indicated on the technical data of the appliance correspond to those of the mains supply. The rating is on the appliance or on the power supply unit, if any (see illustrative guide).
• This appliance can work automatically at a frequency of 50Hz or 60Hz .

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• DO NOT use the appliance with wet hands, damp feet or barefoot.

• DO NOT pull the supply cord or the appliance itself to remove the plug from the socket.
  DO NOT pull or lift the appliance by the supply cord.
  DO NOT expose the appliance to humidity, to the effects of weather (rain, sun, etc.) or to extreme temperatures.
• DO NOT leave the appliance unattended while it is connected to the power supply.
• Always disconnect the appliance from the mains supply before cleaning or performing maintenance and when the appliance is not in use.
• If the appliance is faulty or malfunctions, switch it off and do not tamper with it. Contact an authorised technical service centre for any repairs.
• If the supply cord is damaged it must be replaced by an authorised technical service centre, so as to prevent all risks.
• When the appliance is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the appliance is switched off.
• For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30mA (ideal 10mA ) is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.

WARNING! DO NOT use this appliance near bathtubs, showers, basins or other vessels containing water.

• This appliance shall not come into contact with water, other liquids, sprays, steam. For any cleaning and maintenance operation refer to the

EN

instructions in the relevant chapter.

EN

• This appliance must only be used on human hair. DO NOT use the appliance on animals or on wigs and hair pieces made of synthetic material.
  DO NOT obstruct the intake filter and always keep it free from dust and hair.
• See the external packaging for the characteristics of the appliance.
• Use the appliance only with the supplied accessories that are an essential part of the appliance.

SYMBOLS

Warning

Class II equipment

Prohibited

Note

Not suitable for use in the bath, shower or water-filled reservoir

DESCRIPTION OF THE APPLIANCE AND ITS ACCESSORIES

Refer to page I of the Illustrative Guide to check the contents of the package. All the figures are found on the inside pages of the cover.

1. Intake filter

1A.Filter
1B.Filter cap

1. Adjustment buttons

2A. Cold air shot button
2B. Air temperature selection key
2C. Air flow selection key

1. Attachment eyelet

For the appliance features, refer to the external packaging. Use the supplied accessories only.

ACCESSORIES

The hair dryer is provided with the accessories described above. The accessory is mounted on the appliance by pressing it onto the front part of the hair dryer (5) until it is inserted. When finished using it, the accessory can be removed by pulling it firmly.

8 mm and 10 mm nozzle (6A/6B)

Use the selected nozzle to direct the air jet on your hair as you wish during styling and drying.

Diffuser (6C)

If the appliance comes with a diffuser, use it in place of the nozzle to add volume to your hair.

Recommendations: The diffuser is only to be used on damp hair in order to obtain a natural hair style or a natural drying effect:

• Take a lock of hair and twist it in the diffuser. Make sure that even the ends are entered.
• Then switch the hair dryer on at medium speed and maximum temperature to dry your hair.

For greater volume:

• Switch the hair dryer on at minimum speed and temperature.
• Place the diffuser directly on your hair and move it from the bottom upwards, as though you wanted to lightly massage your scalp.

IMPORTANT: use only the original accessories of the appliance.

USE

WARNING! This appliance is not to be used if it has been dropped or if there are visible signs of damage.

WARNING! DO NOT use this appliance near bathtubs, showers, basins or other vessels containing water. Never place the appliance into water.

ATTENTION! RISK OF SCALDING. Let the accessories cool before detaching them from the appliance after use.

WARNING! Risk of fire. DO NOT use flammable products on hair or on the appliance.

Refer to the figure in the illustrative guide of the instructions for use. Appliance with separate keys for air flow (2C) and temperature (2B). The two keys set air flow and temperature separately at the following levels:

EN

EN

Air flow button (2C)

0 = OFF
1 = medium air flow
2 = strong air flow

Temperature button (2B)

1 = low temperature
2 = medium temperature
3 = high temperature

Cold air shot button (2A)

If the appliance is equipped with this button, it can be used to set the styling.

• If this button is pressed while the appliance is on, the hot air cools down and the set style lasts longer.
• Once the button is released, the appliance returns to a hot air flow at the selected level.

MAINTENANCE AND CLEANING

WARNING! Always disconnect the appliance from the socket before cleaning or performing maintenance.

WARNING! Make sure all cleaned parts are completely dry before reusing the appliance.

Cleaning the appliance and accessories

Clean the appliance and the accessories (diffuser, nozzle) with a damp cloth when needed. Do not use solvents or other aggressive or abrasive detergents. Otherwise, the surface could be damaged. Check the intake opening of the appliance regularly and remove all hair and dust.

Cleaning the intake filter (1)

If the appliance is provided with an intake filter, clean it as follows:

• Open the filter cap (1B) as shown in the figure.
• Wipe the front and rear of the retina (1A) and the filter cap (1B) with a damp cloth.
• Let the parts dry well and put them back on in inverse order.

NOTE: the more dust is present in the place where the hair dryer is used, the more often the filter must be cleaned.

STORAGE

WARNING! Risk of fire. Wait for the appliance to cool completely before storing it.

WARNING! DO NOT wrap the supply cord around the appliance.

WARNING! Store the appliance so that no object may accidentally go into and damage it.

EN

DISPOSAL

The packaging of the appliance is made of recyclable materials. Dispos of it in accordance with the environmental protection regulations.

Pursuant to Directive 2012/19/EU on waste electrical and electronic equipment (WEEE), the crossed bin symbol on the appliance or its packaging indicates that the appliance must be disposed of separately from other waste at the end of its useful life.

The user must therefore take the appliance to an appropriate recycling centre for electrical and electronic equipment. Alternatively, instead of handling the disposal, the user can hand over the appliance to the retailer when a new, equivalent one is purchased. The user can hand over electronic products measuring less than 25cm to retailers of electronic products having a sales area of at least 400m^2 free of charge and with no obligation to buy. Appropriate separate collection for the subsequent procedure for the decommissioned appliance for recycling, which includes treatment and environmentally friendly disposal helps prevent adverse effects on the environment and health and promotes reusing and/or recycling materials that the appliance consists of.

ASSISTANCE AND WARRANTY

The appliance is guaranteed for a period of two years from the date of delivery. Evidence shall be taken as the date indicated on the receipt/ invoice (provided it is legible), unless the buyer can prove that the delivery occurred later.

In the event of a defect in the product which existed prior to the date of delivery, appliance repair or replacement is guaranteed free of charge, unless one of the two solutions is disproportionate to the other. The buyer has the obligation to notify an authorised Service Centre of the non-conformity within two months from discovering the defect.

The warranty does not cover any part that may be defective due to:

a. transport damage or accidental drops,
b. incorrect installation or an inadequate electrical system,
c. repairs or alterations made by unauthorised personnel,

EN

d. poor or incorrect maintenance and cleaning,
e. product and/or product parts subject to wear and/or consumables, including the reduction in battery usage time due to the use or time, if present,
f. failure to comply with the operating instructions and/or negligent or careless use.
g. Twisted or bent power cord due to negligence or pulled,
h. Presence of hair in the fan,
i. Failure to clean the cold air inlet filter causing the motor to overheat,
j. Accidental falling during use,
k. Obstruction at the cold air inlet and hot air outlet (front and rear grid),
I. Use of non-original maintenance components or accessories,
m. Use of chemical products to clean the appliance,
n. Use of hairspray or other sprays during use.

The list above is purely indicative and not exhaustive and in any case, this warranty shall not cover all circumstances that cannot be attributed to manufacturing defects of the appliance.

In addition, the warranty does not cover any case of improper use of the appliance and professional use.

All liability is disclaimed for any damage that may directly or indirectly be caused to persons, property and pets as a result of failure to comply with all the instructions provided in the "Instructions andWarnings Booklet" regarding appliance installation, use and maintenance.

This is without prejudice to any contractual warranty claims against the seller.

Methods of support

Appliance repairs must be carried out by an authorised Service Centre. If the faulty appliance is under warranty, it must be sent to the Service Centre together with a fiscal document that can confirm the date of sale or delivery.
