Product Type	Wired remote control for air conditioner
Brand	LG
Model	PQRCHCA0QW
Dimensions (approx.)	120 x 70 x 20 mm
Weight (approx.)	100 g
Power supply	Via connection cable (24 V DC)
Display	LCD with room temperature and settings
Main functions	On/Off, modes Cool, Heat, Auto, Dehumidify, Fan; temperature setting (16-30°C), fan speed (Low, Medium, High, Auto, Quiet)
Group control	Up to 2 remotes per indoor unit, master/slave configuration
Installation configuration	Installer mode: operation test, address, PSE, thermistor, ceiling height, static pressure, master/slave, Celsius/Fahrenheit
Room temperature	Display via ROOM TEMP button; switching °C/°F
Parental control	Key lock (CP) via ON/OFF + FAN SPEED for 3s
Supplied accessories	Connection cable (10 m), screws (2), user and installation manual
Maintenance and cleaning	Clean with a soft dry cloth; do not use solvents or harsh detergents
Safety	Do not expose to water, do not disassemble, do not use sharp objects, installation by professional
Spare parts and repairability	Replaceable connection cable; repair by authorized service center; no consumer spare parts
General information	128-page manual, multilingual; compatible with LG air conditioners with wired remote control

Frequently Asked Questions - PQRCHCA0QW LG

How to install the LG PQRCHCA0QW wired remote control?

First, fix the installation panel to the wall using the provided screws. Connect the connection cable between the indoor unit and the remote control. Snap the remote control into the installation panel by pressing on the lower part. For more details, refer to the installation manual.

How to access the installation configuration mode?

Press the Temperature + and ROOM TEMP buttons simultaneously for 5 seconds. The function code is displayed. Use the temperature buttons to navigate and the On/Off button to confirm.

How to configure the remote control in master/slave mode?

In installation mode, select function code 07. Use the temperature buttons to choose 00 (Slave) or 01 (Master). Confirm with the On/Off button. The master remote controls the unit, slaves follow.

How to change the temperature display from Celsius to Fahrenheit?

In installation mode, select function code 12. Set to 00 (Celsius) or 01 (Fahrenheit) with the temperature buttons. Confirm with the On/Off button. The change applies immediately.

What to do if the remote control shows nothing?

Check the cable connection between the remote and the indoor unit. Ensure the indoor unit is powered on. If the problem persists, contact a certified installer.

How to activate parental control?

Press the On/Off and FAN SPEED buttons simultaneously for more than 3 seconds. The screen displays 'CP'. To deactivate, repeat the same operation.

What operating modes are available?

The modes are: Cool, Heat, Auto, Dehumidify, and Fan. The mode is selected via the central controller (not accessible from the wired remote).

How to adjust the fan speed?

Press the FAN SPEED button to cycle through options: Low, Medium, High, Auto, and Quiet (depending on model). Availability depends on the current mode.

Can I connect multiple remotes to one air conditioner?

Yes, up to 2 remotes. Configure one as master and the other as slave via installation mode (code 07). Only the master remote controls basic settings; the slave allows limited settings.

How to clean the remote control?

Use a soft dry cloth. Never use solvents, alcohol, or harsh detergents. Avoid water entering the device.

USER MANUAL PQRCHCA0QW LG

Please read this manual carefully before operating your set and retain it for future reference.

MODELS:PQRCHCAOQ

PQRCHCAOQW

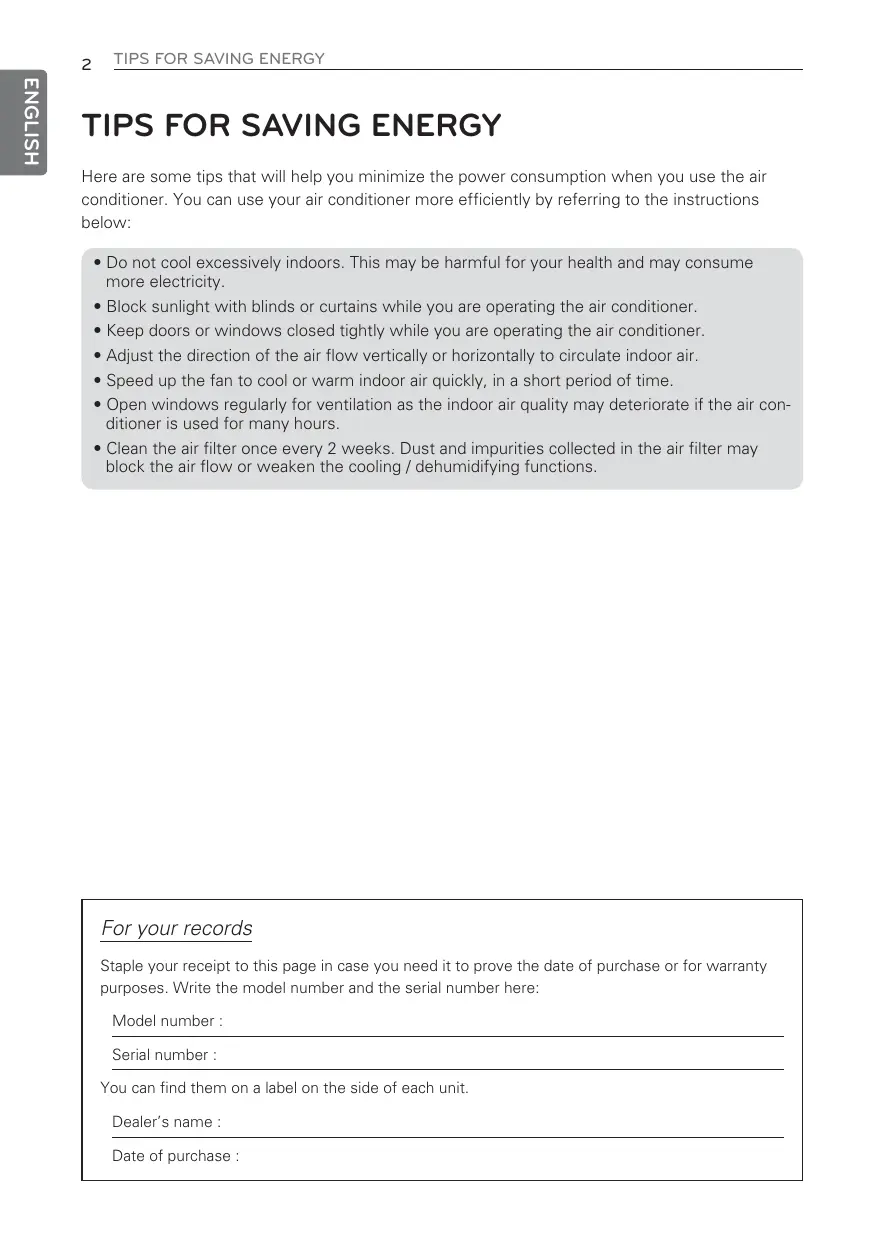

TIPS FOR SAVING ENERGY

Here are some tips that will help you minimize the power consumption when you use the air conditioner. You can use your air conditioner more efficiently by referring to the instructions below:

• Do not cool excessively indoors. This may be harmful for your health and may consume more electricity.
• Block sunlight with blinds or curtains while you are operating the air conditioner.
• Keep doors or windows closed tightly while you are operating the air conditioner.
• Adjust the direction of the air flow vertically or horizontally to circulate indoor air.
• Speed up the fan to cool or warm indoor air quickly, in a short period of time.
• Open windows regularly for ventilation as the indoor air quality may deteriorate if the air conditioner is used for many hours.
• Clean the air filter once every 2 weeks. Dust and impurities collected in the air filter may block the air flow or weaken the cooling / dehumidifying functions.

For your records

Staple your receipt to this page in case you need it to prove the date of purchase or for warranty purposes. Write the model number and the serial number here:

Model number :

Serial number :

You can find them on a label on the side of each unit.

Dealer's name :

Date of purchase :

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product

WARNING

It can result in serious injury or death when the directions are ignored

CAUTION

It can result in minor injury or product damage when the directions are ignored

WARNING

• Installation or repairs made by unqualified persons can result in hazards to you and others.
• Installation MUST conform with local building codes or, in the absence of local codes, with the Nation Electrical Code NFPA 70/ANSI C1-1003 or current edition and Canadian Electrical Code Part1 CSA C.22.1.
• The information contained in the manual is intended for use by a qualified service technician familiar with safety procedures and equipped with the proper tools and test instruments.
• Failure to carefully read and follow all instructions in this manual can result in equipment malfunction, property damage, personal injury and/or death.

Installation

• Be sure to request to the service center or installation specialty store when installing products.
• It will cause fire or electric shock or explosion or injury.

• Request to the service center or installation specialty store when reinstalling the installed product.

• It will cause fire or electric shock or explosion or injury.

• Do not disassemble, fix, and modify products randomly.

• It will cause fire or electric shock.

Operation

• Do not place flammable stuffs close to the product.
• It will cause fire.
• Do not allow water to run into the product.
• It will cause electric shock or breakdown.
• Do not give the shock to the product.
• It will cause breakdown when giving the shock to the product.
• Request to the service center or installation specialty store when the product becomes wet.
• It will cause fire or electric shock.
• Do not give the shock using sharp and pointed objects.
• It will cause breakdown by damaging part.

CAUTION

• Do not clean using the powerful detergent like solvent but use soft cloths.
• It will cause fire or product deformation.
• Do not press the screen using powerful pressure or select two buttons. - It will cause product breakdown or malfunction.
• Do not touch or pull the lead wire with wet hands. - It will cause product breakdown or electric shock.

TABLE OF CONTENTS

2 TIPS FOR SAVING ENERGY

3 IMPORTANT SAFETY INSTRUCTIONS

6 PART DESCRIPTION

6 Using the remote control

6 Accessory

7 INSTALLATION IN-STRUCTION

8 Group Control
9 Install Setting
9 - How to enter installer setting mode
10 - Installer Setting Code Table
11 - Test Run Mode
11 - Setting Address of Central control
12 -E.S.P
12 -Thermistor
13 - Ceiling Height Selection
13 -Static Pressure Setting
14 -Remote Controller Master/Slave Setting
14 -Fahrenheit Switching

15 OWNER'S INSTRUCTION

15 Standard Operation
15 -Cooling Mode
15 - Heating Mode
15 - Auto Operation Mode
15 - Dehumidification Mode
15 -Fan Mode
16 Function setting
16 - Fan Speed Selection
16 - Room Temperature Check
16 -Child Lock

PART DESCRIPTION

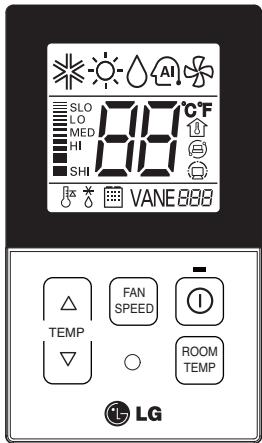

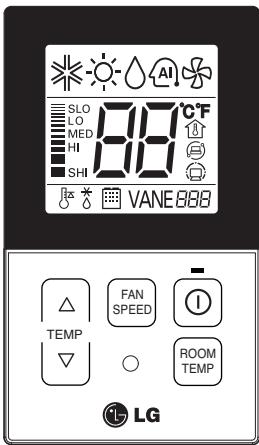

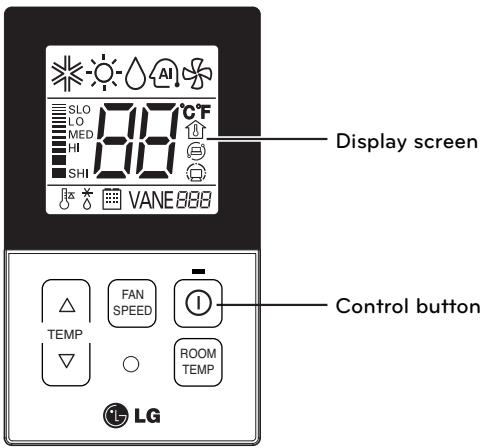

Using the remote control

Control panel	Display screen	Description
TEMP	18~30°C	Temperature adjustment button: Adjusts the room temperature when cooling and heating.

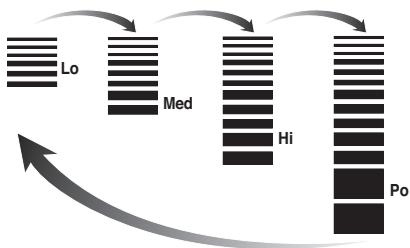

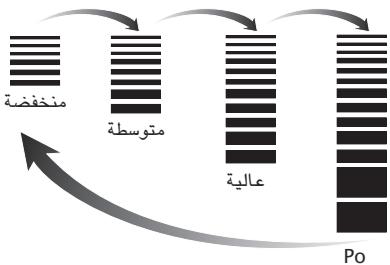

FAN SPEED	LDO LDO MDO MISO SHI	Indoor fan speed button: Adjusts the fan speed.
①		On/Off button: Turns the power on/off.
ROOM TEMP		Displays the room temperature. Ex 23°

Accessory

Connection Cable (1EA, 10m)

Screw (2 EA)

Owner's / Installation manual

INSTALLATION INSTRUCTION

1 Please fix tightly using provided screw after placing remote controller setup board on the place where you like to setup.

• Please set it up not to bend because poor setup could take place if setup board bends.

Please set up remote controller board fit to the reclamation box if there is a reclamation box.

2 Can set up Wired remote controller cable into three directions.

• Setup direction: the surface of wall reclamation, upper, right
• If setting up remote controller cable into upper and right side, please set up after removing remote controller cable guide groove.

※ Remove guide groove with long nose.

① Reclamation to the surface of the wall
② Upper part guide groove
③ Right part guide groove

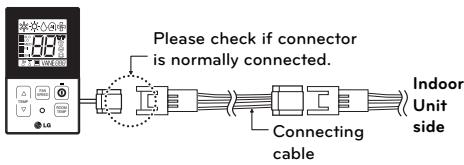

3 Please connect indoor unit and remote controller using connection cable.

4 Please use extension cable if the distance between wired remote controller and indoor unit is more than 10m
5 Please fix remote controller upper part into the setup board attached to the surface of the wall, as the picture below, and then, connecta with setup board by pressing lower part.

• Please connect not to make a gap at the remote controller and setup board's upper and lower, right and left part.

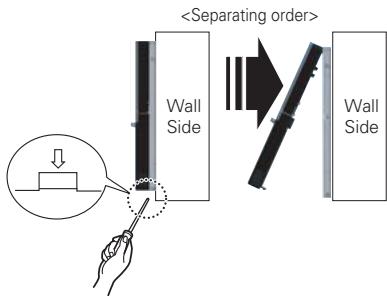

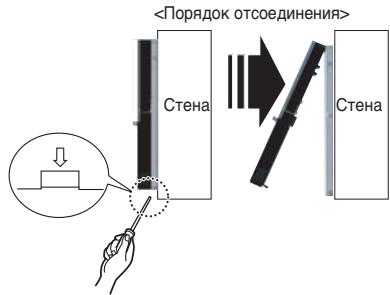

When separating remote controller from setup board, as the picture below, after inserting into the lower separating hole using screw driver and then, spinning clockwise, remote controller is separated.

• There are two separating holes. Please individually separate one at a time.
• Please be careful not to damage the inside components when separating.

Group Control

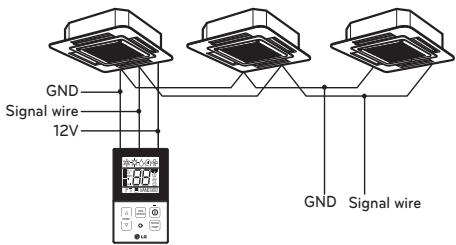

1 When installing more than 2 units of air conditioner to one wired remote controller, please connect as the right figure.

• If it is not event communication indoor unit, set the unit as slave.
• Check for event communication through the product manual.

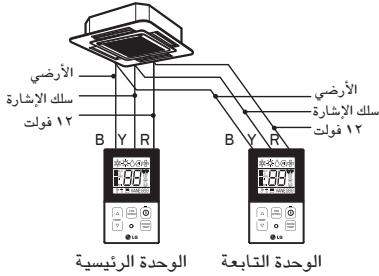

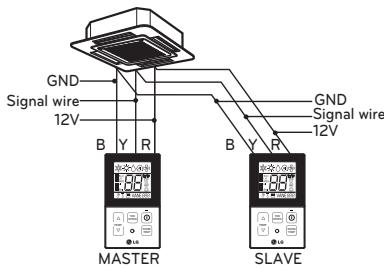

2 When installing more than 2 wired remote controllers to one air conditioner, please connect as the right picture.

• When installing more than 2 units of wired remote controller to one air conditioner, set one wired remote controller as master and the others all as slaves, as shown in the right picture.
• You cannot control the group as shown in the right for some products.
• Refer to the product manual for more detail. When controlling multiple indoor units with event communication function with one remote controller, you must change the master/slave setting from the indoor unit.
• For ceiling type cassette and duct product group, change the switch setting of the indoor PCB.

3 switch OFF: Master (Factory default setting)

3 switch ON: Slave

• For wall-mount type and stand type product, change the master/slave setting with the wireless remote controller. (Refer to wireless remote controller manual for detail)
• When installing 2 remote controllers to one indoor unit with event communication function, set the master/slave of the remote controller. (Refer to remote controller master/slave selection)
  When controlling the group, some functions excluding basic operation setting, fan level
  Min/Mid/Max, remote controller lock setting and time setting may be limited.

3 When installing more than 2 wired remote controllers to one air conditioner, please connect as the right picture.

• When installing more than 2 units of wired remote controller to one air conditioner, set one wired remote controller as master and the others all as slaves, as shown in the right picture.
• You cannot control the group as shown in the right for some products.

• Refer to the product manual for more detail.

• When controlling in groups, set the master/slaver of the remote controller. Refer to Installer setting section on how to set master/slave for more detail.

Install Setting

How to enter installer setting mode

CAUTION

• Installer setting mode is to set the detail function of the remote controller. If the installer setting mode is not set correctly, it can cause problems to the product, user injury or property damage. This must be set by an certificated installer, and any installation or change that is carried out by a non-certificated person should be responsible for the results. In this case, free service cannot be provided.

1 If you want to set installer setting mode, Press the Temperature up button and the Room Temp button same time for five seconds.
2 When you enter the setting mode Initially. Function code is displayed on the LCD screen.

• Some categories of the menu may not be displayed according to the function of the product, or the menu name may be different.

1 General air-conditioner product

No.	Function	Code	Value
1	Test Run	01	01:Set
2	Address Setting	02	00~FF : Address
3	E.S.P. Value	03	<ESP Step> 01:VeryLow 0 ~ 255 030 ! 000 02:Low Function Code ESP step ESP value 03:Med 04:High 05:Very High
4	Thermistor	04	01:Remo 02:Indoor 03:2TH
5	Ceiling Height	05	01:Med 02:Low 03:High 04:Very High
6	Static Pressure	06	01:V-H 02:F-H 03:V-L 04:F-L
7	Master Setting	07	00:Slave 01:Master
8	Celsius Fahrenheit Switching	12	00:Celsius (Optimized only for U.S.A) 01:Fahrenheit

• Some contents may not be displayed depending on the product function

Test Run Mode

After installing the product, you must a test Run Mode. For details related to the Product manual.

1 Press button and button Simultaneously for more than 3 seconds.
2 Setup figure '01' blinks

3 Press 0 button to start.

4 During the test run, pressing the below button will exit run.

Setting Address of Central control

It's the functional to use connecting central control.

1 Press button and button Simultaneously for more than 3 seconds.
2 Setup function code '02' pressing by button.

3 Set group number and indoor number.

4 Press 0 button to save.
5 Press button and button Simultaneously for more than 3 seconds After the setting has been completed.

NOTE

• After setup, it automatically gets out of setup mode if there is no button input for 25seconds.
• When existing without pressing set button, the manipulated isn't reflected.

E.S.P

This is the functional that decides the strength of the wind for each wind level and because this function is to make the installation easier.

• If you set ESP incorrectly, the air conditional may malfunction.
• This setting must be carried out by a certificated-thecnition.

1 Press button and button Simultaneously for more than 3 seconds.
2 Setup function code '03' pressing by ROOM button.

3 Select ESP fan step and ESP value.

• ESP value range : 0~255

4 Press 0 button to save.
5 Press button and button Simultaneously for more than 3 seconds After the setting has been completed.

！NOTE

• When setting ESP value on the product without very weak wind or power wind function, it may not work.
• Please be careful not to change the ESP value for each fan step.
• It does not work to setup ESP value for very low/power step for some product.
• ESP value is available for specific range belongs to the product.

Thermistor

This is the function to select the temperature sensor to judge the room temperature.

1 Press button and button Simultaneously for more than 3 seconds.
2 Setup function code '04' pressing by ROOM TEMP button.

3 Set Thermistor value by pressing button by pressing temperature button. (01: Remote Controller, 02: Indoor, 03: 2TH)

4 Press 0 button to save.
5 Press button and button Simultaneously for more than 3 seconds After the setting has been completed.

NOTE

The function of 2TH has difference operation characteristics according to product.
- Cooling: Operation of higher temperature by comparing indoor unit's and wired remote controller's temperature. (there are products that operate at a lower temperature.)
- Heating: Operation of lower temperature by comparing indoor unit's and wired remote controller's temperature.

Ceiling Height Selection

This function is to adjust FAN Airflow rate according to ceiling height (For ceiling type product)

1 Press button and button Simultaneously for more than 3 seconds.
2 Setup function code '05' pressing by ROOM TEMP button.

3 Set Thermistor value by pressing button by pressing temperature button.

(01: Remote Controller, 02: Indoor, 03: 2TH)

4 Press 0 button to save.
5 Press button and button Simultaneously for more than 3 seconds After the setting has been completed.

！NOTE

• Ceiling height setting is available only for some products.
• Ceiling height of "Very high" function may not exist depending on the indoor units.
  Refer to the product manual for more details.

Static Pressure Setting

This function is applied to only duct type. Setting this in cases will cause malfunction.

1 Press button and button Simultaneously for more than 3 seconds.
2 Setup function code '06' pressing by ROOM TEMP button.

3 Set Thermistor value by pressing button by pressing temperature button.

(01: V-H, 02: F-H, 03: V-L, 04: F-L)

Pressure selection		Function
		Zone state	ESP standard value
01	V-H	Variable	High
02	F-H	Fixed	High
03	V-L	Variable	Low
04	F-L	Fixed	Low

4 Press 0 button to save.
5 Press button and button Simultaneously for more than 3 seconds After the setting has been completed.

Remote Controller Master/Slave Setting

It's a function for setting in group control, or 2-remote controller control.

1 Press button and button Simultaneously for more than 3 seconds.
2 Setup function code '07' pressing by ROOM TEMP button.

3 Select Master/Slave by pressing temperature button. (00: Slave, 01: Master)

4 Press 0 button to save.
5 Press button and button Simultaneously for more than 3 seconds After the setting has been completed.

Remote Controller	Function
Master	Indoor unit operates based on master remote controller at group control. (master is set when delivering from the ware-house.)
Slave	Setup all remote controllers except one master remote contrrooler to slave at group control.

• Refer to eh 'Group control' part for details.

• When controlling in groups, basic operation settings, airflow strength, weak/medium,strong, lock setting of the remote controller, time settings, and other functions may be restricted.

This function is used for switching the display between Celsius and Fahrenheit. (Optimized only for U.S.A)

1 Press button and button Simultaneously for more than 3 seconds.
2 Setup function code '12' pressing by ROOM TEMP button.

3 Select Temperature unit mode by temperature button. (00: Celsius, 02: Fahrenheit)

4 Press button to save.
5 Press button and button Simultaneously for more than 3 seconds After the setting has been completed.
Whenever press button in Fahrenheit mode, the temperature will increase/drop 2 degrees.

OWNER'S INSTRUCTION

Standard Operation

• The operation mode can be set from Central Controller only.

Cooling Mode

It cools the room by comfortable and Clean wind.

1 Press the 0 button.

2 Adjust the desired temperature by press the temperature button.

(Temp range: 18^ 30^ ( 64^ 86^ )

Heating Mode

It supplies warm wind to the indoor.

1 Press the 0 button.

2 Adjust the desired temperature by press the temperature button.

(Temp range: 16^ 30^ ( 60^ 86^ )

Auto Operation Mode

It makes the room cool using pleasant and fresh air quickly

1 Press the 0 button.

2 When the room temperature is lower than the desired temperature

Heating Operation starts (For Heat Pump models only)

When the room temperature is higher than the desired temperature

: Cooling Operation starts

Dehumidification Mode

It removes humidity while ari-cooling Weakly.

1 Press the ① button.

Fan Mode

It blows the air as it is in the indoor, not

1 Press the 0 button.

• Temperature control is not available during the Dehumidification & Fan operation.

Function setting

Fan Speed Selection

You can easily control the fan speed.

1 Press the 0 button.
2 Press the FAN button.

Fan Speed Selection in Cooling Operation

Fan Speed Selection in Heating, Dry, Fan, Auto-Operation

NOTE

• If the product is not compatible with The fan speed control, it will not function as per your selection.

Room Temperature Check

1 Press the button.

NOTE

• "To change the temperature display to Celsius or Fahrenheit, change LCD display by referring to page 14."
• As the temperature distribution of the remote controller installation space is not Uniform, slight difference can be generated between the actually felt temperature and the room temperature indication of the remote controller.

Child Lock

It is the function to use preventing children or others from careless using.

1 Press button and FAN button Simultaneously for more than 3 seconds.

NOTE

• After the setting of the 'CL', if another button is setup, the button can not be recognized as the 'CL' is indicated at the temperature display section.

MANUALE DELL'UTILIZZATORE

EDI INSTALLAZIONE

CABLAGGIO REMOTO

SEMPLICE CONTROLLORE

Setting Address of Central control

• If the product is not compatible with The fan speed control, it will not function as per your selection.

MANUEL D'INSTALLATION

ET D'UTILISATION

DISPOSITION DE RÉGULATION À DISTANCE FILAIRE SIMPLIFIÉ

This is the functional that decides the strength of the wind for each wind level and because this function is to make the installation easier.

(01: V-H, 02: F-H, 03: V-N, 04: F-L)

• Pn KpeJIeHm He DoJIxHO OCTaBaTbC3a3OpOB MExJy NylbTom Dv u yCTaHOBouHOI pIactuHOI CBepxY, Cn3y, Cnpaba IIN cIeBa.

При сгати пьыд ус установонпл actinbl BCTaBte OTBepKу B HxHHee yctahOBOuHoe OTBepCTne, KaK noka3aHo Ha pncyHke, И NOBOPOTOM ee no YacobOn CTpeIke OTCOEduHInTe PnybT dY.

• IMeIoTcA DBa yCTaHOBOUHbIX OTBepCTnI. OINHOBpeMeHHO NOJIb3yITeCb TOJIbKO ODNHM OTBepCTnEM.
  -При OTCOeINHEnHm CO6JIaJaTe OCToPoxKHOCTb, YTO6bl He NOBpeIITb BHYTeHHHe KOMnOHeHTbl.

• When controlling in groups, basic operation settings, airflow strength, weak/medium,strong, lock setting of the remote controller, time settings, and other functions may be restricted.

JSSLLIgglgglgglgglgglgglgglgglgglgglgglgglg

a a o j a j g aeg aagall aagall aagaa

aaii iiaai aiee

a ybjg jyj

g

Liaullll jlll

它恰好 x = 1 或 3x + 4y + 1 = 0

1

iJ 15 iIg lgl 15 I

ci = ai - 1 + ai - 2 + ·s + a1 + a_0

aLaa

jll pliai jla clalil gie jai

dlaal jaijle lglal jaiagbjbll aigall qill luljyl gla

#

aLg aRzhi aI aI g aie y 10

1

aill al jia aia bla u! gaoie iio

#

JbIzIaI I aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI aI

aagg aagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaa

Jg jlll l 111-ANSC/VNFAa

a1 = 2,an + 1 = n1 + n2

o o aal yaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyai

slll lilll l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l l

j 1 j 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

agaa aalw gaiialgai jaiall aaii - 1 iaiall jaeia p, gaiy oai jaii ai

aassssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss

aLill sall:Jusll Jua

1 1
1
1
1
1

iill aal lgs 1g 2aall 1s -

y

sJyIyI yIyIyIyIyIyIyIyIyIy

a#b#l#d#!g#

Ku k jill aill bai hll lla iip 1

allll lalllllllll

yJ 10e Jolc JdLg j gj 10000000000000000000000000000000000000000000

Jaozao jao Su Jolc a p jao

aalalalalalalalalalalalalalalal

-

alll 1sijl jolpall

ciilll lalai jlln aee

gssall gis b

gSall kail Iusil piai wll aibbll

1 1

FLOOM

aall aagaae gaaal

10

jll jll lbe baiall baii 1. yjbjll Jyjll Jjll Jjll Jn Cgwrjll gws

golal

J 100000000000000000000000000000000000000000000

1 1

T

.aaal a jy jy baii yj alal ay

all ①

0 1

ab = 12

Lai Jiaill gai liu Lg THY i,

j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j jj

j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j

E.S.P

gss Js s 1gll aJz gdd jill aJgll g

Jbui jj SsbIa bIyBb ESP aabu bua 1i - .Sill Jg

-1 1

1

T

.ESP aEGP aeggs

YOO\~ ESP: auijui

B_1 A D

j 10000000000000000000000000000000000000000000000

ab = 12

！

jia aia jia iiaaiie ESPaiaiiae

Jaa 1

J 1 JSL ESP i j j j j j j j j j

1

aill/aiill aiesiell 2,11 ESP aesj!Say

.

jlllaiiiaaiiaaiaiaiaiaiiaaiia

yilwblalb

a a a a a a a a a a a a a a a a a a a a a a a a a a a

1 1

Rc0RM 1 jll lc bll "y" Jlal y aagg g

.1J 1000000000000000000000000000000000000000000000000000

jbcbiall jywrwglg jzj (c:4,201

10

Jc uj jd dJg j 100m jll g Jl 1e bai 0 Temp

心i 100

aaii i 1/aaiaii aaii baii

eaiiie iie

1 1

ROOM 1234567890

jle bai: aaii jll sall/aaasllsall jil (aaiislll jll: · · · ,aiiLill sall:..）.

B_1 ① j C 使对任意的 k , k 1

joojjol j 100m jll 1 jll 1 0

الإستعمال

الإستعمال

الإستعمال مصCarthy جامعية بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيا بعبيaga بعبيaga بعبيaga بعبيaga بعبيaga بعبيaga بعبيaga بعبيaga بعبيaga بعبيaga بعبيaga بعبيaga بعبيaga بعبيaga بعبيaga بعبيaga بعبيaga بعبيaga بعبيaga بعبيaga bga بعبيaga بعبيaga bga بعبيaga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bGA bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bGa bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bqa bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bgd gga بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bxa bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bgarbga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga ba ga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bgsbga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bga bGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA CBA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA B GA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BBA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA BA BGA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA NA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA BA TA BA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA TA T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T A T 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 3 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 4 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 5 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 4 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 3 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 6 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 8 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 5 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 8 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 8 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 4 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 8 4 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 3 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 8 3 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 5 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 8 7 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 6 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 8 6 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 9878888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA BBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA CBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA DBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA FBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBAEBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA EBA

aJaeJgclallll 1000000000000000000000000000

Jlulll lalgl 12a 13 aagall g kailll jg * Jlalgl (g/luu/g/au) algl ss s g g auu Lj 10Lg c gll 14g Ja .

.①

aiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaia

aJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJr

aagblllglg

Lg gglgglgglgglgglg

① 2j S ②

aagall

1g 1

jj ≤ le 由上

a 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

山

Jll

1

y

aaii i 1

①②③

a jy jie biaaiy ball a yjbdai (a yj 1
a yj y\~1A:ajll a yjla (a yj0

a

1. 1.1.1.2. 2. 2. 2. 3. 3. 4.

① 1

a jy jie baii yibai ball a jyblal a jyj 1
a jy jy r\~17:ajrall a jyglai) .jral (24jir

gaii jiai i

sglll pluull yurjzr jll Jg l 11 gll lla s

a

ROOM TEMP

ab 为 y = ax^2 + bx + c

a a a a a a a a a a a a a a a a a

LCD 1

1.12

jck jks k jds a JdJ 1

Jalll aagwaaall yjll jy

Jably

juc puiu 11 jno pauee gul bgl qal aagll oia puiu

1 1

ab 与 b < da

jll jy jj jucllCL,abg b

jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol

.

#

aegd aegd

aagaaagaae aee

①②③

FAN 17

J 1

aag aegg aegaae

glll lssssssss

ab 为正整数,求所有的三元正整数组(p,p,p),使得 p^x - y^p = 1 .

aagaaeae aee eae ae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae

djiis jis
