USER MANUAL 19000/19001 RUSSELL HOBBS

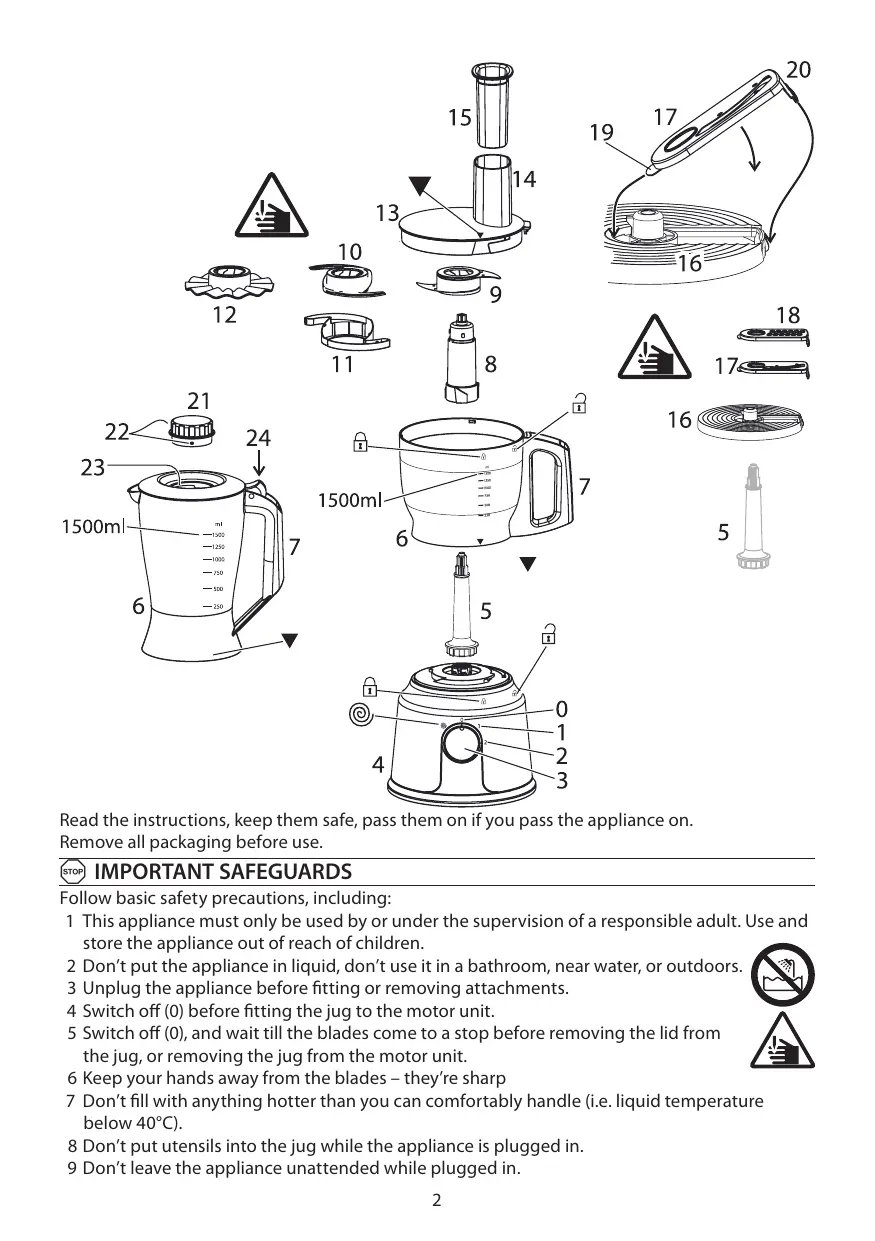

Read the instructions, keep them safe, pass them on if you pass the appliance on. Remove all packaging before use.
A IMPORTANT SAFEGUARDS Follow basic safety precautions, including:
1 This appliance must only be used by or under the supervision of a responsible adult. Use and store the appliance out of reach of children. 2 Don’t put the appliance in liquid, don’t use it in a bathroom, near water, or outdoors. 3 Unplug the appliance before fitting or removing attachments. 4 Switch off (0) before fitting the jug to the motor unit. 5 Switch off (0), and wait till the blades come to a stop before removing the lid from the jug, or removing the jug from the motor unit. 6 Keep your hands away from the blades – they’re sharp 7 Don’t fill with anything hotter than you can comfortably handle (i.e. liquid temperature below 40°C). 8 Don’t put utensils into the jug while the appliance is plugged in. 9 Don’t leave the appliance unattended while plugged in. 2

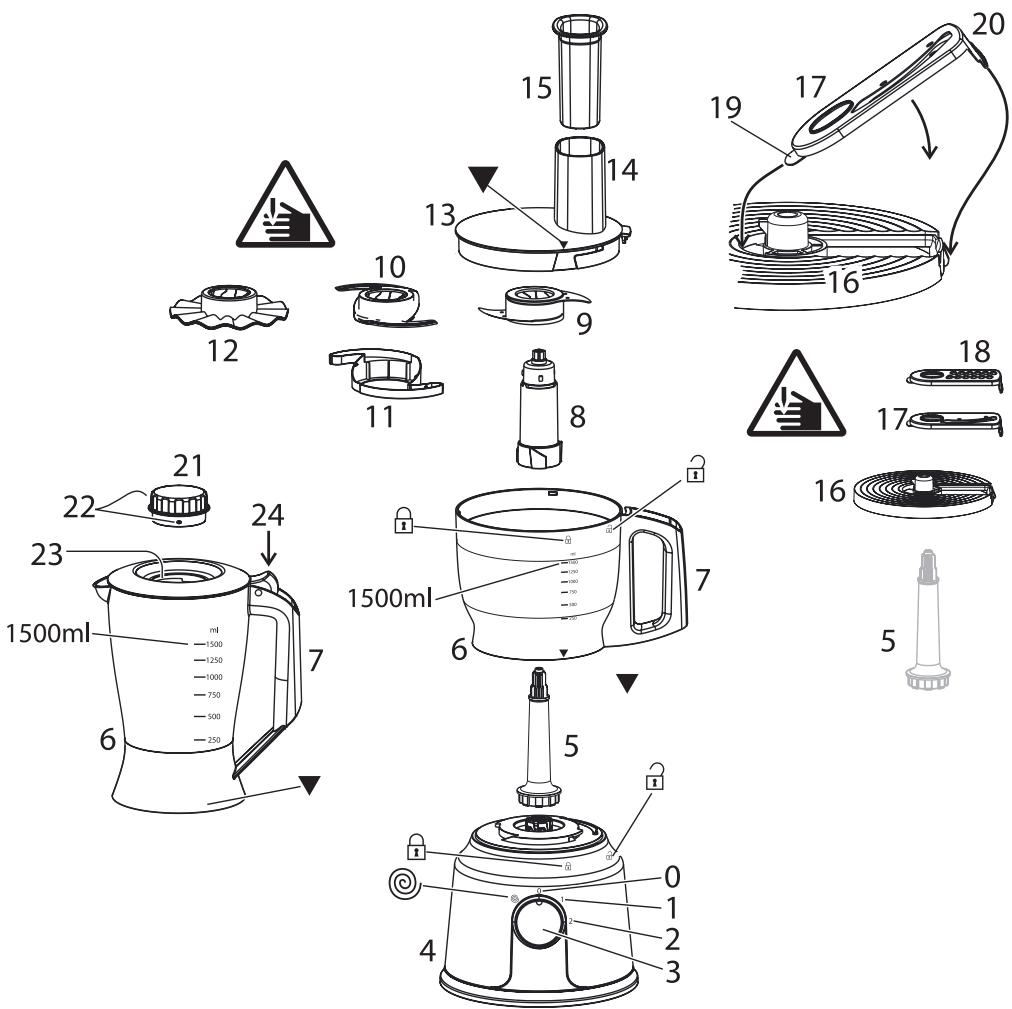

1 low 2 high 3 speed control 4 motor unit Y pulse 5 spindle 6 jug
8 support 9 mixer 10 chopper 11 blade guard 12 creamer 13 lid 14 tube 15 pusher
10 Don’t let the jug overflow. If liquid gets under the motor unit, it may be sucked into the motor, damaging it.
11 Don’t use accessories or attachments other than those we supply. 12 Don’t use the appliance for any purpose other than those described in these instructions. 13 Don’t operate the appliance if it’s damaged or malfunctions. 14 If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, in order to avoid hazard.
C SWITCH ON 1 Sit the motor unit on a dry, firm, level surface, near a power socket. 2 Check that the speed control is set to 0. 3 Put the plug into the power socket.
4 Turn the speed control to the speed you want (1 = low, 2 = high). 5 Turn the speed control back to 0 to turn the motor off. 6 Generally, large quantities, thick mixes, and a high ratio of solids to liquids suggest longer timings and slower speeds. 7 Smaller quantities, thinner mixes, and more liquids than solids suggest shorter timings and higher speeds. 8 Don’t run the motor for more than 1 minute, or it may overheat. After 1 minute, switch off for at least 2 minutes, to let the motor cool.
9 Turning the speed control anti-clockwise to Y will give you a short burst at high speed. In this direction, the knob is spring-loaded. When you let go, it’ll return to 0.
Align the d on the bottom of the jug with the U on the motor unit.
Lower the jug on to the motor unit, then turn the jug to align the d with the L. Press the lever to open the lid. Put the ingredients into the jug. Don’t fill past the 1500ml mark. If you do, the contents may force the lid off when you start the motor. Close the lid. Align the pips on the cap with the slots in the hole, fit the cap, and turn it clockwise to lock it. To add ingredients while the blender is working, remove the cap, pour the new ingredients through the hole, then replace the cap. Check that the added ingredients don’t push the volume in the jug past the 1500ml mark.
O USING THE PROCESSOR
19 Switch the appliance off (0) and unplug it. 20 Fit the spindle to the top of the motor unit. 21 Align the d on the bottom of the jug with the U on the motor unit. 22 Lower the jug on to the motor unit, then turn the jug to align the d with the L. 23 Turn the lid to bring the d on the lid over the U on the jug, and lift the lid off. 24 Choose the attachment you need.
25 Use the chopper for pulverizing ingredients. 26 Use the mixer to mix ingredients together. 27 Use the creamer to thicken cream, to beat eggs, and to cream eggs and sugar together. 28 Fit the attachment over the support, and slide it to the bottom. 29 Lower the support into the centre of the jug, over the spindle. 30 Put the ingredients into the jug. 31 Don’t fill past the 1500ml mark. If you do, the contents may force the lid off when you start the motor. 32 Replace the lid, and turn it to bring the d on the lid over the L on the jug, to lock it in place. 33 To add ingredients while the motor is running: a) lift the pusher out of the tube b) add the ingredients via the tube c) replace the pusher
34 To fit the slicer or grater to the disc: a) insert the tab into the centre of the disc b) lower the slicer/grater into the disc c) secure the latch over the edge of the disc 35 Lower the disc over the top of the spindle. 36 Replace the lid, and turn it to bring the d on the lid over the L on the jug, to lock it in place. 37 Remove the pusher, and drop the ingredients down the tube. 38 Replace the pusher, and use it to push the ingredients gently down the tube. 39 Don’t use fingers or cutlery to push food down the tube – only the pusher. 40 The blade(s) on top of the disc will slice or grate the food into the jug. 41 Don’t let the jug get more than about half full – stop and empty it. 42 To remove the slicer or grater from the disc, ease the latch away from the side of the disc, and lift the slicer/grater off.
C CARE AND MAINTENANCE
43 Switch the appliance off (0) and unplug it. 44 Wipe the outside of the motor unit with a clean damp cloth. 45 Wash the removable parts in warm soapy water, rinse well, drain, and air dry. 46 Take great care with the blades – don’t handle them directly, use a nylon washing-up brush. 47 Don’t put any part of the appliance in a dishwasher.
H ENVIRONMENTAL PROTECTION To avoid environmental and health problems due to hazardous substances in electrical and electronic goods, appliances marked with this symbol mustn’t be disposed of with unsorted municipal waste, but recovered, reused, or recycled.
recipes h = handful c = clove(s)
2 h coriander leaves 2 c garlic 60 g pine nuts 125 m olive oil 60 g Parmesan, grated Process the coriander, garlic, pine nuts and half the oil till smooth. Transfer to a large bowl. Stir in the Parmesan. Add oil to adjust the consistency: For a dip: thick. For a topping: medium. For pasta sauce: thin. recipes are available on our website: using the blender: http://www.russellhobbs.com/ifu/550931 smoothies: http://www.russellhobbs.com/ifu/550941 using the processor: http://www.russellhobbs.com/ifu/551078
