ZHC92462XA - Range hood ZANUSSI - Free user manual and instructions

Product type	Extractor hood
Brand	ZANUSSI
Model	ZHC92462XA
Installation	Extractor or recirculation versions
Minimum distance from hob	65 cm (or according to cooker instructions)
Power supply	230 V ~ 50 Hz
Number of speeds	3 (1st, 2nd, 3rd)
Controls	Key A (light), B (1st speed), C (2nd), D (3rd)
Lighting	1 lamp, type E14, Ø35 mm, 4 W
Electrical class	Class II (unless earth symbol present)
Power cable	Yes, with plug
Grease filter	Metal, dishwasher safe
Charcoal filter	Active, non-washable, replace every 4 months
Exterior cleaning	Damp cloth and neutral detergent; steel/copper/brass: specific products
Interior cleaning	Cloth soaked in denatured alcohol
Grease filter maintenance	Every 2 months
Type of use	Above domestic cookers

Frequently Asked Questions - ZHC92462XA ZANUSSI

What is the minimum distance between the hood and the cooker?

The minimum distance between the pot support surface and the lower part of the hood must be 65 cm, unless the hob instructions specify a greater distance.

How to install the hood in extraction mode?

In extraction mode, the filtered air is expelled outside via an exhaust hose. Follow the regulations of the competent authorities. Do not vent the air into a duct used for non-electric appliances.

How to install the hood in recirculation mode?

In recirculation mode, the air is filtered and returned to the room. Use an active charcoal filter (not supplied) and replace it every 4 months.

How often should I clean the grease filters?

The grease filters must be cleaned every 2 months by hand or in the dishwasher with a neutral detergent to prevent fire hazards.

How often should I replace the charcoal filter?

The active charcoal filter is non-washable and must be replaced every 4 months, or more often with heavy use.

How to clean the exterior of the hood?

For the exterior, use a damp cloth with warm water and a neutral detergent. For steel, copper, or brass surfaces, use specific products following the instructions.

How to clean the interior of the hood?

For the interior, use a cloth or brush soaked in denatured alcohol.

How to replace the bulb?

First unplug the hood. Make sure the bulb has cooled down. Replace it with a lamp of the same type: E14, diameter 35 mm, power 4 W.

What to do if the power cable is damaged?

The damaged power cable must be replaced by the manufacturer, its technical support service, or a qualified person to avoid any hazard.

Can I use the hood with children?

This appliance can be used by children aged 8 years and above under supervision. Children must not play with the appliance. Cleaning and maintenance should not be performed by children without supervision.

USER MANUAL ZHC92462XA ZANUSSI

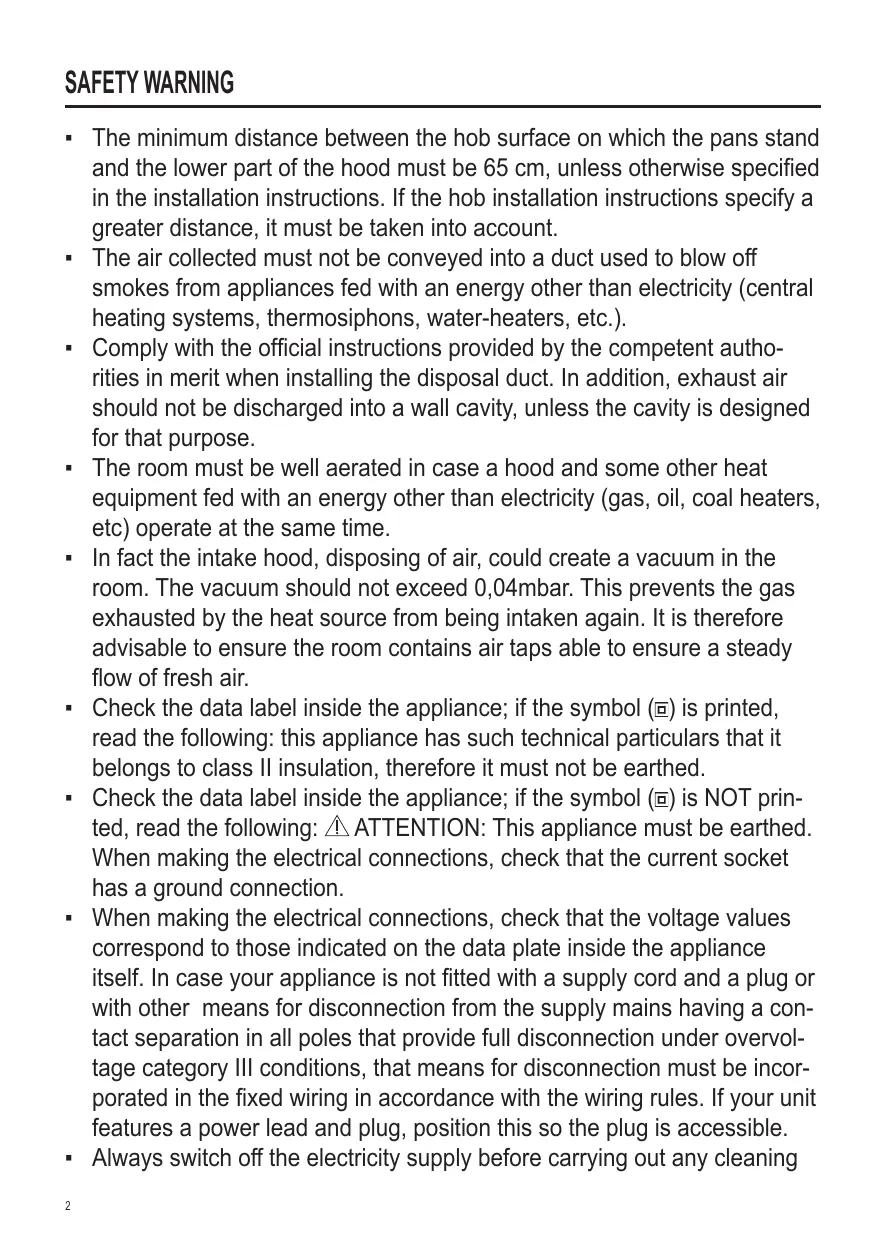

• The minimum distance between the hob surface on which the pans stand and the lower part of the hood must be 65~cm , unless otherwise specified in the installation instructions. If the hob installation instructions specify a greater distance, it must be taken into account.
• The air collected must not be conveyed into a duct used to blow off smokes from appliances fed with an energy other than electricity (central heating systems, thermosiphons, water-heaters, etc.).
• Comply with the official instructions provided by the competent authorities in merit when installing the disposal duct. In addition, exhaust air should not be discharged into a wall cavity, unless the cavity is designed for that purpose.
• The room must be well aerated in case a hood and some other heat equipment fed with an energy other than electricity (gas, oil, coal heaters, etc) operate at the same time.
• In fact the intake hood, disposing of air, could create a vacuum in the room. The vacuum should not exceed 0,04mbar. This prevents the gas exhausted by the heat source from being intaken again. It is therefore advisable to ensure the room contains air taps able to ensure a steady flow of fresh air.
• Check the data label inside the appliance; if the symbol (回) is printed, read the following: this appliance has such technical particulars that it belongs to class II insulation, therefore it must not be earthed.
• Check the data label inside the appliance; if the symbol (回) is NOT printed, read the following: ATTENTION: This appliance must be earthed. When making the electrical connections, check that the current socket has a ground connection.
• When making the electrical connections, check that the voltage values correspond to those indicated on the data plate inside the appliance itself. In case your appliance is not fitted with a supply cord and a plug or with other means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III conditions, that means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. If your unit features a power lead and plug, position this so the plug is accessible.
  Always switch off the electricity supply before carrying out any cleaning

or servicing operations on the appliance.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• The appliance must be installed by a qualified person in compliance with the instructions provided.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

• Avoid using materials which could cause spurts of flame (flambées) near the appliance.
• Do not flambe under the range hood.
• When frying, take particular care to prevent oil and grease from catching fire. Already used oil is especially dangerous in this respect. Do not use uncovered electric grates.
• To avoid possible risks of fire always comply with the indicated instructions when cleaning grease filters and when removing grease deposits from the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way by a person responsible for their safety and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Caution: accessible parts may become hot when used with cooking appliances.
• This kitchen hood is intended for installation in domestic kitchens above cooktops, cooking devices

and similar kitchen equipment.

USE

Filtering or ducting version?

• The hood may be in filtering or in ducting version. Decide from the outset which type is to be installed.
• For better efficiency, we recommend installing the hood in the ducting version (if possible).

Ducting version.

The hood purifies the air and evacuates it to the outside through an exhaust duct.

Filtering version

The hood purifies the air and recycles the clean air back into the room.

MAINTENANCE

Thorough servicing guarantees correct and long-lasting operation.
- Any fat deposits should be removed from the appliance periodically depending on amount of use (at least every 2 months). Avoid using abrasive or corrosive products. To clean painted appliances on the outside, use a cloth dipped in lukewarm water and neutral detergent. To clean steel, copper or brass appliances on the outside, it is always best

to use specific products, following the instructions on the products themselves. To clean the inside of the appliance, use a cloth (or brush) dipped in denatured ethyl alcohol.

• Clean grease filters in relation to use, at least every 2 months to prevent the risk of fire.
• Hand wash or clean in a dishwasher using a neutral detergent. If washing in the dishwasher, possible discoloration of the filters does not in any way compromise their functioning.

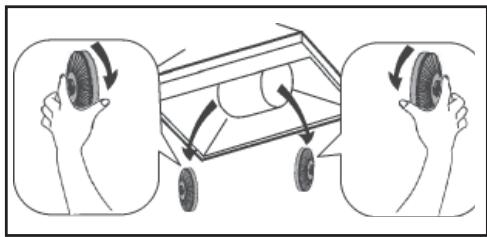

• The activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.

CONTROLS

Key A: light switch.
Key B: first speed motor ON/OFF switch.
Key C: second speed switch.
Key D: third speed switch.

LIGHTING

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

Replace it with lamps of the same type (Ø35, E14, 4W).

CiiB ViEHaHTN BHTAaK Ky BiEeKToPQbNBeHHeHH.

！PonepeJxHnI！PeepTOpKaHHmdoJaMNoOHCKiD yNeBHHTNCI OO BOH OxONoHyn.

3amInTu lamnoKamu TORO CAMOROTny (035, E14, 4W).

ILCOS D code: DRBB/F-4-220-E14-37/105
