CHI 950x - Range hood ZANUSSI - Free user manual and instructions

Product Type	Range Hood
Brand	Zanussi
Model	CHI 950x
Width	950 mm
Height	600 - 1100 mm (adjustable)
Depth	500 mm
Weight	Approx. 15 kg
Installation Type	Wall-mounted or built-in
Power Supply	220-240 V, 50 Hz
Motor Power	200 W
Max Extraction Rate	650 m³/h
Noise Level	55-65 dB(A)
Filter Type	Grease filter (aluminum), optional carbon filter
Number of Filters	2 grease filters
Lighting	LED, 2 x 3 W
Controls	Electronic push buttons, 3 speeds
Energy Class	A+
Duct Diameter	150 mm
Venting Type	Ducted or recirculation (with carbon filter)
Maintenance	Clean grease filters monthly; replace carbon filter every 3-6 months
Safety Features	Auto shut-off, overheat protection
Spare Parts Availability	Filters, bulbs, motor available from Zanussi service
Warranty	2 years

Frequently Asked Questions - CHI 950x ZANUSSI

How do I install the range hood?

Follow the installation manual carefully. Ensure the duct diameter is 150 mm for vented mode. For wall mounting, use suitable anchors and screws. For recirculation mode, install the optional carbon filter.

Can I use the hood in recirculation mode?

Yes, the CHI 950x can be used in recirculation mode by installing a carbon filter (not included). Air is filtered and returned to the kitchen.

How often should I clean the grease filters?

Clean the aluminum grease filters at least once a month. They can be washed in a dishwasher or by hand with mild detergent.

How do I replace the carbon filter?

The carbon filter should be replaced every 3 to 6 months, depending on usage. Remove the grease filters, slide out the old carbon filter, and insert a new one.

What type of light bulb does the hood use?

The hood uses LED bulbs (2 x 3 W). They are non-replaceable; contact Zanussi service if they fail.

Why is my hood making a loud noise?

Excessive noise may indicate clogged filters or loose parts. Check grease filters for blockage and ensure the ductwork is secure. If noise persists, contact service.

How do I reset the filter saturation indicator?

After cleaning or replacing filters, press and hold the speed button for about 3 seconds until the indicator light turns off.

Can I operate the hood without a filter?

No, operating without grease filters can damage the motor and is a fire hazard. Always use filters.

What is the maximum extraction rate?

The maximum extraction rate is 650 m³/h at highest speed, measured under optimal conditions.

Where can I purchase spare parts?

Spare parts such as filters, bulbs, and motors are available from Zanussi authorized service centers or online parts retailers. Use genuine parts for best performance.

USER MANUAL CHI 950x ZANUSSI

Simple line drawing of a laboratory flask with a conical top and base, no text or symbols present.

FOR ELECTROLUX

COOKER HOOD

CHI 950

Thank you for buying a Electrolux product.

To enable you to use your appliance effectively and safely, please read this instruction book carefully before using the appliance and retain for future reference. If you require guidance in the use of the appliance or require further information on Electrolux Products, please contact our Customer Care Department. For general enquiries concerning your Electrolux appliance or for further information, visit our website at http://www.electrolux.co.uk

Customer Care Department

Electrolux

55 - 77 High Street

Slough

Berkshire

SL1 1DZ Tel: [phone]*

*Calls to this number may be recorded for training purposes.

To register ownership, please ensure you complete and return the guarantee card supplied with the appliance.

For the User

Important Safety Information

Your Appliance

Operating Instructions

Cooker Hood Controls

To Operate

Recirculation

Extraction

Maintenance and Cleaning

External Cleaning

Metal Grease Filters

Charcoal Filters

To Remove/Replace Charcoal Filter

Changing the Halogen Light

Something Not Working

Service and Spare Parts

Guarantee Conditions

For the Installer

Technical Information

Electrical Connections

Electrical Requirements

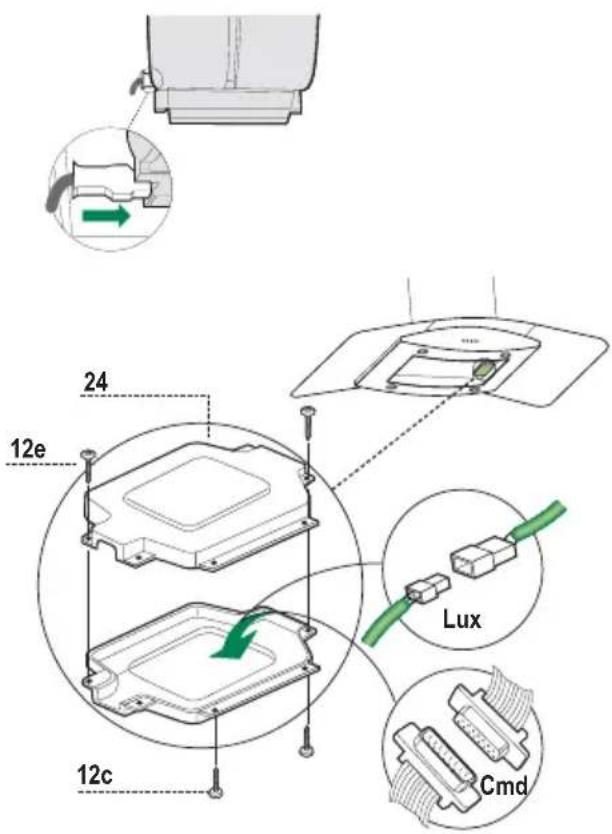

Electrical Connection

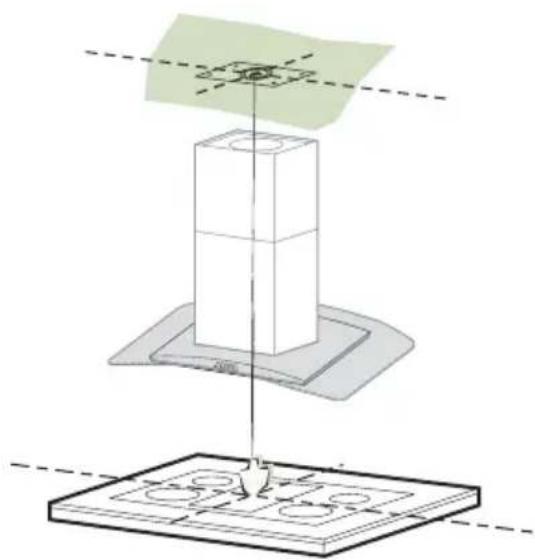

Installing the Cooker Hood

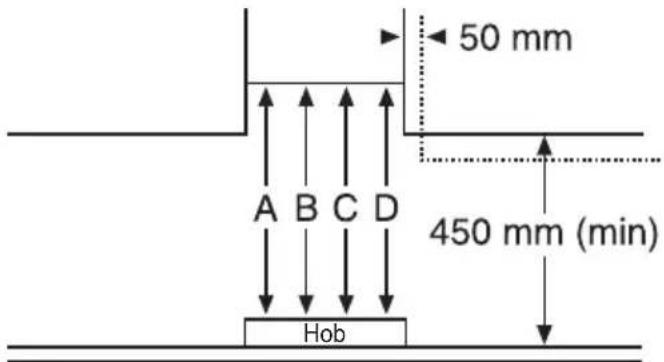

Installation Requirements

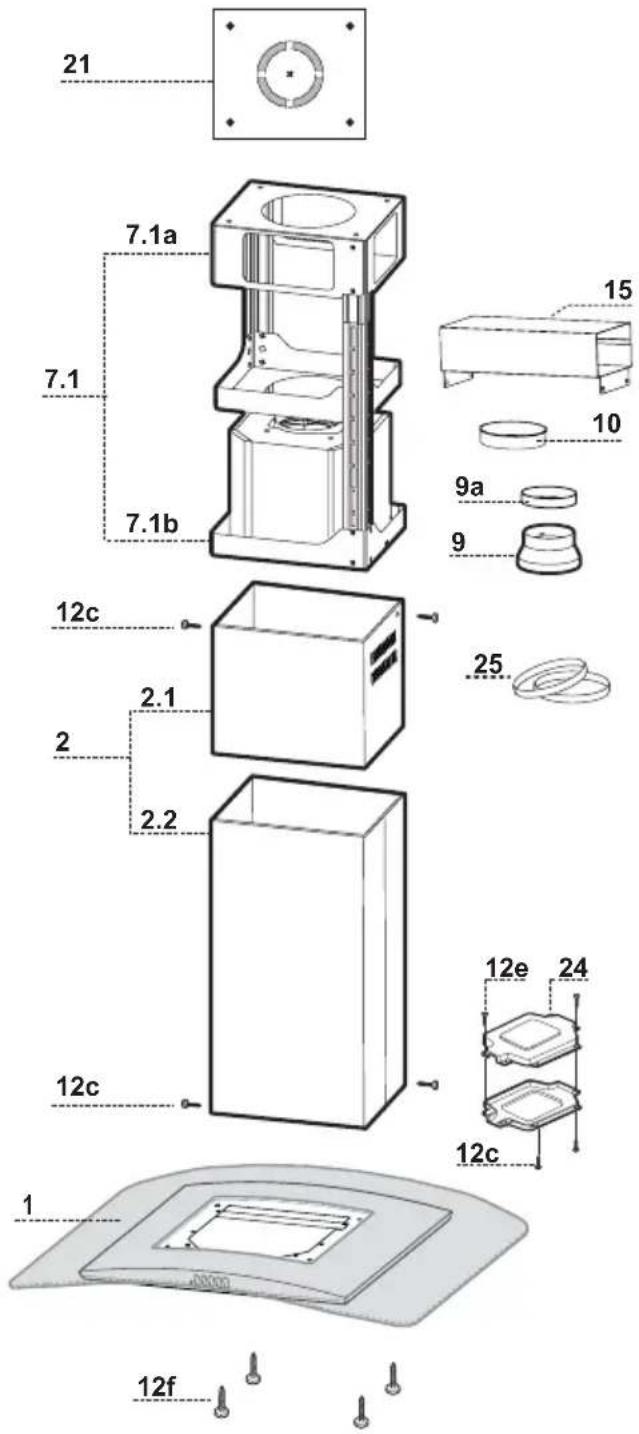

Unpacking

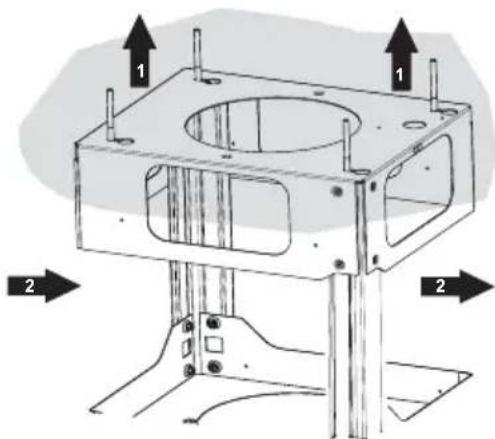

Fitting the Wall Brackets

Fitting the Canopy Hood

Venting

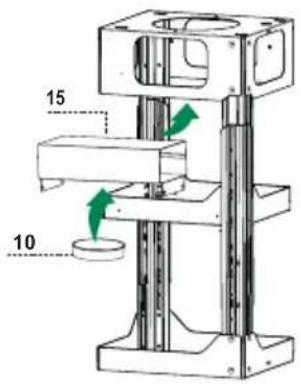

Recirculation

Fitting the Chimney Stack

Guide to use the instruction book

The following Symbols will be found in the text to guide you through the instruction book

Safety instructions

Step by step instructions

IMPORTANT SAFETY INFORMATION

These warnings are provided in the interests of your safety. Ensure that you understand them all before installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of the meanings of these warnings contact the Customer Care Department.

■ Installation

• Any installation work must be undertaken by a qualified electrician or a competent person.
• This hood must be installed in accordance with the installation instructions and all measurements must be adhered to.
• If the cooker hood is installed for use above a gas appliance then the provision for ventilation must be in accordance with the Gas Safety Codes of Practice BS.6172, BS.5440 and BS.6891 (Natural Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation & Use) Regulations, the Building Regulations issued by the Department of the Environment, the Building standards (Scotland) (Consolidated) Regulations issued by the Scottish Development Department.
• The fan motor of this cooker hood incorporates a cut-out device which will operate if the cooker hood is installed below the minimum height recommended under section ‘Clearance Height’, or if the motor becomes overheated. If the cut-out device is activated, switch off the fan motor and allow the cooker hood to cool. The cut-out device will reset itself when the fan motor has cooled signifi cantly.
• It is dangerous to alter the specifications or modify this product in any way.
• When installed between adjoining wall cabinets the wall cabinets must not overhang the hob.
• If the room where the hood is to be used contains a fuel burning appliance such as a central heating boiler then its fl ue must be of the room sealed or balanced fl ue type.
• If other types of flue or appliances are fitted ensure that there is an adequate supply of air to the room.
• The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose.
• Do not install above a cooker with a high level grill.

■ Child Safety

- This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.

■ During Use

• This product is for domestic use only.
- Never leave frying pans unattended during use as over-heated fats and oils might catch fire.
- Never do fl ambé cooking under this cooker hood.
- Do not leave naked flames under the hood.
- This cooker hood is designed to extract unpleasant odours from the kitchen, it will not extract steam.

■ Maintenance and Service

• This appliance can be a hazard if the synthetic paper and charcoal filters are not replaced as recommended.
• Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or more serious malfunction. Refer to your local Electrolux Service Force Centre. Always insist on genuine spare parts.

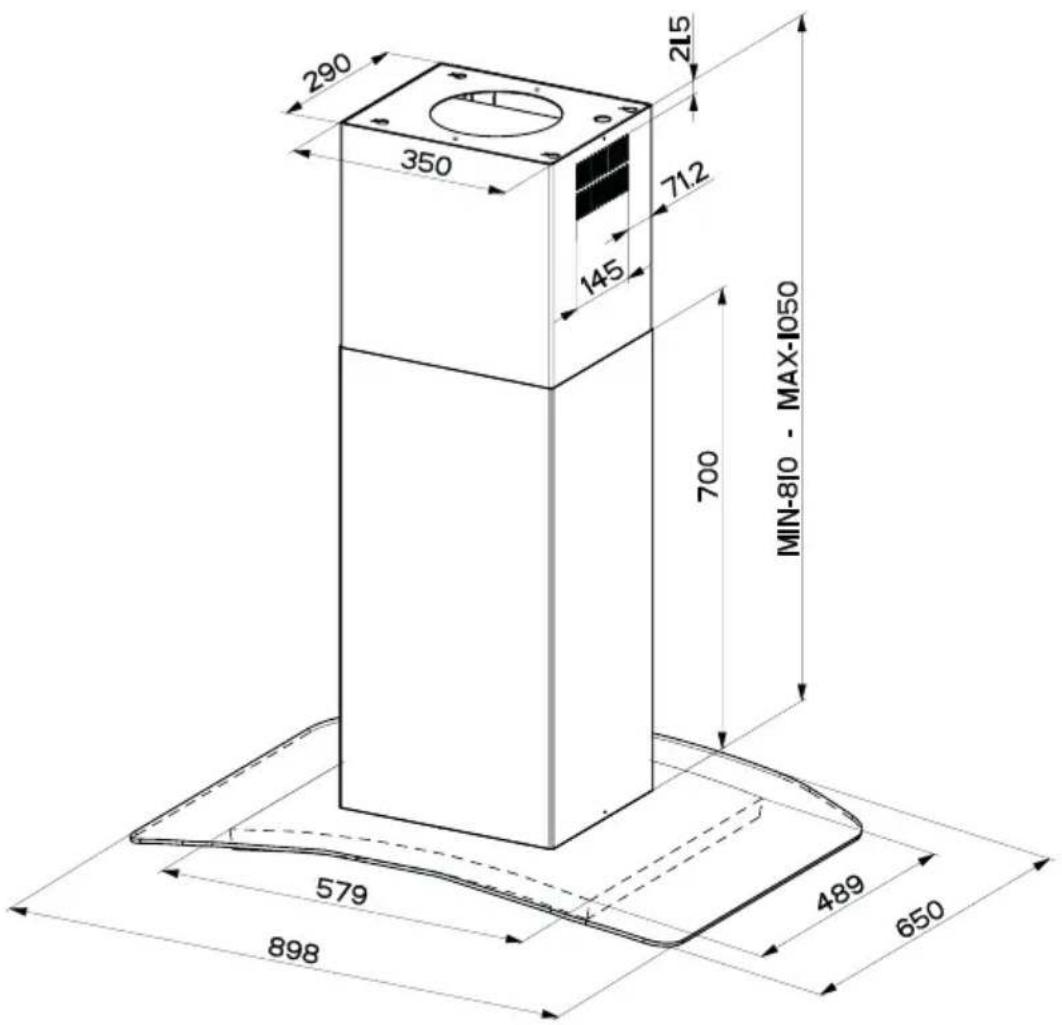

YOUR APPLIANCE

290 350 145 712 215 700 MIN-810 - MAX-1050 579 898 489 650

OPERATING INSTRUCTIONS

The cooker hood is designed to extract unpleasant odours from the kitchen, it will not extract steam.

The appliance can be installed to recirculate or extract contaminated air.

Control Panel

The hood can be switched on pushing directly onto the requested speed without firstly having to select 0/1 button.

S1 L ① 2 3 4/i F T1T2T3T4

KEY LED FUNCTIONS

L 0/1 Light Turns lighting on and off.
T1 0/1 Motor on First speed.When pressed for about 1 seconds the motor is switched off.
T2	Speed	on	Second speed.
T3	Speed	on	Third speed.
T4	Speed	Fixed	Max. speed
		Flashing	Intensive speed.Suitable for the strongest cooking vapours and odours. The function becomes active when the button is pushed for about 2 seconds. After 10 minutes of functioning it turns off automatically. This function can be interrupted by means of pressing any of the buttons.
S1	Led	Fixed	Indicates that the Metal grease filters saturation alarm has been triggered, and the fi Iters need to be washed. The alarm is triggered after 100 working hours. (Reset; check the Maintenance-paragraph)
		Flashing	indicates that the activated charcoal odour filter saturation alarm has been triggered, and the fi Iter has to be replaced; the metal grease fi Iters must also be washed. The activated charcoal odour fi Iter is triggered after 200 working hours. (Activation and Reset; check the Maintenance-paragraph)

To Operate

Select the required fan speed and light if required.

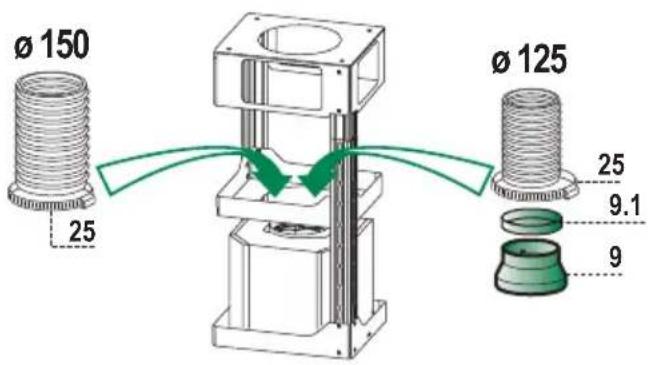

Recirculation

In the recirculation mode the contaminated air enters the cooker hood through the grease fi liters. The air is cleaned by passing through the charcoal fi liters before being passed back into the kitchen through the grilles in either side of the chimney stack.

Extraction

In the extraction mode the contaminated air enters the cooker hood passing through the grease filters and is passed out through the ducting into the atmosphere.

To obtain the best performance when cooking it is advisable to switch the cooker hood on for a few minutes before you start cooking and leave it running for about 15 minutes after fi nishing.

When used in the ducting mode the charcoal filters are not required.

Never do fl ambé cooking under this cooker hood.

Never leave frying pans unattended during use, as over-heated fats and oils can catch fire.

Do not leave naked flames under the cooker hood.

Ensure heating areas on your hob are covered with pots and pans when using the hob and cooker hood simultaneously.

MAINTENANCE AND CLEANING

e carrying out any maintenance or cleaning isolate the cooker hood from the mains supply.

The cooker hood must be kept clean, as a build up of grease or fat can be a fire hazard.

External Cleaning

Wipe the cooker hood frequently with warm soapy water using a mild detergent.

er use scouring pads or abrasive cleaners. er use excessive amounts of water when cleaning particularly around the control panel.

Metal Grease Filters

The fi Iters are washable and must be cleaned when the Led S1 lights up or at least every 2 months of operation, or more frequently for particularly heavy usage.

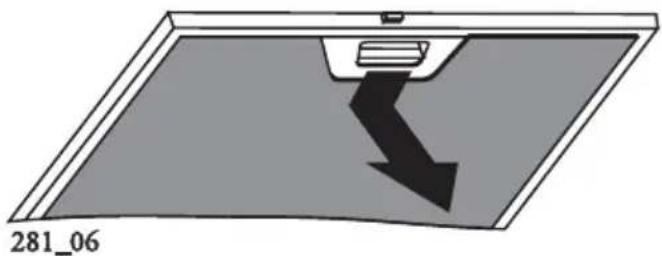

remove the metal grease fi Iters one at a time by:

Releasing the catches on the fi Iters, the fi Iters can be removed.

The metal grease fi liters should be washed, by hand, in mild soapy water or in a dishwasher. Allow to dry completely before replacing.

Diagram showing a device with a downward arrow inside a rectangular frame, labeled '281_06' at the bottom (no text or symbols on the diagram itself)

m signal reset

Switch off the lights and extractor motor.

Press

Button

T3 for at least 3 seconds, until

the leds start to flash.

MAINTENANCE AND CLEANING

ore carrying out any maintenance or cleaning isolate the cooker hood from the mains supply.

Charcoal Filters

In the recirculation mode the charcoal fi Iters absorb smells and unwanted odours.

abling the alarm signal

• In Recirculation version Hoods, the Filter saturation alarm can be enabled on installation or at a later date.
• Turn the Lights and the suction Motor off.
• Disconnect the Hood using the Main switch or the double-pole switch on the mains power supply.
• Restore the connection by pressing and holding T1.
• Release the button. All five LEDs are turned on

• Within 3 seconds press T1 until LEDs T1 and T4 flash in confirmation:

• LED fl ashes twice - Activated charcoal fi Iter saturation alarm ENABLED
  • LED fl ashes once - Activated charcoal fi Iter saturation alarm DISABLED

The filter is not washable and cannot be regenerated. It must be replaced when led S1 fl ashes or at least every 4 months. The alarm signal will only light up when the extractor motor is switched on.

Remove/Replace the Charcoal Filters

• Remove the metal grease fi Iters
• Remove the saturated activated carbon fi Iter by releasing the fi xing hooks
  • Fit the new filter by hooking it into its seating
• Replace the metal grease fi Iters.

appliance can be a possible fi re

hazard if the grease and charcoal filters are not cleaned and replaced as recommended.

Alarm signal reset

• Switch off the lights and extractor motor.
• Press button T3 for at least 3 seconds, until the leds start to fl ash.

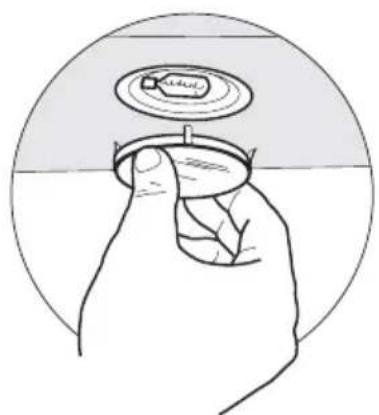

anging the Light halogen

• Remove the snap-on lamp cover by levering it from under the metal ring, supporting it with one hand.
• Remove the halogen lamp from the lamp holder by pulling gently.
• Replace the lamp with a new one of the same type, making sure that you insert the two pins properly into the housings on the lamp holder.
• Replace the snap-on lamp cover.

Illustration of a hand pressing down on a mechanical component with a green arrow indicating downward motion (no text or symbols)

Illustration of a hand holding a circular object with a lid, enclosed in a circle (no text or symbols)

SOMETHING NOT WORKING

If, having followed these instructions carefully, your cooker hood fails to work properly please carry out the following checks.

Symptom	Solution
The cooker hood will not start	Check the hood is connected to the electricity supply.Make sure the switch is in the ‘ON’ position.
The cooker hood is not working effectively	The fan speed is set high enough for the taskThe grease fi liter is clean.The kitchen is adequately vented to allow the entry of fresh air.If set up for recirculation, check that the charcoal fi liter is still effective.If set up for extraction, check that the ducting and outlets are not blocked.
The cooker hood has switched off during operation	The safety cut-out device has been tripped.Tum off the hob and then wait for the device to reset.

If after all these checks, the fault persists, contact your local Service Force Centre, quoting the model and serial number.

Please note that it will be necessary to provide proof of purchase for any in-guarantee service calls.

In-guarantee customers should ensure that the above checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.

SERVICE AND SPARE PARTS

If you require an engineer or spare parts contact your local Service Force Centre by telephoning:

08705 929929

Your telephone call will be routed to your local Service Force Centre. The addresses are listed in the back of the book.

For general assistance with your appliance or for further information on Electrolux products please contact our Customer Care Department.

Customer Care Department,

Electrolux

55 - 77 High Street

Slough

Berkshire

SL1 1DZ

Tel: [phone] *

* calls to this number may be recorded for training purposes.

GUARANTEE CONDITIONS

We Electrolux, undertake that if within twenty four months of the date of the purchase this Electrolux built-in appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, the company will, at our option repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition that:

• The appliance has been correctly installed and used only on the electrical supply stated on the rating plate.
• The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's operating and maintenance instructions.
• The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not authorised by us.
• All service work under this guarantee must be undertaken by Electrolux Service Force Centre.
• Any appliance or defective part replaced shall become the property of this company.

Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a premium will be charged.

EXCLUSIONS

This Guarantee does not cover:

• Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic.
• Costs incurred for calls to put right appliances improperly installed or calls to appliances outside the United Kingdom.
• Appliances found to be in use within a commercial environment, plus those which are the subject of rental agreements.
• Products of Electrolux manufacture which are not marked by Electrolux.

This guarantee is in addition to your statutory and legal rights.

ELECTROLUX EUROPEAN GUARANTEE

If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:

• The guarantee starts from the date you first purchased your product.
• The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use for this brand or range of products.
• This guarantee relates to you and cannot be transferred to another user.
• Your new home is within the European Community (EC) or European Free Trade Area.
• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household.

Before you move please contact your nearest Customer Care Centre, listed below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.

France	Senlis	[phone]
Germany	Nurnberg	[phone]
Italy	Pordenone	[phone]
Sweden	Stockholm	[phone]
UK	Slough	[phone]

INSTALLATION INSTRUCTIONS

dangerous to alter the specifications or attempt to modify this product in any way.

Technical Information DIMENSIONS

HEIGHT OF CANOPY: 70 mm

HEIGHT OF CHIMNEY:

(UPPER SECTION) 415 mm

(LOWER SECTION) 740 mm

WIDTH OF CANOPY : 898 mm

DEPTH OF CANOPY: 650 mm

ELECTRICAL SUPPLY:

VOLTAGE: 220-240 V 50Hz

POWER CONSUMPTION: 285 W

FAN MOTOR: 205 W

LAMPS : (4 x 20 W) 80 W

Note: CE Marking certifies that this appliance complies with the requirements laid down in EEC directive 89:336. (Electromagnetic compatibility) and subsequent modifications and Low Voltage directive 72/23/E.

ELECTRICAL CONNECTIONS

DOUBLE INSULATED DO NOT EARTH

Electrical Requirements

Any permanent electrical installation must comply with the latest I.E.E. Regulations and local Electricity Board regulations. For your own safety this should be undertaken by a qualified electrician e.g. your local Electricity Board, or a contractor who is on the roll of the National Inspection Council for Electrical Installation Contracting (NICEIC).

Electrical Connection

Before connecting to the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood.

This appliance is fitted with a 3 core mains cable and must be permanently connected to the electricity supply via a double-pole switch having 3mm minimum contact gap on each pole. A Switched Fuse Connection Unit to BS1363 Part 4, fitted with a 3 Amp fuse, is a recommended mains supply connection accessory to ensure compliance with the Safety Requirements applicable to fixed wiring instructions.

This appliance conforms to BS 800: 1988 and EEC Directive No. 78 308 regarding suppression of radio and television interference.

INSTALLING THE COOKER HOOD

Please ensure that when the appliance is installed it is easily accessible to an engineer in the event of a breakdown.

All installations must comply with the local authorities requirements for the discharge of exhaust air. Incorrect installation may affect the safety of this cooker hood.

Installation Requirements

Before installation check the wall to which the cooker hood is to be fitted for electric cables, water pipes or gas.

This cooker hood is designed to be fixed to any orizontal surface over a cooking area, and can be used in the extraction (ducted to the outside) or recirculation mode.

The installation work must be undertaken by a qualified and competent person.

The manufacturer disclaims any responsibility for damage due to incorrect installation of the cooker hood or if the hood is not installed in compliance with relevant regulations controlling this type of installation.

Unpacking

Before unpacking the cooker hood position the carton with the arrows pointing upwards as illustrated on the carton.

The cooker hood is made up of the following components:

Ref.	Q.ty	Product Components
1	1	Hood Body, complete with: Controls, Light, Blower, Filters
2	1	Telescopic Chimney comprising:
2.1	1	Upper Section
2.2	1	Lower Section
7.1	1	Telescopic frame complete with extractor, consisting of:
7.1a	1	Upper frame
7.1b	1	Lower frame
9	1	Reducer Flange ø 150-120 mm
9.1	1	ø120-125 Ducting fl ange
10	1	Flange ø 150
15	1	Air Outlet Connection
24	1	Junction box
25	2	Pipe clamps

Ref.	Q.ty	Installation Components
12c	6	Screws 2,9 x 9,5
12e	2	Screws 2,9 x 6,5
12f	4	Screws M6 x 10
21	1	Drilling template

Q.ty	Documentation
1	Instruction Manual

21 7.1a 7.1 7.1b 15 10 9a 9 12c 2.1 2 2.2 12c 25 12e 24 12c 1 12f

INSTALLING THE COOKER HOOD

Clearance Height

The cooker hood is designed to be fitted over a cooking appliance at the clearance heights stated, providing the maximum output of the appliance beneath does not exceed the maximums quoted in the Technical Specifications.

If the output of the appliance below the cooker hood exceeds the maximum outputs quoted, please refer to the cooker manufacturer's installation instructions.

A clearance height of 650mm (25 1/2") is required when installed above a built-in electric hob, or 700mm (27 1/2") when installed above a built-in gas hob.

A clearance height of 685mm (27") is required when installed above a slot-in electric cooker, or 787mm (30 1/2") when installed above a slot-in gas cooker.

When installed between adjoining wall cabinets, the wall cabinets must not overhang the hob and the distance between the underside of the cabinet and the worktop must be 450mm. If the height of the wall cabinet is less than 450mm, a gap of 50mm must be maintained either side of the hob.

This cooker hood must not be installed above a cooking appliance with a high level grill.

The hood can be installed above these heights but for optimum performance it should be installed at the distances quoted for the appropriate heat source.

This appliance can be used in either extraction mode (ducting) or recycling mode (filtering).

The hood is supplied suitable for recirculation with the charcoal fi Iters fi tted.

When used in the extraction mode (ducting) the charcoal filters are not required and must be removed and destroyed.

50 mm A B C D 450 mm (min) Hob

A: Built-in Electric Hob: 650mm clearance

B: Built-in Gas hob: 700mm clearance

C: Slot-in Electric Cooker: 685mm clearance

D: Slot-in Gas Cooker: 787mm clearance

INSTALLING THE COOKER HOOD

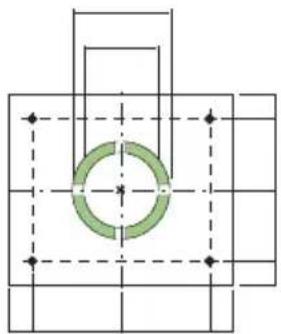

Drilling the Ceiling/Support Shelf

• Use a plumb line to mark the centre of the hob on the ceiling/support shelf.
• Place the drilling template 21 provided on the ceiling/support shelf, making sure that the template is in the correct position by lining up the axes of the template with those of the hob.

• Mark the centres of the holes in the template.

- Drill the holes at the points marked:

• For concrete ceilings, drill for plugs appropriate to the screw size.
• For hollow brick ceilings with wall thickness of 20 mm: drill ø 10 mm (immediately insert the Dowels not provided).
• For wooden beam ceilings, drill according to the wood screws used.
• For wooden shelf, drill 7 mm.
• For the power supply cable feed, drill 10 mm.
• For the air outlet (Ducted Version), drill according to the diameter of the external air exhaust duct connection.

- Insert two screws of the following type, crossing them and leaving 4-5 mm from the ceiling:

• For concrete ceilings, use the appropriate plugs for the screw size (not provided).
• For Cavity ceiling with inner space, with wall thickness of approx. 20 mm, Screws not provided.
• For wooden beam ceilings, use 4 wood screws (not provided).
• For wooden shelf, use 4 screws with washers and nuts (not provided)

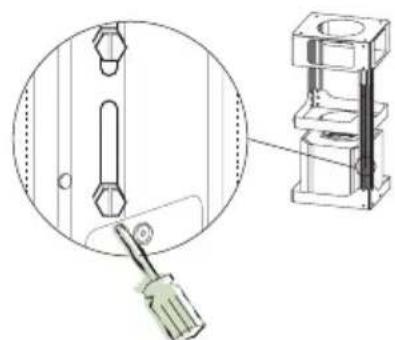

Fixing the Frame

• Loosen the two screws fastening the lower chimney and remove this from the lower fra me.
• Loosen the two screws fastening the upper chimney and remove this from the upper fra me.

If you wish to adjust the height of the frame, proceed as follows:

• Unfasten the eight metric screws joining the two columns, located at the sides of the frame.
• Adjust the frame to the height required, then replace all the screws removed as above.

- Insert the upper chimney stack from above, and leave it running free on the frame.

- Lift up the frame, fi t the frame slots onto the screws up to the slot end positions.

- Tighten the two screws and fasten the other two screws provided with the hood.

3D diagram of a mechanical assembly with a cylindrical component and mounting base (no text or symbols)

Pure technical drawing of a mechanical part with centerlines and grid lines (no text or symbols)

Technical illustration of a screwdriver inserted into a mechanical component, showing assembly detail (no text or symbols)

Technical diagram of a mechanical housing or bracket with numbered callouts indicating assembly directions.

INSTALLING THE COOKER HOOD

Before tightening the screws completely it is possible to adjust the frame by turning it. Make sure that the screws do not come out of their seats in the slotted holes.

• The frame mountings must be secure to withstand the weight of the hood and any stresses caused by the occasional side thrust applied to the device.
  On completion, check that the base is stable, even if the frame is subjected to bending.
• In all cases where the ceiling is not strong enough at the suspension point, the installer must provide strengthening using suitable plates and backing pieces anchored to the structurally sound parts.

Extraction

The cooker hood is more effective when used in the extraction mode (ducted to the outside).

Venting kits may be purchased through your retailer or DIY store, and must be ducted to an outside vent of ∅125mm (5") or ∅150mm (6").

For the best performance use the shortest possible duct run and the minimum number of bends.

Where fl exible ducting is fitted it should not be turned through very tight bends as this may impair the performance of the hood.

It is recommended a maximum length of 3 metres with one bend, to be installed, to be reduced metre for each 900 bend.

If a distance is greater than 3 metres the efficiency of the hood could be impaired.

The ducting used must be manufactured from fire retardant material conforming to the relevant British Standard or DIN 4102-B1.

When the cooker hood is ducted to the outside the charcoal filter must be removed.

INSTALLING THE COOKER HOOD

Ducting Connection

Connect the ducting chosen to:

• the ∅150mm ducting spigot on top of the motor housing, or the ∅150-120mm ducting spigot item 9 and secure using the jubilee clips item 25.
• A ∅120-125mm collar item 9.1 is provided to fit over the ∅120mm ducting spigot when 125mm ducting is fitted.

room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler, then its fl ue must be of the room sealed or balanced fl ue type.

If other types of flue or appliances are fitted sure that there is an adequate supply of air to the room.

The cooker ducting (extraction mode) must never be connected to central heating flues, radiators or water heaters etc.

Recirculation

The cooker hood is supplied specified for use in the recirculation mode, with the charcoal fi iter fi tted.

In the recirculation mode contaminated air is passed through the charcoal filter to be purified and recirculated into the kitchen through the grille outlets on either side of the chimney.

Recirculation Connection

• Fix the connection item 15 to the frame using the 4 screws provided.
• Fix the flange item 10 to the lower opening of the connection item 15.
• Connect the hood air outlet to the fl ange in the lower part of the junction using a rigid or fl exible 150 tube (by installer's choice).

Ø 150 25 Ø 125 25 9.1 9

15 10

INSTALLING THE COOKER HOOD

Chimney Stack

The chimney consists of two sections.

The lower chimney measures 700mm and the upper chimney (with the recirculation grilles on either side) measures 415mm. The overall installed measurement is min. 810 - max 1050mm.

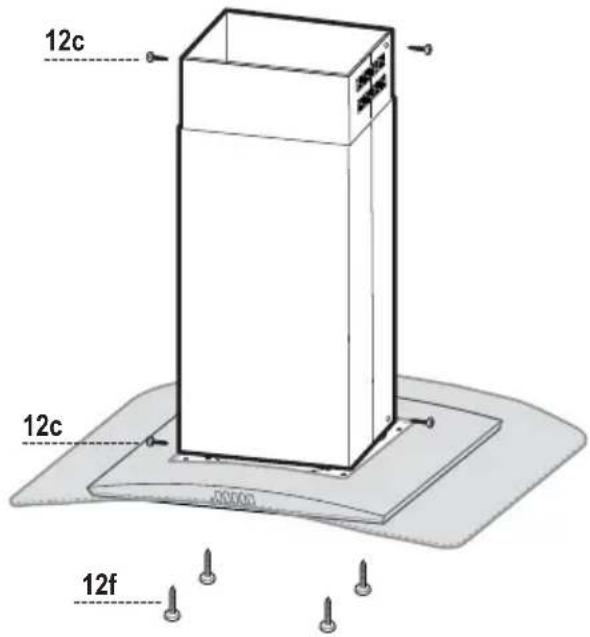

Fitting the Chimney

• Position the upper chimney section and fi x the upper part to the frame using the 2 screws 12c (2,9 x 9,5) provided.
• Similarly, position the lower chimney section and fi x the lower part to the frame using the 2 screws 12c (2,9 x 9,5) provided.

Fitting the Hood Body

• Before fi xing the hood body to the frame:
- Remove the grease fi Iters from the hood body.
- Remove any activated charcoal fi Iters.
• From below, use the 4 screws 12f (M6 x 10)

Electrical Connection

• Being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.
• Connect the control connector Cmd.
• Connect the lights connector Lux.
• Place the connectors in the junction box 24 and close it using the two screws 12e (2,9 x 9,5) provided.
• Fix the junction box to the hood body using the two screws 12c (2,9 x 6,5) provided.
• For the recirculation version, fi t the activated carbon odour fi iter.
• Replace the grease fi Iters.

12c 12c 12f

24 12e 12c Lux Cmd
