CGM64/1X - Range hood CANDY - Free user manual and instructions

Product type	Cooker hood
Brand	CANDY
Model	CGM64/1X
Width (cm)	60
Depth (cm)	50
Adjustable height via chimney	Yes
Net weight (kg)	15
Power supply	220-240 V, 50 Hz
Motor power (W)	250
Lighting	1 x 1.5 W LED
Number of speeds	3 + booster
Control type	Illuminated push buttons
Extraction mode	External extraction or recirculation
Grease filter	Washable metal (monthly cleaning)
Charcoal filter	Optional, annual replacement
Minimum distance hob-hood	65-75 cm
Electrical protection class	Class I (mandatory earthing)
Main material	Stainless steel and glass
Warranty	2 years
Repairability index	Not communicated

Frequently Asked Questions - CGM64/1X CANDY

What is the recommended installation height between the hood and the cooking surface?

For optimal operation, the hood should be installed at a distance between 65 and 75 cm above the cooking surface.

How to clean the grease filter?

The grease filter should be cleaned every month using a common household product. You can also wash it in the dishwasher. A dirty filter reduces efficiency and poses a fire hazard.

How often should the charcoal filter be replaced?

The active charcoal filter, used in recirculation mode, should be replaced at least once a year, or more often if the hood is used intensively.

What to do if the hood vibrates strongly?

First check that the hood is properly fixed to the wall support. If the vibrations persist, the turbine may be stuck or the motor poorly secured. In this case, turn off the appliance and call a professional.

How to change the LED bulb of the hood?

Unplug the hood, remove the screws from the glass panel and take it off. Disconnect the faulty bulb's connection, remove the socket and cable. Replace the assembly with a new LED bulb (max 1.5 W) and reassemble everything in reverse order.

The hood operates in recirculation mode, what should be installed?

In recirculation mode, you must install active charcoal filters (not supplied) that absorb odors. Follow the instructions to place them in the hood after removing the grease filter.

Why is the suction power low?

Possible causes: the distance between the hood and the hob is too large (adjust to 65-75 cm), the grease filter is saturated (clean it) or the charcoal filter is worn out (replace it). Also check that the exhaust duct is not blocked.

How to activate booster mode?

Booster mode is activated by pressing the maximum speed button (often marked 4 or with a specific symbol). It increases power for 5 minutes before automatically returning to the previous speed.

What to do if the hood does not turn on at all?

First check that the power cord is plugged in and that the outlet works. If the lighting does not turn on, the bulb may be burnt out (replace it). If nothing works, the motor may be damaged; contact after-sales service.

Where to find the serial number of the appliance?

The serial number (16 digits starting with 3) is on the warranty certificate or on a label on the appliance itself. It is required for any consumer service intervention.

USER MANUAL CGM64/1X CANDY

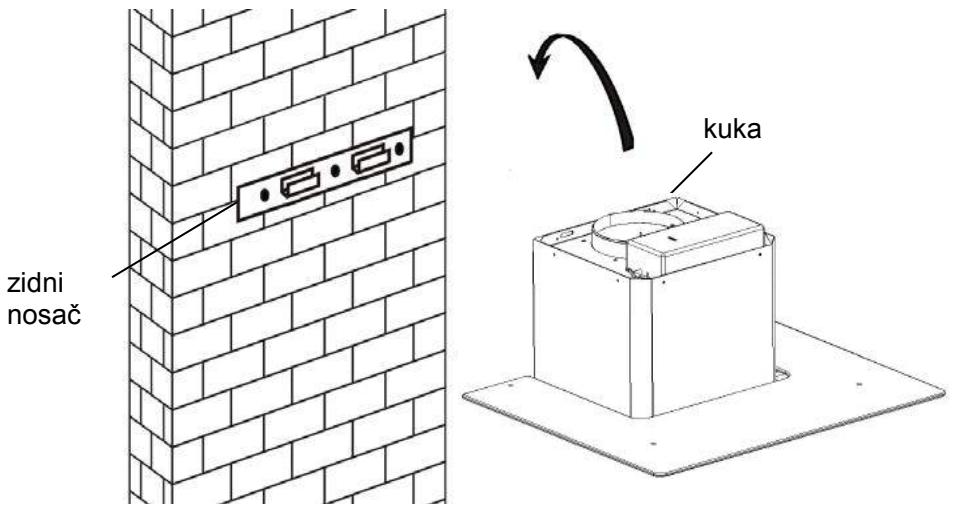

Zanagnutipanel model

• It is necessary to drill 2x8mm additional holes and mounting screws and locking screws before installation.

1. Lift the hood and hang it on the wall bracket using the hook.

INSTALLATION AND USER'S MANUAL

CONTENT

INTRODUCTION 35

SAFETY PRECAUTION 35

SPECIFICATION 37

INSTALLATION (VENT OUTSIDE) 38

INSTALLATION (VENT INSIDE) 43

DESCRIPTION OF COMPONENTS 44

OPERATION 44

MAINTENANCE 47

TROUBLESHOOTING 48

CONFORMITY WITH DIRECTIVES 48

ENVIRONMENTAL PROTECTION 49

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and usage.

The cooker hood uses high quality materials, and is made with a streamlined design. Equipped with large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation.

SAFETY PRECAUTION

Never let the children operate the machine.

The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purpose.

The cooker hood and its filter should be cleaned regularly in order to keep in good working condition.

Clean the cooker hood according to the instruction manual and keep the unit from danger of burning.

Forbid the direct baking from the gas cooker.

Please keep the kitchen room a good convection.

Before connecting this appliance check that the power supply cord is not damaged. A damaged supply cord must be replaced by qualified service personnel only.

There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.

The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

Regulations concerning the discharge of air have to be fulfilled.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Do not flambe under the range hood.

CAUTION: Accessible parts may become hot when used with cooking appliances.

Electrical Shock Hazard.

Only plug this unit into a properly earthed outlet. If in doubt, seek advice from a suitably qualified engineer.

Failure to follow these instructions can result in death, fire, or electrical shock.

The lamp used in this product is not suitable for use in the lighting of a room.

The purpose of this lamp is to provide illumination for using the product.

Electrical Installation.

All installation must be carried out by a competent person or qualified electrician. Before connecting the mains supply, ensure that the mains voltage corresponds to the voltage on the rating plate.

Direct Connection.

The appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3mm between the contacts.

The installer must ensure that the correct electrical connection has been made and that it complies with the wiring diagram.

The cable must not be bent or compressed.

Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

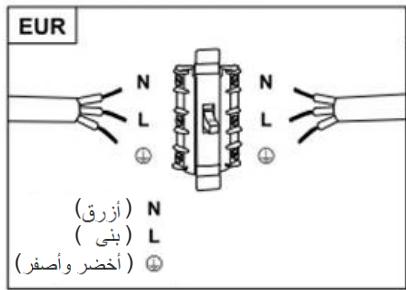

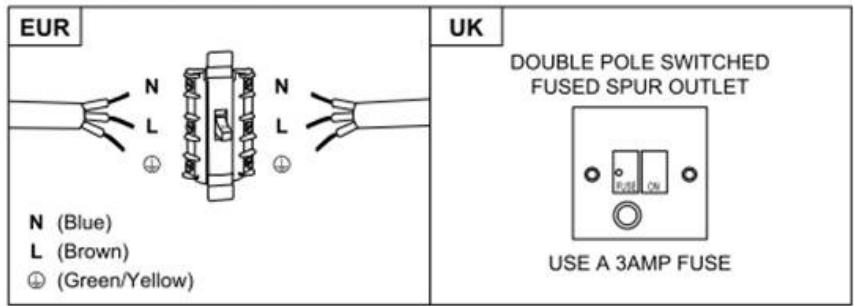

WARNING: This is a Class I appliance and MUST be earthed

This appliance is supplied with a 3 core mains cable coloured as follows:

Brown = L or Live

Blue = N or Neutral

Green and Yellow = E or Earth

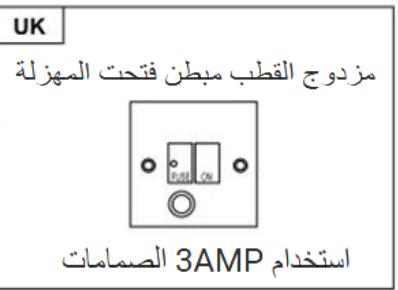

The fuse must be rated at 3 Amps.

Standard Installation Accessories List

Spec.	Illustration Picture	Qty
Casing		1
Upper Chimney		1
Lower Chimney		1
Lower chimney bracket		1
Upper chimney bracket		1
Hanging Board		1
φ8 rawl plugs φ8×φ6 white color		9
Screws ST4.0×30		9
φ7.2screws ST4.0×8		2

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or inflammable material with an interior diameter of 150mm)

1. Before installation, turn the unit off and unplug it from the outlet.

1. The cooker hood should be placed at a distance of 65~75cm above the cooking plane for best effect.

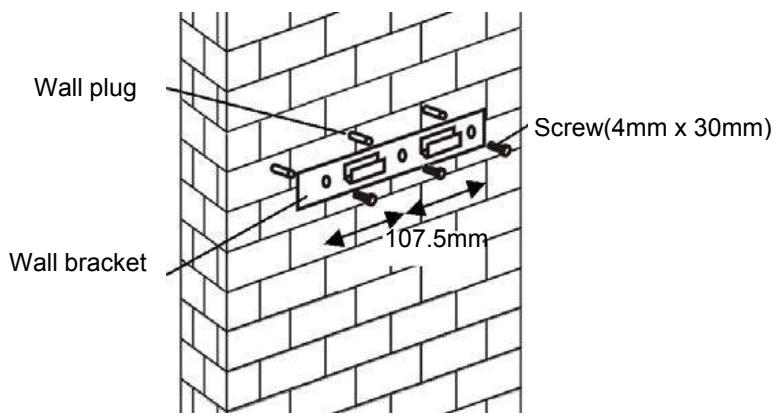

1. Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws provided.

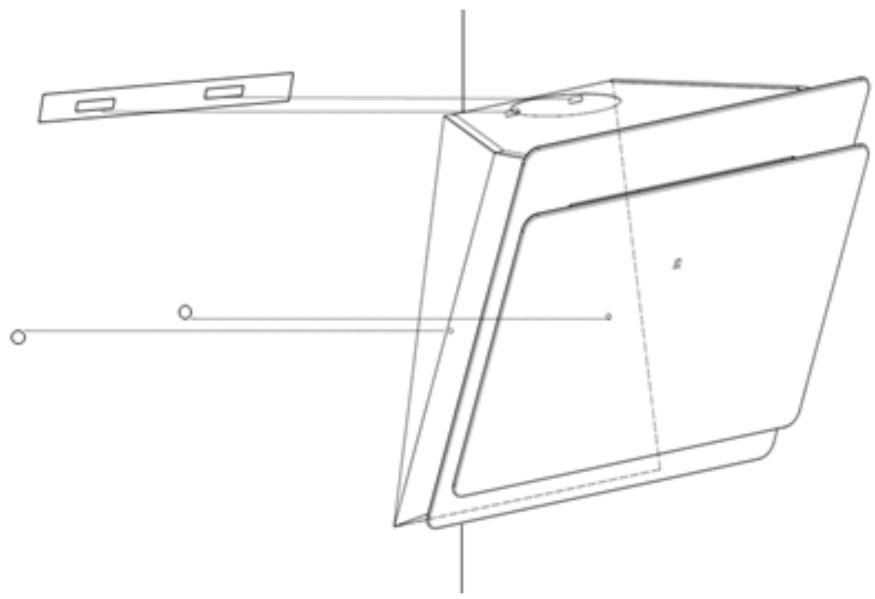

For inclined panel Model

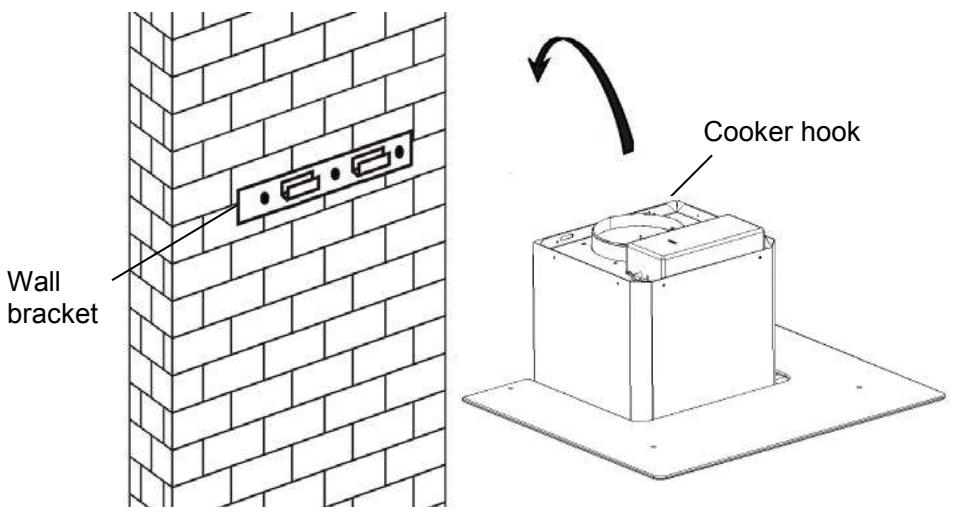

• Need to drill 2x8mm extra holes & fixing screws & screw plugs before installation. For inclined models

1. Lift up the cooker hood and hang onto the wall bracket hook.

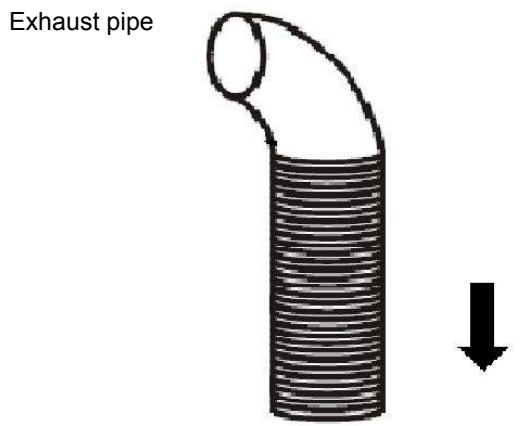

1. Fix the one-way valve to the air outlet of the cooker hood. Then, attach the exhaust pipe onto the one-way valve as shown below.

Cooker hood

6.

i. Place the glass in the appropriate position on top of the cooker hood. ii. Fix it with 4 screws and washers. To avoid cracking the glass, do not tighten the screws too strongly. i. Put the inner chimney into the outer chimney, then pull the inner chimney upwards. Adjust to reach the required height.

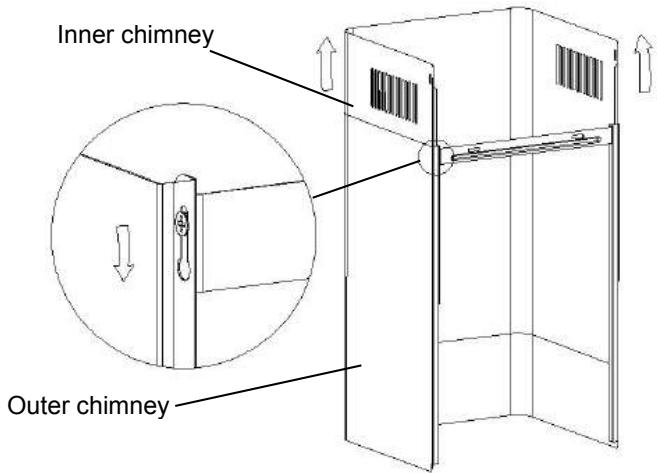

ii. Slide the chimney to adjust its height. When the required height is reached, hang the fixing hole onto the fixing screws as shown in the pictures below.

8.

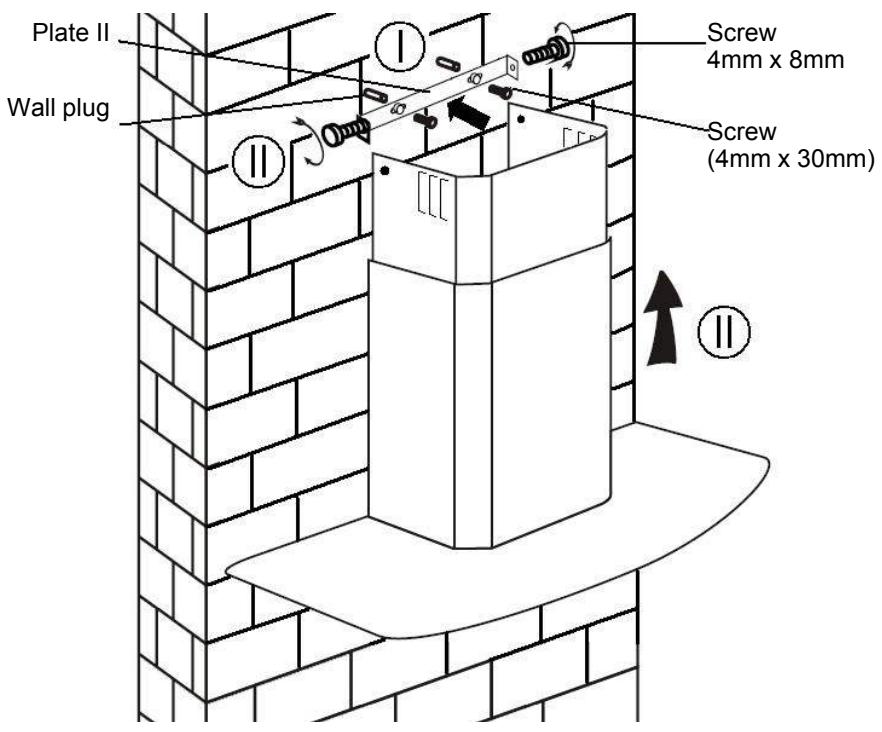

i. Drill 2 x 8 mm holes to accommodate plate II. Screw and tighten plate II onto the wall with the 2 screws provided. ii. Assemble the chimney onto the unit and fix it with 2 screws.

INSTALLATION (VENT INSIDE)

If you do not have an outlet to the outside, an exhaust pipe is not required, and the installation is similar to the one shown in the section "INSTALLATION (VENT OUTSIDE)".

Activated carbon filters can be used to trap odors. To install the activated carbon filter, first detach the grease filter. Press the lock and pull it downward.

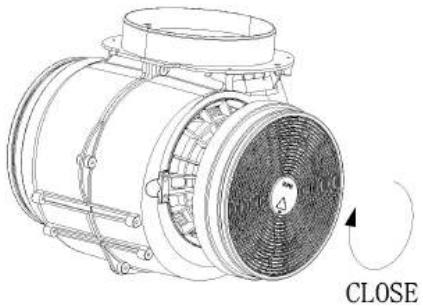

Plug the activated carbon filter into the unit and turn it clockwise. Repeat the same on the other side.

NOTE:

Make sure the filter is securely locked. Otherwise, it could loosen and cause danger. When the activated carbon filter is attached, the suction power will be lower.

CONFIGURATION 1

OPERATION

Button 1

This button has an indicator backlight. When you press it, the backlight turns on and the fan turns on at low speed. Pressing it again turns off the fan.

It is used for ventilation in the kitchen. It is suitable for simmering and cooking that do not produce much steam.

Button 2

This button has an indicator backlight. When you press it, the backlight turns on and the fan turns on at medium speed. Pressing it again turns off the fan.

This airflow speed is ideal for ventilation during standard cooking operations.

Button 3

This button has an indicator backlight. When you press it, the backlight turns on and the fan turns on at high speed. Pressing it again turns off the fan.

When high density of smoke or steam is produced, press the high-speed button for the most effective ventilation.

NOTE: If the low, medium, or high speed buttons are pressed at the same time, the unit will only operate at the highest speed.

Light button

CONFIGURATION 2

OPERATION

Off button 0

It is used to turn off the fan.

Low Speed button 1

It is used for ventilation in the kitchen. It is suitable for simmering and cooking that do not produce much steam.

Medium Speed button 2

This airflow speed is ideal for ventilation during standard cooking operations.

High Speed button 3

When high density of smoke or steam is produced, press the high-speed button for the most effective ventilation.

NOTE: If the Low, Medium, or High speed buttons are pressed at the same time, the unit will only operate at the highest speed.

Light button

CONFIGURATION 3

①

+

O

① On/Off button

It is used to turn the fan on and off.

Speed plus button

For increasing the speed of the fan.

Speed decrease button

For decreasing the speed of the fan.

Light button

Digital display

Fan speed display: "1" for Low speed, "2" for Medium speed, "3" for High speed, "4" for Booster function.

Quick timer: Press ① and ⑦ and hold for 1 second. The digital display will flash and enter a 5-minute countdown. After 5 minutes, the motor and light will turn off automatically and a buzzer will sound for 1 second.

Booster function

This hood has a booster function. To activate the booster, press ① to speed 4, entering the highest speed while the hood is in use. It will increase speed for 5 minutes before slowing down again.

MAINTENANCE

Before cleaning, switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material, or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month to prevent any risk of fire.

The filter collects grease, smoke, and dust, so it directly affects the efficiency of the cooker hood. If not cleaned, grease residue (potentially flammable) will saturate the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to units installed as recirculation units (not vented to the outside). This filter traps odors and must be replaced at least once a year

depending on how frequently the cooker hood is used.

IV. Changing a Light Bulb

Remove the screws on the glass, take off the hood glass. Find the bulb that requires replacement; you will find it located in the light fixture inside the exposed section of the canopy.

Disconnect the light wiring point and remove the bulb holders and wiring from the hood. Important: It is not possible to replace the bulbs individually; it will be necessary to obtain the bulbs, bulb holders, and wiring as a complete part. (LED light: MAX 1.5W)

Fit the replacement bulbs, bulb holders, and wiring in the same manner as the originals. Then reconnect the light wiring point.

Refit the hood glass and fasten the glass screws. Make sure the screws are fully tightened.

TROUBLESHOOTING

Fault	Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch off the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	Halogen light bulb burn.	Replace the bulb with correct rating.
	Power cord looses.	Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged.	Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.	Switch off the unit and repair by qualified service personnel only.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75cm

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly, switch off the appliance and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important to inform the Assistance Service of your product code and its serial number (a 16-character code that begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

INSTALLATION AND

OPERATING INSTRUCTIONS

Contents

INTRODUCTION 51

Installation (Evacuation) 55

Installation (Recycling) 60

The appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3 mm between the contacts.

The cable must not be bent or compressed.

For decreasing the speed of the fan.

O

Light button

8 Digital display

Fan speed display: "1" for Low speed, "2" for Medium speed, "3" for High speed, "4" for Booster function.

Quick timer: Press ① & ⑦ hold for 1 second, Digital display will flash & into 5 minutes count down, after 5 minutes motor & light will turn off automatically & Buzzer sound for 1 second.

Booster function

Blue = N or Neutral

For the lamps (LED light: MAX 1.5W)

To install the new lamps, turn off the circuit.

Install the crystal and the screws. Make sure you have tightened the screws properly.

TROUBLESHOOTING

(Waste Electrical and Electronic Equipment - WEEE).

INSTALLATION (EXTRACTOR VERSION) 124

INSTALLATION (RECIRCULATION VERSION) 129

CONTROL PANEL 131

OPERATION 131

MAINTENANCE 133

POSSIBLE FAULTS 134

ENVIRONMENTAL PROTECTION 135

Regulations concerning the discharge of air have to be fulfilled.

INSTALLATION (OUTDOOR VENTILATION) 209

INSTALLATION (INDOOR VENTILATION) 214

DESCRIPTION OF COMPONENTS 215

OPERATION 215

MAINTENANCE 218

TROUBLESHOOTING 219

COMPLIANCE WITH DIRECTIVES 219

ENVIRONMENTAL PROTECTION 220

Blue = N or Neutral

This hood has a booster function. To activate the booster, press to ① speed 4, enter into highest speed while the hood is in use and it will increase speed for 5 minutes, before slowing down again.

MAINTENANCE

Therefore, a4 = a1 + 4

y

July 1

y

3mm 2

1g 1

Class I j

:

2j → 3j N =

j 1 E=

3 1olal

gss

Lae

Clll j

2

J

O

aagall jaii ciay

4.2.1.1

ac yll "3"g abw gial ac yll "2"g aiaiaial ac yll "1".aagall ac jw aaiil aaiill

1 5 5 5 5 5 5 5

jzai 1

4 5 a 5 1 5 b 1 5 c 1 5 d 1 5 e 1 5 f 1 5 g j 5 i 5 k 5 l 5 m

ylll 2j1 j000

.1

lalbo jai jai lal yj 1 Jia aol jao jao ay aol aol aol aol

g jilj 1

.11

J 1

aJ 1

bail jyjil jilj gnil

.Ⅲ

12u (jllg jy) 100d! oS k j p g aol gl bdo y

INSTALLATION MANUAL

YBOD 239

SAFETY PRECAUTIONS 239

SPECIFICATIONS 242

INSTALLATION OF THE VENTILATION UNIT 243

INSTALLATION OF THE THREE VENTILATION UNITS 248

DESCRIPTION OF THE COMPONENTS 249

OPERATION 249

MAINTENANCE 252

TROUBLESHOOTING 254

COMPLIANCE WITH REGULATIONS 254

ENVIRONMENTAL PROTECTION 255

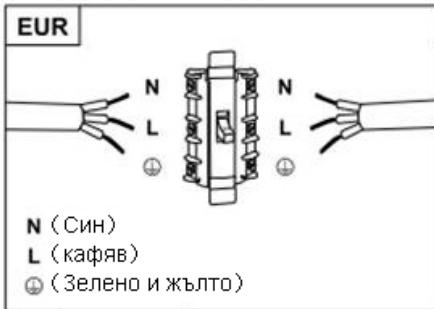

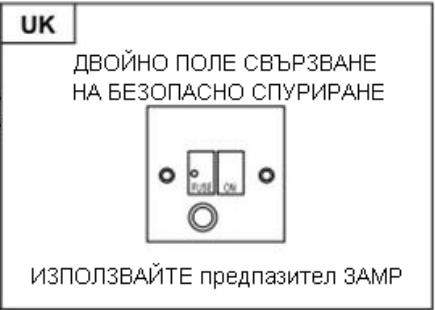

BROWN = L FOR PHASE

BLUE = N FOR NEUTRAL

GREEN/YELLOW = E FOR EARTH

Accessories kit for standard installation

CUSTOMER SERVICE

If you cannot identify the cause of the abnormal behavior: turn off the device and contact technical service.

SERIAL NUMBER OF THE PRODUCT. Where can I find it?

It is important to provide your technical service with your product serial number (a 16-character code starting with the letter 3); it can be found on the warranty certificate or on the data plate on the device. This will help you avoid unnecessary trips for technical service, and (more importantly) cover the corresponding costs for the repair.

ENVIRONMENTAL PROTECTION

Electrical appliances must not be disposed of with household waste. Please recycle them at designated collection points. Contact your local representative for recycling instructions.

The device is marked in accordance with European Directive 2012/19/EU

Regarding waste electrical and electronic equipment (WEEE). By ensuring the correct disposal of this product, you will help prevent potential negative consequences for the environment and human health, which could otherwise arise from improper handling of this product's waste.

The symbol on this device indicates that it cannot be treated as household waste. Instead, it should be taken to a suitable collection point for recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local regulations for environmental protection and waste disposal.

For more detailed information on the processing, recovery, and recycling of this device, please contact your local city office, waste disposal service, or the store where you purchased the device.

INSTRUCTIONS FOR USE AND INSTALLATION

Contents

Introduction 257
