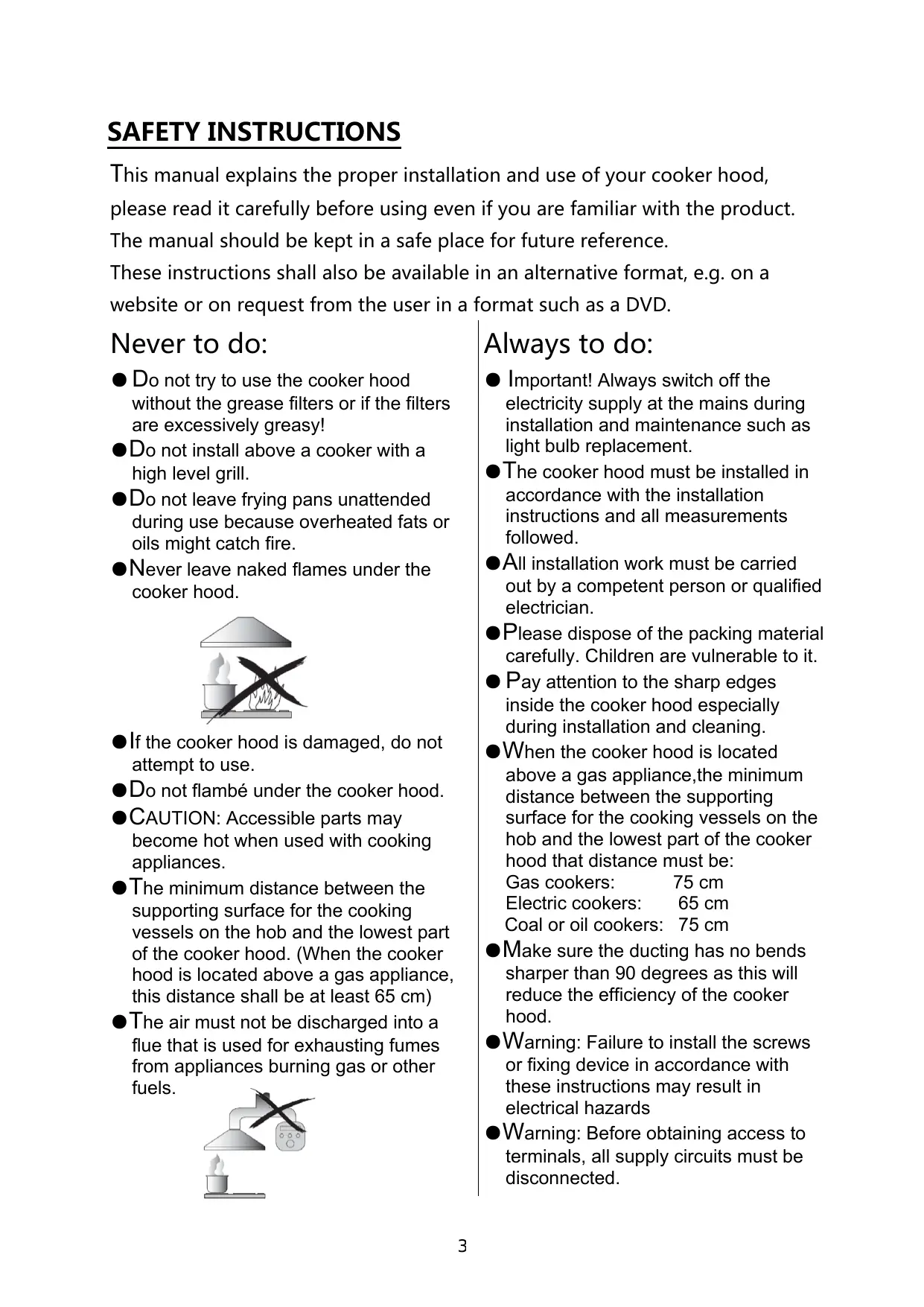

Content SAFETY INSTRUCTIONS This manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference. These instructions shall also be available in an alternative format, e.g. on a website or on request from the user in a format such as a DVD. Never to do: Always to do: ● Do not try to use the cooker hood without the grease filters or if the filters are excessively greasy! ●Do not install above a cooker with a high level grill. ●Do not leave frying pans unattended during use because overheated fats or oils might catch fire. ●Never leave naked flames under the cooker hood. ● Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement. ●The cooker hood must be installed in accordance with the installation instructions and all measurements followed. ●All installation work must be carried out by a competent person or qualified electrician. ●Please dispose of the packing material carefully. Children are vulnerable to it. ● Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning. ●When the cooker hood is located above a gas appliance,the minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood that distance must be: Gas cookers: 75 cm Electric cookers: 65 cm Coal or oil cookers: 75 cm ●Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the cooker hood. ●Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards ●Warning: Before obtaining access to terminals, all supply circuits must be disconnected. ●If the cooker hood is damaged, do not attempt to use. ●Do not flambé under the cooker hood. ●CAUTION: Accessible parts may become hot when used with cooking appliances. ●The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood. (When the cooker hood is located above a gas appliance, this distance shall be at least 65 cm) ●The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

Always to do: Always to do: ●Always put lids on pots and pans when cooking on a gas cooker. ●When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being observed. The cooker hood removes odours from room but not steam. ●Cooker hood is for domestic use only.

Caution: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children younger than 8 years old should stay away unless they are under permanent supervision. ● There shall be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels. ●There is a fire risk if cleaning is not carried out in accordance with the instructions ●Regulations concerning the discharge of air have to be fulfilled. ●Clean your appliance periodically by following the method given in the chapter MAINTENANCE. ●For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual. ●Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual. ●Cleaning and user maintenance shall not be made by children without supervision. ●When the cooker hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar). ●WARNING: Danger of fire: do not store items on the cooking surfaces. ●A steam cleaner is not to be used. ●NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket. ●If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. ●This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. ●Warning: Before obtaining access to terminals, all supply circuits must be disconnected.

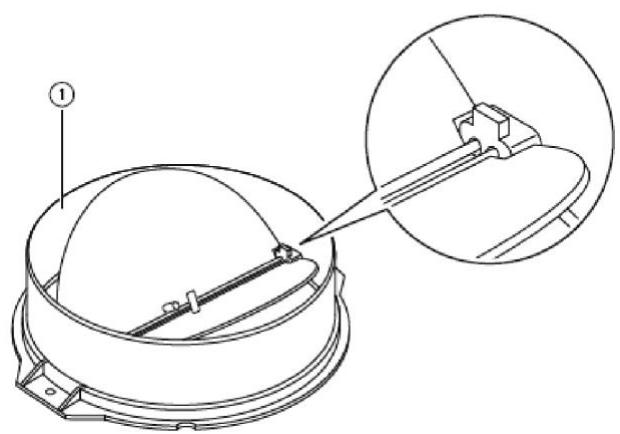

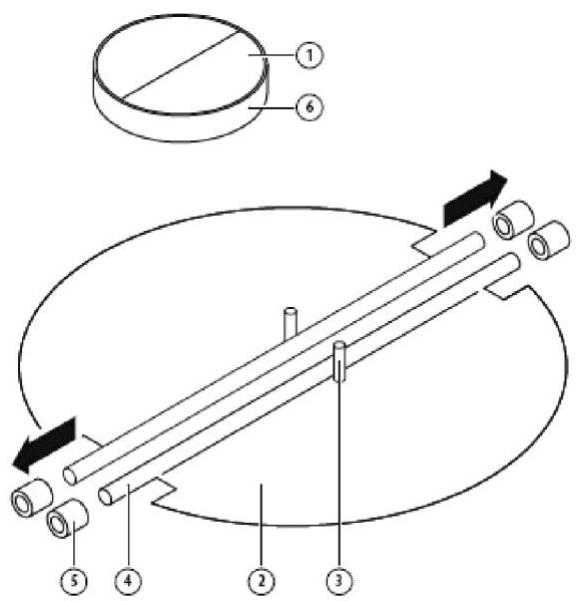

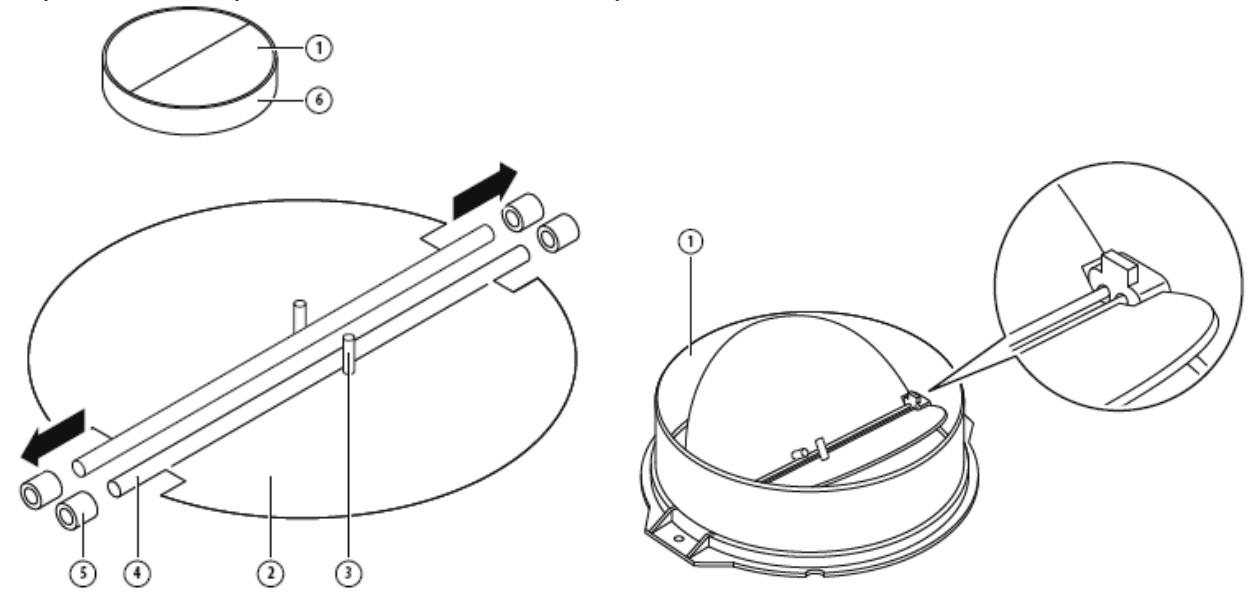

INSTALLATION (VENT OUTSIDE) MOUNTING OF THE V-FLAP（Optional） If the cooker hood does not have an assembled V-flap 1, you should mount the halfparts to its body. The images only show an example of how to mount the V-flap,the outlet may be various according to different models and configuration. To mount the V-flap 1 you should:

• Mount two half-parts 2 into the body 6
• a pin 3 should be top oriented;
• the axis 4 should be inserted in the holes 5 on body;
• repeat all the operations for the 2nd half-part INSTALLATION (Wall Mounting)

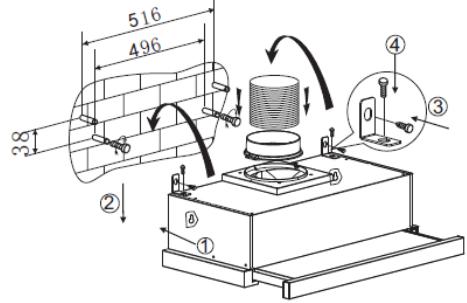

1. Decide the location of the holes for fixing the cooker hood.

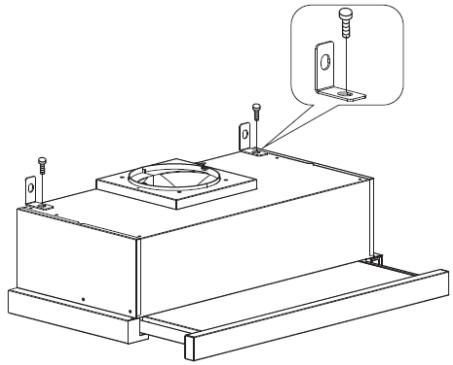

2. Install the L-shaped bracket on the top of the hood by two screws (4mm x 10mm)

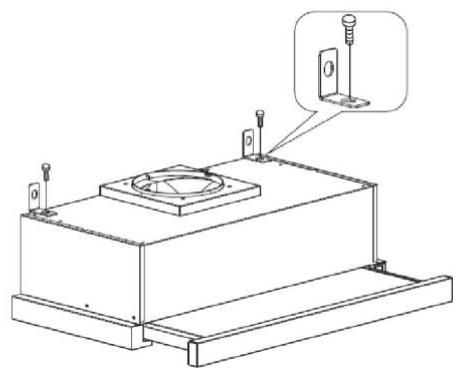

The cooker hood is wall mounted by 4 screws (4mm x 30mm) and wall plugs. Mount the cooker hood on the wall on the back of the cooker hood by 2 screws (4mm x 30mm) and wall plugs. Then fix the cooker hood on the wall by 2 screws (4mm x 30mm) and wall plugs through the small L-shaped bracket.

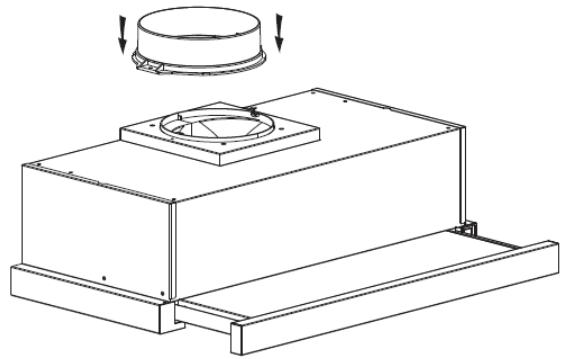

4. Fix the one-way-valve to the air outlet of the cooker hood.

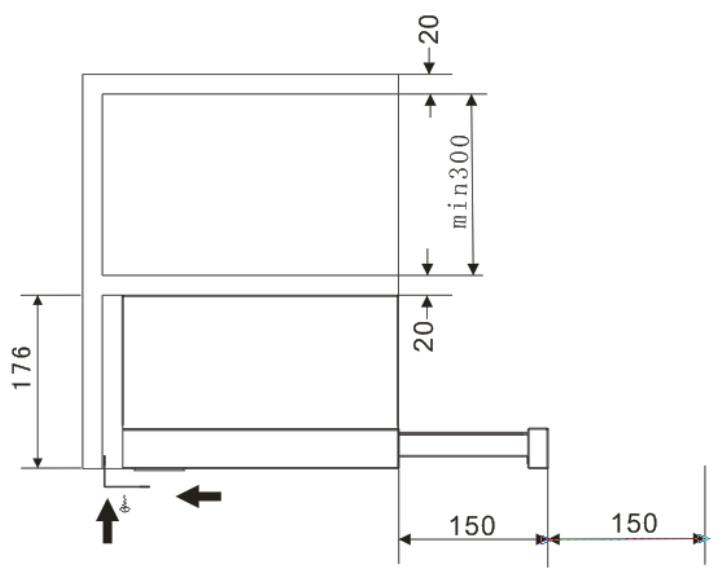

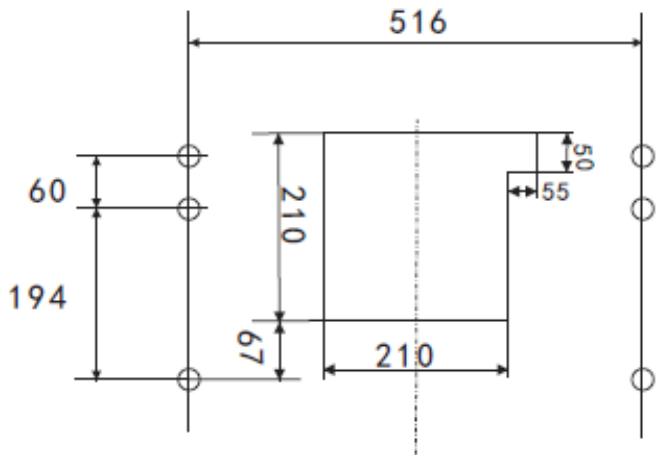

INSTALLATION (Cabinet Mounting)

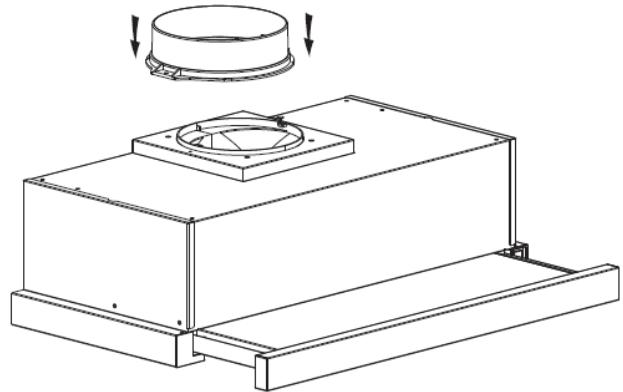

Fix the one-way-valve to the air outlet of the cooker hood.

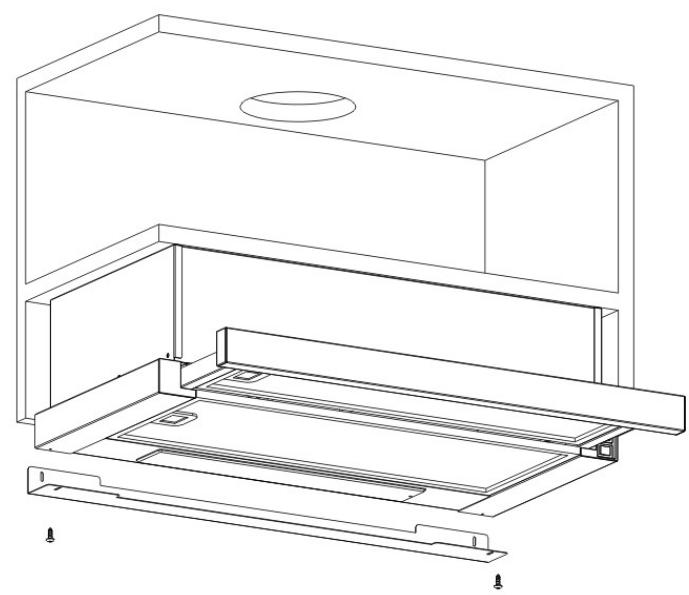

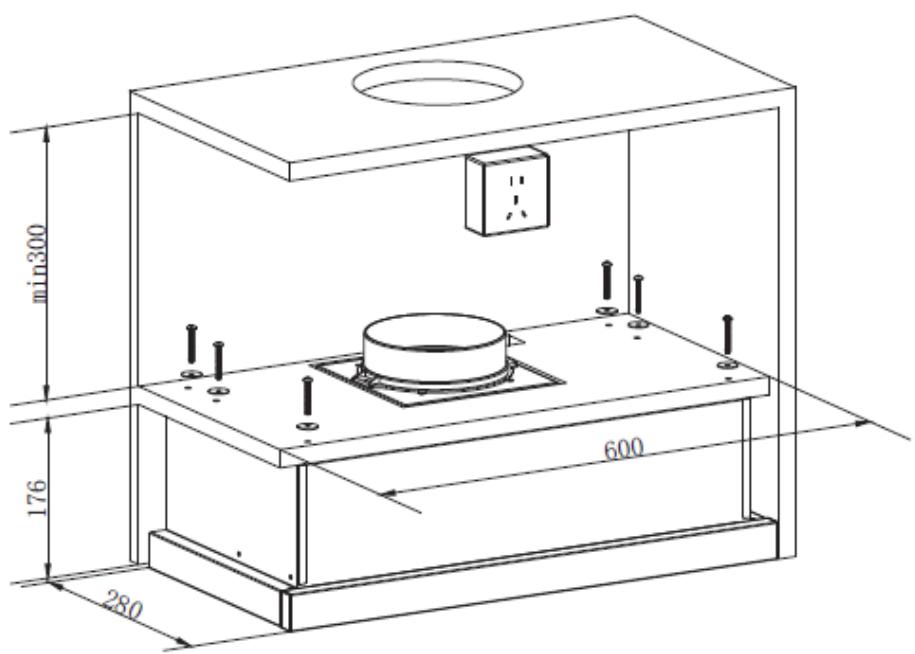

2. Mount the cooker hood on the cabinet by 6 screws (4x35mm) and flat washers.

If there is gap between the wall and the cooker hood, you may install the L-shaped bracket on the bottom of the hood by two screws (3 x 12mm). The installation of the L-shaped bracket is optional. Note: The expansion pipe is not included in the product.

WARNING:

For safety reason, pl ease use only the same size of fi xing or m ounting screw which are recommended in this instruction manual. Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. Rocker switch

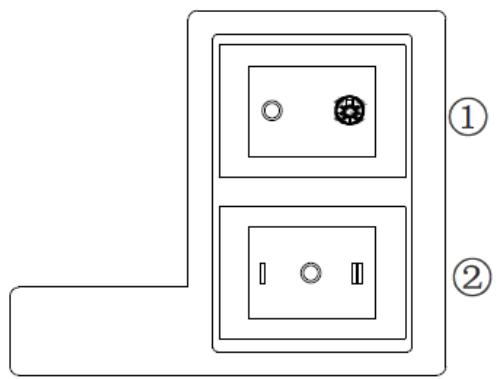

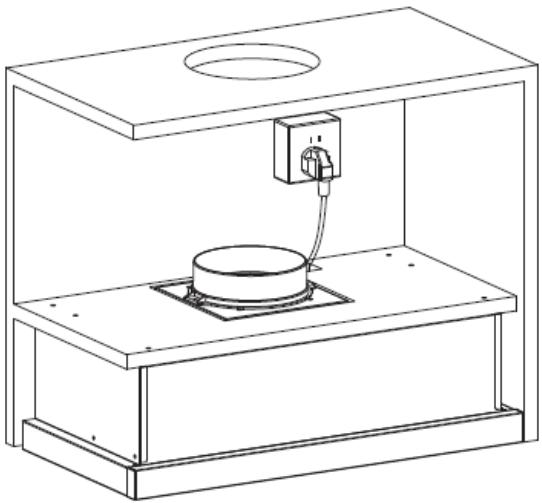

1. Insert the power plug into the socket.

2. Push switch ① to , the lamp will be on; push switch ① to “0”, the lamp will

3. Push the switch ② into “I、II”, the motor will be on “low、high” two

speeds, push into “0”, the motor will be off.

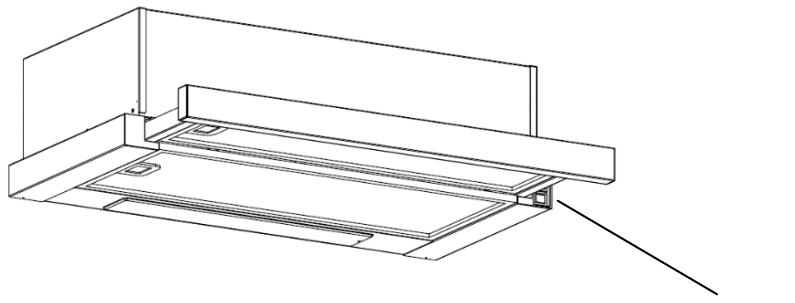

4. The power will be connected when pull out the front panel. Conversely, the

power will be automatically disconnected. TROUBLESHOOTING Fault Light on, but motor does not work Light does not work, motor does not work Oil leakage Lights not working Insufficient suction The Cooker hood inclines Possible Cause Solution Fan switch turned off Fan switch failed Contact service center. Motor failed Contact service center. House fuses blown Reset/Replace fuses. Power cord loose or disconnected Refit cord to power outlet. Switch power outlet on. One way valve and the outlet are not tightly sealed Take down the one way valve and seal with sealant. Leakage from the connection of chimney and cover Take chimney down and seal. Broken/Faulty globes Replace globes as per this instruction. The distance between the cooker hood and the gas top is too far The fixing screw not tight enough Refit the cooker hood to the correct distance. Tighten the hanging screw and make it horizontal. NOTE: Any electrical repairs to this appliance must conform to your local, state and federal laws.Please contact the service centre if in any doubt before undertaking any of the above.Always disconnect the unit from the power source when opening the unit.

MAINTENANCE AND CLEANING

• Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the main power supply. Ensure that the cooker hood is switched off at the wall socket and the plug removed.
• External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is achieved without damage.

GENERAL Cleaning and maintenance should be carried out with the appliance cold especially when cleaning.Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces. STAINLESS STEEL The stainless steel must be cleaned regularly (e.g.weekly) to ensure long life expectancy.Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may be used. NOTE: Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing. The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning. Important Using neutral detergents and avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives,as this will affect the appliance appearance and potentially remove any printing of artwork on the control panel and will void manufactures warrantee. The mesh filters can be cleaned by hand. Soak them for about 3 minute in water with a grease-loosening detergent then brush it gently with a soft brush. Please do not apply too much pressure, avoid to damage it . (Leave to dry naturally out of direct sun light) Filters should be washed separately to crockery and kitchen utensils. it is advisable not to use rinse aid.

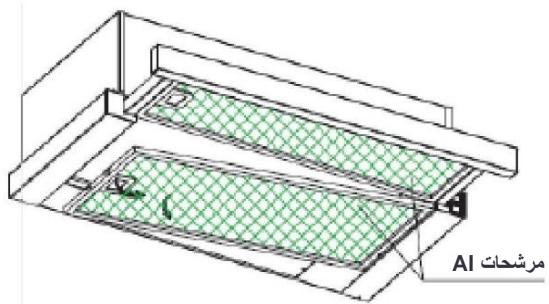

INSTALLING GREASE MESH FILTERS

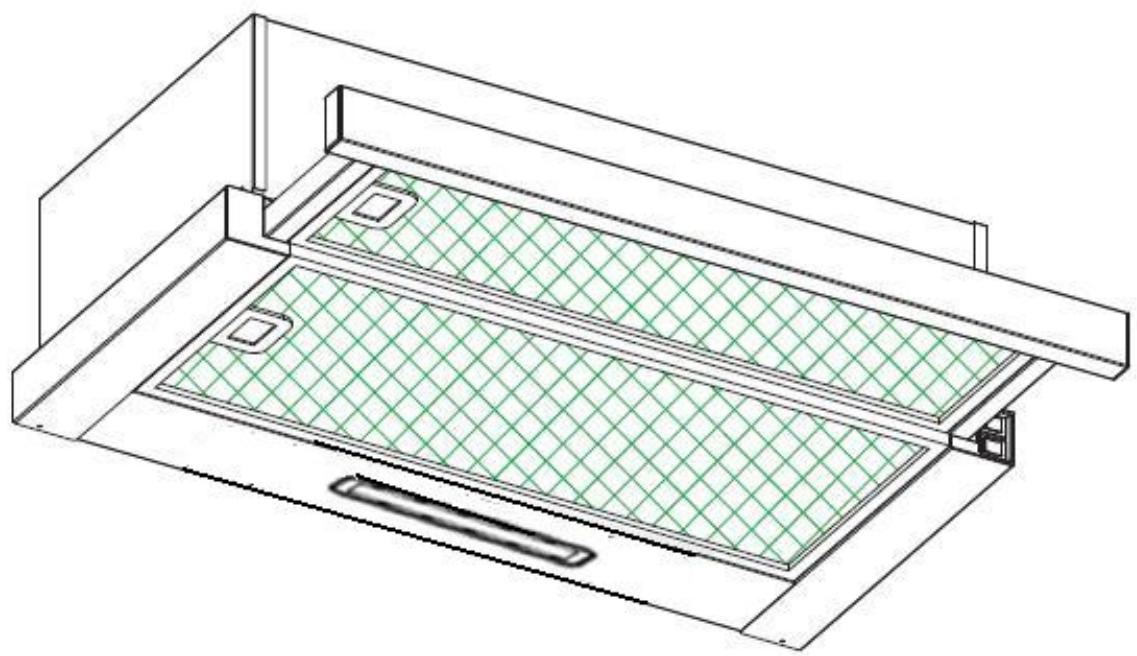

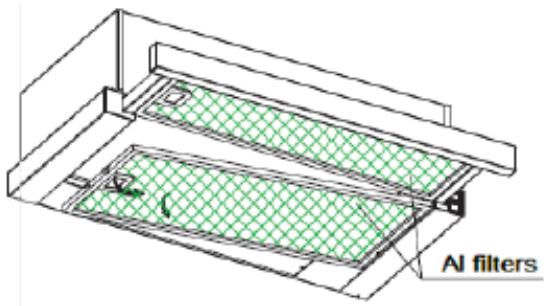

• To install filters for the following four steps . - Angle the filter into slots at the back of the hood. - Push the button on handle of the filter. - Release the handle once the filter fits into a resting position. - Repeat to install all filters.

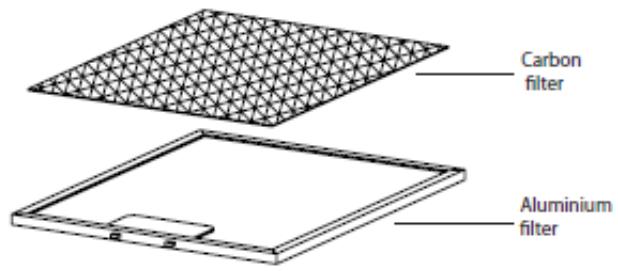

CARBON FILTER Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed at three or six months according to your cooking habit. The installation procedure of activated carbon filter is as below.

1. Put the carbon filter on the back side of the aluminium filter.

2. Insert the steel wire into the frame of the aluminiu m filter, one on each side. Y ou

need to bend it to insert into the other end of the frame.

3. Make sure the steel wire fix the carbon filter onto the aluminium filter.

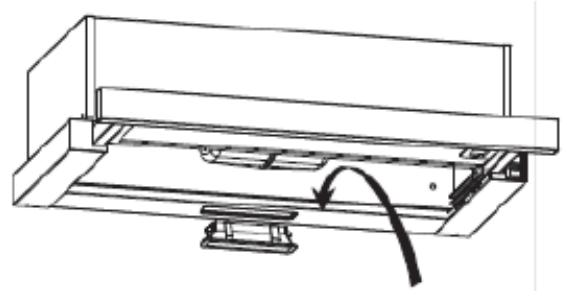

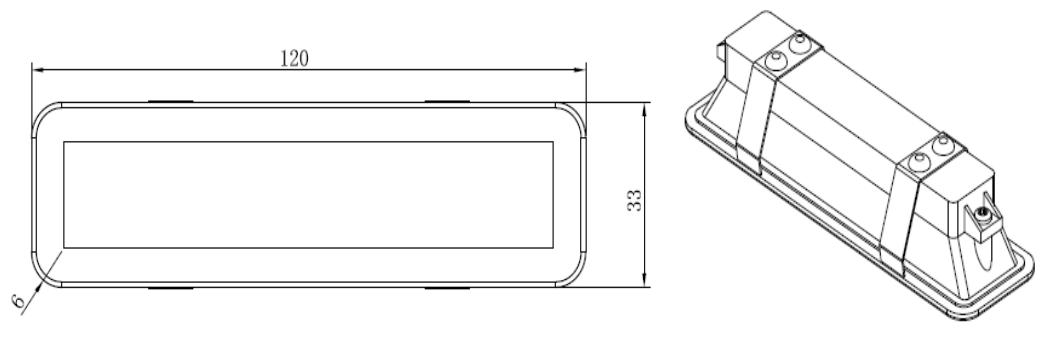

Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous. When activated carbon filter attached, the suction power will be lowered. BULB REPLACEMENT Important : The bulb must be replaced by the manufacturer , its service agent or similarly qualified persons. Always switch of f the el ectricity suppl y before carrying out any operati ons on the appliance. When handling bulb, make sure i t is compl etely cool down before any direct contact to hands. When handling gl obes hold wi th a cloth or gloves to ensure perspi ration does not come in cont act with the globe as this can reduce the life of the globe. Changing the light Use the screw driver loosen the ST4*8MM self tapping screw (2pcs) from the lighting panel, take out the lighting fixture. Open the terminal box that connected with the wire, disconnect the wire connector and replace the lamp.

• ILCOS D code for this lamp is: DBS-2/65-H-120/33 – LED modules –rectangle lamp – Max wattage: 1X2 W – Voltage range: AC 110-240V – Dimensions:

ENVIRONMENTAL PROTECTION: This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EU. It will then be recycled or dismantled to minimize impacts on the environment, electrical and electronic products are potentially dangerous for the environment and human health due to the presence of hazardous substances.For more information, please contact your local or regional authorities. NOTE: The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process). (1) Install the cooker hood in a proper place where there is efficient ventilation. (2) Clean the cooker hood regularly so as not to block the airway. (3) Remember to switch off the cooker hood light after cooking. (4) Remember to switch off the cooker hood after cooking.

INFORMATION FOR DISMANTLING

Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with you Local Authority or retainer for recycling advice.

POVRCH OVLÁDACÍHO PANELU

TUKOVÉ FILTRY S OKY

POKYNY K DEMONTÁŽI

VETFILTERS VAN GAAS INSTALLEREN
