Product Type	Ceiling Cooker Hood
Installation Type	Built-in / Flush-mounted
Width	90 cm
Depth	50 cm
Height (min - max)	60 - 110 cm
Weight	15 kg
Power Supply	220-240 V ~ 50 Hz
Total Connected Load	250 W
Motor Power	200 W
Number of Motors	1
Number of Speeds	4
Maximum Extraction Rate (m³/h)	650 m³/h
Noise Level (max speed)	68 dB(A)
Lighting Type	LED
Number of Lights	2
Light Power	3 W each
Filter Type	Aluminum Grease Filter
Filter Cleaning	Dishwasher safe
Charcoal Filter (optional)	Yes, replaceable
Control Type	Touch control panel
Energy Class	A+
Annual Energy Consumption	50 kWh/year
Duct Diameter	150 mm
Warranty	2 years

Frequently Asked Questions - CPY9MXVGG CANDY

How do I install the Candy CPY9MXVGG cooker hood?

Installation must be carried out by a qualified technician. Ensure the hood is securely fixed to the ceiling and connected to the mains via a dedicated circuit. The minimum distance between the hob and the hood should be 65 cm for electric hobs and 75 cm for gas hobs. Refer to the manual for detailed step-by-step instructions.

How often should I clean the grease filter?

The aluminum grease filter should be cleaned every 2-3 months, or more frequently with heavy use. You can clean it in a dishwasher using a short cycle at low temperature. Allow it to dry completely before reinstalling.

How do I replace the charcoal filter?

The charcoal filter is used in recirculation mode. It should be replaced every 4-6 months. To replace, remove the grease filter, locate the charcoal filter, unclip it, and insert a new one. Ensure it is properly secured before reattaching the grease filter.

What are the dimensions of the CPY9MXVGG?

The hood has a width of 90 cm, depth of 50 cm, and a height adjustable between 60 and 110 cm. Always verify the exact dimensions in the manual before installation.

How can I reduce the noise level of my cooker hood?

Ensure the hood is installed correctly and the ductwork is smooth and straight. Use lower speed settings for quieter operation. Regular cleaning of filters also helps reduce noise.

Why is my Candy hood not extracting properly?

Check if the filters are clogged and clean or replace them. Ensure the duct is not blocked or bent. Verify that the hood is set to extraction mode (not recirculation if ducted). Also, check that the motor is running and the speed setting is adequate.

How do I reset the filter alarm?

After cleaning or replacing the filters, press and hold the reset button (usually a specific combination of controls) for 3 seconds. The indicator light will turn off. Refer to the manual for the exact procedure.

Can I use the hood without a charcoal filter?

Yes, if you are using the hood in extraction mode (ducted outside), you do not need a charcoal filter. Only use the charcoal filter in recirculation mode where air is filtered and returned to the kitchen.

What is the warranty period for Candy CPY9MXVGG?

Candy offers a standard 2-year warranty on this model. Warranty covers manufacturing defects but not damage due to improper installation or maintenance. Keep your purchase receipt.

How do I clean the stainless steel surface?

Use a soft cloth with mild soap and water, or a dedicated stainless steel cleaner. Avoid abrasive sponges or harsh chemicals. Wipe in the direction of the grain to prevent streaks.

USER MANUAL CPY9MXVGG CANDY

Made in China Instruction

Information and advice

CAUTION: Accessible parts may become hot when used with cooking appliances.

In certain circumstances electrical appliance may be a danger hazard.

A) There must be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels. B) Do not check the status of the filters while the cooker hood is operating. C) Do not touch the light bulb within half an hour after appliance has been use. D) Do not light a flame under the cooker hood. E) Avoid opening gasometer when there is no pan on the stove, as it is damaging for the filters and a fire hazard. F) Constantly check food frying to avoid overheated oil splashing and becoming a fire hazard. G) Disconnect the electrical plug prior to any maintenance. H) Regulations concerning the discharge of air have to be fulfilled. I) When the range hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 × 10^-5 bar).

Information and advice

CAUTION: Accessible parts may become hot when used with cooking appliances.

J) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

K) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

L) The range hood is intended to be installed over a hob having no more than four hob elements.

M) Indoor use and household use only.

N) When the appliance is not in use and before cleaning, unplug the appliance from the outlet.

O) Attention! Observe the warning in the instruction sheet concerning the operation of the appliance when air is discharged from the room.

P) There is a fire risk if cleaning is not carried out in accordance with the instructions.

Information and advice

CAUTION: Accessible parts may become hot when used with cooking appliances.

Q) The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room). I) Children should be supervised to ensure that they do not play with the appliance. S) Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. T) The installation height of the hood shall not be less than 65 cm. U) The filter screen must be cleaned regularly, otherwise there is a danger of fire. V) The installation must be carried out according to the screws and positions required by the instructions, which will easily damage the connecting wires.

Information and advice

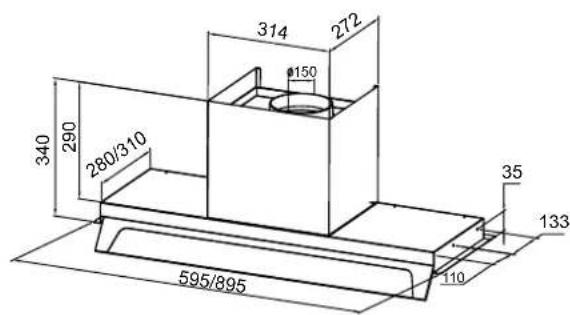

Cooker Hood Dimensions

3

4

Note: Installation of extension panels is prohibited when mounted against a wall.

When installing in a cabinet, consider whether to install an extension plate or not at your own discretion, depending on the distance between the back panel of the cabinet and the machine.

Installation Suitable for wall mounting

5

Suitable for cabinet installation

6

Installation

7

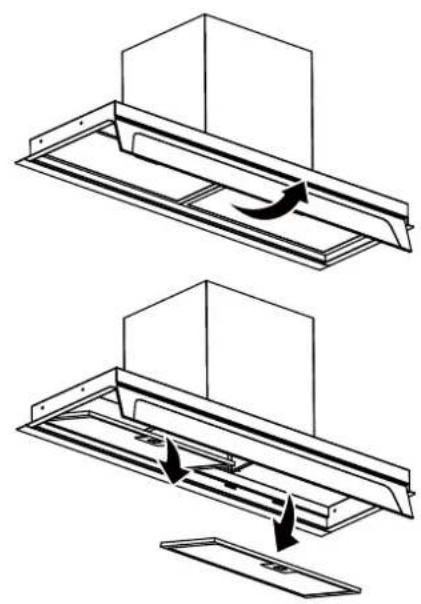

Before installation, remove the boards on both sides of the machine.

Procedure: Open the flip glass, remove the oil net, use a screwdriver to remove the two screws fixing the board from the inside, and follow this method for both sides.

Information and advice

Check the voltage, frequency and power of the rating label on the body.

9

We recommend that after installation the bottom of the hood should be no less than 650mm and no more than 750mm above the stove's heating elements and burners.

i

Information

The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room)

Installation

Against the wall mounting method

10

When installing against the wall, measure the installation height of the whole machine, mark the position of the holes with a marker pen, and drill three holes with a drill bit of 8mm in diameter, the size of which is shown in Fig. 5.

After drilling the holes, put the three expansion tubes into the drilled holes, and then drive the two screws for hanging the machine into the expansion tubes. two screws into the expansion tube.

Installation

Against the wall mounting method

A 10mm dimension should be reserved between the screws for fixing and hanging the whole machine and the wall, so as to facilitate the installation of the whole machine. After hanging the whole machine, a mounting screw will be driven into the expansion tube of the safety hole, the screw should be completely tightened to prevent falling off.

Installation

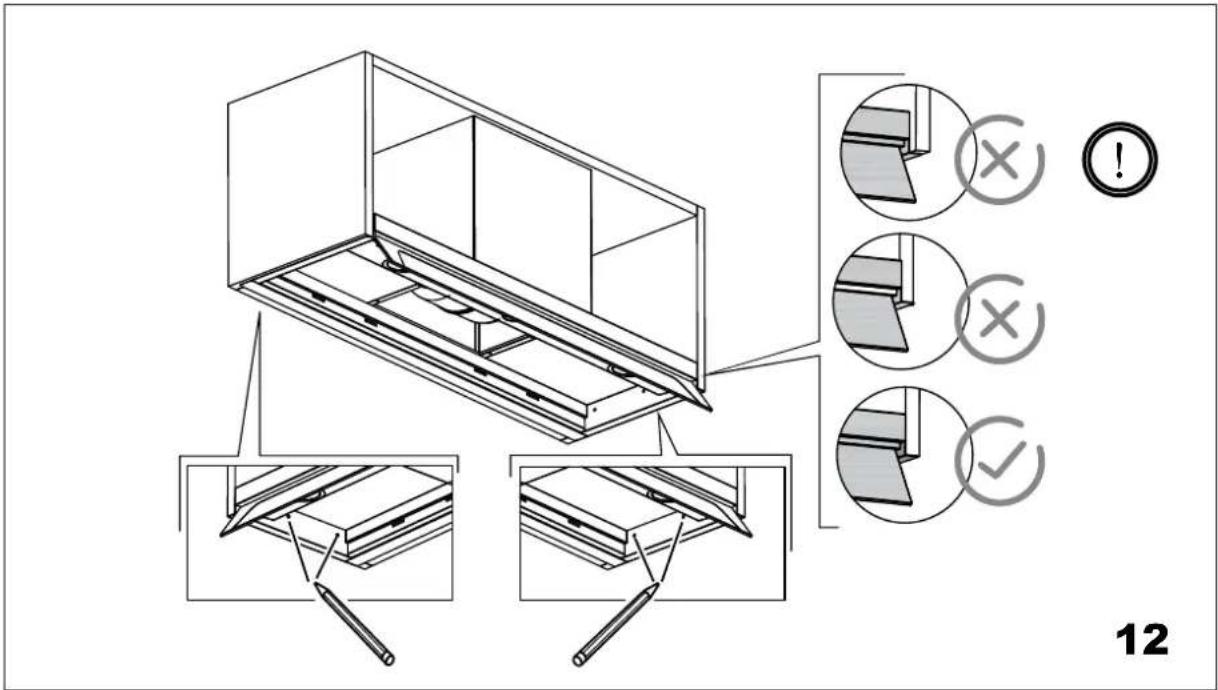

In-cabinet installation solutions

Installation

In-cabinet installation solutions

Charcoal filter (Inner-cycle mode)

Installation of hoses (outer row mode)

Controls

Press the knob to pop the knob switch out.

The knob indicates the point ○, the cooker hoods is OFF.

The knob indicates the point ⚙, the light on.

The knob indicates that the S gear, the light on, and the wind speed is low.

The knob indicates the gear, the light on, and the wind speed is medium speed.

The knob indicates that the gear, lights on and the wind speed is high

Information

Do not touch the light bulb within half an hour after appliance use. The lamp shall not be covered with thermal insulation or other material.

Replacement and maintenance

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Replacing lamps

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.

In case of malfunction of the illumination system contact the technical service.

Cleaning filters

- It is recommendable to clean the metallic filter every three months by carrying out the following instructions:

- Remove the metallic filter from the cooker hood and wash it in a solution of water and neutral liquid detergent, leaving to soak

- Rinse thoroughly with warm water and leave to dry.

- The metallic filter may also be washed in the dishwasher.

The metallic filter may alter in color after several washes.

This is not cause for customer complaint nor replacement of metallic filter.

Information

There is a fire risk if cleaning is not carried out in accordance with the instructions.

This appliance is labelled in accordance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment Regulations 2013 regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

• The WEEE should not be treated as domestic waste.
• The WEEE should be taken to dedicated collection areas managed by the town council or a registered company. In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

The manufacturer shall decline all responsibility if the foregoing recommendations and instructions regarding installation, maintenance and use are not observed and respected when using the cooker hood.

CANDY

Cooker hood

Model CPY6MXVGG/CPY9MXVGG
