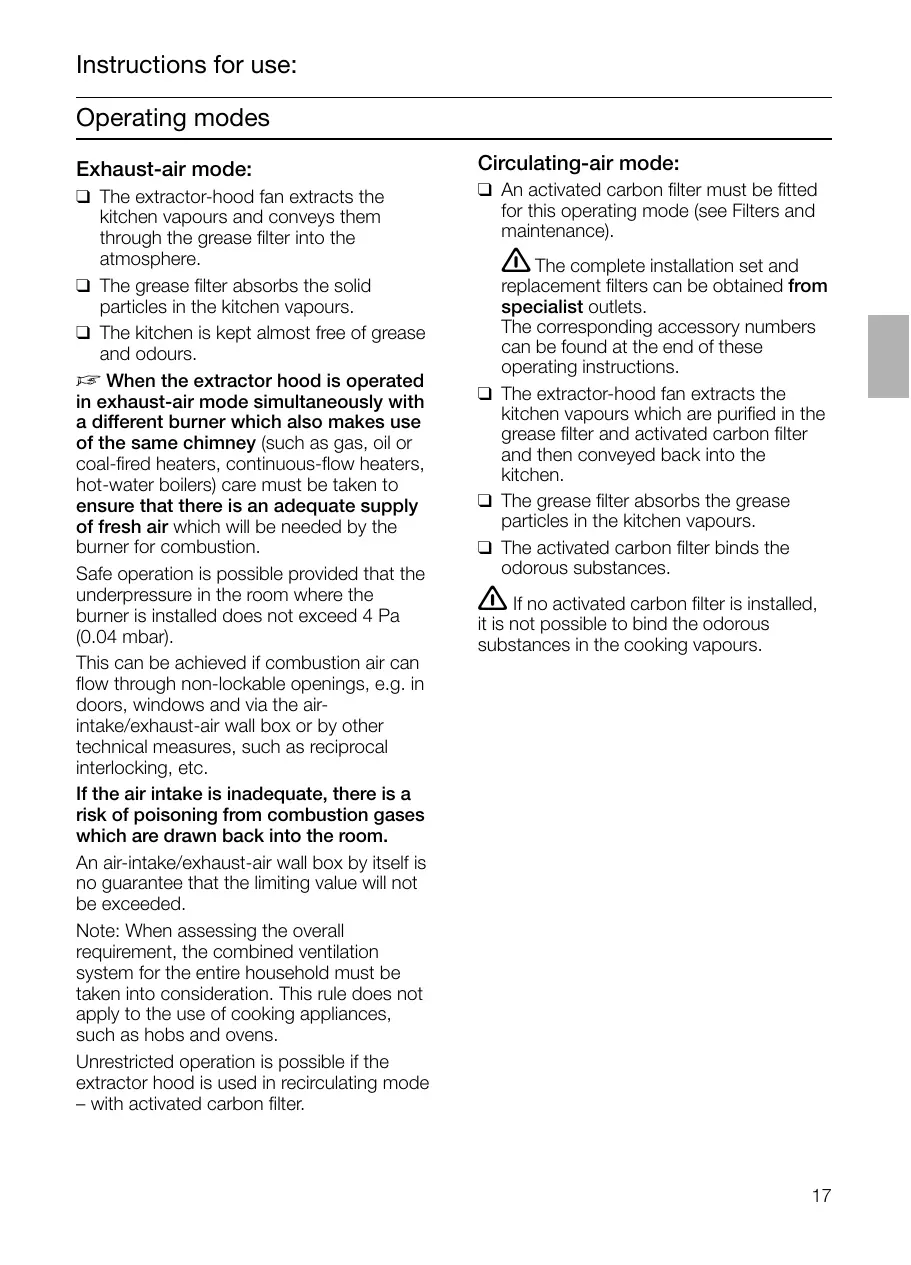

Instructions for use: Operating modes Exhaust-air mode:

Circulating-air mode:

❑ The extractor-hood fan extracts the kitchen vapours and conveys them through the grease filter into the atmosphere.

❑ The grease filter absorbs the solid particles in the kitchen vapours. ❑ The kitchen is kept almost free of grease and odours. D When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion. Safe operation is possible provided that the underpressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar). This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the airintake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc. If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room. An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded. Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens. Unrestricted operation is possible if the extractor hood is used in recirculating mode – with activated carbon filter.

❑ An activated carbon filter must be fitted for this operating mode (see Filters and maintenance).

The complete installation set and

replacement filters can be obtained from specialist outlets.

The corresponding accessory numbers can be found at the end of these operating instructions. ❑ The extractor-hood fan extracts the kitchen vapours which are purified in the grease filter and activated carbon filter and then conveyed back into the kitchen. ❑ The grease filter absorbs the grease particles in the kitchen vapours. ❑ The activated carbon filter binds the odorous substances.

If no activated carbon filter is installed, it is not possible to bind the odorous substances in the cooking vapours.

Before using for the first time

Setting the saturation indicator

If it becomes necessary to change the operating mode (exhaust-air/recirculating mode), the saturation indicator for the filters must also be altered (see Installation

❑ The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

❑ This extractor hood complies with all relevant safety regulations. Repairs should be carried out by qualified technicians only. Improper repairs may put the user at considerable risk. ❑ Before using your appliance for the first time, please read these Instructions for Use carefully. They contain important information concerning your personal safety as well as on use and care of the appliance. ❑ Please retain the operating and installation instructions for a subsequent owner. ❑ This appliance is labelled in accordance with European Directive 2002/96/EG concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

If you encounter a problem

If an # or ã appears in the display: ❑ See "Filters and maintenance" Section. If is not possible to operate the extractor hood: ❑ Disconnect the extractor hood from the mains electricity supply by pulling out the plug or switching it off at the main fuse box. Wait for approx. 1 minute and then switch it on again. If you have any questions or if a fault occurs, please call Customer Service. (See list of Customer Service representatives). When you call, please quote the following:

FD Enter the relevant numbers into the box above. The E-Nr. (product no.) and FD

(production date) are shown on the nameplate which can be seen inside the extractor hood after the filter frame has been detached.

The manufacturer of the extractor

hoods accepts no liability for complaints which can be attributed to the design and layout of the pipework.

Before using for the first time

Do not flambé food directly under the extractor hood.

Risk of grease filter catching fire due to flames.

The hotplates must always be covered with a utensil.

The extractor hood must not be operated above a solid-fuel or gas fire (coal, wood, etc.) (see installation instructions).

Do not operate all hotplates simultaneously over a prolonged period

(max. 15 minutes) at maximum thermal load, otherwise there is a risk of burns from touching the housing surfaces or a risk of damaging the extractor hood. When operating the extractor hood above a hob, operate the hood at maximum setting if three or more hotplates are on at the same time.

This extractor hood is designed for domestic use only.

Light bulbs must always be fitted when the extractor hood is in use.

Defective bulbs should be replaced immediately to prevent the remaining bulbs from overloading.

Never operate the extractor hood without a grease filter.

Overheated fat or oil can easily catch fire.

If you are cooking with fat or oil, e.g. chips, etc., never leave the cooker unattended.

Carefully clean the extractor hood before switching on for the first time.

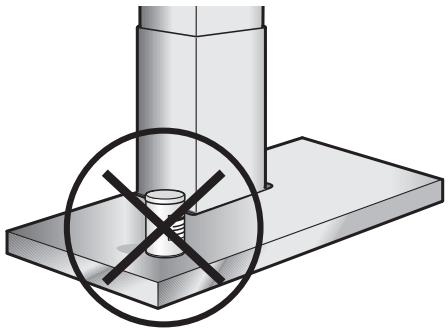

Do not place any objects on the extractor hood.

Only operate the extractor hood with the glass plate fitted.

Do not use the appliance if damaged.

The appliance is not intended for use

by young children or infirmed persons without supervision.

Young children should be supervised to ensure they do not play with the appliance.

If the connecting cable for this

appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user.

The appliance may be connected to the mains by a qualified technician only.

Dispose of packaging materials properly (see Installation instructions).

The most effective method of removing vapours produced during cooking is to:

❑ Switch the ventilator ON as soon as you begin cooking. ❑ Switch the ventilator OFF a few minutes after you have finished cooking. Reduce fan speed

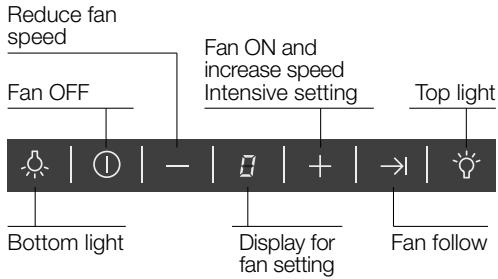

Fan OFF Bottom light

Fan ON and increase speed

❑ When a button is pressed, this is verified by an acoustic signal. Switching off the acoustic signal: ❑ Simultaneously press buttons 0 and + until a signal is emitted after approx. 3 seconds. Switching on the acoustic signal: ❑ Repeat the process. Switching the fan ON ❑ Press the + button. Setting the required fan speed: ❑ Press the + button. The fan speed is increased by one step. ❑ Press the – button. The fan speed is reduced by one step. Switching the fan OFF: ❑ Press the 0 button. The displayed { goes out shortly afterwards. Or: ❑ Keep pressing the – button until the fan switches off. The displayed { goes out shortly afterwards. 20

Maximum power is obtained at the intensive setting. It is only required for short intervals. ❑ Keep pressing the + button until a ç appears in the display. ❑ If the intensive setting is not cancelled by hand, the fan will automatically switch back to step } after 10 minutes. Fan follow-on: ❑ Press the ! button. The fan continues to run at step | for 10 minutes, and at the same time a dot flashes in the display. After this period the fan switches off automatically. Lighting: ❑ The light can be switched on at any time, even though the fan is switched off. ❑ Setting the brightnness for the bottom illumination: Hold down the a button until the desired brightness is obtained.

Filters and maintenance

Grease filters: Metal filters are used to trap the greasy element of the vapours that develop during cooking. The filter mats are made from noncombustible metal. Caution: As the filter becomes more and more saturated with grease, not only does the risk of it catching fire increase but the efficiency of the extractor hood can also be adversely affected. Important: By cleaning the metal grease filters at appropriate intervals, the possibility of them catching fire as a result of a build-up of heat such as occurs when deep-fat frying or roasting is taking place, is reduced. Saturation indicator: # When the grease filters reach saturation point, an acoustic signal is sounded for 6 seconds after the fan has switched off, and an # appears in the display. The grease filters should be cleaned straight away.

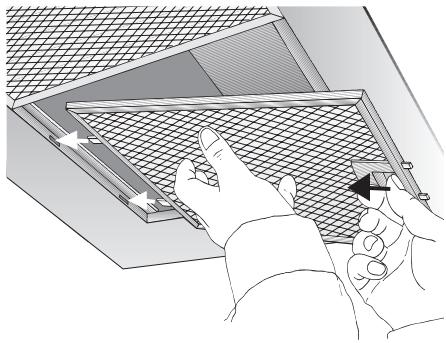

Removing and inserting the metal grease filters:

Warning: The halogen bulbs must be switched off and cool. 1. Press the catch on the grease filters inwards and fold the filters down. At the same time take hold of the underside of the grease filters with your other hand.

2. Clean the filters.

3. Insert the clean filters back into the hood. 4. Cancel the # in the display. ❑ Press the 0 button.

Cleaning the metal grease filters:

❑ In normal operation (1 to 2 hours daily), the metal grease filter must be cleaned 1 x a month. ❑ The filters can be cleaned in a dishwasher. It is however possible that they will become slightly discoloured. ❑ The filter must be placed loosely, and NOT wedged, in the dishwasher. Important: Metal filters that are saturated with grease should not be washed together with other dishes etc. ❑ When cleaning the filters by hand, soak them in hot soapy water first of all. Do not use aggressive, acidic or caustic cleaners. Then brush the filters clean, rinse them thoroughly and leave the water to drain off.

Filters and maintenance

Activated carbon filter: For neutralizing odours in recirculating mode. Caution: As the filter becomes more and more saturated with grease, there is an increased risk of fire and the function of the extractor hood may be impaired. Important: Change the activated carbon filter promptly to prevent the risk of fire from the accumulation of heat when deep-fat frying or roasting. Installation and removal: Warning: The halogen bulbs must be switched off and cool. 1. Remove the metal-mesh filters (see "Removing and inserting the metalmesh grease filters"). 2. Insert the activated carbon filter.

3. Engage the catches at both sides.

4. Insert the metal grease filters (see "Removing and inserting the metal grease filters"). 5. Cancel the ã in the display. ❑ Press the 0 button.

Saturation indicator: ã

When the activated carbon filter reaches saturation point, an acoustic signal is sounded for 6 seconds after the fan has switched off, and a ã appears in the display. The activated carbon filter should be replaced straight away. Replacing the activated carbon filter: ❑ During normal operation (1 to 2 hours per day) the activated carbon filters should be replaced approximately 1 x year. ❑ A replacement filter can be obtained from any authorized dealer (see optional accessories). ❑ Use original filters only. By doing so you will obtain maximum performance from your extractor hood. Disposing of the old activated carbon filter: ❑ There are no pollutants in the activated carbon filters. They can therefore be disposed of as part of your normal domestic refuse.

Replacing the light bulbs

Isolate the extractor hood by pulling out the mains plug or switching off the fuse.

1. Switch off the extractor hood and pull out the mains plug or switch off the electricity supply at the fuse box.

Do not clean the extractor hood with abrasive sponges or with cleaning agents which contain sand, soda, acid or chlorine!

❑ Clean the extractor hood with a hot soap solution or a mild window cleaner. ❑ Do not scrape off dried-on dirt but wipe off with a damp cloth. ❑ When cleaning the grease filters, remove grease deposits from accessible parts of the housing. This prevents the risk of fire and ensures that the extractor hood continues operating at maximum efficiency. Clean the operating buttons with a mild soapy solution and a soft, damp cloth only. Do not use stainless-steel cleaner to clean the operating buttons. Stainless steel surfaces: ❑ Use a mild non-abrasive stainless steel cleaner. ❑ Clean the surface in the same direction as it has been ground and polished. ❑ We recommend our stainless steel cleaner no. 461731. See enclosed service booklet for order address. Aluminium, coated and plastic surfaces: ❑ Do not use dry cloths. ❑ Use a mild window cleaning agent. ❑ Do not use aggressive, acidic or caustic cleaners.

When switched on, the halogen bulbs become very hot. Even for some time after the bulbs have been switched off there is still a risk of burns.

2. Remove the bulb ring with a screwdriver or similar tool.

3. Replace the halogen light bulb

(conventional halogen bulb, 12 Volt, max. 20 Watt, G4 cap). Caution: Refer for plug-in lampholder. Take hold of the bulb with a clean cloth.

4. Re-insert the bulb ring.

5. Plug the appliance into the mains or switch it on at the fuse box. Note: If the light does not function, check that the bulbs have been inserted correctly.

Observe the warranty regulations in the enclosed service booklet.

Replacing the light bulbs

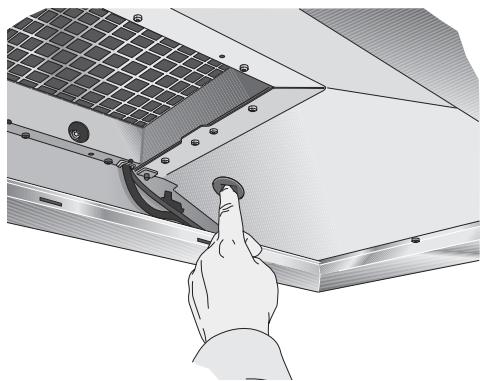

Fluorescent light bulbs: 1. Switch the extractor hood off and isolate it by removing the mains plug or by switching off the fuse.

When operating, the fluorescent light

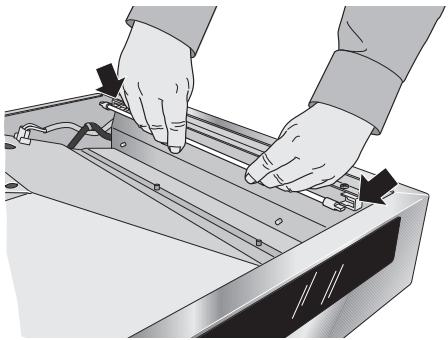

5. Exchange the fluorescent light bulbs

(commercially available light bulbs FM 730, 11 Watt).

bulbs get very hot. Even after a while, there is still a risk of being burnt.

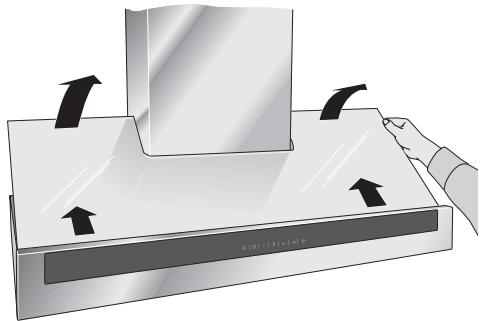

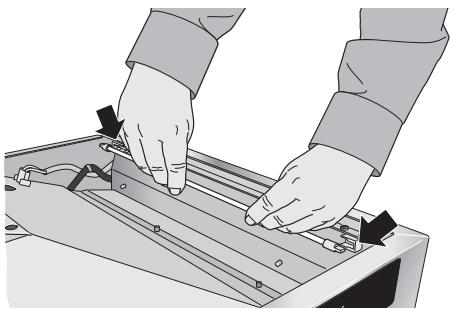

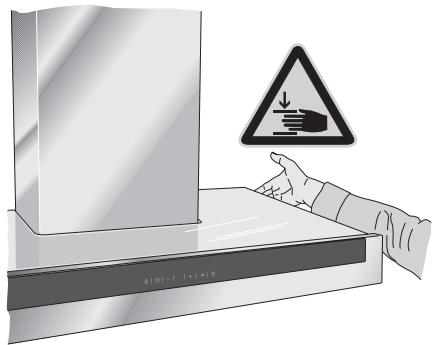

2. Remove the grease filter (see disassembling and assembling the metal grease filter. 3. Lift the glass plate. To do this, insert finger through the opening.

6. Replace the glass plate.

4. Remove the glass plate.

7. Carefully discharge the glass plate.

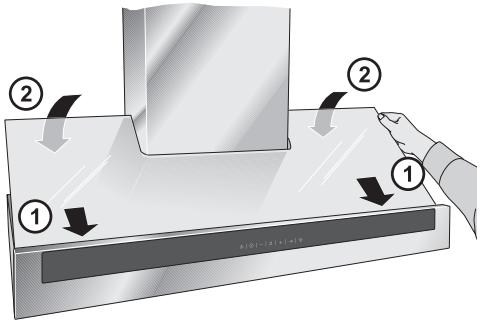

Insert the 3 fluorescent light bulbs and re-attach the glass plate (see Replacing the light bulbs).

Installation Instructions:

Important information

Old appliances are not worthless

rubbish. Valuable raw materials can be reclaimed by recycling old appliances.

Before disposing of your old appliance, render it unusable.

You received your new appliance in a

protective shipping carton. All packaging materials are environmentally friendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner.

Please ask your dealer or inquire at your local authority about current means of disposal.

The extractor hood must not be operated above a solid-fuel or gas fire (coal, wood, etc.) (see installation instructions).

The smaller the gap between the

extractor hood and hotplates, the greater the likelihood that droplets will form on the underside of the extractor hood.

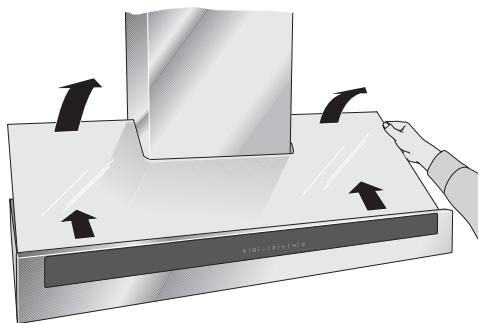

The pane of glass and the fluorescent lamp are packed separately.

The extractor hood can be used in exhaust air or circulating air mode.

Always mount the extractor hood over the centre of the hob.

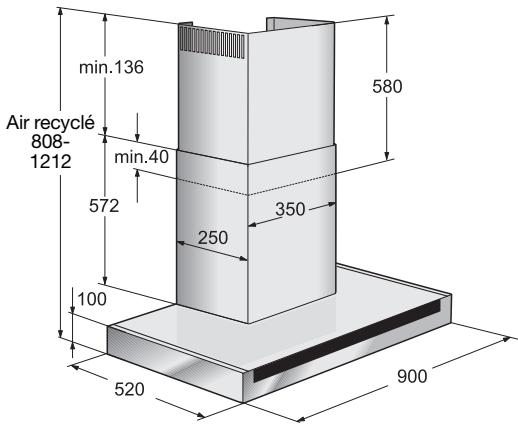

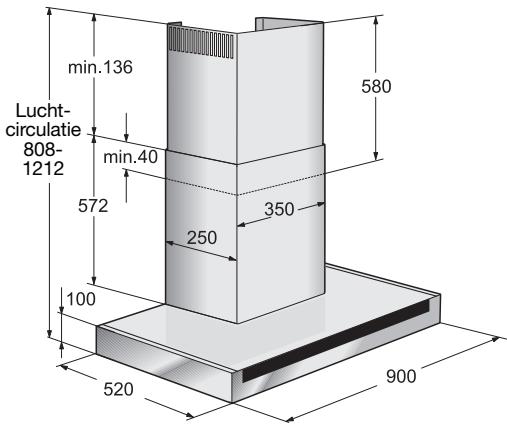

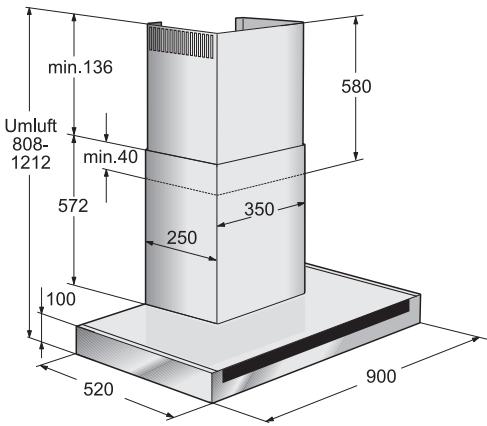

Minimum distance between electric

hob and bottom edge of extractor hood:

Prior to installation

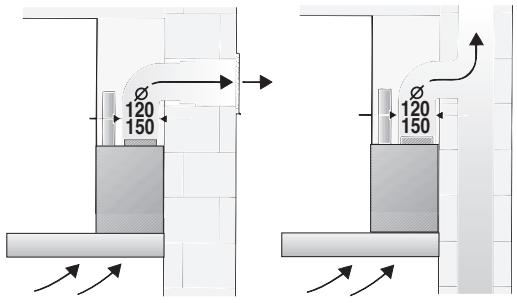

The exhaust air is discharged upwards through a ventilation shaft or directly through the outside wall into the open.

D Exhaust air should neither be directed into a smoke or exhaust flue that is currently used for other purposes, nor into a shaft that is used for ventilating rooms in which stoves or fireplaces are also located. Exhaust air may be discharged in accordance with official and statutory regulations only (e.g. national building regulations). Local authority regulations must be observed when discharging air into smoke or exhaust flues that are not otherwise in use. D When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion. Safe operation is possible provided that the underpressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar).

This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the airintake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc.

If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room. An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded. Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens. Unrestricted operation is possible if the extractor hood is used in recirculating mode – with activated carbon filter. If the exhaust air is going to be discharged into the open, a telescopic wall box should be fitted into the outside wall.

Prior to installation

For optimum extractor hood efficiency: ❑ Short, smooth air exhaust pipe. ❑ As few bends in the pipe as possible. ❑ Diameter of pipe to be as large as possible and no tight bends in pipe. If long, rough exhaust-air pipes, many pipe bends or smaller pipe diameters are used, the air extraction rate will no longer be at an optimum level and there will be an increase in noise.

The manufacturer of the extractor hoods accepts no liability for complaints which can be attributed to the design and layout of the pipework.

Round pipes: We recommend Internal diameter: 150 mm (at least 120 mm). Flat ducts must have an internal crosssection that equates to that of round pipes. There should be no sharp bends. l 120 mm approx. 113 cm2 l 150 mm approx. 177 cm2 If pipes have different diameters: Insert sealing strip. For exhaust-air mode, ensure that there is an adequate supply of fresh air.

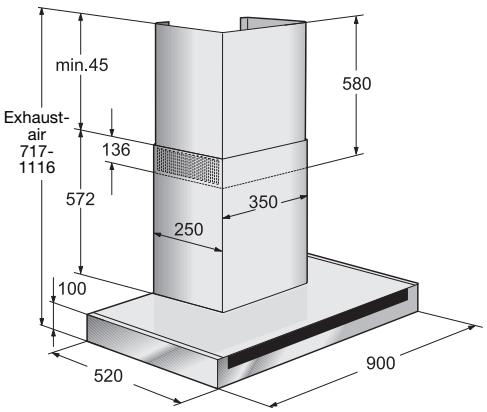

Connecting a l 150 mm exhaust-air pipe:

❑ Mount the pipe directly onto the air outlet on the hood.

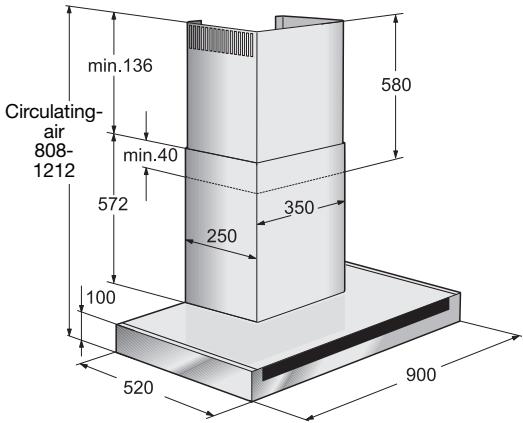

Connecting a l 120 mm exhaust-air pipe:

❑ Attach the reducing connector directly to the air pipe. ❑ Attach the exhaust-air pipe to the reducing connector.

Circulating-air mode

❑ With activated carbon filter if exhaust-air mode is not possible.

installation set can be obtained from specialist outlets.

The corresponding accessory numbers can be found at the end of these operating instructions.

Prior to installation

Electrical connection

If you fit your own plug, the colours of these wires may not correspond with the identifying marks on the plug terminals.

This is what you have to do: 1. Connect the green and yellow (Earth) wire to the terminal in the plug marked ‘E’ or with the symbol ( ), or coloured green or green and yellow. 2. Connect the blue (Neutral) wire to the terminal in the plug marked ‘N’ or coloured black. 3. Connect the brown (Live) wire to the terminal marked ‘L’, or coloured red. The extractor hood should only be connected to an earthed socket that has been installed according to relevant regulations. If possible, site the earthed socket directly behind the chimney panelling. ❑ The earthed socket should be connected via its own circuit. ❑ If the earthed socket is no longer accessible following installation of the extractor hood, ensure that there is a permanently installed disconnector. If it is necessary to wire the extractor hood directly into the mains: The extractor hood should only be connected to the electricity supply by a properly qualified electrician. A separator must be installed in the household circuit. A suitable separator is a switch that has a contact gap of more than 3 mm and interrupts all poles. Such devices include circuit breakers and contactors.

❑ The wall must be flat and perpendicular.

❑ Ensure that the wall is capable of providing a firm hold for mounting screws and plugs. Weight in kg: Exhaust air

We reserve the right to construction changes within the context of technical development.

Changing over from exhaustair to recirculating mode

Changing the electronic control system to recirculating mode: ❑ The standard factory setting is for operation in exhaust-air mode. ❑ To change the mode, the extractor hood must have been connected up and should be switched off.

1. Press and hold the 0 button.

2. While { is displayed, press the ! button until ã is displayed. When this has taken place, release the buttons. ❑ ã goes out shortly afterwards. The electronic control system will then have been set to recirculating mode. ❑ By repeating steps 1 and 2, you can change the electronic control system back to exhaust-air mode (# in display).

If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user.

Electrical connection

Are to be found on the name plate inside the appliance after removal of the filter frame.

WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT: Fitting a Different Plug:

The wires in the mains lead are coloured in accordance with the following code: Green and Yellow – Earth Blue – Neutral – Live 28 Brown

Before undertaking any repairs, always disconnect the extractor hood from the electricity supply.

Length of the connecting cable: 1.30 m. This extractor hood corresponds to EC regulations concerning RF interference suppression.

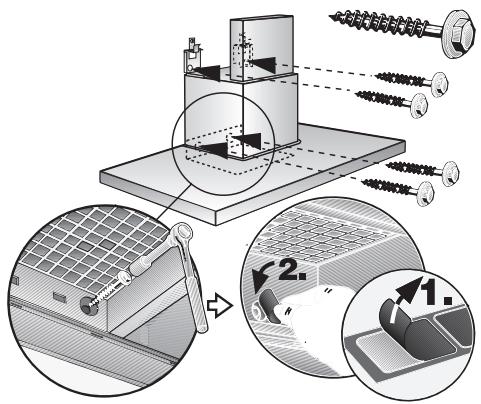

This extractor hood is intended to be mounted onto the kitchen wall. 1. Remove the grease filter (refer to Operating Instructions). 2. Draw a line on the wall from the ceiling to the lower edge of the hood at the centre of the location where the hood is going to be mounted. 3. Use the template to mark the points on the wall where the screws will be mounted. In order to make it easier to hook the hood onto the screws, draw the outline of the area where the hood will be attached. Ensure that the minimum distance between the hob and extractor hood is 550 mm for electric hobs. The bottom edge of the template equates to the lower edge of the extractor hood. 4. Drill 2x 8 mm ø holes for the upper fixing bracket and 2x 8 mm ø holes for the lower fixing bracket and press in wall plugs flush with the wall.

Note: Take into account any special accessories that are going to be fitted.

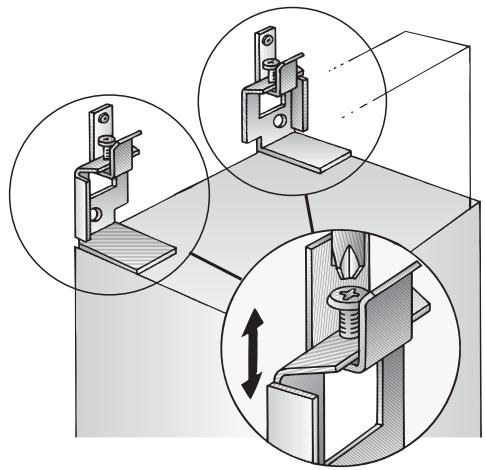

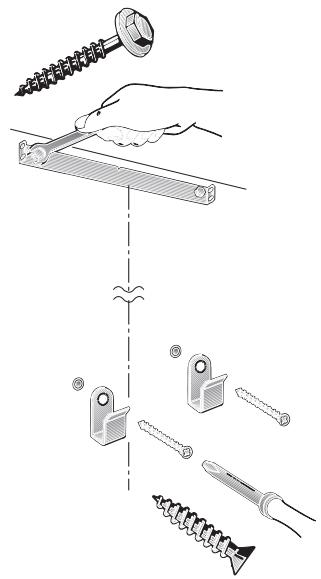

5. Screw on the upper and the two lower fixing brackets.

6. Attach the extractor hood.

Adjust the height and align horizontally with the adjusting screws. Check that the 4 lower fixing holes have been correctly marked. If required, mark again.

min. 550 recommendation 650

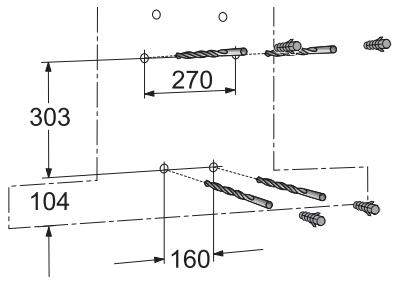

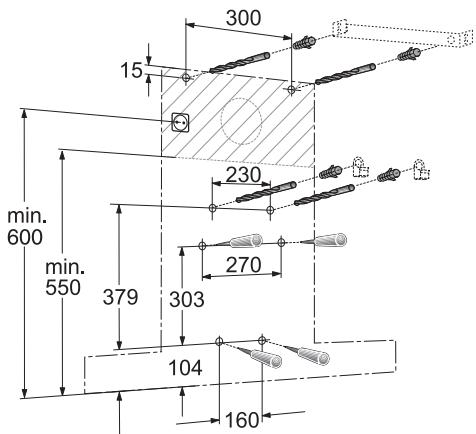

07. Remove the extractor hood. Drill the 4 lower 8 mm ø fixing holes and press in the wall plugs flush with the wall.

min. 550 recommendation 650

08. Attach the extractor hood and screw into position with the remaining

4 screws. 09. Stick protective film over the holes of the 2 lower mounting bolts in the protective grid.

13. Remove the protective film from the two flue ducts.

Take care not to damage the

stainless steel surfaces which are susceptible to scratches etc.

Warning: The interior walls of the flue panelling can have sharp edges – Risk of injury –. We recommend that you wear gloves when installing. 14. Push both sections of the flue panelling together (slots in the upper section must be pointing downwards) and insert into the opening in the extractor hood. Protect the cover panels from scratches, for example by laying the template used for marking the wall over the top edge of the lower section.

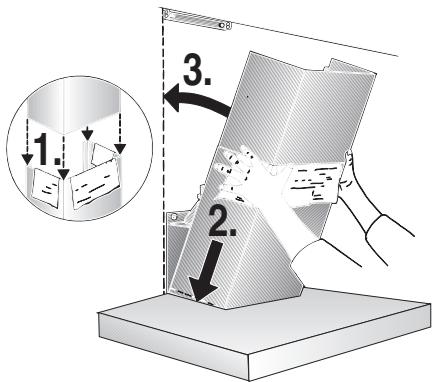

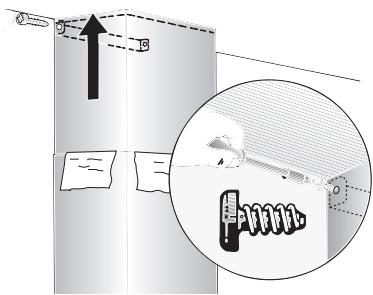

15. Slide out the upper section and attach it to the mounting brackets at the sides with two screws.

10. Connect up the air outlet pipe.

11. Insert the 3 fluorescent light bulbs and re-attach the glass plate (see Replacing the light bulbs). 12. Connect extractor hood to the power supply. 16. Insert the grease filter (refer to Operating Instructions). 30
