Alle in dieser Anweisung nicht genauer beschriebenen Verfahren wurden auf Basis der Norm EN 60312-1:2017* ausgeführt. *Da der Lebensdauertest für den Motor bei leerem Staubbehälter durchgeführt wird, muss die angege- bene Motorlebensdauer für Prüfung mit halbgefülltem Staubbehälter um 10% erhöht werden.4 on the safe use of the appli- ance and the have understood the potential dangers of using the appliance. Children must never play with the appliance. Cleaning and user mainte- nance must never be carried out by children without su- pervision. Plastic bags and films must be kept out of the reach of children before disposal. >= Risk of suffocation. Proper use Only connect and use the vacuum cleaner in ac- cordance with the specifications on the rating plate. Never vacuum without the dust bag or dust container, motor protection or exhaust filter. >= This may damage the vacuum cleaner. Always keep the vacuum cleaner away from your head when using nozzles and tubes. >= This could cause injury! When vacuuming stairs, the appliance must always be positioned below the user. Do not use the power cord or the hose to carry or trans- port the vacuum cleaner. For safety reasons, if this appliance's mains power cable becomes damaged, it must be replaced by the manufacturer, their after-sales service department or a similarlyqualified person. If using the appliance for longer than 30 minutes, pull out the power cord completely. When disconnecting the appliance from the mains, pull on the plug itself to remove it; do not pull on the power cord. Do not pull the power cord over sharp edges or allow it to become trapped. When the cable is being automatically rewound, en- sure that the mains plug is not thrown towards per- sons, body parts, animals or objects. >= Use the mains plug to guide the power cord. Pull out the mains plug before carrying out any work on the vacuum cleaner. Do not operate the vacuum cleaner if it is damaged. Un- plug the appliance from the mains if a fault is detected. For safety reasons, only authorised after-sales service personnel are permitted to carry out repairs and fit re- placement parts to the vacuum cleaner. Protect the vacuum cleaner from the weather, moisture and sources of heat. Do not pour flammable substances or substances con- taining alcohol onto the filters (dust bag, motor protec- tion filter, exhaust filter, etc.).

Please keep this instruction manual. When passing the vacuum cleaner on to a third party, please also pass on this instruction manual. Intended use This appliance is intended for domestic use only. This appliance is intended for use up to a maximum height of 2000 metres above sea level. Only use this vacuum cleaner in accordance with the instructions in this inst- ruction manual. In order to prevent injuries and damage, the vacuum cleaner must not be used for: Vacuum-cleaning persons or animals Vacuuming up: − hazardous, sharp-edged, hot or glowing substances. − damp or liquid substances. − highly flammable or explosive substances and gases. − ash, soot from tiled stoves and central heating sys- tems. − toner dust from printers and copiers. Spare parts, accessories, dust bags Our original spare parts, original (special) accessories and original dust bags are designed to work with the features and requirements of our vacuum cleaners. We therefore recommend that you only use our original spa- re parts, original (special) accessories and original dust bags. This will ensure that your vacuum cleaner has a long service life and that the quality of its cleaning per- formance will remain consistently high throughout.

Please note Using unsuitable or inferior-quality spare parts, (spe- cial) accessories and dust bags can damage your vacuum cleaner. Damage caused by the use of such products is not covered by our guarantee. Safety information This vacuum cleaner complies with the recognised rules of technology and the relevant sa- fety regulations. The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are super- vised or have been instructed5 The vacuum cleaner is not suitable for use on con- struction sites. >= Vacuuming up building rubble could damage the appliance. When not in use, switch off the appliance and pull out the mains plug. At the end of its life, the appliance should immediately be rendered unusable, then disposed of in an approp- riate manner.

Congratulations on your purchase of the Siemens VSZ7 vacuum cleaner. This instruction manual describes various VSZ7 mo- dels, which means that some of the equipment fea- tures and functions described may not apply to your model. You should only use original Siemens acces- sories, which have been specially developed for your vacuum cleaner, in order to achieve the best possible vacuuming results. Please keep this instruction manual for future refe- rence. When passing the vacuum cleaner on to a third party, also pass on this instruction manual. Fold out the picture pages. Your vacuum cleaner 1 Adjustable floor nozzle* (For the same functions, the appearance of the nozzle may differ from the picture) 2 Hard-floor nozzle* 3 Telescopic tube with adjusting sleeve (and accessory connection)* 4 Telescopic tube with sliding switch (and accessory connection)* 5 Telescopic tube with sliding switch and auxiliary air control switch* 6 Crevice nozzle 7 Accessories holder 8 Upholstery nozzle 9 Hard furnishings brush (for fitting on the upholstery nozzle)* 10 Flexible hose 11 Hose handle 12 Dust bag change indicator 13 Power rotary control and on/off switch 14 Exhaust filter 15 Parking aid 16 Power cord 17 Rear flap 18 Carrying handle 19 Dust bag compartment lid 20 Storage aid (on the underside of the appliance) 21 Dust bag 22 Motor protection filter

• Depending on model29 Replacement parts and special accesso- ries A Replacement filter package To get the most out of your appliance, we recom- mend using PowerProtect genuine replacement bags. Contents: - 4 dust bags with fasteners

PLEASE NOTE We therefore recommend that you only use our origi- nal dust bags. Your appliance is a highly efficient vacuum cleaner that achieves excellent cleaning results when used with high-quality dust bags. Only by using high-qua- lity dust bags (such as Siemens original dust bags) can you ensure that your vacuum cleaner is working at the energy efficiency class, dust pick-up rate and dust retention capacity listed on its EU energy label. The use of inferior-quality dust bags (e.g. paper bags) can have a negative effect on the service life and performance of your appliance. Using unsuitable or inferior-quality dust bags can also damage your vacuum cleaner. Such damage is not covered by our guarantee. You can find more information about this at www.siemens-home.com/dust-bag. You can order our original vacuum cleaner bags here. B Washable microfilter Protects the motor of your vacuum cleaner, thus in- creasing its service life. C Hard-floor nozzle VZ123HD For vacuuming hard floors (parquet, tiles, terracotta, etc.) D Hard-floor nozzle VZ124HD Innovative "soft & roll" hard-floor nozzle: 2 rotating brush rollers made from natural hair. Coarse dirt is not pushed away. Before using your appliance for the first time Fig.

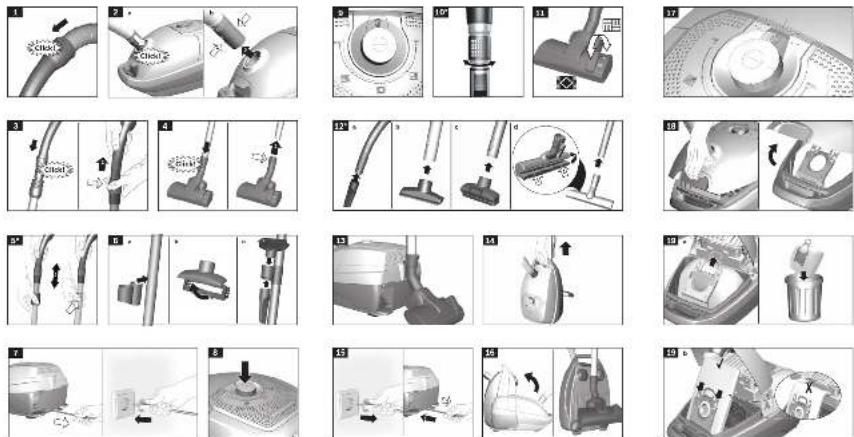

Push the handle onto the flexible hose and lock it in place. Initial use Fig.

a) Push the flexible hose adapter into the air intake opening in the lid until it locks in place. b) To remove the flexible hose, press the two catches together and pull out the hose. Fig.

Push the handle into the telescopic tube until it locks into place.

To release the connection, press the locking collar and pull out the telescopic tube. Fig.

Push the telescopic tube into the connecting piece of the floor nozzle until it locks in place.

To release the connection, press the locking collar and pull out the telescopic tube. Fig.

Unlock the telescopic tube by moving the sliding switch or adjusting sleeve in the direction of the ar- row, and adjust to the desired length. Fig.

a) Place the accessories holder in the required positi- on on the telescopic tube. b) Put the hard furnishings brush on the upholstery nozzle and lock it in place. c) Use some pressure to insert the upholstery nozzle with hard furnishings brush and the crevice nozzle into the accessories holder from above or below. Fig.

Holding the power cord by the plug, pull it out to the required length and insert the plug into the mains socket.

If using the appliance for longer than 30 minutes, pull out the power cord completely. >= Risk of overheating and subsequent damage. Fig.

Switching on and off

To switch the vacuum cleaner on or off, press the rotary control. Fig.

Controlling the suction level Turn the rotary control to infinitely adjust the suction level to the level required. min - For vacuuming curtains and delicate textiles - For vacuuming upholstered furniture and cushions - For vacuuming delicate rugs und for daily vacu- uming of lightly soiled floors - For vacuuming durable floor coverings max - For vacuuming hard floors and heavily soiled rugs and carpets Fig. 10* Telescopic tube with sliding switch and auxili- ary air control switch The suction power can also be adjusted by turning the auxiliary air control switch in the direction of the arrow. Auxiliary air control switch open => suction power reduced Auxiliary air control switch closed => maximum suction power

Caution: Floor nozzles are subject to a certain amount of wear, depending on the type of hard floors you have (e.g. rough, rustic tiles). You must therefore check the underside of the floor nozzle at regular intervals. Worn undersides of floor nozzles may have sharp edges that can damage sensitive hard floors, such as parquet or linoleum. The manufacturer does not ac- cept any responsibility for damage caused by worn floor nozzles. Fig.

Set the adjustable floor nozzle: Rugs and carpets => Hard floors/parquet => Fig. 12* Vacuuming with accessories Attach the nozzles to the suction pipe or handle as re- quired: a) Crevice nozzle for vacuuming crevices and corners, etc. b) Upholstery nozzle for vacuuming upholstered furni- ture, curtains, etc. c) Upholstery nozzle with attachable hard furnishings brush for vacuuming window frames, cupboards, cornicing, etc.

After use, reinsert the crevice nozzle and upholstery nozzle into the accessories holder. d) Hard-floor nozzle - with clip-in edge cleaning bristles: For gentle but effective cleaning of hard floor coverings (tiles, parquet, etc.) - without edge cleaning bristles: For cleaning dirt in gaps and cracks

The edge cleaning bristles can be removed by pushing the two catches in the direction of the ar- rows. Fig.

You can use the parking aid on the back of the vacu- um cleaner if you want to stop vacuuming for a short time.

After switching off the appliance, slide the hook on the floor nozzle into the recess on the back of the appliance. Fig.

To overcome obstacles, e.g. steps, the appliance can also be carried by the handle on the appliance body. After using the appliance Fig.

Briefly pull on the power cord and release it (the cable retracts automatically). Fig.

To store or transport the appliance, you can use the storage aid on the underside of the appliance.

Stand the appliance upright on its end. Slide the hook on the floor nozzle into the recess on the un- derside of the appliance. Changing the filter

Caution: Always switch off the appliance before changing the filter. Replacing the dust bag Fig.

If the dust bag change indicator lights up conti- nuously when the nozzle is lifted from the floor and the highest power setting has been selected, the dust bag must be changed, even though it may not yet be full. In this case, it needs to be changed due to the type of dust which has been vacuumed. The nozzle, suction pipe and flexible hose must not be blocked, even if this does not trigger the dust bag change indicator. Fig.

Open the lid by moving the locking lever in the direc- tion of the arrow. Fig.

a) Close the dust bag by pulling on the locking tab, and remove the bag. b) Push the new dust bag into the holder until it clicks into place. When doing so, leave the dust bag folded as it was when removed from the packaging. Do not crease or kink the dust bag, and ensure that it is not pinched when the lid is closed.

Caution: The lid will only close if a dust bag has been inserted.

Caution: The vacuum must not be operated without the motor protection filter. Cleaning the motor protection filter The motor protection filter should be cleaned regularly by tapping out the dirt and rinsing. Fig. 20*

Open the dust bag compartment lid. Fig.

Release the motor protection filter by pulling on the side tabs and pull it out in the direction of the arrow.

Clean the motor protection filter by tapping out the dirt.

If it is very dirty, the motor protection filter should be rinsed. The filter must then be left to dry for at least 24 hours.

After cleaning, refit the motor protection filter into the appliance and lock it in place at the top. Close the dust bag compartment lid. Cleaning the foam filter If your appliance is fitted with a filter frame and foam filter, the foam filter should be cleaned at regular inter- vals by tapping out the dust. Fig. 21*

Open the dust bag compartment lid. Fig.

Pull out the filter frame and foam filter in the direc- tion of the arrow.

Remove the foam filter from the filter frame and clean it by tapping out the dust.

After cleaning, place the foam filter back in the filter frame, insert the filter frame with foam filter in the appliance and close the dust bag compartment lid.

Caution: The vacuum cleaner must not be operated without the motor protection filter. Maintaining the exhaust filter Vacuum cleaner with micro-hygiene filter Bild 22*

Unlock the filter holder by moving the locking tab in the direction of the arrow.

Remove the foam filter from the filter holder and tap it out.

If it is very dirty, the motor protection filter should be rinsed. The filter must then be left to dry for at least 24 hours.

Insert the foam filter into the filter holder.

Insert the filter holder into the appliance and lock it in place. Cleaning the (H)EPA* exhaust filter The (H)EPA* filter is designed so that it does not need to be replaced, provided the appliance is used as inten- ded in the household. To ensure that the vacuum cleaner is working at its op- timum power level, the (H)EPA* filter should be rinsed out after one year. The filtering action of the filter re- mains intact, even if the filter surface becomes disco- loured. Fig. 23*

Unlock the (H)EPA* filter by moving the locking tab in the direction of the arrow, and remove it from the appliance.

Tap out the filter unit and rinse it under running wa- ter. Alternatively, the unit can be cleaned in a washing machine at max. 30 °C using a gentle programme and the lowest spin speed. TIP: To protect other laundry items, put the filter unit into a laundry bag.

Once the (H)EPA* filter has dried completely (at least 24 hours), insert it back into the appliance and lock it in place.

Close the rear flap. After vacuuming fine dust particles (e.g. gypsum, ce- ment, etc.), clean the motor protection filter by tapping it out or, if necessary, replace the motor protection fil- ter and exhaust filter. Care Always switch off the vacuum cleaner and disconnect the power cord from the mains before cleaning the va- cuum cleaner. The vacuum cleaner and plastic acces- sories can be cleaned with an ordinary plastic cleaner.

Do not use abrasive materials, glass-cleaning agents or all-purpose cleaning products. Never immerse the vacuum cleaner in water. The dust compartment can, if necessary, be cleaned with a second vacuum cleaner or simply wiped with a dry cloth or dusting brush. Subject to technical modifications.

(JRPL1LNRVLD/HINRVLD

PDLOWR&$86LHPHQV#EVKJFRP

www.siemens-home.bsh-group.fr GB Great Britain

www.siemens-home.bsh-group.com/gr HK Hong Kong,

%6++RPH$SSOLDQFHV/LPLWHG

/RG 7HO )D[ PDLOWRFVEVHUY#FVEOWGFRLO www.siemens-home.bsh-group.com/il

Plot No. 103, 5RDG1R

0XPEDL 7ROO)UHH www.siemens-home.bsh-group.com/in 0R6DDPWRSP

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electro- nic equipment - WEEE). The guideline determines the framework for the return and recycling of used applian- ces as applicable throughout the EU.
