USER MANUAL X79264MV10 AEG-ELECTROLUX

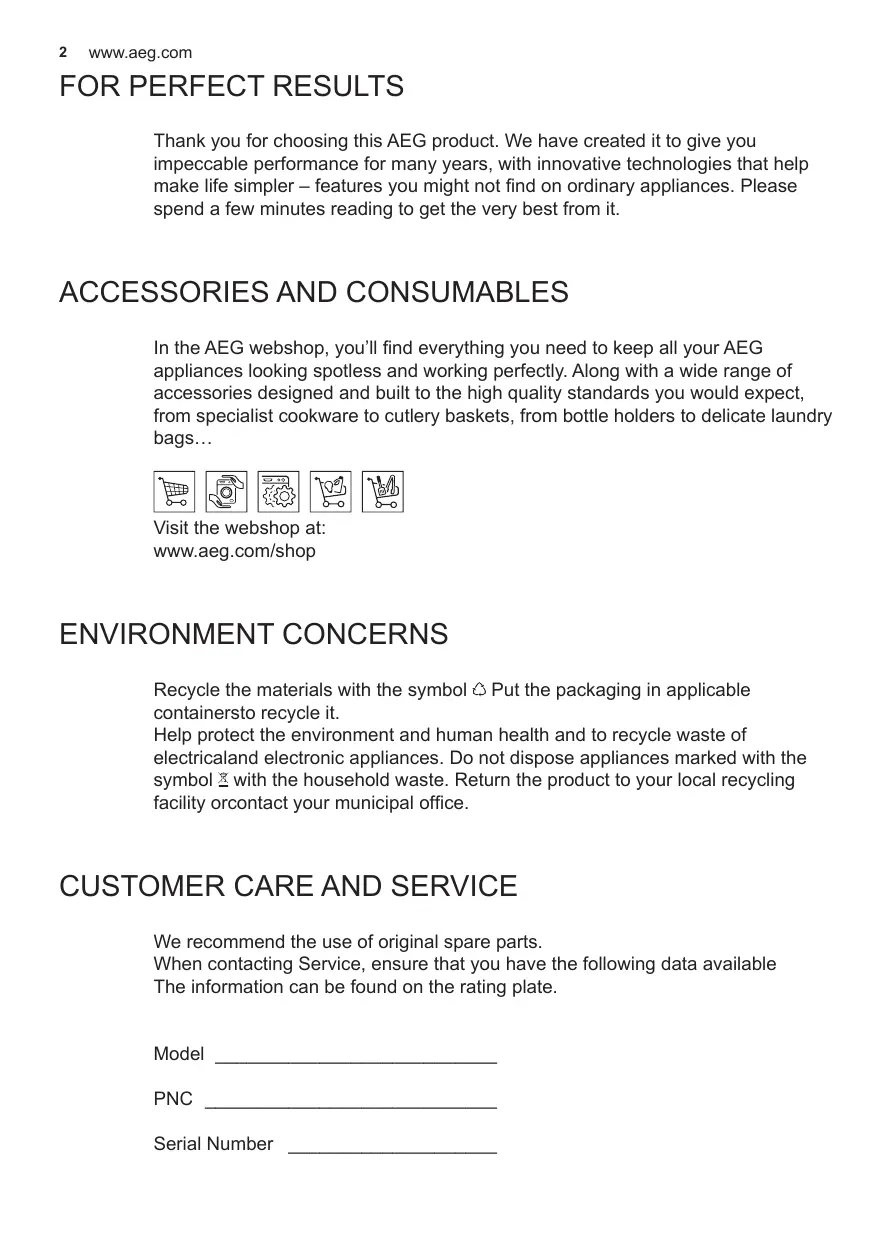

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

ACCESSORIES AND CONSUMABLES

In the AEG webshop, you’ll find everything you need to keep all your AEG appliances looking spotless and working perfectly. Along with a wide range of accessories designed and built to the high quality standards you would expect, from specialist cookware to cutlery baskets, from bottle holders to delicate laundry bags… Visit the webshop at: www.aeg.com/shop ENVIRONMENT CONCERNS Recycle the materials with the symbol Put the packaging in applicable containersto recycle it. Help protect the environment and human health and to recycle waste of electricaland electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility orcontact your municipal office.

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts. When contacting Service, ensure that you have the following data available The information can be found on the rating plate. Model ____________________________ PNC _____________________________ Serial Number _____________________ ENGLISH

1. RECOMMENDATIONS AND

• The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with nonelectrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.
• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
• Connect the hood to the mains through a twopole switch having a contact gap of at least 3 mm.

2. USE

• The extractor hood has been designed exclusivelyfordomesticusetoeliminatekitchensmells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.

• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambè under the range hood; risk of fire.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• “ CAUTION: Accessible parts may become hot when used with cooking ap-pliances”.

3. MAINTENANCE

• 1. Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.

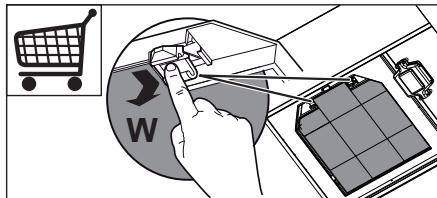

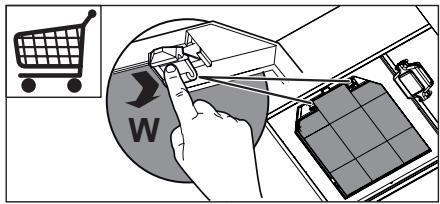

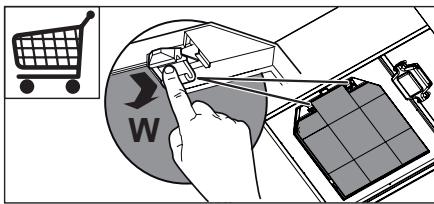

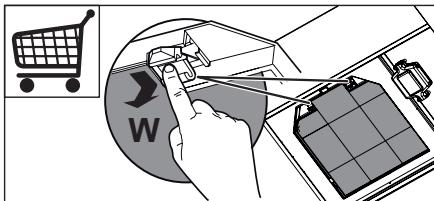

• Clean and/orreplace the Filtersafterthe specified time period (Fire hazard). -- Activated charcoal filter W These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

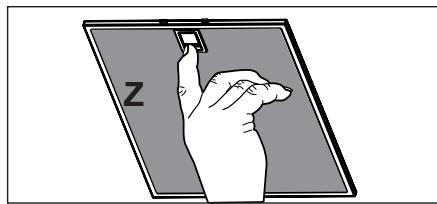

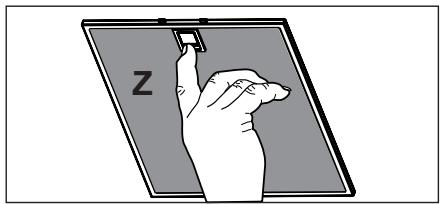

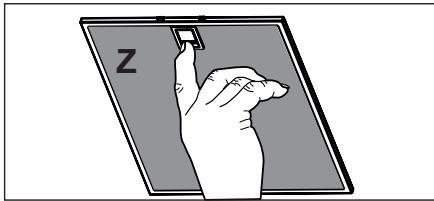

-- Grease filters Z The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.

-- Control lights, if present.

• Clean the hood using a damp cloth and a neutral liquid detergent.

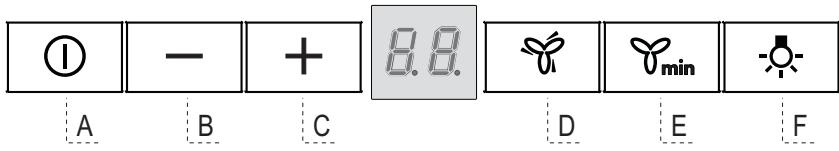

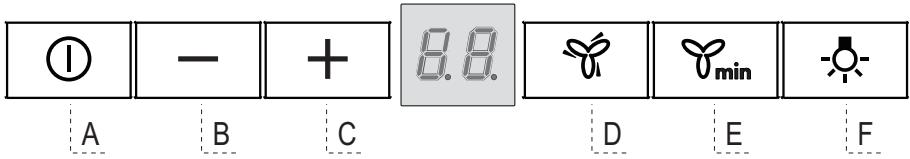

4. CONTROLS

Turns the suction motor on and off at speed one. Displays the set speed Press and hold the button for approximately 5 seconds, with all the IR+Dot (2 flashes)–Alarm On. loads turned off (Motor and Lights), to turn the Remote Control On IR+Dot (1 flash)–Alarm Off. and Off.

Decreases the working speed. Displays the set speed

Increases the working speed. Activates intensive speed from any other speed, including motor off. This speed is set to operate for 5 minutes, after which the system returns to the speed that was set before. Suitable to deal with maximum levels of cooking fumes. Displays the set speed Displays HI and the time remaining once every second. When the filters alarm is triggered, the alarm can be reset by pressing and holding this button for approximately 3 seconds. These indications are only visible when the motor is turned off. F indicates the need to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 100 working hours. C indicates the need to change the activated charcoal filters, and also to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 200 working hours. Delay function Activates automatic switch-off with a 20’ delay. Suitable to complete elimination of residual odours. Can be activated from any position, and is disabled by pressing the button or turning the motor off. Displays the operating speed and the dot at the bottom right flashes alternately with the remaining time.

- C flashes twice - A.C. Filter alarm Press and hold the button for approximately 5 seconds, with Activated. all the loads turned off (Motor and Lights), to turn the Activa- C flashes once - A.C. Filter alarm ted Charcoal Filter alarm On and Off. Deactivated

Turns the lighting system on and off at maximum intensity.

5. LIGHTING

Warning: This appliance is fitted with a white LED

lamp classed as 1M according to EN 60825-1: 1994 + A1:2002 + A2:2001 standards; maximum optical power emitted @439nm: 7µW. Do not look directly at the light through optical devices (binoculars, magnifying glasses…).

• For replacement contact technical support. (“To purchase contact technical support”). GERMAN
