USER MANUAL DHB7939X DE DIETRICH

• 7 SERVICE CONSOMMATEURS INTERVENTIONS FRANCE RELATIONS CONSOMMATEURS FRANCE DEAR CUSTOMER, Discovering a De Dietrich product means experiencing the range of unique emotions. The attraction is immediate, from the moment you set eyes on the product. The sheer quality of the design shines through, thanks to the timeless style and outstanding finishes which make each component an elegant and refined masterpiece in its own right, each one in perfect harmony with the others. Next, comes the irresistible urge to touch it. De Dietrich design makes extensive use of robust and prestigious materials, where the accent is place firmly upon authenticity. By combining state-of-the-art technology with top quality materials, De Dietrich produces beautifully crafted products to help you get the most from the culinary arts, a passion shared by all lovers of cooking and fine food. We hope that you enjoy using this new appliance. Thank you for choosing a De Dietrich product. CONTENTS

IMPORTANT SAFETY ADVICE AND PRECAUTIONS

These instructions are also available on the brand’s web site. Please read this advice carefully before installing and using your appliance. These instructions are intended to protect your safety and the safety of others. Keep this manual with the appliance. If you sell or give the appliance to someone else, make sure that you also give them this manual.

• With a view to constantly improving our products, we reserve the right to make changes to their technical, functional or aesthetic characteristics in line with technological progress.
• To easily locate the make, model number, etc. of your appliance, we recommend that you note this information on the “After-Sales Service Department and Customer Support” page. Important precautions
• This appliance was designed for use by private persons in their homes. Do not use it for commercial or industrial purposes or for any other purpose than that for which it was designed.
• When you receive the appliance, unpack it or have it unpacked immediately. Check its general appearance. Make a note of any reservations on the delivery slip and keep a copy.
• This appliance can be used by children aged under 8 and by persons with diminished physical, sensory or mental capacities, or persons without any experience or knowledge, provided that they are properly attended to or are given the instructions on how to use the appliance in complete safety and that any potential risks are anticipated. Children must not play with the appliance. The appliance must not be cleaned or maintained by unsupervised children.
• Caution: The accessible parts of this appliance may become hot when used with cooking appliances.
• The appliance can be disconnected by using an accessible power outlet or by incorporating a switch in the fixed lines, in accordance with installation rules.
• Do not modify or attempt to modify any of this appliance’s characteristics. Doing so could be dangerous.
• The appliance should only be repaired by an approved specialist.

IMPORTANT SAFETY ADVICE AND PRECAUTIONS

• Always disconnect the hood before carrying out cleaning or maintenance.
• Never use steam or high-pressure tools to clean your appliance (due to electrical safety considerations). Risk of asphyxiation
• Regulations on the evacuation of air must be complied with. Air must not be sent into a duct used to evacuate fumes from appliances that use gas or other fuels (this does not apply to appliances that only emit air into the room).
• The room must be suitably ventilated when the cooker hood is used at the same time as appliances that use gas or other fuels (this does not apply to appliances that only emit air into the room). Risk of fire
• Flambé-ing food or turning on gas rings below the hood, unless they are covered by a pan is prohibited, since the flames could be sucked in and damage the appliance.
• Keep a constant watch on fryers used below the hood. When heated to very high temperatures, oil and fat can catch fire.
• Clean the appliance and replace filters at the recommended frequency. Accumulated deposits of grease could cause a fire.
• Using the hood above a solid fuel range (wood, coal, etc.) is prohibited.
• If the hood is installed above a gas-fired appliance, leave at least 65 cm between the top of the hob and the underside of the hood. If the instructions for a hob installed below the hood specify a distance greater than 65 cm, then that distance must be applied.

Ceiling support Plug and + screws (duct support) Adapter Hood Duct Screws (for fixing duct) Screws

1.2 - OPTIONAL RECYCLING KIT

GR- Fume deflector Carbon filters These parts are available from AFTERSALES SERVICE

• 2 INSTALLATION ELECTRICAL CONNECTION During installation and maintenance operations, the appliance must be disconnected from the mains; fuses must be isolated or removed. The electrical connections should be made before the appliance is installed in its housing. Check that: - the electrical installation is sufficiently rated, - the supply wires are in good condition, - the diameter of the wires complies with the installation requirements. evacuation line, whatever its type, must not emerge in a loft space.

2.1 - USE IN EVACUATION MODE

You have a duct that leads outside. Your hood may be connected to it via an evacuation duct (minimum 125mm dia., made of enamelled, aluminium hose or other non-flammable material). If your duct is less than 125mm in diameter, you must change to recycling mode.

2.2 - USE IN RECYCLING MODE

You do not have a duct leading to the outside. All our appliances can operate in recycling mode. In such a case, purchase a recycling kit comprising a set of active carbon filters and a deflector. This appliance is supplied fitted with a 3-core (phase, neutral and earth) 0.75mm2H 05 VVF cable. It must be connected to a 220-240V single phase mains network via an IEC 60083 socket which must remain accessible after installation, in accordance with the installation rules. The fuse in your installation must be 10 or 16A. If the mains cable is damaged, call after-sales service and so avoid any danger. If the electrical installation in your home requires any changes in order to connect your appliance, contact a professional electrician. If the hood malfunctions in any way, unplug it or remove the fuse for the circuit concerned. The installation must comply with current regulations for the ventilation of rooms. In particular, air must not be evacuated into a duct used to evacuate fumes from appliances using gas or other fuels. Disused ducts may only be brought into service, if approved by a competent specialist. The

• 2 INSTALLATION Energy saving advice To obtain the best performance from your appliance, limit the number of bends and length of the duct as much as possible.

2.3 - FITTING THE HOOD

It takes 2 people to fit and fasten the hood. - Connect the duct to the deflector (recycle mode), or inside an external duct on the ceiling (evacuation mode).

2.3.4 Adapter

- For a 125 mm diameter duct, use the adapter supplied (F). - Slot the end of the duct onto the engine output (recycle mode) or the check valve (evacuation mode).

2.3.5 Installing / Fitting the body of the

hood - Position your ducts on the product (H). - Take the hood, now fitted with the ducts - Place it under the duct support - Press the upper part (B) to insert the hood into the duct support - The hood is held in place from the first notch(1st click). - You can now adjust the height of your appliance, by pushing it towards the ceiling (at least 65 cm above your hob). Do not remove the cables before the hood is fully installed. The minimum distance between the cooking surface and the lowest part of the hood is 65cm. If the instructions for a hob installed below the hood specify a distance greater than 65 cm, then that distance must be applied.

2.3.1 Fitting the ceiling support

- Using a plumb line, identify the centre of the hob in relation to the ceiling support. - The notch of the ceiling support (A) must be facing the product. - Fix the ceiling support with the 4 screws and plugs provided (D/E).

2.3.6 Clamping the duct

- At the required height, clamp the product in place with the 4 screws provided (N).

2.3.7 Fastening the duct

- Lift up the internal duct and screw the 4 screws (M) onto the ceiling support.

2.3.2 Evacuation mode

- If your hob is in recycling mode, fix the deflector to the ceiling support with the 2 screws provided (M). - Connect the duct to the deflector (recycle mode), or inside an external duct on the ceiling (evacuation mode).

2.3.3 Installing the duct support

- Once the duct support (C) has been correctly slotted in, insert the 4 screws (N) to support the hood.

• 3 USE Note This installation and user guide covers several models. Slight differences in the details and equipment may appear between your appliance and the descriptions shown. On/Off Pressing the key starts the hood in speed 1 and the display shows 1. Hold the key pressed (>2s) at least 2 seconds) to unlock the "saturation" function. Light A short press on the key switches the light on the hood on and off. Fan auto-stop If you forget to switch off your hood, it will switch off automatically after 9 hours. Changing speed After the hood has been switched on, you can adjust the suction speed. Each press of the key increases the speed (1, 2, 3, 4=b). Light auto-stop If you forget to switch off the light on your hood, it will switch off automatically after 9 hours. Automatic speed return: In speed 3, the hood will return automatically to speed 2 after 10 min. At intensive speed (4 or boost), the hood automatically returns to speed 2 after 8 min. Energy saving advice Adjust the speed to the number of pans. Use the rear burners on your hob for preference.. A short press on the hood. key stops the Time delay / deferred stop During operation, a short press on the key holds suction at the current speed for 10 minutes; the display indicates the speed and flashes. A short press on the key starts the function. Filter cassette saturated An «F» flashes in the display for 2 min after the hood has stopped to indicate that the filter cassettes must be cleaned (see section “Cleaning the filter cassette”).

CLEANING THE OUTER SURFACES

To clean the outer surfaces on your hood, use soapy water and do not use scouring creams or scouring sponges.

4.1 - CLEANING THE FILTER CASSETTES

They must be cleaned after every 30 hours approximately of use or at least once a month. Use a brush, warm water and a mild detergent. Rinse and dry them carefully before putting back in place.

4.2 - CHANGING THE CARBON FILTER

This filter holds odours; it should be replaced after approximately 120 hours of use. Order these filters from your dealer. - Remove the filter cassettes. - Remove the two metal fixings (4) - Remove the carbon filters (3) - Fit new filter on to the filter cassettes. - Re-position the 2 fixings (4). - Fit the filter cassette back in place. - Repeat this operation for all filter cassettes.

4.3 - CHANGING THE LED LAMPS

Contact after sales service.

• 5 PROBLEMS The hood does not work. Check that:
• there is not a power cut.
• a speed has actually been selected. The hood is not coping. Check that:
• the motor speed selected is sufficient for the quantity of fumes or steam released.
• the kitchen is sufficiently ventilated to allow air to be taken in.
• the carbon filter is not saturated (hood in recycling mode). The hood stops during operation. Check that:
• there is not a power cut.
• the all-pole cut-off device has not tripped.

CARE FOR THE ENVIRONMENT

This appliance’s packaging can be recycled. Recycle and contribute towards protecting the environment by disposing of packaging in local waste containers designed for this purpose. Your appliance also contains a lot of recyclable material. This logo indicates that used appliances must not be mixed with other waste. Appliance recycling organised by your manufacturer is carried out under optimum conditions, in accordance with European Directive 2002/96/EC on the disposal of waste electrical and electronic equipment. Contact your local authority or retailer for information on used appliance collection points close to your home. Thank you for helping to protect the environment.

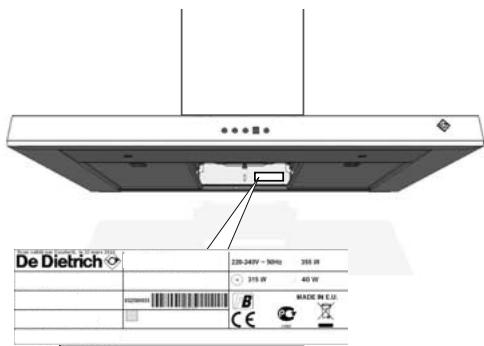

• 7 CUSTOMER SERVICE Any repairs to your appliance must be made by a qualified professional accredited to work on the brand. When calling, please provide the full references of your appliance (commercial reference, service reference, serial number), so that we can handle your call better. This information appears on the manufacturer’s nameplate the equipment.
