NESPRESSO CREATISTA PLUS SEL - Coffee machine SAGE - Free user manual and instructions

Product type	Automatic coffee machine with steam wand
Brand	Sage (Nespresso Creatista Plus SEL model)
Dimensions (W x H x D)	17 x 30.9 x 40.9 cm
Weight	Approximately 5.2 kg
Power supply	220-240 V, 50-60 Hz, 1300-1600 W
Pressure	19 bars (max 1.9 MPa)
Water tank capacity	1.5 L
Beverage types	Ristretto, Espresso, Lungo, Cappuccino, Latte Macchiato, Café Latte
Milk frothing system	Steam wand with temperature and foam adjustment
Display	Color display with rotary knob navigation
Customization	Coffee volume (25-60 ml for espresso, 70-150 ml for lungo), milk temperature (56-76 °C), milk foam (2-30 mm)
Package contents	Machine, milk jug, tasting box, water hardness test strip, manual

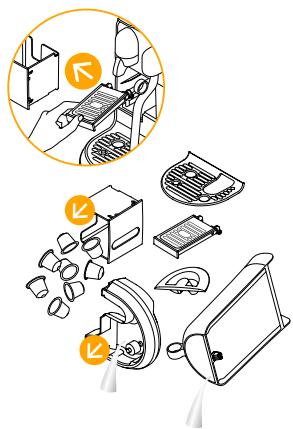

Maintenance	Daily cleaning of drip tray, water tank, milk jug; scheduled descaling
Steam wand cleaning	Automatic cycle via Maintenance menu (~15 min)
Energy saving function	Standby after 2 minutes, shutdown after 10 minutes
Safety	Automatic shut-off, overheat protection, hot surface indicator
Warranty	2 years limited (Sage)
Repairability	Contact Nespresso Club or authorized service center
Materials	Stainless steel, plastic, glass (water tank)
Protection rating	Indoor use only

Frequently Asked Questions - NESPRESSO CREATISTA PLUS SEL SAGE

How to descale the Nespresso Creatista Plus machine?

Use the Nespresso descaling kit. Access the Maintenance menu via the rotary knob, select Descaling and follow the on-screen instructions. Descaling is necessary when the warning appears or after 10 uses following the alert.

What type of milk to use for optimal foam?

For perfect foam, use pasteurized whole or semi-skimmed milk at refrigerated temperature (approx. 4-6 °C). The provided milk jug is mandatory.

How to clean the steam wand?

After each use, wipe the wand with a damp cloth. For thorough cleaning, go to Maintenance > Clean steam wand and follow the instructions (duration ~15 min). Use the metal cleaning tool under the water tank if necessary.

What to do if the machine does not produce coffee or water?

Check that the water tank is correctly positioned and filled with drinking water. If the problem persists, perform a descaling. Make sure the lever is fully closed and no capsule is blocked.

How to customize coffee volume or milk temperature?

Select your beverage with the rotary knob, press to access settings. You can adjust coffee volume (25-60 ml for espresso, 70-150 ml for lungo), milk temperature (56-76 °C) and foam (2-30 mm). Confirm with the rotary knob.

Why does the machine display 'Lower the wand'?

The steam wand must be in the lowered position for the milk jug temperature sensor to work. Lower it completely before starting foam preparation.

How to reset to factory settings?

Go to Settings via the rotary knob, select Reset then Factory reset. Confirm with √. The machine will turn off and will need to be reconfigured.

What to do if there is a water leak under the machine?

Check that the drip tray is not full and is correctly inserted. If the problem persists, contact the Nespresso Club.

How to adjust water hardness?

Use the provided test strip: dip it for 1 second in water, wait 1 minute, then compare with the scale. Go to Settings > Water hardness and select the corresponding level.

The machine does not turn on, what to do?

Make sure it is plugged in and the outlet works. Press the Start/Cancel button or turn the rotary knob. If the screen remains off, check the fuse. If the problem persists, contact the Nespresso Club.

USER MANUAL NESPRESSO CREATISTA PLUS SEL SAGE

Line drawing of a modern kitchen toaster with control panel and buttons (no text or symbols)

CREATISTA PLUS

MY MACHINE

Congratulations on your purchase of the Nespresso Creatista Plus, the machine that allows you to make cafe quality milk coffees.

Nespresso is an exclusive system creating the perfect Espresso, time after time. Each parameter has been calculated with great precision to ensure that all the aromas from each capsule can be extracted, to give the coffee body and create an exceptionally thick and smooth crema.

CAUTION: When you see this sign, please refer to the important safeguards to avoid possible harm and damage.

i INFORMATION: when you see this sign, please take note of the advice for the correct and safe usage of your coffee machine.

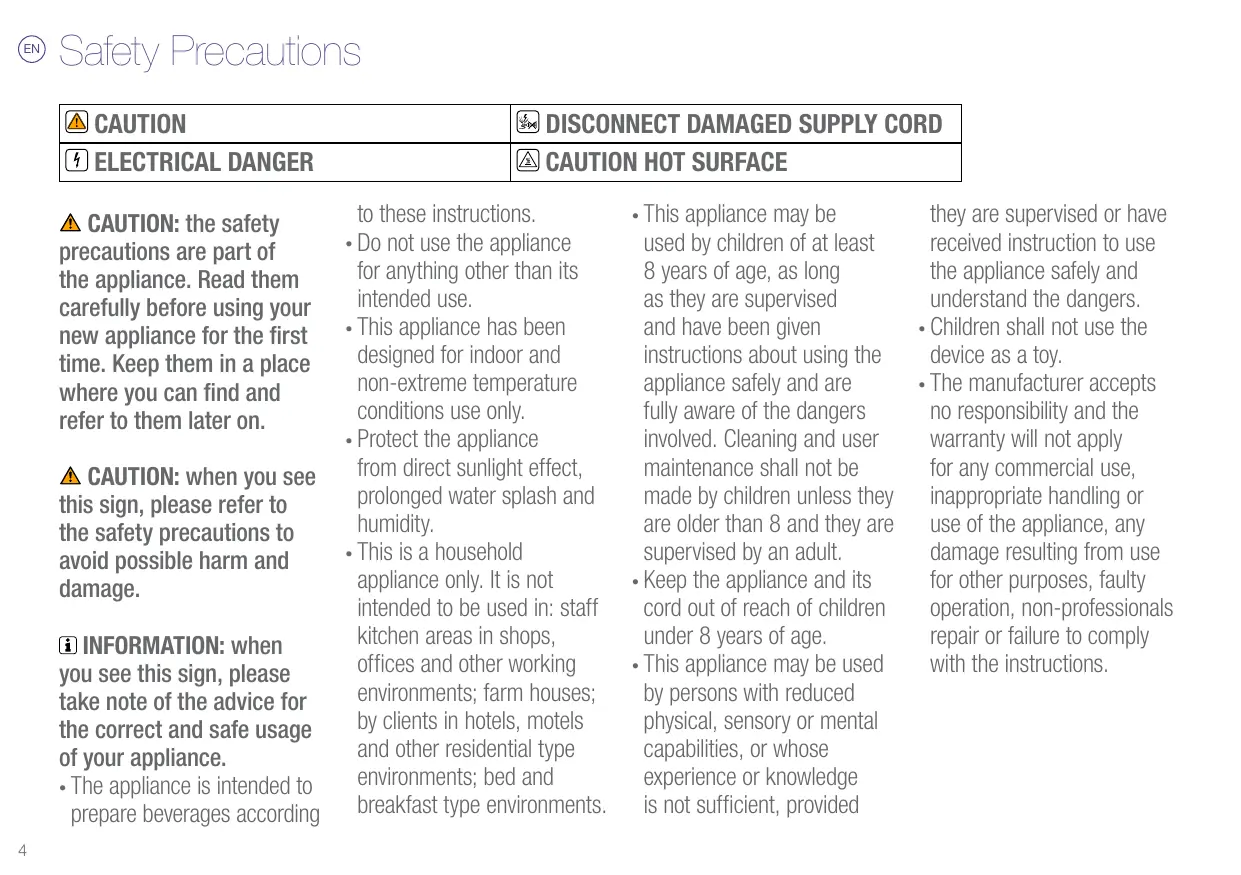

⚠️ CAUTION: the safety precautions are part of the appliance. Read them carefully before using your new appliance for the first time. Keep them in a place where you can find and refer to them later on.

⚠️ CAUTION: when you see this sign, please refer to the safety precautions to avoid possible harm and damage.

i INFORMATION: when you see this sign, please take note of the advice for the correct and safe usage of your appliance.

• The appliance is intended to prepare beverages according

to these instructions.

• Do not use the appliance for anything other than its intended use.
• This appliance has been designed for indoor and non-extreme temperature conditions use only.
• Protect the appliance from direct sunlight effect, prolonged water splash and humidity.

• This is a household appliance only. It is not intended to be used in: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

• This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and they are supervised by an adult.

• Keep the appliance and its cord out of reach of children under 8 years of age.
• This appliance may be used by persons with reduced physical, sensory or mental capabilities, or whose experience or knowledge is not sufficient, provided

they are supervised or have received instruction to use the appliance safely and understand the dangers.

• Children shall not use the device as a toy.
- The manufacturer accepts no responsibility and the warranty will not apply for any commercial use, inappropriate handling or use of the appliance, any damage resulting from use for other purposes, faulty operation, non-professionals repair or failure to comply with the instructions.

Avoid risk of fatal electric shock and fire.

• In case of an emergency: immediately remove the plug from the power socket.
• Only plug the appliance into suitable, easily accessible, earthed mains connections. Make sure that the voltage of the power source is the same as that specified on the rating plate. The use of an incorrect connection voids the warranty.

The appliance must only be connected after installation.

• Do not pull the cord over sharp edges, clamp it or allow it to hang down.
• Keep the cord away from heat and damp.
  • If the supply cord is damaged, it must

be replaced by the manufacturer, its service agent or similarly qualified persons, in order to avoid all risks.

• If the cord or the plug are damaged, do not operate the appliance; return the appliance to the Nespresso Club or to a Nespresso authorised representative.
• If an extension cord is required, use only an earthed cord with a conductor cross-section of at least 1.5 ~mm^2 or matching input power.
• To avoid hazardous damage, never place the appliance on or beside hot surfaces such as radiators, stoves, ovens, gas burners, open flame, or similar.
  • Always place it on a horizontal, stable and even

surface. The surface must be resistant to heat and fluids, like water, coffee, descaler or similar liquids.

• Disconnect the appliance from the mains when not in use for a long period. Disconnect by pulling out the plug and not by pulling the cord itself or the cord may become damaged.
• Before cleaning and servicing, remove the plug from the mains socket and let the appliance cool down.
• Never touch the cord with wet hands.
• Never immerse the appliance or part of it in water or other liquid.
• Never put the appliance or part of it in a dishwasher.
  • Electricity and water together is dangerous and can lead to fatal electrical shocks.

- Do not open the appliance. Hazardous voltage inside! - Do not put anything into any openings. Doing so may cause fire or electrical shock!

Avoid possible harm when operating the appliance.

• Never leave the appliance unattended during operation.
• Do not use the appliance if it is damaged or not operating perfectly. Immediately remove the plug from the power socket. Contact the Nespresso Club or Nespresso authorised representative for examination, repair or adjustment.

- A damaged appliance can cause electrical shocks, burns and fire.

• Always completely close

EN Safety Precautions

the slider and never open it during operation. Scalding may occur.
- Do not put fingers under coffee outlet, risk of scalding.
- Do not put fingers into capsule compartment or the capsule shaft. Danger of injury!
• Water could flow around a capsule when not perforated by the blades and damage the appliance.
- Never use a damaged or deformed capsule. If a capsule is blocked in the capsule compartment, turn the machine off and unplug it before any operation. Call the Nespresso Club or Nespresso authorised representative.
- Fill the water tank only with fresh and potable water.
• Empty water tank if the appliance will not be used for

an extended time (holidays, etc.).

• Replace water in water tank when the appliance is not operated for a weekend or a similar period of time.
• Do not use the appliance without the drip tray and drip grid to avoid spilling any liquid on surrounding surfaces.
• Do not use any strong cleaning agent or solvent cleaner. Use a damp cloth and mild cleaning agent to clean the surface of the appliance.
• To clean machine, use only clean cleaning tools.
• When unpacking the machine, remove the plastic film and dispose.
• This appliance is designed for Nespresso coffee capsules available exclusively through the Nespresso Club or

your Nespresso authorised representative.

• All Nespresso appliances pass stringent controls.
  Reliability tests under practical conditions are performed randomly on selected units. This can show traces of any previous use.
• Nespresso reserves the right to change instructions without prior notice.
  • This machine contains magnets.

Descaling

- Nespresso descaling agent, when used correctly, helps ensure the proper functioning of your machine over its lifetime and that your coffee experience is as perfect as the first day.

SAVE THESE INSTRUCTIONS

Pass them on to any subsequent user.

This instruction manual is also available as a PDF at nespresso.com

AVERTISSEMENT	DÉBRANCHER LE CORDON D'ALIMENTATION
DANGER ÉLECTRIQUE	ATTENTION SURFACE CHAUDE

Bouton DEMARRER | ANNULER

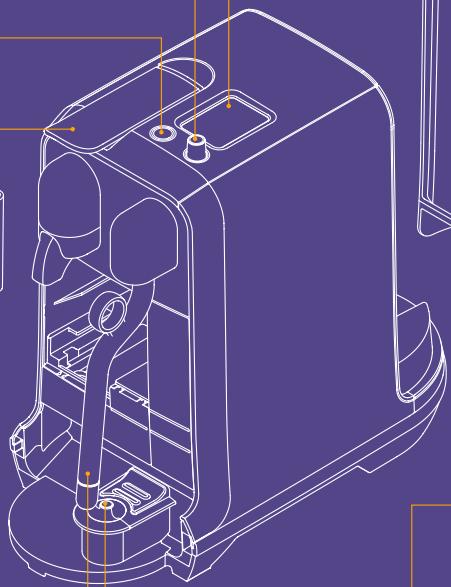

Lever for capsule insertion

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a modular device with internal components and mounting base (no text or symbols)

Easy clean steam wand

Technical line drawing of a device interior with no visible text or symbols

Milk jug

Pot à lait

Press the START|CANCEL button to Start or Cancel an operation or to go back

Line drawing of a closed refrigerator with handle and side panel, no text or symbols present

Water tank & lid

Removable pin cleaning tool

Abstract geometric line drawing with overlapping shapes and lines on a purple background (no text or symbols)

Rotate the SELECT dial to navigate left or right to select your drink

Tournez le bouton

SELECTIONNER pour

Press the SELECT dial to

Adjust Espresso Volume,

Milk Temperature or Milk

Froth

Read the important safeguards first to avoid risks of fatal electrical shock and fire.

Line drawing of a faucet with liquid level indicator (no text or symbols)

Rinse the water tank

before filling it with potable water.

Rincez le bac à eau

Illustration of a handwashing machine with orange arrows indicating ports (no text or symbols)

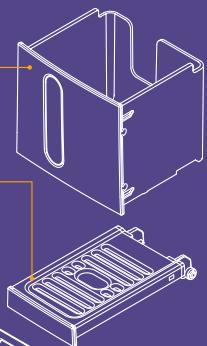

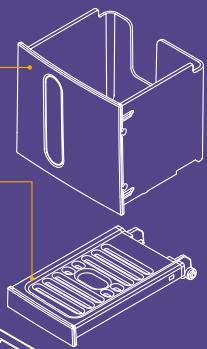

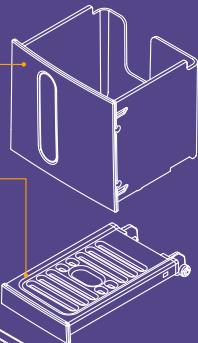

Place the water tank, insert the drip tray and the capsule container in position. For your safety, operate the machine only with drip tray and capsule container in position.

Plug the machine into

the power outlet.

Simple line drawing of an electrical outlet with a plug and power plug, no text or symbols present.

Line drawing of a car interior showing dashboard and steering wheel (no text or symbols)

Turn the machine ON by pressing the STARTICANCEL button. Heating up takes approximately 3 seconds.

Technical line drawing of a sewing machine with two circular insets showing hand positioning (no text or symbols)

Rotate the SELECT dial to set your language. Press SELECT to confirm.

< 1 minute

6 Setting your water hardness, dip the Water Hardness Test Strip in and out the water tank.

Wait 1 minute. Set the water hardness by rotating the SELECT dial according to the results on the Test Strip. Press SELECT to confirm. For further information refer to pg 29.

Line drawing of a hand washing machine with a circular annotation highlighting the component (no text or symbols present)

7 Follow the on-screen prompts to rinse & prepare your machine for use.

Line drawing of a hand operating a device with a circular highlight (no text or symbols)

8 Follow the Quick Start Tutorial.

Line drawing of a car interior showing hand positioning and dashboard controls (no text or symbols)

9 To turn OFF your machine, press and hold the START/CANCEL dial for 2 seconds until machine is off.

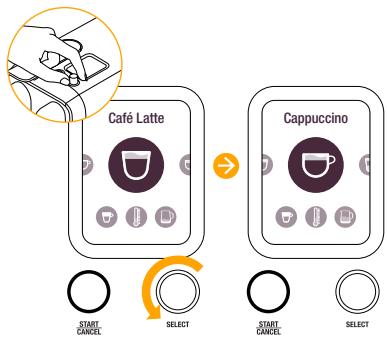

1 Rotate the SELECT dial to select your coffee.

② Display shows current drink settings, Coffee Volume, Milk Temperature, Milk Texture.

3 Press STARTICANCEL to make a coffee with the current settings.

4 Press the SELECT dial to adjust the current settings.

Line drawing of a container pouring liquid into a cup (no text or symbols)

1 Fill the water tank

with potable water.

Technical line drawing of a mechanical device with a highlighted circular section (no text or symbols)

2 Turn the machine ON by pressing the STARTICANCEL button. Heating up takes approximately 3 seconds.

Line drawing of a coffee maker with an inset close-up showing the interior mechanism (no text or symbols)

3 Place a cup under the coffee outlet. Use the cup support if required. PUSH the cup support to unlock.

Diagram showing hands using a coffee machine with a downward arrow indicating action, and two circular insets illustrating the same process.

4 Lift the Lever, insert a capsule and close the lever.

Rotate SELECT dial to select your coffee

Ristretto (25ml / 0.85 oz)

Espresso (40 ml / 1.35 oz)

Lungo (110 ml / 3.7 oz)

Press STARTICANCEL button to extract

To ensure hygienic conditions, it is highly recommended to not reuse a used capsule.

Line drawing of a hand using a coffee machine to press coffee into a cup (no text or symbols)

5 Preparation will stop automatically.

Lift the Lever to eject the capsule.

Line drawing of a coffee machine with a hand operating the cup (no text or symbols)

6 To stop the coffee flow press

Line drawing of a container pouring liquid into a cup (no text or symbols)

1 Fill the water tank

with fresh potable water.

Line drawing of a coffee machine with a cup and side arm, showing a close-up inset (no text or symbols)

② To accommodate smaller

cups, use the cup support. PUSH the cup support to unlock.

Line drawing of a coffee machine with a cup and handle, no text or symbols present

3 Rotate the SELECT dial to select your drink.

CAUTION: Do not fill milk jug above the maximum level marked on the inside & outside of the jug.

4 Fill the milk jug with enough fresh cold milk. Minimum and maximum levels are marked on the inside and outside of the milk jug.

Line drawing of a toaster with coffee cup and stand (no text or symbols)

5 Lift the steam wand & position in the centre of the milk jug.

Line drawing of a kettle placed on a tray with an orange arrow indicating upward motion (no text or symbols)

6 Ensure the milk jug is making contact with the temperature sensor located in the drip tray.

Illustration of a hand using a manual coffee machine with a yellow downward arrow indicating the process (no text or symbols present)

7 Lift the Lever & insert your capsule.

Line drawing of a coffee machine with a cup and side table, no text or symbols present

8 Press the STARTICANCEL button to start the espresso extraction.

Line drawing of a coffee machine with a cup and coffee cup, no text or symbols present

Line drawing of a hand using a toaster with coffee cups nearby (no text or symbols)

When milk frothing is complete, lift the steam wand, wipe with a clean damp cloth.

Line drawing of a toaster with coffee cup and mug, no text or symbols present

Allow steam wand to return to its down position & it will auto purge to rinse itself.

Illustration of a pitcher pouring liquid into a cup of coffee (no text or symbols)

⑫ Pour milk into the espresso to finish your drink.

Line drawing of a container pouring liquid into a cup (no text or symbols)

Line drawing of a coffee machine with a cup and side arm, showing a close-up inset (no text or symbols)

2 To accommodate smaller cups, use the cup support. PUSH the cup support to unlock.

Line drawing of a coffee machine with a cup and lever, no text or symbols present

3 Rotate the SELECT dial to select your drink.

Illustration of a hand using a coffee maker with a downward arrow indicating compression (no text or symbols present)

4 Lift the Lever &

insert your capsule.

Soulevez le levier

Line drawing of a coffee machine with a cup and hand handle, no text or symbols present

5 Press the STARTICANCEL button to start the espresso extraction.

CAUTION: Do not fill milk jug above the maximum level marked on the inside & outside of the jug.

⑥ Fill the milk jug with enough fresh cold milk for 2 drinks. Maximum level is marked on the inside and outside of the milk jug. Do not overfill.

Illustration of a coffee machine with a cup and handle, showing no text or symbols.

7 Lift the steam wand

& position in the centre of the milk jug and press STARTICANCEL to begin milk frothing.

Line drawing of a kettle placed on a drain with an orange arrow indicating the point of change (no text or symbols)

⑧ Ensure the milk jug is making contact with the temperature sensor located in the drip tray.

Line drawing of a toaster with coffee cup and two cups (no text or symbols)

9 When milk frothing is complete, lift the steam wand, wipe with a clean damp cloth.

Line drawing of a toaster with coffee cup and two cups (no text or symbols)

10 Allow steam wand to return to its down position & it will auto purge to rinse itself.

Line drawing of a coffee machine with cups and a tray, no text or symbols present

Place your second cup under the coffee spout.

Illustration of a hand using a self-service coffee machine with cups and a coffee cup, no text or symbols present.

⑫ Lift the Lever & insert your capsule.

⑬ Press the STARTICANCEL button to start the espresso extraction.

Line drawing of a coffee machine with two cups and a handle, no text or symbols present

Illustration of two coffee cups pouring milk from a container (no text or symbols)

14 Pour milk into the espresso to finish your drinks.

Line drawing of a container pouring liquid into a cup (no text or symbols)

1 Fill the water tank

with fresh potable water.

Line drawing of a toaster oven with a highlighted orange button (no text or symbols)

2 To accommodate a Latte Macchiato glass, push the cup support in until it locks.

Line drawing of a hand operating a small device with a circular highlight (no text or symbols)

3 Rotate the SELECT dial to select your drink.

CAUTION: Do not fill milk jug above the maximum level marked on the inside & outside of the jug.

4 Fill the milk jug to the marked maximum level with fresh cold milk

Line drawing of a mechanical device with a highlighted circular section showing internal components (no text or symbols)

5 Lift the steam wand & position in the centre of the milk jug and press STARTICANCEL to begin milk frothing.

Line drawing of a kettle placed on a tray with an orange arrow indicating upward motion (no text or symbols)

6 Ensure the milk jug is making contact with the temperature sensor located in the drip tray.

Line drawing of a kitchen appliance with handle and legs (no text or symbols)

⑦ When milk frothing is complete, lift the steam wand, wipe with a clean damp cloth.

Line drawing of a toaster oven with a highlighted orange button (no text or symbols)

8 Allow steam wand to return to its down position & it will auto purge to rinse itself.

Line drawing of a portable kitchen appliance with a cylindrical tank and control panel (no text or symbols)

9 Pour milk into the Latte Macchiato glass and place under the coffee spout.

Line drawing of a hand using a portable kitchen machine with a downward arrow indicating action (no text or symbols)

10 Lift the Lever & insert your capsule.

Line drawing of a laboratory brush with a beaker and control panel (no text or symbols)

Press the STARTICANCEL button to start the espresso extraction.

Adjusting Regular Coffee Drinks /

Line drawing of a hand operating a device with a circular highlight (no text or symbols)

1 Rotate the SELECT dial to the drink.

Line drawing of a hand operating a manual pump mechanism (no text or symbols)

2 Press the SELECT dial to adjust the coffee volume.

Line drawing of a hand operating a manual pump device with a circular highlight (no text or symbols)

3 Rotate the SELECT dial to adjust the coffee volume. The suggested volume is marked with a dotted line.

Technical line drawing of a mechanical device with two circular insets showing hand fasteners (no text or symbols)

4 Press SELECT dial to save & exit or press STARTICANCEL to exit without saving.

Any coffee can be programmed.

1. Ristretto: from 25 to 60 ml / 0.85-2 oz.
2. Espresso: from 25 to 60 ml / 0.85-2 oz.
3. Lungo: from 70 to 150 ml / 2.37 to 5 oz.

Default coffee volumes listed on page 15.

Adjusting Milk Coffee Drinks /

Technical line drawing of a mechanical device with two circular insets showing hand positioning (no text or symbols)

1 Rotate the SELECT dial to the drink & press the SELECT dial to adjust drink.

Line drawing of a hand operating a manual blender with a circular highlight (no text or symbols)

2 Rotate the SELECT dial to adjust, Espresso Volume, Milk Temperature or Milk Froth level.

Line drawing of a manual hand tool on a device, showing two circular insets highlighting the mechanism (no text or symbols present)

③ Press the SELECT dial to enter & rotate to adjust the setting.

Froth levels & Espresso Volumes suggested settings are marked with a dotted line.

Technical line drawing of a mechanical device with two circular insets showing hand positioning (no text or symbols)

4 Press SELECT dial to save & exit or press STARTICANCEL to exit without saving.

Line drawing of a mechanical device with a hand operating controls and a circular annotation highlighting the component (no text or symbols present)

5 Press START/CANCEL to exit the adjustments menu.

Any milk coffee can be programmed.

1. Coffee Volume: from 25 to 60 ml / 0.85-2 oz.
2. Milk Temperature: from 56 to 76 °C / 133 to 169 °F.
3. Milk Froth: from 2 to 30 mm / 0.08 to 1.2 in.

1 Drink Settings are:

-Coffee Volume, Milk Temperature and Milk Froth.

To reset your drink settings:

1. Select SETTINGS
2. Select RESET
3. Select COFFEE RESET
4. Select √ to confirm
5. Select ✗ to cancel

To reset factory settings:

1. Select SETTINGS
2. Select RESET
3. Select FACTORY RESET
4. Select √ to confirm
5. Select ✗ to cancel
6. Machine will power off
7. On next use, you will need to refer to first use instructions

Emptying the System before a period of non-use or for frost protection /

Technical line drawing of a portable coffee maker with two views (no text or symbols)

1 Remove the water tank.

Place the empty Milk Jug under the coffee outlet.

Technical line drawing of a sewing machine with two circular insets showing hand positioning (no text or symbols)

2 Rotate the SELECT dial to MAINTENANCE, press

SELECT dial. Select "Empty Cycle" & press SELECT to start. When the pump stops, empty & wipe dry the capsule bucket & drip tray.

1 Energy efficient: Machine minimizes power use when not making a drink. The display dims after 2 mins of no use, after 10 mins of no use display turns off. Restart by pressing the STARTICANCEL button.

Technical line drawing of a mechanical device with a highlighted circular section (no text or symbols)

Daily Cleaning / Nettoyage quotidien

To ensure hygienic conditions, it is highly recommended emptying and cleaning the capsule container every day. Pour assurer l'hygiène, il est fortement recommandé de vider et de nettoyer le compartiment des capsules tous les jours.

Diagram illustrating the assembly of a kitchen appliance with labeled parts and an inset showing a kitchen tool.

Empty the drip tray and the capsule container every day. Remove cup support by first removing the capsule bucket, then unlocking the cup support, pulling the cup support forward & lifting it upwards to disengage from the machine. Clean cup support and wipe inside machine, reassemble with a clean damp cloth. Remove the water tank and lid and clean them both with odorless detergent and rinse with warm water. Refill the water tank with fresh potable water.

2 Rinse the milk jug & dry after each use. If required, wash the jug with mild detergent.

Illustration of a mug with liquid inside a circle, accompanied by three circular icons below (temperature, temperature, and document) — no text or symbols present.

3 Fill the milk jug with potable water between the min & max marks. Select the MILK function & press START. When complete discard the hot water, then wipe the steam wand with a clean damp cloth.

Line drawing of a toaster oven with a tray and control panel, no text or symbols present

4 Do not use any strong or abrasive solvent, sponge or cream cleaner. Do not put in the dishwasher.

Line drawing of a hand using a kettlebell to press or install a tray (no text or symbols present)

5 Dry all the parts with a repetitive soft clean cloth and reassemble all parts. Clean the coffee outlet and inside the machine regularly with a clean damp cloth.

Illustration of a hand washing machine with a faucet and warning symbol (no text or labels)

6 Never immerse the appliance or part of it in water or any other liquid.

Milk System Cleaning Procedure.

Recommended you perform this monthly to prevent steam tip blockages or when the display shows "Clean Steam Wand".

Icon of a crossed wrench and screwdriver inside a circular frame, with no text or symbols

Two circular icons: a hand holding a document and a grid of dots, both without any text or symbols.

Line drawing of a cleaning or cleaning device with an arrow pointing to a lid (no text or symbols)

Duration approximately 15 minutes.

Read the important safeguard on the descaling package and refer to the table for the frequency of use. The descaling solution can be harmful. Avoid contact with eyes, skin and surfaces. Never use any product other than the Nespresso descaling kit available at the Nespresso Club to avoid damage to your machine. The following table will indicate the descaling frequency required for the optimum performance of your machine, based on water hardness. For any additional questions you may have regarding descaling, please contact the Nespresso Club.

Descaling: Removes scale build-up, maintains coffee taste and prevents machine damage. Frequency will depend on your water hardness & amount of use. Descale when prompted on-screen. The machine will stop you from use if the descale cycle has not been performed after 10 uses. A "lockout" count-down will appear to alert you of the number of uses remaining until usage will stop.

Three circular icons with pixelated shapes inside, no text or symbols present

2 Select DESCALE

Line drawing of a tank with directional arrow indicating rotation (no text or symbols)

To determine water hardness level use the test strip provided.

To change the water hardness setting:

Simple gear icon inside a circle with a small cross symbol on the left (no text or symbols)

1 Rotate dial to select SETTINGS

Simple line icons of an open book, a water droplet with a leaf, and a power button (no text or symbols)

Simple line drawing of a water dispenser with a funnel and droplet, no text or symbols present

Buttons not illuminated.	- Machine turns OFF automatically. See paragraph on «Energy Saving Concept».- Press START/CANCEL or SELECT to turn to «ON-mode».	- Check the outlet: plug, voltage, fuse.
No steam or hot water.	- Press START/CANCEL or SELECT to turn to «ON-mode».	- Check the outlet: plug, voltage, fuse.
No coffee, no water, unusual coffee flow.	- Check if the water tank is correctly positioned, if empty, fill with potable water.	- Descale the machine, if necessary.
Coffee is not hot enough.	- Preheat cup.	- Descale the machine, if necessary.
The capsule lever does not close completely.	- Empty the capsule container.	- Check that no capsule is blocked inside the machine. (Note: do not put the finger inside the machine)
Leakage (water under the machine).	- Empty drip tray if full.- Check drip tray is securely inserted.	- If problem persists, call the Nespresso Club.
No coffee flow, water goes directly into the capsule bucket (despite inserted capsule).	- Ensure capsule lever is closed.	- Empty capsule bucket and check that no capsule is blocked inside the machine. (NOTE: do not put finger inside the machine) If problem persists, call the Nespresso Club.
Colour display is dim and hard to see/read.	- Machine display dims automatically after 2 minutes of non use.- See paragraph on «Energy Saving Concept».- Press START/CANCEL or SELECT to turn to «ON-mode».	- Adjust the screen brightness setting. Navigate to Settings menu. Select Screen Brightness. Turn the dial and Select High.
Buttons flashing.	- Follow on screen prompt.- Check the water tank. If empty, fill with potable water and brew a coffee.- Check steam tip for blockages. Use pin cleaning tool stored under the water tank to unblock each of the holes.	- Descale machine, if necessary.- Complete a Clean Steam Wand cycle, if necessary.
Fill Water Tank alert remains on display (water tank is full).	- Check if the water tank is correctly positioned.	- If problem persists, call the Nespresso Club.
Descale Now alert is displayed.	- Descale the machine. Navigate to Maintenance menu.- Select Descale and follow the on-screen prompts.
Machine Error message is displayed.	- A major fault has occurred.	- Visit Nespresso.com or call the Nespresso Club to contact your local service centre.
Machine is ON but ceases to operate.	- Power machine off by holding START/CANCEL.- Wait 60 minutes and press START/CANCEL or SELECT to turn to «ON-mode».	- If problem persists, call the Nespresso Club.
Machine turns to OFF mode.	- To save energy the machine will turn to OFF mode after 10 minutes of non use. See paragraph on «Energy Saving Concept».	- Press START/CANCEL or SELECT to turn to «ON-mode».

Dépannage

Troubleshooting Milk Froth Preparation

Milk steam cycle does not start.	- Check if the water tank is correctly positioned, if empty, fill with potable water.- Check steam tip for any blockages and ensure wand is lowered.
Quality of froth not up to standard.	- Be sure to use whole or semi-skimmed milk at refrigerated temperature (about 4-6 °C / 39-43 F). For a better result, the milk must be newly opened.- Check the milk froth setting.	- Use the milk jug provided.- Clean both the milk jug and steam wand after each use.- Clean the steam wand. Navigate to Maintenance menu.- Select Clean Steam Wand and follow the on-screen prompts.
Steam is very wet.	- Use cold, potable water. Do not use highly filtered, demineralised or distilled water.
Milk overflows.	- Fill jug with appropriate milk volume.- Minimum fill level as marked on the inside & outside of the jug.- Maximum fill level as marked on the inside & outside of the jug.	- To stop overflow, either reduce the initial volume of milk and/or reduce the froth level. This varies depending on milk type.
Milk temperature is too hot.	- Be sure to use the milk jug provided.- Check the milk jug is positioned correctly on the milk jug temperature sensor.	- Decrease the milk temperature setting.
Milk temperature is not hot enough.	- Preheat cup.- Use the milk jug provided.- Check the milk jug is positioned on the milk jug temperature sensor.	- Increase the milk temperature setting.- Check the steam tip for blockages.
Lower Wand alert is displayed.	- Ensure the steam wand is lowered.
Clean Steam Wand alert is displayed.	- Clean the Steam Wand.	- Navigate to Maintenance menu. Select Clean Steam Wand and follow the on-screen prompts.

As we may not have foreseen all uses of your appliance, should you need any additional information, in case of problems or simply to seek advice, call the Nespresso Club or your Nespresso authorized representative. Contact details for your Nespresso Club or your Nespresso authorized representative can be found in the «Welcome to Nespresso» folder in your machine box or at nespresso.com

Your appliance contains valuable materials that can be recovered or can be recyclable. Separation of the remaining waste materials into different types facilitates the recycling of valuable raw materials. Leave the appliance at a collection point. You can obtain information on disposal from your local authorities.

Sage guarantees this product against defects in materials and workmanship for a period of 2 years. The warranty period begins on the date of purchase and Sage requires presentation of the original proof of purchase to ascertain the date. During the warranty period, Sage will either repair or replace, at its discretion, any defective product at no charge to the owner. Replacement products or repaired parts will be warranted only for the unexpired portion of the original warranty or six months, whichever is greater. This limited warranty does not apply to any defect resulting from negligence, accident, misuse, or any other reason beyond Sage's reasonable control, including but not limited to: normal wear and tear, negligence or failure to follow the product instructions, improper or inadequate maintenance, calcium deposits or descaling, connection to improper power supply, unauthorized product modification or repair, use for commercial purposes, fire, lightning, flood or other external causes. This warranty is valid only in the country of purchase or in such other countries where Sage sells or services the same model with identical technical specifications. Warranty service outside the country of purchase is limited to the terms and conditions of the corresponding warranty in the country of service. Should the cost of repairs or replacement not be covered by this warranty, Sage will advise the owner and the cost shall be charged to the owner. This limited warranty shall be the full extent of Sage's liability however caused. Except to the extent allowed by applicable law, the terms of this limited warranty do not exclude, restrict or modify the mandatory statutory rights applicable to the sale of this product and are in addition to those rights. If you believe your product is defective, contact Nespresso or Sage for instructions on how to proceed with a repair.

Please visit our website at www.nespresso.com for contact details.

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a modular device with internal components and mounting base (no text or symbols)

Technical line drawing of a device interior with labeled ports and components (no text or symbols)

Milchbehälter

Bricco per latte

Line drawing of a portable refrigerator with handle, lid, and side panel (no text or symbols)

Abstract geometric design with overlapping shapes and lines on a purple background (no text or symbols)

Drehen Sie den

AUSWAHL-Regler

nach links oder

Line drawing of a faucet with liquid level indicator (no text or symbols)

Line drawing of a handwashing machine with orange arrows indicating ports (no text or symbols)

Simple line drawing of an electrical plug connecting a wall to a circular icon with an arrow (no text or symbols)

Line drawing of a hand washing machine with a highlighted circular section (no text or symbols)

Line drawing of a sewing machine with two circular insets showing hand positioning and sewing steps (no text or symbols)

< 1 minute

Line drawing of a coffee maker with handle and spout, no text or symbols present

Line drawing of a hand operating a device with a circular highlight (no text or symbols)

Line drawing of a car interior showing hand positioning and gear shift mechanism (no text or symbols)

Line drawing of a container pouring liquid into a cup (no text or symbols)

Füllen Sie den

Wassertank mit

Trinkwasser.

Technical line drawing of a mechanical device with a highlighted circular section (no text or symbols)

Line drawing of a coffee maker with an inset close-up showing the mechanism (no text or symbols)

Diagram showing a hand using a coffee machine with two circular insets highlighting the mechanism and component details.

Line drawing of a hand using a coffee machine to press coffee into a cup (no text or symbols)

Line drawing of a coffee machine with a hand operating the cup (no text or symbols)

Line drawing of a container pouring liquid into a cup (no text or symbols)

1 Füllen Sie den Wassertank mit frischem Trinkwasser. Riempire il serbatoio dell'acqua con acqua potabile fresca.

Line drawing of a coffee machine with a cup and side arm, showing a close-up inset (no text or symbols)

Line drawing of a coffee machine with a cup and lever, no text or symbols present

Line drawing of a toaster with cup and side arm (no text or symbols)

Line drawing of a kettle placed on a tray with an orange arrow indicating upward motion (no text or symbols)

Line drawing of a hand using a manual presser machine with a yellow downward arrow indicating the press direction (no text or symbols present)

Line drawing of a coffee machine with a cup and side table, no text or symbols present

Line drawing of a coffee machine with a cup and coffee cup, no text or symbols present

Line drawing of a toaster with hands using a coffee cup and coffee mug (no text or symbols)

Line drawing of a coffee maker with two cups and a tray, no text or symbols present

Illustration of a pitcher pouring liquid into a cup of coffee (no text or symbols)

Line drawing of a container pouring liquid into a cup (no text or symbols)

1 Füllen Sie den Wassertank mit frischem Trinkwasser. Riempire il serbatoio dell'acqua con acqua potabile fresca.

Line drawing of a coffee maker with a cup and fan, showing mechanical components (no text or symbols)

Line drawing of a coffee machine with a cup and lever, no text or symbols present

Line drawing of a hand using a coffee maker with a coffee cup and handle, no text or symbols present

Line drawing of a coffee machine with a cup and tray, no text or symbols present

Line drawing of a coffee machine with a cup and side arm, no text or symbols present

Line drawing of a kettle placed on a tray with an orange arrow indicating the point of change (no text or symbols)

Line drawing of a kitchen toaster with a hand holding a cup and a glass nearby (no text or symbols)

Line drawing of a toaster with coffee cup and two cups (no text or symbols)

Line drawing of a coffee machine with cups and a tray, no text or symbols present

Illustration of a hand using a self-service coffee machine with cups and a coffee cup, no text or symbols present.

Line drawing of a coffee machine with two cups and a handle, no text or symbols present

Illustration of two coffee cups pouring milk from a glass pitcher (no text or symbols)

Line drawing of a container pouring liquid into a cup (no text or symbols)

Füllen Sie den

Line drawing of a toaster oven with control panel and indicator lights (no text or symbols)

Line drawing of a hand operating a small device with a circular highlight (no text or symbols)

Drehen Sie den

Line drawing of a mechanical device with a highlighted circular section showing internal components (no text or symbols)

Line drawing of a kettle placed on a tray with an orange arrow indicating upward motion (no text or symbols)

Line drawing of a hand operating a small kitchen appliance (no text or symbols)

Line drawing of a toaster oven with a highlighted orange button (no text or symbols)

Line drawing of a kitchen blender with control panel and side-mounted cup (no text or symbols)

Line drawing of a hand using a portable kitchen machine with a downward arrow indicating action (no text or symbols)

Line drawing of a laboratory brush with a beaker and control panel (no text or symbols)

Line drawing of a hand operating a device with a circular highlight (no text or symbols)

1 Drehen Sie den

Line drawing of a hand operating a manual push-button press mechanism (no text or symbols)

Line drawing of a hand operating a manual pump device with a circular highlight (no text or symbols)

③ Drehen Sie den

Technical line drawing of a mechanical device with two circular insets showing hand positioning (no text or symbols)

Line drawing of a manual pump mechanism with two circular insets showing hand positioning and tool placement (no text or symbols)

Line drawing of a hand operating a device with a circular highlight (no text or symbols)

Technical line drawing of a manual hand tool with two circular insets showing the mechanism (no text or symbols present)

Technical line drawing of a mechanical device with two circular insets showing hand positioning (no text or symbols)

Diagram of a car gear shift lever mechanism with no text or symbols

Line drawing of a coffee maker with a stand and handle, showing internal components without any text or symbols.

Line drawing of a sewing machine with two circular insets showing hand positioning (no text or symbols)

Line drawing of a hand washing machine with a circular inset highlighting the mechanism (no text or symbols)

Tägliche Reinigung / Pulizia quotidiana

Diagram illustrating the assembly of a microwave oven with labeled parts and an inset showing the process.

Simple icon set with a mug, thermometer, and document (no text or symbols)

Line drawing of a toaster oven with a tray and control panel, no text or symbols present

Line drawing of a hand using a kettlebell to press or install a tray (no text or symbols present)

Illustration of a hand washing machine with a faucet and warning symbol (no text or labels)

6 Tauchen Sie die

Maschine oder Teile

Icon of a crossed wrench and screwdriver inside a circular frame, with no text or symbols

Two circular icons: a hand holding a document and a grid of dots, both without any text or symbols.

② Wählen Sie

Line drawing of a vacuum cleaner with an open lid and arrow indicating component (no text or symbols)

Three circular icons with pixelated shapes: a hand holding a leaf, a grid of squares inside a circle, and a leaf with dots (no text or symbols)

Simple line drawing of a tank with an arrow indicating rotation, no text or symbols present

Simple gear icon inside a circle with a small symbol on the left (no text or labels)

Simple line icons representing an open book, a water droplet with a leaf, and a power button (no text or symbols)

Simple line drawing of a water dispenser with a funnel and droplet, no text or symbols present

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a modular device with internal components and mounting base (no text or symbols)

Temperatursensor for

melkemugge

Technical line drawing of a device interior with no visible text or symbols

Mjölkkanna

Melkemugge

Line drawing of a portable refrigerator with lid and frontrest, shown in 3D style (no text or symbols)

Vattentank och lock

Vanntank og lokk

Borttagbar rensningspinne

Abstract geometric design with overlapping shapes and lines on a purple background (no text or symbols)

Line drawing of a faucet with liquid level, no text or symbols present

Line drawing of a microwave oven with labeled parts (no text or symbols)

Simple line drawing of an electrical plug connecting a wall to a circular orange button (no text or symbols)

Line drawing of a mechanical device with a highlighted circular section showing internal components (no text or symbols)

Line drawing of a sewing machine with two circular insets showing hand positioning and sewing steps (no text or symbols)

Line drawing of a hand operating a device with a circular highlight (no text or symbols)

Line drawing of a car gear shift lever with a highlighted circular section (no text or symbols)

Line drawing of a coffee maker with a hand and lid, showing internal components and a highlighted section (no text or symbols)

Line drawing of a container pouring liquid into a cup (no text or symbols)

Line drawing of a mechanical device with a highlighted circular section showing a hand operating the lever (no text or symbols present)

Line drawing of a coffee machine with an inset close-up showing hand positioning (no text or symbols)

Diagram showing a hand using a coffee machine with two zoomed-in views of the device's interior, highlighting the process.

Line drawing of a hand using a coffee machine to press coffee into a cup (no text or symbols present)

Line drawing of a coffee machine with a hand operating the cup (no text or symbols)

Line drawing of a container pouring liquid into a cup (no text or symbols)

Line drawing of a coffee machine with a cup and side arm, showing a close-up of its interior components (no text or symbols)

Line drawing of a coffee machine with a cup and handle, no text or symbols present

Line drawing of a toaster with coffee cup and stand mixer (no text or symbols)

Line drawing of a kitchen sink with a kettle and ventilation grilles (no text or symbols)

Säkerställ att

Line drawing of a hand using a manual saucer with a yellow downward arrow indicating the process (no text or symbols present)

Line drawing of a coffee machine with a cup and tray, no text or symbols present

Line drawing of a coffee machine with a cup and coffee cup on the side (no text or symbols)

När din espresso är

Line drawing of a toaster with hands using a coffee cup and two cups (no text or symbols)

Line drawing of a coffee maker with a cup and stand, no text or symbols present

Illustration of a pitcher pouring liquid into a cup of coffee (no text or symbols)

Line drawing of a container pouring liquid into a cup (no text or symbols)

Line drawing of a coffee machine with a cup and side arm, showing a close-up inset (no text or symbols)

Line drawing of a coffee machine with a cup and lever, no text or symbols present

Illustration of a hand using a coffee maker with a downward arrow indicating compression (no text or symbols present)

Line drawing of a coffee machine with a cup and hand mixer (no text or symbols)

Line drawing of a coffee machine with a cup and side arm, no text or symbols present

Line drawing of a kettle placed on a drain with an orange arrow indicating the point of change (no text or symbols)

Line drawing of a toaster with coffee cups and a hand inserting a cup (no text or symbols)

Line drawing of a toaster with coffee cup and two cups (no text or symbols)

Line drawing of a coffee machine with cups and a tray, no text or symbols present

Line drawing of a coffee machine with cups and a hand using a spoon, no text or symbols present

Line drawing of a coffee machine with two cups and a handle, no text or symbols present

Illustration of two coffee cups pouring milk from a glass pitcher (no text or symbols)

Line drawing of a container pouring liquid into a cup (no text or symbols)

Line drawing of a toaster oven with control panel and indicator lights (no text or symbols)

Line drawing of a hand operating a small device with a circular highlight (no text or symbols)

3 Vrid SELECT-vredet

Line drawing of a mechanical device with a highlighted circular section showing internal components (no text or symbols)

Line drawing of a kettle placed on a tray with an orange arrow indicating upward motion (no text or symbols)

6 Säkerställ att

Line drawing of a kitchen appliance with handle and legs (no text or symbols)

7 När mjölken är

Line drawing of a toaster oven with a highlighted orange button (no text or symbols)

Line drawing of a portable kitchen appliance with a cylindrical tank and control panel (no text or symbols)

Line drawing of a hand using a portable kitchen machine with a downward arrow indicating action (no text or symbols)

Line drawing of a laboratory brush with a beaker and control panel (no text or symbols)

Line drawing of a hand operating a device with a circular highlight (no text or symbols)

Line drawing of a hand operating a manual push-button press mechanism (no text or symbols)

Line drawing of a hand washing machine with a circular highlight on the top (no text or symbols)

Technical line drawing of a mechanical device with two circular insets showing hand positioning (no text or symbols)

Technical line drawing of a mechanical device with two circular insets showing hand positioning (no text or symbols)

Line drawing of a hand operating a device with a circular highlight (no text or symbols)

Line drawing of a manual sewing machine with two circular insets showing hand positioning (no text or symbols)

Technical line drawing of a mechanical device with two circular insets showing hand positioning (no text or symbols)

Line drawing of a car intake manifold with hand placement and control panel (no text or symbols)

Line drawing of a coffee maker with a stand and handle, showing internal components without any text or symbols.

Line drawing of a sewing machine with two circular insets showing hand positioning (no text or symbols)

Line drawing of a mechanical device with a highlighted circular section (no text or symbols)

Diagram illustrating the assembly of a microwave oven with labeled parts and an inset showing the process.

Simple icon set with a mug, thermometer, and cup (no text or symbols)

Line drawing of a toaster oven with a tray and control panel, no text or symbols present

Line drawing of a hand using a kettlebell to press or install a tray (no text or symbols present)

Diagram of a handwashing device with warning symbol and warning sign, showing no text or labels

Icon of a crossed wrench and screwdriver inside a circular frame, with no text or symbols

1 Välj Maintenance

Velg Vedlikehold

Two circular icons: a hand holding a document and a grid of dots, both without any text or symbols.

② Välj Clean

Steam Wand

Line drawing of a small appliance with an arrow pointing to a lid, accompanied by a legend for color codes (no text or symbols on the device itself)

Three circular icons with pixelated shapes: a hand holding a leaf, a circle containing a grid of squares, and a leaf with a small dot (no text or symbols)

Välj DESCALE

Velg AVKALK

Simple line drawing of a mechanical device with an arrow indicating rotation (no text or symbols)

Följ anvisningarna

i displayen

Følg instruksjonene

i displayet

Vattnets hårdhet / Vannhardhet

Simple gear icon inside a circle with a small cross symbol on the left (no text or symbols)

Three circular icons: an open book, a water droplet with a leaf, and a power button, arranged horizontally (no text or symbols)

② Välj Water Hardness

Velg Vannhardhet

Simple line drawing of a water dispenser with a funnel and droplet, no text or symbols present

Technical line drawing of a mechanical component with internal parts and housing (no text or symbols)

Technical line drawing of a modular kitchen or storage unit with internal compartments and a rack (no text or symbols)

Let at rengøre

dampdysse

Line drawing of a portable refrigerator with handle, lid, and side panel (no text or symbols)

Vandtank og låg

Vesisäiliö ja kansi

Pure technical line drawing of a mechanical component with no text or symbols

Illustration of a water dispenser with faucet and handle (no text or symbols)

Line drawing of a handwashing machine with orange arrows indicating ports (no text or symbols)

Simple line drawing of an electrical plug connecting a wall to a power outlet (no text or symbols)

Line drawing of a car interior showing dashboard and steering wheel (no text or symbols)

Technical line drawing of a sewing machine with two circular insets showing hand positioning (no text or symbols)

< 1 minute

Line drawing of a coffee maker with a hand and lid, showing internal components and a highlighted section (no text or symbols)

Line drawing of a hand operating a device with a circular highlight (no text or symbols)

Line drawing of a car intake manifold with a highlighted lever mechanism (no text or symbols)

Line drawing of a container pouring liquid into a cup (no text or symbols)

Technical line drawing of a mechanical device with a highlighted circular section (no text or symbols)

Line drawing of a coffee maker with an inset close-up showing the interior mechanism (no text or symbols)

Illustration of a coffee machine with hands operating, showing two zoomed-in views of the machine's side view.

Line drawing of a hand using a coffee machine to press coffee into a cup (no text or symbols)

Line drawing of a coffee machine with a cup and tray, no text or symbols present

6 For at stoppe

kaffeudstrømningen tryk på STARTIAFBRYD-knappen

Line drawing of a container pouring liquid into a cup (no text or symbols)

Line drawing of a coffee machine with a cup and side arm, showing a close-up inset (no text or symbols)

Line drawing of a coffee machine with a cup and lever, no text or symbols present

Line drawing of a toaster with coffee cup and stand mixer (no text or symbols)

Line drawing of a kettle placed on a tray with an orange arrow indicating upward motion (no text or symbols)

Sikr dig, at

mælkebeholderen er i kontakt med temperatursensoren, som er placeret i drypbakken

Line drawing of a hand using a manual machine to press or install a coffee machine (no text or symbols present)

Line drawing of a coffee machine with a cup and tray, no text or symbols present

Line drawing of a coffee machine with a cup and lid, no text or symbols present

Line drawing of a toaster with hands using a coffee cup and coffee mug (no text or symbols)

Line drawing of a coffee maker with two cups and a tray, no text or symbols present

Illustration of a pitcher pouring milk from a cup of coffee (no text or symbols)

⑫ Hæld mælk i espressoen for at færdiggøre din drik. Kaada maito espressoon viimeistelläksesi juomasi.

Line drawing of a container pouring liquid into a cup (no text or symbols)

Line drawing of a coffee machine with a cup and side arm, showing a close-up inset (no text or symbols)

Line drawing of a coffee machine with a cup and handle, no text or symbols present

Line drawing of a hand using a portable coffee machine with a coffee cup and control panel (no text or symbols)

Line drawing of a coffee machine with a cup and hand mixer (no text or symbols)

5 Tryk STARTICANCEL-knappen for at starte brygning af espresso

Line drawing of a coffee machine with a cup and side arm, no text or symbols present

Line drawing of a coffee maker with a kettle and base tray, no text or symbols present

Line drawing of a toaster with hands using a spoon and coffee cup (no text or symbols)

Line drawing of a toaster with coffee cup and mug (no text or symbols)

Line drawing of a coffee machine with cups and a coffee cup, no text or symbols present

Line drawing of a coffee machine with a hand using it, showing cup, tray, and cups (no text or symbols)

Line drawing of a coffee machine with cups and a tray, no text or symbols present

B Tryk STARTIAFBRYD-knappen for at starte brygning af espresso

Illustration of two coffee cups pouring milk from a container (no text or symbols)

Line drawing of a container pouring liquid into a cup (no text or symbols)

Line drawing of a toaster with a yellow arrow indicating the handle (no text or symbols present)

Line drawing of a hand washing machine with a circular highlight on the top (no text or symbols)

Line drawing of a mechanical device with a highlighted circular section showing internal components (no text or symbols)

5 Løft dampdyssen og placer den i midten af mælkebeholderen og Tryk STARTICANCEL-knappen for at starte mælkeskumning. Nosta höyryputkea ja aseta se maitokannun keskelle ja paina ALOITAIPERU-painikett aloittaaksesi maidon vaahdottamisen.

Diagram of a kettle placed on a drain with an orange arrow indicating upward motion (no text or symbols)

Line drawing of a hand inserting a small component into a device (no text or symbols)

Line drawing of a toaster oven with an orange button on the door (no text or symbols)

Line drawing of a kitchen blender with handle and control panel (no text or symbols)

Line drawing of a hand using a portable kitchen machine with a downward arrow indicating action (no text or symbols)

Line drawing of a laboratory brush with a beaker and control panel (no text or symbols)

⑪ Tryk STARTIAFBRYD-knappen for at starte brygning af espresso

Line drawing of a hand operating a device with a circular highlight (no text or symbols)

Line drawing of a hand operating a manual push-button press mechanism (no text or symbols)

Line drawing of a hand operating a manual pump mechanism, showing internal components and a highlighted circular area (no text or symbols)

Technical line drawing of a mechanical device with two circular insets showing hand positioning (no text or symbols)

Technical line drawing of a sewing machine with two circular insets showing hand positioning (no text or symbols)

1 Roter VÆLG-tasten så den står på drikken og tryk på VÆLG-tasten for at tilpasse drik.

Line drawing of a hand operating a manual washing machine with a circular annotation highlighting the handle (no text or symbols present)

Technical line drawing of a mechanical device with two circular insets showing hand positioning (no text or symbols)

Technical line drawing of a mechanical device with two circular insets showing hand positioning (no text or symbols)

Line drawing of a car intake manifold with hand placement and control panel (no text or symbols)

5 Tryk START/CANCEL for at gå ud af tilpasningsmenuen.

Line drawing of a coffee maker with a stand and handle, showing internal components without any text or symbols.

Technical line drawing of a sewing machine with two circular insets showing hand positioning (no text or symbols)

Line drawing of a hand pump mechanism with a highlighted circular detail (no text or symbols)

Diagram illustrating a kitchen appliance assembly with labeled parts including grater, heater, and fan.

Simple icon set with a mug, thermometer, and cup (no text or symbols)

Line drawing of a toaster oven with a tray and control panel, no text or symbols present

Line drawing of a hand operating a kettlebell with a handle (no text or symbols)

Diagram of a portable toaster with warning symbol and warning triangle, showing no text or labels

Icon of a crossed wrench and screwdriver inside a circular frame, with no text or symbols

Two abstract icons: a hand holding a document and a grid of dots, both without any text or symbols.

Line drawing of a small appliance with a lid and arrow pointing to it, accompanied by a color-coded legend (no text or symbols on the device itself)

Three circular icons with pixelated shapes: a hand holding a leaf, a circle containing a grid of squares, and a leaf with a small dot (no text or symbols)

Vælg AFKALK

Valitse DESCALE (kalkinpoisto)

Simple line drawing of a tank with an arrow indicating rotation, no text or symbols present

Simple gear icon inside a circle with a small cross symbol on the left (no text or symbols)

Three circular icons: an open book, a water droplet with a leaf, and a power button, arranged horizontally (no text or symbols)

2 Vælg Vandets hårhed Valitse Water Hardness (veden kovuus)

Simple line drawing of a water bottle with a funnel and droplet, no text or symbols present

Technical line drawing of a modular kitchen or storage unit with internal compartments and a rack (no text or symbols)

Line drawing of a closed refrigerator with handle and side panel, no text or symbols present

Nádoba na vodu a víčko

Víztartály és fedő

Abstract geometric design with overlapping shapes and lines on a purple background (no text or symbols)

Line drawing of a faucet with liquid level, no text or symbols present

Line drawing of a kitchen blender with labeled parts (no text or symbols)

② Nasad'te nádobu na vodu, zasuňte

Simple line drawing of an electrical plug connecting a wall to a circular orange button (no text or symbols)

Line drawing of a mechanical device with a highlighted circular section showing internal components (no text or symbols)

Line drawing of a sewing machine with two circular insets showing hand positioning and sewing steps (no text or symbols)

< 1 minuta

Line drawing of a coffee maker with handle and spout, no text or symbols present

Line drawing of a hand operating a device with a circular highlight (no text or symbols)

Line drawing of a car interior showing the dashboard and steering wheel (no text or symbols)

Line drawing of a container pouring liquid into a cup (no text or symbols)

Line drawing of a mechanical device with a highlighted circular section showing internal components (no text or symbols)

Line drawing of a coffee maker with a hand operating the cup and a close-up inset showing the lever mechanism (no text or symbols)

Diagram illustrating a coffee machine with hand gestures and labeled parts, showing step-by-step instructions for lifting or adjusting the cup.

Line drawing of a hand using a coffee machine to press coffee into a cup (no text or symbols)

Line drawing of a coffee machine with a cup and tray, no text or symbols present

Line drawing of a container pouring liquid into a cup (no text or symbols)

Line drawing of a coffee machine with a cup and side arm, showing a close-up of its interior components (no text or symbols)

Line drawing of a coffee machine with a cup and handle, no text or symbols present

Line drawing of a toaster with coffee cup and stand mixer (no text or symbols)

Line drawing of a kitchen sink with a kettle and ventilation grilles (no text or symbols)

Line drawing of a hand using a manual presser machine with a yellow downward arrow indicating the press (no text or symbols present)

Zvedněte páku a

vložte kapsli.

Nyissa fel a

Line drawing of a coffee machine with a cup and side table, no text or symbols present

Stisknutím tlačítka

Line drawing of a coffee machine with a cup and coffee cup, no text or symbols present

Jakmile je espresso

Line drawing of a toaster with hands using a coffee cup and two cups (no text or symbols)

Line drawing of a toaster with two cups and a coffee cup, no text or symbols present

Illustration of a pitcher pouring milk from a cup (no text or symbols)

Illustration of a container pouring liquid from a bucket into a container (no text or symbols)

Line drawing of a coffee machine with a cup and side arm, showing a close-up of its interior components (no text or symbols)

Line drawing of a coffee machine with a cup and handle, no text or symbols present

Illustration of a hand using a coffee maker with a downward arrow indicating compression (no text or symbols present)

4 Zvedněte páku a

vložte kapsli.

Nyissa fel a

Line drawing of a coffee machine with a cup and tray, no text or symbols present

Line drawing of a coffee machine with a cup and side arm, no text or symbols present

Line drawing of a kettle placed on a gridded base with an orange arrow indicating upward motion (no text or symbols)

Line drawing of a toaster with hands using a spoon to feed into the cup (no text or symbols)

Line drawing of a coffee maker with a coffee cup and a glass, no text or symbols present

Line drawing of a coffee machine with cups and a tray, no text or symbols present

Postavte druhý

Line drawing of a coffee machine with cups and a hand using a tool, no text or symbols present

⑫ Zvedněte páku a

vložte kapsli.

Line drawing of a coffee machine with two cups and a lid, no text or symbols present

Illustration of two coffee cups pouring milk from a glass pitcher (no text or symbols)

Line drawing of a container pouring liquid into a cup (no text or symbols)

Line drawing of a toaster oven with handle and control panel (no text or symbols)

Line drawing of a hand operating a small device with a circular highlight (no text or symbols)

Line drawing of a mechanical device with a highlighted circular section showing internal components (no text or symbols)

Line drawing of a kettle placed on a tray with an orange arrow indicating upward motion (no text or symbols)

Line drawing of a hand inserting a small object into a kitchen appliance (no text or symbols)

Jakmile je mléko

Line drawing of a toaster oven with an orange button on the base (no text or symbols)

Nechte parní trysku

Line drawing of a kitchen toaster with a cup and handle (no text or symbols)

Mléko nalijte do sklenice na Latte Macchiato a postavte ji pod výpust kávy.

Öntse a tejhabot Latte

Illustration of a hand using a portable device to press or install a cup (no text or symbols visible)

Zvedněte páku a

vložte kapsli.

Nyissa fel a

Line drawing of a hand using a water dispenser with a glass container and control panel (no text or symbols)

Line drawing of a hand operating a device with a circular highlight (no text or symbols)

Line drawing of a hand operating a manual pump mechanism (no text or symbols)

Line drawing of a hand washing machine with a circular highlight (no text or symbols)

Technical line drawing of a mechanical device with two circular insets showing hand positioning (no text or symbols)

Technical line drawing of a mechanical device with two circular insets showing hand positioning (no text or symbols)

Line drawing of a hand operating a manual blender with a circular highlight (no text or symbols)

Line drawing of a hand operating a manual pump mechanism with two circular insets showing close-ups of the components (no text or symbols)

Technical line drawing of a mechanical device with two circular insets showing hand positioning (no text or symbols)

Line drawing of a mechanical device with a hand operating controls (no text or symbols)

Line drawing of a coffee maker with a stand and handle, showing internal components without any text or symbols.

Line drawing of a sewing machine with two highlighted hand positions (no text or symbols)

Line drawing of a mechanical device with a highlighted circular section (no text or symbols)

Diagram illustrating the assembly of a microwave oven with labeled parts and an inset showing the process.

Simple icon set with a mug, thermometer, and cup (no text or symbols)

Line drawing of a toaster with a door handle and control panel, no text or symbols present

Line drawing of a hand operating a kettlebell with a handle (no text or symbols)

Diagram of a handwashing device with warning symbol and warning sign, showing no text or labels

Icon of a crossed wrench and screwdriver inside a circular frame, with no text or symbols

Two circular icons: a hand holding a document and a grid of dots, both without any text or symbols.

Line drawing of a small appliance with an arrow pointing to a lid, accompanied by a legend for color codes (no text or symbols on the device itself)

Three circular icons with pixelated shapes: a hand holding a leaf, a circle containing a grid of squares, and a leaf with a small dot (no text or symbols)

② Zvolte ODVÁPNĚNÍ

Simple line drawing of a mechanical device with an arrow indicating rotation (no text or symbols)

Simple gear icon inside a circle with a small cross symbol on the left (no text or symbols)

Simple line icons representing an open book, a water droplet with a leaf, and a power button (no text or symbols)

② Zvolte Tvrdost vody

Simple line drawing of a water spray bottle with a funnel and droplet, no text or symbols present.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a modular kitchen or storage unit with internal compartments and a rack (no text or symbols)

Technical line drawing of a device interior with no visible text or symbols

Dzbanek na mleko

Vas pentru lapte

Line drawing of a closed refrigerator with handle and side panel, no text or symbols present

Abstract line drawing of a stylized object with a rounded rectangle and a cylindrical base, set against a solid purple background (no text or symbols)

Obrócić pokrętło

WYBIERZ, aby

poruszać się w lewo

lub w prawo celem

wybrania napoju

Apăsați rotița

SELECTARE pentru

Line drawing of a faucet with liquid level indicator (no text or symbols)

Line drawing of a handwashing machine with orange arrows indicating ports (no text or symbols)

Simple line drawing of an electrical outlet with a plug and power plug, showing a circular icon with a lightning bolt (no text or symbols)

Line drawing of a hand washing machine with a highlighted circular section (no text or symbols)

Line drawing of a sewing machine with two circular insets showing hand positioning and sewing steps (no text or symbols)

< 1 minute

Line drawing of a hand washing machine with a highlighted orange circle (no text or symbols)

Line drawing of a hand operating a device with a circular highlight (no text or symbols)

Line drawing of a car intake manifold with a highlighted circular section (no text or symbols)

Line drawing of a container pouring liquid into a cup (no text or symbols)

Line drawing of a mechanical device with a highlighted circular section showing a hand operating the lever (no text or symbols present)

Line drawing of a coffee maker with an inset close-up showing the mechanism (no text or symbols)

Diagram illustrating a coffee machine with hands operating, showing step-by-step instructions for lifting and adjusting the cup.

Line drawing of a hand using a coffee machine to press coffee into a cup (no text or symbols present)

Line drawing of a coffee machine with a cup and tray, no text or symbols present

Line drawing of a container pouring liquid into a cup (no text or symbols)

Line drawing of a coffee machine with a cup and side arm, showing a close-up inset (no text or symbols)

Line drawing of a coffee machine with a cup and handle, no text or symbols present

Line drawing of a toaster with coffee cup and stand mixer (no text or symbols)

Line drawing of a kitchen sink with a kettle and ventilation grilles (no text or symbols)

Line drawing of a hand using a manual machine to press or install a coffee machine (no text or symbols visible)

Line drawing of a coffee machine with a cup and side table, no text or symbols present

Line drawing of a coffee machine with a cup and coffee cup, no text or symbols present

Line drawing of a toaster with hands using a coffee cup and two cups (no text or symbols)

Line drawing of a coffee maker with two cups, no text or symbols present

Illustration of a pitcher pouring milk into a cup (no text or symbols)

Line drawing of a container pouring liquid into a cup (no text or symbols)

Line drawing of a coffee machine with a cup and side arm, showing a close-up of its interior components (no text or symbols)

Line drawing of a coffee machine with a cup and handle, no text or symbols present

Line drawing of a hand using a portable coffee machine with a coffee cup and control panel (no text or symbols)

Line drawing of a coffee machine with a cup and hand mixer (no text or symbols)

Line drawing of a coffee machine with a cup and side arm, no text or symbols present

Line drawing of a kettle placed on a tray with an orange arrow indicating the point of change (no text or symbols)

Line drawing of a toaster with hands using a spoon and coffee cup (no text or symbols)

Line drawing of a coffee maker with a cup and beer mug, no text or symbols present

Line drawing of a coffee maker with cups and a tray, no text or symbols present

Line drawing of a hand using a coffee machine to press coffee into cups (no text or symbols)

Line drawing of a coffee machine with cups and a tray, no text or symbols present

Illustration of two coffee cups pouring milk from a container (no text or symbols)

Line drawing of a container pouring liquid into a cup (no text or symbols)

Line drawing of a toaster oven with control panel and indicator lights (no text or symbols)

Line drawing of a hand operating a small device with a circular highlight (no text or symbols)

Line drawing of a mechanical device with a highlighted circular section showing internal components (no text or symbols)

Line drawing of a kettle placed on a tray with an orange arrow indicating upward motion (no text or symbols)

Line drawing of a hand operating a small kitchen appliance (no text or symbols)

7

Line drawing of a toaster oven with a highlighted orange button (no text or symbols)

8

Line drawing of a portable kitchen appliance with a cylindrical tank and control panel (no text or symbols)

9

Illustration of a hand using a portable water heater with a yellow downward arrow indicating action (no text or symbols present)

10

Line drawing of a laboratory brush with a beaker and control panel (no text or symbols)

||

Line drawing of a mechanical device with a highlighted circular section (no text or symbols)

1 Obrócić pokrętło

Technical line drawing of a mechanical device with a hand operating the dashboard (no text or symbols)

② Nacisnąć pokrętło

Line drawing of a hand operating a manual washing machine (no text or symbols)

Technical line drawing of a mechanical device with two circular insets showing hand positioning (no text or symbols)

Technical line drawing of a sewing machine with two circular insets showing hand positioning (no text or symbols)

Line drawing of a hand operating a device with a circular highlight (no text or symbols)

Technical line drawing of a mechanical device with two circular insets showing hand positioning (no text or symbols)

Technical line drawing of a mechanical device with two circular insets showing hand positioning (no text or symbols)

Technical line drawing of a mechanical device with a highlighted circular section (no text or symbols)

Line drawing of a portable coffee maker with handle and spout, showing internal components and mounting bracket (no text or symbols)

Technical line drawing of a sewing machine with two circular insets showing hand positioning (no text or symbols)

Line drawing of a car interior showing hand扶els and dashboard (no text or symbols)

Diagram illustrating a kitchen appliance assembly with labeled parts including grater, heater, and fan.

Simple icon set with a mug, thermometer, and cup (no text or symbols)

Line drawing of a toaster with a door handle and control panel, no text or symbols present

Line drawing of a toaster oven with a hand inserting a button to the tray (no text or symbols)

Illustration of a hand washing machine with a water tap and warning symbol (no text or labels)

Icon of a crossed wrench and screwdriver inside a circular frame, with no text or symbols

Two circular icons: a hand holding a document and a grid of dots, both without any text or symbols.

Line drawing of a small appliance with an arrow pointing to its lid, accompanied by a legend for selection or adjustment (no text or symbols on the device itself)

Three circular icons with pixelated patterns: a hand holding a paper, a circle containing a grid of squares, and a leaf with a small dot (no text or symbols)

Wybrać DESCALE (ODKAMIENIANIE) Selectați DETARTRARE

Simple line drawing of a mechanical device with an arrow indicating rotation (no text or symbols)

Simple gear icon inside a circle with a small cross symbol on the left (no text or symbols)

Three circular icons: an open book, a water droplet with a leaf, and a power button, arranged horizontally (no text or symbols)

2 Wybrać WATER HARDNESS (TWARDOŚĆ WODY)

Simple line drawing of a water dispenser with a funnel and droplet, no text or symbols present

Line drawing of a faucet with liquid level, no text or symbols present

Spoel de watertank om

Line drawing of a kitchen blender with labeled parts (no text or symbols)

Simple line drawing of an electrical outlet with a plug and power plug, no text or symbols present.

Line drawing of a hand washing machine with a highlighted circular section (no text or symbols)

Line drawing of a sewing machine with two circular insets showing hand positioning and sewing steps (no text or symbols)

Line drawing of a coffee maker with a hand and lid, showing internal components (no text or symbols)

Line drawing of a hand operating a device with a circular highlight (no text or symbols)

Line drawing of a car gear shift lever with a highlighted circular section (no text or symbols)

Café Latte Cappuccino START CANCE SELECT START CANCE SELECT

Line drawing of a container pouring liquid into a cup (no text or symbols)

Line drawing of a mechanical device with a highlighted circular section showing a hand operating the lever (no text or symbols present)

Line drawing of a coffee machine with an inset close-up showing hand positioning (no text or symbols)

Diagram illustrating a coffee machine with hands operating, showing step-by-step instructions for lifting and adjusting the cup.

Line drawing of a hand using a coffee machine to press coffee into a cup (no text or symbols)

Line drawing of a coffee machine with a hand holding a cup and a tray, showing no text or symbols.

Line drawing of a container pouring liquid into a cup (no text or symbols)

Line drawing of a coffee machine with a cup and side arm, showing a close-up inset (no text or symbols)

Line drawing of a coffee machine with a cup and lever, no text or symbols present

Line drawing of a modern toaster with coffee cup and side panel (no text or symbols)

Line drawing of a kettle placed on a tray with an orange arrow indicating upward motion (no text or symbols)

Line drawing of a hand using a manual saucer with a yellow downward arrow indicating the process (no text or symbols present)

Line drawing of a coffee machine with a cup and tray, no text or symbols present

Line drawing of a coffee machine with a cup and coffee cup, no text or symbols present

Line drawing of a toaster with hands using a coffee cup and two cups (no text or symbols)

Line drawing of a coffee maker with two cups, no text or symbols present

Illustration of a pitcher pouring liquid into a cup of coffee (no text or symbols)

Line drawing of a container pouring liquid into a cup (no text or symbols)

Line drawing of a coffee machine with a cup and lid, showing internal components (no text or symbols)

Line drawing of a coffee machine with a cup and handle, no text or symbols present

Line drawing of a hand using a coffee maker with a downward arrow indicating compression (no text or symbols)

4 Til de hendel omhoog

Illustration of a hand using a coffee machine with a cup, showing mechanical components and a magnified view of the cup (no text or symbols present)

Line drawing of a coffee machine with a cup and side arm, no text or symbols present

Line drawing of a kettle placed on a tray with an orange arrow indicating the point of change (no text or symbols)

Line drawing of a hand using a blender to press coffee into a cup (no text or symbols)

9 Als de melk is

Line drawing of a toaster with coffee cup and two cups (no text or symbols)

Plaats uw tweede

Line drawing of a coffee machine with cups and a tray, no text or symbols present

⑫ Til de hendel omhoog

Illustration of a hand using a self-service coffee machine with cups and a coffee cup, no text or symbols present.

13 Druk op START | ANNULEREN

Line drawing of a coffee machine with two cups and a lid, no text or symbols present

Illustration of two coffee cups pouring milk from a glass (no text or symbols)

Line drawing of a container pouring liquid from a bucket into a bag (no text or symbols)

Line drawing of a toaster oven with control panel and indicator lights (no text or symbols)

Line drawing of a hand operating a small device with a circular highlight (no text or symbols)

Line drawing of a mechanical device with a highlighted circular section showing internal components (no text or symbols)

Line drawing of a kettle placed on a tray with an orange arrow indicating upward motion (no text or symbols)

Line drawing of a hand inserting a small component into a device (no text or symbols)

7

Line drawing of a toaster with an orange button on the door (no text or symbols)

8

Line drawing of a kitchen toaster with a cup and handle (no text or symbols)

9

Illustration of a hand using a portable device to press or install a cup (no text or symbols visible)

10

Line drawing of a hand using a water dispenser with a glass container and control panel (no text or symbols)

⑪

Line drawing of a hand operating a device with a circular highlight (no text or symbols)

Technical line drawing of a mechanical device with a hand operating controls (no text or symbols)

Line drawing of a hand using a manual washing machine, showing internal components and a highlighted section (no text or symbols)

Technical line drawing of a mechanical device with two circular insets showing hand positioning (no text or symbols)

Technical line drawing of a sewing machine with two circular insets showing hand positioning (no text or symbols)

1

Line drawing of a hand operating a manual pump device with a highlighted handle (no text or symbols)

2

Line drawing of a mechanical device with two circular insets showing hand positioning (no text or symbols)

3

Technical line drawing of a mechanical device with two circular insets showing hand positioning (no text or symbols)

4

Line drawing of a mechanical device with a hand operating controls (no text or symbols)

5

Line drawing of a coffee maker with a stand and handle, showing internal components without any text or symbols.

Line drawing of a sewing machine with two circular insets showing hand positioning (no text or symbols)

Line drawing of a mechanical device with a highlighted circular section (no text or symbols)

Diagram illustrating the assembly of a microwave oven with labeled parts and an inset showing the process.

Illustration of a mug with a handle, accompanied by three circular icons representing temperature, water, and a cup (no text or symbols)

Line drawing of a toaster oven with a tray and control panel, no text or symbols present

Line drawing of a hand using a kettlebell to press or install a coffee machine (no text or symbols present)

Diagram of a handwashing device with warning symbol and warning sign, showing no text or labels

Icon of a crossed wrench and screwdriver inside a circular frame, with no text or symbols

Two circular icons: a hand holding a document and a grid of dots, both without any text or symbols.

Line drawing of a small appliance with an arrow pointing to its lid, accompanied by a color-coded legend (no text or symbols on the device itself)

Three circular icons with pixelated shapes inside, no text or symbols present

Selecteer ONTKALKEN

Simple line drawing of a mechanical device with an arrow indicating rotation (no text or symbols)

Simple gear icon inside a circle with a small cross symbol on the left (no text or symbols)

Three circular icons: an open book, a water droplet with a leaf, and a power button, arranged horizontally (no text or symbols)

② Selecteer Waterhardheid

Simple line drawing of a water dispenser with a funnel and droplet, no text or symbols present
