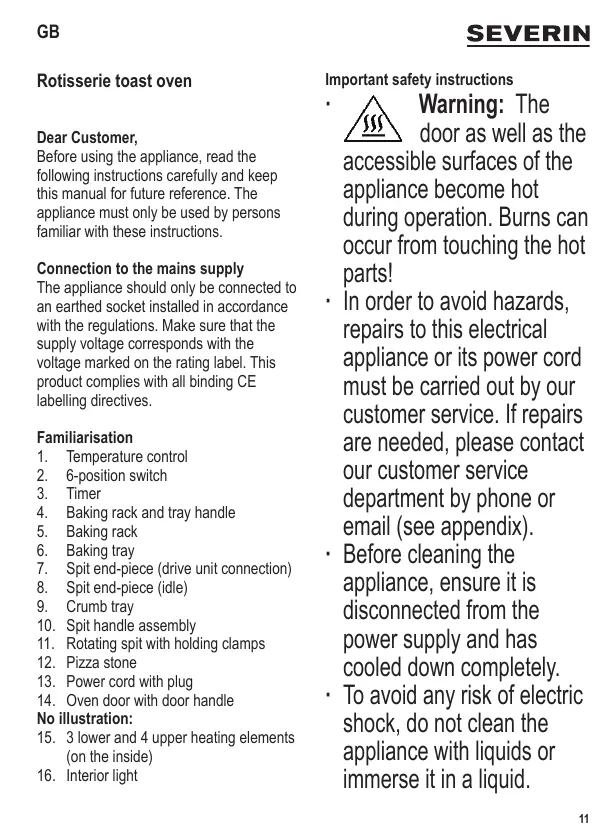

USER MANUAL TO2066 SEVERIN

Before using the appliance, read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with all binding CE labelling directives.

Familiarisation

1. Temperature control
2. 6-position switch
3. Timer
4. Baking rack and tray handle
5. Baking rack
6. Baking tray
7. Spit end-piece (drive unit connection)
8. Spit end-piece (idle)
9. Crumb tray
10. Spit handle assembly
11. Rotating spit with holding clamps
12. Pizza stone
13. Power cord with plug
14. Oven door with door handle

No illustration:

1. 3 lower and 4 upper heating elements (on the inside)
2. Interior light

Important safety instructions

Warning: The door as well as the accessible surfaces of the appliance become hot during operation. Burns can occur from touching the hot parts!
- In order to avoid hazards, repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs are needed, please contact our customer service department by phone or email (see appendix).
- Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
- To avoid any risk of electric shock, do not clean the appliance with liquids or immerse it in a liquid.

Always clean the appliance after use. For detailed information, please refer to the section Cleaning and care.
- The appliance is not intended to be operated by means of an external timer or separate remote-control system
- This appliance is intended for domestic or similar applications, such as

• in staff kitchens in shops, offices and other similar working environments,
• in agricultural working environments,
• by customers in hotels, motels etc. and similar accommodation,

• in bed-and breakfast type environments.

• This appliance may be used by children (at least 8 years of age) and by

persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.

Children must not be permitted to play with the appliance.
Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised and at least 8 years of age.
- The appliance and its power cord must be kept well away from children under 8 at all times.
- Caution: Keep any packaging materials well away from children - such materials are a potential source of danger, e.g. of

suffocation.

• Every time the appliance is used, the main body including the power cord as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.
• Do not touch the heating elements.
• Before the appliance is used, the crumb tray must be fitted in its proper position under the heating elements.
  Overheated oil or fat may ignite. Therefore, do not overfill the baking tray; this will prevent fat from dripping onto the heating elements below.
• Do not leave the appliance unattended while in use.
• Do not operate or store the appliance outdoors.
• Sufficient ventilation must be ensured at all times. Do not place any objects on the unit, and make sure that the following minimum distances from any wall or other object are maintained:

Side: 12 cm

Rear: 12 cm

Top: 30 cm

• The unit must not be installed inside a cupboard; when positioning the unit, also ensure that it is not placed directly underneath a shelf or any other similar object.

• The feet on the base of the unit must not be removed.

• Do not position or operate the appliance close to or underneath any wall-cupboards or hanging objects such as curtains or any inflammable materials.

• During operation, the appliance must be placed on a heat-resistant surface, impervious to splashes and stains. Do not position the appliance on or near hot surfaces, open flames or inflammable vapours.
• Caution: The pizza stone becomes very hot during use, and will only cool down very slowly after the appliance has been switched off and disconnected from mains power. There is a severe danger of burns in any case of contact.
  Always let the pizza stone cool down completely before it is removed from the appliance.
• Caution: Do not place aluminium foil or anything similar between the baking rack and the pizza stone. Place the stone directly onto the rack.
• Do not allow the power cord to touch any hot parts of the appliance.
• Do not let the power cord hang free.
  Always switch off and remove the plug from the wall socket after use, in cases of malfunction, and during cleaning.
• When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself. Do not touch the plug with wet hands.
• No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.

Before using for the first time

• Unpack the appliance and remove all internal and external packaging materials and promotional stickers etc. Clean the appliance (see Cleaning and care).
• Before using the appliance for the first time, let it heat up at maximum power for 10 minutes with both heating elements on. When the appliance is switched on for the first time, a slight smell may be emitted. This is normal and will only last for a very short time. For that reason, adequate ventilation should be ensured by opening windows or balcony doors.

Temperature control

With the temperature control knob, the temperature can be set to the desired level (100 - 230 °C).

6-position switch settings

Upper heat
Upper and lower heat
Hot-air convection / Upper heat
Hot-air convection / Upper and lower heat
Rotating spit / Upper heat
Rotating spit / Upper heat / Hot-air convection

The heating elements will only be switched on after the timer is activated.

Timer

• The timer can be used for selecting a cooking time (up to 120 minutes).
• To turn the appliance off, turn the timer knob to position OFF.
• To set a time of less than 20 minutes, turn the timer to a somewhat higher setting first and then slowly turn it back to the desired time setting.
  After the pre-programmed time has elapsed, an acoustic signal indicates that the heating elements are switched off.

Timer light ring

The light ring lights up while the appliance is switched on. It goes out once the preprogrammed time has elapsed, or if the switch is turned back its OFF position.

Rotating spit

• When the food to be cooked is put onto the spit, make sure that it does not come into contact with the upper or lower heating elements; ensure sufficient distance.
• When loading the rotating spit, do not exceed 3kg .
• Pierce the food to be cooked on the spit, making sure that the spit goes through the middle. This is to ensure that the food does not go to near the interior walls or the heating elements. Use the holding clamps to secure the food in the centre of the spit.
• Any parts sticking out (e.g. wings of a chicken) should be held in with a toothpick, a piece of string or other suitable means. This ensures that no part of the

food can protrude or come off during the cooking process.

• Inserting and removing the rotating spit:

• Place the loaded spit onto the handle assembly. Ensure that the spit is safely supported in the recesses in the handle.

• Slide the spit end-piece with the drive unit connection into the drive unit (see picture II).
• Place the idle end of the spit into its holding bracket on the opposite side (see picture I).
• To remove the rotating spit, follow these steps in reverse order.

Pizza stone

Always place the pizza stone on the middle of the baking rack before inserting the rack into the appliance.
- Preheat the appliance to the required temperature as described in the section Operation.
- With certain pre-baked pizzas made from especially light dough, the preheating phase should be shortened; this is to prevent the bottom layer of the pizza dough from browning too fast.
After pre-heating, open the door and use a spatula to place the pizza on the centre of the stone. The pizza should be slightly smaller than the stone so that there is a clear space all round it.
- The pizza is ready once the cheese topping has melted and the bottom of the dough is slightly brown. Use a spatula for removing the pizza and serving it.

Operation

Before using the appliance, make sure that the crumb tray is fitted in its proper position underneath the lower heating element.
- Pre-heat the oven compartment for several minutes with the door closed, using both heating elements. Set the temperature control knob to the required level and use the timer control knob to select the desired pre-heating time.
- Place the food to be cooked on the baking rack. When cooking food containing fat or moisture, use the baking tray to stop any dripping into the interior of the appliance.

If the pizza stone is used, it should be placed straight onto the baking rack.

• Close the door, set the temperature control to the required level, turn the 6-position switch to the desired function, and use the timer knob to select the desired cooking time.
  After the pre-programmed cooking time has elapsed, the timer will automatically switch off the appliance.
• To switch off the appliance earlier, set the timer to its OFF position.
  Always use the door handle to open the hot door after use.
• When removing the baking tray or rack, use the tray/rack handle. Likewise, when removing the spit, the spit handle must be used. Always place the baking tray and rack on a heat-resistant surface.
• Remove the plug from the wall socket after use.

Cooking times

The grilling/cooking times listed are approximate times only, as each food to be grilled or cooked is of a different nature and consistency; please also refer to the information contained on the food packaging.

Food	Temperature / setting	Grilling / cooking time
Chicken (rotating spit)	230°C	60 mins.
	or
Pizza (deep-frozen)	220°C	10-12 mins.
Toast Hawaii	220°C	14-16 mins.
Baguette (deep-frozen)	220°C	14-15 mins.

Cleaning and care

• Before cleaning the appliance, ensure it is disconnected from the power supply and has completely cooled down.
• To avoid any risk of electric shock, do not clean the appliance with liquids or immerse it in a liquid.
• Do not use abrasives, harsh cleaning solutions or spray-type oven cleaners.
• The exterior of the housing may be cleaned with a damp, lint-free cloth.
  After cooking a chicken, ensure that any fat that may have dripped onto the lower heating elements is completely removed using a damp cloth.
• The baking tray, baking rack, spit and holding clamps may be cleaned using hot water and a mild detergent.
• The crumb tray may be taken out for cleaning. Any large accumulation of fat in the tray should first be cleaned up with a paper towel. Make sure that the tray is refitted in its proper position under the heating elements.
• Allow the pizza stone to cool down completely before cleaning. Any remaining food can be scraped off with a wooden spatula. Because the surface is porous, discoloration as a result of contact with food is normal.
• If the stone has been rinsed in water during the cleaning process, ensure that it has dried of completely before it is used again. Only a completely dry stone ensures best baking results.

Changing the interior lamp bulb

A defective bulb may be replaced. Disconnect the appliance from the mains, remove the screws and take off the lamp cover. Replace the defective bulb with a commercially available type E14 (15-25 W), and refit the cover.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials

which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
