PG 8137 - Mini oven SEVERIN - Free user manual and instructions

Product Type	Electric mini-oven with grill function
Brand	Severin
Model	PG 8137
Power supply	220-240 V ~ 50/60 Hz
Power	Approx. 2000 W
Grill temperature range	80 °C to 320 °C
Boost zone (searing)	330 °C to 500 °C
Timer	1 min to 23 h 59 min
Water tank capacity	2.0 L max
Probe thermometer	Included, adjustable for core temperature
Number of thermometers supplied	1 piece
Materials	Stainless steel, tempered glass, plastic
Cleaning the grates	Dishwasher or hot water with mild detergent
Cleaning the heating element	Do not immerse, wipe with a damp cloth
Safety	Automatic shut-off after 5 min in standby mode, safety switch
Outdoor use	Yes, with a 30 mA residual-current circuit breaker
Spare parts available	Probe thermometer ZB 8126
Warranty	2 years, material and manufacturing defects
Country of manufacture	Germany

Frequently Asked Questions - PG 8137 SEVERIN

How to use the Boost zone function?

Turn the rotary control until the Boost zone icon lights up, select the temperature between 330 and 500 °C, then place the food on the right zone. Do not close the lid during use.

What is the maximum water volume in the tank?

The water reservoir tank can hold up to 2.0 litres of water. Do not exceed the Max mark.

How to clean the heating element?

Unplug and let cool. Never immerse the heating element in water. Clean it with a slightly damp soft cloth. The grate, tank, and its inserts are dishwasher safe.

Can the mini-oven be used outdoors?

Yes, it is designed for outdoor use, but must be plugged in via a residual-current circuit breaker of 30 mA maximum.

How to set the timer?

Turn the control to the timer icon, press to confirm, then set the hours and minutes by turning. Confirm. Beeps signal the end.

What to do if the grill does not heat up?

Check that the junction box is properly installed (safety switch). Make sure the water tank is filled and the appliance is plugged in.

Can charcoal be used?

No, never use charcoal or other fuel. The appliance operates only on electricity.

How to use the probe thermometer?

Plug the probes into the sockets of the junction box. Set the desired core temperature via the rotary control. Beeps sound when the temperature is reached.

What is the warranty?

The manufacturer offers a 2-year warranty against material and manufacturing defects from the date of purchase.

How to assemble the cart?

Follow the diagrams in the manual: insert the legs into the frame, tighten the screws, mount the wheels and shelves. Use a Phillips screwdriver.

USER MANUAL PG 8137 SEVERIN

Exterior view of two black SEVO electric cookers with wheels and control panel (no signage)

ART.-NO. PG 8106 / PG 8107 / PG 8137 SEVO GT / GTS

GB Instructions for use

FR Mode d'emploi

Exploded view diagram of a microwave oven with numbered parts for identification

9 8

PG 8107 / PG 8137

Technical diagram of a portable kitchen appliance with numbered parts for identification

Tischgrill / Standgrill

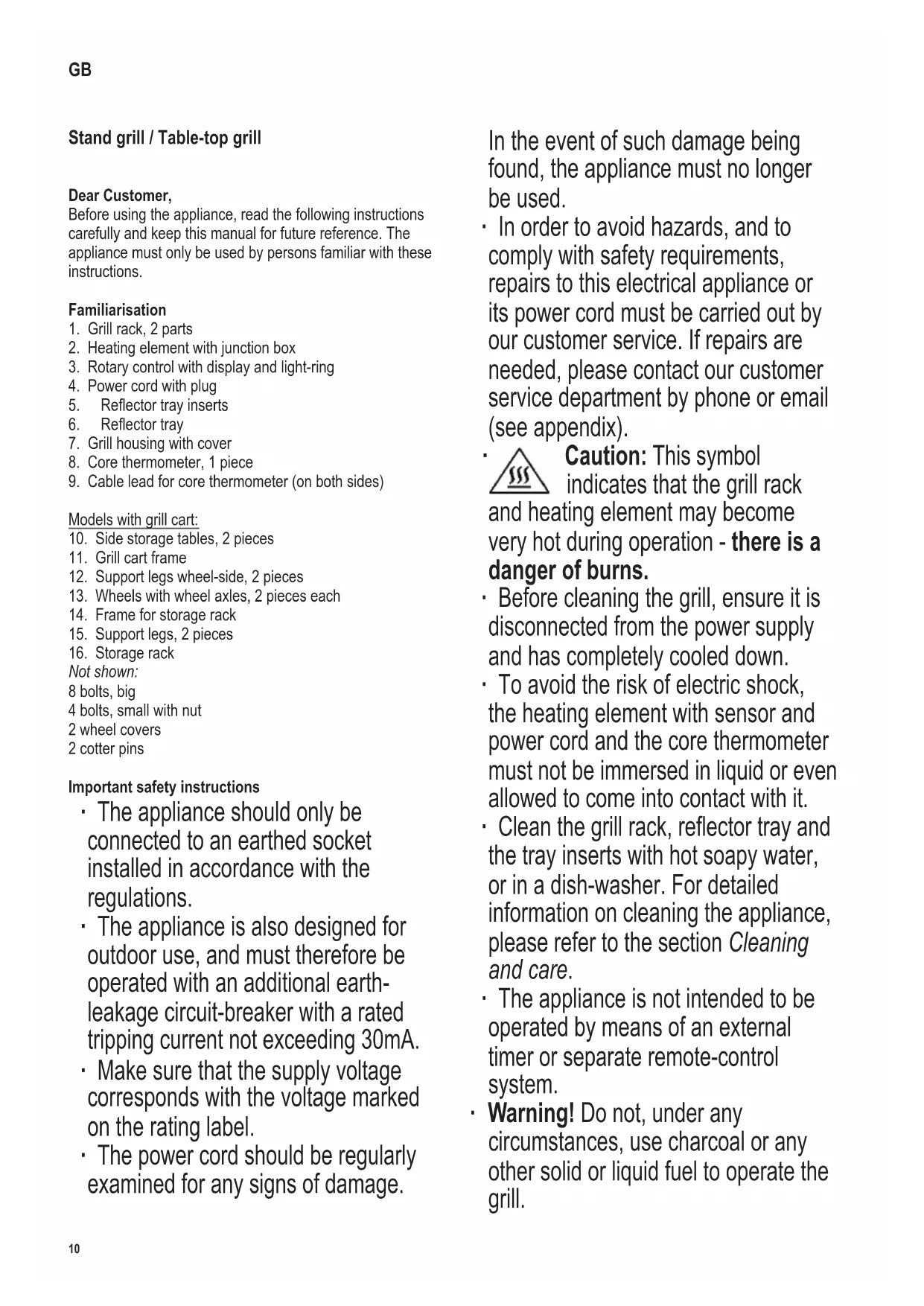

Before using the appliance, read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Familiarisation

1. Grill rack, 2 parts
2. Heating element with junction box
3. Rotary control with display and light-ring
4. Power cord with plug
5. Reflector tray inserts
6. Reflector tray
7. Grill housing with cover

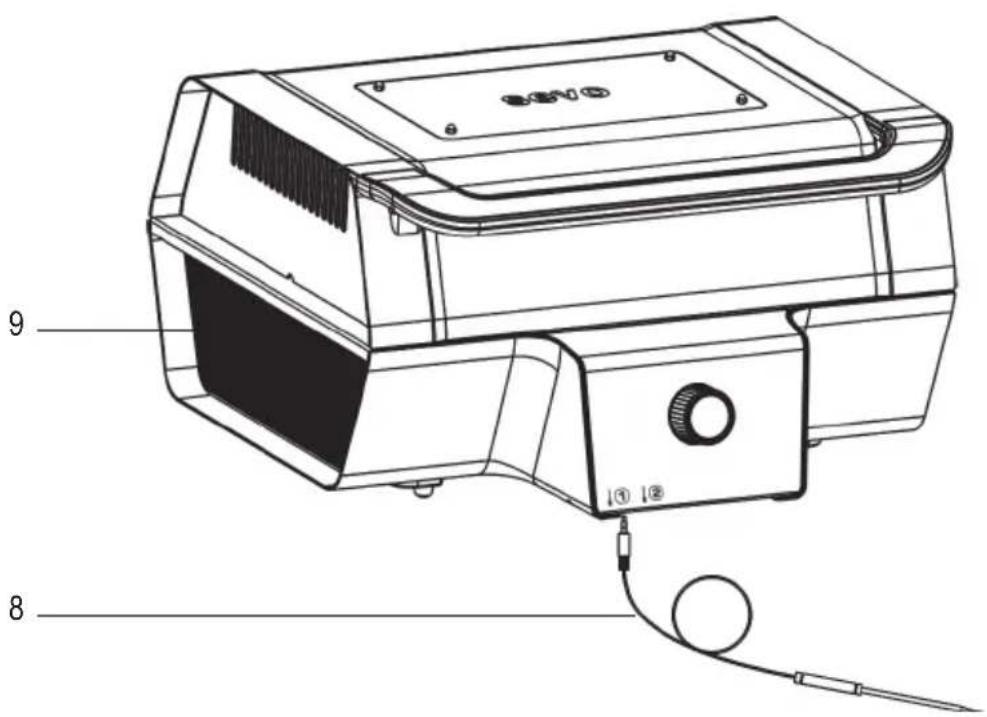

8. Core thermometer, 1 piece
9. Cable lead for core thermometer (on both sides)

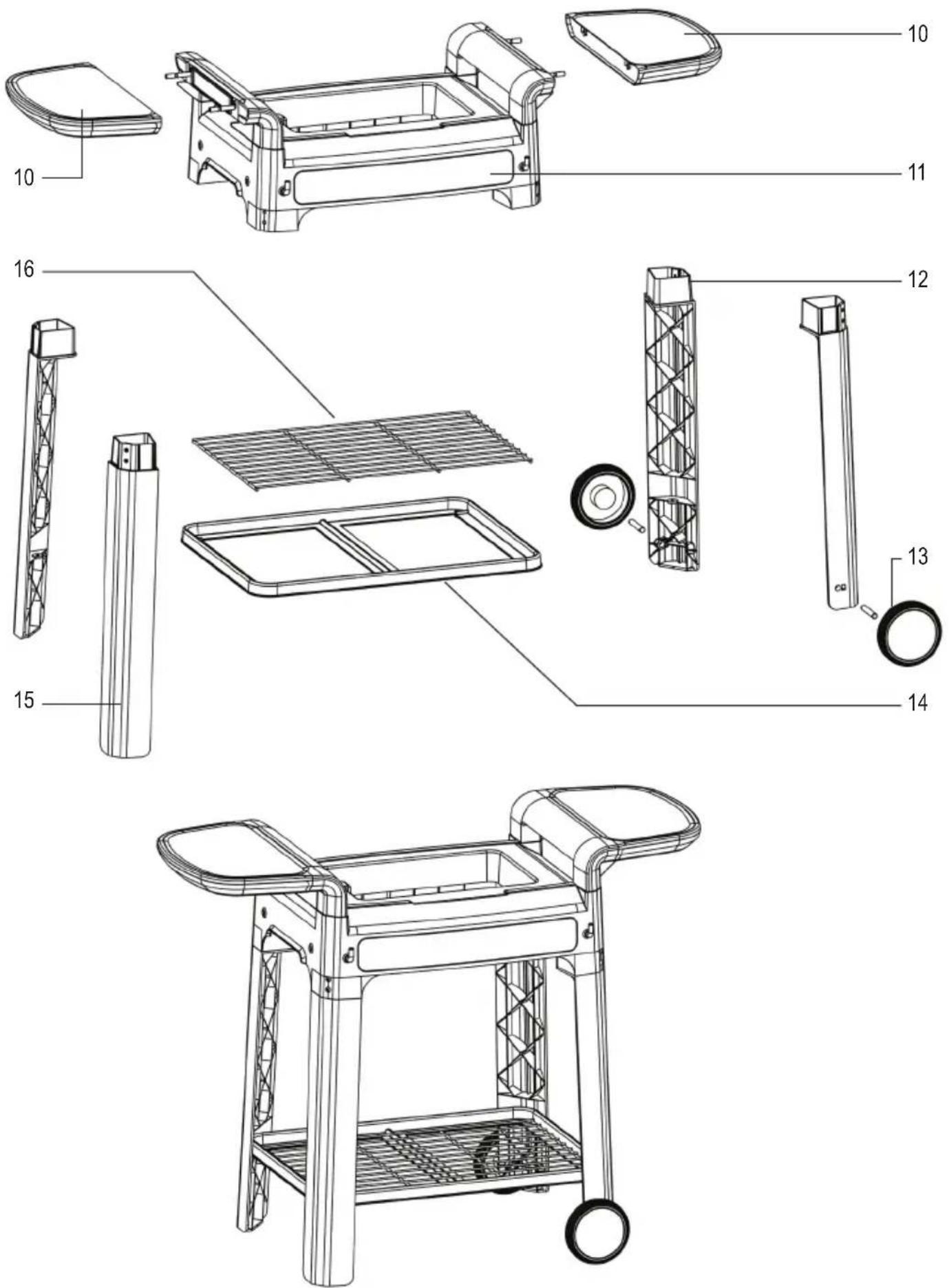

Models with grill cart:

1. Side storage tables, 2 pieces
2. Grill cart frame
3. Support legs wheel-side, 2 pieces
4. Wheels with wheel axles, 2 pieces each
5. Frame for storage rack
6. Support legs, 2 pieces
7. Storage rack
   8 bolts, big
   4 bolts, small with nut
   2 wheel covers
   2 cotter pins

Not shown:

Important safety instructions

• The appliance should only be connected to an earthed socket installed in accordance with the regulations.
• The appliance is also designed for outdoor use, and must therefore be operated with an additional earth-leakage circuit-breaker with a rated tripping current not exceeding 30mA.
• Make sure that the supply voltage corresponds with the voltage marked on the rating label.
• The power cord should be regularly examined for any signs of damage.

In the event of such damage being found, the appliance must no longer be used.

• In order to avoid hazards, and to comply with safety requirements, repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs are needed, please contact our customer service department by phone or email (see appendix).

Caution: This symbol indicates that the grill rack ting element may become during operation - there is a of burns.

• Before cleaning the grill, ensure it is disconnected from the power supply and has completely cooled down.
• To avoid the risk of electric shock, the heating element with sensor and power cord and the core thermometer must not be immersed in liquid or even allowed to come into contact with it.
• Clean the grill rack, reflector tray and the tray inserts with hot soapy water, or in a dish-washer. For detailed information on cleaning the appliance, please refer to the section Cleaning and care.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

• Warning! Do not, under any circumstances, use charcoal or any other solid or liquid fuel to operate the grill.

• Caution: Do not cover the grill rack with aluminium foil, barbecue dishes or other items, as the resulting build-up of heat could seriously damage the grill.

• A maximum of 2 litres of water may be poured into the reflector tray.
• This appliance is intended for domestic or similar applications, such as

- in staff kitchens in shops, offices and other similar working environments, - in agricultural working environments, - by customers in hotels, motels etc. and similar establishments, - in bed-and breakfast type environments.

- This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.

• Children must not be permitted to play with the appliance.
• Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised and at least 8 years of age.

• The appliance and its power cord must be kept well away from children under 8 at all times.

• Caution: Keep any packaging materials well away from children – these are a potential source of danger, e.g. of suffocation.

• Before the appliance is used, the main body as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.
• During operation, the grill must be placed on a level, heat-resistant surface, impervious to splashes and stains. When grilling food with a high fat or moisture content, splashes are not always avoidable.
• Do not position the grill next to a wall or corner, and ensure that no inflammable materials are stored near it.
• Remember that food with a high fat or moisture content may tend to ignite; therefore always fill the reflector tray with water before use. Do not connect the grill to mains power until the trey has been filled with water. The water helps to cool down the reflector tray, reduces the build-up of smoke, and also facilitates cleaning.
• Keep monitoring the water level. Water should be added in good time, while ensuring that it does not come into contact with the heating element. Caution: Disconnect the grill from the mains before adding water.
• Before the grill is used, always check that the heating element is correctly fitted in the housing and reflector tray.
• The grill must be supervised at all times during operation.
• Do not allow the power cord to touch any hot parts of the appliance.
• Route the power cord in such a way that no one can trip over it.
  • Always remove the plug from the wall socket

- before filling with water,

• after use,
• in case of any malfunction, and

• during cleaning.

• The use of an extension cord or reel causes a loss of power, possibly combined with a subsequent heat build-up in the cable. It is therefore necessary to unwind the cable completely before use. Make sure that the cord is approved for outdoor use and for the power specified (see rating label).

• Do not move the grill cart by pushing at the side table. Take off the side table first and always grip the frame.
• Do not use the grill cart to transport any items.
• Never move the barbecue while it is in operation.
• Remove water after use.

• Caution! Always make sure that the barbecue has cooled down completely before it is moved, cleaned, covered or stored.

• Caution! Whenever the barbecue is not in use, the heating element with the connection box must be removed from the barbecue and stored in a dry space indoors.

• The other parts of the barbecue must not be stored outdoors or in an open area where they could be affected by the weather.
• The grill may only be used with the supplied core thermometer or the SEVERIN item no. ZB 8126.
• No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.
• This product complies with all binding CE labelling directives.

Before using for the first time

• Remove any packaging materials and stickers from the appliance.
• Clean the grill rack, reflector tray and the tray inserts with warm soapy water; wipe thoroughly dry afterwards.
• Assemble the appliance as described in Preparing the unit.
• Let the grill heat up for approximately 10 minutes at maximum power without any food (see 'Boost-zone' grilling). This will remove the smell typically encountered when first switching on a grill. A little smoke may be emitted; for that reason, adequate ventilation should be ensured by opening windows or balcony doors; an extractor hood is also suitable.

Grill assembly

- Assemble the grill as shown in the diagrams:

• Place the reflector tray into the grill housing.
• Note: Fit the tray inserts so that each insert covers four protrusions.
• Fit the heating element with junction box into the reflector tray. The appliance is equipped with a safety switch. The unit can be operated only with the junction box properly installed.
• Fit both grill rack elements so that the studs on the rack fit into the corresponding openings in the reflector tray.

Grill cart assembly

• For grill models with grill cart, assemble the cart as shown in the diagram.
• For assembly, a Phillips screwdriver is needed.

• Prior to assembly, check that all parts are complete as listed in the Familiarisation section.

• Assembly:

• Place the grill cart frame upside-down on the floor.

• Insert the four support legs into the housing and secure each support leg with two big bolts. The two support legs with the additional holes for the wheels must be mounted together on the narrow side of the grill cart.
• Turn the frame with the support legs upright.
• Fit the plastic frame of the storage rack and secure it on all four support legs, using the corresponding bolts and nuts; then fit the storage rack.
• Slide the wheel axles through the openings on the support legs and put on the wheels. Secure each wheel with one of the cotter pins and clip on the wheel covers.
• Fit the side tables onto the corresponding metal pins.
• Ensure that the grill cart is stable. Check the bolts regularly for firm connection.
• Place the assembled grill on top.

Caution:

• Do not exceed a maximum load of 3 kg for the side tables, and 20 kg for the storage rack.
• If you need to move the grill, remove the table on the side opposite from the wheels and grip the frame.

Preparing the unit

• Assemble the appliance as described in Grill assembly. For grill models with grill cart, refer to Grill cart assembly.
• Fill the reflector tray with water to the Max marking (max 2 litres). Do not pour water on the heating element or its sensor.

Hint!

During grilling, the water in the reflector tray should be replenished in good time. Caution: Always disconnect the appliance from the mains before re-filling.

• Connect the appliance to the mains.
• The light ring lights up blue, the unit is ready for use.

Rotary control

The rotary control is used for function selection or switching off (Sleep mode).

Turn:

Select the Function/Temperature/Timer.

Push - short:

Confirm the selection.

Push - two seconds:

1 x: return to stand-by mode to change a function
2 x: return to sleep mode

Rotary control - light ring

The light ring indicates the current operating mode:

No light:

The unit is in sleep mode.

Blue light:

The unit is in stand-by mode.

Flashing:

The grill rack has not yet reached the selected temperature.

The unit is heating up or cooling down.

Steady:

The selected temperature has been reached.

Orange:

Grilling at 80-320 °C

Red:

Boost-zone 330-500 °C

Timer

The timer is used to monitor the grilling time. It can be set from 1 min to 23 h 59 mins. Beep signals indicate that the running time has elapsed; the heating element remains switched on.

• Turn the rotary control until lights up.
- Press the rotary control briefly and turn to select the hours.
- Press the rotary control briefly and adjust the minutes.
- Confirm the time setting by briefly pressing the control. The colon starts flashing; once the time has elapsed, beep signals are heard.
- To return to stand-by mode, press the rotary control for two seconds.
• Alternatively, set the timer to 0:00, and press the control briefly to return to stand-by mode.
- If the heating is switched off after the timer is set, the appliance will change to sleep-mode 5 minutes after the last input, i.e. the timer is switched off.
- If the timer is set with the heating already off, it will continue until the pre-selected time is reached, when the unit changes to sleep-mode.

Grilling at 80-320 °C

To grill sausages, poultry, fish etc. For finishing or keeping warm steaks.

The entire grill surface is heated.

• Turn the rotary control until lights up.
• Press the rotary control briefly and turn to select the desired temperature. Press briefly to confirm.
• The ring starts flashing orange and the appliance is heating up.
• Once the selected temperature has been reached, the ring shows steady orange.
• Place the food on the grill surface.
• Close the cover, if desired.

'Boost-zone' grilling 330-500 °C

For searing or light grilling of steaks.

The boost-zone is located to the right; the left side is heated to 320 °C .

• Turn the rotary control until lights up.
• Press the rotary control briefly and turn to select the desired temperature. Press briefly to confirm.
• The ring starts flashing red and the appliance is heating up.
• Once the selected temperature has been reached, the ring shows steady red.
• Place the food on the boost-zone.

Note:

Do not close the cover during Boost-zone grilling. The Boost-zone function is automatically de-activated when the cover is closed.

- For subsequent cooking, lower the temperature or shift the food to the left on the grill surface.

1 Grilling with the core thermometer

• Scope of supply: 1 piece
Other core thermometers are available under item no. 8126.
- Caution: The core thermometers heat up during use. Use suitable protection, eg barbecue gloves.
- Fit the thermometer plugs into the sockets at the lower left of the junction box. To prevent the appliance from switching off, ensure that the box is not lifted up and stays properly connected.
- Select the desired grill function and temperature.
- Once pre-heating is complete and the ring shows a steady light, put on the food.
- Push the tips of the thermometers into the centre of the food.
- Use the rotary control to set the desired core temperature (or . Press briefly to confirm.
- The display shows the respective current core temperature.
- When using the cover during grilling, the core-thermometer cables should be routed through the cable leads on either side of the cover (see diagram 9).
- Once the pre-set core temperature on one thermometer is reached, three long beep signals are heard.
- Remove the respective thermometer and take off the food.

Note:

The grill plate remains on even after the pre-set core temperature has been reached.

Stand-by mode

• To switch off the heating and return to stand-by mode, press the rotary control for two seconds.
• Alternatively, press the control briefly, set the temperature to 00 and press again briefly to return to stand-by mode.

Sleep mode

• If the heating is switched off, the appliance will change to sleep-mode 5 minutes after the last input.
• To switch off earlier, press the rotary control for two seconds.

After grilling

- Always disconnect the unit from the mains and allow it to cool down after grilling.

Cleaning and care

• Ensure that the grill is thoroughly cleaned after use.
• Before cleaning the grill, ensure it is disconnected from the power supply and has completely cooled down.
• Do not use metallic pads or abrasive cleaning agents.
• Remove the grill rack and clean it in a dish-washer or with warm soapy water. To remove persistent food residues, it can be left soaking for a while.
• Remove the heating element. To avoid the risk of electric shock, do not clean the heating element with water and do not immerse it in water. The heating element with junction box may be wiped with a slightly damp lint-free cloth.
• Take off the reflector inserts and tray and clean them in a dish-washer or with warm soapy water. To remove persistent food residues, they can be left soaking for a while.
• The core thermometer tips may be wiped with a moist cloth.
• All other parts can be cleaned with a cloth soaked in soapy water, and should be wiped completely dry afterwards.

Hint!

- To help clean the grill rack, reflector inserts and tray, baking powder may be used. Mix a paste from water and baking powder, rub the paste onto the affected areas and let it take effect for a while. Clean with a soft brush/sponge and rinse thoroughly afterwards.

- For hard-to-remove residues, the grill rack may be first cleaned by burning it out: heat up the grill to 320 °C, close the cover and wait several minutes.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials which can be recycled. Proper disposal protects the

environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.

Chère cliente, Cher client,

Grillen 'Boost-zone' 330-500 °C

1 Angel Kanchev, 5th floor

1000 Sofia, Bulgaria

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Croatia

Koracell d.o.o.

Donje Svetice 40

26 Oaktree Business Park

Trim Co., Meath

Tel.: [phone]

Fax: [phone]

Web: www.bluestone.ie

Italia

ASSISTENZA POST-VENDITA

NUMERO VERDE 800224155

E-Mail: [e-mail]

Indonesia

PT. Setai Modern Elektronik

Email.: [e-mail]

Web.: www.severin.co.id

Jakarta

Komp. Glodok Plaza Blok F No. 9, Jl. Pinangsia Raya,

Jakarta Barat

021 65911888 / 021 6592889

Medan

JI. Apel No. 88 Kom. Cemara Asri

061 6620186 / 061 6625836

Surabaya

Pergudangan Mutiara Margo Mulyo Indah,

Blok DC No. 2

Telp : [phone], [phone]

Banjarmasin

Dr.Waleed Maraga commercial center, Level 1

Khalda, Amman Zip code: 11953

Tel: [phone]

Fax: [phone]

Mob Jordan: [phone]

Kuwait

Mohammed Abdulrahman Al Bahar

Al Bahar Building P.O. Box 148

Safat 13002 Kuwait

Tel.: [phone]

Latvia

SIA GTCL BALTIC

Piedrujas iela 7

LV - Riga 1073

Tel.: [phone]

Fax: [phone]

Lebanon

Khoury Home

7th Floor, Cité Dora 3 Building, Dora

P.O.Box 70611

Antelias, Lebanon

Tel.: [phone]

Fax:[phone]

E-Mail: [e-mail]

Internet: www.khouryhome.com

Lithuania

UAB Topo Grupe

Savanoriu PR. 206A,

50193 Kaunas, Lithuania

Tel.: [phone]

A.A.K & Partners L.L.C.

P.O Box:-1650, Muttrah

Postal Code - 114

Sultanate of Oman

Tel.: [phone]

Fax.: [phone]

E-Mail: [e-mail]

Peru

SEVERIN PERU / Comercial Rebeca S.R.L

Mezzanine 1, South Center Tower

2206 Venture Street, Madrigal Business Park

Alabang, Muntinlupa City

Tel.: [phone]

E-Mail: [e-mail]

Polska

Severin Polska Sp.z o.o.

6 Tagore Drive, #03-04

Singapore 787623

Tel.: [phone]

Fax: [phone]

Web: www.beste.com.sg

E-Mail: [e-mail]

Slovenia

SEVTIS d.o.o.

Smartinska 130

1000 Ljubljana

Tel.: [phone]

Fax: [phone]

Slowak Republic

BVZ Commerce s.r.o.

Parkerova 618

CZ 25067 Klecany

Tel.: [phone]

Fax: [phone]

South Africa

AL&CD Ashley (PTY) Ltd.

3rd Floor, Grove Exchange

Grove Avenue

Claremont

South Africa

7708

Tel: [phone]

Fax: [phone]

Web: http://www.alcdashley.co.za

Mail: [e-mail]

Svenska

EI & Digital Service AB

Folkungagatan 144

11630 Stockholm

Tel.: [phone]

www.eldigital.se

E-Mail: [e-mail]

Switzerland

SPC Electronics AG

Mövenstrasse 12

CH-9015 St. Gallen

Tel.: [phone]

E-Mail: [e-mail]

www.spc.ch

Thailand

Verasu Ltd. part.

83/7 Wireless Rd., Lumpini,

Patumwan, Bangkok 10330

Tel.: [phone]

E-Mail: [e-mail]

Tunisie

GEI

54, rue du Mercure

Zone Industrielle 2013-BEN AROUS

TUNISIE

Ukrayina

Service for Modern Electronics LLC

Sim'i Khokhlovykh Str.8

4119 Kiev

Tel.: [phone]

E-Mail: [e-mail]

United Kingdom

Homespares Centres Limited

Firwood Industrial Estate

Thicketford Road

Bolton, BL2 3TR

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Web: www.homespares.co.uk

Vietnam

BRAND PARTNER

CTY TNHH DOI TAC NHAN HIEU

2/7 NGUYEN THANH Y

DA KAO WARD, DISTRICT 1

HO CHI MINH CITY, VIETNAM

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Stand: 01.2021
