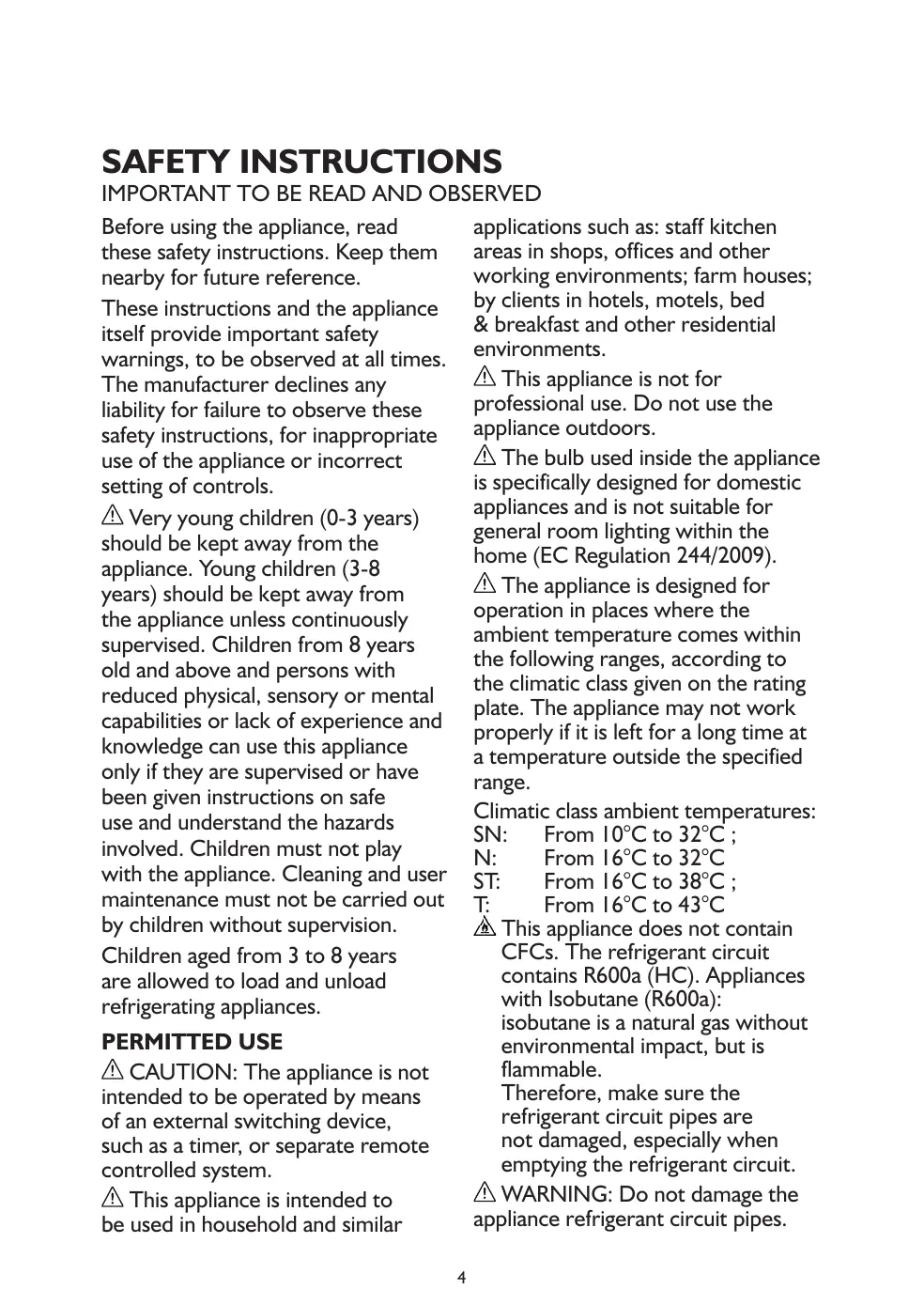

IMPORTANT TO BE READ AND OBSERVED Before using the appliance, read applications such as: staff kitchen areas in shops, offices and other these safety instructions. Keep them working environments; farm houses; nearby for future reference.

These instructions and the appliance by clients in hotels, motels, bed & breakfast and other residential itself provide important safety warnings, to be observed at all times. environments. This appliance is not for The manufacturer declines any professional use. Do not use the liability for failure to observe these appliance outdoors. safety instructions, for inappropriate The bulb used inside the appliance use of the appliance or incorrect is specifically designed for domestic setting of controls. appliances and is not suitable for Very young children (0-3 years) general room lighting within the should be kept away from the home (EC Regulation 244/2009). appliance. Young children (3-8 The appliance is designed for years) should be kept away from operation in places where the the appliance unless continuously ambient temperature comes within supervised. Children from 8 years the following ranges, according to old and above and persons with the climatic class given on the rating reduced physical, sensory or mental plate. The appliance may not work capabilities or lack of experience and properly if it is left for a long time at knowledge can use this appliance a temperature outside the specified only if they are supervised or have range. been given instructions on safe Climatic class ambient temperatures: use and understand the hazards SN: From 10°C to 32°C ; involved. Children must not play N: From 16°C to 32°C with the appliance. Cleaning and user ST: From 16°C to 38°C ; maintenance must not be carried out T: From 16°C to 43°C by children without supervision. This appliance does not contain CFCs. The refrigerant circuit Children aged from 3 to 8 years contains R600a (HC). Appliances are allowed to load and unload with Isobutane (R600a): refrigerating appliances. isobutane is a natural gas without PERMITTED USE environmental impact, but is flammable. CAUTION: The appliance is not Therefore, make sure the intended to be operated by means refrigerant circuit pipes are of an external switching device, not damaged, especially when such as a timer, or separate remote emptying the refrigerant circuit. controlled system. WARNING: Do not damage the This appliance is intended to appliance refrigerant circuit pipes. be used in household and similar 4

Do not obstruct the fan (if included) with food items.

After placing the food check that the door of compartments closes properly, especially the freezer door. Damaged gaskets must be replaced as soon as possible. Use the refrigerator compartment only for storing fresh food and the freezer compartment only for storing frozen food, freezing fresh food and making ice cubes. Avoid storing unwrapped food in direct contact with internal surfaces of the refrigerator or freezer compartments. Appliances could have special compartments (Fresh Food Compartment, Zero Degree Box,...). Unless differently specified in the specific booklet of product, they can be removed, maintaining equivalent performances. C-Pentane is used as blowing agent in the insulation foam and it is a flammable gas. The most appropriate compartments of the appliance where specific types of food are to be stored, taking into account different temperature distribution in different compartments in the appliance, are as follows: - Refrigerator compartment: 1) Upper area of the refrigerator compartment & door - temperature zone: Store tropical fruit, cans, drinks, eggs, sauces, pickles, butter, jam 2) Middle area of the refrigerator compartment - cool zone: Store cheese, milk, dairy food, deli food, yoghurt 3) Lower area of the refrigerator

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical, electric or chemical means other than those recommended by the Manufacturer to speed up the defrost process. WARNING: Do not use or place electrical devices inside the appliance compartments if they are not of the type expressly authorised by the Manufacturer. WARNING: Ice makers and/ or water dispensers not directly connected to the water supply must be filled with potable water only. WARNING: Automatic ice-makers and/or water dispensers must be connected to a water supply that delivers potable water only, with mains water pressure between 0.17 and 0.81 MPa (1.7 and 8.1 bar). Do not store explosive substances such as aerosol cans and do not place or use gasoline or other flammable materials in or near the appliance. Do not swallow the contents (non-toxic) of the ice packs (provided with some models). Do not eat ice cubes or ice lollies immediately after taking them out of the freezer since they may cause cold burns. For products designed to use an air filter inside an accessible fan cover, the filter must always be in position when the refrigerator is in function. Do not store glass containers with liquids in the freezer compartment since they may break. 5

compartment - coldest zone: Store cold cuts, desserts, meat and fish, cheesecake, fresh pasta, sour cream, pesto/salsa, home-cooked food, pastry cream, pudding and cream cheese

4) Fruit & vegetable drawer at the bottom of the refrigerator compartment: Store vegetables and fruits (excluding tropical fruits) 5) Chiller compartment: Only store meat and fish in the coldest drawer Freezer compartment: 4 star zone (****) compartment is suitable for freezing foodstuffs from ambient temperature and for storing frozen food as the temperature is evenly distributed throughout the entire compartment. Purchased frozen food has the storage expiration date stated on the packaging. This date takes into account the type of food being stored and therefore this date should be respected. Fresh food should be stored for the following time periods: 1-3 months for cheese, shellfish, ice cream, ham/sausage, milk, fresh liquids; 4 months for steak or chops (beef, lamb, pork); 6 months for butter or margarine, poultry (chicken, turkey); 8-12 months for fruits (except citrus), roast meat (beef, pork, lamb), vegetables. Expiration dates on the packaging of foods in the 2-star zone must be respected. To avoid food contamination, please observe the following: – Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

– Regularly clean surfaces that may come into contact with food and accessible drainage systems.

– Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. – Store raw meat and fish in suitable containers in the refrigerator, so that it does not come into contact with or drip onto other food. – Two-star frozen food compartments are suitable for storing pre-frozen food, storing or making ice cream and ice cubes. – Do not freeze fresh food in one, two or three-star compartments. – If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing inside the appliance. INSTALLATION The appliance must be handled and installed by two or more persons - risk of injury. Use protective gloves to unpack and install - risk of cuts. Installation, including water supply (if any), electrical connections and repairs must be carried out by a qualified technician. Do not repair or replace any part of the appliance unless specifically stated in the user manual. Keep children away from the installation site. After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest Aftersales Service. Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of 6

children - risk of suffocation. The appliance must be disconnected from the power supply before any installation operation - risk of electric shock.

During installation, make sure the appliance does not damage the power cable - risk of fire or electric shock. Only activate the appliance when the installation has been completed. Be careful not to damage the floors (e.g. parquet) when moving the appliance. Install the appliance on a floor or support strong enough to take its weight and in a place suitable for its size and use. Make sure the appliance is not near a heat source and that the four feet are stable and resting on the floor, adjusting them as required, and check that the appliance is perfectly level using a spirit level. Wait at least two hours before switching the appliance on, to ensure that the refrigerant circuit is fully efficient. WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged. WARNING: To avoid a hazard due to instability, positioning or fixing of the appliance must be done in accordance with the manufacturer instructions. It’s forbidden to place the refrigerator in such way that the metal hose of gas stove, metal gas or water pipes, or electrical wires are in contact with the refrigerator back wall (condenser coil). All dimensions and spacing needed for installation of the appliance are in the Installation Instruction booklet. Please remove the power cord from

condenser hook during installation before connecting product to power supply.

ELECTRICAL WARNINGS It must be possible to disconnect the appliance from the power supply by unplugging it if plug is accessible, or by a multi-pole switch installed upstream of the socket in accordance with the wiring rules and the appliance must be earthed in conformity with national electrical safety standards. Do not use extension leads, multiple sockets or adapters. The electrical components must not be accessible to the user after installation. Do not use the appliance when you are wet or barefoot. Do not operate this appliance if it has a damaged power cable or plug, if it is not working properly, or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced with an identical one by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard - risk of electric shock. WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. CLEANING AND MAINTENANCE WARNING: Ensure that the appliance is switched off and disconnected from the power supply before performing any maintenance operation; never use steam cleaning equipment - risk of electric shock. Do not use abrasive or harsh cleaners such as window sprays, 7

scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools.

ambient temperature, as well as location of the appliance. Temperature setting should take into consideration these factors. Reduce door opening to minimum.

When thawing frozen food, place it in the refrigerator. The low temperature of the frozen products cools the food in the refrigerator. Allow warm food and drinks to cool down before placing in the appliance. Positioning of the shelves in the refrigerator has no impact on the efficient usage of energy. Food should be placed on the shelves in such way to ensure proper air circulation (food should not touch each other and distance between food and rear wall should be kept). You can increase storage capacity of frozen food by removing baskets and, if present, Stop Frost shelf. Do not worry about noises coming from the compressor which are normal operation noises.

DISPOSAL OF PACKAGING MATERIALS The packaging material is 100% recyclable and is

. The various marked with the recycle symbol parts of the packaging must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

DISPOSAL OF HOUSEHOLD APPLIANCES This appliance is manufactured with recyclable or reusable materials.

Dispose of it in accordance with local waste disposal regulations. For further information on the treatment, recovery and recycling of household electrical appliances, contact your local authority, the collection service for household waste or the store where you purchased the appliance. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent negative consequences for the environment and human health. The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection centre for the recycling of electrical and electronic equipment.

To guarantee adequate ventilation follow installation instructions.

Insufficient ventilation at the back of the product increases energy consumption and decreases cooling efficiency. Frequent door opening might cause an increase in Energy Consumption. The internal temperature of the appliance and the Energy Consumption may be affected also by the 8

HOW TO OPERATE THE REFRIGERATOR COMPARTMENT This appliance is a fridge with a stars refrigerator compartment.

The refrigerator compartment defrosts completely automatically. The fridge works at a temperature range between +16°C and +38°C. Best performance is achieved at a temperature range between +16°C e +32°C. Starting up the fridge Insert the plug into the socket. The thermostat allows to adjust the temperature of both compartments: refrigerator and freezer. How to adjust the compartments' temperature: 1. To ensure proper functioning and best food storage, we recommend to adjust the thermostat according to the indications found in the product data sheet included. 2. If you wish to change the temperature in the refrigerator compartment, turn the thermostat knob to the: • lowest/MIN numbers to make the compartment do temperature WARMER; • highest/MAX numbers to make the temperature COLDER. Thermostat on : the appliance's functions and illumination are interrupted. Note: Ambient temperature, how often the doors are opened and the position of the appliance may affect its internal temperatures. The thermostat knob should be adjusted according to these factors.

How to store food in the refrigerator compartment

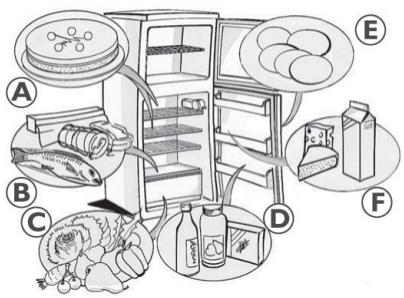

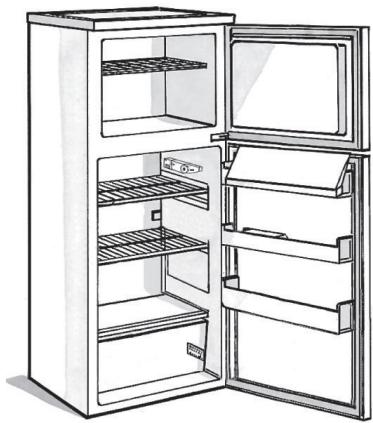

Place the food as shown in the side figure. A. Cooked food B. Fish, meat C. Fruit and vegetables D. Bottles E. Eggs F. Butter, dairy products, cheese Notes: • The distance between the shelves and the inside rear panel ensures free air circulation. • Food should not touch the inside rear panel of the refrigerator compartment. • Do not place food that is still warm in the compartments. • Keep liquids in closed containers. • Storing vegetables with a high water content can cause condensation to form in the lower drawer: this does not affect the correct functioning of the appliance.

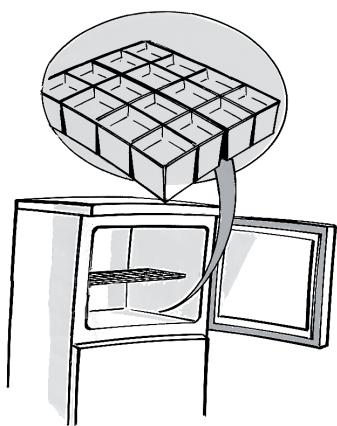

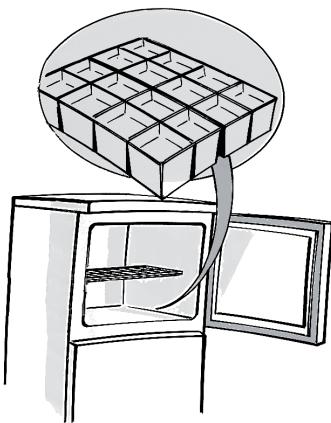

HOW TO OPERATE THE FREEZER COMPARTMENT The freezer compartment has stars.

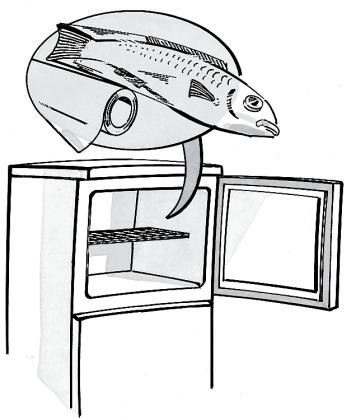

Frozen food can be stored in it until the date indicated on the packaging. Additionally, fresh food can be frozen by storing it under the grill, at the lowest level, and placing food that is already frozen in the upper part of the compartment, in order to avoid it touching food that is still unfrozen. The quantity of fresh food that can be frozen in 24 hours is written on the rating plate. Important: Before freezing, wrap and seal fresh food in: • Aluminium foil, cling film, air- and water-tight plastic bags, polythene containers with lids or freezer containers suitable for freezing food. • The freezer compartment keeps a temperature appropriate to food storage even in the event of an electricity failure. In the event of such occurrence, is nonetheless advised not to open the compartment door. Important: See side table for storage months for home frozen food. When purchasing frozen food products please make sure that: • Its packaging or the package are intact, as otherwise the product might deteriorate. If the package is swollen or shows damp patches, it may not have been stored under optimal conditions and defrosting may have already begun. • When shopping, buy frozen foods at the end of your trip and transport them in a thermally insulated cool bag. • Once at home, immediately place the frozen food in the freezer compartment. • Do not refreeze partially thawed food. Consume it within 24 hours. • Avoid or keep temperature variations to a minimum. Respect the best-before date on the package. • Always observe the storage information on the package. Making ice cubes • Fill 3/4 of the ice tray with water and place it in the freezer compartment. If the tray sticks to the compartment floor, do not use sharp or pointed objects to remove it.

MONTHS FOOD HOW TO DEFROST AND CLEAN THE FREEZER COMPARTMENT We recommend defrosting the freezer compartment once or twice a year, or when the ice on the sides reaches a thickness of about 3 mm. It is advised to defrost the freezer compartment when it is almost empty.

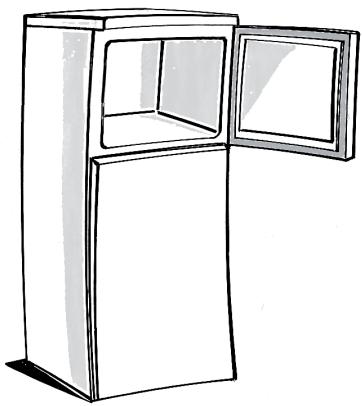

1. Open the door and remove all food products, wrap them together tightly in newspaper and place them in a cool place or in a thermally insulated cool bag. 2. Disconnect the appliance from the power supply. 3. Leave the freezer door open to allow the ice to melt. 4. Remove the water from defrosting collected at the bottom of the compartment. 5. Clean the inside with a wet sponge, using warm water and a mild detergent. Do not use abrasives. 6. Rinse and dry thoroughly. Note: In order to avoid permanent damage to the compartment's interior, do not use pointed or sharp metal instruments to remove frost and do not heat up the compartment.

HOW TO CLEAN THE REFRIGERATOR COMPARTMENT Clean the refrigerator compartment regularly.

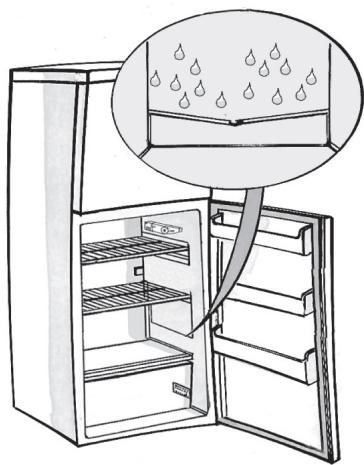

The refrigerator compartment defrosts completely automatically. The occasional presence of drops of water on the inside rear panel of the refrigerator compartment is a sign of the automatic defrosting phase. The water from defrosting is channelled into a drain and then collected in a container, where it evaporates. Clean the drain hole that collects water from defrosting regularly. Disconnect the appliance from the power supply before cleaning. • Use a wet sponge with warm water and/or a mild detergent. • Wipe dry with a soft cloth. Do not use abrasives.

CLEANING AND MAINTENANCE Built-in components

• Regularly clean the ventilation grilles with a vacuum cleaner or a brush (see figure A). • Clean the outside with a soft cloth.

Free-standing components

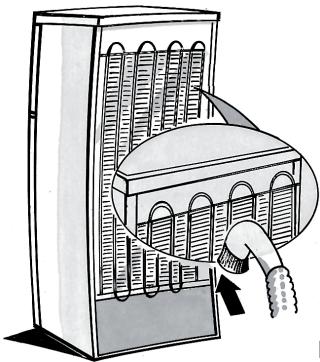

• Regularly clean the condenser placed in the rear of the appliance with a vacuum cleaner or a brush (see figure B).

1. Empty the refrigerator and freezer compartments. 2. Disconnect the appliance from the power supply. 3. Defrost the freezer compartment and dry both compartments. 4. Leave the doors open to prevent bad odours forming.

Fig. A Fig. B TROUBLESHOOTING GUIDE

5. The interior light does not work. First check point 1, then: • Disconnect the appliance from the power supply. To learn how to reach the light bulb, see instructions and drawing in the table included. • Replace the light bulb, ensuring that the replacement is within the same power range or maximum wattage, as specified near the light holder. 6. Excessive frost formation in the freezer compartment • Is the door properly closed? • Is food preventing the door from closing properly? Notes: • The front edge of the refrigerator is warm: this is not a defect, it is meant to prevent condensation forming. • Gurgling sounds and expansion noises come from the refrigerating system and are normal.

1. The appliance is not working.

• Is there a power failure? • Is the plug properly inserted in the socket? • Is the bipolar mains switch inserted? • Are the household electrical system protection devices working properly? • Is the power cable broken? • Is the thermostat on the (Stop) position? 2. The temperature inside the compartments is not cold enough. • Is the door properly closed? • Is the appliance placed near a heat source? • Is the thermostat set on the correct position? • Is anything blocking air circulation in the ventilation grilles? 3. The temperature of the refrigerator compartment is too cold. • Is the thermostat set on the correct position? 4. There is water at the bottom of the refrigerator compartment. • Is the defrost water drain blocked?

TROUBLESHOOTING GUIDE Before calling the After-Sales Service:

1. See if you can solve the problem yourself (see “Troubleshooting guide”). 2. Restart the appliance to check if the problem has been solved. If not, disconnect the appliance again and repeat the procedure after one hour. 3. If the problem persists after this course of action, contact after-sales service.

Reversing the doors of the appliance, if carried out by the Technical Assistance Service, is not considered as a warranty claim.

• the nature of the problem, • the model, • the Service number (the number that you find after the word "SERVICE" on the rating plate placed inside the appliance), • your full address, • your telephone number and area code.

INSTALLATION Disconnecting the appliance from the electricity supply

• Unplug the appliance or use the bipolar mains switch above the plug to disconnect it.

• Install the appliance away from heat sources.

• Place the appliance in a well-ventilated, dry space. • Do not obstruct the ventilation space above and below the appliance. • Clean the inside (see “How to clean the refrigerator compartment” chapter). • Fit all accessories included. Connecting the electricity supply • Electrical connections must be made in accordance with local regulations. • Information relating to power supply and consumption can be found on the plate located on the side of the fruit and vegetable drawers. • Regulations require the appliance to be earthed. The manufacturer declines all liability for injury to persons or animals and for damage to property resulting from failure to observe the above procedures and reminders. • If the plug and the socket are not compatible, ask a qualified technician to substitute the plug. • Do not use extension cables or multi-plug adaptors.

REVERSIBLE DOORS Warning:

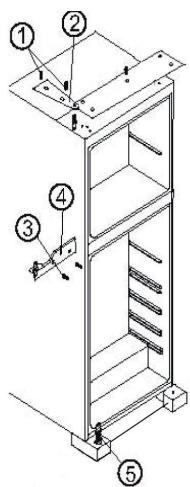

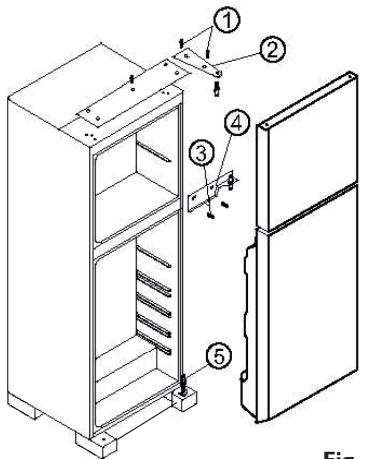

Before changing the direction in which the doors open, ensure that the appliance is not connected to the power supply and that a second person is present and ready to help, as the refrigerator is heavy and must be in a tilted position. RISK OF INJURY! • Remove the screws to take off the hinge (Fig. 1, no. 1 and 2), remove the upper compartment door and place it in a safe location. • To remove the lower door, loosen the screws of the central support hinge and take it off. (Fig. 1, no. 3 and 4) • Lift the lower door from the hinge pin (Fig. 1, no. 5) and place it in a safe location. • Fit the lower stop pin, unscrewing it from the right side and screwing it back on the left side. • Place the refrigerator upright. • Remove the left hinge covers from both doors (upper and lower) and fit them on the opposite side of each respective door. • Place the refrigerator's door on the lower stop pin, turn the central hinge by 180°, push it in the door's upper hole and fasten the hinge.

• Fit the upper compartment door back on and fasten it to the upper hinge support.

• Before tightening all screws, check that the doors have been installed correctly. Before reconnecting the refrigerator to the power supply, check once more that all screws are tight, that the doors have been installed correctly, and that the refrigerator is in an upright position and placed steadily on the floor.

Flush-mounted installation

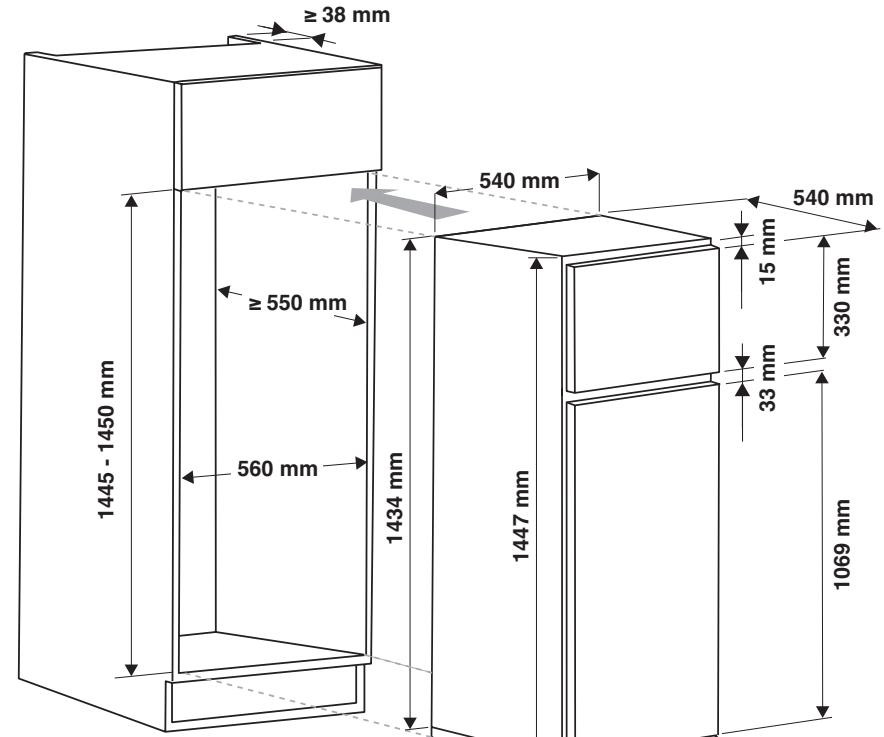

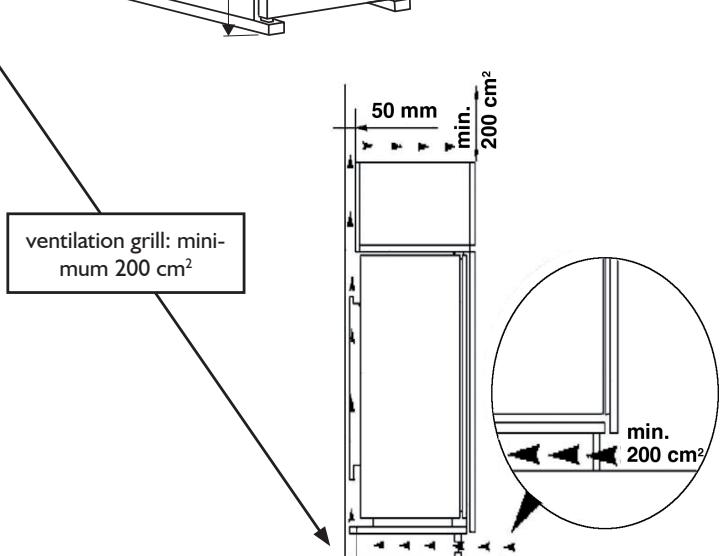

Dimensions of cabinet and appliance (Fig. 3) Height: 1445 - 1450 mm Width: 560 mm Depth: 550 mm To ensure sufficient ventilation, observe the indications shown in the figure. The cabinet must be equipped with incoming and outgoing forced ventilation. (Fig. 3 and 4) ≥ 38 mm

Sliding door installation

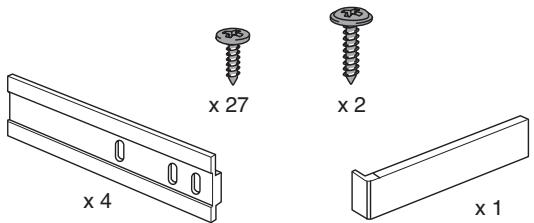

Push the appliance into the cabinet's compartment with care (Fig. 5) until you reach stop strip “A”. You will find the material required for the installation inside the appliance.

runner “A”. Ensure that the cabinet's door adheres well to the appliance's door and mark where the middle openings are, as shown in the figure (Fig. 8).

Remove corner brace “B” and bore holes for the screws with a 2 mm Ø drill bit. Place the corner brace against the runner again and fasten it with the screws provided.

Open the appliance's door and push in the opposite direction to the hinge (Fig. 6). Fasten the appliance with 4 screws, 2 screws on the upper faceplate and 2 on the side corner brace opposite the central hinge.

If you need to adjust the cabinet's door, use the lengthwise slot opening in corner brace “B” (Fig. 9).

Place runner “A” as per the indications found (Fig.

7) on the inside of the cabinet's door and mark the place where the screws should be inserted. Bore holes for the screws. Fasten the runner.

Depending on the model, press the cover “D” provided on corner brace “B”.

The freezer compartment door is installed with 1 swing door hinge, while the refrigerator's door requires 2 hinges of this same type.

Open the door of the appliance and of the cabinet at 90°. Place corner brace “B” (Fig. 8) against the
