SILK-EPIL 5-511 DUAL WET & DRY - Epilator BRAUN - Free user manual and instructions

Product Type	Epilator
Brand	Braun
Model	SILK-EPIL 5-511 DUAL WET & DRY
Power supply	12 V mains transformer
Input voltage	100-240 V (automatic)
Number of tweezers	40 tweezers
Epilation system	Unique arrangement of tweezers with SoftLift® pins for short hairs (0.5 mm)
Speeds	2 speeds: "soft" (gentle) and "optimal" (normal)
Integrated light	Smartlight (daylight) in the switch
Included accessories	Massage system (massage rollers), EfficiencyPro efficiency accessory, Cleaning brush
Usage	Dry and wet (Wet & Dry)
Recommended hair length	2 to 5 mm
Epilation areas	Legs, underarms, bikini line
Cleaning	Cleaning brush, dipped in alcohol for the tweezers
Warranty	2 years (parts and labor)
Standards	CE (Directives 2004/108/EC and 2006/95/EC)
Dimensions (L x W x H)	16.5 x 5 x 4.5 cm (estimated)
Weight	220 g (approx., without accessories)
Maintenance	Keep dry, do not share for hygiene reasons
Spare parts	Available from Braun authorized service centers
Safety	Do not use on hair/eyelashes, keep out of reach of children, check voltage
Usage tips	Clean and dry skin, stretch the skin, slow movement without pressure, against the direction of hair growth

Frequently Asked Questions - SILK-EPIL 5-511 DUAL WET & DRY BRAUN

How to use the Braun Silk-épil 5-511 epilator?

Make sure the epilation head is clean. Plug in the device. Slide the switch to the "optimal" position to start. For a gentler speed, deselect the "soft" position. Stretch the skin, hold the device at a right angle and guide it slowly against the direction of hair growth, without pressing.

Can the epilator be used in the shower?

Yes, the Dual Wet & Dry model is designed for dry and wet use. So you can use it in the shower or bath.

How to clean the epilation head?

Remove the attachment and clean it with the provided brush. For the tweezers, dip the brush in alcohol and clean from back to front while turning the roller manually. This ensures optimal hygiene.

What to do to reduce pain during epilation?

Use the massage rollers accessory which stimulates and relaxes the skin. Epilate preferably in the evening so that redness disappears overnight. Apply a moisturizer after epilation.

What is the Smartlight for?

The Smartlight built into the switch reproduces light close to daylight, revealing the finest hairs for more precise and effective epilation.

How to avoid ingrown hairs?

Regularly use a horsehair glove or exfoliate the skin to remove dead cells. This prevents fine hairs from getting trapped under the skin.

What hair length is ideal for epilation?

Hairs should be between 2 and 5 mm. If they are longer, cut them to this length or shave them and epilate the regrowth after 1 to 2 weeks.

Is the epilator guaranteed?

Yes, Braun offers a 2-year warranty from the date of purchase, covering manufacturing and material defects. The warranty does not cover damage due to improper use or normal wear.

Can I use the epilator on underarms or bikini line?

Yes, but these areas are sensitive. Make sure hairs are 2 to 5 mm. Clean the area thoroughly, pat dry. For underarms, raise your arm and move the device in different directions. Avoid alcohol-based deodorants after epilation.

When should you consult a doctor before using the epilator?

Consult your doctor if you have eczema, injuries, skin inflammations, varicose veins, moles, diabetes, pregnancy, Raynaud's disease, hemophilia, or a weakened immune system. If the skin is still irritated after 36 hours, also consult.

USER MANUAL SILK-EPIL 5-511 DUAL WET & DRY BRAUN

(Audio Supplies Company Ltd.)

1800641820

0800108909

Deutsch

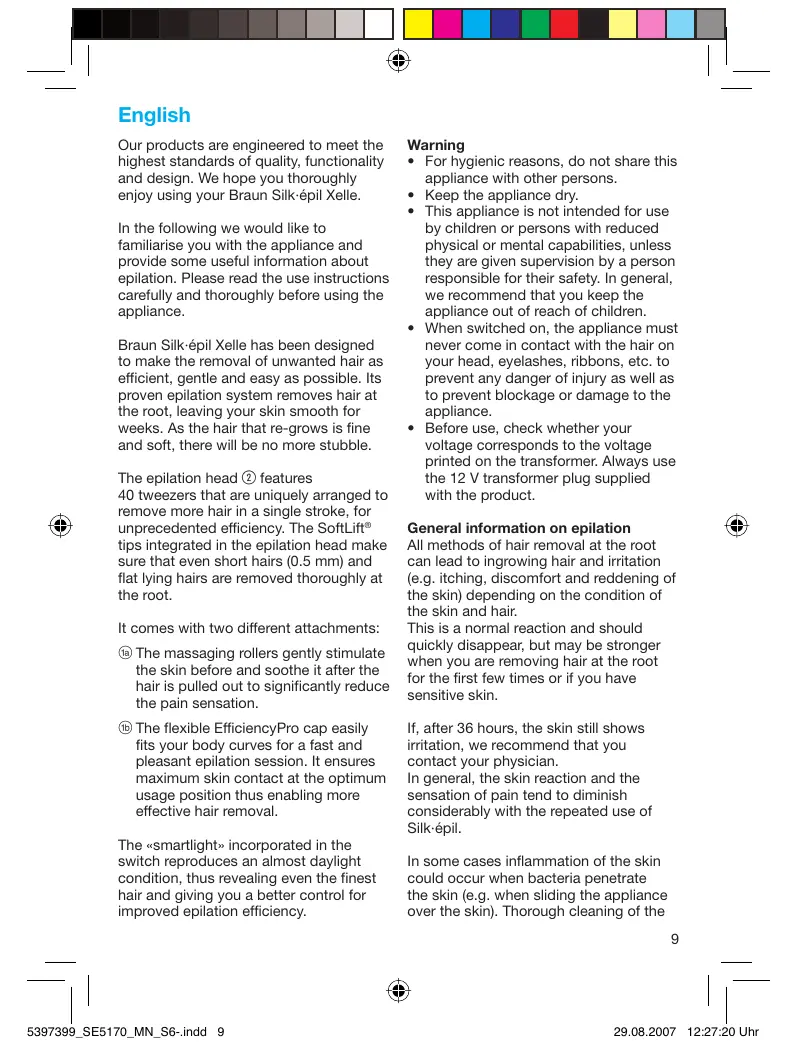

Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy using your Braun Silk-epil Xelle.

In the following we would like to familiarise you with the appliance and provide some useful information about epilation. Please read the use instructions carefully and thoroughly before using the appliance.

Braun Silk-epil Xelle has been designed to make the removal of unwanted hair as efficient, gentle and easy as possible. Its proven epilation system removes hair at the root, leaving your skin smooth for weeks. As the hair that re-grows is fine and soft, there will be no more stubble.

The epilation head ② features 40 tweezers that are uniquely arranged to remove more hair in a single stroke, for unprecedented efficiency. The SoftLift® tips integrated in the epilation head make sure that even short hairs (0.5 mm) and flat lying hairs are removed thoroughly at the root.

It comes with two different attachments:

The massaging rollers gently stimulate the skin before and soothe it after the hair is pulled out to significantly reduce the pain sensation.
The flexible EfficiencyPro cap easily fits your body curves for a fast and pleasant epilation session. It ensures maximum skin contact at the optimum usage position thus enabling more effective hair removal.

The «smartlight» incorporated in the switch reproduces an almost daylight condition, thus revealing even the finest hair and giving you a better control for improved epilation efficiency.

Warning

• For hygienic reasons, do not share this appliance with other persons.
• Keep the appliance dry.
• This appliance is not intended for use by children or persons with reduced physical or mental capabilities, unless they are given supervision by a person responsible for their safety. In general, we recommend that you keep the appliance out of reach of children.
• When switched on, the appliance must never come in contact with the hair on your head, eyelashes, ribbons, etc. to prevent any danger of injury as well as to prevent blockage or damage to the appliance.
• Before use, check whether your voltage corresponds to the voltage printed on the transformer. Always use the 12 V transformer plug supplied with the product.

General information on epilation

All methods of hair removal at the root can lead to ingrowing hair and irritation (e.g. itching, discomfort and reddening of the skin) depending on the condition of the skin and hair.

This is a normal reaction and should quickly disappear, but may be stronger when you are removing hair at the root for the first few times or if you have sensitive skin.

If, after 36 hours, the skin still shows irritation, we recommend that you contact your physician.

In general, the skin reaction and the sensation of pain tend to diminish considerably with the repeated use of Silk-épil.

In some cases inflammation of the skin could occur when bacteria penetrate the skin (e.g. when sliding the appliance over the skin).Thorough cleaning of the

epilation head before each use will minimise the risk of infection.

If you have any doubts about using this appliance, please consult your physician. In the following cases, this appliance should only be used after prior consultation with a physician:

• eczema, wounds, inflamed skin reactions such as folliculitis (purulent hair follicles) and varicose veins
  around moles
• reduced immunity of the skin, e.g. diabetes mellitus, during pregnancy, Raynaud's disease
  haemophilia or immune deficiency.

Some useful tips

Epilation is easier and more comfortable when the hair is at the optimum length of 2-5 mm (0.08-0.2 in.) If hairs are longer, we recommend that you either shave first and epilate the shorter re-growing hairs after 1 or 2 weeks.

When epilating for the first time, it is advisable to epilate in the evening, so that any possible reddening can disappear overnight. To relax the skin we recommend applying a moisture cream after epilation.

Fine hair which re-grows might not grow up to the skin surface. The regular use of massage sponges (e.g. after showering) or exfoliation peelings helps to prevent ingrowing hair as the gentle scrubbing action removes the upper skin layer and fine hair can get through to the skin surface.

Description (see page 4)

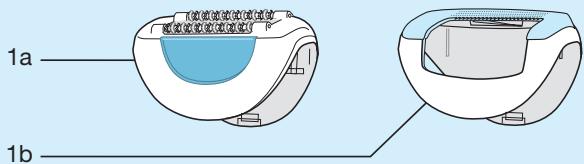

1a

Massaging rollers

1b

EfficiencyPro cap

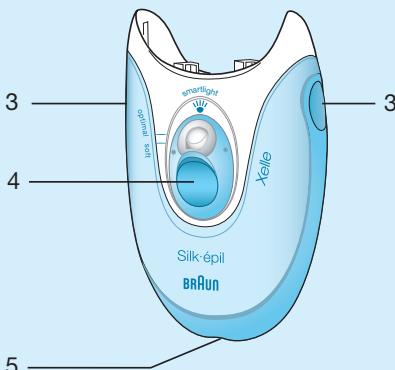

② Epilation head
③ Release buttons
④ Switch with incorporated «smartlight»
⑤ Socket for cord connector

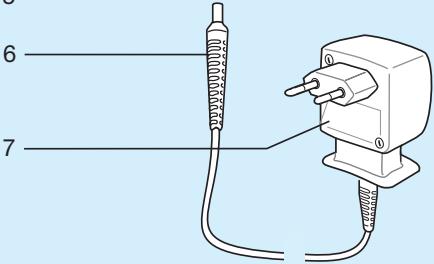

⑥ Cord connector
⑦ 12V transformer plug

Before starting

• Your skin must be dry and free from grease or cream.
  Before starting, thoroughly clean the epilation head you want to use.
• To remove the epilation head, press the release ③ buttons on the left and right and pull it off.
• Plug the cord connector ⑥ into the socket ⑤ and plug the transformer plug ⑦ into an electrical outlet.

How to epilate

1 Make sure one of the attachments or ⑥ is attached to the epilation head. To turn on the appliance, slide switch ④ to the «optimal» setting. For reduced speed, choose the «soft» setting. The «smartlight» illuminates as long as the appliance is switched on.

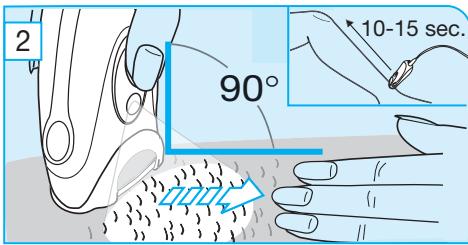

2 Rub your skin to lift short hairs. For optimum performance hold the appliance at a right angle (90^) against your skin. Guide it in a slow, continuous movement without pressure against the hair growth, in the direction of the switch. As hair can grow in different directions, it may also be helpful to guide the appliance in different directions to achieve optimum results.

The massaging rollers 18 should always be kept in contact with the skin, allowing the pulsating movements to stimulate and relax the skin for a

gentler epilation. If you are used to epilation and look for a faster way to efficiently remove hair, attach the EfficiencyPro cap ⑩. It allows maximum skin contact and ensures an optimum usage position.

3 Leg epilation

Epilate your legs from the lower leg in an upward direction. When epilating behind the knee, keep the leg stretched out straight.

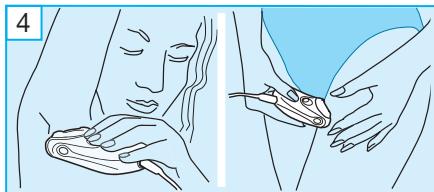

4 Underarm and bikini line epilation

Please be aware that especially at the beginning these areas are particularly sensitive. With repeated usage the pain sensation will diminish. For more comfort, ensure that the hair is at the optimum length of 2-5 mm. Before epilating, thoroughly clean the respective area to remove residue (like deodorant). Then carefully dab dry with a towel. When epilating the underarm, keep your arm raised up so that the skin is stretched and guide the appliance in different directions. As skin may be more sensitive directly after epilation, avoid using irritating substances such as deodorants with alcohol.

Cleaning the epilation head

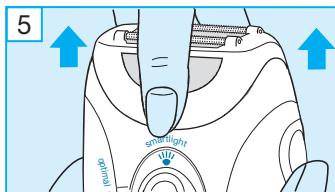

5 After epilating, unplug the appliance and clean the epilation head: If you have used one of the attachments or first remove it and clean it with the brush.

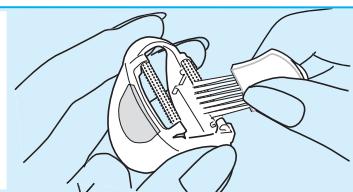

6 To clean the tweezer element, use the cleaning brush dipped into alcohol. Clean the tweezers with the brush from the rear side of the epilation head while turning the barrel manually. After cleaning, place your preferred attachment back on the epilation head.

Subject to change without notice.

This product conforms to the European Directives EMC 2004/108/EC and Low Voltage 2006/95/EC.

Please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points pro in your country.

François

Det er nomenclature is the following:
- Derivate, derivate, derivate, derivate, derivate, derivate, derivate, derivate, derivate, derivate, derivate, derivate, derivate, derivate, derivate, derivate, derivate, derivate, derivate, derivate, derivate, derivate, derivate, derivate, derivate, derivate, derivate, derivate, derivate, derivate, derivate, derivate, derivate, derivate, derate, derate, derate, derate, derate, derate, derate, derate, derate, derate, derate, derate, derate, derate, derate, derate, derate, derate, derate, derate, derate, derate, derate, derate, derate, derate, derate, derate, derate, derate, derate, derate, derate, derate

Eviecs npoopoeysia tyn anotpixwn

OLeCs oI e0oai anotpiXomega ano Tnv piCa mTPOeiv a npokaloeouv mV

avantuEn tpiXov KATOW ano To depma kai epeBIOJIO (N.X. qayoupa, evoxAnon kai kokkivma Tou depmuatoc) avaloya me tvv kataotaon Tou depmuatoc kai ts c tpiXac.

Autivia quiooloyikavtdpaon
Tou Eapavctai ynpovopa, aAa mtopei
va napouoiaetai nio evtova otav apat
peite tpiexc ano Tnv piac npwTeC
popec ncs antotpiowncn h av exete
euaiothto depa.

Eav mTa ano 36 wes, to depa
Egakooutheta va elvai eepiouevo, oac
ouviotoumeva etkoivwnoetmeu tv
yiatopoc.

Evika, n avtiopaon Toudeltapatoc kai To aiothma novou Teivouvaeiiovovta onavitka emy e naavaabavoeyn xpnon Tou Silkepil.

To npoiov aut6 exi Kaatakeuaotei ouipwva u Tc Eupwnaike Odyic EMC 2004/108/EOKKaXaJnaw HLeKTpikwTaOeWv 2006/95/EOK.

Napakaoume mny tetaeTe Tn oukeun okaika atoppmuata otavataei to TELOc nTxnpaunCwnc TNC. H diaeon nTs mnpoe va npayatotonneoi e eva ano ta Eouaoiotmeva uovpeyia nC Braun nOra katalAA na auaiaouoyncnou napexovta otn xupaoc.

Deutsch

Garantie

We grant 2 years guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate, free of charge, any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete appliance as we may choose. This guarantee extends to every country

where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre.

For UK only:

This guarantee in no way affects your rights under statutory law.

François

Garantie

We grant a 24 Month Replacement Warranty on this appliance commencing on the date of purchase.

This warranty applies in all States and Territories of Australia and in New Zealand and is in addition to any mandatory statutory obligations imposed on Procter & Gamble Australia Pty. Ltd., its distributors and its manufacturer. This express warranty does not purport to exclude, restrict or modify any such mandatory statutory obligations.

This warranty only covers defects in the appliance resulting from faults in workmanship or materials. Therefore, if your appliance becomes faulty as a result of faults in workmanship or materials, it will be exchanged by your retailer, on presentation of proof of purchase.

This warranty only applies to domestic or household use of this appliance and the warranty will only apply if the correct operating instructions included with this product have been followed. The warranty on any appliance replaced under this warranty ends on the expiry of the warranty period that applied to the original appliance.

This warranty does not cover:

A. Damage arising from improper use or operation on incorrect voltages.
B. Breakages to shaver foils, glass jars, etc.
C. Normal wear due to moving parts.
D. Repairs undertaken by unauthorised service personnel or use of non genuine parts.

E. Appliances that are outside the warranty period or are not faulty.

This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

If the appliance is supplied from a cord extension set or electrical portable outlet device these should be positioned so they are not subject to splashing or ingress of moisture.

To the extent permitted by the laws of the Commonwealth of Australia and New Zealand and applicable laws of a State or Territory of Australia, and subject to the second paragraph of this warranty above, this warranty is given in exchange for any other rights you may have against Procter & Gamble Australia Pty. Ltd. or its distributors or manufacturer, whether at law, in tort (including negligence), in equity or under statute.

Please retain proof of purchase of this appliance. If you have any questions in relation to this warranty, please call our Consumer Service line (see below for numbers).

Repairs and service

If you are sending your appliance for repair, please pack the appliance adequately and send it to your nearest Service Agent. For service or replacement parts refer to the authorised Service Agents listed overleaf. Local Service Agents may change from time to time - in that event please contact the Consumer Service free call number below for updated local service agent details.

Australian Consumer Service

(free call):

1800641820

New Zealand Consumer Service

(free call):

0800108909

N2820
