FDP301 - Food Processor KENWOOD - Free user manual and instructions
Find the device manual for free FDP301 KENWOOD in PDF.
| Product type | Multifunction stand mixer (food processor) |
| Brand | Kenwood |
| Model | FDP301 |
| Power supply | 230 V, 50 Hz (check the label on the appliance) |
| Speeds | Continuous speed control + Pulse (P) position |
| Bowl | Stainless steel, capacity suitable for domestic use |
| Included tools | K-beater, whisk, dough hook, spatula |
| Additional accessories | Head cover, splash-proof lid |
| Accessory outlets | High-speed outlet, slow-speed outlet (Twist system), bowl outlet |
| Slow-speed outlet connection system | Twist (compatible with KAX accessories); KAT002ME adapter supplied for old Bar system accessories |
| Cleaning the bowl and tools | Hand wash or dishwasher (top rack, max 50°C) |
| Cleaning the motor unit | Wipe with a damp cloth, do not immerse |
| Safety | Automatic shut-off in case of overload, surge protection; do not use with head raised |
| Pulse function | Yes, for short pulses at maximum speed |
| Tool adjustment | Possible for K-beater and whisk using a spanner (17 or 19 mm) |
| Country of manufacture | China |
| Compliance | EMC Directive 2004/108/EC and food contact regulation 1935/2004/EC |
| After-sales service | Contact the retailer or an authorized Kenwood repairer |
Frequently Asked Questions - FDP301 KENWOOD
User questions about FDP301 KENWOOD
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Food Processor in PDF format for free! Find your manual FDP301 - KENWOOD and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FDP301 by KENWOOD.
USER MANUAL FDP301 KENWOOD
Congratulations on buying a Kenwood. With such a wide range of attachments available, it's more than just a mixer. It's a state-of-the-art Kitchen Machine. We hope you'll enjoy it.
Robust. Reliable. Versatile. Kenwood.
Safety
- Read these instructions carefully and retain for future reference.
- Remove all packaging and any labels.
- Turn the speed control to 'O' OFF position and unplug before fitting or removing tools/attachments, after use and before cleaning.
- Keep your fingers away from moving parts and fitted attachments.
- Never leave the Kitchen Machine unattended when it is operating.
- Never use a damaged appliance. Get it checked or repaired: see 'service and customer care' section.
- Never operate the Kitchen Machine with the head in the raised position.
- Never let the cord hang down where a child could grab it.
- Never let the power unit, cord or plug get wet.
- Never use an unauthorised attachment or more than one attachment at once.
- Never exceed the quantities stated in the maximum capacity chart.
- When using an attachment, read and follow the safety instructions that are supplied with it.
-
Take care when lifting this appliance as it is heavy. Ensure the head is correctly latched in the down position and that the bowl, tools, outlet covers and cord are secure before lifting.
-
Ensure the cord is fully unfolded from the cord storage compartment ⑫ before using the Kitchen Machine.
- Children should be supervised to ensure that they do not play with the appliance.
- Do not move or raise the mixer head with an attachment fitted as the Kitchen Machine could become unstable.
- Do not operate your appliance near the edge of a work surface.
- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
- Misuse of your appliance can result in injury.
- This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
- Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.
Before plugging in
- Make sure your electricity supply is the same as the one shown on the underside of your machine.
- This appliance conforms to EC directive 2004/108/EC on Electromagnetic Compatibility and EC regulation no. 1935/2004 of 27/10/2004 on materials intended for contact with food.
Before using for the first time
- Wash the parts: see 'care and cleaning' section.
Know your Kitchen Machine
Key
Attachment outlets
① high-speed outlet
② slow-speed outlet
③ bowl tool socket
Mixer
④ high speed outlet cover
⑤ mixer head
⑥ head release lever
⑦ speed and pulse control
⑧ standby button
⑨ power unit
⑩ bowl
⑪ slow speed outlet cover
⑫ cord storage compartment
⑬ K-beater
④ whisk
⑤ dough hook
⑥ spatula
head shield
⑱ splashguard
Note: Spanner 11 shown is for illustration purposes only and is not supplied in pack.
Optional attachments
There are a range of optional attachments available to use with your Kitchen Machine. See the attachment leaflet included in your pack or visit www.kenwoodworld.com to see the full range and how to buy an attachment not included in your pack.
Note: Slow Speed outlet attachments
The slow speed outlet on your Kitchen Machine model features the Twist Connection System. It is designed to accept Twist Connection System attachments. When purchasing new attachments for the slow speed outlet you should check compatibility with your Kitchen Machine. All Twist Connection System attachments can be identified by the product code which starts with KAX and also by the Twist logo which is visible on packaging. For more information visit www.kenwoodworld.com/twist. If you own attachments featuring the Bar Connection System (BAR) you will need to use the KAT002ME adaptor supplied in your pack to connect these to the Twist Connection System (TWIST) on your Kitchen Machine. (Refer to "Using the Adaptor" section for how to fit the adaptor.) For more information visit www.kenwoodworld.com/twist.
The bowl tools and some of their uses
K-beater
For making cakes, biscuits, pastry, icing, fillings, éclairs and mashed potato.
Whisk
For eggs, cream, batters, fatless sponges, meringues, cheeses, mousses,
souffles. Don't use the whisk for heavy mixtures (e.g. creaming fat and sugar) - you could damage it.
Dough Hook
For yeast mixtures only.
To use your bowl tools
Ensure the cord is fully unfolded from the cord storage compartment ⑫ before using the Kitchen Machine.
1 Plug in and the Standby Button ⑧ will light up.
Note: The standby button light ⑧ will flash and the Kitchen Machine will not operate if the mixer head is in the raised position or the speed control is not in the ‘O’ position. Before operating, check that the mixer head is correctly latched down and the speed control is in the ‘O’ position. If the light continues to flash refer to the ‘troubleshooting guide’.
2 Push the head-lift lever ① down and raise the mixer head until it locks ②.
3 Fit the bowl on the base and turn clockwise ③ to secure in position.
4 Place the required tool into the socket. Then push up 4 and turn 5 the tool to lock into position.
Note: If the K-beater or Whisk are not picking up ingredients from the bottom of the bowl refer to the "Tool Adjustment" section.
5 Lower the mixer head by pushing the head release lever down ⑥ and lower the mixer head until it locks ⑦.
6 Start the machine by turning the speed control ⑦ to the desired speed setting. Use the pulse (P) position for short bursts of maximum speed.
7 After use, return the speed control to 'O' OFF position and unplug your Kitchen Machine.
8 Release the tool by turning clockwise to unlock from the tool socket and then remove.
Hints
- To fully incorporate the ingredients stop mixing and scrape down the bowl with the spatula frequently.
- For best results when whisking use eggs at room temperature.
- Before whisking egg whites, make sure there is no grease or egg yolk on the whisk or bowl.
- Use cold ingredients for pastry unless your recipe says otherwise.
Points for bread making Important
- Never exceed the maximum capacities stated - you may overload the machine.
- If you hear the machine labouring, switch off, remove half the dough and do each half separately.
- The ingredients mix best if you put the liquid in first.
Yeast
- Dried yeast (the type that needs reconstituting): pour the warm water into the bowl. Then add the yeast and the sugar and leave to stand for about 10 minutes until frothy.
- Fresh yeast: crumble into the flour.
- Other types of yeast: follow the manufacturer's instructions.
- Put the dough into a greased polythene bag or a bowl covered with a tea towel. Then leave somewhere warm until doubled in size.
Important
Ensure that no bowl tools are fitted or stored in the bowl when using other outlets.
| Maximum capacities | Chef | Chef XL | |
| Shortcrust pastry | Flour weight | 680g/1lb 8oz | 910g/2lb |
| Bread dough(stiff yeasted) | Flour weight | 1.36kg/3lb | 1.6kg/3lb 8oz |
| Total weight | 2.18kg/4lb 3oz | 2.5kg/5lb 8oz | |
| Soft yeasted dough(enriched with butter and eggs) | Flour weight | 1.3kg/2lb 14oz | 2.6kg/5lb 12oz |
| Total weight | 2.5kg/5lb 8oz | 5kg/11lb | |
| Fruit cake mix(Creaming fat and sugar method) | Total weight | 2.72kg/6lb(9 Egg mix) | 4.55kg/10lb(15 Egg mix) |
| Egg whites | NumberWeight | 12(455g) | 16(605g) |
- Eggs sizes used = medium sized (Weight 53 - 63g)
| Tool | Recipe/Process | Recommended Speed |
| K-beater | Creaming butter/margarine and sugar | Start on ‘Min’ and gradually increase to ‘Max’ |
| Beating eggs into cake mixes | ‘4’ to ‘Max’ | |
| Folding in flour, fruit etc | ‘Fold’ to ‘1’ | |
| All In one cake mixes | Start on ‘Min’ and gradually increase to ‘Max’ | |
| Pastry & Biscuits – rubbing fat into flour | ‘Min’ to ‘2’ | |
| Royal Icing | ‘Min’ to ‘1’ | |
| Mashed Potatoes | Start on ‘Min’ and gradually increase to ‘Max’ | |
| Whisk | Egg Whites | Gradually increase to ‘Max’ |
| Fatless sponges | ||
| Cream | ||
| Dough Hook | For Yeasted dough mixes | ‘Min’ speed for 45 - 60 secs. Then increase to speed 1 for approx. 3 - 4minutes. |
| Re-knead on speed 1 |
To fit and use your Splashguard
To assemble
The splashguard assembly consists of 2 pieces: the head shield ⑦ and the splashguard ⑧ .
The splashguard cannot be fitted to the bowl unless the shield is fitted.
1 Raise the mixer head until it locks.
2 Clip the head shield upwards onto the underside of the mixer head ⑧ until fully located.
3 Fit the bowl onto the base.
4 Lower the mixer head.
5 Rest the splashguard on the bowl rim and then slide forward until fully located 9.
- During mixing, ingredients can be added directly to the bowl via the feed chute.
6 To remove the splashguard simply slide it away from the mixer bowl.
7 To remove the head shield, raise the mixer head until it locks. Remove the tool if fitted, then pull the head shield downwards from the underside of the mixer head.
Note: Only fit or remove the splashguard when the mixer head is in the locked position.
We recommend that the head shield is removed regularly from the mixer head for cleaning.
Tool Adjustment
K-beater & Whisk
The tools are set to the correct height for the bowl supplied in the factory and should not require adjustment.
However, if you wish to adjust the tool use a suitable sized spanner:
TYPE KVC50 = 17mm
TYPE KVL60 = 19mm
Then follow the instructions below:
1 Unplug the appliance.
2 Raise the mixer head and insert the whisk or beater.
3 Lower the mixer head. If the clearance needs to be adjusted, raise the mixer head and remove the tool. Ideally the whisk and K-beater should be almost touching the bottom of the bowl 10.
4 Using a suitable spanner loosen the nut sufficiently to allow adjustment of the shaft 11. To lower the tool closer to the bottom of the bowl, turn the shaft anticlockwise. To raise the tool away from the bottom of the bowl turn the shaft clockwise.
5 Re-tighten the nut.
6 Fit the tool to the mixer and lower the mixer head. (Check its position see points above).
7 Repeat the above steps as necessary until the tool is set correctly. Once this is achieved tighten the nut securely.
Note: Spanner 11 shown is for illustration purpose only.
Dough Hook
This tool is set at the factory and should require no adjustment.

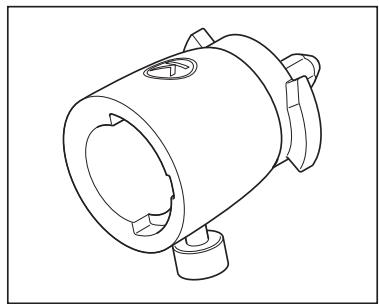

Using the KAT002ME Adaptor
Using the Adaptor

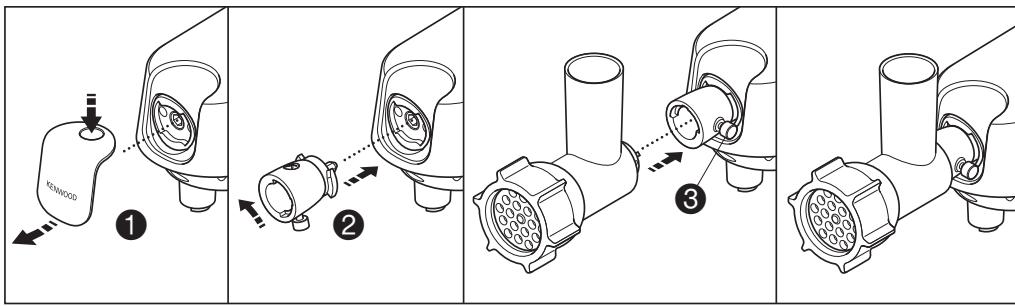

1 Lift off the slow speed outlet cover by pressing the top and lifting off ①.
2 With the adaptor in the position shown (K logo on top), locate to the slow speed outlet and rotate to lock in place ② . The locking screw should be facing forward.
- Note: Before attempting to fit an attachment, check inside the adaptor to ensure the locking screw is unwound far enough to allow the attachment to be inserted.
3 Insert the attachment (turning both ways until it locates), then turn the locking screw ③ anti-clockwise to lock in position.
4 Refer to the individual attachment manual for usage instructions.
5 Reverse the above procedure to remove the attachment from the adaptor.
Cleaning
Always remove the attachment from the adaptor before cleaning the parts.
- The adaptor should only be wiped over with a damp cloth and should not be immersed in water. Do not place the adaptor in the dishwasher.
Care & Cleaning
Always switch off and unplug before cleaning.
- A little grease may appear at the slow speed outlet ② when you first use it. This is normal - just wipe it off.
Power Unit And Outlet Covers
- Wipe with a damp cloth, then dry.
- Never use abrasives or immerse in water.
- Store excess cord into the cord storage compartment ⑫ at the back of the machine.
Bowl
- Wash by hand, then dry thoroughly or wash in the dishwasher.
- Never use a wire brush, steel wool or bleach to clean your stainless steel bowl. Use vinegar to remove limescale.
- Keep away from heat (cooker tops, ovens, microwaves).
Tools & Splashguard
- Wash by hand, then dry thoroughly.
- Alternatively they are dishwasher safe and can be washed on the top rack of your dishwasher. Avoid placing items on the bottom rack directly over the heating element. A short low temperature (Maximum 50^ ) programme is recommended.
Service and Customer Care
- If the cord is damaged it must, for safety reasons, be replaced by KENWOOD or an authorised KENWOOD repairer. If you need help with:
- using your appliance
- servicing or repairs
-
Contact the shop where you bought your appliance.
-
Designed and engineered by Kenwood in the UK.
Made in China.
Important information for correct disposal of the product in accordance with EC Directive 2002/96/EC.
At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.
Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.
Troubleshooting guide
| Problem | Cause | Solution |
| The whisk or K-beater knocks against the bottom of the bowl or not reaching the ingredients in the bottom of the bowl. | Tool at the wrong height and needs adjusting. | Adjust the height using a suitable spanner – see “Tool Adjustment” section. |
| Slow speed attachment cannot be fitted. | Check your attachment is compatible for use with your model. Twist connection system required (Model KAX) TWIST | Attachment must have the KAX twist connection system TWIST to fit the outlet. If you own attachments featuring the Bar Connection System (BAR) you will need to use the KAT002ME adaptor supplied to connect these to the Twist Connection System on your Kitchen Machine. For more information visit www.kenwoodworld.com/twist |
| Standby light flashing when Kitchen Machine first plugged in. | Speed control not in the ‘O’ position. Mixer head in the raised position or not locked down correctly. | Check and turn speed control to the ‘O’ position. Check Kitchen Machine head is locked down correctly. |
| The Kitchen Machine stops during operation. Standby light flashing rapidly. | Overload protection or overheat system activated. Maximum capacity exceeded. | Unplug and check for obstruction or overloading. Turn the speed control to “O” and then restart. If the machine will not operate, remove some of the ingredients to reduce the load and restart. If this still does not resolve the problem, unplug and allow to stand for 15 minutes. Plug in and reselect the speed. If the mixer does not restart following the above procedure contact “customer care” for further advice. |
| Standby light off whilst machine plugged in. | Kitchen machine has been left plugged in for more than 20 minutes without being operated and has gone into Standby mode. | Press the Standby button once to reset. |
BnKOpncTaHnI nCtpyMeHTy uashi
PpekoHaTeC, 10o shynp nobHicTIO po3rOpHytn 3 BiDcIky dIpy 36epirAHn Ihypa ① neped BnKOpNCTaHHaM KxohHOI MaunHn.
1Плклочьпрст pine Мереки КИВЛeння,КНОпа ржIMу OчIKyBaHHЯ ⑧ 3aRopNTbCra.
PnIMiTKa: KhoNka pexnMy
OuykBaHn 8 MmTTITMe, KxOHHa
MaunHa He 6yde npauoBAtn, kKIO
roNoBKa mKcepa 3hAxoDHTbcra B
PiHrTOMy nOLOXeHHi, a60
peryIaTOp wBnDKoCTi He
BCTaHOBJIeHO B nOLOXeHHa 'O'.
Ipeep NoaytKom po6OtN
nepeKoHaItecA, 10 roNoBka mKcepa
npabNbHo 3a6nOKoBaHa, a
peryIaTOp wBnDKoCTi 3hAXoDHTbcra
B noLOXeHHi "O". JaKIO iHdNKaTOp
npoDobXyE MmTiTn, 3BepHiTbcra Do
"Noci6nka 3 ycHyehn
HecnpapBHOcte".
2 HataChiB BaKijb NiOmy roNoBkn 1 Bn3 Ta NiHimItb roNoBky Mikcepy do 6noKyBaHHa 2.
3 YctaHObit Yauy Ha niDCTaBky Ta nOBepHITb 3a rOdHHNKOBHO CTpiKIO ③ dny fikcaii.
4 BCTaBTe noTpi6Hy hacaIky B rHi3do. IOTIM HATnCHiTB 4 Ta nobepHITb 5 IHCTpyMeHT dIy 6IokyBaHHa B nIoJoxeHHi.
Примітka: Ккцо K-насакаabo BiHnUOK He NiДнИмаюТь iHRpeDi€HTN 3 Дна чашi, 3Верпсьсяdo розду "HaJauSTyBaHнЯ inhTpymeNTy".
5 Onycitb roJOBky mKcepa,HaTncHyBn Ha BaJIb po36JokyBaHHra roJOBKn 6 Ta onycitb roJOBky mKcepa do 6NOKyBaHHa 7.
6 3anycitb MaunHy, nobepHyBwn peyIaTOp wBnKoCTi ⑦ Bnotpi6He noloxhen. BnkopncToByuTe imnybcnH pexm (P) Ira kopoTknx cnleckib MAKcImaJIbHoI wBnKoCTi.
7ПиявИКОпСТаHHЯ NOВернITbperуЯТOPшВИДКOCSTIВпОложЕнHA 'O(BIMKH.) i BiДКЛЮчITь KXYOHHy MaSHINHy.
8 BiDkpyiTb IHCTpymeHT 3a roHnHnKOBoIO cTpiIKOIO, 06 pO36JOKyBaTN, a NotIM 3HimITb.
Kopnci npa
Для пов Horоу 3MiUyBaHЯчac BiJчacy BIMNKaITe MIKcep Ta 3HimaTe 3aIIuKInIHRpeiEHTIB 3i CTiHOK aAùI 3a DOnOMOrOJIoNAtKn.
Дяdo柴геннайкрашихpe3yьтатовбиавиту пиКIMHaTHiI TempepaTypi.
-Першнж 3биВаТиячни 6iINK,пегеконайтеся，цо на ВиИчКу ТаВсередини чаши Нема ЗалшкibЖиpy TaЯЧHorOЖOBТka.
-Для пиютування здоб Horo TicTa BИКОпсTOВУTe XOJOdHi iHRpeDiEHTN, YAKIо y peцentax He 3a3HaueHo iHaKSe.
Iopadn cTocobHO BnipKaHHxJI6aBaxnbo
Hikoln He nepeBunuTe MaKcImaJIbHnx Noka3HnKiB, 3a3HaueHnx HnKJy; ue MoKe npN3BeCTn Do nepeBaHTaJxehnMaUnHn.
- Ykso npnila ynoBilbHIOe p60Tu, BmKHiTb Ioro, BnIMiTb NOIOBNHy TICTa Ta nepemiiawTe KOxHy noJOBHNy OKpemo.
- IHrpeiEHTn nepemiiuTybCkpaIe, RkUO cNoaTky DoaTn piDInHy.
Dpijdxi
Cyxi dipixdi (Tn npdxkiv, kni Heo6xidno po36abNTn do notpio HOi KOHCnCTeHcii): Hani Te Tepny Body y uawy. Iicnla boro Doaai Te dpixdki Ta uykop, i 3aNilwItb npnbni3Ho ha 10 XBNIN, DOKN He 3'ABITbcra niHa.
Cbixi dpixkxi: nokpnuiItb y 60pouho.
- IиWI TINNI DpIXdXIB: BnKoHnyTe ihCTpykUII Bnpo6hNka.
- POKlaDiTb ticTo y 3MaUeHn JxIpom
PonIeTunHeOBu nakTe abO y uAuy Ta
HaKpInTe II kXoHNm puShnKOM. PicnA
CboRo NoCTaBeY TeNne MicSe, 06
Ob'em ticTa 36IbUnBCB VDbVci.
ybara
Плд ус використанн iHих OTbopi b yаш i He moKyt b 3HaXoДNTncb iHCTpymeHTN.
3axnCT BiD 6pN3OK He MoXHa
BCTaHOBJIIOBAtNaHaaShy Do
BCTAHOBJENH3axnCTyTOniBKn.
1Пидимить rolOBky mikcepa do ynpoy.
2 3aφikcyiTe 3axnct roJiBKn Ha 3BOPOTHi yactnHi roJiBKn MiKcepy ⑧ Do NOBHOrO BCTaHOBJIeHHHa MlCi.
3 YctahOBiB TuAaHy Ha nIiCTaBky.
4 OnycTitb roJOBky Mikcepa.
5 Haɪnhe 3axnCT BiD 6pɪzək Ha yauy Ta nocyuTe BnepeД, UO6 BCTaHOBNTu Ha miCiJ 9.
-Пид уас ВиMiшУвань ИнгpeДіСТИ моЖна ДОДаВати БeЗпосерДьdo Каші крізь ПОДОБЖУВальну Камеру.
6ДЯВДаJIeHЯПОСТО NOTIHTb NOrO 3чашi MIKCEpa.
7 LioB BuaJIIn 3axIcT roJIbKn iDnHIMtB roJIbKy MIXcepYdo 6IOkyBaHHra. 3HIMtB IHCTpyMeHT, RaIO Bih BCTaHOBHeHni, NOTIM NOTaHIb 3axIcT RoJOBKn BHN3 HNXHbOi YactuHn RoJOBKn MIkepa.
c_1 = 12L = 12 × 5 = 52
b_1 = 12
x_1 = 2,x_2 = - 4
Ae 1
jLg 1
$$ 1 9 = T Y P E K V L 6 0 $$
$$ \begin{array}{c} \dot {a} _ {i j k l} \dot {l} \dot {l} \dot {l} \dot {l} \dot {l} \dot {l} \dot {l} \dot {l} \dot {l} \dot {l} \dot {l} \dot {l} \dot {l} \dot {l} \dot {l} \dot {l} \dot {l} \dot {l} \dot {l} \dot {l} \dot {1} \dot {1} \ \dot {\rho} \end{array} $$
1
gJyIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaI
.
cuii aaiuill uilS l! blll jy
0.53X1 2jBbLlJ
LJ K aIeJI/
10 15cgl15
algoIaJI 5o aJai IaJI CIaO piaiwi ly
11 1JgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJ
aJ. aJLwJ eJol J 0
aLwJ Wc ool
JgJ.5cJgJgJ
aclwJ WLaolj JgJ
S GAO = S ABO + S BOC - S BOC
- b_i a a^i , i = 1,2,·s ,s
Ea 1
(aLwJbLaJIg>laIwJ
A>LaJJ aJ LwJ 1gJv
LdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdL
aJyjI yjI goo ge jui
g 1
J 100
bDJI
Loic Iaoe aljll gol gJgS Jdo
1111111111111111
J 1
aaiii JbIJIJ
| Chef XL | Chef | الإستعمالالترجمة | |
| \( \rho_{\text{العربية}}91.1 \) | \( \rho_{\text{العربية}}71.1 \) | \( وعَن\dتالشرب\:ف:\ ) | \( ميرهُلْهُرِهُمُالَدَالَعَنِهُمُمُال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\_ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال.\ )\ ) |
| \( \rho_{\text{العربية}}51.1 \) | \( \rho_{\text{العربية}}41.1 \) | \( وعَن\dتالشرب\:f:\ ) | \( ميرهُلْهُرِهُمُمُال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:)\ ) |
| \( \rho_{\text{العربية}}51.0 \) | \( \rho_{\text{العربية}}51.1 \) | \( وعَن\dتالشرب\:f:\ ) | \( ميرهُلْهُرِهُمُمُمُال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:ال\:)\ ) |
| \( \rho_{\text{العربية}}58.00 \)(\( \rho_{\text{العربية}}10abls \)) | \( \rho_{\text{العربية}}51.V1 \)(\( \rho_{\text{العربية}}9abls \)) | \( وعَن\dتالشرب\:f:\ ) | \( ميرهُلْهُرِهُمُمُمُمُال\:ال\:ال\:ال\:ال\:ال\:ال\:)\ ) |
| \( 11 \)(\( \rho_{\text{العربية}}7.0 \)) | \( 11 \)(\( \rho_{\text{العربية}}200 \)) | \( وعَن\dتالشرب\:f:\ ) | \( ميرهُلْهُرِهُمُمُمُمُمُمُمُمُمُمُمُمُمُمُمُmُمُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُ mُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُmُn\d ) |
（p）
| الإستعمال الحرفية | الإستعمال الحرفية | الإستعمال |
| “Max” مصحيى بعس，“Max” مصحيى بعس | “Max” مصحيى بعس | K. مصحيى بعس |
| “Max” مصحيى بعس，“4” مصحيى بعس | “4” مصحيى بعس | ↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓ |
| “1” مصحيى بعس，“Fold” مصحيى بعس | “Fold” مصحيى بعس | ↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓ |
| “2” مصحيى بعس，“Min” مصحيى بعس | “Min” مصحيى بعس | ↓↓↓-↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↑ |
| “1” مصحيى بعس，“Min” مصحيى بعس，“Max” مصحيى بعس | “Min” مصحيى بعس | ↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↑ |
| “Max” مصحيى بعس | “Max” مصحيى بعس | ↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓▲ |
| 1. ∴ 1. ∴ 1. ∴ 1. ∴ 1. ∴ 1. ∴ 1. ∴ 1. ∴ 1. ∴ 1. ∴ 1. ∴ 1. ∴ 1. ∴ 1. ∴ 1. ∴ 1. ∴ 1. ∴ 1. ∴ 1. ∴ 1. ∴ 1. ∴ | “Min” مصحيى بعس，“Max” مصحيى بعس，“Min” مصحيى بعس，“Max” مصحيى بعس | ↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓ |
山
JolJIa:locgagl.JolSJIuLigSOL
aolo plo siwla aithlwlilg hslg
pIbili Iaill
Jgss JcsljL Jg
a 1
g>g pdc n g sLi. jlll jie
g j 1
a.b.lw
SijLoojoloojLigso
S OBC = S AOB + S_ BOC
jui jui iiaolblai
P
a-02ssallgagallgJgj
jgljlc jLg
aeglaLaojlgJg 1w 1s
o oLoos joo
- S_ AOE = 12 · CD · DE = 12 × CD × 5
JgG JIJI Jcui Jua Jua
aJbUJ 2gJ JgU
a
aL! cLg gglg) aLg
sLcglgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJg
- a2a1g 1g:5jlg S uJg o
.ogg
jJ LgLg: jLJ
Lai j: 81 a g
e
joo 1
abg aIbfoog aIbIw g CjJL
Lgaccln jg 50 g Lg
P
aolil 151 1 g jn jg pcc n no
sio plsswic aIbLJ
bLilipla
JOLSLJL 1000000000000000000000000000000000000000000
1 ①
JolSoll 2. Hoo! Jg>
sLgW. gJgJgJgJgJgJgJg
⑧ | 1 ≤ 2e < 1|
gjjcgjagw:
cboljLgJooJg ⑧
Jg
g
“O”gagallg4gagll
J 1
Ciaao jg aie g y
gagall gacgogagaa
.0
Liss"Jd JgjAolao
lg10g < 1 ≤ 3 ≤ 4
j 1
2
olj l g2gog oclal jlc a 1
acllll
Jgolsswglal 1
LgLa ⑤ LgJg 4 Lg
gill 90
aLgKunollooLdo
g o g o all Log o all IaI log: 8
a aallll alldalllll
| x^ | = 1| x| · | r1^2 + r2^2 + r_3^2| ≤ 34| x| ^2
y
LdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdLdL
gaae aeg
7 aohab
a
aJyJg
a1g( b2 - 2)
(P)
sagaa Jcysy Jcysy Jcsy
"O"(OFF)Jz
JJI JIOJc JOLJI JIOJI JIOJI
弧 ≤ 32 .
Lacolgolgolgolgolgolgolg
a0125jglJl jLjooC LjxijacLwJ
- g. 1.
Kenwood
4y
LALJooacgiiog 8oS acgaooLLIO
LALLjGooLoluiu JQy gllgagaii
LOLiJI
ggiiooogaii GLoAoi jy
www.kenwoodworld.com gaii (sggj)
LALJooaLolSllacgaoiaoI
goosajlrcu oLaLalglw aLgogaii
LWxIcJlg
aJyWgJcJcJL:
inosisoll
Jg Jy D y aiaiaiaaie 10 Twist pIi. Connection System Twist Connection .System
aacg cgc gao Jaoell aolao 1y jia
go aolal gao jao jao Llc aeeasll
Twist Connection System pLbclao Ls
jlllgl aic jao jao JLLn
twist logleall n Lax (KAX)
Twist logleall n Lax
www.kenwoodworld.com/twist
Bar pLbclao Lao jao Jao JSLi
aJLall . Connection System
k Kat002ME abio plsi
Jlogai jao jao Jlogai jao
Twist Connection pLbclao Lla
Towalt logai jao jao Jao Jao
"abial plsi w" ae jaj) Jolk aill
(ahai jai aie aie aie aie
J
#
aJlJI aCjWJ C ①
aJiOsioJI aCjWJ C ②
aJlBlwJ glJ WJ ③
b
aIbll acswll c sIbIc ④
bIbll w, ⑤
bIbll wJrJrJrJrJ ⑥
gacswll gckslj ⑦
yI bI I
(ajig) aIbll dJg ⑨
aIbll I
10
asiaIbI acswll c sIbIc ⑩
gckll cIbll JnJnJnJnJnJ nJnJ nJnJ nJnJ nJnJ nJnJ nJnJ nJnJ nJnJ nJnJ nJnJ nJnJ nJnJ nJnJ nJnJ nJnJ nJnJ nJnJ nJnJ nJnJ nJnJ nJnJ nJnJ nJnJ nJnJ nJnJ
aill 10 bll cdo ab>do
oogj pao xg hao aanggi jyag gill
gall gss
1
glll a h c g wll lgs wglg 1s s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s
#
$$ \therefore s _ {i} = \sum_ {j} a _ {i j} $$
$$ \begin{array}{c} \text {a r a l l j g a m m a p l u s i n w i t h} \ \text {j g a m m a} \end{array} $$
$$ \begin{array}{l} \text {g a l l} _ {j} \text {c g a m m a l} _ {j} \text {s j} \text {a l l} _ {j} \text {l u m e l} \ \text {‘} \text {a b i l l g a l i e l l} _ {j} \text {p a w e} \end{array} $$
$$ j _ {i} j _ {j} j _ {k} j _ {l} j _ {m} j _ {n} $$
$$ \omega = \frac {8 5}{1 1} $$
$$ \left. \right.\left. \right.\left. \right.\left. \right.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right. $$
$$ \therefore \mathrm {j} \text {g a l l} \mathrm {l} \text {g a l l} \mathrm {l} \text {g a l l} \mathrm {l} \text {g a l l} \mathrm {l} \text {g a l l} \mathrm {l} \text {g a l l} $$
$$ \left. \right.\left. \right.\left. \right.\left. \right.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right. $$
$$ \left. \right.\left. \right.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\left.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right.\right. $$
$$ \dot {c} \dot {s} \dot {s} s \dot {s} s \dot {s} s \dot {s} s \dot {s} s \dot {s} s \dot {s} s \dot {s} s \dot {s} s \dot {s} s \dot {s} s \dot {s} s \dot {s} s \dot {s} s \dot {s} s \dot {s} s \dot {s} s \dot {S} 1 9 3 5 / 2 0 0 4 $$
$$ \therefore a _ {i} = \frac {1}{2} a _ {i} + \frac {1}{2} a _ {i} + \dots + \frac {1}{2} a _ {i} $$
JolKai jL> Lswi Kenwood
JLJI JIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJ
.Kenwood ciiio.egiiio.aleoicXl iSoy.
a
LolwJglll gIg Iy JhaoIg aLLIg LlaIg y
Lg
(OFF)
Jg 1 Jg 1 Jg 1 Jg 1 Jg 1 Jg 1
Lg:5r j gll Lg.Lg. 5x y
J 1 J 1
"..
LgfoJyI JyI Ldoic JolS:Jol jolj
cjiy jj 100g g
Jgll ggl 11111111111111111
.
-
J 1
HEAD OFFICE: Kenwood Limited, 1-3 Kenwood Business Park, New Lane, Havant, Hampshire PO9 2NH
kenwoodworld.com
