Product type	Corded electric lawn mower
Brand	MAKITA
Models	DLM382CT2 / DLM382Z
Rated voltage	230 V ~
Rated frequency	50 Hz
Rated power	1 300 W
No-load speed	2 900 rpm
Cutting width	370 mm
Cutting height adjustment	3 positions: 20 mm, 40 mm, 55 mm
Grass collection bag capacity	35 liters
Net weight	14.9 kg
Protection rating	IPX4
Guaranteed sound power level	96 dB(A)
Sound pressure level (LpA)	77.6 dB(A) (K=3 dB(A))
Vibration (ah)	0.917 m/s² (K=1.5 m/s²)
Blade type	Stamped steel, sharpenable, balanced
Motor type	Double insulated electric
Power supply	Extension cord outdoor section ≥ 1.0 mm²
Safety devices	Lock button + switch handle, immediate stop if released
Maintenance	Cleaning with cloth or brush; checking and sharpening blade; replacement with genuine Makita parts
Repairability	Makita authorized service center for inspection and repair
General information	Domestic use, mowing in dry weather preferably; CE declaration of conformity

Frequently Asked Questions - DLM382CT2 - DLM382Z MAKITA

How to start the mower?

Press the lock button, then pull the switch handle towards you. Hold the handle while mowing. Release it to stop the motor.

How to adjust the cutting height?

Fix the wheels in the appropriate holes. All wheels must be at the same height. Available heights: 20 mm (position 1), 40 mm (position 2), and 55 mm (position 3).

What to do if the grass bag does not fill?

Check the cutting height (grass too high), make sure the grass is dry, clean the bag grid and the ejection chute. If the problem persists, have the blade sharpened or replaced by an authorized center.

When and how to sharpen the blade?

Sharpen the blade frequently with a grinding wheel. Check the balance by inserting a round rod into the center hole: if the blade stays horizontal, it is balanced. Otherwise, file the heavy end. The blade screw tightening torque must be 20 to 25 Nm.

How to replace the blade?

Unplug the mower. Remove the blade screw (3) then the blade (2). Check the condition of the fan (1). When reassembling, orient the cutting edges in the direction of rotation. Use only a genuine Makita blade (ref. 263001422 for ELM3311 or 263001414 for ELM3711).

The motor does not start, what to check?

Check the power cord and extension cable. Start in an area where the grass is short. Clean the ejection chute so the blade rotates freely. Adjust the cutting height if necessary.

What safety precautions are essential?

Wear closed shoes and long trousers. Inspect the area to remove any objects that could be thrown. Never mow when people or animals are nearby. Stop the motor and unplug before any maintenance. Use a residual current device (RCD) ≤ 30 mA.

How to empty and clean the grass bag?

Lift the rear cover, remove the bag. Empty it and clean the vents with a brush. The level indicator should be visible: if the bag is full, the indicator decreases. Clean the indicator opening if it is dirty.

What type of extension cord to use?

Use an outdoor extension cord with a cross-section of at least 1.0 mm². Check its condition before each use. Do not use it if damaged. Keep it away from the blade.

How to maintain the mower after use?

Unplug the mower. Clean it with a cloth or brush – do not spray water. Check the blade and bolts. Store it in a dry place. For any problem, contact a Makita authorized service center.

USER MANUAL DLM382CT2 - DLM382Z MAKITA

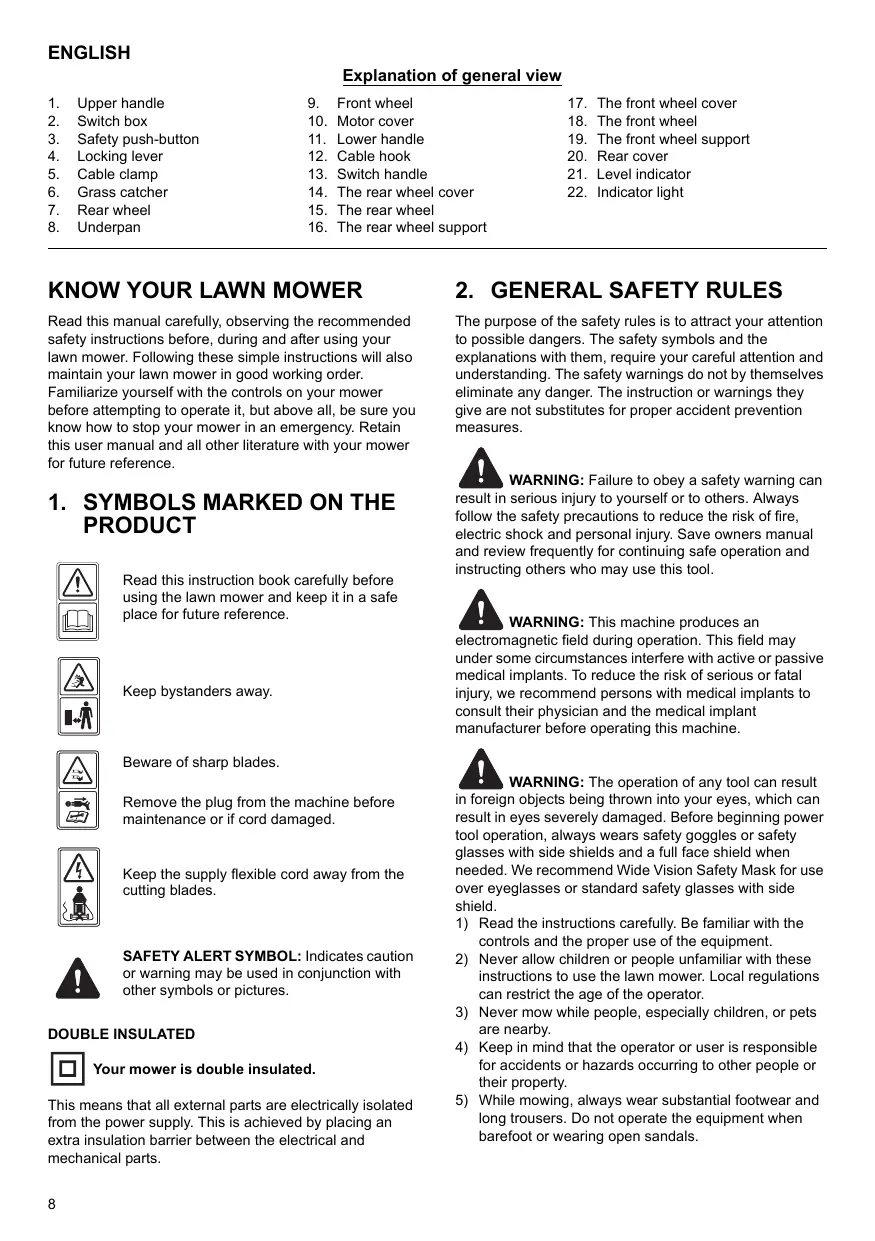

Explanation of general view

1. Upper handle
2. Switch box
3. Safety push-button
4. Locking lever
5. Cable clamp
6. Grass catcher
7. Rear wheel

8. Underpan

9. Front wheel

10. Motor cover
11. Lower handle
12. Cable hook
13. Switch handle
14. The rear wheel cover
15. The rear wheel

16. The rear wheel support

17. The front wheel cover

18. The front wheel
19. The front wheel support
20. Rear cover
21. Level indicator
22. Indicator light

KNOW YOUR LAWN MOWER

Read this manual carefully, observing the recommended safety instructions before, during and after using your lawn mower. Following these simple instructions will also maintain your lawn mower in good working order.

Familiarize yourself with the controls on your mower before attempting to operate it, but above all, be sure you know how to stop your mower in an emergency. Retain this user manual and all other literature with your mower for future reference.

1. SYMBOLS MARKED ON THE PRODUCT

Read this instruction book carefully before using the lawn mower and keep it in a safe place for future reference.

Keep bystanders away.

Beware of sharp blades.

Remove the plug from the machine before maintenance or if cord damaged.

Keep the supply flexible cord away from the cutting blades.

SAFETY ALERT SYMBOL: Indicates caution or warning may be used in conjunction with other symbols or pictures.

DOUBLE INSULATED

Your mower is double insulated.

This means that all external parts are electrically isolated from the power supply. This is achieved by placing an extra insulation barrier between the electrical and mechanical parts.

2. GENERAL SAFETY RULES

The purpose of the safety rules is to attract your attention to possible dangers. The safety symbols and the explanations with them, require your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instruction or warnings they give are not substitutes for proper accident prevention measures.

WARNING: Failure to obey a safety warning can

result in serious injury to yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury. Save owners manual and review frequently for continuing safe operation and instructing others who may use this tool.

WARNING: This machine produces an

electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this machine.

WARNING: The operation of any tool can result in objects being thrown into your eyes, which can cause eyes severely damaged. Before beginning powertrain operation, always wears safety goggles or safety goggles with side shields and a full face shield when wearing goggles or standard safety glasses with side

1) Read the instructions carefully. Be familiar with the controls and the proper use of the equipment.
2) Never allow children or people unfamiliar with these instructions to use the lawn mower. Local regulations can restrict the age of the operator.
3) Never mow while people, especially children, or pets are nearby.
4) Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.
5) While mowing, always wear substantial footwear and long trousers. Do not operate the equipment when barefoot or wearing open sandals.

6) Thoroughly inspect the area where the equipment is to be used and remove all objects which can be thrown by the machine.
7) Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance.
8) Mow only in daylight or in good artificial light.
9) Avoid operating the equipment in wet grass, where feasible.
10) Always be sure of your footing on slopes.
11) Walk, never run.
12) For wheeled rotary machines; mow across the face of slopes, never up and down.
13) Exercise extreme caution when changing direction on slopes.
14) Do not mow excessively on steep slopes.
15) Use extreme caution when reversing or pulling the lawn mower towards you.
16) Stop the blade if the lawn mower has to be tilted for transportation when crossing surfaces other than grass, and when transporting the lawn mower to and from the area to be mowed.
17) Never operate the lawn mower with defective guards, or without safety devices, for example deflectors and/or grass catchers, in place.
18) Start or switch on the motor carefully according to instructions and with feet well away from the blades.
19) Do not tilt the lawn mower when starting switching on the motor, except if the lawn mower has to be tilted for starting. In this case, do not tilt it more than absolutely necessary and lift only the part which is away from the operator.
20) Do not start the motor when standing in front of the discharge chute.
21) Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.
22) Never pick up or carry a lawn mower while the motor is running.
23) Stop the motor and disconnect the plug:

• before clearing blockages or unclogging chute;
• before checking, cleaning or working on the lawn mower;
• after striking a foreign object. Inspect the lawn mower for damage and make repairs before restarting and operating the lawn mower;
• if lawn mower starts to vibrate abnormally (check immediately).

24) Stop the mower:
- whenever you leave the lawn mower.
25) Keep all nuts, blots and screws tight to be sure the equipment is in safe working condition.
26) Check the grass catcher frequently for wear or deterioration.
27) Replace worn or damaged parts for safety.
28) Do not use the lawn mower if the cords are damaged or worn.
29) Do not connect a damaged cord to the supply or touch a damaged cord before it is disconnected from the supply. A damaged cord can lead to contact with live parts.
30) Do not touch the blade before the machine is disconnected from the supply and the blade have come to a complete stop.

31) To keep extension cords away from the blade. The blade can cause damage to the cords and lead to contact with live parts.

32) To disconnect the supply (i.e. pulling the plug from the socket):

• whenever leaving the machine unattended;
• before clearing a blockage;
• before checking, cleaning or working on the machine;
• after striking a foreign object;
• whenever the machine starts vibrating abnormally.

33) Children should be supervised to ensure that they do not play with the appliance.
34) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
35) If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
36) Instructions for the safe operation of the appliance, including a recommendation that the appliance should be supplied via a Residual Current Device (RCD) with a tripping current of not more than 30mA .
37) Be careful during adjustment of the machine to prevent entrapment of the fingers between moving blades and fixed parts of the machine.
38) Always allow the machine to cool before storing.
39) When servicing the blades be aware that, even though the power source is switched off, the blades can still be moved.
40) Replace worn or damaged parts for safety; Use only genuine replacement parts and accessories.
41) Be careful during adjustment of the appliance to prevent entrapment of the fingers between moving blades and fixed parts of appliance.
42) Before use check the supply and extension cord for signs of damage or worn. If the cord becomes damaged during use, disconnect the cord from the supply immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY. Do not use the appliance if the cord is damaged or worn.
43) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

3. PARTS DESCRIPTION (Fig. 1)

4. TECHNICAL DATA

Model:	ELM3311	ELM3711
Rated voltage:	230 V~	230 V~
Rated frequency:	50 Hz	50 Hz
Rated power:	1,100 W	1,300 W
No load speed:	2,900/min	2,900/min
Cutting width:	330 mm	370 mm
Guaranteed sound power level:	96 dB (A)	96 dB (A)
LpA (SPL) at the site of the user:	75.4 dB (A), K=3 dB (A)	77.6 dB (A), K=3 dB (A)
Guaranteed vibration:	0.672 m/s², K=1.5 m/s²	0.917 m/s², K=1.5 m/s²
Grass catcher capacity:	27 L	35 L
Net weight:	13.1 kg	14.9 kg
Degree of protection against liquid:	IPX4	IPX4
Height adjustment :	20/40/55 mm, 3 adjustment	20/40/55 mm, 3 adjustment

5. ASSEMBLY

5-1 ASSEMBLE THE WHEEL

Insert the axle of front and rear wheel cover into the wheel and then screw into the hole of wheel support. (Fig. 2)

WARNING: All wheels must be at the same

height.

5-2 ASSEMBLE THE FOLDING HANDLE

A) Insert the lower handlebars into the fixed holes of the underpan, and then fixed with supplied screw by a screwdriver. (Fig. 3, Fig. 4, Fig. 5)
B) Connect the upper handle and the lower handle with the locking lever. (Fig. 6, Fig. 7)
C) Position the cable over the handle shaft. Clamp it around the middle of lower handle by the cable clamp and make sure the cable is fixed on the outside of the handle. Otherwise the cable may be pinched by opening/closing the rear cover. (Fig. 8)

5-3 ASSEMBLE THE GRASS CATCHER

1. To fit: Raise the rear cover and hitch the grass catcher on rear of mower. (Fig. 9, Fig. 10, Fig. 11)
2. To remove: Grasp and lift the rear cover, remove grass catcher.

There is a level indicator on the top of the grass catcher that shows whether the catcher is empty or full (Fig. 12A, Fig. 12B):

• The level indicator inflates if the catcher is not full during the moving. (Fig. 12B)
• If the catcher is full, the indicator collapses. Once this happens, stop moving immediately and empty the catcher, make sure it is clean and ensure its meshwork is ventilated. (Fig. 12A)

IMPORTANT

If the position of indicator opening is very dirty, the indicator will not inflate. In this case, clean the position of indicator opening immediately.

6. ADJUSTMENT OF CUTTING HEIGHT

The cutting height is adjusted by attaching the wheels to the required hole.

All wheels must be at the same height.

The height (the blade to the ground) can be adjusted from 20mm to 55mm (3 height positions). (Fig. 13)

The lowest adjustment: 20mm (position (1)); the middle adjustment: 40mm (position (2)); the highest adjustment: 55mm (position (3)).

WARNING: Disconnect the electric cord from the upply.

WARNING: Make this adjustment only when the

blade is stopped.

7. SAFETY PRECAUTIONS

a) Always operate with the deflector or grass catcher in the correct position.
b) Always stop the motor before removing the grass catcher or adjusting the height of cutting position.
c) Before mowing, remove all foreign objects from the lawn which may be thrown by the machine. While mowing, stay alert for any foreign objects which may have been missed. (Fig. 14)
d) Never lift the rear of the mower while starting the motor or during normal operation. (Fig. 15)
e) Never place your hands or feel underneath the underpan or into the rear discharge chute while the motor is running. (Fig. 16)

8. STARTING

Before connecting up the lawn mower to the electric power supply, make sure that the mains supply voltage is 230V 50Hz

Before start the lawn mower, fix the extension cord into the cable hook. (Fig. 17)

When the lawn mower power on, the indicator light will turn on. (Fig. 18)

Start the motor as follows. (Fig. 19)

a) Press the safety push-button (1).
b) And meanwhile, pull the the switch handle (2), and keep it in grasp.

Push the lawn mower manually when the motor is running.

If you release the switch handle, the motor will stop.

CAUTION: The blade starts turning as soon as

the motor is started.

WARNING: Cutting elements continue to rotate

after the motor is switched off.

9. BLADE

The blade is made of pressed steel. It will be necessary to reshape it frequently (with a grind wheel).

Ensure that it is always balanced (an unbalanced blade will cause dangerous vibrations). To check for balance, insert a round rod through the central hole and support the blade horizontally. (Fig. 20) A balance blade will remain horizontal. If the blade is not balanced the heavy end will rotate downwards. Reshape the heavy end until the blade is currently balanced. (Fig. 21) To remove the blade (2), unscrew the blade screw (3). (Fig. 22, Fig. 23, Fig. 24)

Check the conditions of the fan (1), and replace any parts, which are damaged. (Fig. 22)

When reassembling, make sure that the cutting edges face in the direction of the motor rotation. The blade screw (3) must be tightened to torque 20-25 Nm.

WARNING: For service, replace the blade with:

MAKITA 263001422 (for ELM3311) and MAKITA

263001414 (for ELM3711) only.

10. EXTENSION CORDS

You should only use extension cords for outdoor use, ordinary duty with a cross sectional area not less than 1.0mm^2

Before using, check the supply and extension cords for signs of damage during use, disconnect the cord for signs of damage or aging. If the cord becomes damaged during use, disconnect the cord from the supply immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY. Do not use the appliance if the cord is damaged or worn. Keep extension cord away from cutting elements.

WARNING: Always ensure that the ventilation

openings are kept clear of debris.

11. MAINTENANCE AND CARE

WARNING: Before performing any maintenance

or cleaning work, always pull out the mains plug!

Do not spray the unit with water. Ingress of water may destroy the switch-plug combination unit and the electric motor. Clean the unit with a cloth, hand brush, etc.

Expert inspection is required, do not make any adjustment by yourself, must contact Makita authorized service centre:

a) if the lawn mower strikes an object.
b) if the motor stops suddenly.
c) if the blade is bent (do not align!).
d) if the motor shaft is bent (do not align!).
e) if a short-circuit occurs when the cable is connected.
f) if the gears are damaged.
g) if the V-belt is defective.

12. TROUBLESHOOTING

WARNING: Before performing any maintenance

or cleaning work, always pull out the mains plug and wait until the cutter has come to a standstill.

Fault	Remedial action
Motor does not run	Check mains connection cable.Start on short grass or on an area which has already been mown.Clean discharge channel/housing-the mowing blade must rotate freely.Correct the cutting height.
Motor power drops	Correct the cutting height.Clean discharge channel/housing.Have mowing blade resharpened/replaced → authorized service centre.
Grass catcher is not filled	Correct the cutting height.Allow the lawn to dry.Have mowing blade resharpened/replaced → authorized service centreCLEAN the grille on the grass catcher.Clean the discharge channel/housing.
Wheel drive does not function	Adjust the flexible cable Check the V-belt/gears → authorized service centre.Check the drive wheels for damage.

CAUTION: Faults which cannot be rectified with

the aid of this table may be rectified by Makita authorized service centre only.

13. ENVIRONMENTALLY FRIENDLY DISPOSAL

According to EU directive 2002/96/EC on electric and electronic equipment and its implementation into national law, all electric tools must be separately collected and environmentally friendly recycled. Alternative disposal: If the owner of the power tool does

not return the tool to the manufacturer, he is responsible for proper disposal at a designated collection point that prepares the device for recycling according to national recycling laws and regulations.

This does not include accessories and tools without electric or electronic components.

For European countries only EC Declaration of Conformity

We Makita Corporation as the responsible manufacturer declare that the following Makita machine(s):

Designation of Machine: Lawn Mower

Model No./Type: ELM3311, ELM3711

Specifications: See "4. TECHNICAL DATA" are of series production and

Conforms to the following European Directives: 2004/108/EC, 2006/42/EC, 2000/14/EC & 2005/88/ EC, 2006/95/EC

And are manufactured in accordance with following standards or standardized documents:

EN 60335, EN 62233, EN 55014, EN 61000

The technical documentation is kept by:

Makita International Europe Ltd.,

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, England

The conformity assessment procedure required by

Directive 2000/14/EC was in Accordance with Annex VI.

Notified Body:

Measured Sound Power level: 87.7 dB (A)

Guaranteed Sound Power level: 96 dB (A)

Model: ELM3711

Measured Sound Power level: 91.0 dB (A)

Guaranteed Sound Power level: 96 dB (A)

1. 1. 2012

Tomoyasu Kato

Director

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

Descriptif

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, Angleterre

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

1. SYMBOLE AM PRODUKT

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, England

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, Inghilterra

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

5-2 DE INKLAPBARE HANDGREEP MONTEREN

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, England

Richtlijn 2000/14/EC was is Overeenstemming met Annex VI.

Officièle instantie:

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, Inglaterra

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

Descrição geral

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, Inglaterra

Corpo notifications:

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

Pas pa skarpe knife.

2004/108/EF, 2006/42/EF, 2000/14/EF og 2005/88/EF, 2006/95/EF

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, England

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

IpooeTe TIG KOPTepes AaEs.

ApaiaeToBuaaAtoTounxavnaTpirV atoTicEpyaiesOuvtnpansnEavTaei Znua to Kaawdo.

KpatnoTe To EukauTTo Kaawio Taopoxns peuatoa paia ato tic aecos kottns.

IPOEIAOIOIHTIKO SYMBOAO

6. PYOMIESH TOY YPOYE KONHSE

To uoos kootns puthetaiEaai meo w tnc ouvoeans twv Tpoxov otnv aattaitouveyn trutia.

2004/108/EK, 2006/42/EK, 2000/14/EK & 2005/88/

EK, 2006/95/EK

Kai kataoekuaovtai oumuwva e Ta napakatw npotutta

n tuTTOIOINueva eyypa:

EN 60335, EN 62233, EN 55014, EN 61000

Ta TeXiKa eyypaqbiatnpouvtai aio nV:

Makita International Europe Ltd.,

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, England

H diaikacia ektiunong oumuoppwong nou aattieitai ato tv Odyia 2000/14/EK ekteleotnke ouuwova e to Iapaprtna VI.

Koivotoinuevo opaviouc:

6. KESME YÜKSEKLIGINNAYARLANMASI

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, Ingiltere

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, England

Uppmatt ljudeffektniva: 91,0 dB (A)

Garanterad ljudeffektniva: 96 dB (A)

1. 1. 2012

Tomoyasu Kato

Direktör

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

1. SYMBOLENE PÅ PRODUKTET

2004/108/EF, 2006/42/EF, 2000/14/EF & 2005/88/

EF, 2006/95/EF

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, England

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, England

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

12.PROBLEMU NOVERŠANA

BRIDINAJUMs: Pirms veikt apkopi vai tiriisanu

vienmér atvienojiet kontaktdakšu no elektroapgădes tikla un pagaidiet, lidz griesanas ierice apstajas.

Bojăjums	Risinăjums
Motors nedarbojas	Pârbaudiet elektroapgădes tîkla kabeli. Săciet Îsă zălê vai laukumă, kas jau ir nopăuts. Iztîriet izlaides kanālu/korpusu — plauşanas asmenim brîvī jagriežas. Mainiet plauşanas augstumu.
Samazinăs motora jauda	Mainiet plauşanas augstumu. Iztîriet izlaides kanālu/korpusu. Atkãrtoti uzasiniţ/nomainiet plauşanas asmeni → pilvarotă akpopes centră.
Zăles uztveřëjs nav piepildîts	Mainiet plauşanas augstumu. Laujet Žălajam noțūt. Atkãrtoti uzasiniţ/nomainiet plauşanas asmeni → pilvarotă akpopes centră. Nottîriet zăles uztveřëja režigi. Iztîriet izlaides kanālu/korpusu.
Nedarbojas riteŋu piedziŋa	Noregulëjiet elastîgo kabeli. Pârbaudiet V veida siksnu/mehanismus → pilvarotă akpopes centră. Pârbaudiet, vai riteŋu piedziŋaìn nav bojăjumu.

UZMANIBU: Problemas, ko nevar noverst,

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, Anglia

Atbilstibas novertejuma procedura, ko nosaka Direktiva

2000/14/EK, veiktatabilstosi VI pielikumam.

Pilvarotā iestāde:

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

Bendrasis aprasymas

1. Virsutine rankena
2. Skirstomoji dézé
3. Apsauginis mygtukas
4. Fiksavimo svirtis
5. Laido spaustukas
6. Zoles gaudykle
7. Galinis ratas

8. Dugnas

9. Priekinis ratas

10. Variklio dangtis
11. Apatine rankena
12. Kabliukas kabeliui
13. Jungiklio rankena
14. Galinio rato gaubtas
15. Galinis ratas

16. Galinio rato atrama

17. Priekinio rato gaubtas

18. Priekinis ratas
19. Priekinio rato atrama
20. Galinis gaubtas
21. Lygio indicatorius
22. Kontroline lemupte

VEJAPJOVES APRAŠYMAS

Tehnilised andmed: vt,4. TEHNILISED ANDMED" on

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, Inglismaa

Vastavushindamise protseduur direktiivi 2000/14/EU

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

Objasnienia do widoku ogolneo

Michigan Drive, Tongwell,

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

2004/108/EK, 2006/42/EK, 2000/14/EK & 2005/88/

EK, 2006/95/EK

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, Anglia.

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

3. POPIS SUCASTI (Obr. 1)

4. TECHNICKÉ UDAJE

2004/108/ES, 2006/42/ES, 2000/14/ES a 2005/88/

ES, 2006/95/ES

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, Anglicko

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

2004/108/ES, 2006/42/ES, 2000/14/ES a 2005/88/ES, 2006/95/ES

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, England

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, Anglia

Procedura de evaluates a conformitàe cerutá de Directa

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

IoRcHEnnK o6uEMy BnDy

1. BepxHry pyKoRTka
2. Blok nepeknoatele
3. Khonka 3KCTpeHHORO OTKJIIOHHeHH
4. CtonopnbI pybIar
5. Ka6eJbHbI 3axnM
6. Bynkep nra c6opa tpaBbl
7. 3aJHee KJneco

8. PoiDOn

9. IpepeHnee Koneco

10. Kanot
11. HIXHry pyKoRTka
12. KaebnbHy I KPOHHTeIN
13. Pukac BbIKJIOuATEJeM
14. Orpaxdenehe 3aHero kOleca
15. 3aJHee Koneco

16. Onopa zaadhero koneca

17. OrpaKdHeHne nepeDHeRo kOleca

18. IpepeHnee KOleco
19. Onopa nepeDhero kOleca
20. 3aHnKpbIka
    21.Инданкатор уровья
    22.Инданкатор

3HAKOMCTBO C ГАЗОHOKОСИКОД

BhimaTeNbNo npOHTNe DaHHepe pyKOBODCTBO n CneDyIte Yka3aHnM No TeXnHke 6e3oNacHOCTn nepeed hauJom paoTbI, Bo BpeM He e NocE OkOHaHnI hCNOlbOBAHNa RaOHOKOCNIKN. BblOpHne H3TNx HecNOXbHix INCHrpykUpi NOMoKET TAKKe NOdepKmBaTb HndNxKaUyo paOToCnOcObHocTb RaOHOKOCNIKN. Po3HaKOMbTeCb c OprAhamu UnpabLeHnra RaOHOKOCNIKN do HaJala 3KnPLnyatauHn, HO camoe IpaBHeOE - y3NaIte, KAK BbIKLIouHTb RaOHOKOCNIky B 3KCTpeHHo CIITyaUuN. CoxpaHnte PyKOBoCTBO nOJIb3ObaTeYn IpOuyo DOKyMeHtAUuNo rOaHOHOKOCNIke dJa daJIbHeJeero NCIOb3OBAHnI.

1. MAPKINPOBKN HA N3DEJINN

BHNMaTeNbHpoOHTne DaHHeo pyKOBOCTBNOpeN HauaONM 3KcNpyTaUmri Ra3OHOKOCINKNIOxOPaHnEero BHaJedXHOMMeCte Dn daNbHeuWero INCNb3OBAHn.

He donyckaTe noctopohnHex K MeCTy pa6oT.

BepenTeb ocTpbix ne3Bn.

Perepe BblonHHeHem TexHHuecKOrO
obcyuBbAHnI INB Cnyae NobpeJeHNHa
KaBeR OTOeOMHInTe PazbEM OT MaSHnHbI.

PacnonarataIte ngkki Ka6eIb nItaHnHa pacctOraHnOT HOKeI.

3HAK PENEUYIPEXKDEHNO IOTEHENJIbHOI ONACHOCTN:

Yka3bIaET Ha NOE0XOaIMoCTb CO6JIIOeHINNA OTOPOKHOCTN B COeTaHN C DpyTMM CnBBOJAMNI INN INO6paxEHNMN.

ДВОИHA N3ОЛЯЦА

Bawa ra3oHokocnka ochauneHa dBoiHOH n3OJIaCneI.

3To 03Naaet, Yo BCE BHeUHMe DeTaJIIMeHOT 3NeKTPOn3OJIaMIO OT NCTOCHNKA NITAHNI. 3To DCtIraEETyNTem NOMEseHnI DOnOIHNITeJIbHOrO 3N3OJIaUNHO6Bapepa MekDy 3NeKTPuCeckMNIM mexAHueckMNl DeTaJIaMn.

2. OБциЕ ПРавиЛА TEXHИКИ БE3ОПАСHОCTИ

Ha3haueHne npabnl Texnki 6e0naococtn - npnbIeYb BaIe BHNMAHNE K BO3MOXhBIM ONaCHOCTM. CmBBoJI texnki 6e0naocOCTn IN ONGEHN K HIM TpeSyIOT BaIero BHNMAHNI INOHMAHNI. IpeDynpKDeHNA camn no Cebe No yctpAHHOT ONaCHOCTb. HNCTpykUnnn InpEynpKDeHNA He 3aMeENHOt MEponpTNI NO npedOTBpaUeHIO HeCuaCTbIX CnyaEB.

ПЕДОCTEPEXFEHNE: Hecneobahne

npedynpexdeHNO TExNHKe 6e3oNaChOCTM MOKET npBecTn K cepb3eHNO TpaBME OonepTaOpA INN OKpykaUoIuXn. Bo N36eKaHne PnCKA BO3rOpAHn, nopAxekhEJNeKTPnuYeCKm TOKOM INN NOnlNoyehn TpaBMcI CLeNyET C05JIOnaDaTb IpaBVnA TeHXNK 6e3oNaChOCTn. CoxpanHe DaHHoe pykoBoDCTBO nONb3OBATEnI INepnoDnueckn IpcOcMaTPrBaIte erO, uTOb6I ObScneuHTb 6e3oNaChHyO 3KcPlyaTaUIO INHCTpykTnpoBaTb dpynIX NpIb3OBaTeJe DaHHOrO IN3dEIn.

IPEIOCTEPEXEHNE:BoBpemra6oTbI

daHHe yCTPOIcTBo CO3JaET aJIeKtPOMaHHTHOe nOJe. B HekOTOpbIX CnUayAix 3TO nOJe MOKeT CO3aBaTaB NOMexn DnRA AKTNBbIX INN nACCMBbIX MeDINCHCKNX IMnPaHTaTOB. TOb6I yMeHbUnTb Pnck TKeJeoN IIN CMEpTeNbHO TpaBMbl, nepei HaJAM O KcNPlyatauIM YCTPOCTBA JIOdAm C MeDINCHKmM IMnPaHTaAM peKomeHdyETcPOKOHcyIbTIPOBaTcBcC BpaQHOM Ipn03BOIDNTeEM IMnJaHTaTA.

IPNEIOCTEPEXHEHNE:3KcnIyataaunJIO6o

HnCTPymeTA MoKET nPIBecTNI KOnpAanHIO HOpOdBhIX npEmTeoB B rna3a, YTO MOKET NocIyKnITb pnuHNOI TaeNoRo yuepeBa 3peHIO. Pepeh NaHaoLam paObTo bC

HCTpymEHOM 063aTeNbHO HADeBaIte 3aUHTbIe OCHN IIN OUYK C 6OKBbIMN UITKAMN, IIN6O 3aUHTHyO Macky (ecNI HeoBxOdIMO). PeKOMEnHyETcN cONPb3OBaTb 3aUHTHyO MACKy C yBEJIuEHHbIM YrTlOM OB3Opa -Y Hee MHORo ppeMMyIeCTB Nc CpABHeHIO C OUYkAMN IIN CTaHApTHbIMN 3aUHTbIMN OUYkAMN C 6OKBbIMN UITKAMN.

1) BnHmATEbHO pOuHTaIe HNCTpyKUIM. O3NaKoMbTeCb coBcMn oPraHmU npaBpIeHn npaBnIbHO 3KcPnIyatauIm 3dEIna.
2) He pa3peuaiTe DeTAM IINiZAM, He 3NaKOMbIM c DaHbIMN INCTPYKUINMM, PONJ3OBAbTCa ra3OHOKoCNIKO. B MecTHOM 3aKHOdaTeNBcTBe MOrYt CyueCTBOBaTb Bo3pACTHbIe OrpaHnueHnI dIra OnePaTOPOP.
3) 3aIpeuaeTc8 kcnplnyatnpoBAt ra30HOKOncnky,ecnNo6bn30ctn HaxoJdTc8 JIOu (B OCO6eHHOCTn Detn)NJN XKOBtBHe.
4）ПOMHHTe，чToОпаТop/нольЗВаTeNB HeCETOTBETCTBEHHOCHTBa nPOMCSUeTBNI N OANChBIE CNTUYaUNC CДугIMN IIOdbM NII INX CO6CTBEHHOCHTbIO.
5）HaBpemrCTPnKnnra3OHaOB3aTeNbHOHaedeBaIte npOHyOByBnNIIHHbIe b6pOKn.He nOJIb3yIITcBc OobpyoBAHmEOCKOMNINBOTKpbTbIX caHdAIInx.
6) TuaTeNbHO OCMOTnPte MeCTo, Ie 6yET nCOnb3OBAtBcra OOBpyDoBaHMe, u ydAnITE BCE npEmdTbI, KOTOpbIE MOrT 6bITb OTbOPOWeHb MaunHoN.
7) Ipepe nCnoIb3ObaHnem oBraTeIeBHOOCMOTpuTe Ie3Bn,6oNTbI KpEJIeHnIe3BnI pExyUuI y3eHa npEMeT N3OcA INOBpeXJdeHn. 3aMeHnIe INHOSeHHe IIN NOBpeXJdeHbIe Ie3BnI 6oNTbIKOMJIeKtAmI, YTObI He dOnyCTNb HApUSeHnI 6anahCnpOBKn.
8) CtrnKyyra3OHOBBbIIOHJIteToIbKO BdHeBHOBeBpMaIINPnXopoOeM NCKYcCTBEHHOMOCBESeHEMN.
9) ПО ВЗМоЖнон He ИспОььуTe obOpуДоване на мokроТравe.
10) Co6nIouaTe octopoXHOCTb Ha cKnloHax.
11) IpeEdburaiTecb 7aRom, He 6eraIte.
12)Пи ИСПОЛьЗВАМИ NОЕСТБИХ POTAZIOHNOHBIX MAДИН CTРИЖК YСКLOHOB BИПОЛNHЯTE TOЛБКО ПОЕК, HO HN B KOEM CNYAчЕ Н ВЕРХ I AND HE BHIN NO CKLOHY.
13)Co6nIouaIte oc6oyo octopoxhOcTb,MeHЯ HappaBHeHne DnNKeHnHa cKlHOHax.
14) He bblonHnIe cTpNkKu Ha uepeCyp KpytbIX CKNoHax.
15)C6bIIOaIte OcObIyO OCToPoxHocTb pIu DvIXeHHN 3aDnHM XODOM IINI IOITraIIBa Ra3OHOKoCNKy K ce6e.
16)O63aTeNbHO BbIKNoaJte Ne3Bne,ecnn RaOHOKoCNJIky Heo6XoJIMHO HAKNOHTb IpaTPhCnOPTNOpBNIO NO BOpErxHOctN,OTNIuHOOIOT TpaBbl,II60PnTRPAHcNOpTnOpOBKe RaOHOKoCNIKK MeCTy 3KcPiYatauNi N O6paTHO.
17)3aŋpezaetc3KcπIyataHpOBaT ra3oHOKocnIky c HeNcnpaBbHmO orPaxdEHHaMn Nn 6e3 3aunTHbIX prncno6bHnH, hApnMpE, deΦeKTopOB Nn 6bHyKePa nJ daCbpa TpABy.
18)BkIIOuHaTe N BbIKIOUaTe 3NeKtpOMOTOP OTOPOXHO,B COOTBeTCTBn C INHCTpyKUJMAH, HON

PnI 3TOM DoJIKNHbI HAXOJITbCRA KAK MOXHO DaJIbSe OT Je3BvN.
19) He haknohnye ra3oHOKocnky npn BkIIOHeHH n3KeKTPOMOTpa, 3a IckNoHcHEmC nCyaaB, KOrDa 3To npedycmTopeHO nIa3nycka dBiratena. B 3tOM cCyaae haknoHrye ee Ha MHNMaJIbHbI yrO, nOdHIMaTe TOIbKO daIbHIO OT OnePAOpTa aCTb.
20) He BkIIOuAaIte 3IeKtpomOTop, cTOr IpePeD pa3rpy3OHybIM JKeIo6oM.
21) He nOmeuaiye pyKn IINH HOrN NOI BpaiaoIoienCe TaTAn NIIb6nIHNx. B JIObOi CNTaUaCNI He cTAHOBIECTe neped aarpy3OHyBM OTBepCTHEM.
22) He noDnHMaIte n He nepeHocInTe ra3oHOKocnKy c pa60taOuM m dBVaTeJeM.
23)Выклочи Te эльковOTи OTOeMHINITE BИЛКу: -пегд устранен EMЗаоров U ydaJIENEMпразmetOB,Зakунорвших кeNo6;
- pepe npOBeRkoI, ONUCTKOINII NIO OBcnyKINBaHnEM ra3OHOKOcNIK;
-nocne ynda o noctopohn npeMeT. OcMtpnte ra3OHOKOuKy Ha npedmet NOBpeXdenn I yCTpaHInTe HeCNpabHOCtB, ppeXdYe HEM BKJIQUaTb N 3KcNllyaTnpoBaTb r3OHOKOuKy;
-eCNI Haanaacb HeOpMaJIbHaBn BInBaPauNra3OHOKOcNIKN (HEmeIeHNO npOBepbTe).
24) BbIKJIouaIe rα3OHOKOcIMKy:
- octabnnae ee 63 npncmoTpa.
25)Bce raiKn,60ntbI IN BHTbl DOJNkhbl 6bItb HaedxHOb3aTAYHt -3TO oBeOcneuHT 6eOtonaCHOCTb NpabotocnoC6HOctb.
26)Перiodи uekn npoeberite 6bHke npia c60pa trabbl Na npEeMT n3Hoca nCHKeHnna 3KcPnyaTaauHOHbIX kaueCTB.
27)Uto6bI o6ecneuHTb 6e3oNaChocTb,3aMeHnTe m3HOWeHHbIe NIOBpeXdEHHbIe DeTaII.
28) He nCIOJIb3yIte rA3OHOKOCNIky C NOBpeXDeHHbIM IIN IIN3HOUeHHbIM Ka6eJIem.
29) He noiknouaTe noBpeKdHbI KaebI K NcTOnHnky nHTAHN I Ne pRnKaacIteCb K NOBpeKdEHMOy KaebIO Do Tex nop, Noka OH He 6yDet OTcoeHNHe ON NCTOCHNA KNTAHN. NoBpeKdHHb KaebI MoXet npIBeCTN K KOHTaTK Cy DeTaTAMM, HAXoJaUIMMCs nD HanpJxKeHMe.
30) He kacaiTeB ne3BnD oTex nOp, nOKa MaunHa He 6byet OTcoeHNHe Na tOCHNkA NtAHn, I ne3Bne nonHOCTbHO He octaHOBTcR.
31) Pacnojarai Te yDInHntBHe k6eN B CTOpOHe OT Je3Bn. Je3Bne MOKeT NOBpeINt b Ka6eN IN KOChyTbCd Detalei ND HApJxKeHem.
32)OTcoeINHnIteNCTOCHNKPiTahnra(T.e.I3BnEkaTe BnIKy n3po3ETKN):

• octabnmaunHy be3 npncmToPa;
  -пенисторенem3acopa;
• napei npOBeRkoI, ouHCTKOI INI IO BCnyKINBaHnEM yCTPOIcTBA;
• nocne ydapa O noctoponHHn npedmet;
• pni nOABJIeHn HHeOpMaIbHOB BV6paUIN.

33) CneNyET CneIeNTb 3a MaIeHbKIMN DeTbMn, YTO6bl OHI He IcNoJIb3OBAII N yCTpoIcTB BO KauEcTBe INrpyuKN.
34)DaHnOe YcTpoIcTBNO He ppeHa3NaUeHO,IЯN IcNoJIb3OBaHNHIOJIObIMN(BKIIIOuaJeTeN) C OrpaHnueHbHbIMNФи3NHeCKMnC,CEhCOpHbIMN nJI

YMCTBHeHHbIMN BO3MOJXHOCTaMI, NIOBO HE IMMeOuIcMI COOTBETCTBYUcero ONBtA ININ 3HAnHm, 3a INKIIIOHcEN CnPyaeB, KOrDa OHNI DeCTByOT NOI PYKOBODCTBOM ININ NOCNE HADJIeXaIeERO INHCTpykTAka IIONCNb3OBAHNIO YCTPOINCTBa CO CTOPoHbI NlCa, OTBETCTBeHHORIO 3a INX Be3ONACHOCTb.

35)B clyae nopeJeHnna KaenI nTaHn erO He6xOdMIO 3aMeHNb CteuNaIbHIM Ka6eIeM IyNt yIOM, KOTOpB i npNo6PeTaTcR y npOn3BOJntTeN IIN B CepBCHON CEHTpe.
36)Инструкци no 6e3oNaChOH 3KcPnyatauIm yctpoiCTBa, BKNIOyA peKOMeHDAaUm no nITaHIO yctpoiCTBa uepe3 nCTOCHM oCtatoHOro ToKa (RCD) cTOKOM OTKnIOHeHNe H e BoJee 30 mA.
37)CobnDaiTe octoPoxHocTb npn peryIinpoBKe MaunHbI, YTObI He DOnyCTNtB 3axBaTaNJbUceB MEKdy DnBxuyMNcRJe3BvMn IN HeNoDbXhBmN DetAaMn MaunHbI.
38)Перед постановков нахраанец дайу усторьу OCTыт.
39)Пиообснухвани Левий салдует NOMHNT,ЧО Левая могут ДВИralь сда щрп OTKЛЮЧЕНСМ ригани.

40)UTo6bI oBeCneHtB 6e3oNaCHocTb,3aMeHЯTe m3HOWeHHbIe NOBpeXdHeHHbIe DetAIn. HcONb3yTe ToJIbKO oprINHaJIbHbIe 3aNpACTn I dOOnJIHTeJIbHbIe npInaDJIeXHooCTn.
41) Co6nOdaIte octopoxhocTb npn peryIinpOBeV yCTPOIcTBa, YTObBi He NOcyCTINb 3axBaTa nAJIbceB MEJky DBHXyUIMNCAIE3BXIIMN HENOdBHXHbIMN DETaJIaYy UCTPOIcTBa.
42) Pered nauanom 3KcIpyataun npOBepbTe cTeBOW uYdINHnTeNbHa Ka6eNHa npEaMeT NOBpeXDeHn IInu n3HocA. B Cnyae NoBpeXDeHn Ka6eN BO Bpem paObTo hHeMeDJIeHNo OTCoeDNIte Ka6eNb OT nCTOUnKa PntAHn. HE KACAI TECb KA6EJIa DO OKJIIOUChENr OT nCTOCHNKA PNTAHn. He nCpONb3yIte yCTpoJcTB0, eCIn Ka6eNb NOBpeXDeHn IInu n3HOuEH.
43) Ecni shynp ntnaHn noBpeKdEn, BO n36eKaHne pncscaero cneJyET 3aMeHnTb y npO3BODnTeR, B er oceBvCHOH cnyXBe NINn ObaPHTbcr K IuCy, HndeneHOMy aHaONrNcHBMN NONHOUMnM.

3. ONICAHNE DETAJEN (Pnc. 1)

4. TEXHnueCKNE DAHHbIE

IPEDOCTEPEXEHNE: Bce koneca donjkhbl

6bItb yCTaHOBJIeHb Ha OJHO Blicote.

5-2 COBEPITE CKJIADHyU PYKOKTky

A) BCTaBtE NHXHHe KOHcIb pyKoRTKn B OTBePCTNnOIOHa, 3aTeC nOMOnCbIO OTBePTK3aФИКСИРуTe npINrAraeMbIM BHITOM. (Pnc.3,Pnc.4,Pnc.5)
B) CoeINHInTe BepXHIO N HIXHOpyKoRtKn CTOnOpHBm pbIaROM. (Pnc. 6, Pnc. 7)

C) PpOJoxHte KaBbIO oC npyKoTKn. 3aФNcPpyTe erO BOKpyr HnXhNe pyKoTKn C nOMOuIbIO KaBbHOrO 3axmHa N y6eINTecb, 4TO KaBb paCnONaeraTcB B cTOpOHe OT pyKoTKn. B I pOtnBHom cnyae KaBb MOKeT 6bTB 3aUeMnE IN pO TkPbITMN/3akPbITMN 3aDHe KpbIuKN. (Pnc.8)

5-3 CБОРКА БУНKEPA ДДЯ СБОРAPTPABbl

1. YctAHOBKa: PtoHnIMHTe 3aAHIo KpbIiKu npincoeHNHe 6yHkep IJn c6bpaTbBv B3aHneJ actHra3OHOKOcNIIK. (Pnc.9, Pnc.10, Pnc.11)
   2.CHrTHe:B03bMnTeCb 3a 3adHIO kpbIbKU n
   noDNHMnITE ee, 3aTeM 0TCOeDHNITe 6bHKeP.
   B BepxHne CHaTc 6bNKePa dJa c6opar TpaBbl
   npeducmOTpeHnIDnKaTOp ypOBHa 3aONHHeHs bYHKePa
   (Pnc.12A,Pnc.12B):

2. INHnkaTOp yOBnBaYBeInuINBaETc,ecn6bynKepeIcBopa TpaBbHe 3aONHe BO Bpem nepemeJeHn. (Pnc.12B)

3. Ecnn6bHKepe nIe c6opapraBblnONHb,INHdkaTOp yMeHbSAeTc. B 3tOM Cnyae HemeJNeHNO npkePaTIne nepemeSeHne N onOpoxHNte 6bHKe. V6eHTeCb, YTO OH nCTb, aero cetka BeHTnInpyeTc.(Pnc.12A)

BAXHO

EcnIOTBepCTne INDnKaTopa CnIbHO 3aIpy3HeNo, OH He 6yDenT yBeINuBaTcB. B 3tOM cIyae HEmeJIeHNO OChNTe OTBepCTne INDnKaTopa.

6. HACTPOIKA BbICOTbl CPE3AHN

BbICota CpeaHnHaCTpaBaetcnyTem yCTaHOBKn KOeC B HxKHe OTBepCTne.

Bce Koneca doJxHbI 6bITyCTaHOBHeHbHa OndHoi Bbcote.

BbICOTy (Ie3BnO rT 3eMnI) MoXHO OTpeYPiPoBaTb B dIana3oHe OT 20 MM - 55 MM (3 nIoJoxHnry BbICOTbl). (Pnc.13)

KpaHn HnXnpeYnpOBka:20 MM (noLoxKeHne(1));
cpeHnpeYnpOBka:40 MM (noLoxKeHne(2)); KpaHnBepXnpeYnpOBka:55 MM (noLoxKeHne(3)).

IPEINOCTEPEXEHNE:OTcoeunHte Kaebn

OT NCTOCHNKA NITAHNA.

IPENOCTEPEXEHNE: BbInonHnYTe

perynipOBky Tobilko NocJe OctaHOBa ne3Bna.

7. ПРавILA TEXHINКИ БЕЗПАСHОCTИ

a) 3KcNpyaTpyre N3dEne TOnbKO c npABnBHO yCTaHOBnEHbIM DePNeKTOpOM INIb6yHKepOM dIpa C6OpaTbpAl.
b) O63aTeIbHb BvIKIIOuJaTe 3eKtPOMOT npere ChTnEM ByKepa dЯ nCopa TpaBb IyI npereD hactPoIeM BvICOTb Cpe3AHIy.
c) Ipeed nauanom o6pa0ktn ra0ha ydaJIne t c Hero BCE noCTOPOHnE npdeMeTb, KOtOpBle MOryT 6b1b OTbOPOWeHb MaunHO. Bo Bpemr o6pa0kTN ra0Ha o6paaIe TBNImAHne Ha IIObIe NOCTOPOHnE npdeMeTb, KOtOpBle MOrIb 6b1b npOnyueHb pIn nepBOM nONcK. (Pnc.14)
d) 3aIpeuaaTcN IOHIMMaTb 3aIHOU qACTb rAOHOKOCINK INPn 3aIeCKtEPOMOTaI IN B o6bIyHOM pEKmE 3KcPiNytaaUN. (Pnc.15)
e)Пи работаюшем Зпектpoвагerteши He nomeшайтукп пол подон ИлиВЗадний pa3рузочьй келоб. (Pnc.16)

8. NYCK

PpeepnodknOHeHMe rA30HOKOCuIKN KIOCToHNky 3eKnTpOnntaHny6eIntecb, YTO hAnpRJaKeHne B cETn COCTaBnE 230 B 50 Γι.

Ipeed 3anyckom ra3oHOKocnkn yCTaHOBnte ydnnHteIbHbI Ka6eJIb Ha Ka6eJIbHbI KPOHsteH. (Pnc.17)

IPEDOCTEPEXEHNE: Ipeed BbIOJIHeHnEM

JIIObIx paobTo NO o6cIyKmbAHIO u yxOdy o6aTeIbHO OTOeINHЯTe Bnky OT cTe!

He 6bp13raIte Ha yCTpoIcTBO BDOJ. IpnOHKnHOBeHne BHYTb BOIbMoKET BblBeCTn I3 CTPOI nepeKJIOnuAteIb N 3JIeKTpOMOTop.OuIIaIte YCTpoIcTBO TkaHbIO,pyHON 5tEKTOI N.TI.

B cneyuohnx cnuyaixTre6yetcra ocmotn3dennia CneuaJIACTOM, He BbIOnHJIte HnKAKHe NaCTPOKn camOToTaeJIbHO, ObaaIaTeCbI n3TOrOB oounauNbI bI cepBncHBI ceHTP Makita:

a) ecnra30HOKOJIka ydapnilacb O npedMeT;
b）ecnIeKtpomToBHe3aHOBbIKJIOHINcra;
c) ecn ne3Bne nOHyNoCb (He BbInpMaTb!);
d) ecnB aan 3neKtpomotopa norgyIcra (He BbIPrAIMJIb!);
e) ecn pnocxoINT KOPOTKoe 3aMbikaHne npi NOkJIouChEN KabeI;
f) ecn noBpeKdHebl WeceTpHn;
g）ecnIMeIOrTaIeΦeKTbKJINHOBOrPeMHRA.

12. ПОИСК И YYSTPAHEHNE HENCPPABHOCTEIN

IPEIOCTEPEXEHNE: Ipeed BbINONHeHnEM

IIObixpabot NO6cNyKbAHuHIO ININO ONUCTKe 063aTeBNoOTcoeHNHTe BUNky OT cETn IDOxDInTEcb NIOHNO OCTaHOBKN HOXA.

IPEDYNPEXDEHNE:HeinpaBHOCTN,

KOTOpbIe He ydaTcra YcTpaHnTb C NOMOuBIO 3ToT TabInuB, MOrTy 6bItb INPpAbeNbI ToBko BO OoNuaJIbHOM cepBnCHOM ueHTpe Makita.

13.эКОЛОГИЧЕСКИ

БЕЗПАСHAУ YТИЛN3AцИЯ

Corglachno dIpuKeTnBe EC 2002/96/EC no

3JNeKTpHueCKOMy 3JNeKtpOHHomY

obopydobaHnIO n ee peaIIm3aunB

HaunohaJbHOM 3aKOHoTaTeJIbCTBe BCE

3NEKTPoHnCTpyMeHTb Heo6xOJIMO coBupaTb

OTdENoN CdaBaTb Ha 3KoIOnuYeCKN

6e3oNaChyU nepepaOtroKy. DpyroB aPnAHT yTNIIN3aunm: Ecnn BnAdeneue 3neKTPoHnCTpymeNTHa He Bo3BpaIaet INCHPTpMNT pNO3BODInTeNIO, OH HeceT OTBEcTBeHHOCb 3a HAnEkaJyU yTNIIN3aUNo B ONpeDEnHbIX nYHKTax c6oba, rpe nPoNCxOdINT NDoTROBkA hEni K nepepaOboTE B COOTBETCTBnC hauMOHaJIbHbIMs 3aKOHAMn I npabINamn no nepepaOboTke.

3To He paacnpcopctpaHReTcHaNoDOnHInTeNbHbIe npHnAdnEkhOCTNs HnHTcpymEtBt6 3NeKtpnueCknx n 3NeKtpoHNbX KOMTOHEHTOB.

ToIbko dIy eBpOeNcKnx cTpaH

Deknapaun o COOTBETCTBUN EC

Makita Corporation, JBnBcOTBeTCTBeHHbIM

PpOn3BODHTeJIeM,3aABJnEeT,HTO CNeIyUoIe

yctponCTBa Makita:

0603haueHne yctpoiCTBa:Ta3OHOKoNlka

No moden/Tin: ELM3311, ELM3711

Texnueckne xapaKtepncTkn: Cm. pa3den

"4. TEXHUNECKNE DAHHbIE" ABJIANTc cepnHbIMN

m3dJIyMnI

COOTBETCTBYIOT CJIeDyUOuIM DnpeKTHbAM EC:

2004/108/EC, 2006/42/EC, 2000/14/EC & 2005/88/EC, 2006/95/EC

I IN3ROTOBHeHbB COOTBETCTBnC CTeJyUOzIMN

CTAHAPTAMM INI HOPMATINBbIMN DOKYMHTAMN: EN 60335, EN 62233, EN 55014, EN 61000

Texnuecka Dokymentauia xpaHntcno apecy:

Makita International Europe Ltd.,

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, England

IpoceDpya OceHKn COOTBETCTBnA CORJIaCHO DnpeKTeB

2000/14/EC 6bIa npOBeHa B COOTBcTCTBn C npIIOKeHem VI.

YnOJIHOMOeHHbI opaH:

I3MepeHHbI yPOBeH 3ByKOBO MOUHOCTN:

87,7 dE (A)

TapaHTnPoBaHHbI yPoBeHb 3ByKOBoM OMuHOCtN:

96 D5 (A)

Modèle: ELM3711

13MepeHHbI yPoBeHb 3ByKOBo MoUHocTn:

91,0 d5 (A)

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

IorcheHHa3araanbHoro BuRJaDy

1. Bēpxhrypuγka
2. BnOK BnMMKaay
3. Khonka 6e3neken
   4.ФikcyuohnyBaxiNb
4. 3aTnckaydnyKpinneHnKa6eHIO
5. TpaBo36ipHnK

6. 3aʌnHe kɒlæco
   8.Пддон

7. Ipeedne Koneco

8. Kpimka DmryHa
9. Huxnypuka
10. RaK dnn Ka6eHIO
11. Puyka Bvmikaa
12. Kpnska 3aHbOro kOleca
13. 3aʌnHe kɒlæco

14. Onopa 3aɪnɪbʊrə kɔjɪeca

15. Kpnska nepednboro koleca
    18.переднколесо

16. Onopa nepednboro koneca
17. 3aɪnɪ kɪpɪsɪkə
18. IIndNKaTOp pIBHra
    22.лампаиндигаТopa

ДИЗHAΙΝΕСΥ ПО CΒΟΥ ΓΑ3ΟΗΚΟΚΑΡΚΥ

YBaKHo npOHTaIe Tc iHCTpykui Ta BVKOHyTe BKA3IBKN 3TexHik6Be3NEKnpePeoNATKompoBOTn i3 ra3OHOKocapKO, a ToKoN iD qacTa nicLa II BVKOpNCtAHHa. DToPmYBaHHra UxnpOCTnx HCTpykui TaKoKdONOMKe 36epertn Bauy RaOHOKocapky u HaneXHOmy pOBOOmy CTahi. O3haonMTec3 eNeMeHTAMn KepyBaHHra RaOHOKocapKn, nepu HIX NOHNATn Ii BVKOPNCTOByBATn; ane HacaMnepeD nepeKohAteC, 0u Bu 3NaCTe, k y3ynHnITn ra3OHOKocapKy u Ha3BnAHHn CNTyaUci. 36epekitb ci IHCTpykui 3 EcNlnyatauTt TaIHsi DokymEnTI, 0u BXoJrBo KO CMPIKETy NOCTaunHHa R3OHOKocapKn, OCKInBkn BOH MoKyTu 3HaOnobntncBam y maiByhOBMy.

1. MAPKYBAHHA HABNPOBI

Ipeed noatakom pobotn 3ra3oHOKocapo ybaXho npOHTaIte ci HcTpykuII Ta 3bepejItb ix dny noaJbworo BIKOPNCTAHNA.

TpmaTe nIcTaHciIO BiD CTOpOHIX IIOdeI.

Ctepejtbcra roctporo pikyoro nonoTHa.

BiD'6HyIe 5tencbHy Bnky BiD IHCTPymeHa nepe npoBeDeHHM TexHiHOrO 0cbcyroByaHHa a6o y pasi OnKoKdoJeHHN Uhpya XmBHeJIe.

TpMaIte rHyckn IHyp KINBHeHnNoIani BID pIXyUro nOIoTHa.

3HAK B3NEKN: Yka3yE Ha 3aCTepExeHHa bO nonpeDxEHnTa MOKe BVKOpNCTOByBaTmCpa3OM iHUsMMI 3HaKaMn a60 3o6paKeHHaMn.

IIOBIMHA I3OJIaIe

Baasa ra3oHokocapka Mae noDbIHy izonlaio.

Lc 03aHaac, 10 Cb 30BHiHd eTani iOJbOaHi Bid eNeKTPnHOro XKnBneHn. Lc 3a63eNeHyCtcb 3aBdAni DoaTkoBMy 10JIuIiHOMy 7apy Mx eNeKTPnHIM im MexahiHIMm DetaTAMn.

2. 3AΓΑЛbHI ΠРАВИЛА БЕЗПЕКИ

MeTa HabeDeHnX y uXx IHcTpKcIqx npaBnI - npuBepHyTu Bawy yBary Do IJxpeR moKJIbOoi He63neKn. 3HaKn 6Be3neKn Ta tXHi NOrCHeHn oTpe6yIoTb BaWoI NIIbHOi YBaTi Ta pO3ymHH. JInSe TiIbKn HAByHicTb 3aTepeKeHb NoP he63neKy He nonepeJkae BHNKHeHnN He63neUHnx CmTuayi. Lci IHcTpKcii a60 6yIb-aki 3aTepeKeHnH He 3aMlHoIO TcoOIO HanexHhi 3axoDi 3TexHki 6Be3neKn.

YBAGA: Y paazi irHOpyBaHHa HabeJeHHX

3actepexhe npo he6e3neky Bn afo iHsi oocbo mokeTe Otpumatnc cepno3i TpaBMn. 3abxdi Dotpmytec npabuI texhikoe 6be3neK, uo6 3nHNTn pnsIK BHNKHeHH NOkExq, ypaKeHH eNtprHmC tpyMOM abo TpaBMyBaHH. 36pekxtb ci i nCTpyKtiTa 3BeptaTae cdo Hnx, kuo Bam Heo6XiHO yTOCHNTn npabuHa 6e3neHo ieCNpyatauii nCTpyMeHTa afo HadaTn IHsMM OC6bAM KOHCyIbTaQII 0DO IIOrO BVKOpNCtAHH.

3ACTEPEXEHH: HecnpaBHOCTi, kHe

BdAeTbCn CaMOTyKn yCyHyTn 3a DonOMoTOO cIx
iHCTpyKcII, MOXINBO, BdAeTbCn yCyHyTn y
ABTopN3OBaHOMy cepBichOMy ceHTpi Makita.

13. EKOLONOГIHO B6E3ПЕЧHA YTNJI3AUCIЯ

13/14

3riHNO 3 dIupeKTHBOO EC 2002/96/EC CTOCOBHO eNEKTPMUNHO I eNEKTPoHORO 6bnaHaHHra Ta II peaIaIcIoo y epKabHOMy 3aKoHOABCTBI yci eNEKTPoPnIaIIN NOBHHI 3bipatnck OKePMo I nepeOp6JIaTNC TAKIM YHMON, UoB He 3aBdAATn KKOdi

HABKOMINHbOMy cepeOBNu. AInbTePHaTnBHa yTnIaUz: JAnIO BnachN EneKTPoPnAHy He NOBepTaC npNCtpi Bnpo6hNky, BiH Hece BiIDNoBidaNbHCTb 3a 3dauy npNCtPO DO npn3HaueHOrO nyHKTy 3bnpaHH CmITr, y kAKOM pncTpi NiDtroyTO do nepepeoBk BiIDnoBIDHO do depKabHNx 3aOKHb i HOpM.

LHe He nooipoeTbca Hn npiaadna i npictpoi 6e3 eNeKtpuHnx a6o eKeTPOHHNX KOMHOENTIB.

Tinbkn dny kpaH EbpOnn

Eknapaia npo BiNobiDhicb tcaHdpTAM EC Mn, KOMNAHIA Makita, kB iDnOBiDaIbHni BINO6Hk3aBnEMO, 30 3a3Nauehe HxKue O6naHaHHa Makita:

no3haeHnHa6naHaHHra3oHOKocapKa

No mojedi/Tt: ELM3311, ELM3711

TEXHHiXapaKTePrcNTnKi:DNB.“4.TEXHHiDAHI" cepiHMM BnPo6HnTbOM Ta

BIDNOBIDAe TaKIM EbponeiCbKM DnpekTtBaM:

2004/108/EC, 2006/42/EC, 2000/14/EC & 2005/88/

EC, 2006/95/EC

Ta BINOToBJIeHO BiINOBiIDHO Do TaKnx CTaHdApTIB a6o

CTaHdapTn3OBAHnx DOKyMeHTiB:

EN 60335, EN 62233, EN 55014, EN 61000

TexhiHa DOKyMaTeTaIaY BeDeTbC:a

Makita International Europe Ltd.,

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, Ahrnir

IpoceDypaOuziHOBaHHBIDNObiDHOCTi,IAKOBIbMaRe

Директуba 2000/14/EC, BiDbynacя BiNobiДно do

IodatKy VI.

YnOBHOBaXeHmOprAn:

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

Makita Corporation

Anjo, Aichi, Japan

ELM3311-23L-1012

www.makita.com

ALA
