USER MANUAL ES-RW30-S503 PANASONIC

Operating Instructions

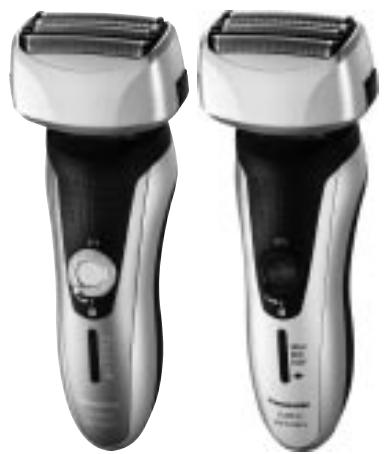

(Household) Rechargeable Shaver

Model No. ES-RF41/ES-RF31

GB English. 4 DK Dansk. 52 Cz Cesky. 99
D Deutsch 12 P Portugues. 60 SK Slovensky.... 107
Français. 20 N Norsk 68 Magyar.. 115
Italiano 28 S Svenska 75 RO Romana 124
NL Nederlands 36 FIN Suomi. 83 TR Turkce.. 132
Espanol. 44 Polski. 91

A

B

C
D

E

F

G

H

0

J

Thank you for choosing a Panasonic shaver. With our WET/DRY technology, you can enjoy using your Panasonic shaver dry or in the shower or bath for gentle and easy shaving. Please read all instructions before use.

Important

This shaver has a built-in rechargeable battery. Do not throw into fire, apply heat, or charge, use, or leave in a high temperature environment.

Warning

• Disconnect the power cord from the shaver before cleaning it in water to prevent electric shock.
• Do not use any power cord or adaptor other than this adaptor (RE7-59).
• Terminate the usage when there is abnormality or failure.
• Plug in the adaptor into a household outlet where there is no moisture and handle it with dry hands.
• Never use the adaptor in the bathroom or shower room.
• Do not dismantle or replace the battery so that you can use the shaver again. This could cause fire or an electric shock. Have it replaced at an authorised service center.
• Disconnect the power cord when storing the shaver. Do not bend the power cord or wrap it around the shaver.
• The supply cord cannot be replaced. If the cord is damaged, the adaptor should be scrapped.

Caution

• The outer foil is very thin and can be damaged if not used correctly. Check that the foil is not damaged before using the shaver. Do not use the shaver if the foil is damaged as you will cut your skin.

• Keep both the inner blades inserted. If only one of the inner blades is inserted, the shaver may be damaged.

• If you clean the shaver with water, do not use salt water or hot water. Do not soak the shaver in water for a long period of time.
• Clean the housing only with a soft cloth slightly dampened with tap water or soapy tap water. Do not use thinner, benzine, alcohol or other chemicals.
• Store the shaver in a place with low humidity after use.
• Do not wash the charging stand with water. ES-RF41
• Do not store the shaver where it will be exposed to direct sunlight or other heat sources.
• Hold the adaptor when disconnecting it from the household outlet. If you tug on the power cord, you may damage it.
• Do not share your shaver with other people. Doing so may result in infection or inflammation.

Intended use

• This WET/DRY shaver can be used for wet shaving with shaving lather or for dry shaving. You can use this watertight shaver in the shower and clean it in water. The following is the symbol of Wet shaver. The symbol means that the handheld part may be used in a bath or shower.

• Treat yourself to wet lather shaves for at least three weeks and notice the difference. Your Panasonic WET/DRY shaver requires a little time to get used to because your skin and beard need about a month to adjust to any new shaving method.

• This shaver body has a waterproof performance that is compliant to the "IPX7", and the adapter has a waterproof performance that is compliant to the "IPX4".

Notes

• This product is intended for household use only.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

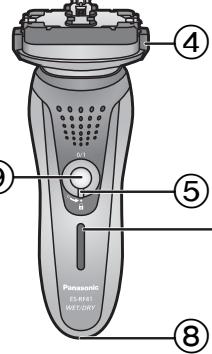

Parts identification

A Protective cap
Outer foil section

① Foil frame
② System outer foil
③ System outer foil release buttons

Inner blades
D Main body

④ Foil frame release buttons
⑤ Lock ring
⑥ Battery capacity lamp
⑦ Charge status lamp

⑧ Appliance socket
⑨ Power switch [0/1]
10 Trimmer
⑪ Trimmer lock button
⑫ Trimmer handle

Adaptor (RE7-59)

③ Power cord
⑭ Appliance plug

Travel pouch
Cleaning brush
H Charging stand ES-RF41
1 Operating Instructions
Guarantee Card

Using the lock ring

Use the lock ring [D⑤] to lock or unlock the power switch [D⑨].

1. Rotate the lock ring [D⑤] until it clicks.

Unlock the power switch:

When shaving, washing the shaver, lubricating the shaver.

Lock the power switch:

When carrying the shaver.

Charge

Charging the shaver

1 Insert the appliance plug [E⑭] into the shaver.
2 Plug in the adaptor [3] into a household outlet.

• Turn the shaver off before attaching.
• Charging is completed after approx. 1 hour.

You cannot operate the shaver while charging.

Charging with the charging stand ES-RF41

1. Insert the appliance plug [E] into the charging stand [H].
2. Place the shaver on the charging stand [H] and plug in the adaptor [E] into a household outlet.

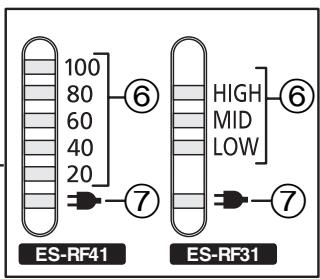

Reading lamps when charging

While charging

ES-RF41

ES-RF31

The charge status lamp () glows.

The level of the battery capacity lamp will increase as charging progresses.

After charging is completed

ES-RF41

ES-RF31

All the battery capacity lamps will light up and then turn off after 5 seconds.

• After charging is completed, turning the power switch ON with the shaver plugged in will cause all the battery capacity lamps to light up and then turn off after 5 seconds. This shows that the shaver is fully charged.
• Recommended ambient temperature for charging is 15 - 35^ . The battery may not charge or the performance may degrade when charging in extreme low or high temperatures.
• The charge status lamp () will blink when there is a problem with charging.
• When charging the shaver for the first time or when it has not been in use for more than 6 months, the charge status lamp () may not glow. It will eventually glow if kept connected.

Shave

Using the shaver

1 Rotate the lock ring [D⑤] and press the power switch [D⑨].

2 Hold the shaver as illustrated above and shave.

Page 5

Tips for best shaving results

Start out shaving by applying gentle pressure to your face. Stretch your skin with your free hand and move the shaver back and forth in the direction of your beard. You may gently increase the amount of pressure as your skin becomes accustomed to this shaver. Applying excessive pressure does not provide a closer shave.

Using the trimmer

Press the trimmer lock button

[D1] and slide the trimmer handle [D12] up. Place at a right angle to your skin and move downwards to trim your sideburns.

Reading lamps when using

While using

ES-RF41

Approximate amount of battery charge is displayed as 20 - 100 (%) and then turns off after 5 seconds.

ES-RF31

Approximate amount of battery charge is displayed as LOW - HIGH and then turns off after 5 seconds.

When the battery capacity is low

ES-RF41

"20%" blinks when turning off the shaver.

• You can shave 1 to 2 times after 20% appears. (This will differ depending on usage.)

• A full charge will supply enough power for approx. 21 shaves of 3 minutes each.

ES-RF31

"LOW" blinks when turning off the shaver.

• You can shave 1 to 2 times after "LOW" appears. (This will differ depending on usage.)

Clean

Cleaning the shaver

1. Disconnect the power cord from the shaver.
2. Apply some hand soap and some water to the outer foil.
3. Rotate the lock ring [D⑤] to unlock the power switch [D⑨].
4. Turn the shaver on.

1. Turn the shaver off after 10-20 seconds.
2. Remove the outer foil section [B] and turn the shaver on.

1. Clean the shaver and the outer foil section [B] with running water.

1. Wipe off any drops of water with a dry cloth.
2. Dry the outer foil section [6] and the shaver completely.
3. Attach the outer foil section [5] to the shaver.

Cleaning with the brush

Clean the inner blades [O] using the short brush by moving it in direction (A).

Clean the system outer foil [B2], the shaver body and the trimmer [D10] using the long brush.

• Do not move the short brush in direction (B) as it will damage the inner blades [C] and affect their sharpness.
• Do not use the short brush to clean the outer foils.

Maintenance

Replacing the system outer foil and the inner blades

system outer foil	once every year
inner blade	once every two years

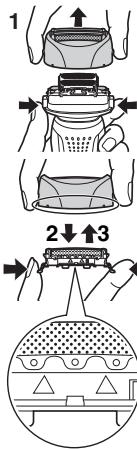

Replacing the system outer foil

1. Press the foil frame release buttons [D4] and lift the outer foil section [B] upwards.

2. Press the system outer foil release buttons [B③] and pull down the system outer foil [B②].

3. Insert the system outer foil [B②] until it clicks as illustrated.

Always attach the system outer foil [B②] in proper direction.
Always insert the system outer foil [E②] to the foil frame [E①] when attaching to the shaver.

Replacing the inner blades

1. Press the foil frame release buttons [04] and lift the outer foil section [B] upwards.
2. Remove the inner blades [O] one at a time.
3. Do not touch the edges (metal parts) of the inner blades [O] to prevent injury to your hand.
4. Insert the inner blades [O] one at a time until they click.

Troubleshooting

Trimmed hairs fly all over.

• This can be improved by cleaning every time after shaving.
• Clean the inner blades with the brush.
• Apply oil (optional) after cleaning with water and leaving to dry thoroughly.

System outer foil gets hot.

• Apply oil (optional).
• Replace the system outer foil if it is damaged or deformed.

Operating time is short even after charging.

• When the number of operations per charge starts to decrease, the battery is nearing the end of its life.
• Apply oil (optional).

The odour is getting stronger.

• This can be improved by cleaning every time after shaving.

You do not get as close a shave as before.

• This can be improved by cleaning every time after shaving.
• Replace the system outer foil and/or inner blades.

Expected life of system outer foil and inner blades.	System outer foil	Approximately 1 year
	Inner blades	Approximately 2 years

• Apply oil (optional).

Power switch cannot be turned OFF/ON.

• Unlock the power switch.

Shaver stopped functioning.

• Recommended ambient temperature for operation is 5 - 35^ . The shaver may stop functioning when out of recommended ambient temperature range.

• The battery has reached the end of its life.

• Since this is a rechargeable model, it cannot be operated while connected to a household outlet. Operate with the adaptor disconnected after it is thoroughly charged.

Service

Contact

Please visit Panasonic web site http://panasonic.net or contact an authorized service center (you find its contact address in the pan european guarantee leaflet.) if you need information or if the shaver or the cord gets damaged.

Replacement parts

Replacement parts are available at your dealer or Service Center.

Replacement parts for ES-RF41/ES-RF31	System outer foil and inner blades	WES9027
	System outer foil	WES9167
	Inner blades	WES9068
Oil		WES0003

Expected life and replacement of the battery

• Approximately 3 years (warranty is for 1 year) with charging once every 2 weeks. The battery can also be considered to be at the end of its life when the number of operations per full charge becomes extremely small. (Expected life of the battery will differ greatly depending on the conditions of usage, storage, etc.)

• Contact the dealer where you purchased the product for replacement of the battery. Replacing the battery yourself may result in deterioration of the waterproofing, resulting in failure.

For environmental protection and recycling of materials

This shaver contains a Lithium-ion battery. Please make sure that the battery is disposed of at an officially assigned location, if there is one in your country.

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Disposal of the built-in rechargeable battery

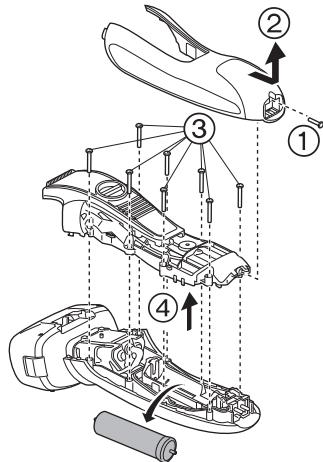

Remove the built-in rechargeable battery before disposing of the shaver. Please make sure that the battery is disposed of at an officially designated location if there is one. Do not dismantle or replace the battery so that you can use the shaver again. This could cause fire or an electric shock. Replace it at an authorized service center.

• Disconnect the power cord from the shaver when removing the battery.
• Perform steps ① to ④ and lift the battery, and then remove it.

Specifications

Power source	See the name plate on the adaptor. (Automatic voltage conversion)
Motor voltage	3.25 V DC
Charging time	1 hour
Airborne Acoustical Noise	In shaving mode: 59 (dB (A) re 1 pW) In trimmer mode: 64 (dB (A) re 1 pW)
