USER MANUAL ES-LS8A PANASONIC

Operating Instructions

(Household use) Rechargeable Shaver

Model No. ES-LS8A

English....3

Français....23

Español.... 43

Black Panasonic electric shaver with visible blade and handle (no text or symbols)

Panasonic®

Operating Instructions

(Household use) Rechargeable Shaver

Model No. ES-LS8A

Contents

Safety precautions...... 5

Important information....9

Parts identification....10

Preparation....11

How to use ......12

Cleaning the shaver .....14

Replacing the system outer foil .....15

FAQ....16

Troubleshooting .....17

Battery life....19

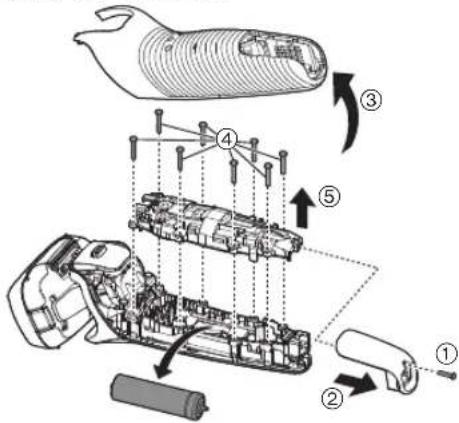

Removing the built-in rechargeable battery ....19

Specifications 20

Thank you for purchasing this Panasonic product.

Before operating this unit, please read these instructions completely and save them for future use.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions are required to always be followed, including the following:

Read all instructions before using this appliance.

DANGER To reduce the risk of electric shock:

1. Except when charging, always unplug this appliance from the electrical outlet immediately after using.
2. Unplug this appliance before cleaning.

WARNING To reduce the risk of burns, fire, electric shock, or injury to persons:

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

2. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.

3. Never operate this appliance when it has a damaged cord or plug, when it is not working properly, after it has been dropped or damaged, or after it has been dropped into water. Return the appliance to a service center for examination and repair.

4. Keep the cord away from heated surfaces.
5. Never drop or insert any object into any opening.
6. Do not use outdoors or operate where aerosol (spray) products are being used.
7. Do not use this appliance with damaged shaving blades and/or foil, as it has the potential to result in facial injury.
8. Always attach plug to appliance first, then to outlet. To disconnect, turn all controls to "off" then remove plug from outlet.

SAVE THESE INSTRUCTIONS

Safety precautions

Make sure to follow these instructions.

To prevent accidents, injuries or damage to property, please follow the instructions below.

■ The following chart indicates the degree of damage caused by improper operation.

⚠️ DANGER	Indicates a potential hazard that will result in serious injury or death.
⚠️ WARNING	Indicates a potential hazard that could result in serious injury or death.
⚠️ CAUTION	Indicates a potential hazard that could result in minor injury or property damage.

■ The symbols are classified and explained as follows.

This symbol indicates prohibition.

This symbol indicates requirement that must be followed.

WARNING

▶ This product

This product has a built-in rechargeable battery. Do not throw into fire, apply heat, or charge, use, or leave in a high temperature environment.

- Doing so may cause overheating, ignition, or explosion.

Do not modify or repair.

- Doing so may cause fire, electric shock, or injury.

Contact an authorized service center for repair (replacement of battery etc).

Never disassemble except when disposing of the product.

-Doing so may cause fire, electric shock, or injury.

WARNING

▶ In case of an abnormality or malfunction Immediately stop using and disconnect the AC adaptor.

• Failure to do so may cause fire, electric shock, or injury.


• The main unit, AC adaptor or cord is deformed or abnormally hot.

• The main unit, adaptor or cord smells of burning.
  • There is an abnormal sound during use or charging of the main unit.
• Immediately request inspection or repair at an authorized service center.

▶ Power supply

Do not connect or disconnect the adaptor to a household outlet with a wet hand.

- Doing so may cause electric shock or injury.

Do not immerse the AC adaptor in water or wash with water.

Do not place the AC adaptor over or near water filled sink or bathtub.

Never use the appliance if the AC adaptor is damaged or if the power plug fits loosely in a household outlet.

Do not damage the cord or the power plug.

- Do not deface, modify, forcefully bend or pull the cord or the power plug. Also, do not place anything heavy on, twist or pinch the cord.

- Doing so may cause electric shock or fire due to a short circuit.

Do not use in a way that would exceed the rating of the household outlet or the wiring.

- Exceeding the rating by connecting too many plugs to one household outlet may cause fire due to overheating.

Use only the supplied AC adaptor with this product.

Do not use the AC adaptor with any other product. (See page 11.)

- Failure to do so may cause burn or fire due to a short circuit.

Fully insert the power plug.

-Failure to do so may cause fire or electric shock.

Disconnect the AC adaptor when cleaning the main body with water.

-Failure to do so may cause electric shock or injury.

WARNING

Regularly clean the power plug and the appliance plug to prevent dust from accumulating.

- Failure to do so may cause fire due to insulation failure caused by humidity.

▶ Preventing accidents

Do not place within reach of children or infants. Do not let them use it.

- Putting parts or accessories in the mouth may cause an accident or injury.

If oil is consumed accidentally, do not induce vomiting, drink a large amount of water and contact a physician.

If oil comes into contact with eyes, wash immediately and thoroughly with running water and contact a physician.

- Failure to follow these instructions may result in physical problems.

▶ Note the following precautions

The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped.

- Failure to do so may cause an accident or injury.

CAUTION

▶ Protecting the skin

Do not use excessive pressure to apply the system outer foil to your lip or other part of your face.

Do not apply the system outer foil directly to blemishes or injured skin.

- Doing so may cause injury to skin.

Do not forcefully press the system outer foil. Also, do not touch the system outer foil with fingers or nails when in use.

Do not use this product for hair on head or any other part of the body.

- Doing so may cause injury to skin or reduce the life of the system outer foil.

Check the system outer foil for cracks or deformations before use.

- Failure to do so may cause injury to the skin.

▶ Note the following precautions

Do not allow metal objects or trash to adhere to the power plug or the appliance plug.

- Doing so may cause electric shock or fire due to a short circuit.

Do not share your shaver with your family or other people.

- Doing so may result in infection or inflammation.

CAUTION

Disconnect the adaptor from the household outlet when not charging.

- Failure to do so may cause electric shock or fire due to electrical leakage resulting from insulation deterioration.

Handling of the removed battery when disposing

DANGER

• The rechargeable battery is exclusively for use with this appliance. Do not use the battery with other products.
• Do not charge the battery after it has been removed from the product.
• Do not throw into fire or apply heat.
• Do not hit, disassemble, modify, or puncture with a nail.

- Do not let the positive and negative terminals of the battery get in contact with each other through metallic objects.

• Do not carry or store the battery together with metallic jewellery such as necklaces and hairpins.
• Do not use or leave the battery where it will be exposed to high temperatures, such as under direct sunlight or near other sources of heat.
  • Never peel off the tube.

- Doing so may cause overheating, ignition, or explosion.

WARNING

After removing the rechargeable battery, do not keep it within reach of children and infants.

- The battery will harm the body if accidentally swallowed.

If this happens, consult a physician immediately.

If the battery fluid leaks out and comes in contact with the eyes, do not rub the eyes, and thoroughly rinse with clean water, such as tap water.

- Failure to do so may cause eye injury.

Consult a physician immediately.

CAUTION

If the battery fluid leaks out and comes in contact with the skin or clothes, rinse off with clean water, such as tap water.

- Failure to do so may cause inflammation.

Important information

- This WET/DRY shaver can be used for wet shaving using shaving lather or for dry shaving. You can use this watertight shaver in the shower and clean with water. The following symbol means suitable for use in a bath or shower.

• Treat yourself to wet lather shaves for at least three weeks and notice the difference. Your Panasonic WET/DRY shaver requires a little time to get used to because your skin and beard need about a month to adjust to any new shaving method.
• If you clean the shaver with water, do not use salt water or hot water. Do not soak the shaver in water for a long period of time.
• The following symbol indicates that a specific detachable power supply unit is required for connecting the electrical appliance to the supply mains. The type reference of power supply unit is marked near the symbol.

• Charge the appliance correctly according to these Operating Instructions. (See page 11 “Charging the shaver”.)
• This appliance contains battery that is only replaceable by skilled persons. Please contact an authorized service center for the details of repair.

Note the following precautions

▶ When using

- Do not bring the system outer foil into contact with hard objects.

Doing so may damage the system outer foil as it is very thin and deforms easily.

- Do not drop or hit against other objects.

Doing so may cause injury.

▶ When storing

- Store the shaver in a place with low humidity after use.

Failure to do so may cause malfunction due to condensation or rust.

- Be sure to place the protective cap on the shaver when carrying around or storing.

Failure to do so may cause injury to skin or reduce the life of the system outer foil.

▶ When cleaning

- Do not dry the main unit with a dryer or a fan heater. Doing so may cause malfunction or deformation of the parts.

- Do not leave the shaver exposed to direct sunlight with the foil frame detached.

Doing so may deteriorate the waterproof rubber and degrade waterproof function, which may cause to malfunction.

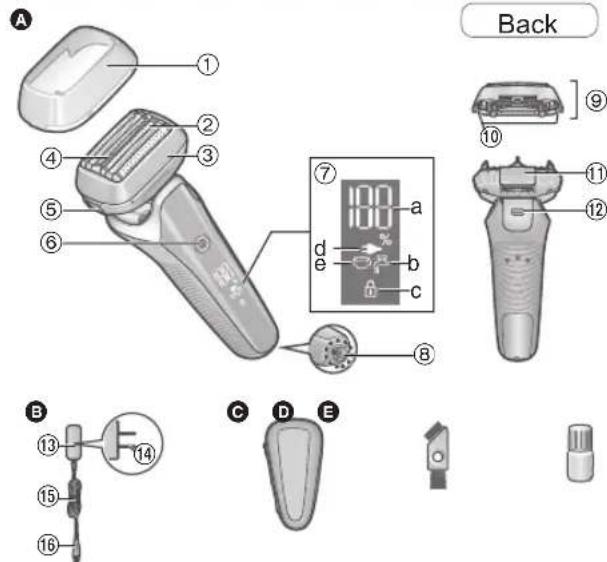

Parts identification

A ① ② ③ ④ ⑤ ⑥ ⑦ 100 a d e b c ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ B ⑭ ⑮ ⑯ C D E Back

A Main body

① Protective cap
② System outer foil
③Foil frame
④ Smooth rollers

• They help to glide over the skin more easily.

⑤ Foil frame release buttons
⑥Power switch

⑦ Lamp display

a. Battery capacity lamp
b. Clean lamp (☐)
c. Switch lock lamp (☐)
d. Charge status lamp (→)
e. Foil/blade check lamp (☐)

⑧Appliance socket

⑨ Outer foil section
⑩ System outer foil release buttons
⑪ Trimmer
⑫ Trimmer handle

B AC adaptor (RE7-87)

⑬Adaptor
⑭ Power plug

⑮ Cord
⑯Appliance plug

Accessories

© Travel case
D Cleaning brush
E Oil

Preparation

Charging the shaver

• Turn the shaver off.
• Wipe off any water droplets on the appliance socket.

1 Insert the appliance plug into the shaver.
2 Plug the adaptor into a household outlet.

• Check that the charge status lamp (▶) is glowing.
• Charging is completed after approx. 1 hour.
• If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration.

3 Disconnect the adaptor after charging is completed.

Diagram of a handheld device with labeled parts and connection points

Note

You cannot operate the shaver while charging.

Quick charge

Even though the battery runs out, you can shave once after 3-minute charge.

(This will differ depending on usage.)

While charging

glows.

The number of the battery capacity lamp will increase as charging progresses.

After charging is completed

“100%” appears and then turns off after 5 seconds.

Notes

• When charging the shaver for the first time or when it has not been in use for more than 6 months, the charging time may change or the charge status lamp (☐) may not glow for a few minutes. It will eventually glow if kept connected.
• Recommended ambient temperature for charging is 10^ - 35^ (50 °F – 95 °F). It may take longer to charge, or the charge status lamp (☐) will blink quickly and the battery may fail to charge properly in extremely high or low temperatures.

- The shaver can be used for approximately 2 weeks with a full charge.

(Based on one 3-minute dry-shave usage per day in an ambient temperature range of 20^ - 30^ [68 °F - 86 °F].)

The number of usable days varies depending on the following conditions.

• Beard thickness
• Pressure applied to the skin
  -Usage frequency of the sonic vibration cleaning mode
• If there is noise from the radio or other sources while using or charging the appliance, move to a different location to use the appliance.

How to use

This appliance has a smart lock function, so the power switch is automatically locked to prevent accidental operation when not shaving.

▶ Unlocking the power switch

The power switch is automatically unlocked when the main body is grasped.

- The lamps glow and then turn off after approximately 6 seconds.

▶ Locking the power switch

All the lamps turn off when releasing the main body.

The lamps glow and the power switch is automatically locked after 1 minute.

- The switch lock lamp (💡) will light up for 6 seconds and turn off.

- The sensor may respond and the power switch may be unlocked when an electrical device or metal object is brought closer. This is not abnormal.

Shaving beard

1 Press and shave.

- The “shaving sensor”, which automatically adjusts the power depending on the beard thickness, will operate.

It will shave with high power on areas where the beard is heavy, and reduce the power on areas where the beard is thin, to reduce burden on the skin.

Tips for better shaving

Apply the whole system outer foil perpendicularly against the skin and shave by slowly gliding the shaver over the face against the grain of the beard.

• The beard under the chin and around the throat can be shaved better by stretching the skin so the beard will stand.

• To prevent damaging the system outer foil, do not shave with only a part of the system outer foil.

m

2 Press when finished.

When the battery capacity is low

"5%" appears.

The appliance beeps twice after switched off.

- You can shave 1 to 2 times after "5%" appears. (This will differ depending on usage.)

Notes

- The appliance may not operate in an ambient temperature lower than approximately 5 °C (41 °F).

• The shaving sensor may not respond depending on the type and quantity of the shaving gel. This is not abnormal.
• Depending on the beard thickness or the amount of beard trimmings in the shaver head, the shaving sensor may not react and the driving sound may not change. This is not abnormal.
  • To prevent erroneous operation, place your fingers on the thumb rest while using the shaver.
• The sonic vibration cleaning mode is activated when the power switch is pressed for more than 2 seconds while the shaver is not operating. (See page 14.) You cannot shave in this mode.

▶ Using the trimmer

1. Slide the trimmer handle up to the "mm" position so that the trimmer stands upright.
2. Press ⑥ and use.

Press and hold the top knob (a) and slide the trimmer handle down to lower the trimmer.

Close-up of a hand inserting a belt into a device (no text or symbols visible)

Diagram showing a hand holding a device with labeled parts and arrows indicating action or operation

Tips for better usage

Apply the trimmer edge perpendicular to skin gently and move downward slowly.

Trimming sideburns Pre-shave of long beards

▶ Switching the shaver head

You can change the pivot action.

The shaver head is moved to prevent missed spots.

You can lock the shaver head.

Medical illustration showing a hand holding a device with a close-up view of the device's internal structure and its side view.

Cleaning the shaver

We recommend cleaning the shaver after each use.

Cleaning with water

- Turn the shaver off and disconnect the AC adaptor.

1 Apply some hand soap and some water to the system outer foil.

2 Press for more than 2 seconds to activate the sonic vibration cleaning mode.

Illustration of a hand using a handheld device to interact with a grid of rectangular blocks (no text or symbols present)

• Splashing of foam is suppressed.
  • The lamps blink alternately.
  • After about 20 seconds, it will be automatically turned off, or you can turn it off by pressing the power switch.

3 Remove the outer foil section and clean with running water.

• See page 16 for removing the outer foil section.
- Splashing is reduced by rinsing the shaver in sonic vibration cleaning mode.
• After rinsing with water, shake the shaver up and down for a few times to remove excess moisture and then wipe off any drops of water with a dry cloth.

4 Dry the outer foil section, the shaver, and the trimmer completely.

- Allow the shaver to dry in the shade, avoid direct sunlight.

Illustration of a hand holding an electric shaver with visible internal components and powder particles (no text or symbols)

5 Lubricate the shaver.

It will keep the movement of the blades smooth and maintain a comfort shave.

1. Apply one drop of oil to each of the system outer foils.
2. Raise the trimmer and apply a drop of oil.
3. Switch the shaver on, and run it for approximately five seconds.
4. Switch off the shaver, and wipe off any excess oil from the system outer foil with a soft cloth.

Notes

• Do not use any kitchen or bathroom detergents other than hand soap.
  Doing so may cause malfunction.
• Be careful not to hit the main body on the sink or any other object while draining the water. Failure to do so may cause malfunction.
• Do not wipe with thinners, benzine, alcohol etc.

Doing so may cause malfunction, cracking or discoloration of the parts.

Wipe with diluted soapy water.

Cleaning with the brush

Remove the outer foil section.

(See page 16.)

Clean the system outer foil in the areas indicated by the circles every time you use the shaver. Otherwise, abnormal sound may be generated.

▶Cleaning with the long brush

Clean the foil frame, system outer foil, the main body and the trimmer using the long brush.

Illustration showing three steps of a hand holding a small object, with no visible text or symbols.

Replacing the system outer foil

appears on the lamp display once every 18 months. (Based on one 3-minute shave use per day)

We recommend checking the system outer foil when it appears.

Press the power switch for more than 30 seconds to turn off ☐.

Even if ☑ is not turned off right after the replacement, it will automatically turn off within approximately 7 uses.

system outer foil once every 18 months

▶Removing the outer foil section

Press the foil frame release buttons and lift the outer foil section upwards.

▶ Attaching the outer foil section

After turning the foil frame mark (✗) to the front, securely attach the outer foil section to the shaver until it clicks.

▶ Replacing the system outer foil

1. Press the system outer foil release buttons and pull down the system outer foil.

- Do not press the system outer foil release buttons with excessive force.

Doing so may bend the system outer foil, preventing complete attachment to the foil frame.

1. Align the foil frame mark (✗) and the system outer foil mark (△) and securely attach together until it clicks.

Note

Do not throw away the foil frame.

▶ Replacement parts

Replacement parts are available at your dealer or Service Center.

Replacement parts for ES-LS8A

System outer foil WES9600

FAQ

Question Answer

Does this product require inner blades?

Will the battery deteriorate if not used for an extended period of time?

Can I charge the shaver after every use?

Why should the adaptor be disconnected after charge?

What is the constituent of the dedicated oil?

Why does the appliance beep twice after switched off?

Outer foils and inner blades are integrated into the system outer foil.

The battery will deteriorate if not used for over 6 months, so make sure to perform a full charge at least once every 6 months.

The battery used is a lithium-ion, so charging after every use will have no effect on battery life.

Charging the battery for more than 1 hour will not affect battery performance, but disconnect the adaptor for safety and to save energy.

▶ Constituent of the oil is liquid paraffin.

The sound indicates that the battery capacity is running low. Please charge the appliance.

Troubleshooting

Perform the following actions. If the problems still cannot be solved, contact the store where you purchased the unit or a service center authorized by Panasonic for repair.

Problem Action

The power switch does not turn ON.

The clean lamp ( ) glows. (It turns off in about 1 minute.)

The appliance may not unlock depending on usage conditions. Place the appliance on the desk, then pick it up again. If it still does not operate, press and hold the power switch for more than 2 seconds to forcibly unlock the appliance.

Please clean the blades with the sonic vibration cleaning mode.

Problem Action

The shaving sensor does not respond.

Depending on the beard thickness or the amount of beard trimmings in the

▶ shaver head, the shaving sensor may not react and the driving sound may not change. This is not abnormal.

The shaving sensor may not respond depending on the

▶ type and quantity of the shaving gel. This is not abnormal.

The shaving sensor may not respond when the remaining

▶ battery capacity is low. If this happens, recharge the shaver.

Apply oil. (See page 15.) The shaving sensor may not

▶ respond when there is not enough oil on the system outer foil.

Problem Action
The shaving sensor responds even though the shaver is not in contact with the skin.	Clean the beard trimmings from the shaver.Clean the system outer foil with the brush. (See page 15.)When the shaver is extremely dirty, remove the foil frame and wash with water.(See page 14.)
	Replace the system outer foil.Expected life of system outer foil:Approximately 18 months

Problem Action
Operating time is short even after a full charge.	Although the shaver can be used for about 2 weeks after a full charge (assuming dry-shave usages for 3 minutes per day), the usable number of days might be lower depending on how the shaver is used (for example, when used for wet shaving).Apply oil.Clean the shaver.When the number of operations per charge starts to decrease, the battery is nearing the end of its life.
Shaver does not operate even after charging.	Use the appliance in an ambient temperature approximately 5^ ( 41^ ) or higher.The battery has reached the end of its life.The shaver will not operate with the AC adaptor connected. Please use the shaver after it has been sufficiently charged and the AC adaptor disconnected.
The driving sound changes while shaving.	The shaving sensor is operating. The sound changes depending on the beard thickness.
Makes a loud sound.	Apply oil.The blades will not move smoothly when there is no oil on the system outer foil, requiring more power.The shaver makes a high-pitched sound due to the linear motor drive. This does not indicate a problem.Confirm that the system outer foil is properly attached.Clean the system outer foil with the brush. (See page 15.)Wash the system outer foil with water. (See page 14.)
The odor is getting stronger.	Clean the shaver.
System outer foil gets hot.	Apply oil.Replace the system outer foil if it is damaged or deformed.(See page 15.)

Problem Action

You do not get as close a shave as before.

▶ Clean the shaver.

▶ Apply oil.

Replace the system outer foil.

Expected life of system outer foil:

Approximately 18 months

Battery life

The life of the battery is 3 years. The battery in this shaver is not intended to be replaced by consumers.

Removing the built-in rechargeable battery

ATTENTION:

A lithium ion battery that is recyclable powers the product you have purchased. Please call 1-800-8-BATTERY for information on how to recycle this battery.

Remove the built-in rechargeable battery before disposing of the shaver.

The battery is to be disposed of safely.

This figure must only be used when disposing of the shaver, and must not be used to repair it. If you dismantle the shaver yourself, it will no longer be waterproof, which may cause it to malfunction.

- Remove the shaver from the AC adaptor.

- Press the power switch to turn on the power and then keep the power on until the battery is completely discharged.

- Perform steps ① to ⑤ and lift the battery, and then remove it.

• Take care not to short circuit the positive and negative terminals of the removed battery, and insulate the terminals by applying tape to them.

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or assembly steps.

Specifications

Power source	See the name plate on the AC adaptor.(Automatic voltage conversion)
Motor voltage	3.6 V---
Charging time Approx. 1 hour

This product is intended for household use only.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, install and use in accordance with provided instructions. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Personal Care & Beauty Care Products

FOR USA ONLY

30-Day Quality Satisfaction Guarantee

If you are dissatisfied with any Panasonic Personal Care & Beauty Care Products for any reason, simply return it to the place of purchase with a dated proof of purchase, in the original packaging, with all accessories, parts and instructions, within 30 days of the date of purchase, for a full refund, or call Panasonic at 1-800-338-0552.

Abuse or misapplication of this product voids the guarantee.

PRODUCT REGISTRATION

(U.S. customers only)

Go to www.panasonic.com/register and register your product now to receive these benefits:

Safety Notification

We contact our customers in case of recall

Owner Verification

Proof of purchase in case of product theft or loss

Efficient Warranty Service

In case there is a problem with your product

Special Offers and Promotions from Panasonic

FOR YOUR CONVENIENCE, WE HAVE

ESTABLISHED A TOLL-FREE (IN USA ONLY)

NATIONAL ACCESSORY PURCHASE HOTLINE AT1-800-332-5368.

Panasonic®

Mode d'emploi

▶ Prévention des accidents

Diagram of a handheld device with labeled parts and connection point

Illustration of a hand holding a tool with a magnified inset showing a circular detail (no text or symbols)

Close-up of a hand inserting a cable into a seatbelt, showing the cable being inserted (no text or symbols visible)

Diagram showing a hand holding a device with labeled parts, including a magnified inset labeled 'a'.

Diagram illustrating a door lock mechanism with labeled components and directional arrows indicating movement or positioning.

Nettoyage du rasoir

Diagram showing a hand holding a remote control device with an inset diagram illustrating signal transmission or data flow between two components.

Illustration of a handbrush and eraser with textured surfaces (no text or symbols)

Illustration showing three steps of a hand holding a small electronic component with a magnified inset (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

Diagram of a handheld device with labeled parts and connection points

Nota

Illustration of a hand holding a medical device with a no-smoking symbol (no text or labels)

Illustration of a hand inserting a device into a car seatbelt, showing the cable being inserted (no text or symbols present)

Diagram showing a hand holding a device with labeled parts, including a magnified inset labeled 'a'

Illustration of a hand holding a remote control device with a magnified inset showing two rectangular blocks (no text or symbols)

Illustration of a handbrush and eraser with powder particles (no text or symbols)

Illustration of three hands using a tool to apply a sample onto a sample (no text or symbols present)

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or operation.

Especificaciones

Panasonic Corporation of North America

Two Riverfront Plaza, Newark, NJ 07102-5490

IN CANADA CONTACT:

AU CANADA, COMMUNIQUEZ AVEC :

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

www.panasonic.com

Service • Assistance • Accessories

https://shop.panasonic.com/personal-care

https://shop.panasonic.com/support

www.panasonic.ca/english/support (In Canada)

www.panasonic.ca/french/support (Au Canada)

https://www.panasonic.com

© Panasonic Corporation 2022

⑤ EN, CA, ES

Printed in Japan

Imprimé au Japon

Impreso en Japón

ES9700LS8A1A Y0322-0
