USER MANUAL FROG LASER BEGLEC

Copyright © 2006 by BEGLEC cva. Reproduction or publication of the content in any manner, without express permission of the publisher, is prohibited. Version: 1.0

Dispose of the unit and used batteries in an environment friendly manner according to your country regulations.

PT - COMO DESFAZER-SE DA UNIDADE

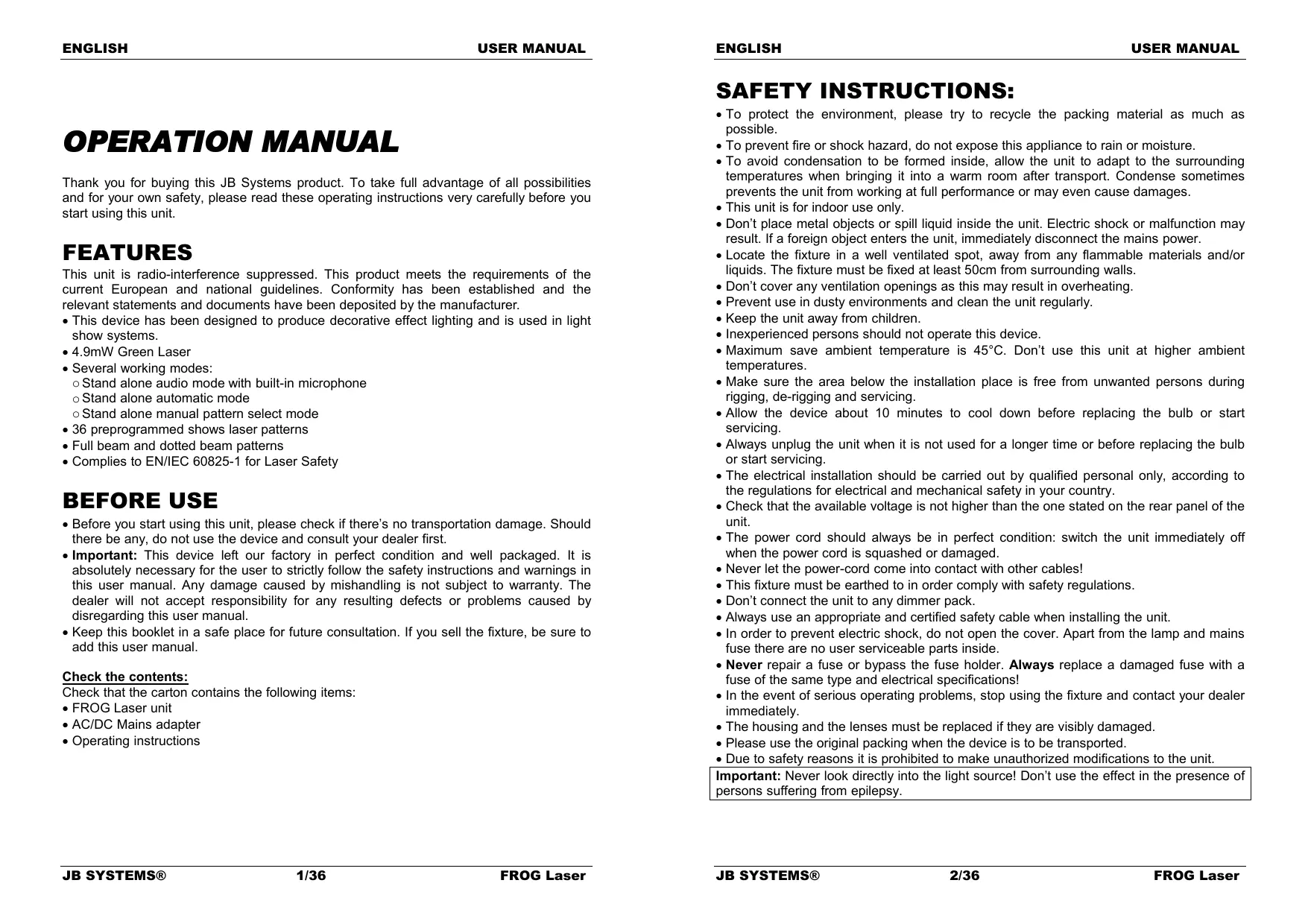

Tente reciclar a unidade e as pilhas usadas respeitando o ambiente e em conformidade com as normas vigentes no seu país. ENGLISH USER MANUAL ENGLISH USER MANUAL SAFETY INSTRUCTIONS: Thank you for buying this JB Systems product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES This unit is radio-interference suppressed. This product meets the requirements of the current European and national guidelines. Conformity has been established and the relevant statements and documents have been deposited by the manufacturer.

• This device has been designed to produce decorative effect lighting and is used in light show systems.
• Several working modes: o Stand alone audio mode with built-in microphone o Stand alone automatic mode o Stand alone manual pattern select mode
• 36 preprogrammed shows laser patterns
• Full beam and dotted beam patterns
• Complies to EN/IEC 60825-1 for Laser Safety BEFORE USE

• Before you start using this unit, please check if there’s no transportation damage. Should there be any, do not use the device and consult your dealer first.
• Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects or problems caused by disregarding this user manual.
• Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user manual. Check the contents: Check that the carton contains the following items:

• To protect the environment, please try to recycle the packing material as much as possible.
• To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
• To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance or may even cause damages.
• This unit is for indoor use only.
• Don’t place metal objects or spill liquid inside the unit. Electric shock or malfunction may result. If a foreign object enters the unit, immediately disconnect the mains power.
• Locate the fixture in a well ventilated spot, away from any flammable materials and/or liquids. The fixture must be fixed at least 50cm from surrounding walls.
• Don’t cover any ventilation openings as this may result in overheating.
• Prevent use in dusty environments and clean the unit regularly.
• Keep the unit away from children.
• Inexperienced persons should not operate this device.
• Maximum save ambient temperature is 45°C. Don’t use this unit at higher ambient temperatures.
• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.
• Allow the device about 10 minutes to cool down before replacing the bulb or start servicing.
• Always unplug the unit when it is not used for a longer time or before replacing the bulb or start servicing.
• The electrical installation should be carried out by qualified personal only, according to the regulations for electrical and mechanical safety in your country.
• Check that the available voltage is not higher than the one stated on the rear panel of the unit.
• The power cord should always be in perfect condition: switch the unit immediately off when the power cord is squashed or damaged.
• Never let the power-cord come into contact with other cables!
• This fixture must be earthed to in order comply with safety regulations.
• Don’t connect the unit to any dimmer pack.
• Always use an appropriate and certified safety cable when installing the unit.
• In order to prevent electric shock, do not open the cover. Apart from the lamp and mains fuse there are no user serviceable parts inside.
• Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same type and electrical specifications!
• In the event of serious operating problems, stop using the fixture and contact your dealer immediately.
• The housing and the lenses must be replaced if they are visibly damaged.
• Please use the original packing when the device is to be transported.
• Due to safety reasons it is prohibited to make unauthorized modifications to the unit. Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy. JB SYSTEMS® 2/36 FROG Laser ENGLISH USER MANUAL LASER SAFETY INSTRUCTIONS:
• According to the EN 60825-1:1994 + A1:2002 + A2:2002 regulations, this laser falls under the classification 3R. Direct eye exposure can be dangerous.

DANGER: LASER RADIATION !

Avoid direct eye exposure! Laser radiation can cause eye damage and/or skin damage. All protective measures for a safe operation of this laser must be applied.

• This product is a so-called show laser, emitting radiation with a wavelength spectrum between 400 and 700 nm and producing lighting effects for shows.
• Due to the construction of this laser, the beam is moved so fast, that it can only hit the eye very short. This is why the use of this laser for a Laser-Light-Show can be regarded as save.
• Never direct the laser beam to people or animals and never leave this device running unattended.
• This laser may only be used for shows. The operation of a class 3R show laser is only allowed if the operation is controlled by a skilled and well-trained operator.
• Depending on the classification, operating a laser product can produce laser radiation that may cause permanent eye damage and/or skin damage. The legal instructions for using a laser product vary from country to country. The user must always inform himself on the legal instructions valid in his country and apply them to his situation. Please note that JB SYSTEMS cannot be made liable for damages caused by incorrect installations and unskilled operation! DESCRIPTION:

1. DC 9V INPUT: this input is used to

connect the AC/DC adapter.

2. ON/OFF SWITCH: used to switch the

unit on/off. Make sure you have fully read and understood all safety related issues in this user manual before you switch on the laser!

3. AUDIO SENSITIVITY: when the laser

is set to audio mode you can adapt the sensitivity of the built-in microphone to obtain optimal performance.

4. MODE SWITCH: used to set the unit

in one of the 3 available modes.

5. PATTERN SELECTOR: when the unit

is used in manual pattern mode, you can select the preprogrammed patterns by pressing this button.

6. INTERNAL MICROPHONE: The builtin microphone is used to synchronize

the laser show to the music. JB SYSTEMS® 3/36 ENGLISH USER MANUAL

7. AC/DC ADAPTER: adapter to convert the 230Vac mains input to the 9Vdc needed for

8. WARNING LABELS: “Caution – Class 3R laser. Laser Radiation when open. Avoid

9. LASER OUTPUT: On the front of the enclosure there’s a large opening where the laser

beam leaves the enclosure, make sure to NEVER look inside the unit through this opening while the laser effect is switched on!

10. HANGING BRACKET: with 2 screws on both sides to fasten the unit and a mounting

hole to fix a mounting hook. OVERHEAD RIGGING

• Important: The installation must be carried out by qualified service personal only. Improper installation can result in serious injuries and/or damage to property. Overhead rigging requires extensive experience! Working load limits should be respected, certified installation materials should be used, the installed device should be inspected regularly for safety.
• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.
• Locate the fixture in a well ventilated spot, far away from any flammable materials and/or liquids. The fixture must be fixed at least 50cm from surrounding walls.
• The device should be installed out of reach of people and outside areas where persons may walk by or be seated.
• Before rigging make sure that the installation area can hold a minimum point load of 10times the device’s weight.
• Always use a certified safety cable that can hold 12times the weight of the device when installing the unit. This secondary safety attachment should be installed in a way that no part of the installation can drop more than 20cm if the main attachment fails.
• The device should be well fixed; a free-swinging mounting is dangerous and may not be considered!
• Don’t cover any ventilation openings as this may result in overheating.
• The operator has to make sure that the safety-relating and machine-technical installations are approved by an expert before using them for the first time. The installations should be inspected every year by a skilled person to be sure that safety is still optimal. CAUTION EYEDAMAGE: Always position the laser in a way that prevents the audience from looking directly into the laser beams. The installation should assure that the beam will not strike the audience. FROG Laser JB SYSTEMS® 4/36 FROG Laser ENGLISH USER MANUAL HOW TO SET UP AND CONTROL THE UNIT
• Regular breaks during operation are essential to maximize the life of this device as it is not designed for continual use.
• Do not switch the unit on and off in short time intervals as this reduces the lamp life.
• Always unplug the unit when it is not used for a longer time. or before replacing the bulb or start servicing.
• In the event of serious operating problems, stop using the fixture and contact your dealer immediately.
• Important: Never look directly into the laser beam! Don’t use the effect in the presence of persons suffering from epilepsy. You can operate the unit in 3 ways:

1) STAND ALONE AUDIO MODE

• Put the mode switch in the left position (audio)
• Put on some rhythmic music at the desired level.
• Adjust the music sensitivity potentiometer. The FROG LASER projects the different laser patterns following the rhythm of the music.

2) STAND ALONE AUTOMATIC MODE

• Put the mode switch in the middle position (auto)
• Switch the unit on. The FROG LASER projects the different laser patterns automatically. ENGLISH USER MANUAL

• The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surroundings can cause greater accumulation of dirt on the unit’s optics.
• Clean with a soft cloth using normal glass cleaning products.
• Always dry the parts carefully.
• Clean the external optics at least once every 30 days.
• Clean the internal optics at least every 90 days. Attention: We strongly recommend internal cleaning to be carried out by qualified personnel! SPECIFICATIONS Power input: AC/DC power adapter: Sound Control: Laser Power: Laser radiation class: Laser Safety Standard: Size: Weight: 9Vdc (>800mA) AC 230V,50Hz Æ 9Vdc (800mA or more) Internal microphone 4.9mW Green CW laser (λ = 532nm) EN60825-1:1994 + A1:2002 + A2:2002 143 x 160 x 75mm 0,81kg Every information is subject to change without prior notice

• The FROG LASER projects one of the 36 pre-programmed patterns until you press the “pattern select” button to go to the next pattern… MAINTENANCE

• Make sure the area below the installation place is free from unwanted persons during servicing.
• Switch off the unit, unplug the mains cable and wait until the unit has been cooled down. During inspection the following points should be checked:
• All screws used for installing the device and any of its parts should be tightly fastened and may not be corroded.
• Housings, fixations and installations spots (ceiling, truss, suspensions) should be totally free from any deformation.
• When an optical lens is visibly damaged due to cracks or deep scratches, it must be replaced.
• The mains cables must be in impeccable condition and should be replaced immediately when even a small problem is detected.
• In order to protect the device from overheat the cooling fans (if any) and ventilation openings should be cleaned monthly.
• The interior of the device should be cleaned annually using a vacuum cleaner or air-jet. JB SYSTEMS® 5/36 FROG Laser JB SYSTEMS® 6/36 FROG Laser FRANÇAIS
