| Product Type | Stage lighting effect (LED moving head) |
| Model | WIZARD-4 |
| Brand | BEGLEC |
| Dimensions (W x D x H) | 296 x 271 x 140 mm |
| Weight | 4.0 kg |
| Power Supply | AC 230V, 50Hz |
| Power Consumption | 16 W |
| Fuse | 250V 6.3A slow blow (20mm glass) |
| Light Source | 2x 3W RGB LEDs (3-color) |
| LED Lifespan | No lamp replacements needed |
| DMX Channels | 1 or 3 channels |
| DMX Connectors | 3-pin XLR male/female |
| Control Modes | Standalone, Master/Slave, DMX, CA-8 remote (optional) |
| Built-in Programs | 8 preprogrammed shows (Sh0-Sh8) |
| Sound Activation | Internal microphone |
| Dimming | 0-100% with ultra fast strobe |
| Beam Angle | 28 optical lenses |
| Housing Color | Black (typical) |
| Mounting | Hanging bracket with safety cable attachment |
| Minimum Distance to Surfaces | 0.5 m from lighted objects, 0.5 m from walls |
| Cooling | Convection (no fans mentioned) |
| IP Rating | Indoor use only (IP20) |
| Operating Temperature | Max 40°C ambient |
| Accessories Included | Power cord, user manual |
| Optional Accessories | CA-8 remote controller, IEC power cables, DMX cables, safety cable |
| Maintenance Interval (Optics) | External: every 30 days; Internal: every 90 days |
| Compliance | CE, Safety Class I |
Frequently Asked Questions - WIZARD-4 BEGLEC

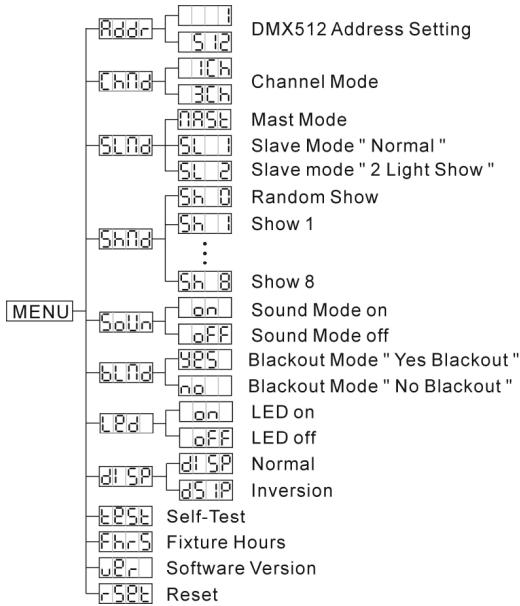

How do I set the DMX address on the BEGLEC WIZARD-4?
Press MENU until Rddr appears. Press ENTER (display blinks). Use UP/DOWN to set address (001-512). Press ENTER to save or wait 8 seconds. Press MENU for 2 seconds to return to running mode.
Can I use the WIZARD-4 without a DMX controller?
Yes. In standalone mode, the unit runs built-in shows via sound activation or manual selection. In master/slave mode, multiple units sync without a DMX controller.
What is the difference between 1-channel and 3-channel DMX modes?
1-channel mode lets you select 1 of 11 sound chases or use Effect Commander (on/off). 3-channel mode gives full control: Channel 1 = dimmer/strobe, Channel 2 = color (32 options), Channel 3 = rotation speed/direction.
How do I clean the WIZARD-4 optics?
Use a soft cloth with normal glass cleaner. Clean external optics at least every 30 days, internal optics every 90 days. For internal cleaning, use a vacuum or air-jet; we recommend qualified personnel.
How many WIZARD-4 units can be linked in master/slave mode?

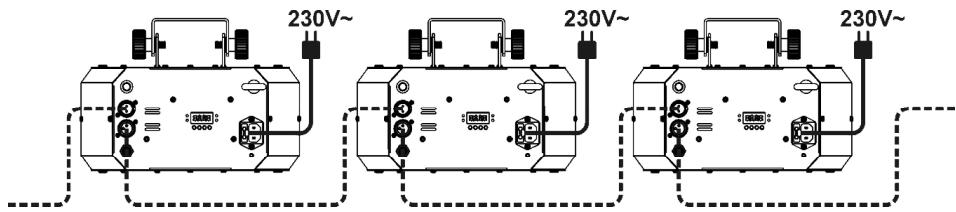

Up to 17 units can be linked using IEC power cables for power. For control, use balanced microphone cables to daisy chain, with the first set as master and the rest as slaves.
What safety precautions should I take when installing the light?
Ensure the installation area can hold 10x the device weight. Use a certified safety cable rated for 12x the weight. Keep a minimum distance of 0.5 m from walls and illuminated surfaces. Do not cover ventilation openings.
How do I use the CA-8 remote controller?
Connect the CA-8 to the 1/4" jack on the master unit. Functions include: standby, blackout, strobe modes (synchro/asynchrono/sound strobe), show selection (1-8), speed (slow/mid/fast), and mode toggle (sound/strobe or show).
What should I do if the unit does not respond to DMX?
Check that the DMX address is correctly set (see menu Rddr). Ensure proper cabling with a 90-120 ohm terminator at the end of the chain. Verify that the unit is in DMX mode (blackout mode set appropriately). Also confirm the controller is sending data on the correct channels.
Can I mount the WIZARD-4 upside down?
Yes. Use the Display Inversion menu (option DSIP) to flip the display for readability when the unit is mounted upside down. Ensure the hanging bracket is securely fastened and use a safety cable.
What is the power consumption and fuse rating?
Power consumption is 16 W at AC 230V, 50Hz. The fuse is a 250V 6.3A slow blow (20mm glass). Always replace with the same type.
