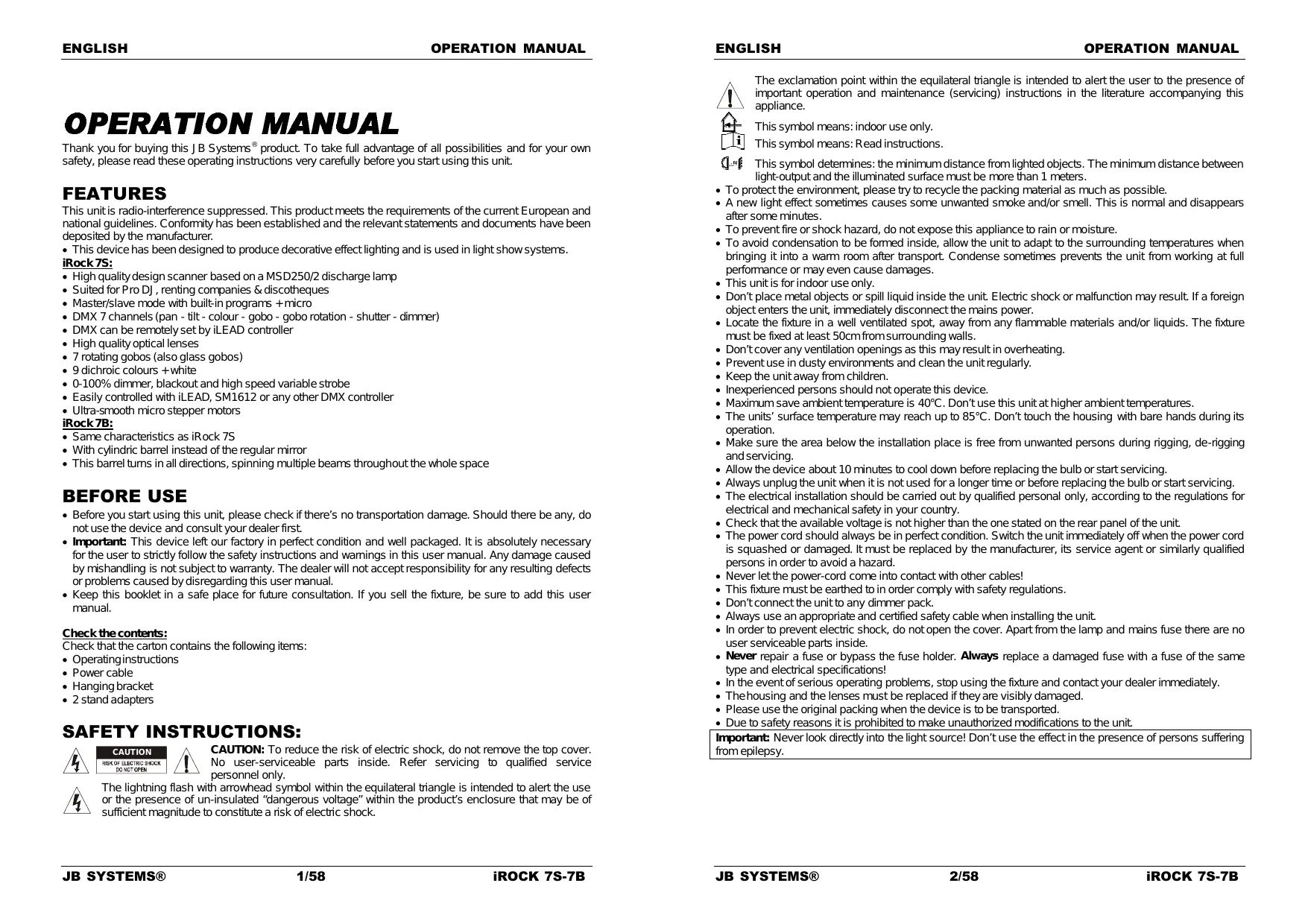

Tente reciclar a unidade e as pilhas usadas respeitando o ambiente e em conformidade com as normas vigentes no seu país. ENGLISH OPERATION MANUAL ENGLISH OPERATION MANUAL The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying this appliance. This symbol means: indoor use only.

Thank you for buying this JB Systems product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES This unit is radio-interference suppressed. This product meets the requirements of the current European and national guidelines. Conformity has been established and the relevant statements and documents have been deposited by the manufacturer. This device has been designed to produce decorative effect lighting and is used in light show systems. iRock 7S: High quality design scanner based on a MSD250/2 discharge lamp Suited for Pro DJ, renting companies & discotheques Master/slave mode with built-in programs + micro DMX 7 channels (pan - tilt - colour - gobo - gobo rotation - shutter - dimmer) DMX can be remotely set by iLEAD controller High quality optical lenses 7 rotating gobos (also glass gobos) 9 dichroic colours + white 0-100% dimmer, blackout and high speed variable strobe Easily controlled with iLEAD, SM1612 or any other DMX controller Ultra-smooth micro stepper motors iRock 7B: Same characteristics as iRock 7S With cylindric barrel instead of the regular mirror This barrel turns in all directions, spinning multiple beams throughout the whole space BEFORE USE Before you start using this unit, please check if there’s no transportation damage. Should there be any, do not use the device and consult your dealer first. Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects or problems caused by disregarding this user manual. Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user manual. Check the contents: Check that the carton contains the following items: Operating instructions Power cable Hanging bracket 2 stand adapters SAFETY INSTRUCTIONS: CAUTION: To reduce the risk of electric shock, do not remove the top cover. No user-serviceable parts inside. Refer servicing to qualified service personnel only. The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use or the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. CAUTION JB SYSTEMS® 1/58 iROCK 7S-7B This symbol means: Read instructions. This symbol determines: the minimum distance from lighted objects. The minimum distance between light-output and the illuminated surface must be more than 1 meters. To protect the environment, please try to recycle the packing material as much as possible. A new light effect sometimes causes some unwanted smoke and/or smell. This is normal and disappears after some minutes. To prevent fire or shock hazard, do not expose this appliance to rain or moisture. To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance or may even cause damages. This unit is for indoor use only. Don’t place metal objects or spill liquid inside the unit. Electric shock or malfunction may result. If a foreign object enters the unit, immediately disconnect the mains power. Locate the fixture in a well ventilated spot, away from any flammable materials and/or liquids. The fixture must be fixed at least 50cm from surrounding walls. Don’t cover any ventilation openings as this may result in overheating. Prevent use in dusty environments and clean the unit regularly. Keep the unit away from children. Inexperienced persons should not operate this device. Maximum save ambient temperature is 40°C. Don’t use this unit at higher ambient temperatures. The units’ surface temperature may reach up to 85°C. Don’t touch the housing with bare hands during its operation. Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing. Allow the device about 10 minutes to cool down before replacing the bulb or start servicing. Always unplug the unit when it is not used for a longer time or before replacing the bulb or start servicing. The electrical installation should be carried out by qualified personal only, according to the regulations for electrical and mechanical safety in your country. Check that the available voltage is not higher than the one stated on the rear panel of the unit. The power cord should always be in perfect condition. Switch the unit immediately off when the power cord is squashed or damaged. It must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Never let the power-cord come into contact with other cables! This fixture must be earthed to in order comply with safety regulations. Don’t connect the unit to any dimmer pack. Always use an appropriate and certified safety cable when installing the unit. In order to prevent electric shock, do not open the cover. Apart from the lamp and mains fuse there are no user serviceable parts inside. Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same type and electrical specifications! In the event of serious operating problems, stop using the fixture and contact your dealer immediately. The housing and the lenses must be replaced if they are visibly damaged. Please use the original packing when the device is to be transported. Due to safety reasons it is prohibited to make unauthorized modifications to the unit. Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy. JB SYSTEMS® 2/58 iROCK 7S-7B ENGLISH OPERATION MANUAL

ENGLISH OPERATION MANUAL OVERHEAD RIGGING In case of replacement of the lamp or maintenance, do not open the fixture within 10 minutes until the unit cools down after switching off. Always unplug the unit before servicing! Always use the same type of spare parts (bulbs, fuses, etc.) When replacing parts, please only genuine spare parts. Switch off the unit and unplug the mains cable. Wait for about 10 minutes until the unit has been cooled down. Unscrew the 2 screws that close the lamp compartment on the back of the fixture. (number 1 on the picture ) On the inside you will see the lamp socket. Tear the lamp socket gently out of the lamp compartment. Unplug the old lamp. Hold the lamp socket while unplugging the lamp. Hold the lamp socket while pressing the new lamp gently in the socket. Attention! Check the label on the backside of the device or see the technical specifications in this manual to know which lamp should be used. Never install lamps with a higher wattage! Lamps with higher wattage generate temperatures the device was not designed for. If the device uses a lamp transformer, it will burn due to current overload. Don’t touch the bulb with bare hands! This drastically shortens the lifespan of the lamp. If you touched the lamp, clean it with a cloth and a little denatured alcohol. Wipe the lamp off before installing. Put the new lamp back inside the unit. Be sure that the wires don’t touch the lamp. Close the lamp compartment with the screws. Turn on the unit and point the beam to a white surface. Use the three adjustment screws indicated by “lamp adjust”. Gently turn these three screws until you obtain maximum light output. Done! Important: The installation must be carried out by qualified service personal only. Improper installation can result in serious injuries and/or damage to property. Overhead rigging requires extensive experience! Working load limits should be respected, certified installation materials should be used, the installed device should be inspected regularly for safety. Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing. Locate the fixture in a well ventilated spot, far away from any flammable materials and/or liquids. The fixture must be fixed at least 50cm from surrounding walls. The device should be installed out of reach of people and outside areas where persons may walk by or be seated. Before rigging make sure that the installation area can hold a minimum point load of 10times the device’s weight. Always use a certified safety cable that can hold 12times the weight of the device when installing the unit. This secondary safety attachment should be installed in a way that no part of the installation can drop more than 20cm if the main attachment fails. The device should be well fixed; a free-swinging mounting is dangerous and may not be considered! Don’t cover any ventilation openings as this may result in overheating. The operator has to make sure that the safety-relating and machine-technical installations are approved by an expert before using them for the first time. The installations should be inspected every year by a skilled person to be sure that safety is still optimal.

HOW TO SET UP THE UNIT

ATTENTION: Install the gobos only when the unit is switched off! Never unscrew the screws of the rotating gobo as the ball bearing will be opened. Repairing this is very difficult! Switch off the main supply and unplug the unit. Open the plastic top cover (4screws) Locate the gobo wheel and remove the fixation ring of the gobo you want to change with an appropriate tool. Remove the gobo and insert the new gobo. Press the fixation-ring together and insert it in the front of the gobo. Done! JB SYSTEMS® 3/58 iROCK 7S-7B

1. DISPLAY shows the various menus and the selected functions.

MENU DOWN ENTER To select the programming functions To go backward in the selected functions To go forward in the selected functions To confirm the selected functions

4. REMOTE CONTROL INPUT: Used to connect a optional CA-8 hand controller while the unit is used in

standalone or master/slave mode.

5. SENSITIVITY: Used to adjust the sensitivity of the micro when the unit is used in standalone or

6. MICROPHONE: used to trigger the internal programs to the rhythm of the music.

7. DMX INPUT/OUTPUT: used for DMX512 linking. Use good quality 3pin XLR M/F balanced cable to link

the units together. MAIN MENU: To select any of the pre-set functions, press the MENU button up to when the required one is shown on the display. Select the function with the ENTER button. The display will blink. Use DOWN and UP button to change the mode. Once the required mode has been selected, press the ENTER button to select. After 8 seconds the display will automatically return to the main functions without any change. To go back to the functions without any change press the MENU button. The main functions are shown on the right. Blackout Mode Blackout mode: when no DMX-signal is detected, the unit goes in blackout and waits for the DMXsignal. No blackout mode: when no DMX-signal is detected, the unit automatically switches to standalone mode. Press the MENU button until is shown on the display. Press the ENTER button, the display starts blinking. Use DOWN and UP button to select (yes blackout) or (no blackout) mode. Once the mode has been selected, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds) To go back to the functions without any change press the MENU button again. Color Mode Normal: only full colors can be selected. Split colors: you can select full colors and 2 colors that are next to each other on the color wheel. Press the MENU button unitl is shown on the display. Press the ENTER button, the display starts blinking. Use DOWN and UP button to select (normal) or (split color) mode. Once the mode has been selected, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds) To go back to the functions without any change press the MENU button again. Pan Inversion Normal: Panning movement is not inverted. Pan inversion: Panning movement is inverted Press the MENU button until is shown on the display. Press the ENTER button, the display starts blinking. Use DOWN and UP button to select (normal) or (pan inversion) mode. Once the mode has been selected, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds) To go back to the functions without any change press the MENU button again. DMX512 Address Setting Used to set the starting address in a DMX setup. Press the MENU button until shown on the display. Press the ENTER button, the display starts blinking. Use DOWN and UP buttons to change the DMX512 address. Once the correct address shows on the display, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds) To go back to the functions without any change press the MENU button again. Tilt Inversion (iROCK 7S) or Barrel Rotation Inversion (iRock 7B) Tilt movement is not inverted. Barrel movement is not inverted inversion: tilt movement is inverted Barrel movement is inverted Press the MENU button until ) is shown on the display. Press the ENTER button, the display starts blinking. Use DOWN and UP buttons to select (normal) or (tilt/barrel rotation inversion) mode. Once the mode has been selected, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds) To go back to the functions without any change press the MENU button again. Normal: Slave Mode Used to make the slave unit work in opposite to the master or to work in complete sync. Press the MENU button until is shown on the display. Press the ENTER button, the display starts blinking. Use DOWN and UP button to select (normal) or (2 light show) mode. Once the mode has been selected, press the ENTER button save it. (or automatically return to the main functions without any change after 8 seconds) To go back to the functions without any change press the MENU button again. JB SYSTEMS® 5/58 iROCK 7S-7B JB SYSTEMS® 6/58 iROCK 7S-7B ENGLISH OPERATION MANUAL ENGLISH OPERATION MANUAL Self-Test Used to activate the internal “self-test” program which shows all possibilities of the unit. Press the MENU button untill is blinking on the display. Press the ENTER button to start the internal self-test program. To go back to the functions press the MENU button. Dimmer Inversion Standard dimming: fader closed ( DMX value 000 ) full light output fader open ( DMX value 255 ) blackout Inverted dimming: fader closed ( DMX value 000 ) blackout fader open ( DMX value 255 ) full light output

Press the MENU button up to when the is shown on the display. Press the ENTER button so the display starts blinking. Use DOWN and UP buttons to select the (normal) or (dimmer inversion) mode. Once the mode has been selected, press the ENTER button to save it. ( or automatically return to the main functions without any change after 8 seconds ) To go back to the functions without any change press the MENU button again. Led Display Display on: display is always on. Display off: display is off when not used. Press the MENU button until the display shows Press the ENTER button, the display starts blinking. Use DOWN and UP buttons to select (display always on) or (display off when not used). Once the mode has been selected, press the ENTER button to save it. The led display stops working after about 40 seconds (or automatically return to the main functions without any change after 8 seconds) To go back to the functions without any change press the MENU button again. Display Inversion Display normal: display is readable when the unit is on the floor. Display inversion: display is readable when the unit is mounted upside down. Press the MENU button untill is blinking on the display. (normal display) Use the ENTER button to change to the mode (display inversion), the option will be automatically stored after 8 seconds. Or press the ENTER button again return to the mode (normal display). To go back to the functions press the MENU button. Fixture Hours Used to show the number of working hours of the unit. Press the MENU button untill is blinking on the display. Press the ENTER button to show the number of working hours in the display. To go back to the functions press the MENU button. Reset Used to force a reset of the unit. Press the MENU button untill is blinking on the display. Press the ENTER to reset all channels to their standard position. To go back to the functions press the MENU button. Please also check the chapter about the DMX-channel configuration of the unit to find out how you can force a reset by DMX. HOW TO CONNECT THE UNIT BY DMX The DMX-protocol is a widely used high speed signal to control intelligent light equipment. You need to “daisy chain” your DMX controller and all the connected light effects with a good quality XLR M/F balanced cable. To prevent strange behavior of the light effects, due to interferences, you must use a 90Ω to 120Ω terminator at the end of the chain. Never use Y-splitter cables, this simply won’t work! Focus Adjust Used to help you adjusting the focus of the light beam and gobos. Press the MENU button untill is blinking on the display. Press the ENTER button and the unit will focus on center position You are able to adjust the focus with the UP/DOWN buttons on the unit (the display shows the current focus status). To go back to the functions press the MENU button. Each light effect in the chain needs to have its proper starting address so it knows which commands from the controller it has to decode. HOW TO SET THE THE RIGHT STARTING ADDRESS: Refer to the previous chapter (DMX-512 address setting) to learn how to set the starting address on this unit. The starting address of each unit is very important. Unfortunately it is impossible to tell you in this user manual which starting addresses you have to set because this completely depends on the controller you will use… So please refer to the user manual of your DMX-controller to find out which starting addresses you must set. JB SYSTEMS® 7/58 iROCK 7S-7B JB SYSTEMS® 8/58 iROCK 7S-7B ENGLISH OPERATION MANUAL ENGLISH OPERATION MANUAL

HOW TO OPERATE THE UNIT

DMX-CONFIGURATION OF IROCK 7S-7B: Every time you turn the unit on, it will show Ir7b/Ir7s on the display and move all the motors to their ‘home’ position and you may hear some noises for about 20 seconds. After that the unit will be ready to receive DMX signal or run the built-in programs. You can operate the unit in three ways: o By master/slave built-in preprogram function o By CA-8 easy controller o By universal DMX controller BY MASTER/SLAVE BUILT-IN PREPROGRAM FUNCTION: Select this function when you want an instant show. By linking the units in master/slave connection, the first unit will control the other units to give an automatic, sound activated, synchronized light show. Its DMX input will have nothing plugged into it, and its master-LED will be constantly on and sound-LED will flash to the music. Important! This function only works when the blackout mode in the menu of the master is set to OFF, otherwise nothing will happen! Read more about this option in the “Main Menu” paragraph. SLAVES have 2 working options: The other units are set to slave mode (slaveLED is constantly on). In order to create a great light show you can introduce contrast movements (pan/tilt of slave is inverted) In the menu of the slave units you can go to option and select: Normal slave: slave works in sync with the master. 2 light show: slave works in opposite with the master. BY EASY CONTROLLER: When used in Master/slave mode we strongly advice you to use the CA-8 “Easy controller” Just connect this small controller to the 1/4” jack of the master unit, and you will be able to control the following FUNCTIONS: Stand by Blackout the unit Strobe 1.Gobo/Color sync. strobe Function Mode JB SYSTEMS® 9/58 iROCK 7S-7B 2.Sync. strobe 3.Two-light strobe Sound 1 (LED off ) JB SYSTEMS® X/Y moving show mode selection ( Show 1 ~ Show

Color/Gobo selection

MAINTENANCE Make sure the area below the installation place is free from unwanted persons during servicing. Switch off the unit, unplug the mains cable and wait until the unit has been cooled down. During inspection the following points should be checked: All screws used for installing the device and any of its parts should be tightly fastened and may not be corroded. Housings, fixations and installations spots (ceiling, truss, suspensions) should be totally free from any deformation. When an optical lens is visibly damaged due to cracks or deep scratches, it must be replaced. The mains cables must be in impeccable condition and should be replaced immediately when even a small problem is detected. In order to protect the device from overheat the cooling fans (if any) and ventilation openings should be cleaned monthly. The interior of the device should be cleaned annually using a vacuum cleaner or air-jet. The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surroundings can cause greater accumulation of dirt on the unit’s optics. Clean with a soft cloth using normal glass cleaning products. Always dry the parts carefully. Clean the external optics at least once every 30 days. Clean the internal optics at least every 90 days. Attention: We strongly recommend internal cleaning to be carried out by qualified personnel! SPECIFICATIONS Mains Input: Fuse: Sound Control: DMX connections: Lamp: Size: Weight: AC 230V, 50Hz 10A/250V Fast blow (20mm glass) Internal microphone 3pin XLR male / female MSD 250/2 695 x 340 x 250 mm 15 kg
