USER MANUAL LED PAR 64 BEGLEC

EN - DISPOSAL OF THE DEVICE

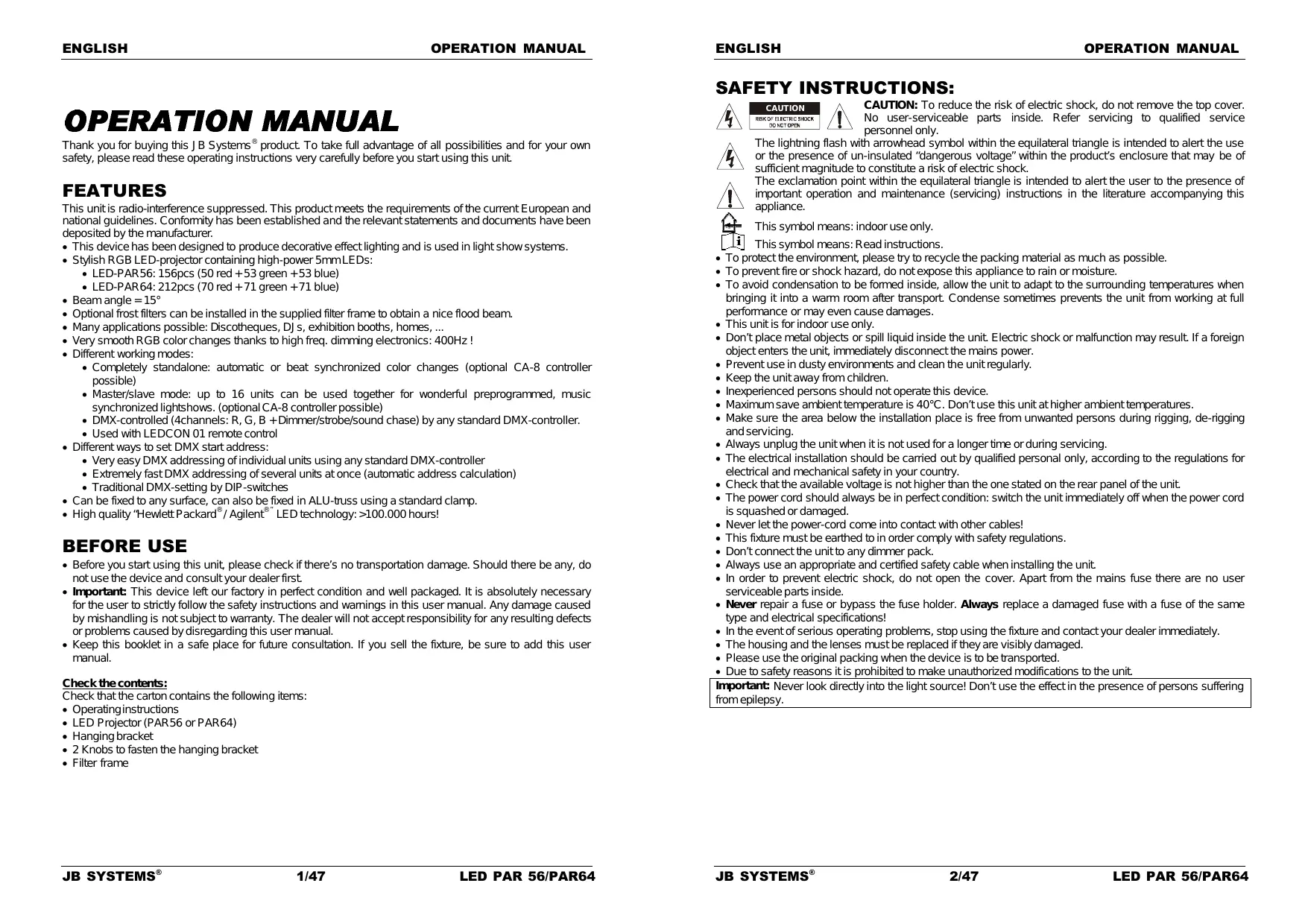

Dispose of the unit and used batteries in an environment friendly manner according to your country regulations. SAFETY INSTRUCTIONS: CAUTION: To reduce the risk of electric shock, do not remove the top cover. No user-serviceable parts inside. Refer servicing to qualified service personnel only. The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use or the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying this appliance. CAUTION Thank you for buying this JB Systems® product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES This unit is radio-interference suppressed. This product meets the requirements of the current European and national guidelines. Conformity has been established and the relevant statements and documents have been deposited by the manufacturer. This device has been designed to produce decorative effect lighting and is used in light show systems. Stylish RGB LED-projector containing high-power 5mm LEDs: LED-PAR56: 156pcs (50 red + 53 green + 53 blue) LED-PAR64: 212pcs (70 red + 71 green + 71 blue) Beam angle = 15° Optional frost filters can be installed in the supplied filter frame to obtain a nice flood beam. Many applications possible: Discotheques, DJs, exhibition booths, homes, ... Very smooth RGB color changes thanks to high freq. dimming electronics: 400Hz ! Different working modes: Completely standalone: automatic or beat synchronized color changes (optional CA-8 controller possible) Master/slave mode: up to 16 units can be used together for wonderful preprogrammed, music synchronized lightshows. (optional CA-8 controller possible) DMX-controlled (4channels: R, G, B + Dimmer/strobe/sound chase) by any standard DMX-controller. Used with LEDCON 01 remote control Different ways to set DMX start address: Very easy DMX addressing of individual units using any standard DMX-controller Extremely fast DMX addressing of several units at once (automatic address calculation) Traditional DMX-setting by DIP-switches Can be fixed to any surface, can also be fixed in ALU-truss using a standard clamp.

High quality “Hewlett Packard / Agilent LED technology: >100.000 hours! BEFORE USE Before you start using this unit, please check if there’s no transportation damage. Should there be any, do not use the device and consult your dealer first. Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects or problems caused by disregarding this user manual. Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user manual. Check the contents: Check that the carton contains the following items: Operating instructions LED Projector (PAR56 or PAR64) Hanging bracket 2 Knobs to fasten the hanging bracket Filter frame JB SYSTEMS® 1/47

LED PAR 56/PAR64

This symbol means: indoor use only. This symbol means: Read instructions. To protect the environment, please try to recycle the packing material as much as possible. To prevent fire or shock hazard, do not expose this appliance to rain or moisture. To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance or may even cause damages. This unit is for indoor use only. Don’t place metal objects or spill liquid inside the unit. Electric shock or malfunction may result. If a foreign object enters the unit, immediately disconnect the mains power. Prevent use in dusty environments and clean the unit regularly. Keep the unit away from children. Inexperienced persons should not operate this device. Maximum save ambient temperature is 40°C. Don’t use this unit at higher ambient temperatures. Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing. Always unplug the unit when it is not used for a longer time or during servicing. The electrical installation should be carried out by qualified personal only, according to the regulations for electrical and mechanical safety in your country. Check that the available voltage is not higher than the one stated on the rear panel of the unit. The power cord should always be in perfect condition: switch the unit immediately off when the power cord is squashed or damaged. Never let the power-cord come into contact with other cables! This fixture must be earthed to in order comply with safety regulations. Don’t connect the unit to any dimmer pack. Always use an appropriate and certified safety cable when installing the unit. In order to prevent electric shock, do not open the cover. Apart from the mains fuse there are no user serviceable parts inside. Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same type and electrical specifications! In the event of serious operating problems, stop using the fixture and contact your dealer immediately. The housing and the lenses must be replaced if they are visibly damaged. Please use the original packing when the device is to be transported. Due to safety reasons it is prohibited to make unauthorized modifications to the unit. Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy. JB SYSTEMS® 2/47

LED PAR 56/PAR64

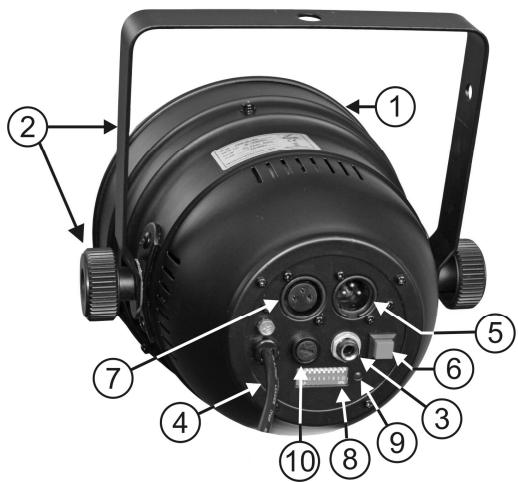

ENGLISH OPERATION MANUAL DESCRIPTION:

1. Open front with 5mm LEDs and filter frame

2. Hanging bracket with knobs on both sides to

fasten the unit and a mounting hole to fix a mounting hook.

3. ¼” jack used to connect the optional CA-8

4. Mains cable

5. DMX-input connector

6. “Auto DMX-address” button

7. DMX-output connector

8. DIP-switches used to manually set the DMXaddress

9. Signal present LED:

DMX-signal detected: LED blinks regularly, ready to receive instructions from a controller. DMX-signal not detected: LED blinks to the rhythm of the music, detected by the internal micro.

10. Mains fuse: Always replace this fuse with a

fuse that has the same characteristics! (250V/2A slow)

ELECTRICAL INSTALLATION + ADDRESSING

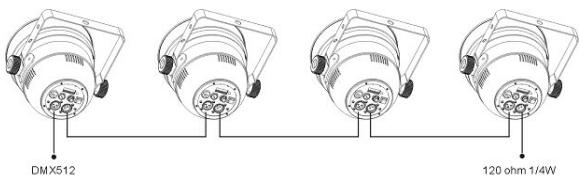

Important: The electrical installation should be carried out by qualified personal only, according to the regulations for electrical and mechanical safety in your country. Electrical installation for 1 standalone unit: Just insert the mains cable. The unit starts working immediately in stand-alone mode Remark: You can connect a CA-8 remote controller to the unit if you want to have more control. Refer to section “C” of the operation instructions to learn how to do this. Electrical installation for two or more units in master/slave: Connect 2 to maximum 16 units together using good quality balanced microphone cables. The unit that has no cable connected to its DMX-input will react as “master”, the others are the slave units. Make sure that all units are connected to the mains. Done! Remark: You can connect a CA-8 remote controller to the master unit if you want to have more control over the master/slave operation. You can also connect the LEDCON 01 remote controller, in this case all units will respond equally (all units have the same color) Electrical installation for two or more units in DMX-mode: The DMX-protocol is a widely used high speed signal to control intelligent light equipment. You need to “daisy chain” your DMX controller and all the connected units with a good quality balanced cable. To prevent strange behavior of the light effects, due to interferences, you must use a 90Ω to 120Ω terminator at the end of the chain. Never use Y-splitter cables, this simply won’t work! Make sure that all units are connected to the mains. Each light effect in the chain needs to have its proper starting address so it knows which commands from the controller it has to decode. In the next section you will learn how to set the DMX addresses. JB SYSTEMS® 3/47

LED PAR 56/PAR64

ENGLISH OPERATION MANUAL How to set the DMX addresses: There are 3 ways to set the DMX-address of the units. If you use setting options A or B you MUST set ALL DIP-switches to OFF position! A. Setting individual DMX-addresses per projector: Make sure that ALL DIP-switches are set to OFF position! Make sure the DMX cables of all units are connected. Connect the first unit to a universal DMX controller. Connect all units to the mains so they are switched on. Set all DMX-channels on your DMX-controller to zero (value 000). Set the DMX-channel, that you want to assign as DMX-start address on you projector, tot maximum (value 255) Press the “Auto DMX address” button (6) on the projector shortly. If you want to set another projector to the same DMX-start address, simply press it’s “Auto DMX address” button (6) and it will receive the same address. Done! An example to make things clear: We will set the DMX start address of a projector to 106: Connect the projector to the DMX-controller as described above and make sure all is switched on. Set all DMX-channels on the controller to zero (000) Now set DMX-channel 106 to maximum (255) Press the “Auto DMX address” button (6) on the projector shortly. Done! Your projector now has DMX address 106! B. Automatic DMX-addressing, starting from any given start address: To save a lot of time (imagine the time it takes to set the DIP switches of 16 units…) you can set the DMX addresses of all units in the DMX-chain just by the push of a button. No need to calculate the starting address of each individual unit, this will be done for you! Make sure that ALL DIP-switches are set to OFF position! Make sure the DMX cables of all units are connected. Connect the first unit to a universal DMX controller. Connect all units to the mains so they are switched on. Set all DMX-channels on your DMX-controller to zero (value 000). Set the DMX-channel, that you want to assign as DMX-start address on you projector, tot maximum (value 255) Press the “Auto DMX address” button (6) on the first projector in the chain for about 5seconds. Done! The first projector in the chain will receive the DMX-start address you chose and it will automatically calculate and program the DMX addresses of all the other units in the DMX-chain! An example to make things clear: We want to set the DMX-addresses of 16 units, the DMX start address of the first projector must be 202: Connect all projectors to the DMX-controller as described above and make sure all are switched on. Set all DMX-channels on the controller to zero (000) Now set DMX-channel 202 to maximum (255) Press the “Auto DMX address” button (6) on the first projector in the chain for about 5seconds. Done! The first projector in the chain will receive DMX-start address 202 and it will automatically calculate and program the DMX addresses of all the other units in the DMX-chain!

This means that the 2 projector automatically receives address 206, the 3 has address 210, …, until the 16 projector who automatically receives start address 262. You just programmed 16 projectors, this took you about 10seconds!!! Remark: you can mix the units with other DMX-effects that don’t have the automatic DMXaddressing option. In that case you still have to set the DMX-addresses of these DMX-effects manually! C. How to set the DIP-switches to obtain the right starting address: This is the traditional way: MUCH slower… On the back of the LED PAR you will see that each of the first 9 DIP-switches corresponds to a certain DMX-value (DIP-switch 10 is not used): JB SYSTEMS® 4/47

LED PAR 56/PAR64

ENGLISH OPERATION MANUAL Dip

You can combine the values of these switches to obtain any starting address between 1 and 512: Begin address = 01 switch 1=ON values: 1 Begin address = 05 switch 1+3=ON values: 1+4 = 5 Begin address = 09 switch 1+4=ON values: 1+8 = 9 Begin address = 13 switch 1+3+4=ON values: 1+4+8 = 13 Begin address = 62 switch2+3+4+5+6=ON values: 2+4+8+16+32 = 62 ENGLISH MODE (LED slow blinking) (LED fast blinking) D. Controlled by universal DMX-controller: Connect all units together. Refer to the chapter “Electrical installation for two or more units in DMXmode” to learn how to do this (don’t forget to address all units properly!) Connect all units to the mains and turn on the DMX controller. Since each unit has its own DMX-address, you can control them individually. Remember that each unit uses 4 DMX-channels as shown in the DMX chart below: OVERHEAD RIGGING Important: The installation must be carried out by qualified service personal only. Improper installation can result in serious injuries and/or damage to property. Overhead rigging requires extensive experience! Working load limits should be respected, certified installation materials should be used, the installed device should be inspected regularly for safety. Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing. The device should be installed out of reach of people and outside areas where persons may walk by or be seated. Before rigging make sure that the installation area can hold a minimum point load of 10times the device’s weight. Always use a certified safety cable that can hold 12times the weight of the device when installing the unit. This secondary safety attachment should be installed in a way that no part of the installation can drop more than 20cm if the main attachment fails. The device should be well fixed; a free-swinging mounting is dangerous and may not be considered! The operator has to make sure that the safety-relating and machine-technical installations are approved by an expert before using them for the first time. The installations should be inspected every year by a skilled person to be sure that safety is still optimal. OPERATING INSTRUCTIONS A. Standalone 1unit: Just connect the unit to the mains and put on some music. The unit starts working automatically to the rhythm of the music. Remark: You can connect a CA-8 remote controller to the unit if you want to have more control. B. Two or more units in master/slave setup: Connect 2 to maximum 16 units together. Refer to the chapter “electrical installation” to learn how to do this (don’t forget to address all units properly!) Connect all units to the mains and put on some music. The units will start working automatically to the rhythm of the music and show the internal chase programs. Remark: You can connect a CA-8 remote controller to the master unit if you want to have more control over the master/slave operation. C. Connect the optional CA-8 controller for more control: The CA-8 controller can only be used in standalone or master/slave mode. Connect the controller to the CA-8 input of the first unit (master). Now you can control all the connected units: BUTTON STANDBY FUNCTION ACTIONS To blackout all the fixtures Strobe 9 Color select Color Chase Color Fade 1.Synchronous strobe in white color 2.The same color chase 3.Differentcolor strobe

1. The same color

2. Different color

3. One light chase

4. Two lights chase

5. Four lights chase

1. Fast speed

2. Middle speed

3. Slow speed

LED PAR 56/PAR64

BEAM ANGLE + FILTER FRAME

With LED PAR projectors you can project any RGB color you want so normally there’s no need for a color filter frame. However with this projector the filter frame is used to influence the beam angle of the spot: To obtain nice colored beams with high intensity the beam angle of this projector is only 15°. This is perfect for DJ and stage applications but for some architectural applications you need a wider beam. In these cases you can install a special FROST filter in the filter frame to widen the beam and obtain a nice, evenly distributed light output. You can obtain such frost filters from Briteq . MAINTENANCE Make sure the area below the installation place is free from unwanted persons during servicing. Switch the unit off and unplug the mains cable. During inspection the following points should be checked: All screws used for installing the device and any of its parts should be tightly fastened and may not be corroded. Housings, fixations and installations spots (ceiling, truss, suspensions) should be totally free from any deformation. The mains cables must be in impeccable condition and should be replaced immediately when even a small problem is detected. The interior of the device should be cleaned annually using a vacuum cleaner or air-jet. The cleaning of internal and external optics must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surroundings can cause greater accumulation of dirt on the unit’s optics. Clean with a soft cloth using normal glass cleaning products. Always dry the parts carefully. Clean the external optics at least once every 30 days. Attention: We strongly recommend internal cleaning to be carried out by qualified personnel! JB SYSTEMS® 6/47

LED PAR 56/PAR64

ENGLISH OPERATION MANUAL FRANÇAIS

MODE D’EMPLOI

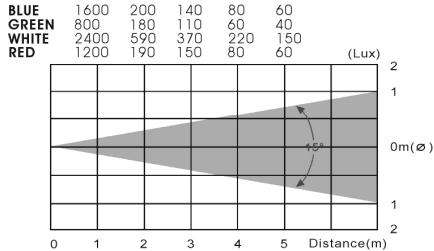

SPECIFICATIONS LED PAR56: Mains Input: Power consumption: Fuse: Sound Control: DMX connections: LEDs: Beam angle: Luminous intensity: Size: Weight: 230V 50Hz 21Watt 250V 2A slow blow (20mm glass) Internal microphone XLR 3pin 156 high power LEDs (R50 + G53 + B53) 15° (wider with special frost filters installed) see chart below see drawing below 2,5kg

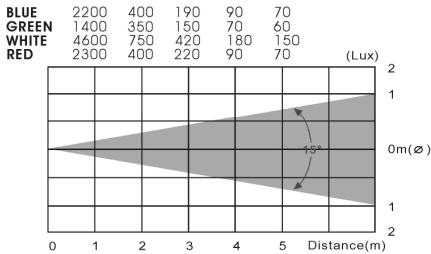

LED PAR64: Mains Input: Power consumption: Fuse: Sound Control: DMX connections: LEDs: Beam angle: Luminous intensity: Size: Weight: 230V 50Hz 28Watt 250V 2A slow blow (20mm glass) Internal microphone XLR 3pin 212 high power LEDs (R70 + G71 + B71) 15° see chart below see drawing below 3,0kg AVANT UTILISATION Every information is subject to change without prior notice You can download the latest version of this user manual on our website: www.beglec.com (LED clignote lentement)
