USER MANUAL C3-1800 BEGLEC

Copyright © 2007 by BEGLEC cva. Reproduction or publication of the content in any manner, without express permission of the publisher, is prohibited. Version: 1,3 The Power Source for DJ’s

EN - DISPOSAL OF THE DEVICE

Dispose of the unit and used batteries in an environment friendly manner according to your country regulations.

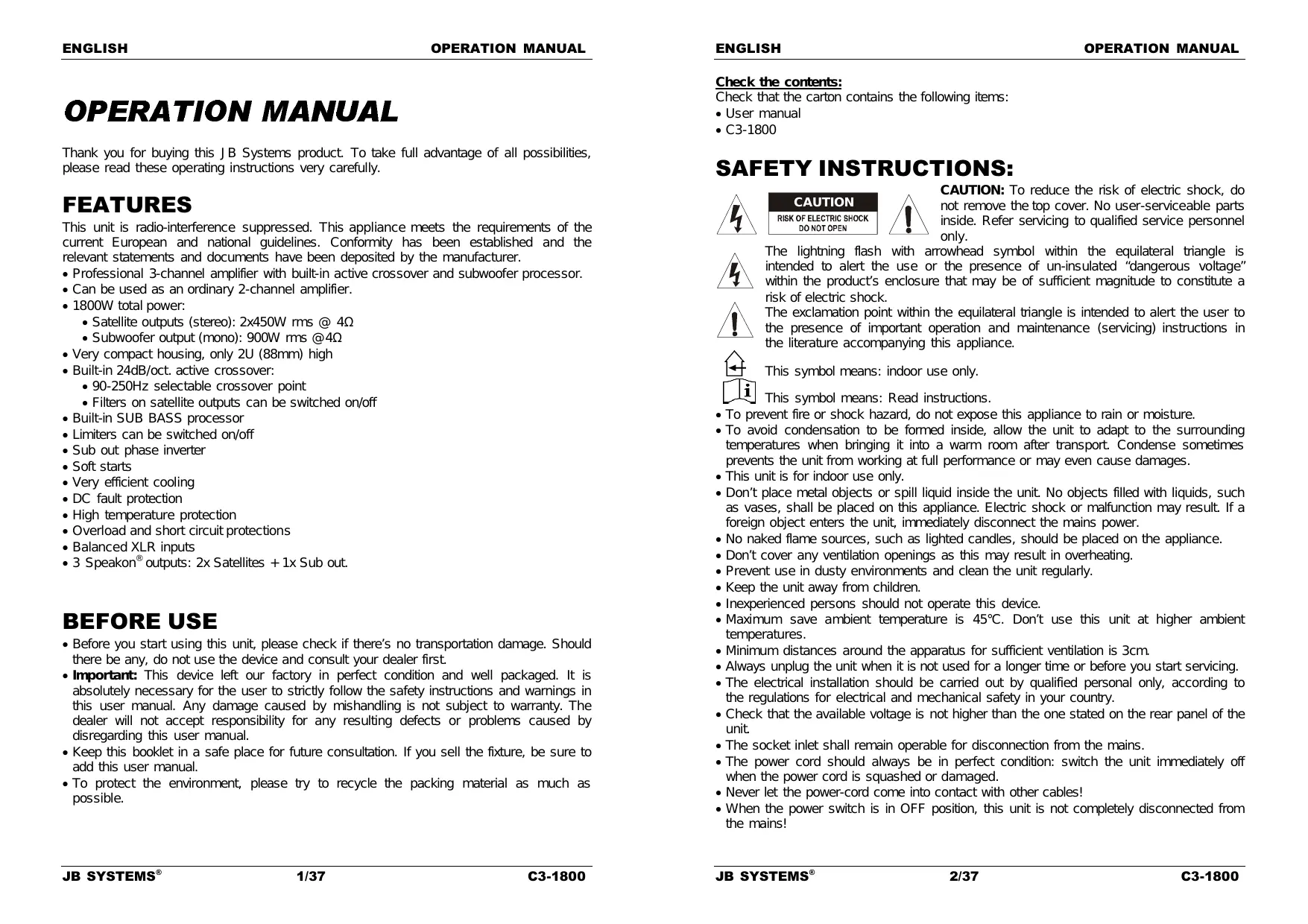

Tente reciclar a unidade e as pilhas usadas respeitando o ambiente e em conformidade com as normas vigentes no seu país. ENGLISH OPERATION MANUAL ENGLISH OPERATION MANUAL Check the contents: Check that the carton contains the following items: User manual C3-1800 Thank you for buying this JB Systems product. To take full advantage of all possibilities, please read these operating instructions very carefully. FEATURES CAUTION: To reduce the risk of electric shock, do not remove the top cover. No user-serviceable parts inside. Refer servicing to qualified service personnel only. The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use or the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying this appliance. CAUTION This unit is radio-interference suppressed. This appliance meets the requirements of the current European and national guidelines. Conformity has been established and the relevant statements and documents have been deposited by the manufacturer. Professional 3-channel amplifier with built-in active crossover and subwoofer processor. Can be used as an ordinary 2-channel amplifier. 1800W total power: Satellite outputs (stereo): 2x450W rms @ 4Ω Subwoofer output (mono): 900W rms @4Ω Very compact housing, only 2U (88mm) high Built-in 24dB/oct. active crossover: 90-250Hz selectable crossover point Filters on satellite outputs can be switched on/off Built-in SUB BASS processor Limiters can be switched on/off Sub out phase inverter Soft starts Very efficient cooling DC fault protection High temperature protection Overload and short circuit protections Balanced XLR inputs 3 Speakon® outputs: 2x Satellites + 1x Sub out. BEFORE USE Before you start using this unit, please check if there’s no transportation damage. Should there be any, do not use the device and consult your dealer first. Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects or problems caused by disregarding this user manual. Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user manual. To protect the environment, please try to recycle the packing material as much as possible. JB SYSTEMS® SAFETY INSTRUCTIONS: 1/37 C3-1800 This symbol means: indoor use only. This symbol means: Read instructions. To prevent fire or shock hazard, do not expose this appliance to rain or moisture. To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance or may even cause damages. This unit is for indoor use only. Don’t place metal objects or spill liquid inside the unit. No objects filled with liquids, such as vases, shall be placed on this appliance. Electric shock or malfunction may result. If a foreign object enters the unit, immediately disconnect the mains power. No naked flame sources, such as lighted candles, should be placed on the appliance. Don’t cover any ventilation openings as this may result in overheating. Prevent use in dusty environments and clean the unit regularly. Keep the unit away from children. Inexperienced persons should not operate this device. Maximum save ambient temperature is 45°C. Don’t use this unit at higher ambient temperatures. Minimum distances around the apparatus for sufficient ventilation is 3cm. Always unplug the unit when it is not used for a longer time or before you start servicing. The electrical installation should be carried out by qualified personal only, according to the regulations for electrical and mechanical safety in your country. Check that the available voltage is not higher than the one stated on the rear panel of the unit. The socket inlet shall remain operable for disconnection from the mains. The power cord should always be in perfect condition: switch the unit immediately off when the power cord is squashed or damaged. Never let the power-cord come into contact with other cables! When the power switch is in OFF position, this unit is not completely disconnected from the mains! JB SYSTEMS® 2/37 C3-1800 ENGLISH OPERATION MANUAL This appliance must be earthed to in order comply with safety regulations. In order to prevent electric shock, do not open the cover. Apart from the mains fuse there are no user serviceable parts inside. Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same type and electrical specifications! In the event of serious operating problems, stop using the appliance and contact your dealer immediately. Please use the original packing when the device is to be transported. Due to safety reasons it is prohibited to make unauthorized modifications to the unit. INSTALLATION GUIDELINES: Install the unit in a well-ventilated location where it will not be exposed to high temperatures or humidity. Placing and using the unit for long periods near heat-generating sources such as amplifiers, spotlights, etc. will affect its performance and may even damage the unit. The unit can be mounted in 19-inch racks. Attach the unit using the 4 screw holes on the front panel. Be sure to use screws of the appropriate size. (screws not provided) Take care to minimize shocks and vibrations during transport. When installed in a booth or flight case, please make sure to have good ventilation to improve heat evacuation of the unit. To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance. CLEANING THE APPLIANCE: Clean by wiping with a polished cloth slightly dipped with water. Avoid getting water inside the unit. Do not use volatile liquids such as benzene or thinner which will damage the unit. CONNECTIONS Be sure to turn off the unit before you make changes to the wiring. For the signal inputs we recommend using good quality signal cables to ensure excellent audio quality. For example use JB cables with order codes: 7-0061 (XLR/XLR L=1m) or 7-0063 (XLR/XLR L=5m). For the speakers you must use the Speakon® compatible outputs. Suitable cables are for example JB order codes: 2-0505 (L=5m) or 2-0510 (L=10m). The picture shows one of the possible setups with the C3-1800 amplifier. JB SYSTEMS® 3/37 C3-1800 ENGLISH OPERATION MANUAL FUNCTIONS (FRONT)

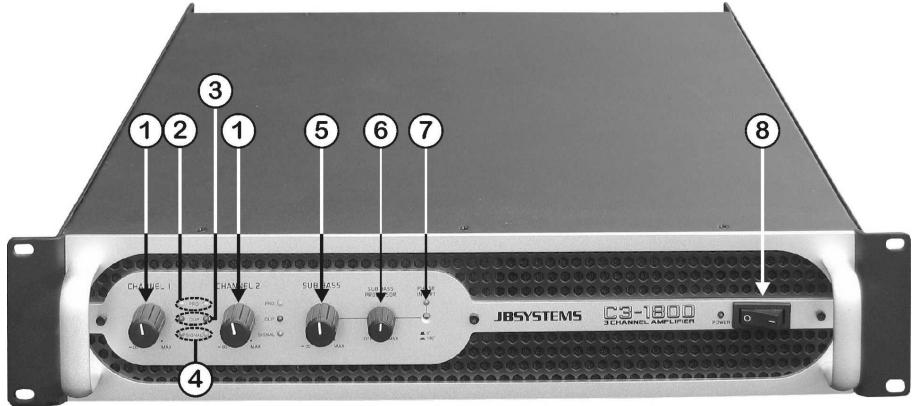

1. SATELLITE GAIN CONTROLS: These potentiometers are used to control the input

sensitivity of the amplifier for the satellites. Each channel has its own control. You can use these controls to set the maximum sound level of your setup: Turn both controls on the amplifier (1) to the left. Put on some music on and make sure the VU meters on your mixer are at 0dB. (from time to time the red zone is lit) Set the Master output from your mixer to maximum. Open the Gain controls from the amplifier (1) until the maximum desired sound level is reached. Make sure nobody can reach the Gain controls of the amplifier. You have just set the maximum level the DJ is able to produce. Your neighbors will be glad… (in some cases the DJ is not )

2. PROTECT LED: The protection LED is on when the speakers are disconnected from

the amplifier. This occurs in the following situations: During the first seconds after switching on the amplifier. When the temperature of the power stage becomes too high. In case of a technical defect: DC protection! While switching the amplifier off, the “protect led” may turn on for a short time.

3. CLIP LED: Turns on just before the maximum, distortion free, output level of the

amplifier. The clip leds may turn on shortly from time to time but they may certainly not turn on for longer periods. In this case you have to turn the output level down!

4. SIGNAL LED: The green signal led indicates that a music signal is present at this

5. SUB BASS GAIN CONTROL: This potentiometer is used to control the sensitivity of

the sub bass amplifier. Put on some music and turn this control slowly up until there’s a nice balance between the high/mid satellite speakers and the subwoofer.

6. SUB PROCESSOR: Controls the amount of low band signal, produced by the bass

processor, from zero to maximum. The setting depends on the application and can be adapted to your own taste. Important: Note that the bass processor should be used with care to avoid possible speaker damage. Most smaller and economical subwoofers are not capable of handling the low frequencies produced by this unit. JB SYSTEMS® 4/37 C3-1800 ENGLISH OPERATION MANUAL

7. PHASE INVERT switch: Sometimes the conductors of the subwoofer are inversed

which results in poor sound quality with a lack of low frequencies: the opposite of what you expected! This can be corrected by inversing the (+) and (-) poles of the cabling to your subwoofer or … by pushing the PHASE INVERT switch! Use a thin pen to press the phase invert switch and compare the results of both positions. The position with the most bass production is the right one!

8. MAINS SWITCH: Used to turn the amplifier on and off. A few seconds after switching

on the amplifier it is ready for operation. The blue led is on when you turn the amplifier on. FUNCTIONS (REAR) ENGLISH OPERATION MANUAL loop between the amplifier and the chassis grounds of various other components in your setup. As a result the hum noises disappear.

16. HIGH PASS FILTER: With this switch you can choose to filter the satellite outputs or

not. If you use small satellite speakers than we strongly suggest to switch the high pass filter on to protect the small speakers. If you use bigger satellite speakers (for example 15”) than you can switch this filter off. The satellite speakers will receive more low frequencies. C3-1800 used as a 2-channel amplifier: You can also use this switch in another way: you can use the C3-1800 as an ordinary 2-channel amplifier. Just put the high pass filter switch in OFF position, connect 2 speaker cabinets to the satellite outputs (13) and don’t use the subwoofer output(12). However don’t forget to put the sub bass gain control (5) to zero.

17. X-OVER FREQ. control: (crossover frequency control) adjusts the cutoff frequency of

the active filter. This crossover frequency can be set in a range of 90 to 250Hz. It’s up to you to adapt its position to your own taste. For most subwoofers 90Hz to 150Hz seems to be the best choice.

18. LIMITER switch: This amplifier has build-in limiters to protect both the amplifier and

the connected speakers. We strongly suggest to put this switch in on position at all times. Nevertheless if you are experienced or you use an external limiter you can switch the internal limiters off. SPECIFICATIONS

9. FAN & VENTILLATION HOLES: during its operation the amplifier produces heat that

must be dissipated. The fans inside the amplifier must be able to evacuate the heat in the most effective way. Therefore is it very important not to cover any of the ventilation openings as this may result in overheating.

10. MAINS input: When all audio cables are connected, you can connect this cable to

11. RESET button: this amplifier uses an automatic fuse. When the fuse is blown, simply

press the button to rearm it.

12. SUBWOOFER OUTPUT: use this Speakon® compatible connector to connect your

subwoofer cabinet. Refer to chapter “connections” to learn which cables are suitable.

13. SATELLITE OUTPUTS: use these Speakon®

compatible connectors to connect your mid/high satellite cabinets. Refer to chapter “connections” to learn which cables are suitable.

14. XLR inputs: You can connect these balanced inputs

to balanced and unbalanced line level audio sources (example: DJ-mixer): Balanced source: Use good quality XLR/XLR balanced audio cables. Example: JB Systems 7-0061 (XLR/XLR L=1m) or 7-0063 (XLR/XLR L=5m) Wiring of the XLR connector: PIN1: GND PIN2: pos+ PIN3: neg-. Unbalanced source: Use good quality XLR/cinch audio cables. Example: JB Systems 2-0445 (XLR/cinch L=1.5m)

15. GROUND LIFT switch: In some cases nasty hum noises can occur due to ground

loops in your setup. Setting the Ground lift switch to the position “lift” breaks the ground JB SYSTEMS® 5/37 C3-1800 Power Satellite outputs @ 4Ω Power Satellite outputs @ 8Ω Power Subwoofer outputs @ 4Ω Power Subwoofer outputs @ 8Ω Freq. Resp. (+/-0.5dB) Activecrossover Input Sensitivity Input impedance S/R ratio Damping factor Cooling Inputs Outputs Power supply Dimensions (mm) Weight 2x 450Wrms 2x 300Wrms 1x 900Wrms 1x 600Wrms

compatible connectors to connect your mid/high satellite cabinets. Refer to chapter “connections” to learn which cables are suitable
