USER MANUAL C2-450 BEGLEC

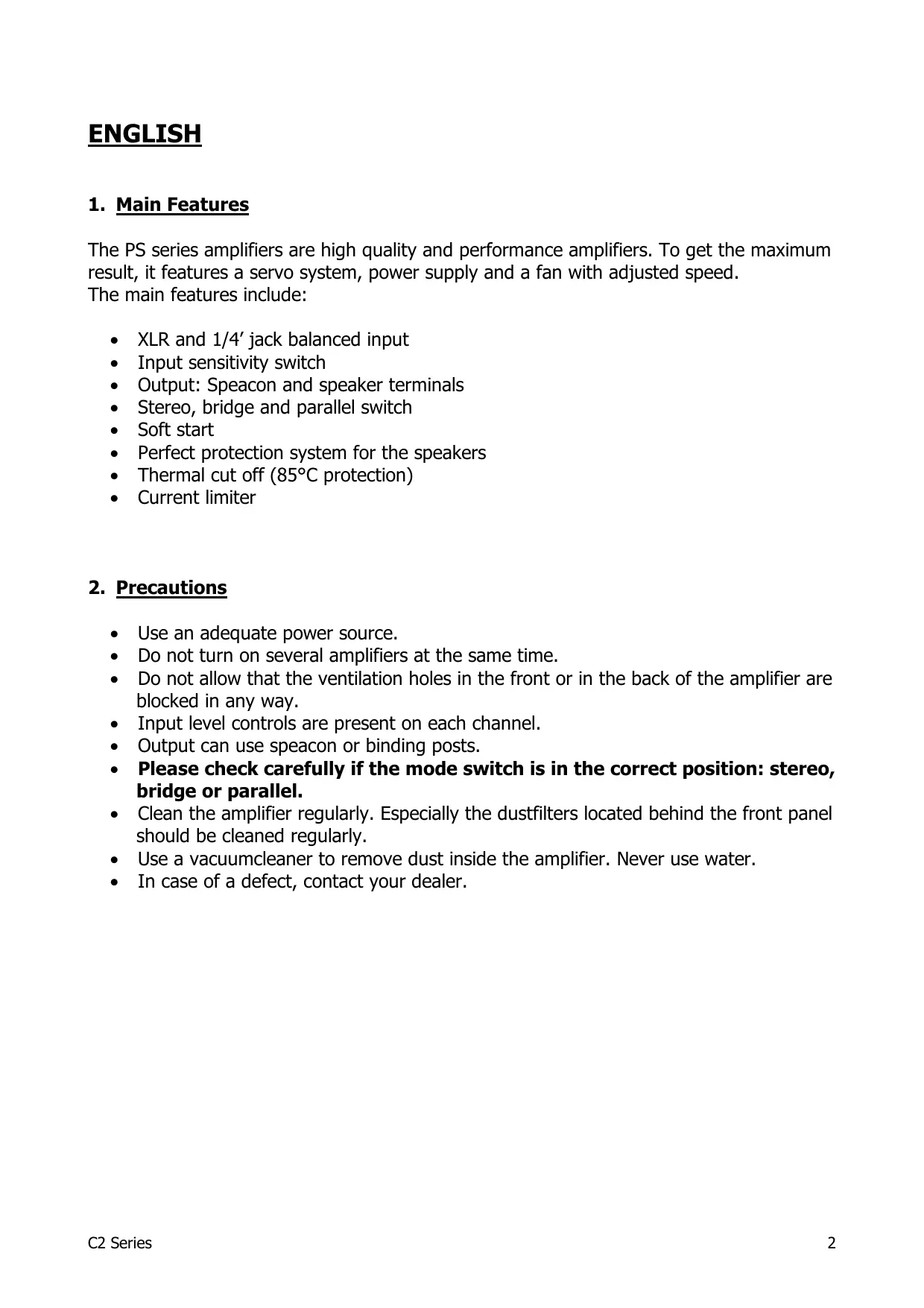

The PS series amplifiers are high quality and performance amplifiers. To get the maximum result, it features a servo system, power supply and a fan with adjusted speed. The main features include:

XLR and 1/4’ jack balanced input Input sensitivity switch Output: Speacon and speaker terminals Stereo, bridge and parallel switch Soft start Perfect protection system for the speakers Thermal cut off (85°C protection) Current limiter

Use an adequate power source. Do not turn on several amplifiers at the same time. Do not allow that the ventilation holes in the front or in the back of the amplifier are blocked in any way. Input level controls are present on each channel. Output can use speacon or binding posts. Please check carefully if the mode switch is in the correct position: stereo, bridge or parallel. Clean the amplifier regularly. Especially the dustfilters located behind the front panel should be cleaned regularly. Use a vacuumcleaner to remove dust inside the amplifier. Never use water. In case of a defect, contact your dealer. C2 Series

3. Major Operation Controls

With this switch, you turn the amplifier on. You will note a brief delay in the switching on, due to the soft start. 2/3. Input Level Control With these rotary VR’s, you can adjust the input level of each side. In bridge or parallel mode, only the left VR is active.

4. Power ON Indicator (green)

Indicates that the amplifier is on.

5. Bridge Mode Indicator (green)

Indicates that the amplifier is working in bridge mode. In this case only the left channel needs an input signal.

6. Parallel Mode Inidicator (green)

Indicates that the amplifier is running in parallel mode. The input signal must only be applied to the left channel. 7/8. Protection LED (yellow) The leds light up when the amplifier is overheated (thermal protection) or when something is wrong with the amplifier. 9/10. Peak Level (clip) Indicator (red) These leds will light up in two situations: a. When the output signal has reached its maximum level, the LED will light. This goes with a distortion of the audio signal. When this occurs, reduce the input level. b. When you have an input signal and the clip led lights continuously, it means that you have a short circuit on the output. Please turn of the amplifier and check out the problem on the load. C2 Series

B. Rear Panel 1/5. 1/4' Jack Input Connectors You can use a balanced or unbalanced input signal.

The position of this switch is very important and depends on the output level of your preamplifier. There are 3 positions:

Full power output at 0,77V input level 26 dB gain of the input signal Full power output at 1,4V input level. Use this position with JBSystems mixers.

You can select between stereo mode, bridge mode or parallel mode. When you use stereo mode, you have to connect the input and output of both channels.

  • When you use bridge mode, the input signal must be applied to the left channel only.
  • When you use parallel mode, the input signal must be applied to the left channel only.

Setting this switch to the position “left” breaks the ground loop between the amplifier and the chassis ground of various components. C2 Series

8/11. Speacon Output When you work in stereo mode, you can use the speacon for connecting your speakers. The connections are: 1+ and 2+ : signal

9/10. Binding Posts In stereo mode: Red = signal Black = ground

12. Power Cord Socket and Fuse

When the fuse is broken, replace by the same type and value.

4. Operation in bridge mode and parallel mode

Turn the amplifier off Connect the input to CH1 (left) only Connect your speaker system across the red terminals ƒRed terminal CH1: signal + ƒRed terminal CH2: signal – (ground) The minimum impedance of your speaker system should be 8 Ohm Set the mode switch on BRIDGE Turn the amplifier on B. Parallel Mode

Turn the amplifier off Connect the input to CH1 (left) only Connect your speakers in the normal way, as you should do in stereo mode Set the mode switch on PARALLEL Turn on the amplifier C2 Series
