USER MANUAL DIGIT 1K0 BEGLEC

Copyright © 2009 by BEGLEC n.v. ‘t Hofveld 2 C ~ B1702 Groot-Bijgaarden ~ Belgium Reproduction or publication of the content in any manner, without express permission of the publisher, is prohibited. CLASS-D AMPLIFIERS

Dispose of the unit and used batteries in an environment friendly manner according to your country regulations.

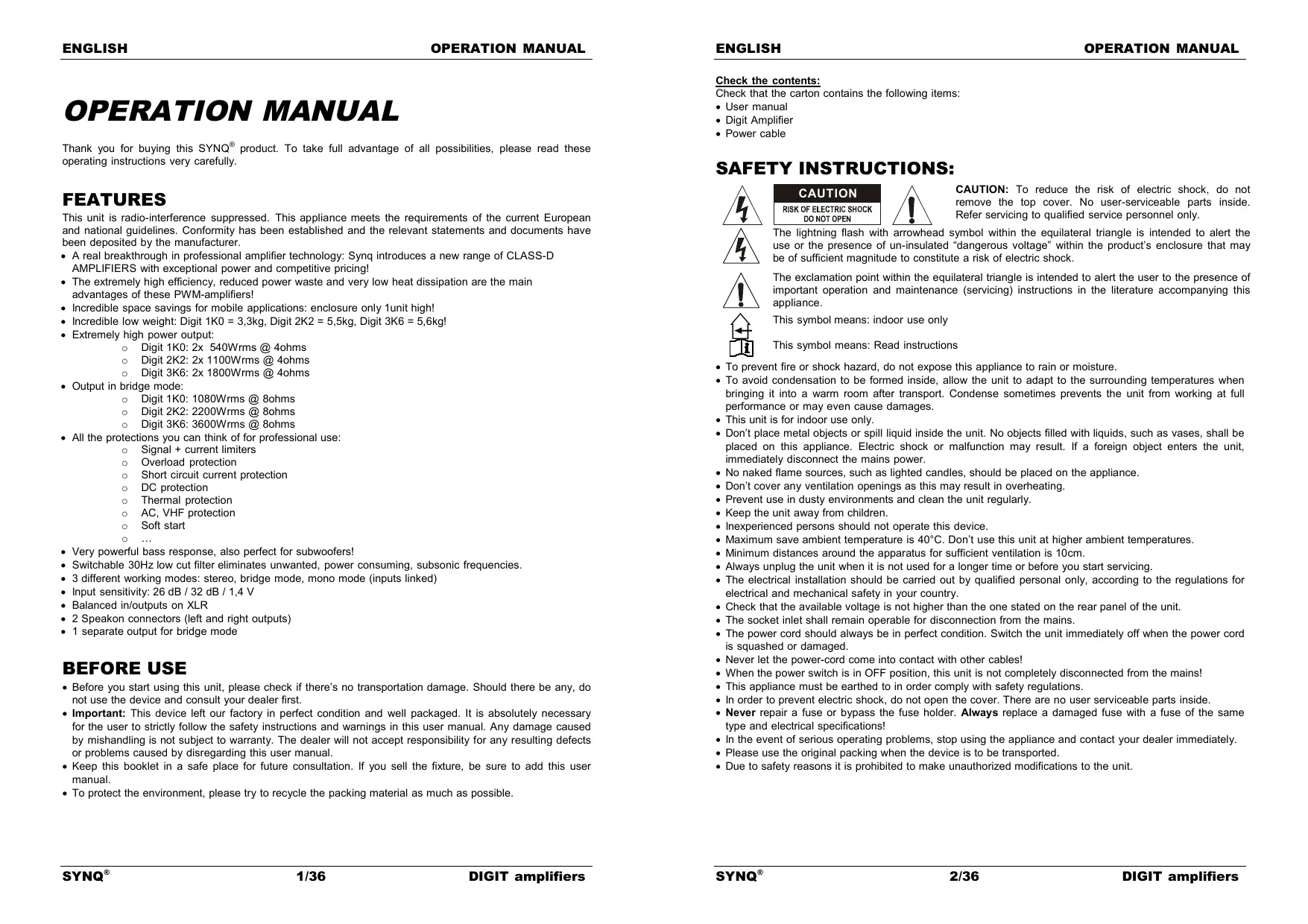

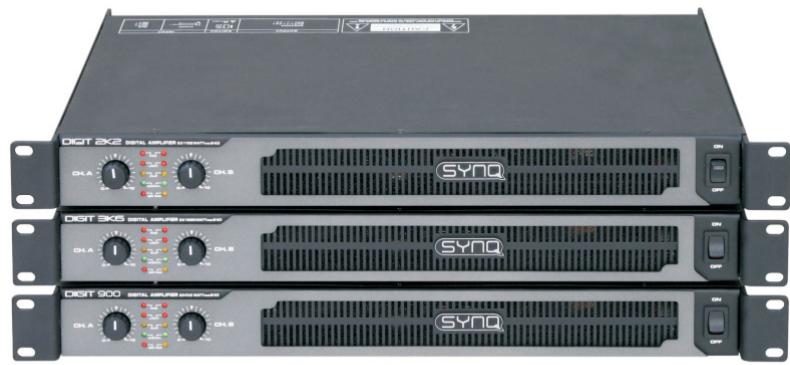

Thank you for buying this SYNQ product. To take full advantage of all possibilities, please read these operating instructions very carefully. SAFETY INSTRUCTIONS: CAUTION FEATURES This unit is radio-interference suppressed. This appliance meets the requirements of the current European and national guidelines. Conformity has been established and the relevant statements and documents have been deposited by the manufacturer. A real breakthrough in professional amplifier technology: Synq introduces a new range of CLASS-D AMPLIFIERS with exceptional power and competitive pricing! The extremely high efficiency, reduced power waste and very low heat dissipation are the main advantages of these PWM-amplifiers! Incredible space savings for mobile applications: enclosure only 1unit high! Incredible low weight: Digit 1K0 = 3,3kg, Digit 2K2 = 5,5kg, Digit 3K6 = 5,6kg! Extremely high power output: o Digit 1K0: 2x 540Wrms @ 4ohms o Digit 2K2: 2x 1100Wrms @ 4ohms o Digit 3K6: 2x 1800Wrms @ 4ohms Output in bridge mode: o Digit 1K0: 1080Wrms @ 8ohms o Digit 2K2: 2200Wrms @ 8ohms o Digit 3K6: 3600Wrms @ 8ohms All the protections you can think of for professional use: o Signal + current limiters o Overload protection o Short circuit current protection o DC protection o Thermal protection o AC, VHF protection o Soft start o … Very powerful bass response, also perfect for subwoofers! Switchable 30Hz low cut filter eliminates unwanted, power consuming, subsonic frequencies. 3 different working modes: stereo, bridge mode, mono mode (inputs linked) Input sensitivity: 26 dB / 32 dB / 1,4 V Balanced in/outputs on XLR 2 Speakon connectors (left and right outputs) 1 separate output for bridge mode BEFORE USE Before you start using this unit, please check if there’s no transportation damage. Should there be any, do not use the device and consult your dealer first. Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects or problems caused by disregarding this user manual. Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user manual. To protect the environment, please try to recycle the packing material as much as possible. SYNQ® 1/36 DIGIT amplifiers CAUTION: To reduce the risk of electric shock, do not remove the top cover. No user-serviceable parts inside. Refer servicing to qualified service personnel only. The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use or the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying this appliance. This symbol means: indoor use only This symbol means: Read instructions To prevent fire or shock hazard, do not expose this appliance to rain or moisture. To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance or may even cause damages. This unit is for indoor use only. Don’t place metal objects or spill liquid inside the unit. No objects filled with liquids, such as vases, shall be placed on this appliance. Electric shock or malfunction may result. If a foreign object enters the unit, immediately disconnect the mains power. No naked flame sources, such as lighted candles, should be placed on the appliance. Don’t cover any ventilation openings as this may result in overheating. Prevent use in dusty environments and clean the unit regularly. Keep the unit away from children. Inexperienced persons should not operate this device. Maximum save ambient temperature is 40°C. Don’t use this unit at higher ambient temperatures. Minimum distances around the apparatus for sufficient ventilation is 10cm. Always unplug the unit when it is not used for a longer time or before you start servicing. The electrical installation should be carried out by qualified personal only, according to the regulations for electrical and mechanical safety in your country. Check that the available voltage is not higher than the one stated on the rear panel of the unit. The socket inlet shall remain operable for disconnection from the mains. The power cord should always be in perfect condition. Switch the unit immediately off when the power cord is squashed or damaged. Never let the power-cord come into contact with other cables! When the power switch is in OFF position, this unit is not completely disconnected from the mains! This appliance must be earthed to in order comply with safety regulations. In order to prevent electric shock, do not open the cover. There are no user serviceable parts inside. Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same type and electrical specifications! In the event of serious operating problems, stop using the appliance and contact your dealer immediately. Please use the original packing when the device is to be transported. Due to safety reasons it is prohibited to make unauthorized modifications to the unit. SYNQ® 2/36 DIGIT amplifiers ENGLISH OPERATION MANUAL INSTALLATION GUIDELINES: Install the unit in a well-ventilated location where it will not be exposed to high temperatures or humidity. Placing and using the unit for long periods near heat-generating sources such as amplifiers, spotlights, etc. will affect its performance and may even damage the unit. The unit can be mounted in 19-inch racks. Attach the unit using the 4 screw holes on the front panel. Be sure to use screws of the appropriate size. (screws not provided) Take care to minimize shocks and vibrations during transport. When installed in a booth or flight case, please make sure to have good ventilation to improve heat evacuation of the unit. To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance. CLEANING THE APPLIANCE: Clean by wiping with a polished cloth slightly dipped with water. Avoid getting water inside the unit. Do not use volatile liquids such as benzene or thinner which will damage the unit. Clean the ventilation holes regularly with a vacuum cleaner. This increases the cooling capacity of the amplifier fans and helps preventing temperature overheat. CONNECTIONS Be sure to turn off the unit before you make changes to the wiring. For the signal inputs we recommend using the XLR-connections. Use good quality signal cables to ensure excellent audio quality. For the speakers you must use the Speakon® outputs. In the description of the unit you will find more information on how to connect the amplifier. FUNCTIONS (FRONT) ENGLISH OPERATION MANUAL

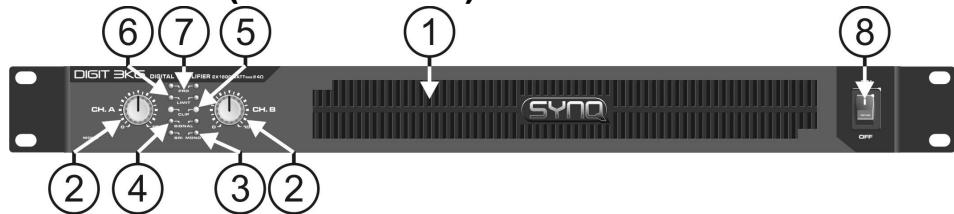

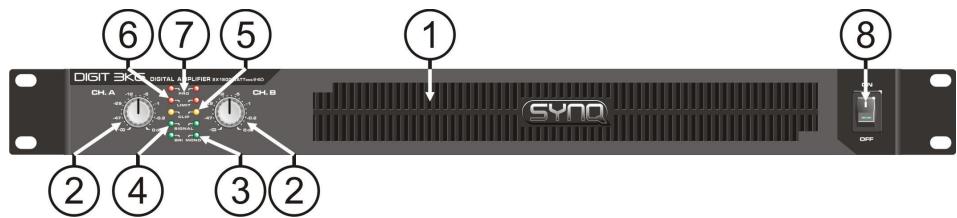

3. OPERATION MODE LEDS: These LEDs indicates the operation mode. Switch (14) on the rear panel is

used to choose one of these 3 possible modes: STEREO MODE: Both LEDs are off. This is the most common mode, both channels are working separately. MONO MODE: ‘MONO’ LED is lit. Basically this is identical to stereo mode but the inputs of both channels are linked so the output will be mono. In this case you only need to use the input of the left channel to drive both output channels. BRIDGE MODE: ‘BRI’ LED is lit. Both channels are linked in “bridge mode” to obtain a mono output with much higher power.

4. SIGNAL LEDS: these LEDs indicate that a music signal is present at the inputs.

5. CLIP LEDS: The LEDs will light up in the following situations:

When the output signal has reached a high level which can result in distortion (clipping). Meanwhile the signal limiters are working to keep the distortion low. While short-circuit happened in the output section. Turn-off the amplifier, check the speaker and output wiring to find the problem(s).

6. LIMIT LEDS: [only on DIGIT 2K2 and DIGIT 3K6] these LEDs are lit in the following situations:

When the output power exceeds the safe working range of the amplifier, the LIMIT LEDs are lit while the current limiters come in action to reduce the dynamic range (current) of the output and bring the amplifier back to its safe working range. In this case you are urged lower the input! While short-circuit happened in the output section and the amplifier is in protect mode. Turn-off the amplifier, check the speaker and output wiring to find the problem(s).

7. PROTECT LEDS: The protection LED is on in the following situations:

During the first seconds after switching on the amplifier. When the temperature of the power stage becomes too high. In case of a technical defect: DC protection! While switching the amplifier off, the “protect led” turns on for a short time.

8. MAINS SWITCH: Used to turn the amplifier on and off. A few seconds after switching on the amplifier it

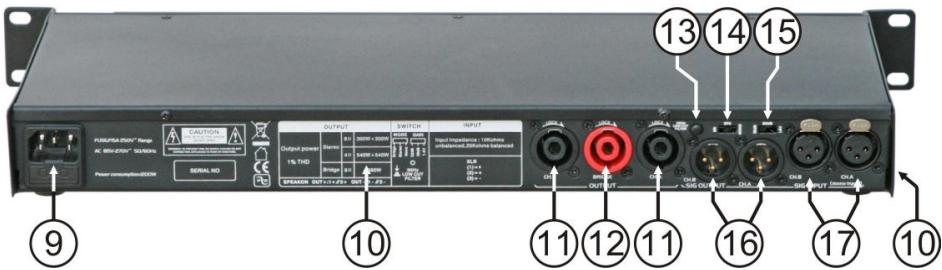

is ready for operation. FUNCTIONS (rear)

1. VENTILLATION HOLES: during its operation the amplifier produces heat that needs to be dissipated.

The fans inside the amplifier must be able to evacuate the heat in the most effective way. Therefore is it very important not to cover any of the ventilation openings as this may result in overheating. Clean the ventilation holes regularly with a vacuum cleaner. This increases the cooling capacity of the amplifier fans and helps preventing temperature overheat.

2. GAIN CONTROLS: These potentiometers are used to control the input sensitivity of the amplifier. Each

channel has its own control. You can use these controls to set the maximum sound level of your setup: Turn both controls on the amplifier to the left. Put on some music on and make sure the VU meters on your mixer are at 0dB. (from time to time the red zone is lit) Set the Master output from your mixer to maximum. Open the Gain controls from the amplifier until the maximum desired sound level is reached. Make sure nobody can reach the Gain controls of the amplifier. You have just set the maximum level the DJ is able to produce. Your neighbors will be glad… (in some cases the DJ is not ) Note: In Mono and Bridge mode, only the gain control of the left channel is used to adjust the input sensitivity. SYNQ® 3/36 DIGIT amplifiers

9. MAINS INPUT with IEC socket and integrated fuse holder, connect the supplied mains cable here.

10. FAN & VENTILLATION HOLES: during its operation the amplifier produces heat that must be

dissipated. The fans inside the amplifier must be able to evacuate the heat in the most effective way. Therefore is it very important not to cover any of the ventilation openings as this may result in overheating. On DIGIT 1K0 the ventilation holes are located on the left side, on DIGIT 2K2/3K6 the ventilation holes are located on the back.

11. L+R SPEAKON OUTPUTS: use these Speakon connectors to connect your speaker cabinets

(impedance >4ohm) in stereo or mono mode. Wiring of these connectors is as follows: POS(+) = Speakon connector PIN1+ and PIN2+ NEG(-) = Speakon connector PIN1- and PIN212. BRIDGE OUTPUT: use this connector to connect your speaker cabinet (impedance >8ohm) in bridge mode. Wiring of this connector is as follows: POS(+) = connector PIN1+ and PIN2+ NEG(-) = connector PIN1- and PIN2- SYNQ® 4/36 DIGIT amplifiers ENGLISH OPERATION MANUAL

13. 30Hz LOW CUT FILTER: eliminates unwanted subsonic frequencies under 30Hz. In most cases these

frequencies only consume a lot of energy without any added value to the music.

14. OPERATION MODE switch: Used to set the operation mode of the amplifier. The most common

operation mode is “stereo”. If you need more power, you can operate the amplifier in bridge mode. In mono mode you only have to connect the left input to drive both outputs. Refer also to n° 3 for more information.

15. INPUT SENSITIVITY SWITCH: you can choose 3 different input levels: 26 dB / 32 dB / 1,4 V

16. BALANCED XLR OUTPUTS: Can be used to send the signal to the next amplifier. Pin1: signal ground,

1050Wrms 1800Wrms 3600Wrms 1050Wrms 1800Wrms >90% 5 – 36.000Hz 26 dB / 32 dB / 1,4 V 10 kΩ 20 kΩ >100dB 29V/uS variable speed fan Balanced XLR Balanced XLR AC230V / 50Hz 3900 Watt 482x44x301 (19"/1U) 5,6kg Every information is subject to change without prior notice You can download the latest version of this user manual on our website: www.beglec.com MONO OPERATION: Connect the audio signal to the input of the left channel (15 or 16) Set the operation mode switch (13) to “mono” Connect the matching speakers to the L+R Speakon outputs (11) Make sure the mains voltage matches 230Vac before connecting the mains cable to the earthed wall socket Set both input gains (2) to zero Make sure there’s a music signal at the input Turn the amplifier on (8) Adjust the left input gain (2) to the desired level, leave the right channel gain to zero. SYNQ® 5/36 DIGIT amplifiers SYNQ® 6/36 DIGIT amplifiers FRANCAIS
